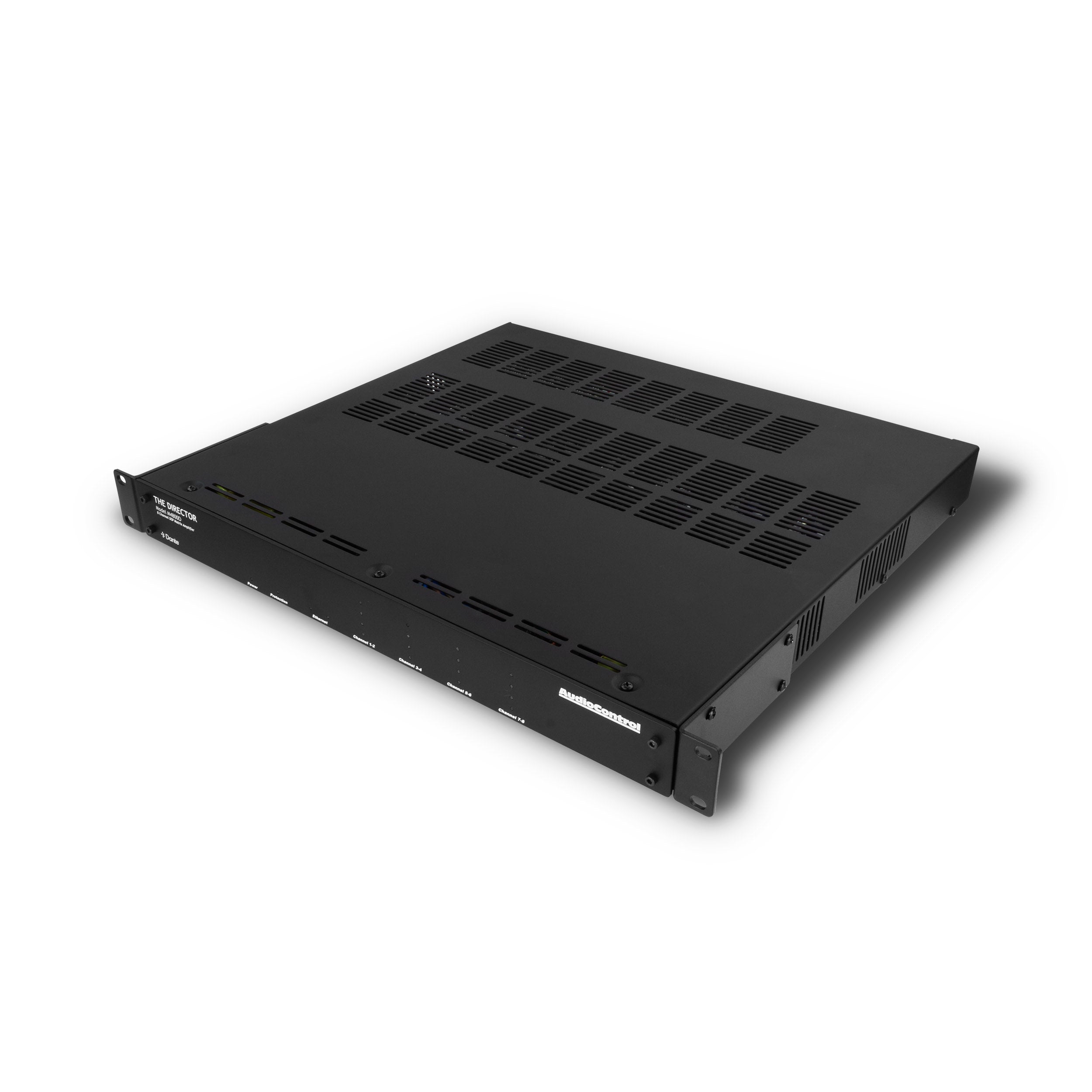

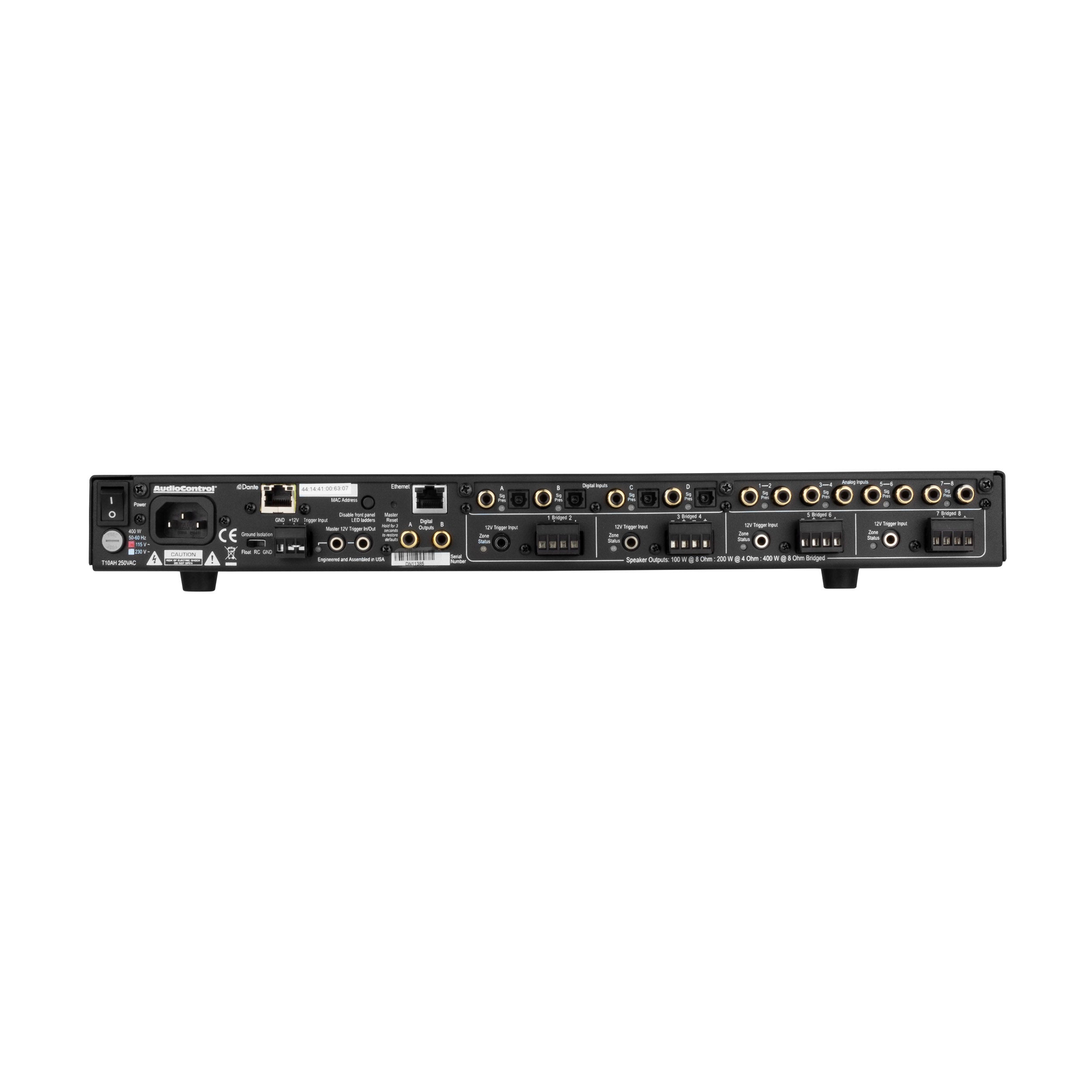

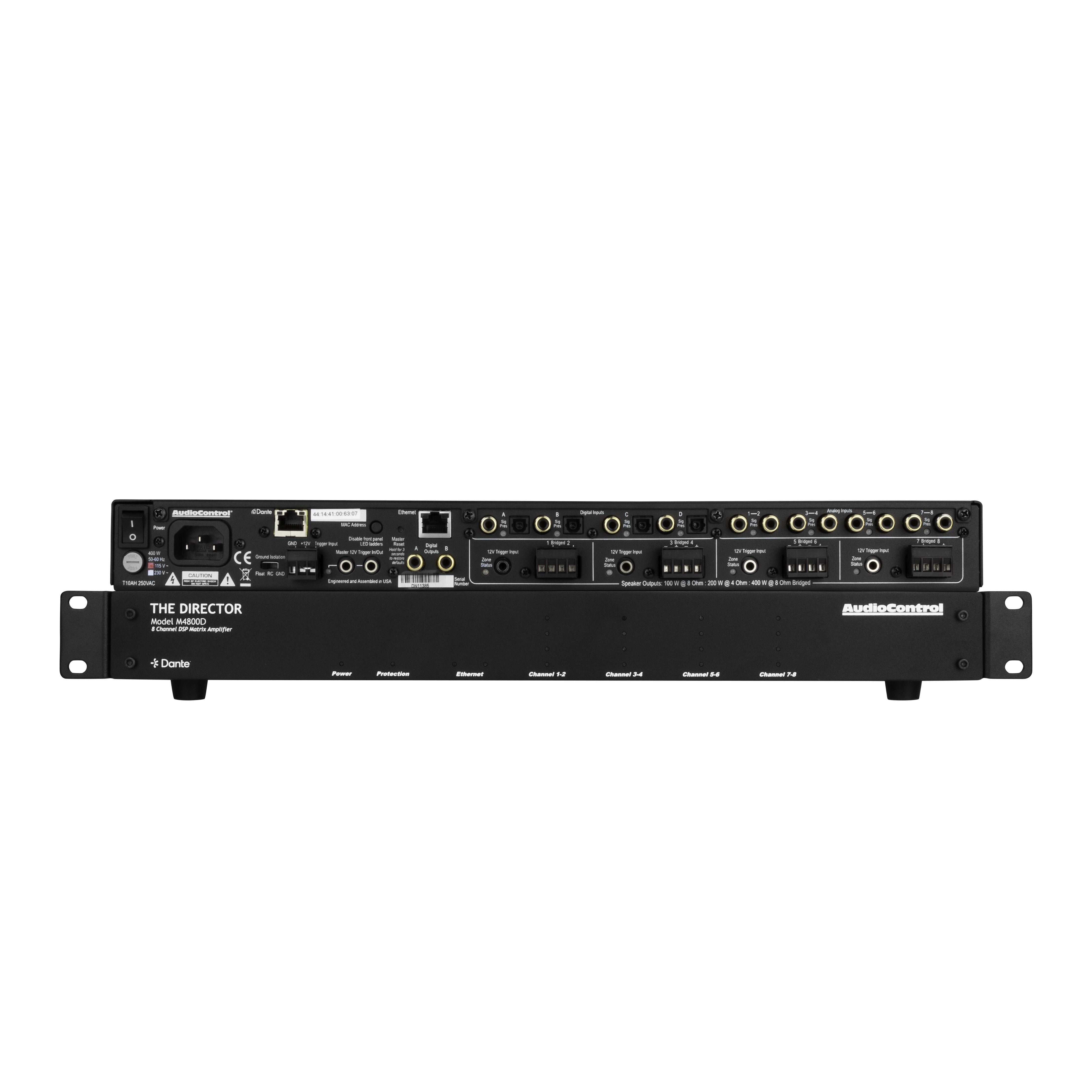

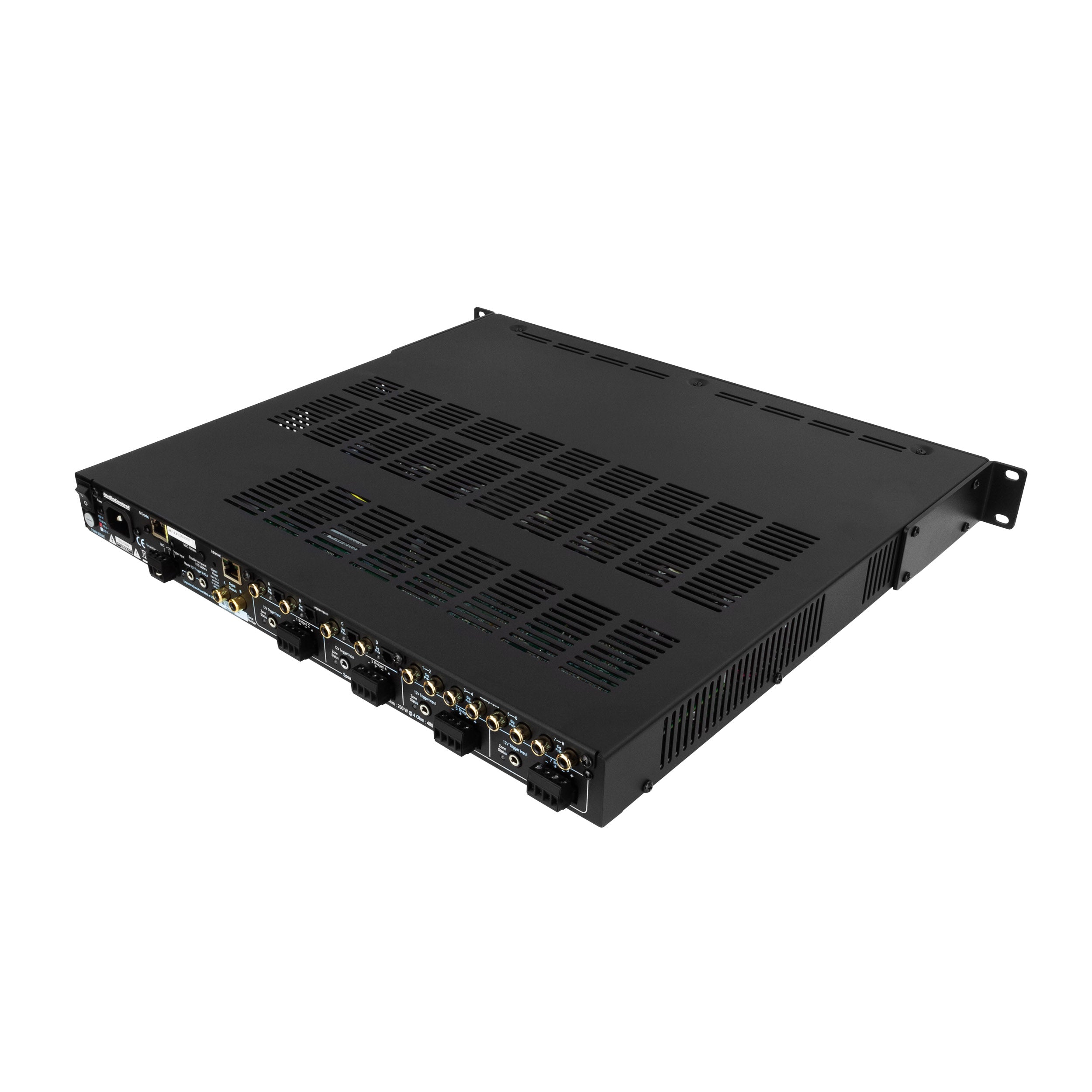

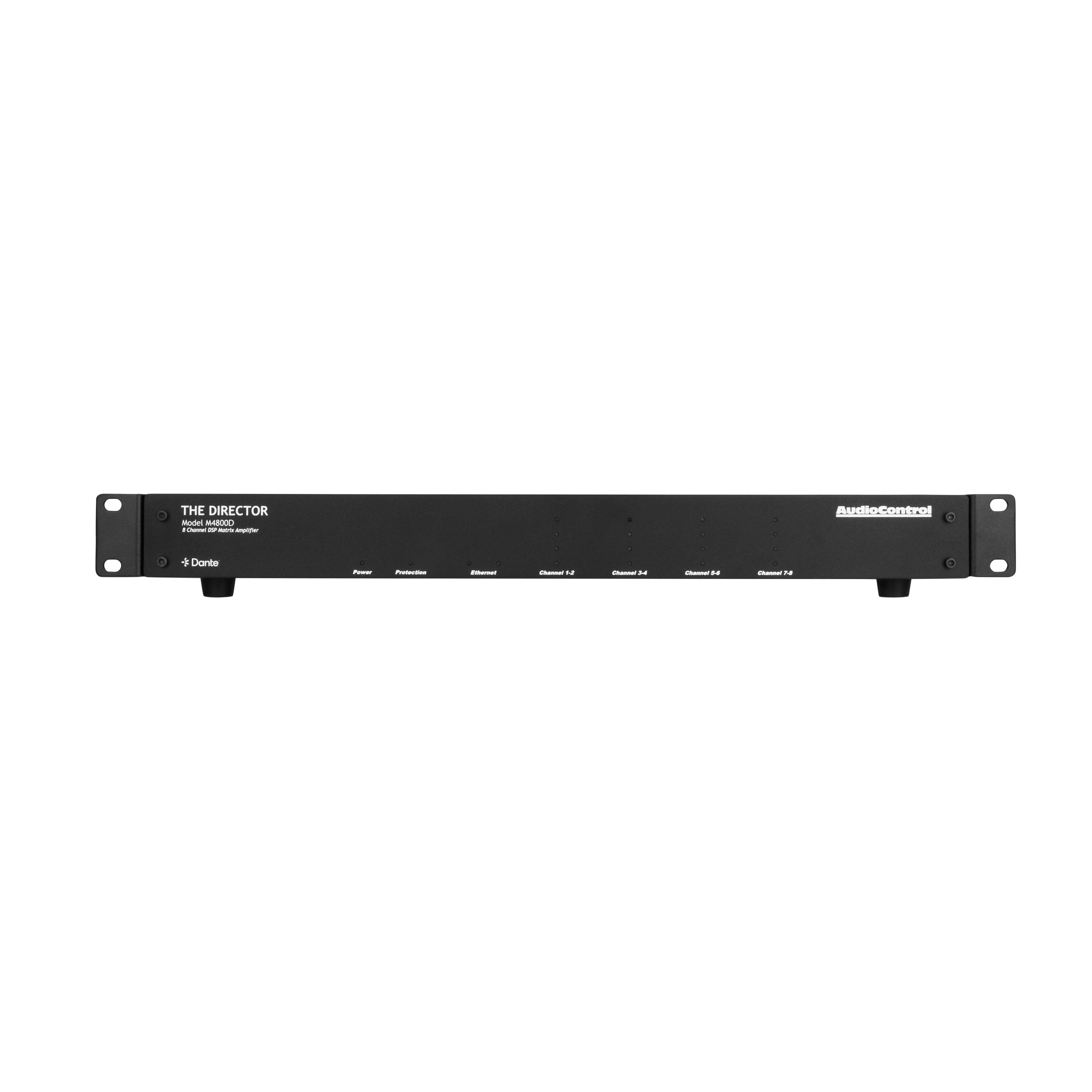

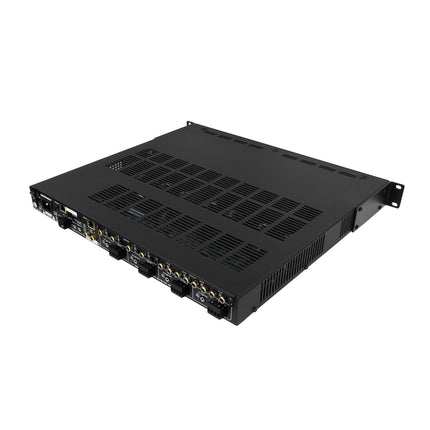

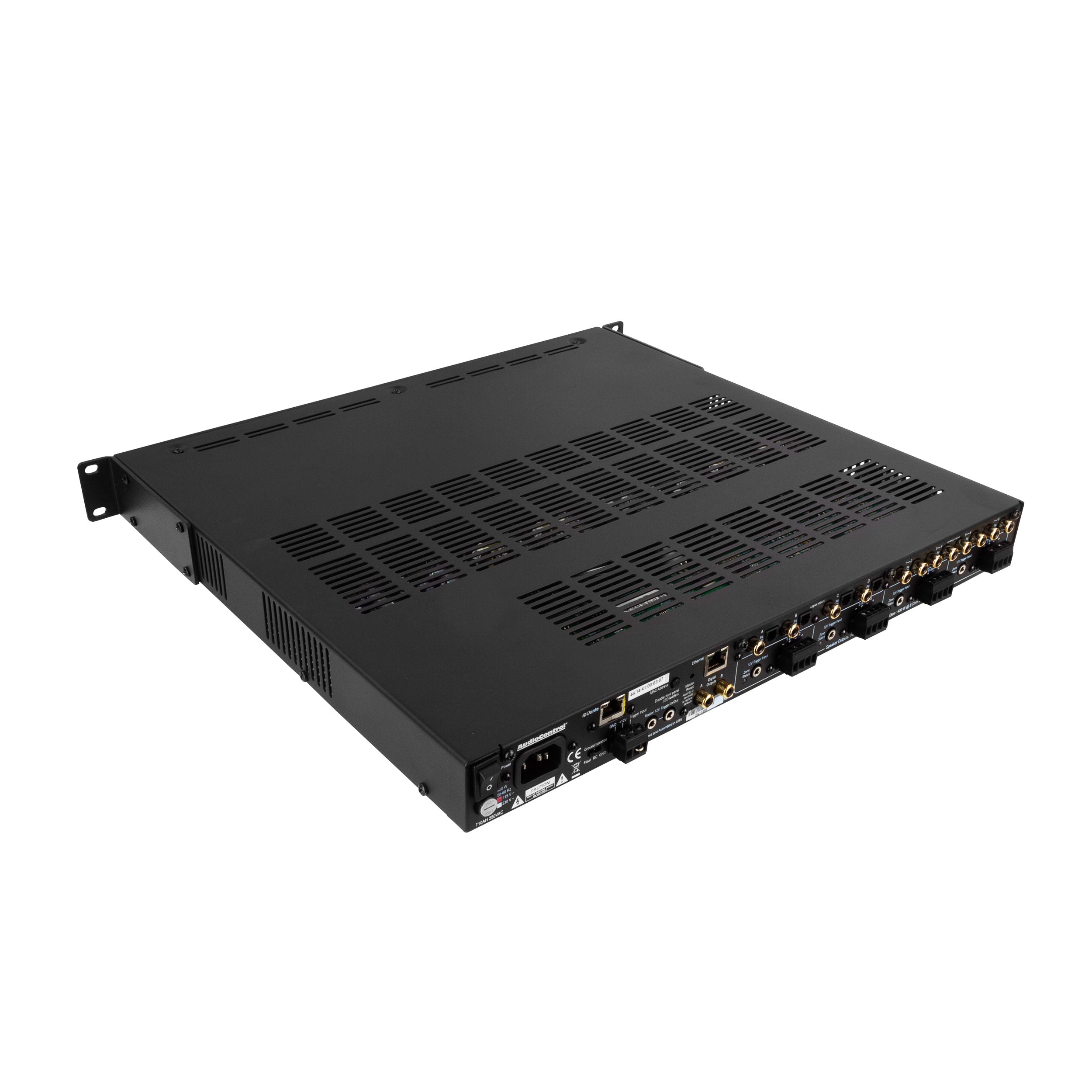

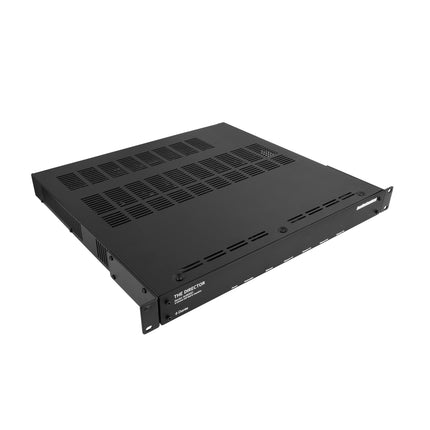

Director M4800D with Dante
- VendorAudioControl
8-Channel High Power DSP Matrix Amplifier with Dante
SKU: ACP-DMZ-M4800D
Barcode: 00810108232292
- Shipped today? Order within:
- FEATURES
- POWER AND CONTROL AT YOUR FINGERTIPS
- SPEAKER OPTIMIZATION PROFILES
- SPECIFICATIONS
- RESOURCES
- Digital and analog input matrix
- High-resolution digital inputs, 32-96 kHz, 16/24-bit digital signals
- 100 watts per channel at 8 ohms, or 200 watts at 4 ohms, all channels actively driven
- Bridged for mono operation for 400 watts per bridged zone at 8 ohms.
- Discrete amp modules designed for long-term operation and optimal audio performance.
- Superior sound quality
- Energy-efficient Class D amplifier technology
- LightDrive Anti-clipping
- Control system integration
- Digital Signal Processing
- Graphic and Parametric equalization settings
- Customizable high-pass and low-pass crossover filters
- Speaker profiles designed by popular speaker manufacturers
- Dante spoken here
- Self-resetting protection features
- Backed by a conditional five-year warranty.
The Director® M Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, local and bus inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.
 |  |  |
 |  |  |
Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
AUDIOCONTROL SOUND PARTNERS™
 |  |  |  |
 |  |  |  |
INPUTS Analog Inputs: 4 Coaxial/TOSLINK S/PDIF Inputs Dante Inputs: 16 channels (Broadway chipset) Input Sensitivity: 1 Vrms for full output, level at maximum | CONTROL IP Control : 10Base-T Ethernet TCP/IP Communication Protocol: HTTP or Telnet |
OUTPUTS Power Output 8Ω: 100 W per channel Power Output 4Ω: 200 W per channel Power Output (8 Ω Bridged Mono): 400 W Minimum Speaker Load : 4 Ω Preamp Outputs : 2 Coaxial Digital S/PDIF BUS Outputs Dante Outputs – 16 channels (Broadway chipset) | AC POWER REQUIREMENTS Idle (main power on, all channels off): 41 watts All channels 1/8th rated power: 186 watts Full power (20 A residential service limited): 1800 watts |
PERFORMANCE DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth | BTU/HR OUTPUT Idle (main power on, all channels off): 140 BTU/hr All channels 1/8th rated power: 270 BTU/hr Full power (20 A residential service limited): 1560 BTU/hr |
WEIGHT & DIMENSIONS Weight: 16.5 lbs. (9.5 kg) | IN THE BOX Speaker Connectors Remote Connector Power Cord Manual |
