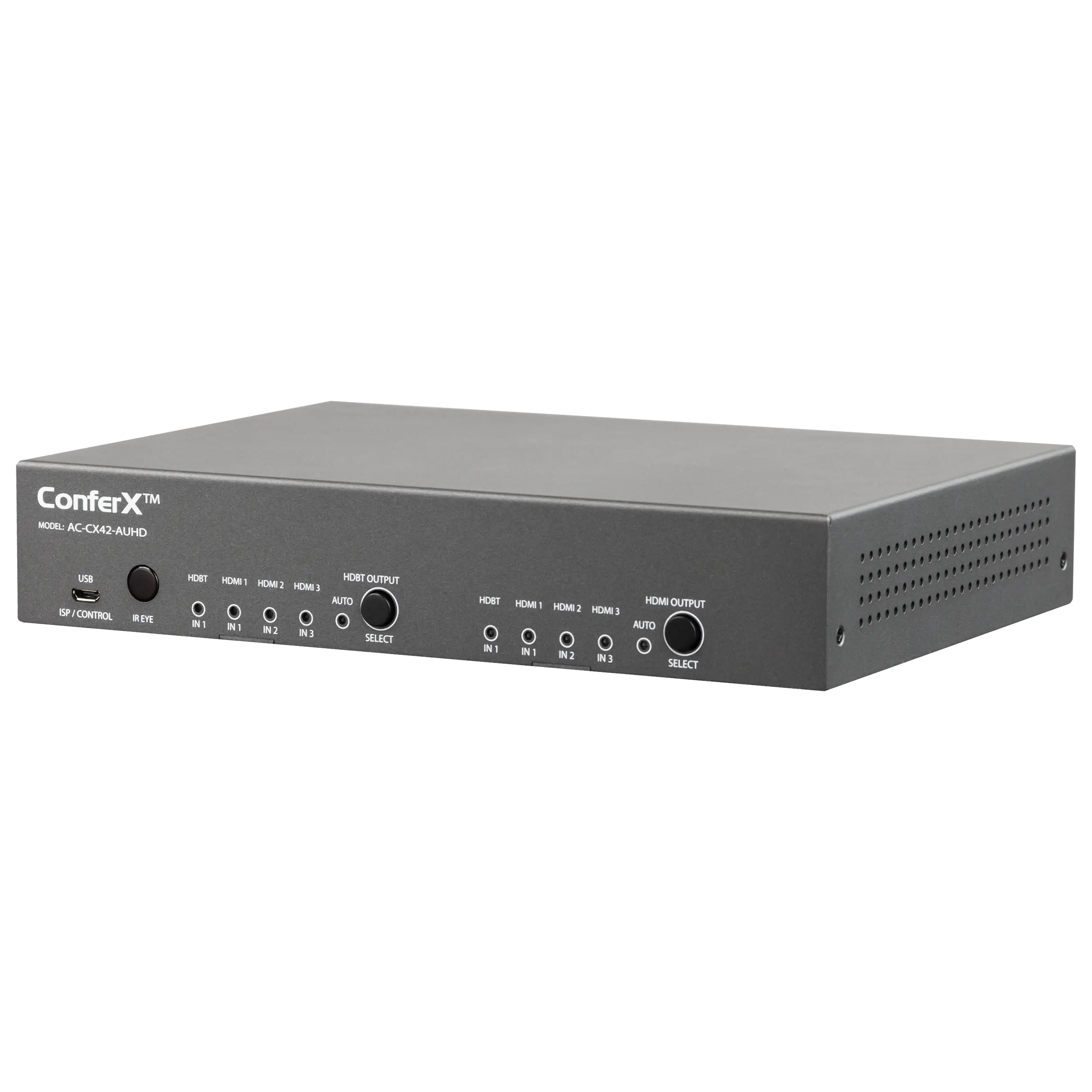

ConferX 4K 4x2 Matrix Switcher

Description

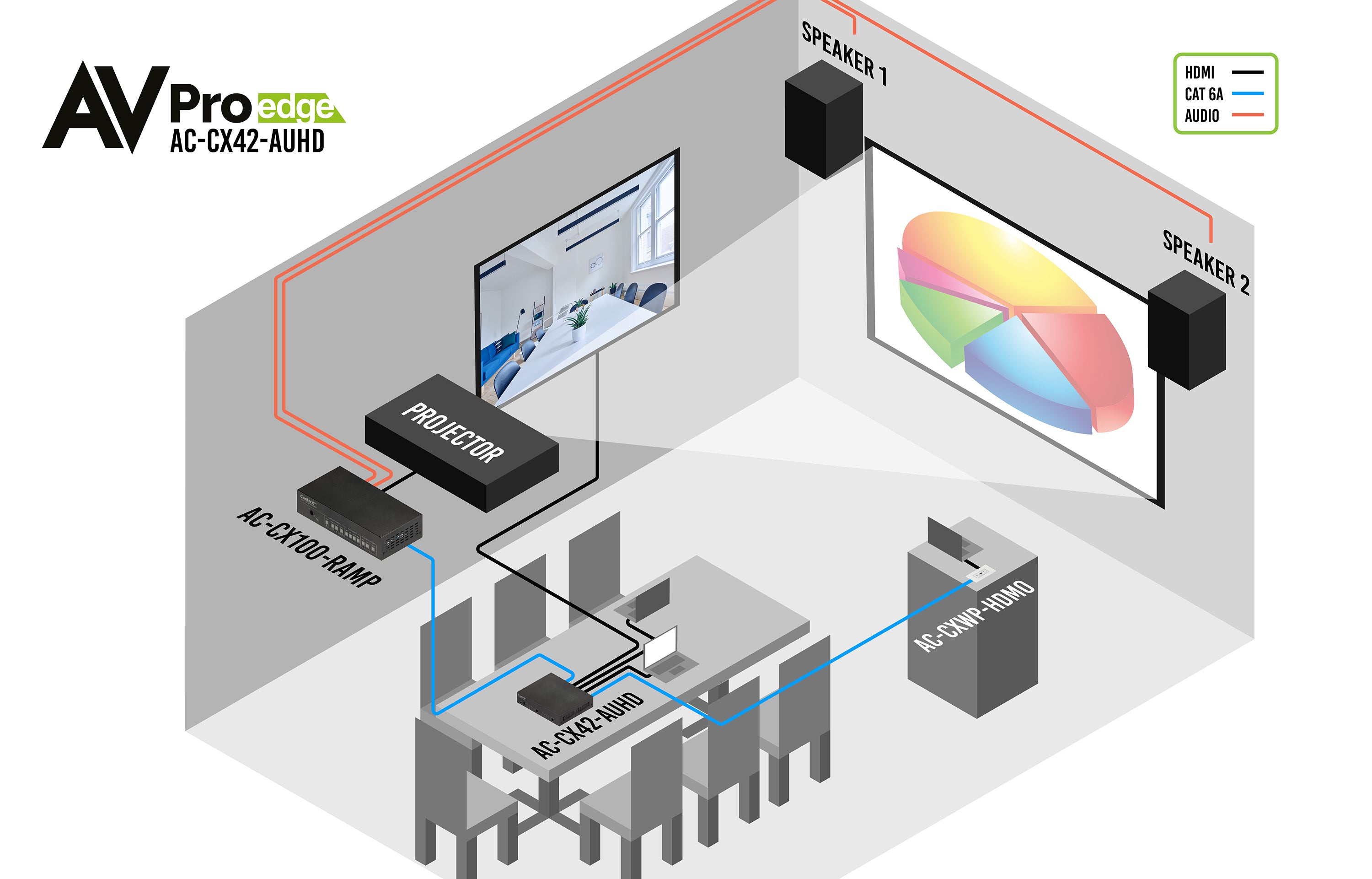

The ConferX 4x2 Matrix is the ideal solution for any conference room, classroom, or huddle space. This 4K switcher can display any four sources through the HDBaseT and HDMI output ports. Each of these outputs is entirely independent of the other, allowing to show two sources simultaneously. You will have no problems working with a microphone or intercom system with additional audio inputs and outputs. When you need a stable solution for video distribution, look to the entire line of ConferX products.

Extend the reach and versatility of any system with HDBaseT. With two HDBaseT inputs, this matrix switcher works well with two ConferX HDBaseT Wall Plate Transmitters. ConferX Wall Plate Transmitters include video inputs for HDMI, VGA, or USB-C and can be located up to 100 meters away from the AC-CX42-AUHD. The AC-CX42-AUHD gives end-users a simplified experience and the inputs they need for sharing their ideas even at a great distance.

Simple, intuitive, and automatic control makes this unit the ideal "leave in the room" matrix. The unit features an "Auto" option that defaults to the last plugged-in device or simple one-button control for each output. Prefer a control system? No problem, with a built-in web-based GUI and a complete set of management commands, you can make this switch work for you.

ConferX 4K 4x2 Matrix Switcher

Product form
  • HDMI 2.0
  • 18Gbps Bandwidth Support (HDMI and HDBaseT Output)
  • Advanced EDID Management
  • Audio Input and Output

SKU: AC-CX42-AUHD

  • Shipped today? Order within: Jul 14, 2024 13:00:00 -0500

Description

The ConferX 4x2 Matrix is the ideal solution for any conference room, classroom, or huddle space. This 4K switcher can display any four sources through the HDBaseT and HDMI output ports. Each of these outputs is entirely independent of the other, allowing to show two sources simultaneously. You will have no problems working with a microphone or intercom system with additional audio inputs and outputs. When you need a stable solution for video distribution, look to the entire line of ConferX products.

Extend the reach and versatility of any system with HDBaseT. With two HDBaseT inputs, this matrix switcher works well with two ConferX HDBaseT Wall Plate Transmitters. ConferX Wall Plate Transmitters include video inputs for HDMI, VGA, or USB-C and can be located up to 100 meters away from the AC-CX42-AUHD. The AC-CX42-AUHD gives end-users a simplified experience and the inputs they need for sharing their ideas even at a great distance.

Simple, intuitive, and automatic control makes this unit the ideal "leave in the room" matrix. The unit features an "Auto" option that defaults to the last plugged-in device or simple one-button control for each output. Prefer a control system? No problem, with a built-in web-based GUI and a complete set of management commands, you can make this switch work for you.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Ultra-High Definition: This unit supports 4K60 (4:4:4) 18Gbps video signals for modern visual systems. With this ultra-high-definition matrix switcher, integrators can design video distribution solutions to handle high-resolution sources and sinks.



Distance: Using the HDBaseT inputs with any ConferX 100 meter HDBaseT Wall Plate Transmitter. The transmission distance for HD 1080P video is 100 meters (330ft) & 4K is up to 70 meters (230ft) into the matrix. Additionally, the transmission distance on the HDBaseT output goes 100M for 1080P and 70M for 4K to an HDBaseT capable display or the AVPro Edge RNE receiver.



Auto-Sensing: This matrix switcher is a "Set it & Forget it" piece of hardware. When the user plugs in their device (BYOD), the matrix automatically senses the signal and makes it active. Actively use multiple input sources and switch between them by pressing the unit's output selection buttons or connecting a new source.

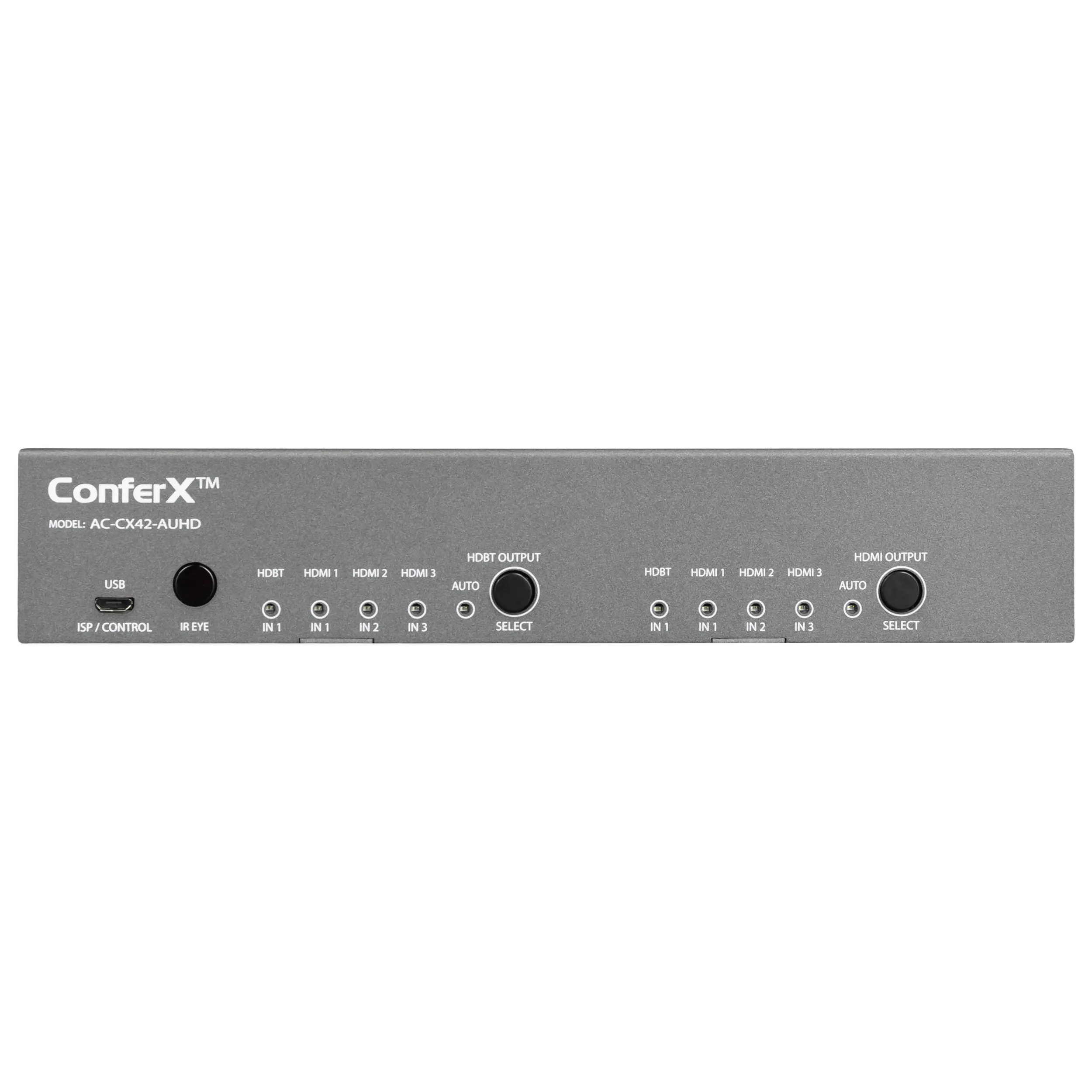

Control: Switching and controlling this matrix switcher is simple with output selection buttons, the built-in web GUI, IR, and RS232 control options.



Power over HDBaseT: The ConferX 4x2 can power the HDBaseT transmitters and the HDBaseT receiver with PoH. We are eliminating the need for unnecessary HDBaseT transmitter and receiver power supplies and cleaning up the look of your installation.



Interoperability: This matrix switcher has HDMI and HDBaseT inputs and outputs. It can work alongside any standard HDBaseT equipment.

Video:
Video ResolutionsUp to 4K 60Hz 4:2:0 & 4k30 4:4:4
VESA ResolutionsUp to 2560x2048 (QSXGA)
HDR Formats/Resolutions4K24 4:2:2 12 bit, 4k24 4:2:0 10 bit
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 BIT (1080), Up to 12 bit (4K)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (TOSLINK)PCM 2.0 Ch, LPCM 6 CH, LPCM 7 CH, Dolby Digital, Dolby Digital Plus
Audio Formats Supported Extracted (2CH Port)PCM 2 CH (No Downmix)
Audio Extraction LocationBind to OUTPUT1 or Bind to OUTPUT2
Audio Delay (Per Output, Extracted)Up To 630ms
Distance:
AC-CXWP-HDMO-T  (10.2 Gbps)100 meters 1080p, 70 meters 4k@10.2 Gbps (CAT 6a)
AC-CXWP-VGA-T  (10.2 Gbps)100 meters 1080p, 70 meters 4k@10.2 Gbps (CAT 6a)
AC-CXWP-USBC-T  (10.2 Gbps)100 meters 1080p, 70 meters 4k@10.2 Gbps (CAT 6a)
AC-EX70-444-RNE-P  (18Gbps)100 meters 1080p, 70 meters 4k@18 Gbps (CAT 6a)
AC-EX70-UHD-R  (10.2 Gbps)70 meters 1080p, 40 meters 4k@10.2 Gbps (Cat 6a)
AC-EX70-SC2-R  (18 Gbps)100 meters 1080p, 70 meters 4K@18 GBPS (Cat 6a)
Other:
Bandwidth HDMI18Gbps Uncompressed
Bandwidth HDBaseT (see options under Distance directly above)
HDCPHDCP 2.2 and Earlier
POH for Receivers (No need to power receivers)Yes, all outputs
Control:
PortsLAN, RS232, IR, Micro USB
LAN Web OSYES

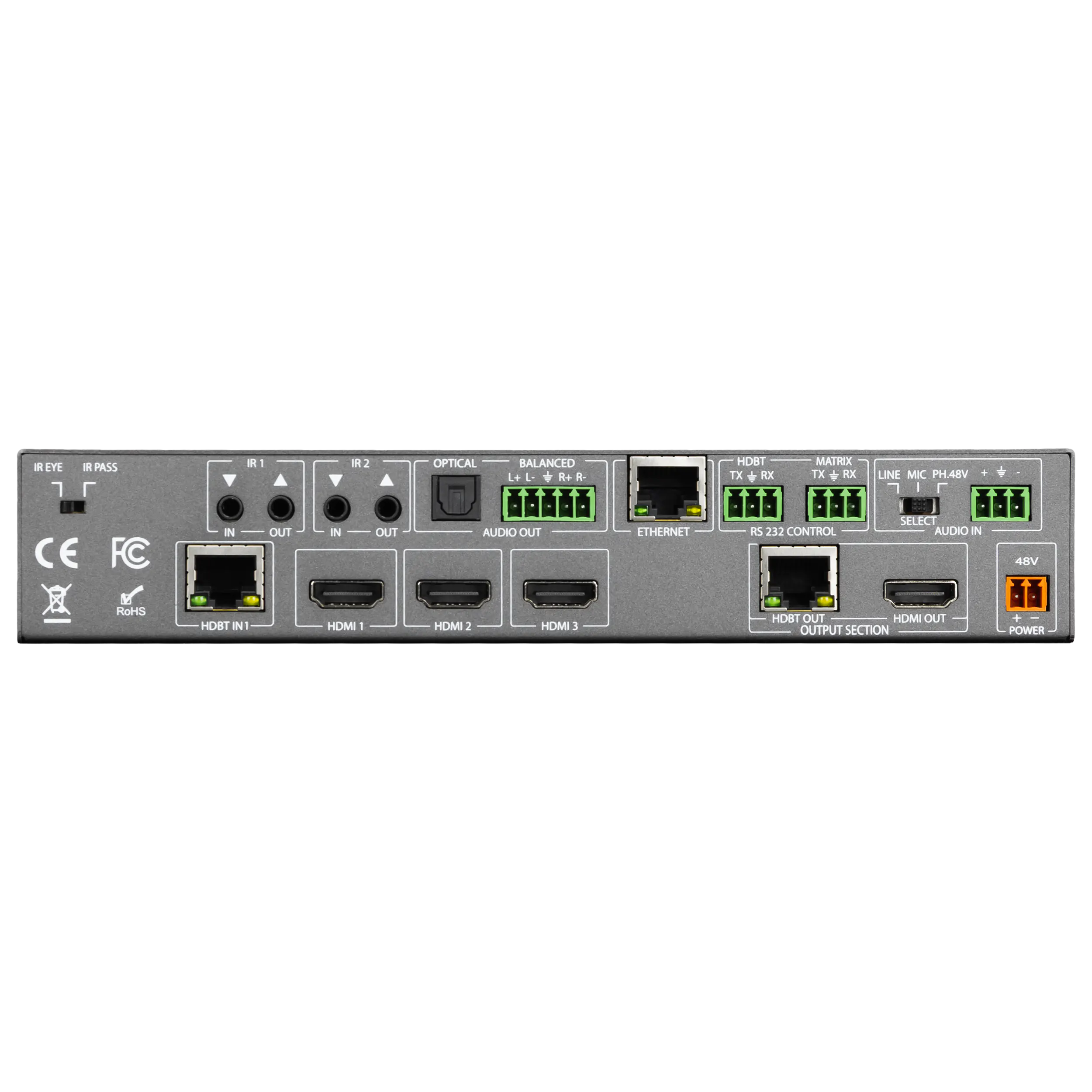

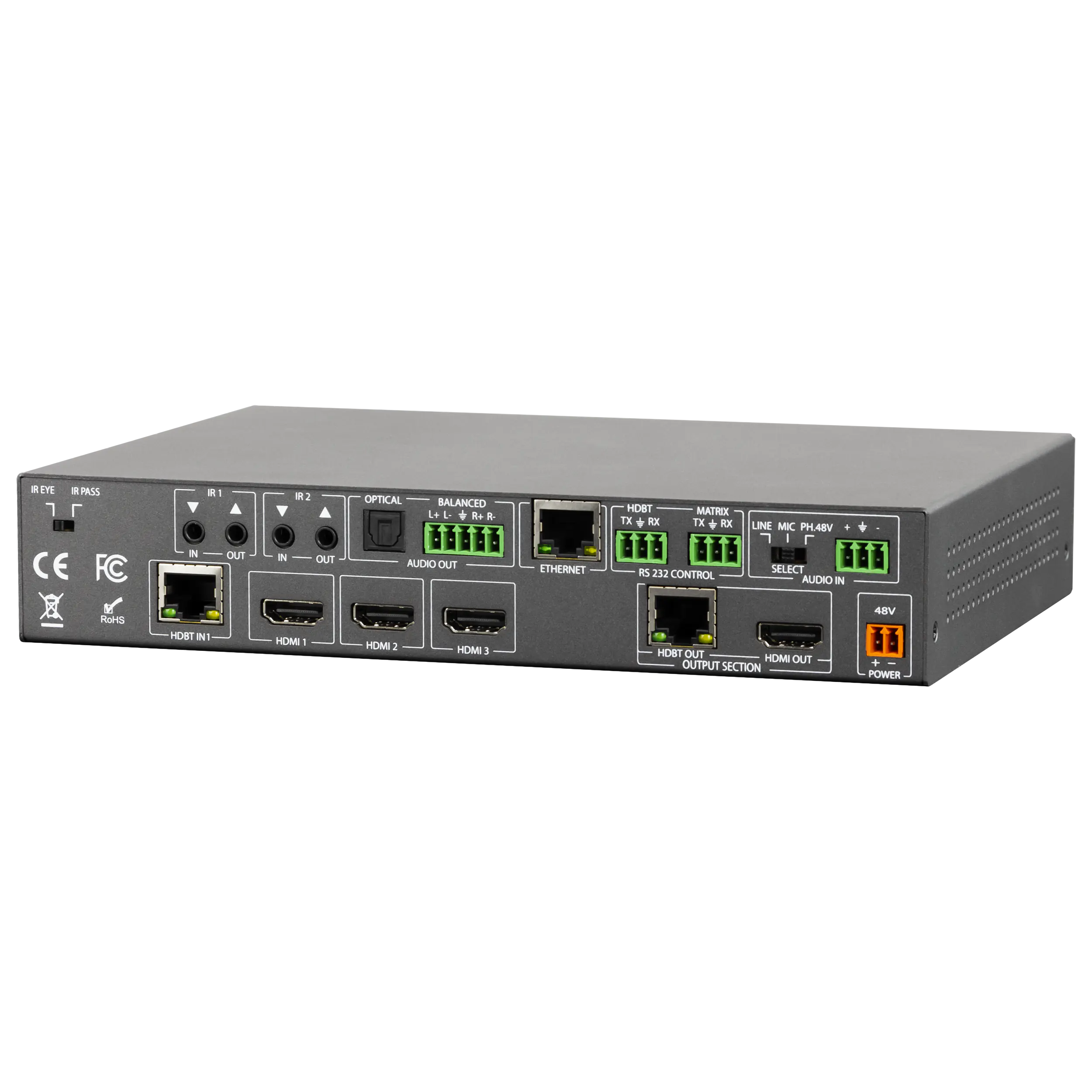

Ports:
HDMI   Type A
LANRJ45 w/ Web Interface/ Control
Audio (Extracted Digital)Toslink
Audio (Extracted Analog)5 Pin Terminal Block (Balanced)
IR RX3.5mm Stereo (3-Conductor)
RS-2323 Pin Terminal Block
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)12 watts Max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 48V 0.5a
Dimensions:
Dimensions (Unit Only Length/Depth/height) mm: 220.7 x 158.8 x 41.4
inch: 8.69 x 6.25 x 1.63
Dimensions (Packaged   Length/Depth/height)mm: 397 x 222 x 95.3
inch: 15.63 x 8.75 x 3.75
Weight (Unit)2.2 LBS (1 KG)
Weight (Packaged)3.4 lbs (1.54 Kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate

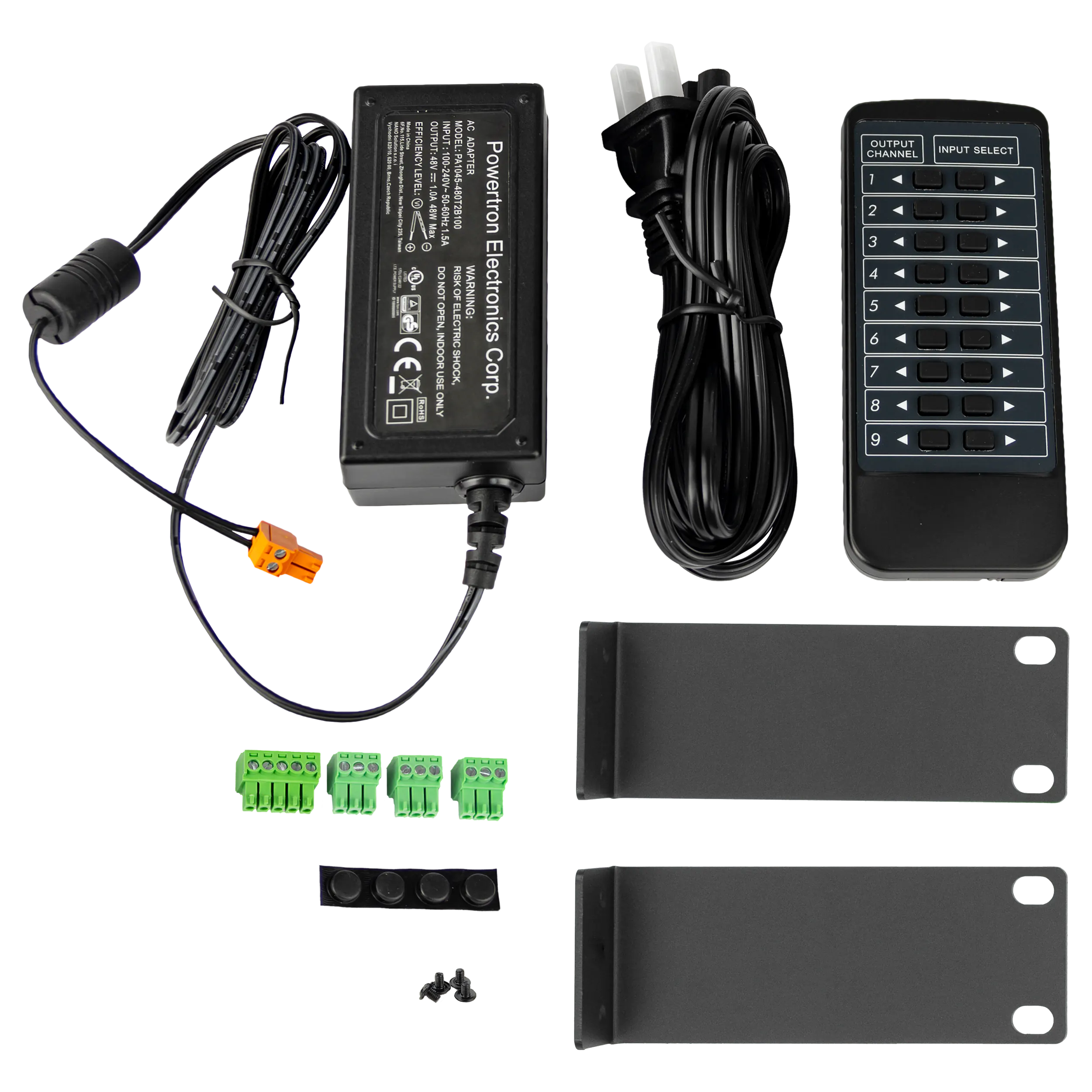

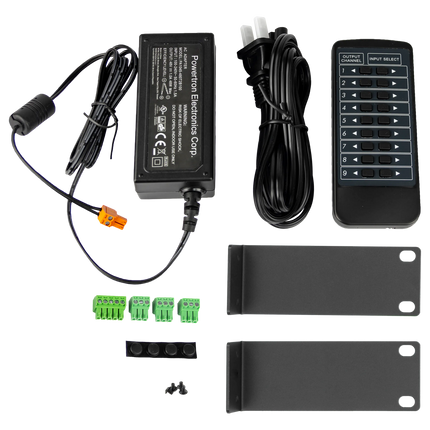

  • AC-CX42-AUHD
  • 48V Power Supply for PoE
  • 1 x IR Remote Control
  • Mounting Brackets
  • Terminal Connectors
