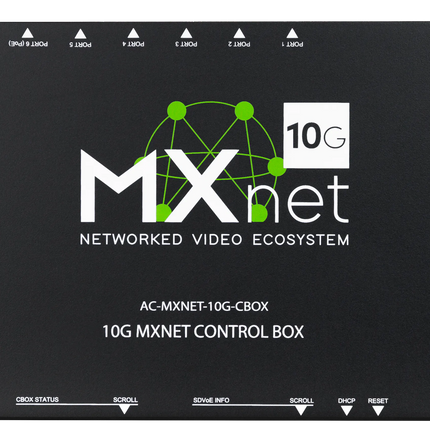

MXnet 10G Control Box

Description

​The AC-MXNET-10G-CBOX serves as the central control unit for the SDVoE AV over IP ecosystem.

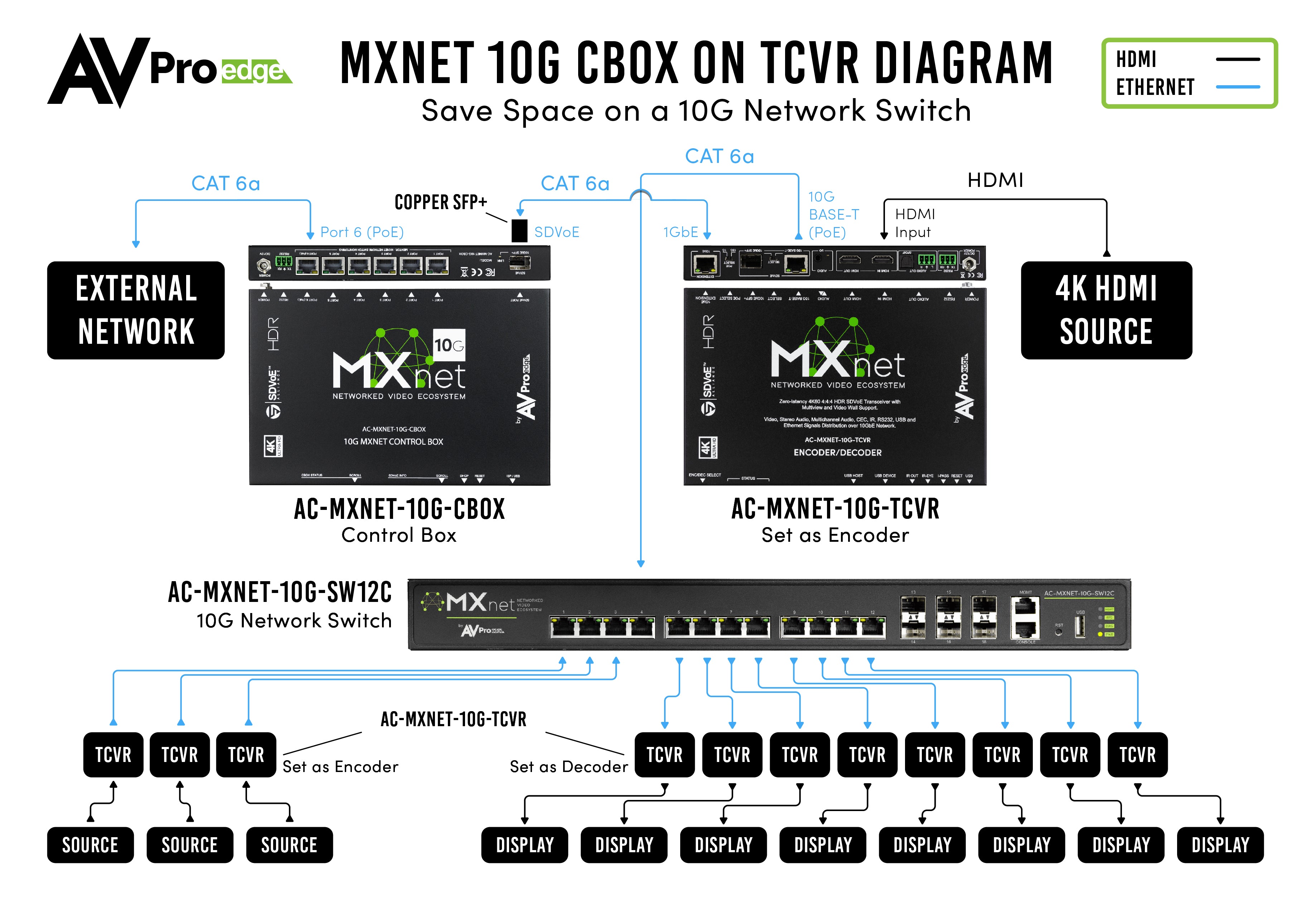

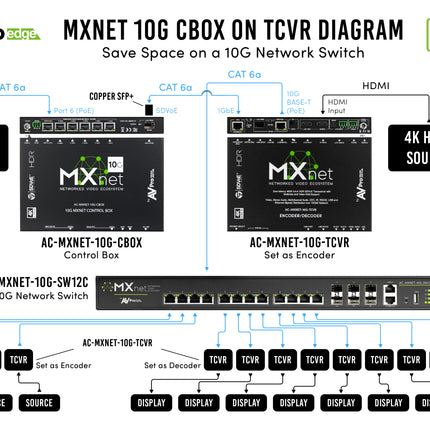

Connected to the MXnet 10G network system switch (or a third party multicast capable switch), the AC-MXNET-10G-CBOX maintains communication with all MXnet 10G transceivers to manage multicast data distribution, audio/video switching - including matrix routing presets, and command destination mapping for RS-232, IR or USB extension control signals.

Pre-installed onboard every AC-MXNET-10G-CBOX is AVPro Edge’s state-of-the-art proprietary MXnet Mentor software platform, featuring a suite of intuitive ecosystem utilities designed for efficient system configuration, resource management, device customization, and operational status diagnostics. Also centralized for storage and hosting by the AC-MXNET-10G-CBOX are system logic and the API utilized by the MXnet Mentor web interface plus third-party control systems.

MXnet Mentor is an HTML5-based simple to use interface, designed for flexible control over an extensive array of complex tasks. Video-oriented features for all downstream decoders, addressable by Mentor from a remote single control location, include MultiView compositing, video wall configuration with sizing and bezel administration, fully matrixable A/V routing - including audio breakaway from video, plus matrix preset saving and downloading.

EDID management, output scaling, frame rate conversion, and aspect ratio management are also controlled by MXnet Mentor. Maintenance utilities include remote firmware updating to CBOX plus encoders and decoders, restoration of factory defaults, along with complete system diagnostic topographical analysis.

During system deployment and upon completion of real-world connectivity, Mentor’s auto-setup feature replicates mechanical attributes of the physical system within a digital space. MAC addresses are detected and cataloged from all connected encoders and decoders, with each device subsequently auto-assigned an IP address plus a multicast channel.

MXnet 10G Control Box

Product form

  • Web based – Apache Web Server
  • Works with any multicast capable managed 3rd party switch
  • MXNet Mentor pre-installed

SKU: AC-MXNET-10G-CBOX

  • Shipped today? Order within: Oct 08, 2024 13:00:00 -0500

Description

​The AC-MXNET-10G-CBOX serves as the central control unit for the SDVoE AV over IP ecosystem.

Connected to the MXnet 10G network system switch (or a third party multicast capable switch), the AC-MXNET-10G-CBOX maintains communication with all MXnet 10G transceivers to manage multicast data distribution, audio/video switching - including matrix routing presets, and command destination mapping for RS-232, IR or USB extension control signals.

Pre-installed onboard every AC-MXNET-10G-CBOX is AVPro Edge’s state-of-the-art proprietary MXnet Mentor software platform, featuring a suite of intuitive ecosystem utilities designed for efficient system configuration, resource management, device customization, and operational status diagnostics. Also centralized for storage and hosting by the AC-MXNET-10G-CBOX are system logic and the API utilized by the MXnet Mentor web interface plus third-party control systems.

MXnet Mentor is an HTML5-based simple to use interface, designed for flexible control over an extensive array of complex tasks. Video-oriented features for all downstream decoders, addressable by Mentor from a remote single control location, include MultiView compositing, video wall configuration with sizing and bezel administration, fully matrixable A/V routing - including audio breakaway from video, plus matrix preset saving and downloading.

EDID management, output scaling, frame rate conversion, and aspect ratio management are also controlled by MXnet Mentor. Maintenance utilities include remote firmware updating to CBOX plus encoders and decoders, restoration of factory defaults, along with complete system diagnostic topographical analysis.

During system deployment and upon completion of real-world connectivity, Mentor’s auto-setup feature replicates mechanical attributes of the physical system within a digital space. MAC addresses are detected and cataloged from all connected encoders and decoders, with each device subsequently auto-assigned an IP address plus a multicast channel.

  • Key Benefits
  • Specs
  • Resources

Dual OLED Data Windows - Window A displays MXnet LAN and system control network information while Window B displays MXnet AV network information for localized monitoring separate from MXnet Mentor.



Dual Power Capability - The AC-MXNET-10G-CBOX may be connected to the MXnet network switch for standard PoE power or locally, via a DC 12V/1A locking ring power charger.



Time Savings - Auto-setup configures the physical system in a digital space, finding MAC addresses for all encoders and decoders plus dynamically assigns IP addresses and multicast channels.



Easy Problem Solving - MXnet Mentor becomes an extra pair of digital hands as on-the-fly diagnostic features with instantaneous feedback effectively troubleshoot system topology conflicts such as formatting, connectivity, routing, or other system issues rapidly and conclusively.



Free Your Creative Side - MXnet Mentor joins your imagination to create video walls with easy sizing and bezel configuration or compose software-defined MultiView screens with Simple Grid, Hybrid Grid, Window Tiling, Picture-In-Picture (PIP) and Picture-And-Picture (PAP), adaptable to specific system requirements such as surveillance monitoring, video conferencing, or to merely keep tabs on active games in progress on a hectic Saturday of sporting events.

Control - Power control interdependencies, using either encapsulated RS-232 over IP or CEC via HDMI, or IR, KVM and USB 2.0 control signals, are easily routed through the 10Gbps network from any input to any output, configured effortlessly using Mentor.



Uncompressed video, up to 4K/60fps plus companion or breakaway audio along with input source preview, may be routed by Mentor directly or via matrix presets through the AC- MXNET-CBOX-10G. Additionally, MXnet Mentor integrates network switch management, including VLAN, real-time bandwidth, and POE power status.



System Scalability - The powerful duo of the AC-MXNET-10G-CBOX and MXnet Mentor enable deployment of a virtually unlimited number of encoders and decoders to create systems of unconstrained scale previously unimaginable, limited only by available switch ports.



From residential applications to sprawling corporate, educational, industrial, or medical campuses, AVPro Edge provides you and your clients a fully adaptable solution to meet any design challenge head-on.

Ports:
Ethernet(6) 10/100/1000 base-T, half/full duplex (auto detect), RJ-45 female ports (port 6 is a POE port) for MXnet System Control and third-party control
SFP+(1) 10G SFP+ port used for MXnet SDVoE streams and input preview
HDMIN/A
AudioN/A
IRN/A
RS232(1) × 3 Pin Terminal Block for MXnet System Control
USB(1) USB Type-C for MXnet Service
Distance:
Ethernet100 Meters/330 Feet over CAT 6a
SFP+ and Fiber

10G SFP+ AOC cable up to 3 meters

10G SFP+ Multimode transceiver over Multimode fiber up to 550 meters

10G SFP+ Single mode transceiver over Single mode fiber up to 20 Kilometers

SFP+ and Copper10G SFP+ Copper up to 100 meters/330 Feet over CAT 6a
OLED Display:
OLED Displays(2) one for CBO× status and one for SDVoE information
OLED Display Size23mm × 6mm
OLED Display Resolution128 × 32 Pixels
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity5-90% RH (No Condensation)
Power:
Power Consumption8.1W
PoE (Power over Ethernet)IEEE 802.3af (15.4W)
Power Supply UnitInput: AC 120-240V, 50/60Hz, 0.8A
Output: DC 12V, 2A
Thermal dissipation27.7 BTU/hr
Dimensions:
MountingRack and Furniture mount support
Dimensions (Unit)mm: 215 × 140 × 25
inch: 8.46 × 5.51 × 0.98
Dimension (Packaged)mm: 310 × 180 × 54
inch: 12.2 × 7.09 × 2.13
Weight (Unit)1.76 lbs./0.8 kg
Weight (Packaged)2.18 lbs./0.99 kg
RegulatoryCE/FCC
Product Warranty10 Years
Specifications subject to change without notice. Mass & dimensions are approximate.
