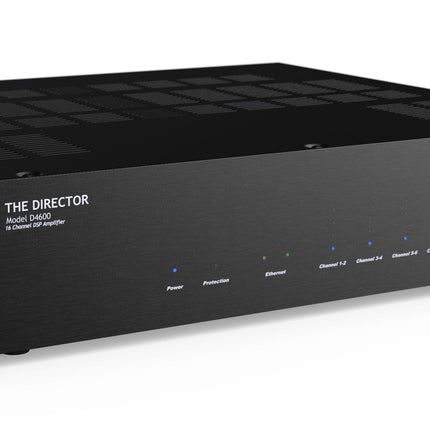

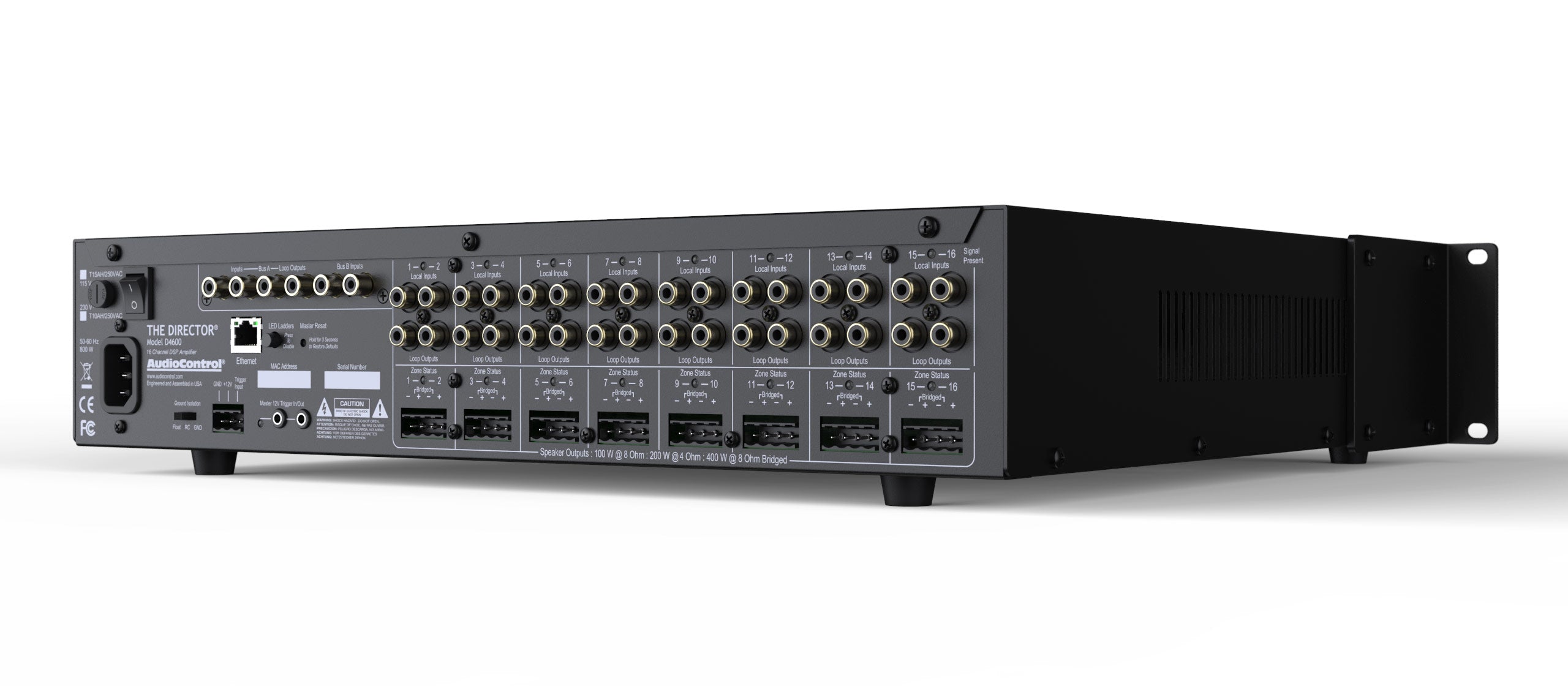

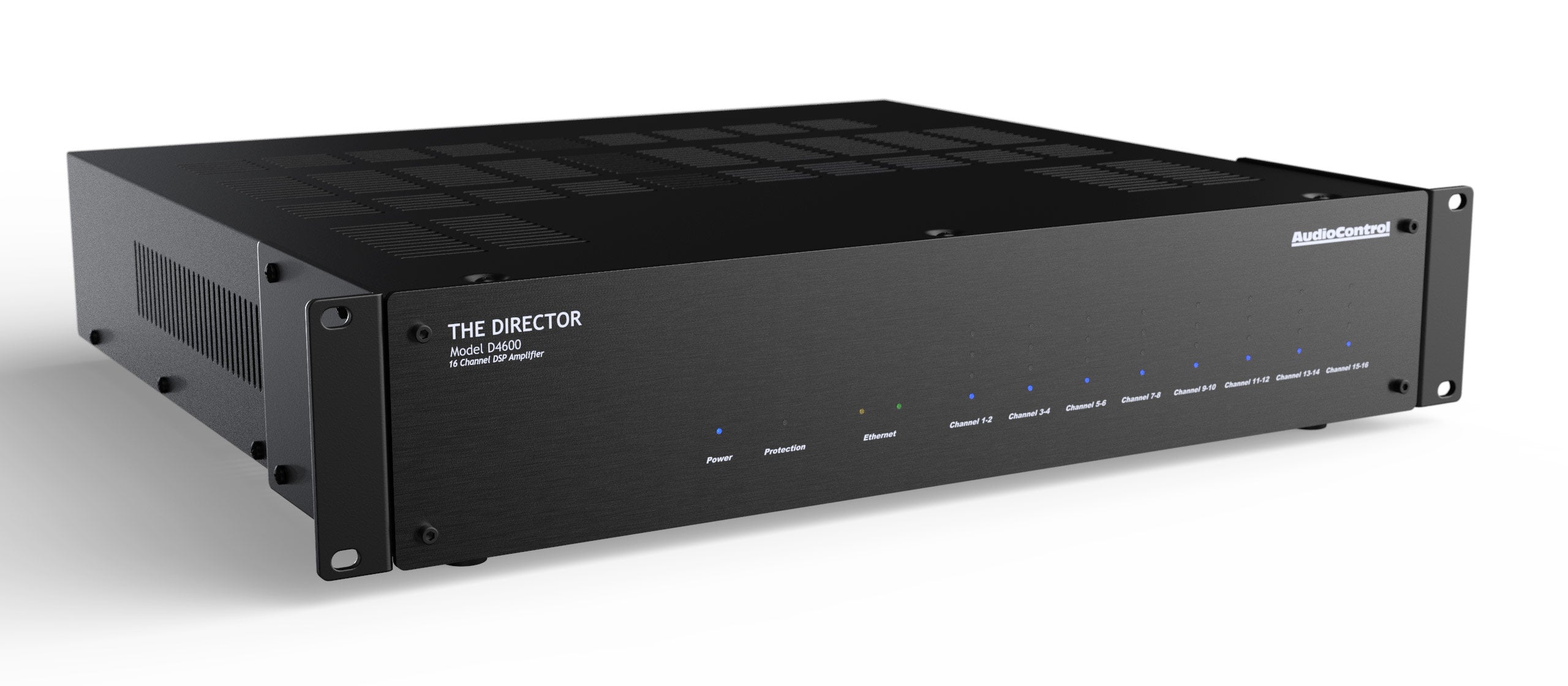

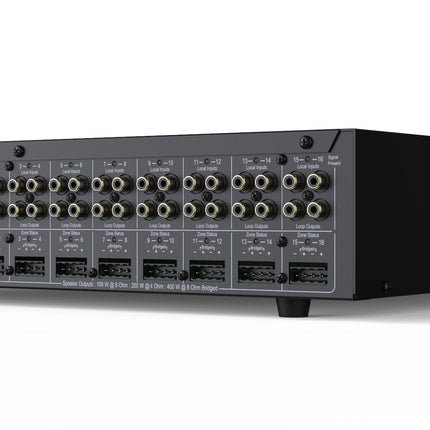

Director D4600
- VendorAudioControl
Director D4600
- VendorAudioControl
- FEATURES
- POWER AND CONTROL AT YOUR FINGERTIPS
- SPEAKER OPTIMIZATION PROFILES
- SPECIFICATIONS
- RESOURCES
- Network DSP Amplifier With Volume Control
- 16 Channels x 100 Watts into 8 Ohms (All Channels Driven)
- 16 Channels x 200 Watts into 4 Ohms (All Channels Driven)
- 8 Bridgeable Channels of 400 Watts into 8 Ohms
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for Amplifiers & All Zones
- Digital Signal Sense
- Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
- AudioControl LightDrive™ Anti-Clipping Speaker Protection
- Local Inputs with Pass Through/Loop Outputs
- Dual Analog Bus Inputs
- Compact 2 U Rack Space (Includes Rack Mount Brackets)
- Commercial, Residential, and Pro Audio Compatible
The Director® D Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, local and bus inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.
 |
|  |
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
AUDIOCONTROL SOUND PARTNERS™
 |  |  |  |
 |  |  |  |
| INPUTS Inputs: 8 Analog Stereo Local Inputs, 2 Analog Stereo Bus Inputs Input Sensitivity: 1 Vrms for full output, level at maximum Input Gain: 30 dB | CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure Network Connection/Protocol: 10Base-T Ethernet TCP/IP Communication Protocol: HTTP or Telnet |
| OUTPUTS Amplifier Channels: 16 Power Output (8 Ω): 100 W per channel Power Output (4 Ω): 200 W per channel Power Output (8 Ω Bridged Mono): 400 W Minimum Speaker Load: 4 Ω Preamp Audio Outputs: 8 Stereo Local Loop Outputs, 1 Stereo Bus Loop Output | WEIGHT & DIMENSIONS Dimensions: 17” W x 15.5” D x 3.5” H (2 U) Weight: 19.2 lbs. (8.7 kg) |
| PERFORMANCE Signal to Noise: >95 dB, A-wtd, ref full output Crosstalk: > 80 dB @ 1 kHz Damping Factor: >300 | IN THE BOX The Director Model D4600, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
