Twenty-Four Available Inputs/ Up to Twenty-Four Outputs - Sixteen analog RCA unbalanced input pairs, with four Coaxial/Toslink digital inputs, plus convertible analog/digital de-centralized inputs. Twenty analog RCA unbalanced outputs plus four de-centralized outputs.

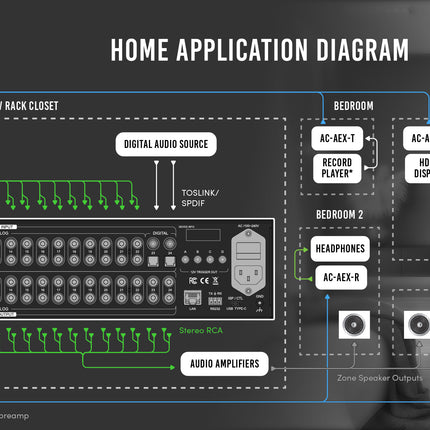

Built-in De-centralized AEX Receivers & Transmitters - Four AEX receivers (AC-AEX-T separately required for source devices) harvest convertible analog or digital signals from source devices at distances as great as 130M (over Shielded Twisted Pair).
Conversely, four AEX analog/digital outputs (AC-AEX-R separately required for source devices) may send analog or digital signals to devices located at distances as great as 130M (STP).
Integration Friendly - AC-MAX-24 may be partnered with any preferred amplifiers, plus controlled by all major automation providers via IP.
Configuration Friendly - Comprehensive API and AVPro Edge-developed GUI for complete customization of signal routing and audio parameters including independent channel volume, balance, tone adjustment plus equalization.
Four 12V Trigger Outputs - Configure amplifier turn ons/offs or customize for various events.
| Audio: | |
| Frequency Response | 20 Hz to 20 kHz |
| Analog Input Voltage | 1.63 VRMS, 4.6 Vp-p |
| Analog Output Voltage | 1.63 VRMS, 4.6 Vp-p |
| Digital | 2 Channel PCM |
| Supported Sample Rates (kHz) | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176 kHz, & 192 kHz |
| Latency | ≤60 milliseconds |
| Mute | Available on all outputs |
| Audio Inputs: | |
| AEX Audio | 4 |
| RCA | 16 |
| Digital TOSLINK | 4 |
| Digital Coaxial | 4 |
| Audio Outputs: | |
| AEX Audio | 4 |
| RCA | 20 |
| Control: | |
| Interfaces | RS-232, IP/LAN |
| Additional Connections: | |
| In-System Programming | USB Type C |
| 12V DC Trigger Output | 4 |
| Power: | |
| Total Power Consumption | 50 Watts Maximum |
| AC Power | 100-240 VAC |
| Dimensions: | |
| Height x Width x Depth (Standalone Unit) | Millimeters: 88 x 440 x 234.95 Inches: 3.5 x 17.5 x 9.25 |
| Height x Width x Depth (Packaged Unit) | Millimeters: 172 x 578 x 375 Inches: 6.75 x 22.75 x 15 |
| Weight (Standalone Unit) | 8.7 lbs. (3.95 kg) |
| Weight (Packaged Unit) | 11.9 lbs. (5.4 kg) |
| Rack Space | 2U |
| *Any unit shipped after October 2024 will have the updated hardware that matches the current specifications. *Specifications are subject to change without notice. Mass and dimensions are approximate. | |
- AC-MAX-24 Stereo Audio Matrix
- (2x) 2U Rack Mounting Brackets (pre-attached
- (1x) 3-Pin Terminal Block Connector
- (4x) Mounting Feet
- (4x) Mounting Feet Screws
- (1x) Ground Wire
- (1x) AC Power Cord
