Full 8K Ultra HD Uncompressed 48 Gbps with HDR and HLG - The AC-FRESCO-4X is fully compatible with all specified ITU 8K timings and bit rates. Its capabilities are future-forward through the complete evolution of the 8K format, making it a unique, invest-once product.
VRR Reclocking - Variable Refresh Rates between 40 fps and 120 fps can be reclocked to a fixed output rate to maintain compatible videowall synchronization between next-gen game consoles and legacy display technologies, ensuring stable video performance.

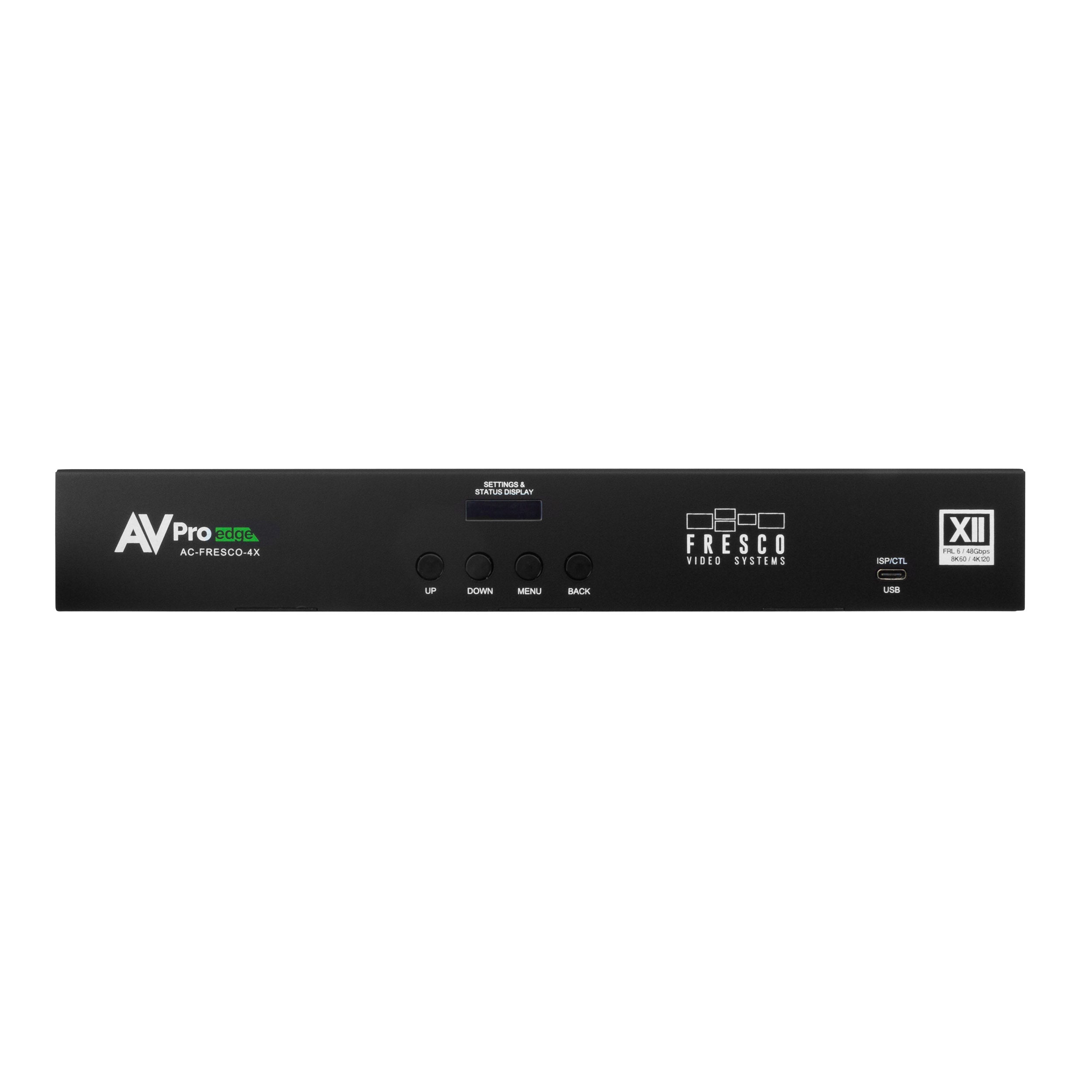

Web Interface and Front Panel Navigation - Setting up the AC-FRESCO-4X is easy and straightforward. EDID and network settings are quickly accessible from the front panel OLED display. Videowall layout for easy plug-and-play deployment and unit maintenance is easily manageable via the intuitive, included Web interface.
Scaling, Cropping, and Bezel Compensation - Resolution scaling, cropping, and bezel compensation adjustment are available from the built-in Web interface.
EDID management - Resolve EDID issues with preloaded and custom options. Ideal for legacy videowalls that may have mixed-generation display panels.
Audio de-embedding - HDMI input audio can be de-embedded for multi-zone distribution or external multimedia processing.
| Video Input | |
| Video Resolutions | Up to 8K/60 Hz 4:2:0, / 4K/120 Hz 4:4:4 |
| HDR Formats | HDR10, HLG |
| Color Space | YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Deep Color | Up to 16-bit |
| Scaling | Auto, Force 4K, Force 1080p |
| HDCP | HDCP 2.3 and Earlier |
| Video Output | |
| Video Resolutions | Up to 4K/60 Hz |
| HDR Formats/Resolutions | HDR10, HLG |
| Color Space | YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Deep Color | Up to 16-bit |
| Scaling | Auto, Force 4K, Force 1080p |
| HDCP | HDCP 2.3 and Earlier |
| Audio | |
| Audio Formats Supported HDMI | PCM 2.0-Ch., LPCM 5.1 & 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X |
| Audio Formats Supported Extracted (2-Ch. Port) | PCM 2.0-Ch. |
| Distance | |
| HDMI In/Out | Up to 13 ft. (8K/30 Hz) or 49 ft. (4K/120 Hz)** |
| HDMI In/Out (w/ AOC Cable) | Up to 130 ft. (4K/60 Hz, 18 Gbps AOC)** |
| Control | |
| Front Panel | LCD Screen with 4-button navigation |
| Ports | LAN, RS-232, USB Type-C |
| Web Interface | Yes |

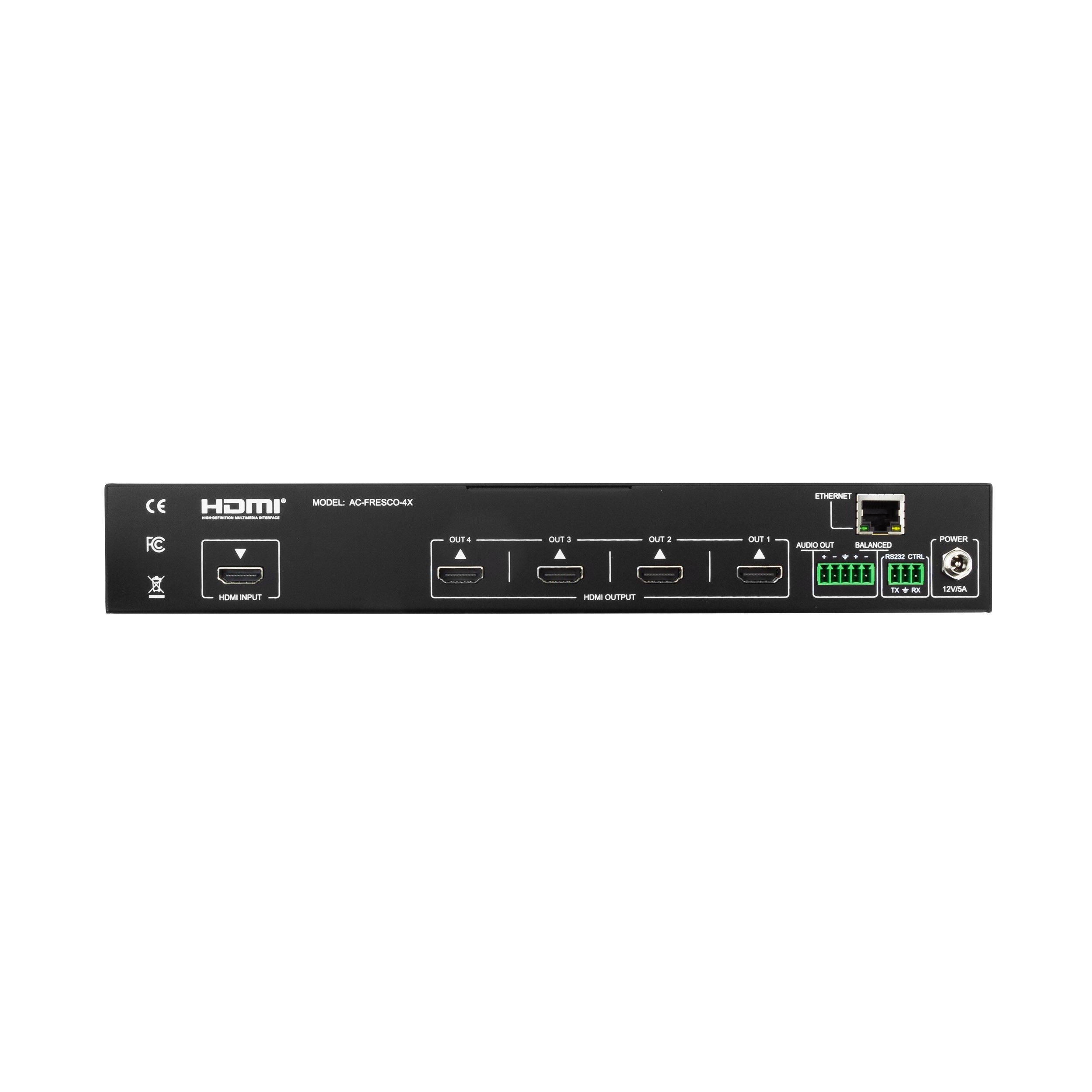

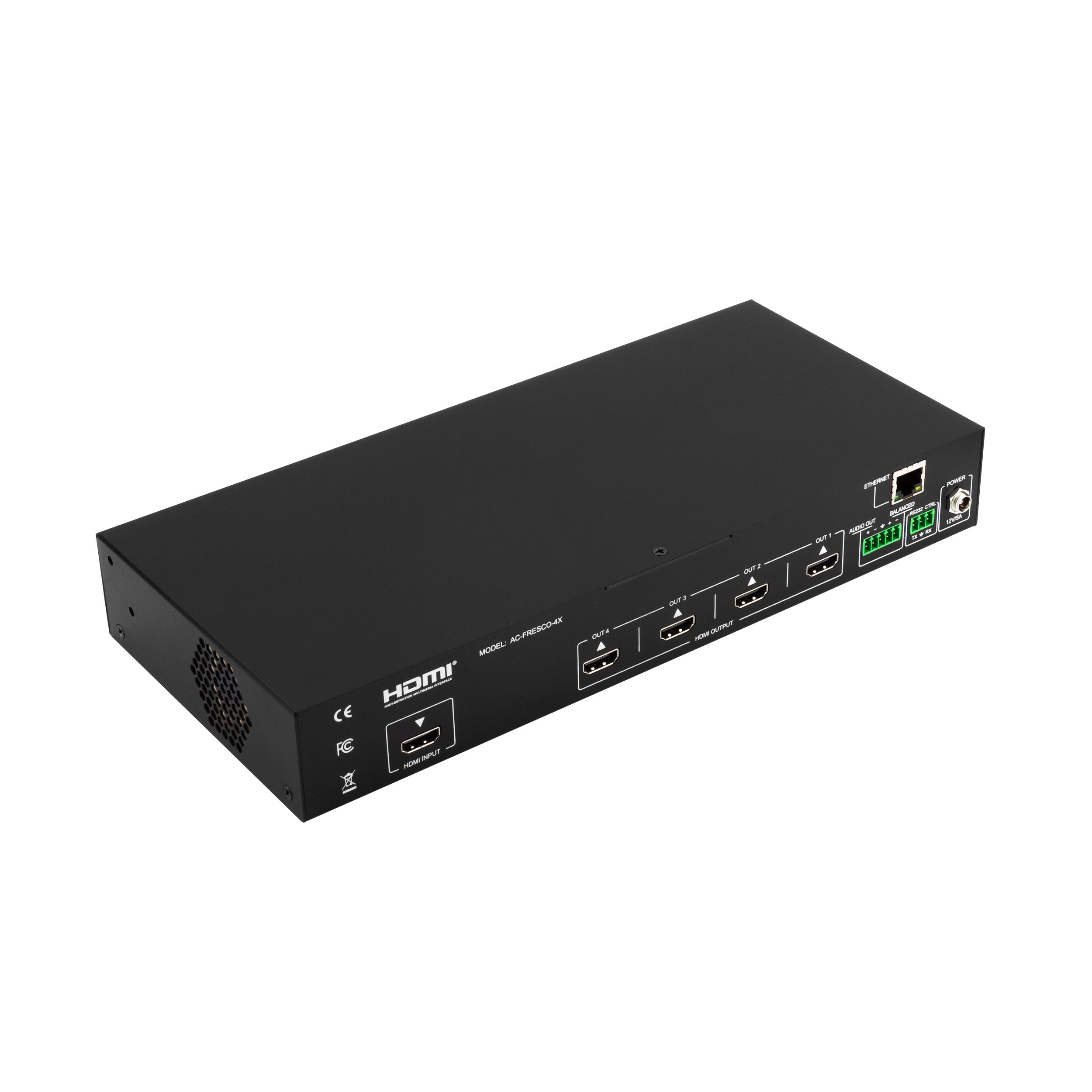

| Ports | |
| HDMI | Type-A |
| LAN | RJ45 w/ Web Interface |
| Audio (Extracted Analog) | 5-Pin Euroblock Terminal (Balanced) |
| RS-232 | 3-Pin Euroblock Terminal |
| ISP/CTL | USB Type-C |
| Environmental | |
| Operating Temperature | 23° to 125° F (-5° to 51° C) |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Humidity Range | 5% to 90% RH (No Condensation) |
| Power | |
| Power Consumption (Total) | 40 W Maximum |
| Power Supply | Input: 100-240 VAC ~ 50/60 Hz Output: 12 VDC, 5 A |
| Physical / Dimensions | |
| Mounting | 1-RU Rack Mounting Brackets Rubber Feet |
| Dimensions (Unit Length/Width/Height) | mm: 136.652 X 295.402 X 45.212 inches: 5.38 X 11.625 X 1.781 |
| Dimensions (Packaged Length/Width/Height) | mm: 219.075 X 388.950 X 65.1 inches: 8.625 X 15.313 X 2.563 |
| Weight (Unit) | 2.875 lbs. (1.3041 kg) |
| Weight (Packaged) | 4.394 lbs. (1.9931 kg) |
| Regulatory | CE/FCC |
| Product Warranty | 10 Years |
| *Specifications subject to change without notice. Mass & dimensions are approximate **Distances achieved with Bullet Train HDMI and AOC cables | |

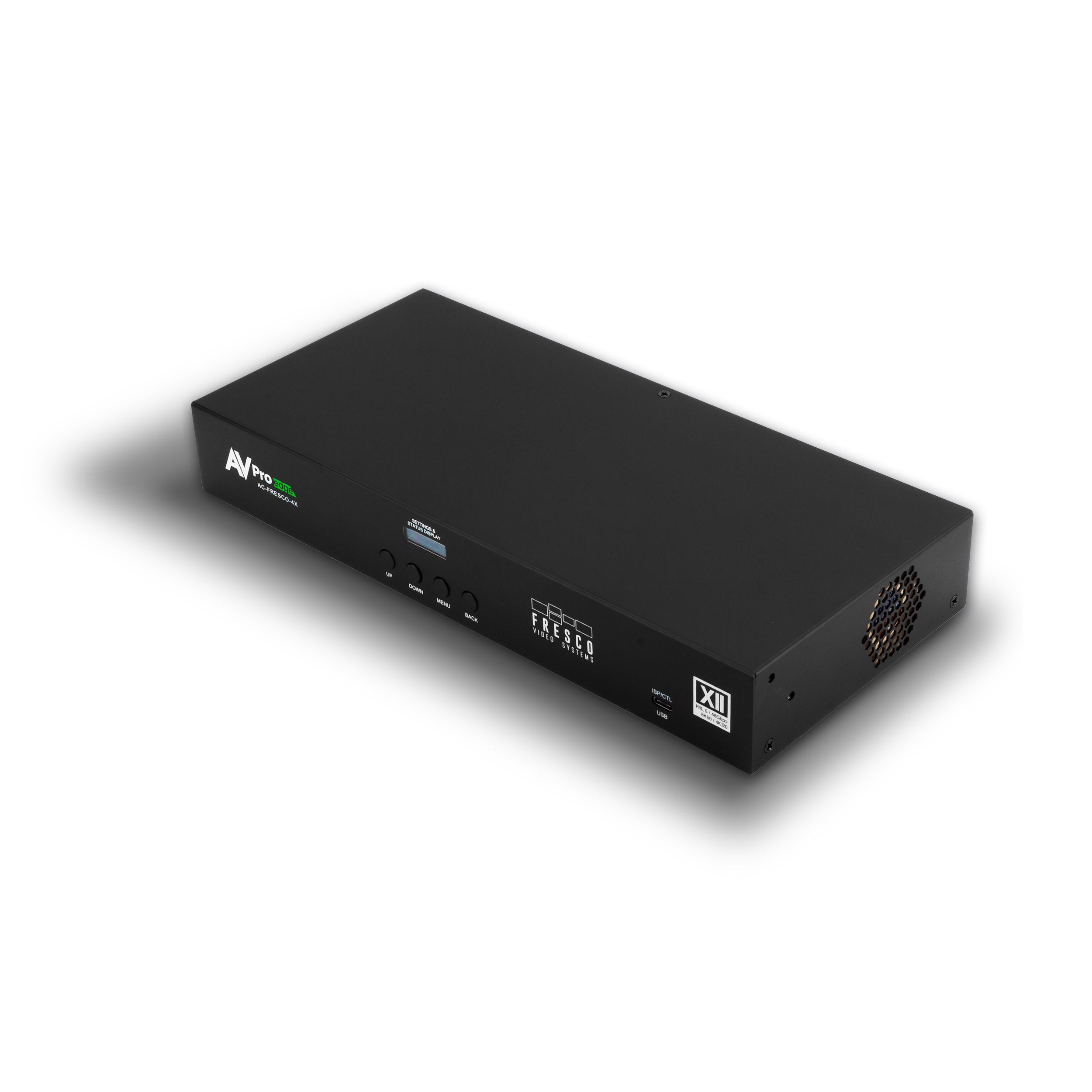

- AC-FRESCO-4X 2x2 Video Wall Processor
- 5-Pin Terminal Block Connector
- 3-Pin Terminal Block Connector
- 12V Locking Power Supply
- 2x 1U Rack Mounting Brackets
- 6x Screws for Mounting Brackets
