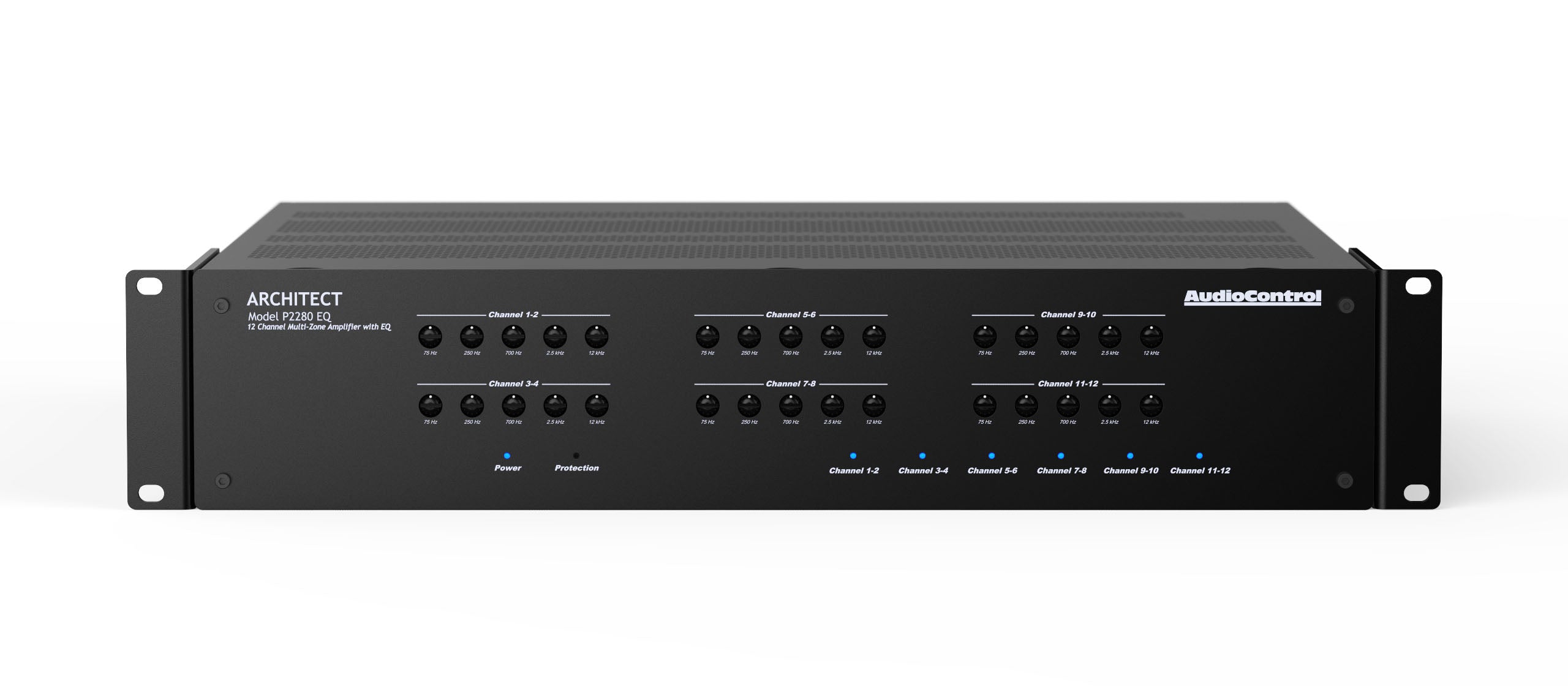

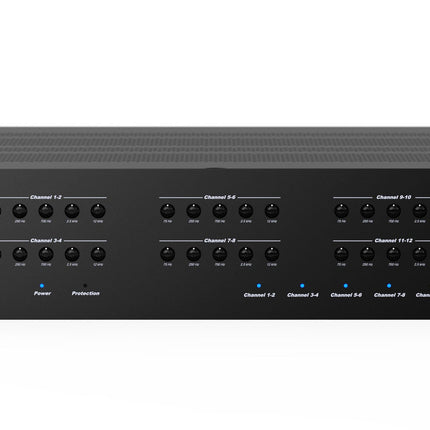

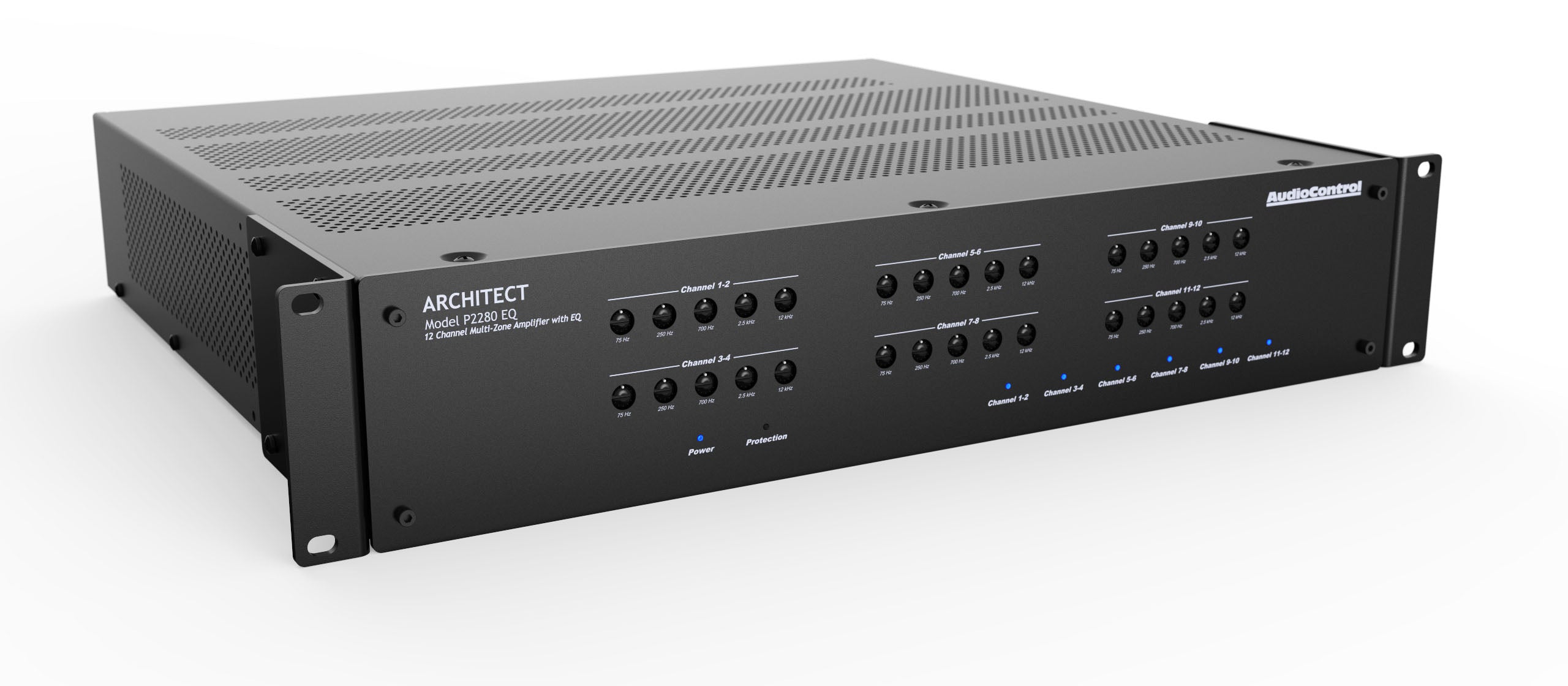

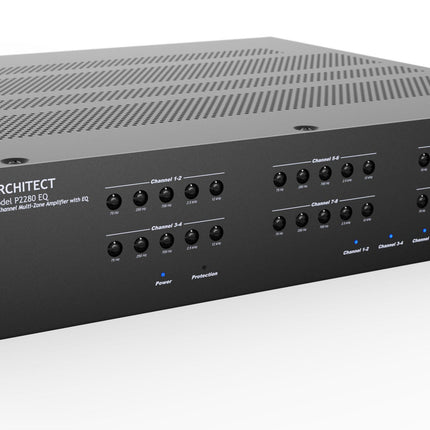

12-Channel High-Power Multi-Zone Amplifier with EQ
SKU: ACP-AZ-P2280
- Shipped today? Order within:
- FEATURES
- SPECIFICATIONS
- RESOURCES
- 12 Channels of AudioControl Power and Performance
- 100 watts per channel into 8 Ohms (All channels driven)
- 200 watts per channel into 4 Ohms (All channels driven)
- Configurable into 6 Bridged Channels
- Bridged Channel Power 400 watts into 8 Ohms
- Energy-Efficient Cool Operation
- Low Standby Current Draw, 1 watt or Less
- Compact Design Fits into 2 Rack Spaces
- LightDrive Anti-Clipping Protection Circuitry
- 2 x Bus Inputs A (Digital) & B (Analog)
- Global 12 VDC Trigger Input and Output
- Remote/Local Zone Input Trigger
- Signal-Sensing On All Channels
- Level Controls for All Input Pairs
- Stereo-to-Mono Switch for Easy Channel Bridging
- Rack Mount Brackets Included
- Five-Year AudioControl Warranty

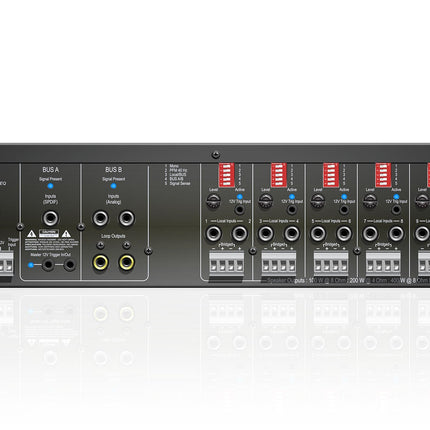

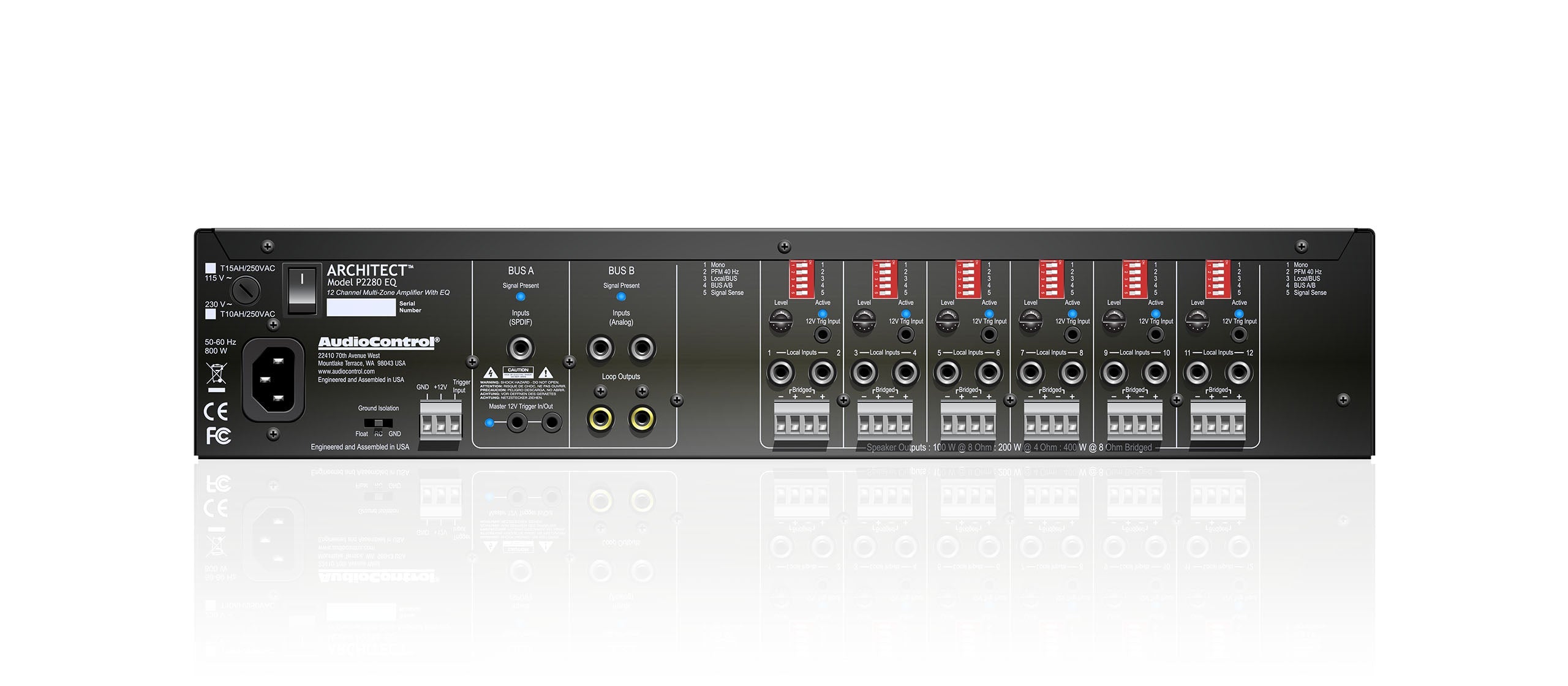

| INPUTS Inputs: 6 Stereo Local Analog Inputs, 1 Stereo Bus Coaxial Digital Input, 1 Stereo Bus Analog Input Input Sensitivity: Variable 0 to 1 Vrms Analog Input Sensitivity: 1 Vrms for full output; level at maximum | CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out |
| OUTPUTS Amplifier Channels: 12 1 Stereo Bus Analog Output Power Output (8 Ω): 100 W per channel Power Output (4 Ω): 200 W per channel Power Output (Bridged Mono): 400 W Minimum Speaker Load: 4 Ω | AC POWER REQUIREMENTS Standby: 0.9 W Idle (main power on, all channels off): 58 W All channels active: 106 W All channels 1/8th rated power: 354 W Full power (20 A residential service limited): 2400 W Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads |
| PERFORMANCE Damping Factor: >300 Signal to Noise: >105 dB, (A-wtd, ref full output) Crosstalk: >80 dB @ 1kHz Gain: 30 dB Analog Input Sensitivity: 1 Vrms for full output, level at maximum DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth | BTU/HR OUTPUT Standby: 3.1 BTU/hr Idle (main power on, all channels off): 201 BTU/hr All channels active: 361 BTU/hr All channels 1/8th rated power: 470 BTU/hr Full power (20 A residential service limited): 2124 BTU/hr |
| EQUALIZER Centers: 75 Hz, 250 Hz, 700 Hz, 2.5 kHz, 12 kHz Range: +/- 12 dB | WEIGHT & DIMENSIONS Dimensions: 19″ W (w/rack ears) 17” W (w/o rack ears) x 15.5” D x 3.5″ H (2 U) Weight: 21.0 lbs. (9.5 kg) |
| IN THE BOX Architect Model P2280 EQ, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
