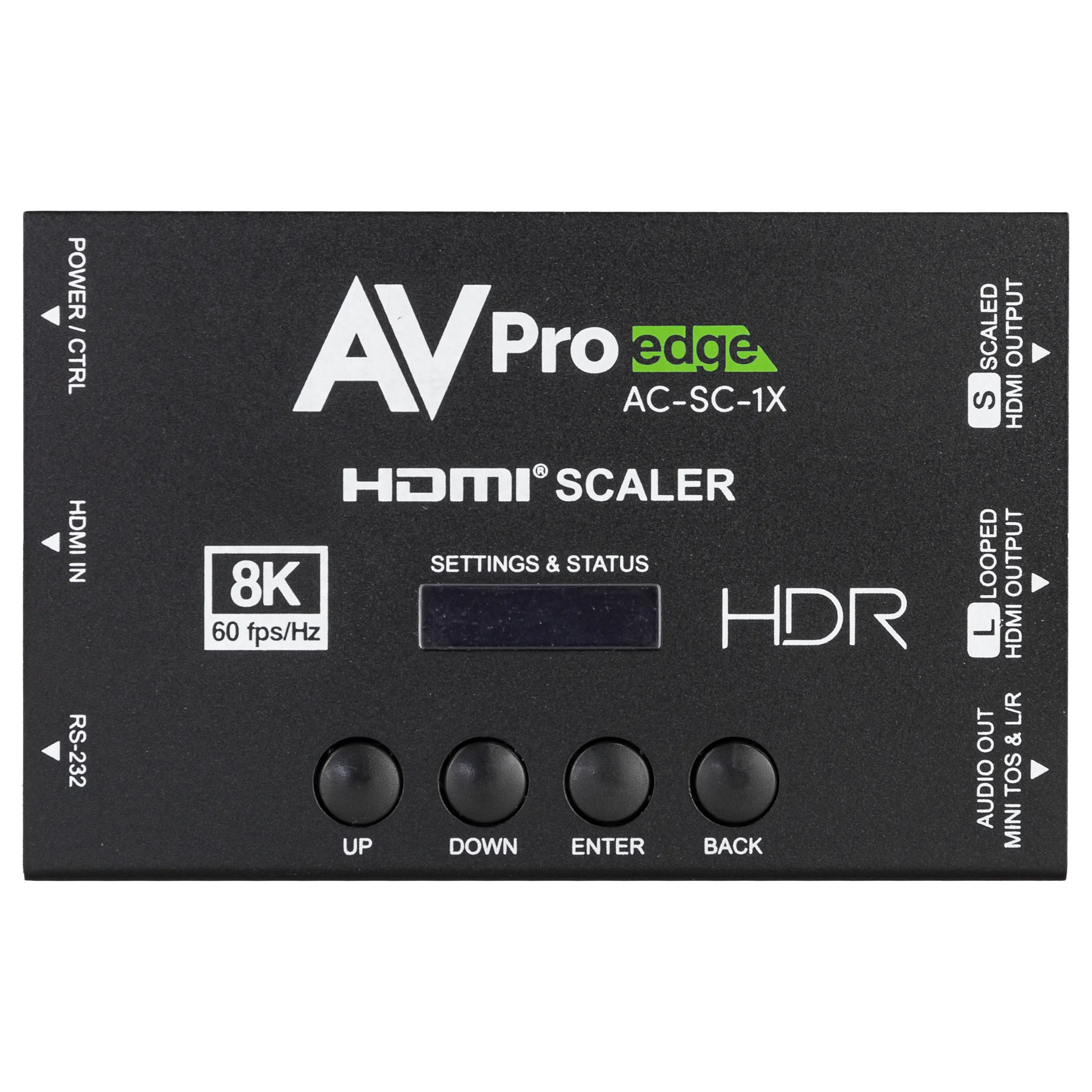

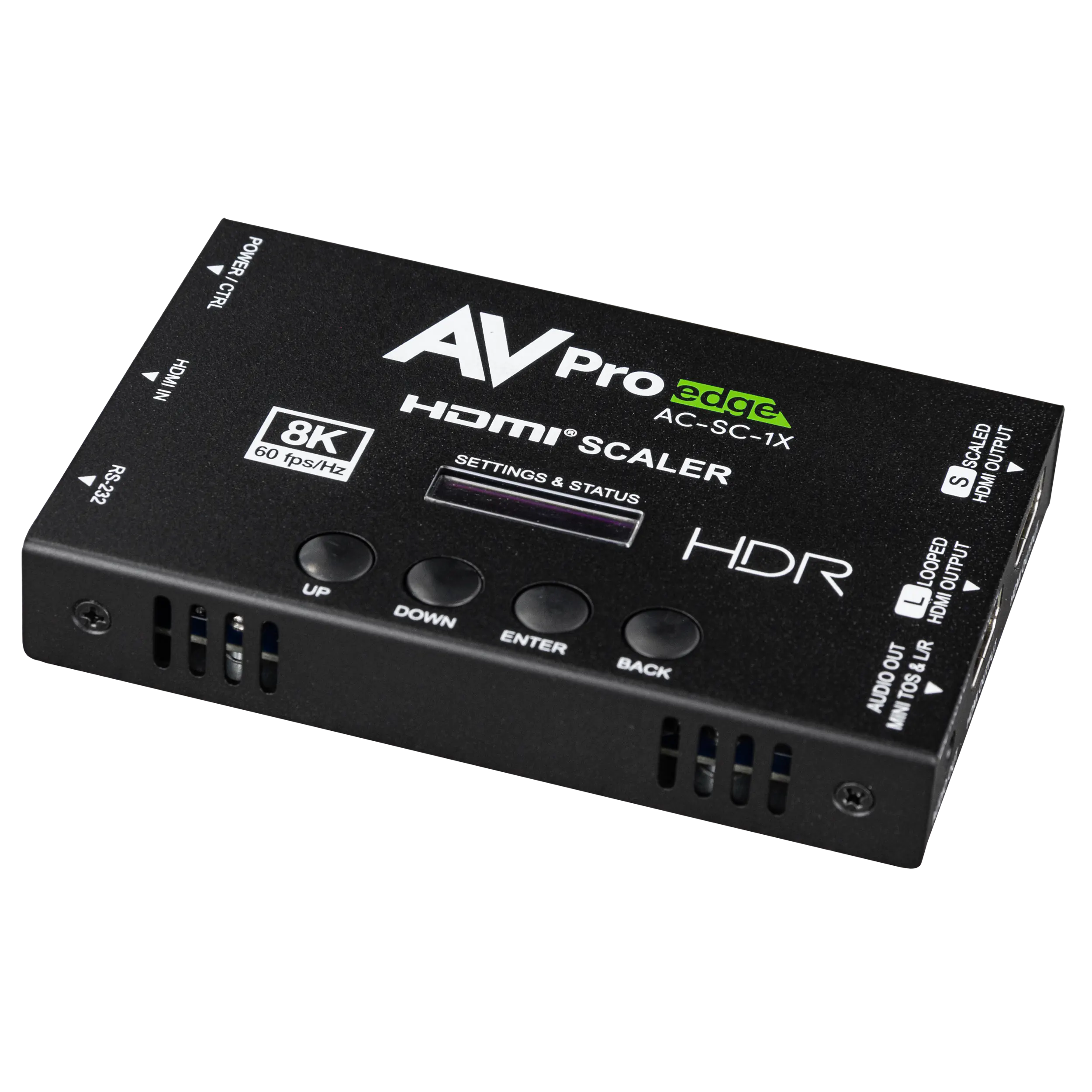

8K HDMI Downscaler, EDID Manager & Audio De-Embedder

Description

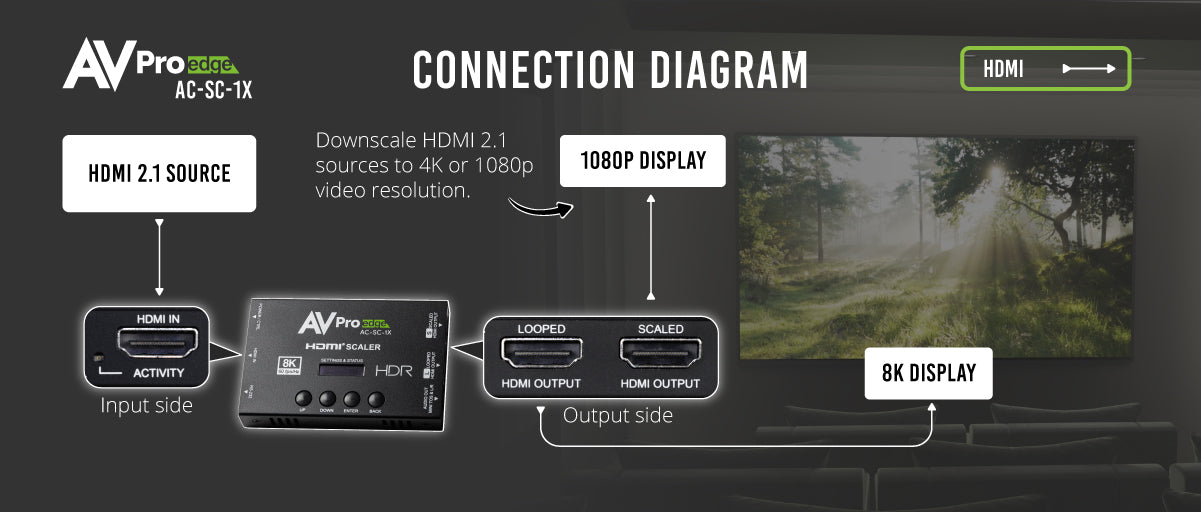

AC-SC1-X is engineered to process 40 Gbps high-speed HDMI signaling, allowing integrators to reduce 8K signals to 4K or even to 1080p where required. Scaling is but only one of the arrows in the AC-SC1-X quiver. Dual HDMI outputs, audio de-embedding, EDID management, and support for a suite of features introduced into the HDMI 2.1 specification provide the unique architecture for a product answering the demands from today’s AV signals.

8K HDMI Downscaler, EDID Manager & Audio De-Embedder

Product form
  • 8K -> 4K, 8K -> 1080p, 4K -> 1080p Scaling
  • EDID Management with EDID Blend
  • Audio de-embedding with 3.5mm Mini TOS or HDMI
  • 8K Support up to 40Gpbs

SKU: AC-SC-1X

  • Shipped today? Order within: Jun 17, 2024 13:00:00 -0500

Description

AC-SC1-X is engineered to process 40 Gbps high-speed HDMI signaling, allowing integrators to reduce 8K signals to 4K or even to 1080p where required. Scaling is but only one of the arrows in the AC-SC1-X quiver. Dual HDMI outputs, audio de-embedding, EDID management, and support for a suite of features introduced into the HDMI 2.1 specification provide the unique architecture for a product answering the demands from today’s AV signals.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

8K, 40Gbps Support (FRL 5) - High bandwidth signaling supplies plenty of headroom for current sources and is fully prepared to handle 8K signals from any devices using the AC-SC-1X as a bridge.



EDID Management and EDID Blend - 16 different EDID settings, including User Copy to retrieve the EDID from the connected display, enables systems with mixed era technologies to display the same content wherever desired. EDID Blend customization mixes audio and video EDIDs from two different signals for full flexibility and system compatibility.



Audio Extraction - Through the Digital Toslink output, 7CH PCM, Dolby Digital and Dolby Digital +, and DTS can be extracted and sent to an alternate location.

Ultra-Low-Profile Design: In the rack or nestled behind a display, the compact form factor of the AC-SC-1X allows for an easy fit where required.



Full HDR Support - As Hollywood becomes more adept at using HDR to augment storytelling, dynamic metadata in HDR content is pushing the color boundaries for compatible displays. AVPro Edge 8K devices repeat and passthrough HDR content retaining 100% of the fidelity in the signal. HDR, HDR10+, HLG, Dolby Vision and IMAX Enhanced are no challenge for AVPro Edge image-handling circuitry, delivering full color volume and accurate tone mapping metadata to connected displays.



High Frame Rate Compatibility - The AC-SC-1X supports 120fps with 4K or 1080p signals.



Additional HDMI 2.1a Features - Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) Quick Media Switching (QMS), Quick Frame Transport (QFT) Enhanced Audio Return Channel (eARC) and Source Based Tone Mapping (SBTM) are supported by the AC-SC-1X. Display Stream Compression 1.2, another feature in HDMI 2.1a is not supported, as AVPro Edge uses our proprietary Invisible Compression Technology (ICT) which provides for signal transport and processing with minimal, lossless compression and hyper-precise image fidelity.

Video:
Video ResolutionsUp to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
HDR Formats/Resolutions420, 422, 444 (10 AND 12 DEEP COLOR)
HDR10, HDR10+, DOLBY VISION, HLG
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080P) UP TO 12 BIT (4K)
Scaling (Resolution, Output 2 Only)8K  to 4K or 8K to 2K (1080P)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (Digital Toslink)LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio
Audio Formats Supported Extracted (2 CH Port)PCM 2 CH
Distance:
HDMI In/Out (48Gbps)UP TO 4 Meters (USING BULLET TRAIN 48Gbps HDMI)
HDMI In/Out (W/ AOC Cable) (48Gbps)UP TO 100 Meters (USING BULLET TRAIN 48Gbps AOC)
Other:
Bandwidth40 Gbps (FRL 5)
HDCPHDCP 2.3 and Earlier

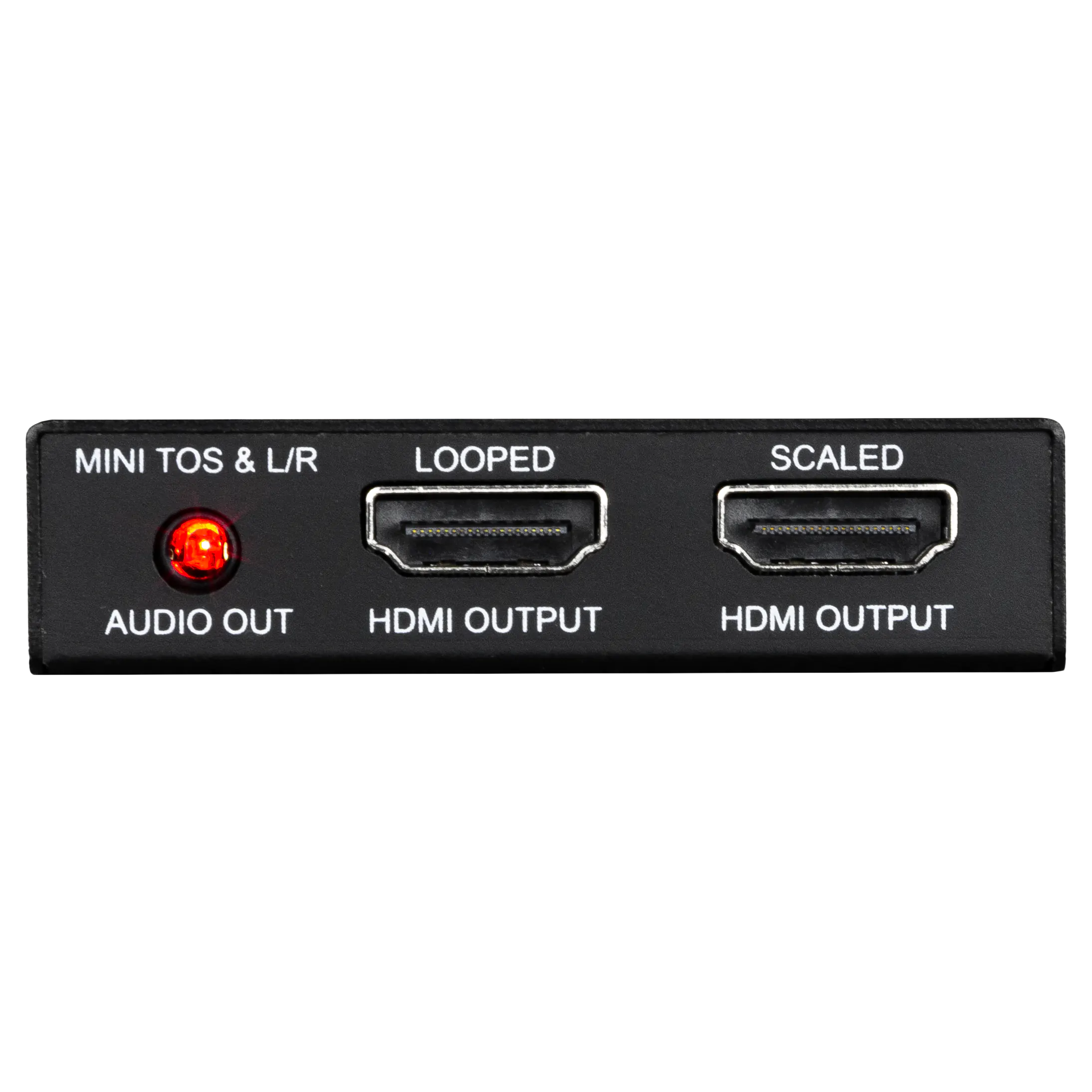

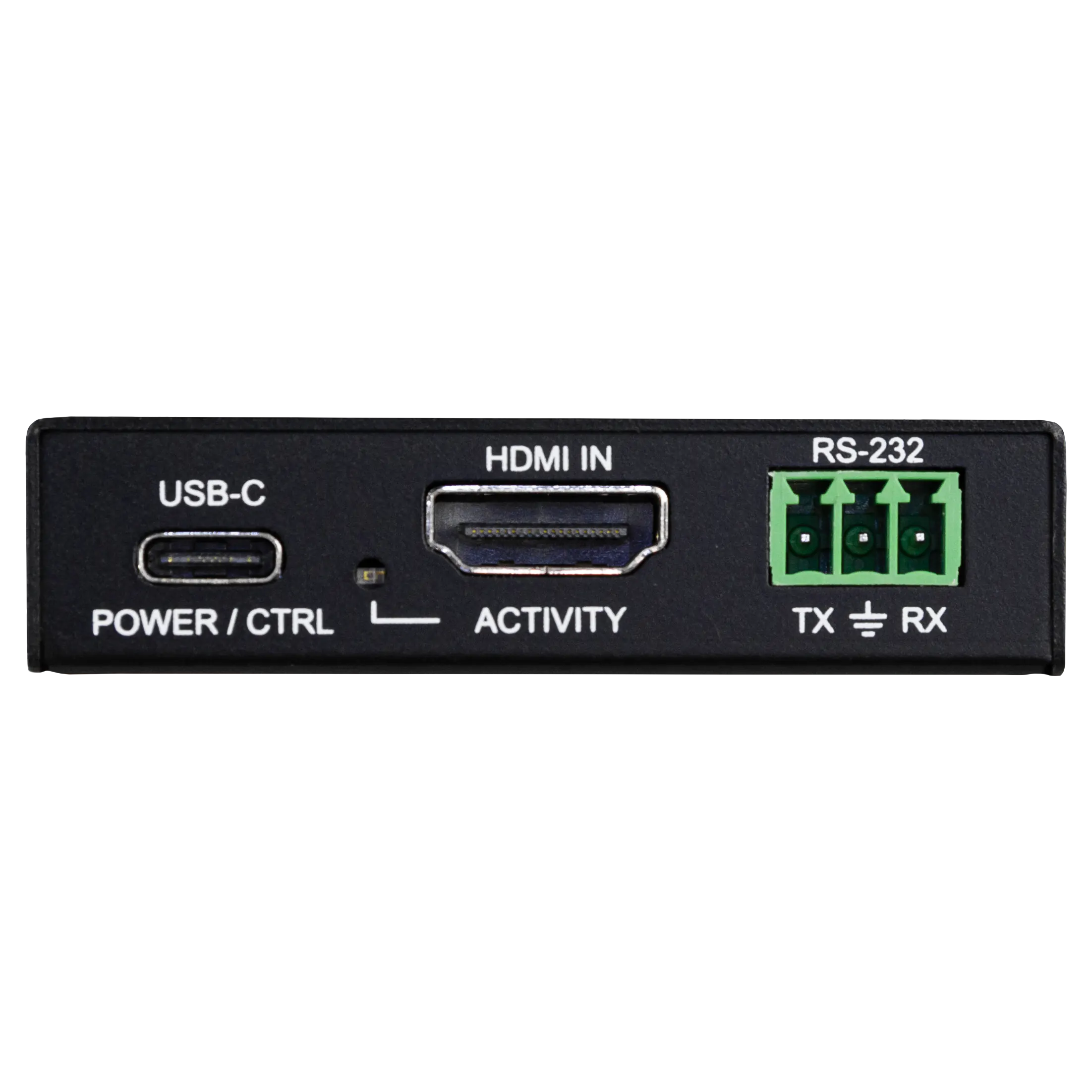

Ports:
HDMIType A
Audio (Extracted Analog)3.5 mm
Audio (Extracted Digital)Optical Toslink - Mini Toslink Adaptor included
Firmware/ControlUSB-C AND RS232 (3 pin terminal block)
PowerUSB-C
Environmental:
Operating Temprature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)2.5 watts max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 5V 1A
Dimensions:
Dimensions (Unit Only Length/Width/Height) MM: 64.88 X 100.1 X 16.1
inch: 2.55 X 3.94 X 0.63
Dimensions (Packaged Length/Width/Height) (Kit)mm: 136.5 x 155.5 x 88.9
inch: 5.375 x 6.125 x 3.5
Weight (Unit)0.32 LBS (0.15 KG)
Weight (Packaged)0.73 LBS (0.33 KG)
*Specifications subject to change without notice.  Mass & dimensions are approximate

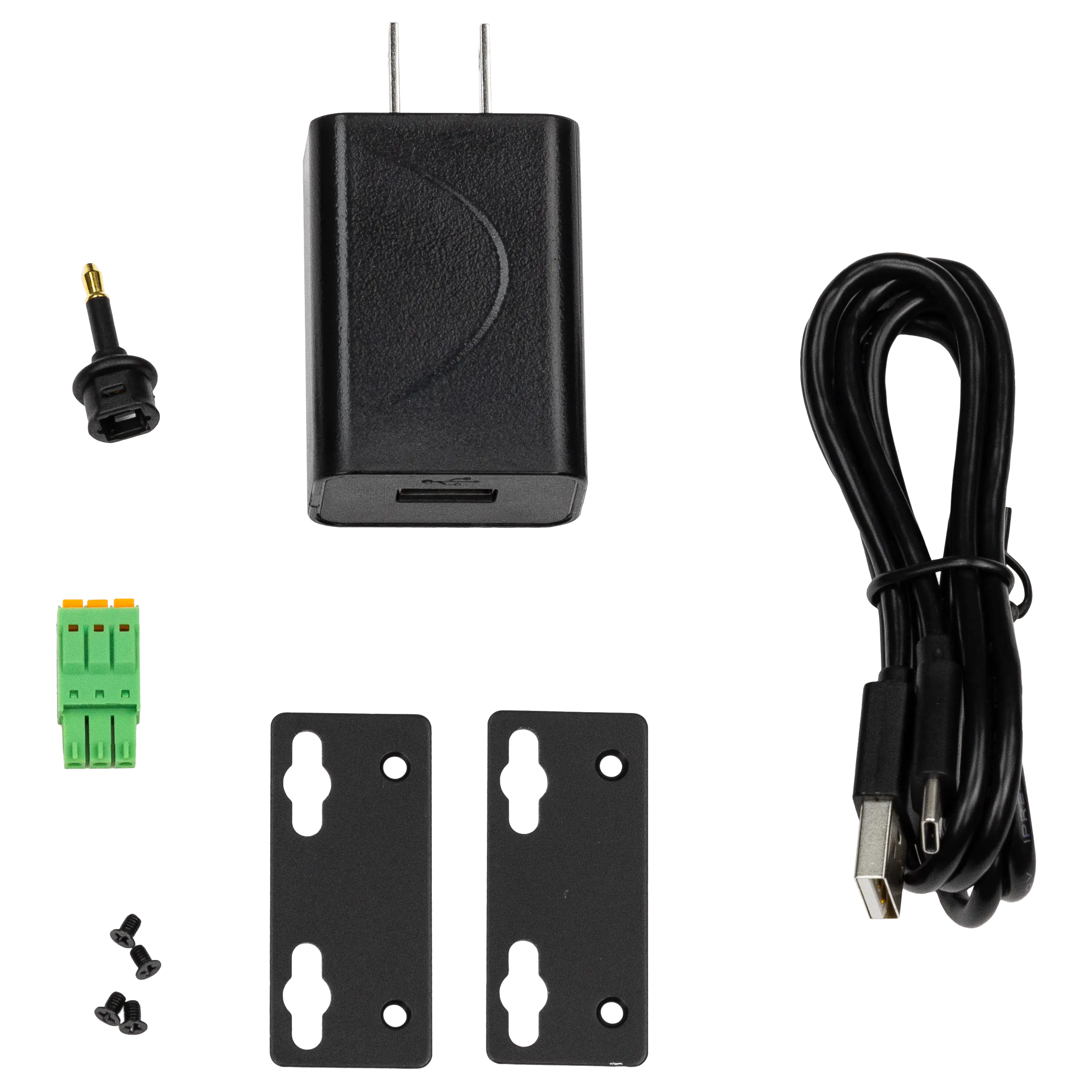

  • AC-SC-1X
  • USB-C Cord (for power)
  • 5V 1A Wall PSU
  • 3 Pin Terminal Connector (For RS232)
  • 3.5mm Mini Toslink adapter
  • Mounting Brackets with hardware
