AVPro Edge’s range of audio products is designed to provide commercial and residential integrators with economical solutions to common audio system challenges.
Extension transmitters and complete kits bring television streaming app sound into products like our audio matrix or audio hub for system-wide distribution.
Dante-platform devices provide an easy interface for analog sources with a Dante network.
Additional audio tools down-mix high-bitrate audio codecs into two channels for distribution across multiple zones, convert two-channel digital audio signals into analog stereo, and our compact Class-D amplifier can hide behind the slimmest OLED, to convert digital television sound into analog for playback over local speakers.
All are backed by AVPro Edge’s 10-year, no-hassle warranty and prepared to solve problems, not become one!
AUDIO MATRIX SWITCHERS
The AC-MAX-24 two-channel audio matrix switcher is designed to enable integrators to address distributed audio requirements for digital and analog user experiences, whether in house-wide residential applications or complex-wide commercial installations, when partnered with multi-channel amplifiers from any preferred manufacturer.
The highly intuitive AVPro Edge engineered GUI and comprehensive API directly connect you with unrivaled ease into a completely customizable signal routing environment.
An engineering contemplation brought to fruition, the AC-AEX-RC-HUB was conceived to harvest as many as eight decentralized audio-oriented sources at various distances from a centrally located third-party distribution system - joining four additional audio sources neighboring the matrix, then aggregated into a common endpoint with matrixing capabilities for seamless system integration. Pairs with the AC-AEX-T.

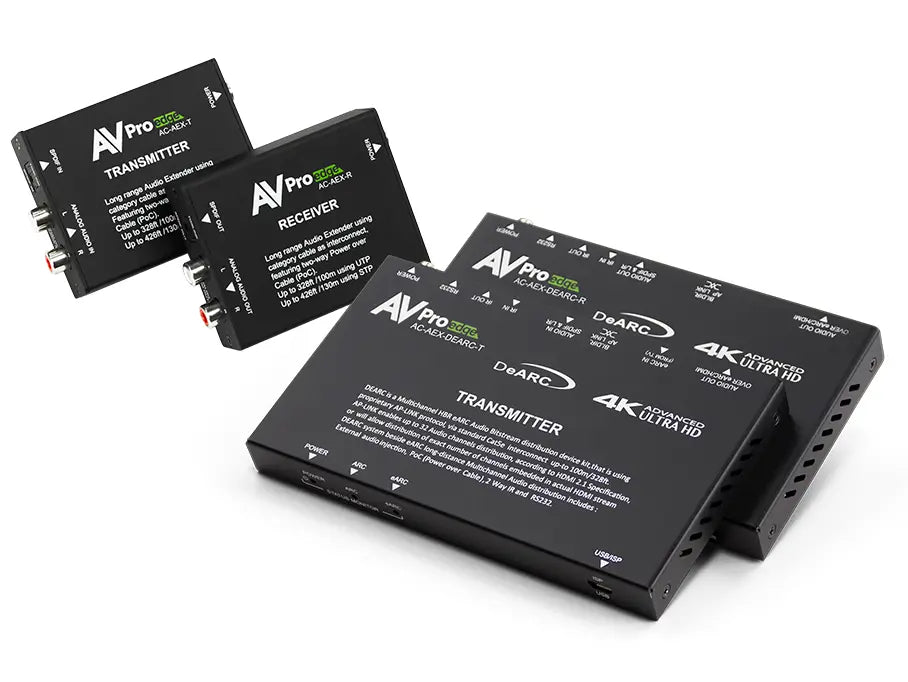

EXTENDERS
The AC-AEX-KIT is a professional audio extender from AVPro Edge, allowing integrators to deliver uncompressed, stereo signals over 100 Meters from the source.
The AC-AEX-T 100M audio transmitter can switch between Coaxial and Optical digital signals and can be powered by either USB or power adapter allowing users flexibility of choice between power sources.
The AC-AEX-DEARC-KIT is a multichannel audio extender that transfers high-bitrate audio from a display to a centrally located audio distribution system using the eARC feature in the HDMI 2.1 specification.
DOWNMIXER
This 4K HDMI with Dolby Audio™ and DTS-HD® Stereo Audio Downmixer supports the transmission of high bandwidth video through HDMI, and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance.
DANTE SOLUTIONS
The AC-DANTE-D is a two-channel Dante network two-channel decoder. AVPro Edge employs Dante’s Ultimo chipset, providing 100% lossless analog conversion from digitally encoded content with sampling rates from 44.1kHz to as high as 96kHz, in 16-, 24- or 32-bit word lengths.
The AC-DANTE-E is a two-channel, analog stereo-to-Dante platform encoder. Analog audio signals from sources with RCA-type stereo output connectors may be digitally encoded by the AC-DANTE-E for distribution to other devices on a Dante network.
The AC-DANTE-AMP-2CH is a combination 25W/RMS(@4 W, 12.5 W/RMS @ 8W ) 2-channel local audio power amplifier and Dante Audio/AES67 decoder, supporting sampling rates of 44.1kHz, 48kHz, 88.2kHz, and 96kHz with 16-, 24-, and 32-bit word lengths encoded as either the Dante audio or AES67 format. Encrypted Dante audio information is input via the designated Dante Audio network RJ45 network port, undergoes decoding from Dante digital into analog, and outputs a speaker-level signal from a pair of secured, 2-pin terminal block connectors, plus line-level audio by way of a 5-pin terminal block connector.
AUDIO TOOLS
The AC-DAC-CO2 is an easy to use product that converts Coaxial or Optical audio signals into analog Stereo (L/R) audio. It can be easily switched between either Coaxial or Optical inputs.
