UHD over Category Cable - The length of manufactured HDMI cable is unchangeable after it’s made, and they are unreliable after about 25FT. HDMI connectors can only be terminated in a specialized factory environment due to their extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. On the other hand, CAT-6A cables are available widely and can be reworked easily by the installer or end-user.

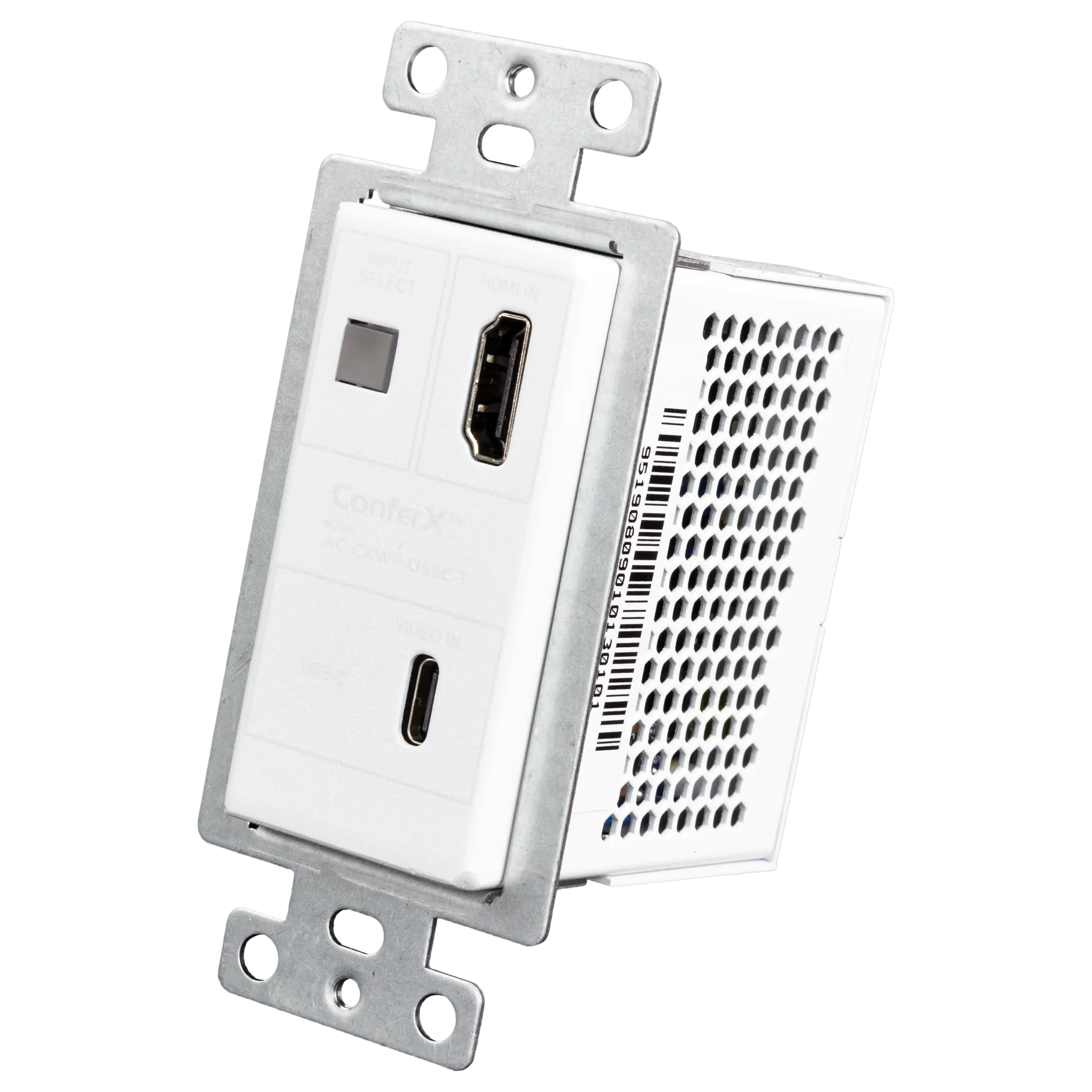

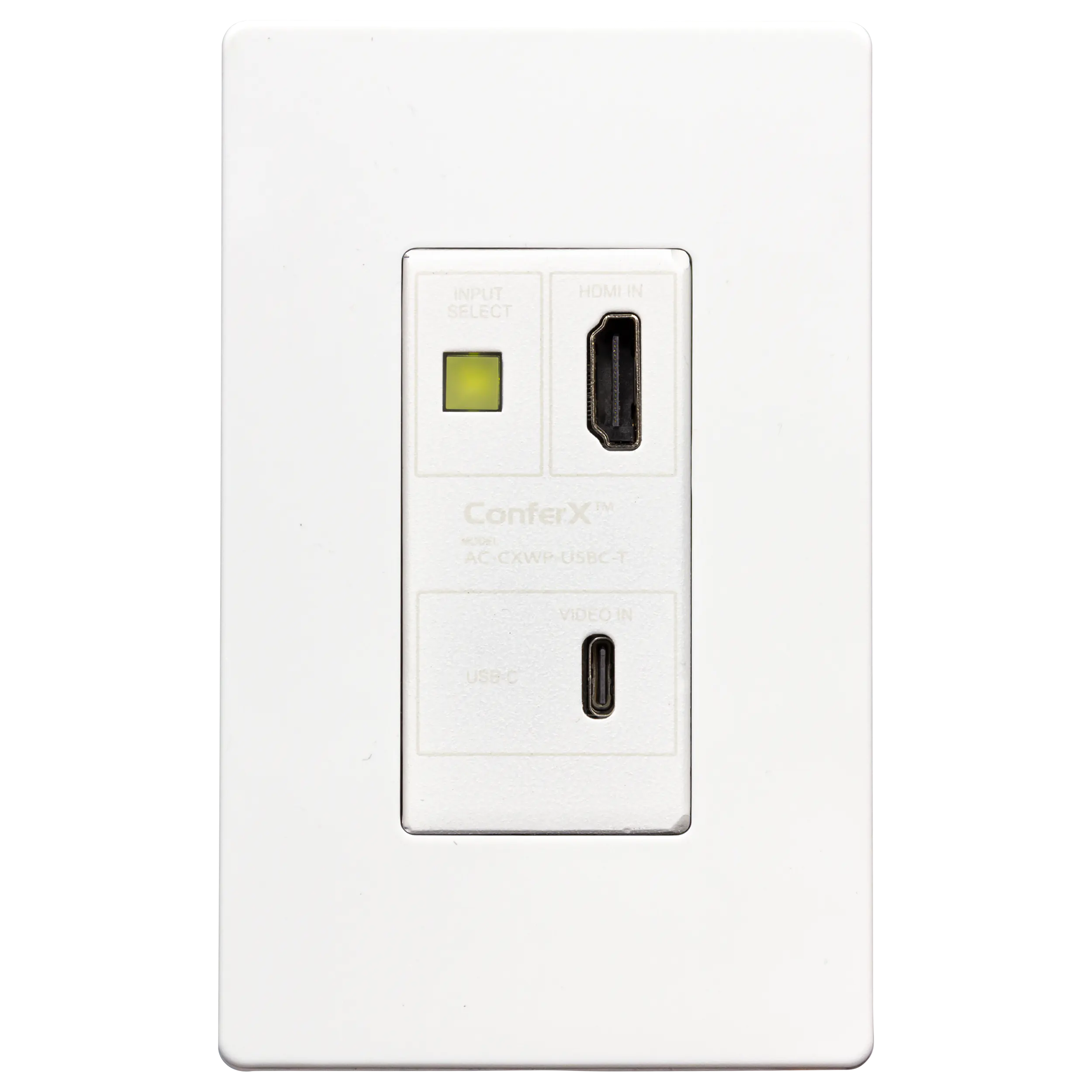

USB-C Video Input - USB 3.1 cables are a versatile version of USB with type C ports commonly found on phones, tablets, laptops, and many other products. These USB 3.1 type C ports are typically used for charging but can also output video. There is no need for additional drivers as these devices' primary USB and graphics drivers support the USB video alt modes to transfer video. In addition, the USB-C wall plate transmitter has a USB-C video input to connect to any USB 3.1 capable device and transmit up to 4K video.
NOTE: Not all USB-C ports support video, and many USB-C cables are available for purchase. Make sure to use ones that state "USB-C 3.1".
Distance - By using AC-CXWP-USBC-T, the transmission distance for HD 1080P is 100 meters (330ft) & 4K is up to 70 meters (230ft)
Auto Sensing - This wall plate is designed to be a “Set it & forget it” piece of hardware. When the user plugs in their device, the wall plate automatically senses the signal and makes it active. With indicator lights on the face of the wall plate, you know whether or not you have a solid connection or not.
Power - No local power is required when you use the AC-CXWP-VGA-T. Power is provided by ultra-stable PoE technology. Optionally, you can power it locally with any HDBaseT Receiver or projector that takes HDBaseT input.

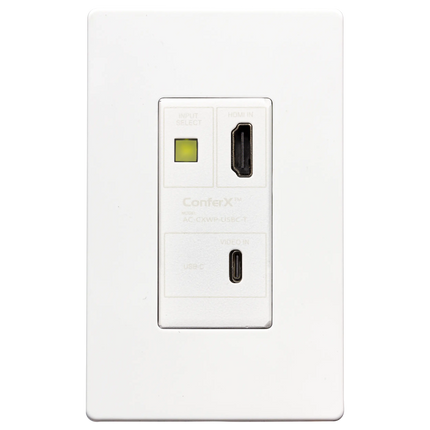

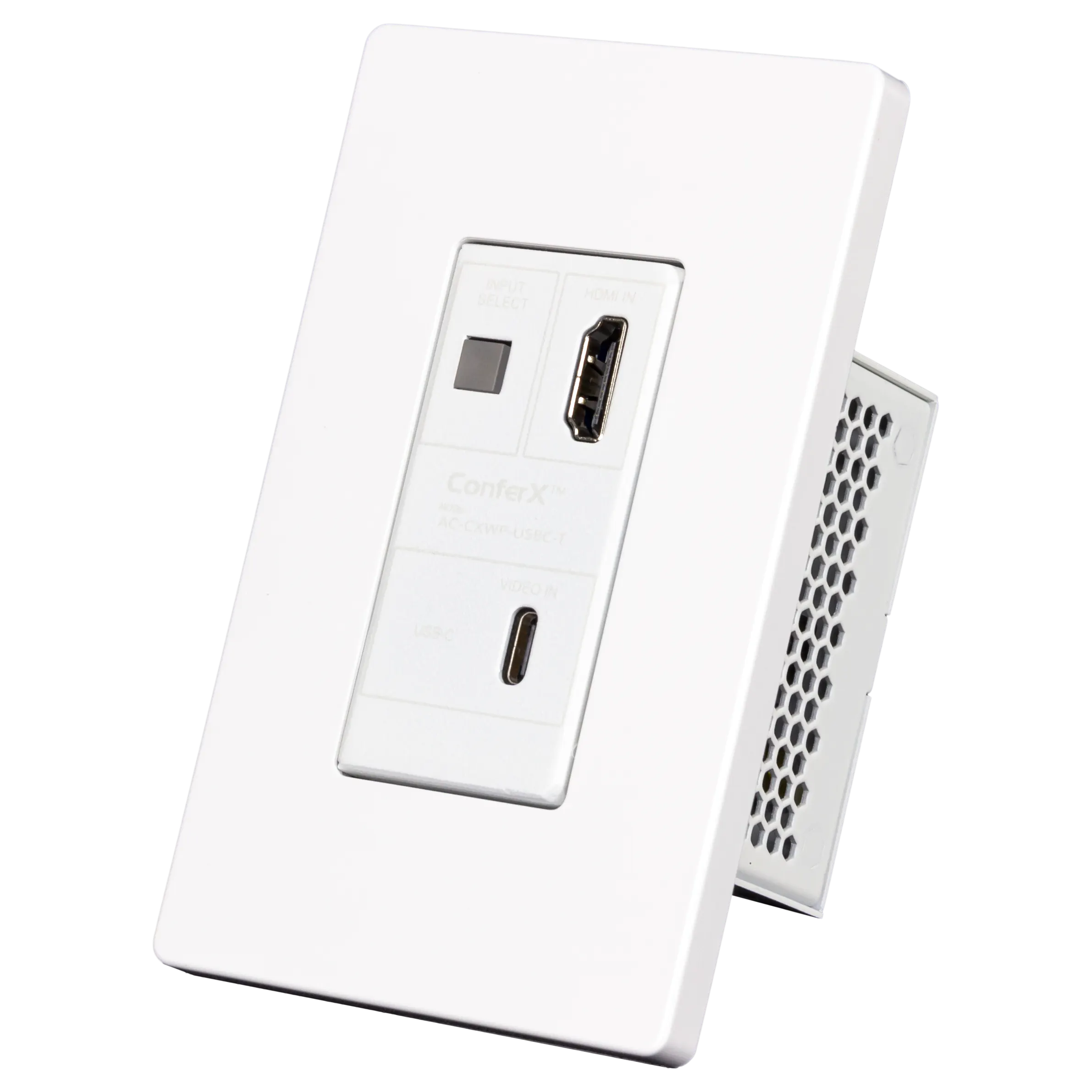

Single Gang - Save space and make a squeaky clean installation with the single gang configuration. This wall plate fits in more places than ever. It’s perfect for mounting in a wall, on a desk or podium top, or any other place where you need a solid and sleek HDMI connection.
|Video Resolutions||Up to 4K 60Hz 4:2:0 & 4k30 4:4:4|
|VESA Resolutions||Up to 2560x2048 (QSXGA)|
|HDR Formats/Resolutions||4k24 4:2:2 12 bit, 4k24 4:2:0 10 bit|
|Color Space||YUV (Component), RGB |
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
|Chroma Subsampling||4:4:4, 4:2:2, 4:2:0 Supported|
|Deep Color||Up to 12 bit (4K)|
|Audio Formats Supported HDMI||PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos|
|Distance 1080p||100m (330 feet) (With CAT 6a/7)|
|Distance 4k & HDR||70m (230 feet) (with CAT 6a/7)|
|HDCP||HDCP 2.2 and Earlier|
|HDMI (input)||Type A|
|USB-C Port (INPUT)||USB-C (USB 3.1 GEN 2 or higher for 4k)|

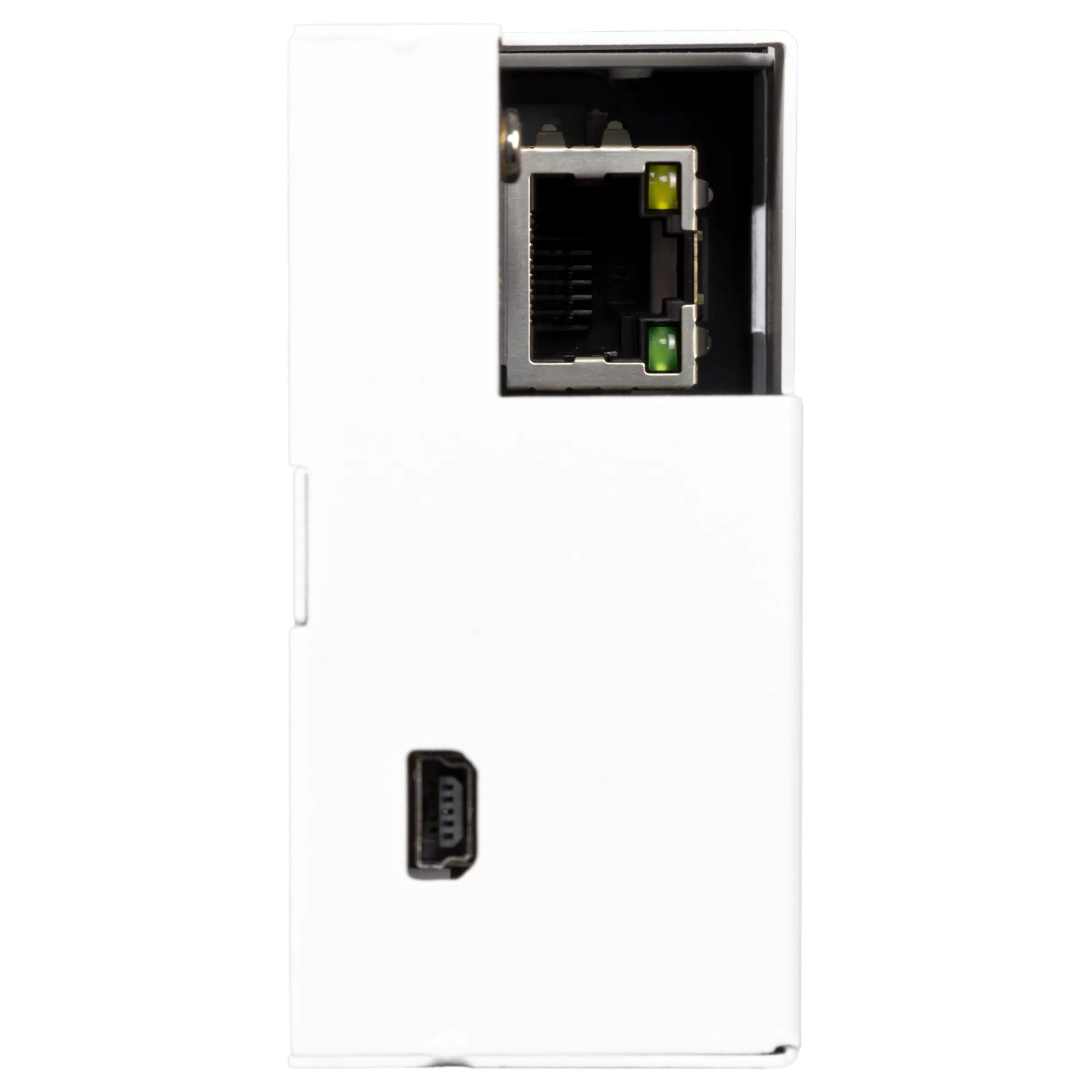

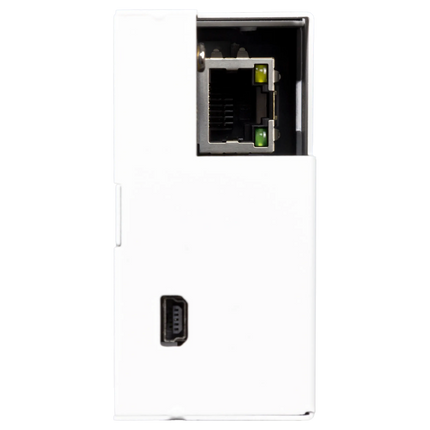

|HDBaseT (output to Receiver)||Rj45|
|Operating Temperature||23 to 125°F (-5 to 51°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Humidity Range||5-90% RH (No Condensation)|
|Power Consumption (Total)||8 watts (16.5 when paired with receiver)|
|Power Supply||Input: AC 100-240V ~ 50/60Hz|
Output: DC 5V (mini USB)
|Dimensions (Single Unit Only) (Length/Width/Height)||mm: 70 x 65 x 31|
inch: 2.75 x 2.55 x 1.22
(without wall decora cover)
|Wall space||single gang|
|compatible box types||mud rings, stud mount, clamp mount, metal & plastic boxes, lv boxes|
|mm: 159 x 137 x 89|
inch: 6.25 x 5.375 x 3.5
|Weight (Unit)||0.4lbs (0.18Kg)|
|Weight (Packaged)||0.5lbs (0.23Kg)|
|*Specifications subject to change without notice. Mass & dimensions are approximate|
