Architect P2660

Description

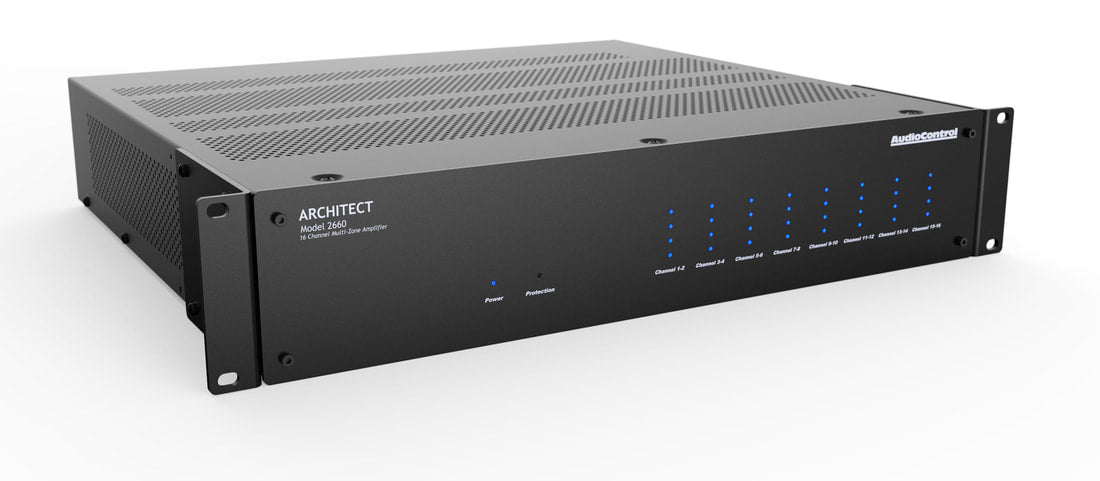

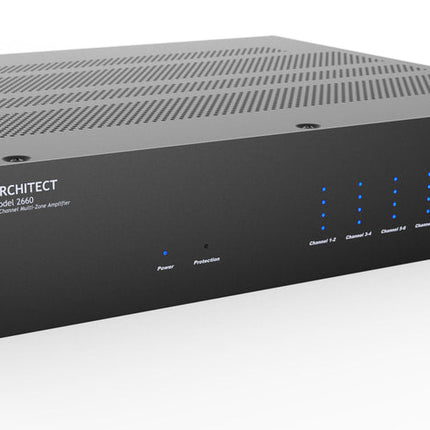

16-Channel High-Power Multi-Zone Amplifier

The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series, delivering 100 watts RMS per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven.

16 channels of high-power amplification are output from the compact 2 U chassis, with the Architect P2660 delivering 100 watts per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 400 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect P2660 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.

Available in a robust black powder coat finish, the Architect Model P2660 is designed, engineered, and manufactured at AudioControl facilities located in Seattle, USA. The Architect ‘P’ series is covered by AudioControl’s legendary 5-year warranty and is available exclusively to the residential, custom install, and Pro Audio markets through AudioControl authorized dealers.

Architect P2660

Product form

16-Channel High-Power Multi-Zone Amplifier

  • 16 channels, up to 8 Zones
  • 100 W at 8 Ohms, 200 W at 4 Ohms
  • 8 Bridgeable Zone Outputs
  • All Inputs Selectable for Local Input or Group BUS

SKU: ACP-AZ-P2660

  • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

Description

16-Channel High-Power Multi-Zone Amplifier

The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series, delivering 100 watts RMS per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven.

16 channels of high-power amplification are output from the compact 2 U chassis, with the Architect P2660 delivering 100 watts per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 400 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect P2660 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.

Available in a robust black powder coat finish, the Architect Model P2660 is designed, engineered, and manufactured at AudioControl facilities located in Seattle, USA. The Architect ‘P’ series is covered by AudioControl’s legendary 5-year warranty and is available exclusively to the residential, custom install, and Pro Audio markets through AudioControl authorized dealers.

  • FEATURES
  • SPECIFICATIONS
  • RESOURCES
  • 16 Channels of AudioControl Power and Performance
  • 100 watts per channel into 8 Ohms (All channels driven)
  • 200 watts per channel into 4 Ohms (All channels driven)
  • Configurable into 8 Bridged Channels
  • Bridged Channel Power 400 watts into 8 Ohms
  • Energy-Efficient Cool Operation
  • Low Standby Current Draw, 1 watt or Less
  • Compact Design Fits into 2 Rack Spaces
  • LightDrive Anti-Clipping Protection Circuitry

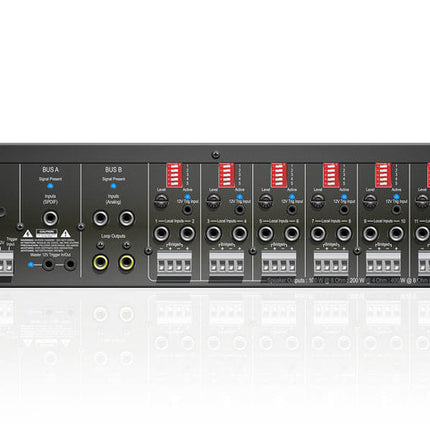

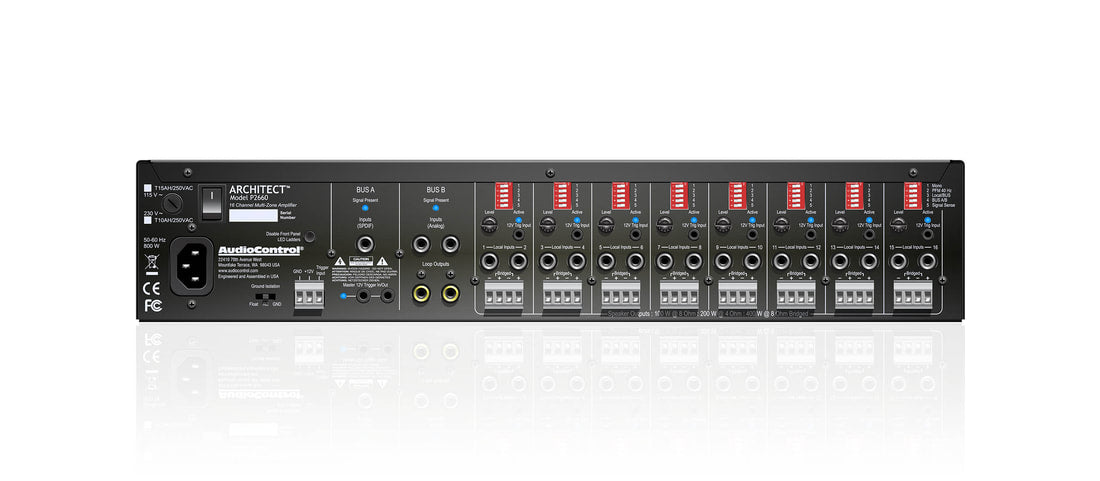

  • 2 x Bus Inputs A (Digital) & B (Analog)
  • Global 12 VDC Trigger Input and Output
  • Remote/Local Zone Input Trigger
  • Signal-Sensing On All Channels
  • Level Controls for All Input Pairs
  • Stereo-to-Mono Switch for Easy Channel Bridging
  • Rack Mount Brackets Included
  • Five-Year AudioControl Warranty
INPUTS
Inputs: 8 Stereo Local Analog Inputs, 1 Stereo Bus Coaxial Digital Input, 1 Stereo Bus Analog Input
Input Sensitivity: Variable 0 to 1 Vrms
Analog Input Sensitivity: 1 Vrms for full output; level at maximum
AC POWER REQUIREMENTS
Standby: 0.9 W
Idle (main power on, all channels off): 42 W
All channels active: 90 W
All channels 1/8th rated power: 338 W
Full power (20 A residential service limited): 2400 W
Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads
OUTPUTS
Amplifier Channels: 16
1 Stereo Bus Analog Loop Output
Power Output (8 Ω): 100 W per channel
Power Output (4 Ω): 200 W per channel
Power Output (Bridged Mono): 400 W
Minimum Speaker Load: 4 Ω
BTU/HR OUTPUT
Standby: 3.1 BTU/hr
Idle (main power on, all channels off): 144 BTU/hr
All channels active: 307 BTU/hr
All channels 1/8th rated power: 415 BTU/hr
Full power (20 A residential service limited): 2124 BTU/hr
PERFORMANCE
Damping Factor: >300
Signal to Noise: >105 dB, (A-wtd, ref full output)
Crosstalk: >80 dB @ 1kHz
Gain: 30 dB
Analog Input Sensitivity: 1 Vrms for full output, level at maximum
DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth
WEIGHT & DIMENSIONS
Dimensions: 19″ W (w/rack ears) 17” W (w/o rack ears) x 15.5” D x 3.5″ H (2 U)
Weight: 20.5 lbs. (9.3 kg)
CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out
IN THE BOX
Architect Model P2660, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty

MANUAL
DATA SHEET
