100M Uncompressed Audio Extender

Description

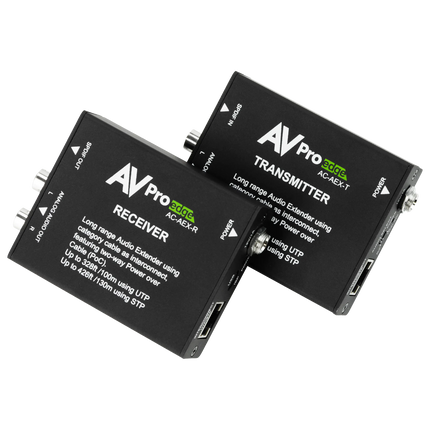

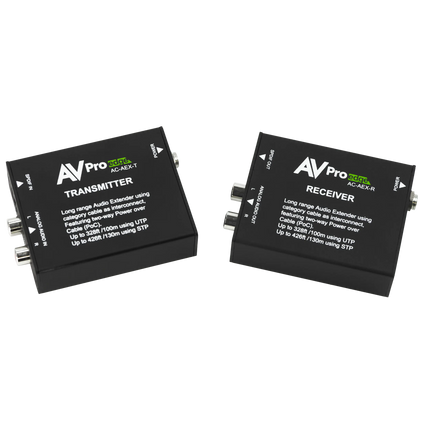

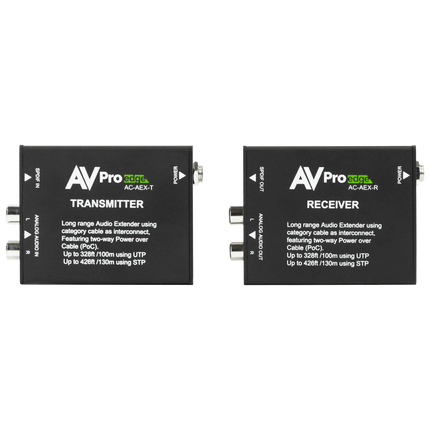

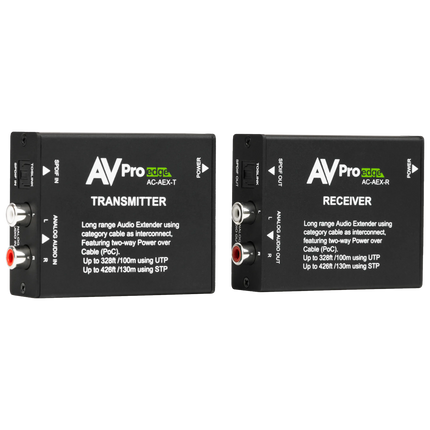

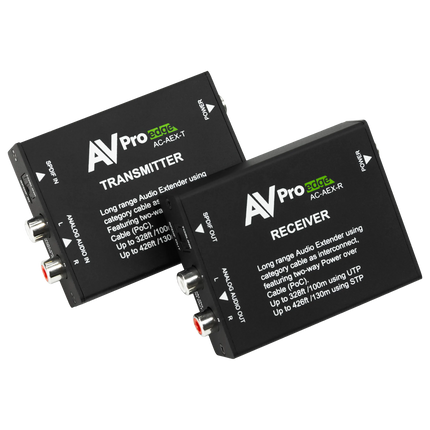

The AC-AEX-KIT is a professional audio extender from AVPro Edge, allowing integrators to deliver uncompressed, stereo signals over 100 Meters from the source. Analog or Digital sources can be selected using the Input Dipswitch, while AVPro’s “Dual-Play” function will simultaneously play the audio signal on both the analog and digital outputs. This extender works with any compatible RJ45 connection that has CAT5e or greater cable and features POC. Meaning only one side needs to be powered to deliver power to both units.

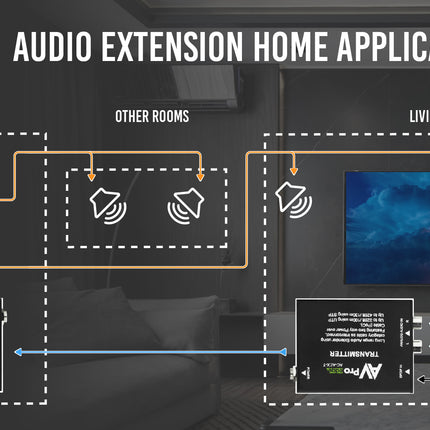

The AC-AEX-KIT is ideal in modern installations when the customer wants to hear the sound from the built-in Smart TV apps, and you want to route them back to the head end for playback on an AVR and whole-home audio distribution.

    100M Uncompressed Audio Extender

    Product form
    • Engineered to deliver uncompressed audio 100 meters
    • Ideal for bringing SmartTV audio to a distributed system
    • SmartTV audio support from apps like Netflix, Spotify & Disney+
    • L/R & Optical digital audio S/PDIF Signal Support
    • Supports stereo and multi-channel digital audio (LPCM 2 CH through Dolby Digital or DTS 5.1 CH)

    SKU: AC-AEX-KIT

    • Shipped today? Order within: Mar 03, 2024 13:00:00 -0600

    Description

    The AC-AEX-KIT is a professional audio extender from AVPro Edge, allowing integrators to deliver uncompressed, stereo signals over 100 Meters from the source. Analog or Digital sources can be selected using the Input Dipswitch, while AVPro’s “Dual-Play” function will simultaneously play the audio signal on both the analog and digital outputs. This extender works with any compatible RJ45 connection that has CAT5e or greater cable and features POC. Meaning only one side needs to be powered to deliver power to both units.

    The AC-AEX-KIT is ideal in modern installations when the customer wants to hear the sound from the built-in Smart TV apps, and you want to route them back to the head end for playback on an AVR and whole-home audio distribution.

      • Key Benefits
      • Specs
      • Resources
      • In the Box



      Proprietary Interconnect UTP/STP with POC - The audio extender uses a proprietary interconnect UTP/STP (Unshielded Twisted Pair/Shielded Twisted Pair) cable system with support for POC (Power over Cable) to provide reliable, high-quality audio transmission and power delivery over a single cable. This cable system is designed specifically for the audio extender, ensuring optimal performance and minimizing the risk of signal loss or interference. Additionally, the UTP/STP cable system with POC is widely available and cost-effective, making it a convenient and affordable option for users.



      Uncompressed Audio - The audio extender is engineered to deliver uncompressed audio up to 100 meters. This ensures that the audio quality remains high and that there is no loss of audio fidelity during transmission.



      SmartTV Audio Support - The audio extender is ideal for bringing SmartTV audio to a distributed system, supporting audio from popular apps like Netflix, Spotify, and Disney+. This allows users to enjoy high-quality audio from their favorite streaming services on their distributed audio system.



      Multiple Audio Signal Support - The audio extender supports L/R and optical digital audio S/PDIF signals, allowing for stereo and multi-channel digital audio up to 5.1 channels (through Dolby Digital or DTS). This provides flexibility for different audio systems and configurations.



      Dual Active Audio Outputs - The audio extender features dual active audio outputs, providing two separate audio signals for different audio systems. This allows users to connect to multiple audio systems simultaneously.



      Small Durable Chassis and Warranty - The audio extender has a small, durable chassis that is easy to install and can withstand wear and tear. Additionally, the device comes with a 10-year warranty, providing long-term protection and peace of mind for users.

      Distance:
      UTP: unshielded twisted pair100 Meters (328 feet)
      STP: shielded twisted pair130 Meters (426 Feet)

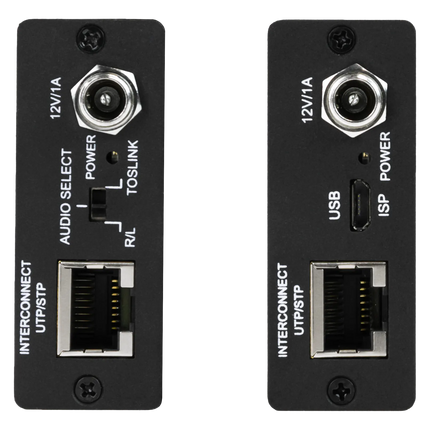

      Ports: Transmitter

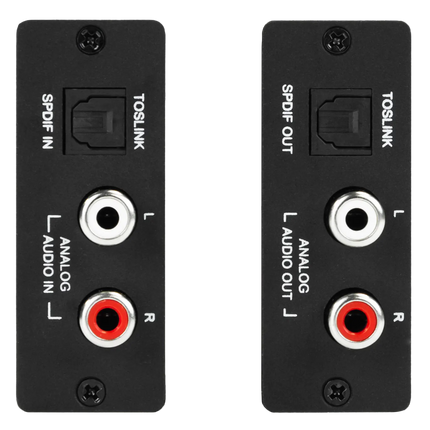

      Audio Inputs1x Optical, 1x Analog Stereo (L/R)
      PowerLocking Barrell Plug
      Extension/InterconnectRJ45
      Ports: Receiver
      Audio Outputs1x Optical, 1x Analog Stereo (L/R)
      PowerLocking Barrell Plug
      Extension/InterconnectRJ45
      ISPMicro USB port
      Audio:
      Input FormatLPCM 2 CH & Dolby Digital/DTS Digital ES
      (Digital from Optical)
      Input Sampling Rates32kHz ~ 96kHz
      Input Impedance47KΩ
      Output Impedance600Ω
      Environmental:
      ESD ProtectionContact Discharge: +4kv-4kv
      Air Discharge: +4kv-4kv
      Power:
      Power Consumption (Total)3 watts max
      Power SupplyInput: AC 100-240V ~ 50/60Hz 0.8A
      Output: DC 12V 2A
      Dimensions:
      Dimensions
      (Single Unit Only HEIGHT/DEPTH/WIDTH)
      MM: 22.3 x 58 x 82
      INCH: 0.88 x 2.28 x 3.23
      Dimensions
      (Packaged HEIGHT/DEPTH/WIDTH)
      MM: 86 x 133 x 155
      INCH:  3.4 x 5.3 x 6.1
      Weight (Single Unit only)0.19 LBs (0.09 KG)
      Weight (Packaged)0.89 LBS (0.4 KG)
      *Specifications subject to change without notice.  Mass & dimensions are approximate
      • AC-AEX-T Digital Audio Transmitter
      • AC-AEX-R Digital Audio Receiver
      • 12v Power Adapter​
