The MXnet Evolution II platform provides system designers with flexible endpoint options while simultaneously consolidating wiring paths.

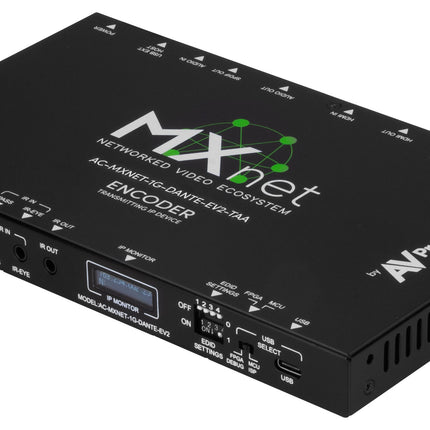

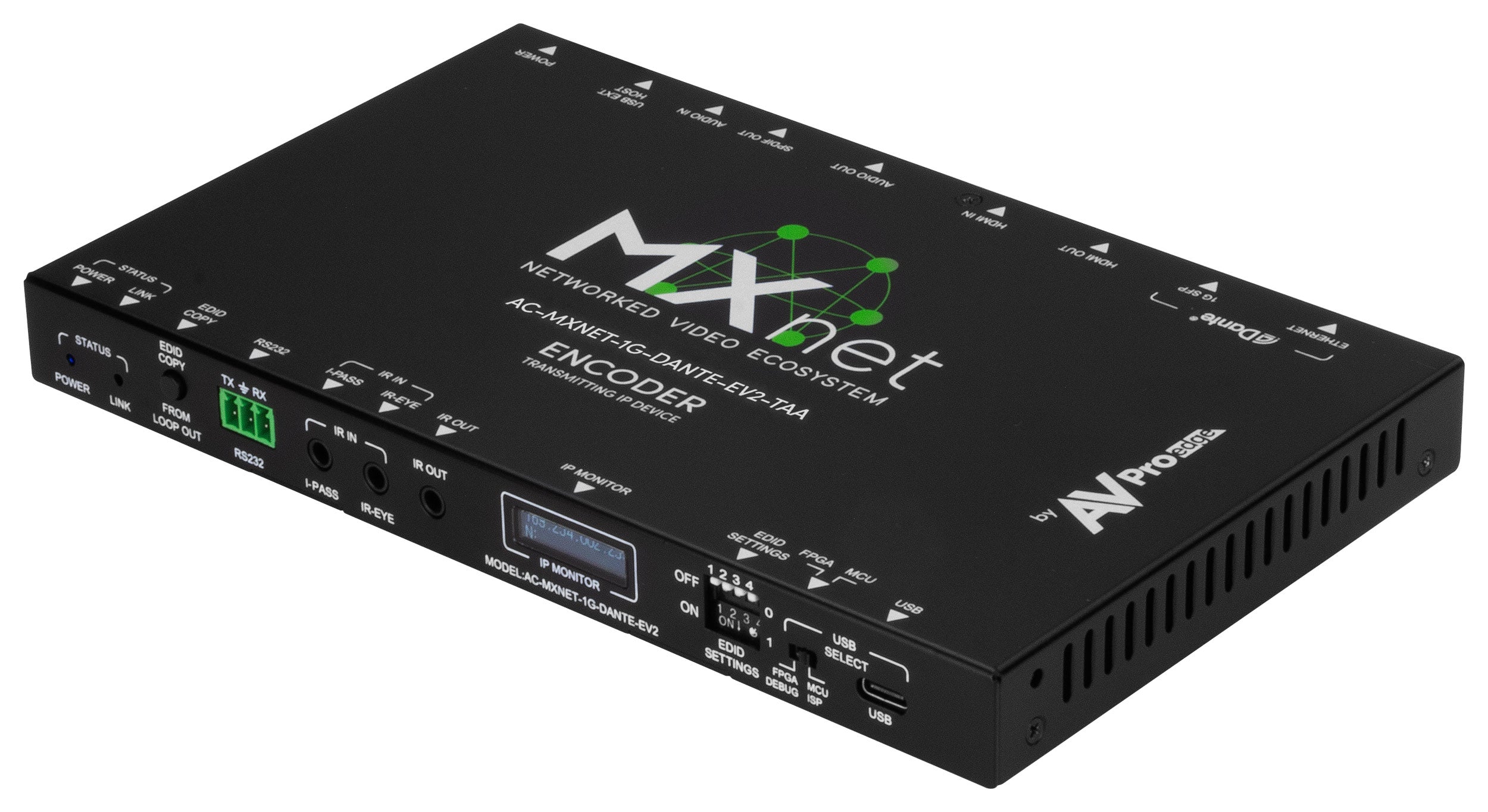

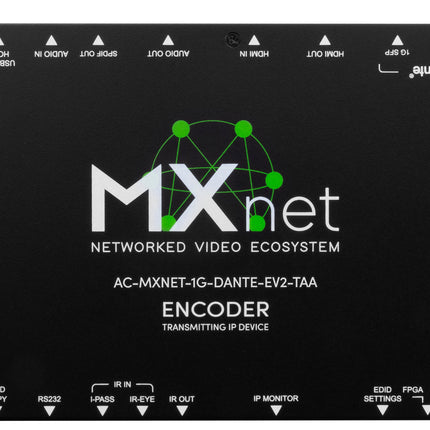

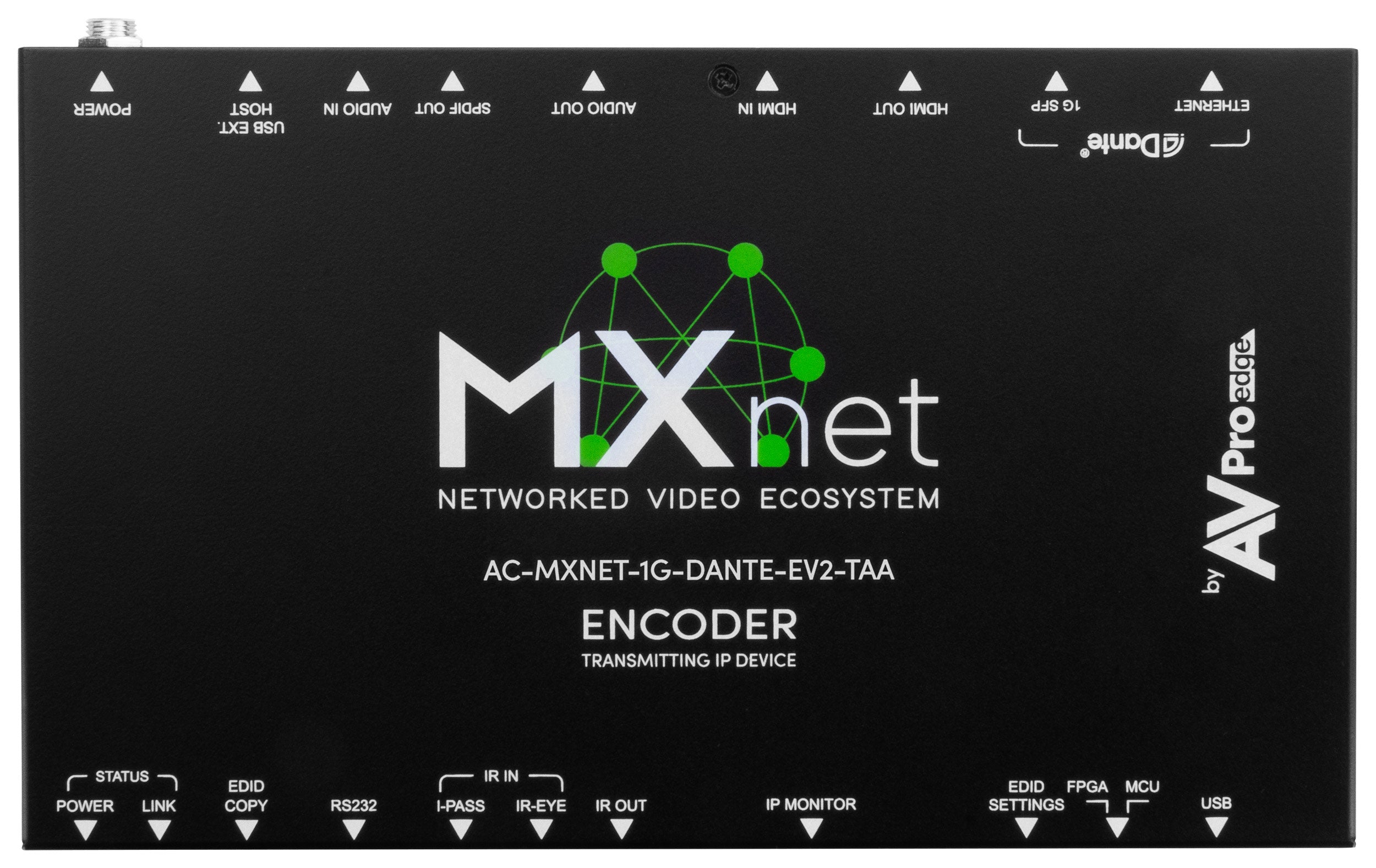

SKU: AC-MXNET-1G-DANTE-EV2-TAA
Proprietary Motion JPEG-based CODEC – MXnet Evolution II incorporates a proprietary video algorithm that carefully optimizes compression rates per multicast packet size. Genlock is supported, syncing a video source by frame rate to Decoders comprising a video wall for a simul-sync, tear-free appearance.
Native 4K/60 fps Support – MXnet Evolution II enables 4K/60 fps 4:4:4 RGB / YCbCr, 10- and 12-bit natively or with dynamic metadata. When not lossless, the advanced encoding/decoding engine applies a limited, ultra-light compression, composing an artifact-free image upon decoding, including Dolby Vision and HDR10+ content.
High Bitrate Multi-channel Audio Support – 3D immersive audio CODECs such as Dolby Atmos and DTS:X for IMAX Enhanced are now supported.
USB and KVM Support – The AC-MXNET-1G-DANTE-EV2 features a USB 2.0 Type-B female Host connection, enabling MXnet Mentor software to configure easy routing for bi-directional USB signals from a designated Host Encoder to a downstream decoder with a connected USB device. USB video downstream processing has been improved and now supports resolutions up to 1920x1080p@30 Hz.
External Device Light Control - Light emission from an AC-MXNET-1G-DANTE-EV2 may be controlled via MXnet Mentor. Any status light, including network link LEDs and the OLED Data Window, may be optionally disabled to prevent unwanted distraction, enabling discreet placement where desired. Device lights may also be continuously “flashed” for high visibility when troubleshooting.
| Encoding | |
| Video Codec | Proprietary Codec based on M-JPEG, Dante |
| Audio Codec | Proprietary Codec, Dante |
| Latency | 16ms@60Hz |
| Streaming Protocols | TCP, UDP, IP, IGMP-V2 |
| Copy Protection | HDCP 2.2 and earlier |
| Video Input/Ingestion | |
| Signal Type | DVI 1.0, HDMI 2.0b |
| Video Resolution | 720p@50/60Hz; 1080p@24, 50 & 60Hz; 4K@50/60Hz 4:4:4*; 4K@30Hz 4:4:4; 4K@60Hz 4:2:0;4:2:2 4K@24Hz 4:2:0/4:2:2 [Ultrawide Support] |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0, RGB |
| Bit Depth per Color | 1080p 8-,10-,12-bit, 4K 8-,10-,12-bit |
| Visually Lossless | 4096x2160p@60Hz (8-bit) 4:4:4 or RGB; 3840x2160p@60Hz (12-bit) 4:2:2 Dolby Vision; 3840x2160p@60Hz (10-bit) 4:2:2 HDR10/HLG; 1920x1080p@60HZ (12-bit) |
| Audio | |
| Audio Format (end to end) | PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution, DTS-HD Master Audio, Dolby Atmos |
| Audio Format (HDMI Loopout) | Same As End-To-End |
| Embedded Audio | Stereo Analog Audio (3.5 mm jack) |
| De-Embedded Audio | Balanced Stereo Analog Audio (5-pin phoenix) |
| Ports | |
| Ethernet | (1) × female RJ45, PoE |
| SFP | (1) × SFP Slot |
| HDMI | (2) × HDMI Type A 19-pin, female, one HDMI input, |
| one HDMI loop out | |
| Audio | (1) × 5-pin Terminal Block, Balanced L/R Audio out |
| (1) x Toslink Audio Out (Future Audio Return Support Only) | |
| (1) × 3.5 mm mini stereo jack, Audio in | |
| IR | (3) × 3.5 mm mini-stereo jack, one IR-Pass, one IR-EYE, one IR-out |
| RS232 | (1) × 3 Pin Terminal Block |
| USB | (1) × USB 2.0 Type-B for USB extension and KVM |
| (1) × USB Type-C for MXnet service | |
| Distance | |
| Ethernet | 100 Meters/ 330 Feet over CAT5e and above |
| SFP and Fiber | 1000BASE-SX SFP Transceiver Module |
| (MMF, 850nm, 550m, LC, DOM) | |
| 1000BASE-LX/LH SFP 1310nm 10km Transceiver Module | |
| Environmental | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 5-90% RH (No Condensation) |
| Cooling | Fanless Cooling |
| Acoustic Noise Level | 0dB |
| Power | |
| Max Power Consumption | 9.7W |
| PoE (Power over Ethernet) | IEEE 802.3af (15.4W) |
| Power Supply Unit | Input: AC 120-240V-50/60Hz 0.8A Output: DC 12V 2A |
| Dimensions | |
| Mounting | Rack and furniture mount support |
| Dimensions (Unit only Width/Depth/Height) | mm: 199.14 x 119.86 x 19.84 |
| inch: 7.84 x 4.72 x .78 | |
| Dimensions | mm: 309.88 x 180.09 x 54.10 |
| (Packaged Width/Depth/Height) | inch: 12.2 x 7.09 x 2.13 |
| Weight (Unit) | 1.41 lbs / .64 kg |
| Weight (Packaged) | 1.87 lbs / .85 kg |
| Regulatory | CE/FCC/UL |
| Product Warranty | 10 Years |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |
