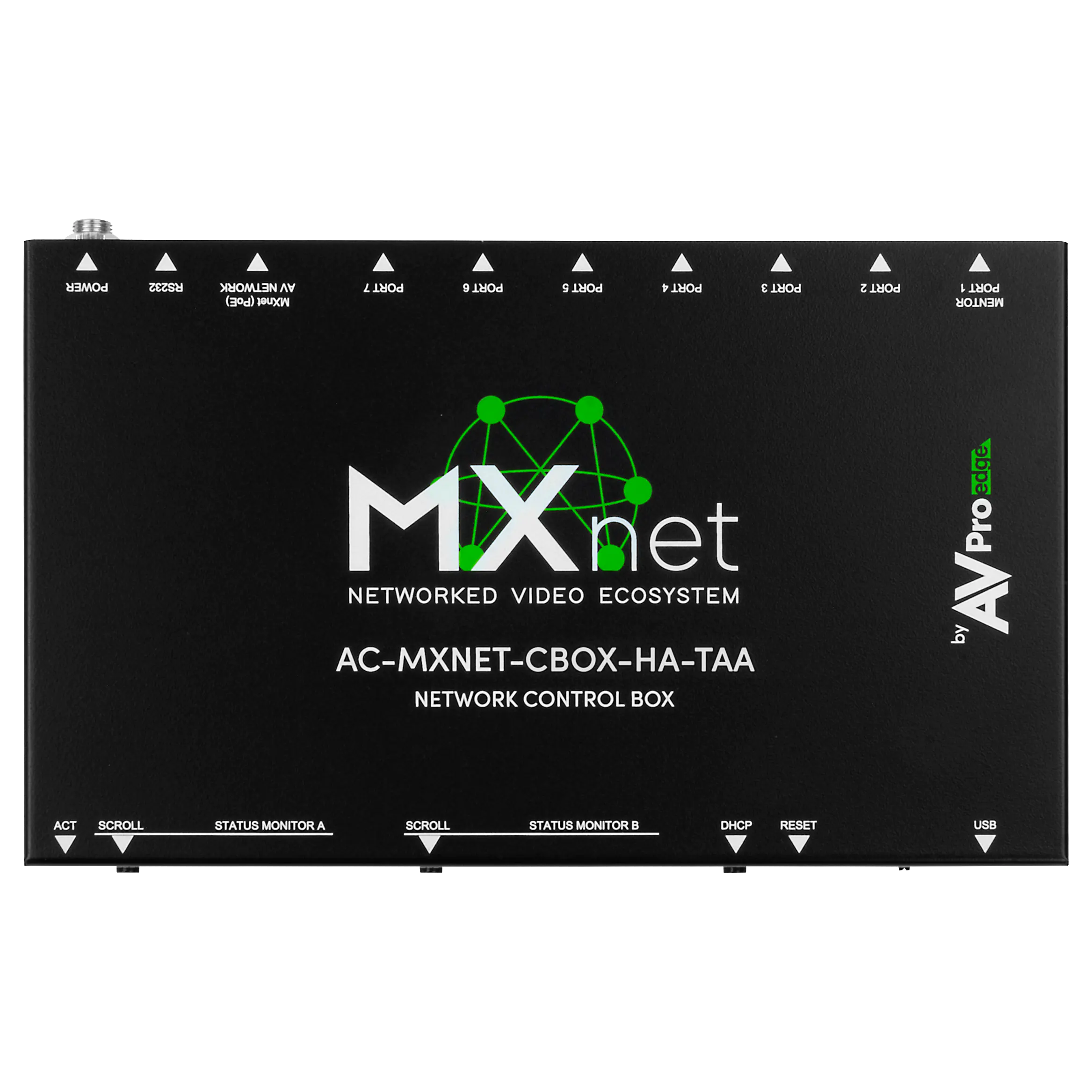

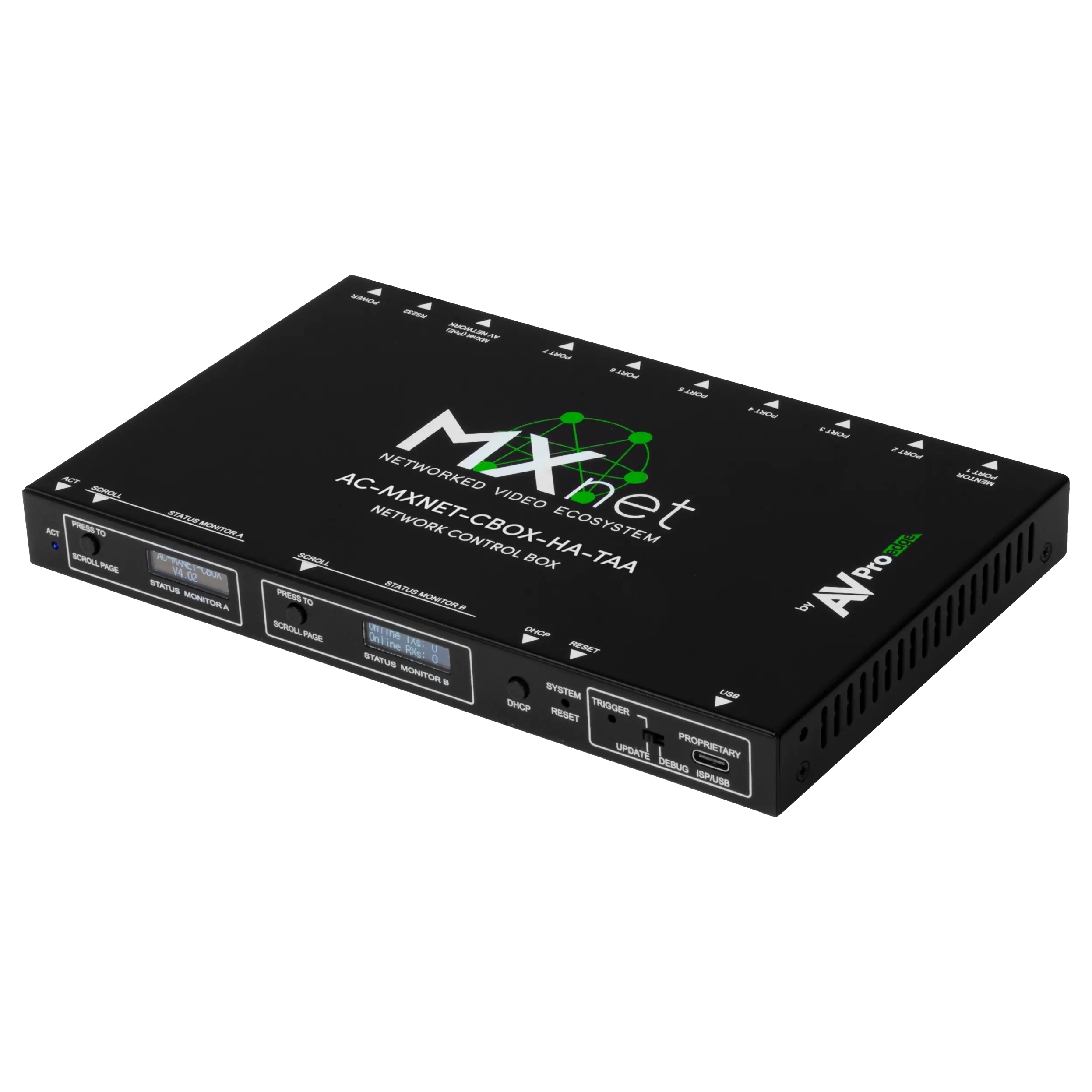

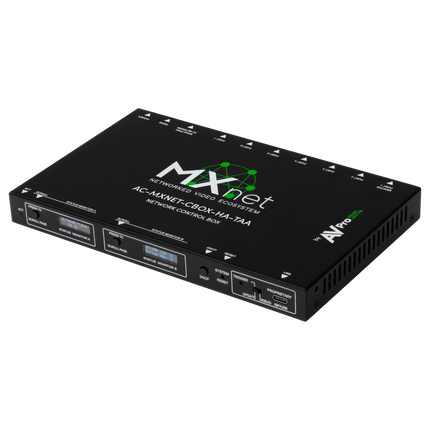

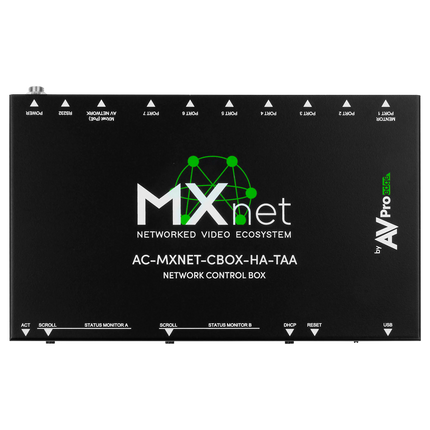

TAA - MXnet 1G Control Box

Description

The CBOX is the key to MXnet Ecosystem universe as the multicast routing, A/V data management, and control member of the team. The CBOX houses the system API used by MXnet Mentor and 3rd party control systems. The CBOX is POE powered and silently goes about its business of managing all things multicast and other data formats. The CBOX controls the whole Ecosystem, including audio/video switching/distributing, RS-232/USB/IR signal routing, mosaic video wall building, KVM and system management, etc.



The AC-MXNET-CBOX-HA-TAA is capable of handling hundreds of multicast-enabled endpoints. Thanks to a robust and efficient database, complex system deployments have never been easier. Simply plug in the CBOX to an MXnet SW model (or other 3rd party multicast-capable switch), and let the fun begin. Next, plug in the Encoders and Decoders - and after a few minutes, all the components are ready for full configuration.



The AC-MXNET-CBOX-HA-TAA Control Box is only one part of the MXnet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXnet’s Ecosystem includes formatting such as resolution scaling, full EDID management, multifaceted video walls, and includes the MXnet MENTOR setup and control tool - making installations easy on the integrator, while also presenting a major WOW factor for your client.



Read more

TAA - MXnet 1G Control Box

Product form

  • Web based – Apache Web Server
  • POE powered ( uses 1.3 Watts )
  • Works with any multicast capable managed 3rd party switch
  • Powerful module tracking database
  • Capable of handling hundreds of end points

SKU: AC-MXNET-CBOX-HA-TAA

  • Shipped today? Order within: Nov 21, 2024 13:00:00 -0600

Login

Description

The CBOX is the key to MXnet Ecosystem universe as the multicast routing, A/V data management, and control member of the team. The CBOX houses the system API used by MXnet Mentor and 3rd party control systems. The CBOX is POE powered and silently goes about its business of managing all things multicast and other data formats. The CBOX controls the whole Ecosystem, including audio/video switching/distributing, RS-232/USB/IR signal routing, mosaic video wall building, KVM and system management, etc.



The AC-MXNET-CBOX-HA-TAA is capable of handling hundreds of multicast-enabled endpoints. Thanks to a robust and efficient database, complex system deployments have never been easier. Simply plug in the CBOX to an MXnet SW model (or other 3rd party multicast-capable switch), and let the fun begin. Next, plug in the Encoders and Decoders - and after a few minutes, all the components are ready for full configuration.



The AC-MXNET-CBOX-HA-TAA Control Box is only one part of the MXnet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXnet’s Ecosystem includes formatting such as resolution scaling, full EDID management, multifaceted video walls, and includes the MXnet MENTOR setup and control tool - making installations easy on the integrator, while also presenting a major WOW factor for your client.



Read more

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Time Saver - Setup and configure your new AV/IP project in record time.

Frustration Saver - Troubleshooting has never been easier. MXnet Mentor’s diagnostics are live, providing immediate feedback as to the condition of your HDMI cable connections, network cable connections, resolution, and much more.

Free Your Creative Side - MXnet Mentor helps you to easily setup and create unlimited video walls with unique styles and asymmetrical arrays.

Feel the Power of Control - Easily setup power control interdependencies either using encapsulated RS-232 over IP commands or CEC over HDMI power controls. Additionally, Mentor supports RS-232 and IR direct routing for setting up 3rd party control processing.



Netgear Support - MXnet’s engineers have worked together with Netgear to ensure their switches work with our line of encoders and decoders. To make installing MXnet with Netgear switches even easier, Netgear has developed an “AVPro Edge Profile.” Once this is loaded, your switch will work seamlessly with the AVPro Edge encoder and decoders.


For more information, please visit this website - https://www.netgear.com/business/solutions/av-over-ip/

Ports:
Ethernet(8)  × female RJ-45, one with PoE
SFP0
HDMIN/A
AudioN/A
IRN/A
RS232(1) × 5 Pin Terminal Block for MXnet System Control
USB(1) × USB Micro Type-B for MXnet service
Distance:
Ethernet100 Meters/ 330 Feet over CAT5e and above
SFP and FiberN/A
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity5-90% RH (No Condensation)
Power:
Max Power Consumption4.5W
PoE (Power over Ethernet)IEEE 802.3af (15.4W)
Power Supply UnitInput: AC 120-240V-50/60Hz 0.8A
Output: DC 12V 2A
Dimensions:
MountingRack and Furniture mount support
Dimensions
(Unit Only Width/Depth/Height) 		mm: 200 X 104 x 20
inch: 7.87 X 4.09 X 0.79
Dimensions
(Packaged Width/Depth/Height) 		mm: 310 X 180 x 54
inch: 12.2 X 7.09 X 2.13
Weight (Unit)1.26 LBS/0.57 KG
Weight (Packaged)1.74 LBS/0.79 KG
RegulatoryCE/FCC/UL
Product Warranty10 Years
Specifications subject to change without notice.  Mass & dimensions are approximate
*4K60 4:4:4/4k60 4:2:2 Uses ICT Compression
  • AC-MXNET-CBOX-B (Control Box)
  • 12V/2A Locking Power Supply
  • 1 x 3-Pin Terminal Block
  • 4 x Rubber Feet
  • 2 x Mounting Brackets
  • 6 x Screws for Mounting Brackets
