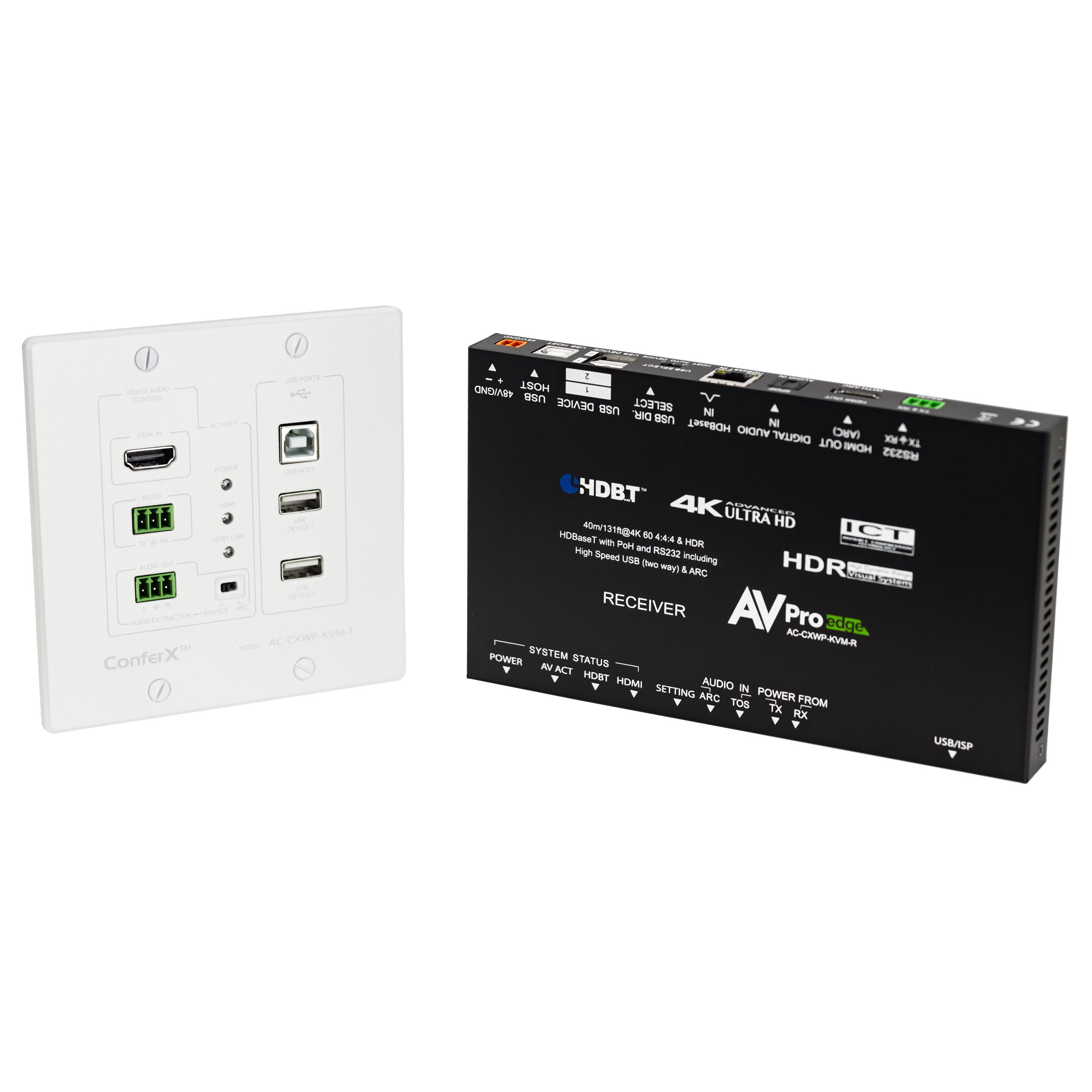

HDMI/Bi-Directional USB Wall Plate Kit

Description

The AC-CXWP-KVM-KIT is a 4K60 4:4:4 18Gbps supported HDBaseT wall plate extender kit over single CAT UTP/STP. This device can take in any HDMI signal and transfer it long distances; simultaneously, it can send a USB 2.0 signal (bi-directionally) through the same cable. This is the ideal solution for classrooms and conference rooms to work with modern laptops and desktop computers.

Welcome to ConferX, the professional choice for video distribution solutions.

HDMI/Bi-Directional USB Wall Plate Kit

Product form
  • HDMI 2.0
  • USB 2.0 up to 250Mbps support (Bi-Directional)
  • 18Gbps Bandwidth Support
  • EDID Management

SKU: AC-CXWP-KVM-KIT

  • Shipped today? Order within: Apr 12, 2024 13:00:00 -0500

Description

The AC-CXWP-KVM-KIT is a 4K60 4:4:4 18Gbps supported HDBaseT wall plate extender kit over single CAT UTP/STP. This device can take in any HDMI signal and transfer it long distances; simultaneously, it can send a USB 2.0 signal (bi-directionally) through the same cable. This is the ideal solution for classrooms and conference rooms to work with modern laptops and desktop computers.

Welcome to ConferX, the professional choice for video distribution solutions.

  • Key Benefits
  • Specs
  • Resources
  • Case Study
  • In the Box

Invisible Compression Technology - ICT is a revolution in HDMI extension technology. It allows AVPro Edge Products to deliver high bandwidth 4K signals over category cable. Typically when this is done, the video is left with compression artifacts and banding. Using AVPro Edge’s proprietary ICT solution allows us to deliver a stable picture without degradation.

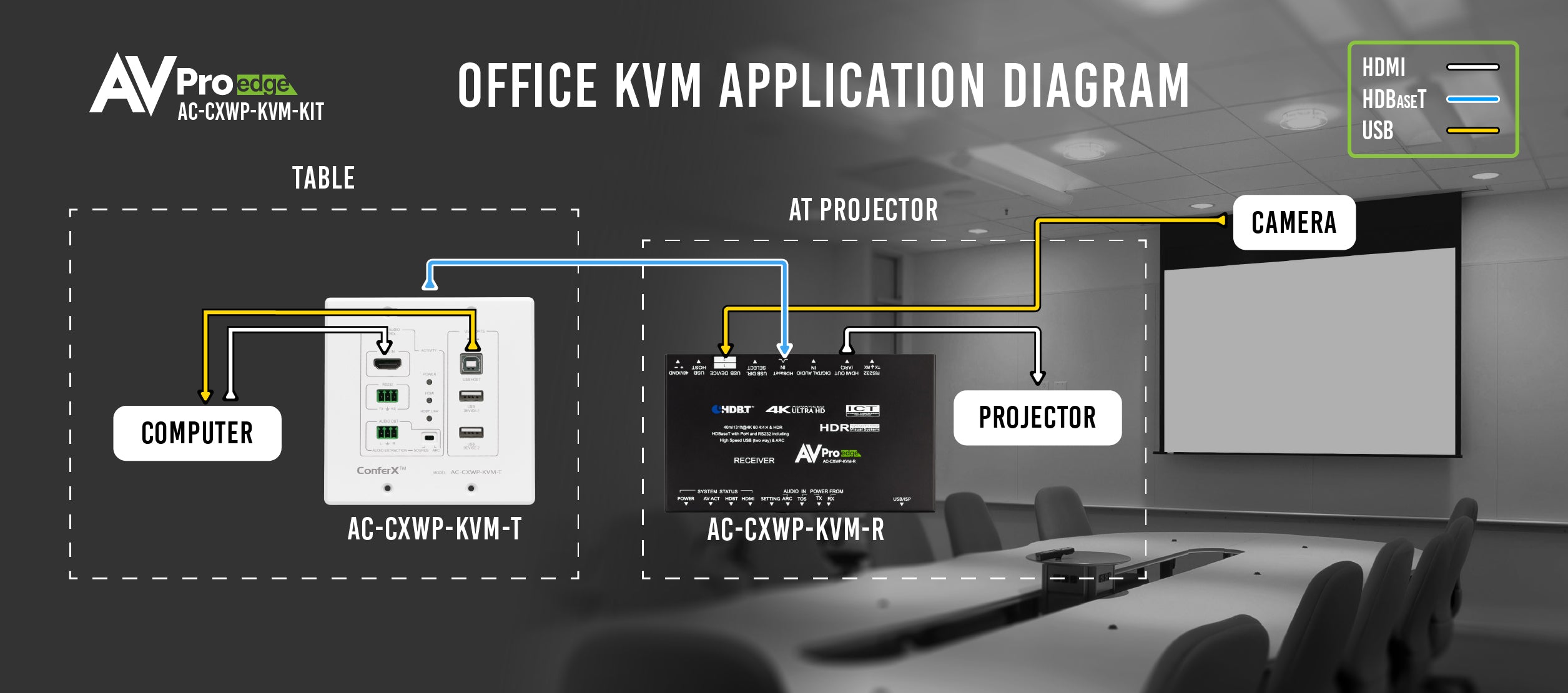

USB 2.0 and KVM Integration - The AC-CXWP-KVM-KIT supports the extension of USB signals, which may be switched and routed over the HDBaseT link along with the other AV signals and can be managed separately via a control system. USB 2.0 host and device ports are provided on both the TX and RX units, allowing you to connect a USB mouse, keyboard, microphone, or any other USB device to be connected at one unit and routed to a computer or other host at another unit.



Down Scaling - The AC-CXWP-KVM-KIT has a scaling circuit built into the transmitter. The scaler can scale 4K to 1080P. Essential when working with projectors or displays that are only 1080p.



Total EDID Management - The AC-CXWP-KVM-KIT has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs. The following EDID options are available:

  • EDID Bypass
  • 1080P 2CH Audio
  • 1080P 8CH Audio
  • 4K60 4:2:0 2CH Audio
  • 4K60 4:2:0 8CH Audio
  • 4K60 4:4:4 HDR 2CH Audio
  • 4K60 4:4:4 HDR 8CH Audio
  • USER EDID – EDID Copy

The EDID Copy Function allows you to copy and save from any display or projector you want to.



Audio Return Channel (ARC) - The Audio Return Channel in HDMI 1.4 and 2.0 enables a TV, via a single HDMI cable or Toslink, to send audio data “upstream” to an A/V receiver or surround audio controller. Our extender will continue the upstream audio to the transmitter. There it can be connected via HDMI ARC.



On-Board Troubleshooting - This unit allows you to generate a 1080P or 4k test pattern to identify external problems (source, repeater, displays, etc.). You can now be sure that your wiring is correct and get to the bottom of issues quickly should they arise without worrying if the source or sink is working correctly. Additionally, you can generate a test pattern from the Tx or the Rx to verify total system infrastructure integrity.

Video:
Video ResolutionsUp to 4K 60Hz 4:4:4
Vesa ResolutionsUp to DCI 4K (4096x2160)
HDR Formats/Resolutions420, 422, 444 (10 and 12 Deep Color)
HDR10, HDR10+, Dolby Vision (24/30 Frames), HLG
Color SpaceYUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Sub-Sampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080), Up to 12 bit (4K)
Downscaling4K (and HDR) down to 1080p
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (Toslink)PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
ARCYou can select to extract audio from ARC, or from the HDMI Source
USB (selectable host):
VersionUSB 2.0
TX & RXUSB host = USB type B (x1)
TX & RXUSB Device = USB type A (x2)
Distance:
HDBaseT (CAT) Distance (4K)40 Meters / 131 Feet (Cat 6a)
HDBaseT (CAT) Distance (Full HD)70 Meters / 230 Feet (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4)Up to 50 Feet (using Bullet Train HDMI)
HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4)Up to 130 Feet (using Bullet Train AOC)
Other:
Bandwidth18 Gbps  (Uses ICT above 10.2 Gbps signals)
HDCPHDCP 2.2 and earlier
Ports:
HDMI  (TX & RX)Type A
HDBaseTRJ45 w/ PoH for HDBaseT
Extracted Audio (TX  ONLY, RX is an Audio Input)3 Pin Terminal Block
RS232 (TX & RX)3 Pin Terminal Block
Power  (TX & RX)2 Pin Terminal Block
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (no condensation)
Power:
Power Consumption (total)12 watts max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 48V 0.5A
Dimensions:
Dimensions (TX wall plate, Height/Depth/Width)mm:  114.26 x 35.75 x 115.86
inch:  4.5 x 1.41 x 4.56
Dimensions (HDBaseT RX, Height/Depth/Width)mm: 21.8 x 113.68 x 196.85
inch: 0.86 x 4.48 x 7.75
Dimensions (Kit Packaged, Height/Depth/Width)mm: 76.2 x 184.15 x 312.67
inch: 3 x 7.25 x 12.31
Weight (TX Unit)1 LBS (0.45 KG)
Weight (RX Unit)1.2 Lbs (0.54 KG)
Weight (Kit Packaged)3.2 lbs (1.45 kg)
*Specifications subject to change without notice. Mass & Dimensions are approximate.

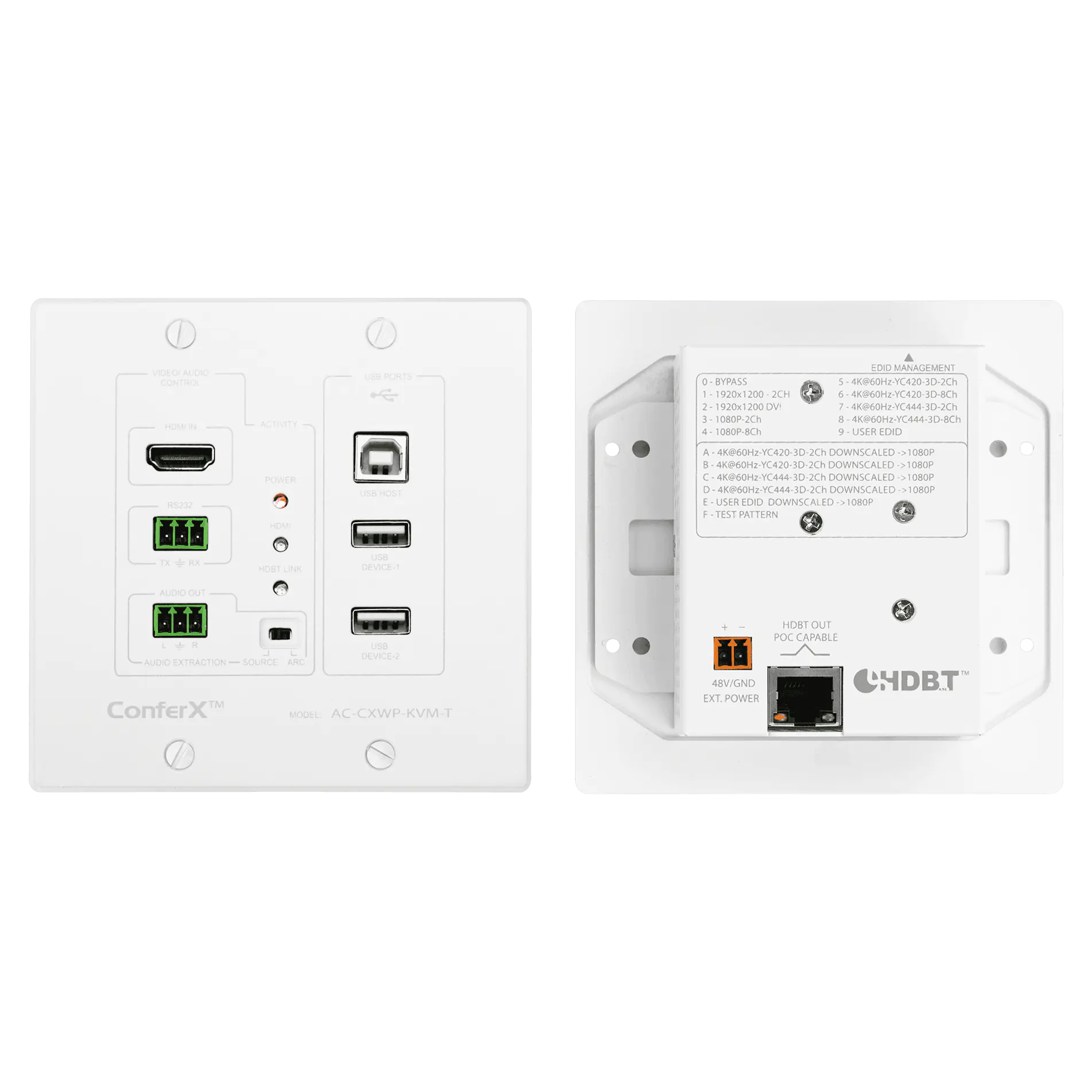

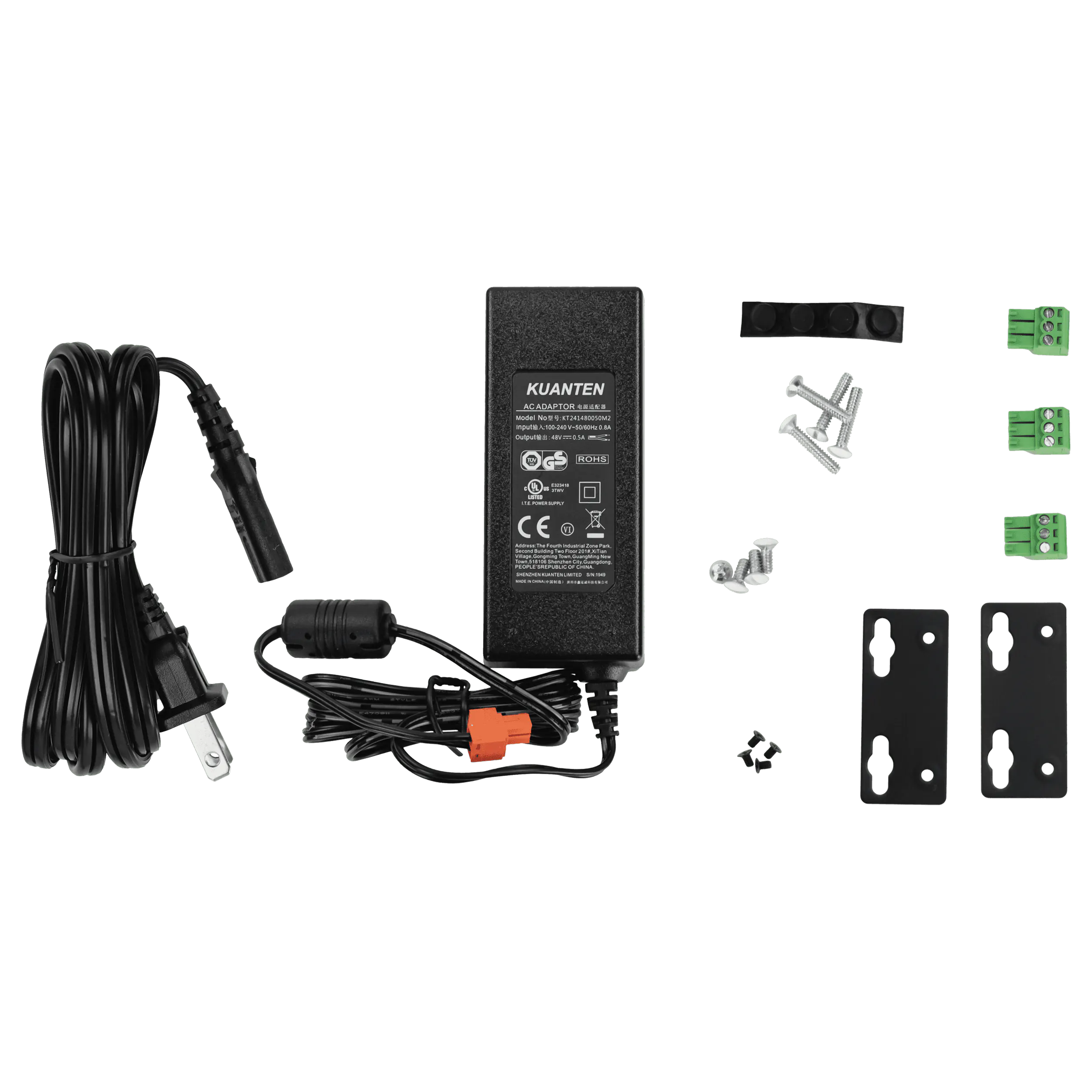

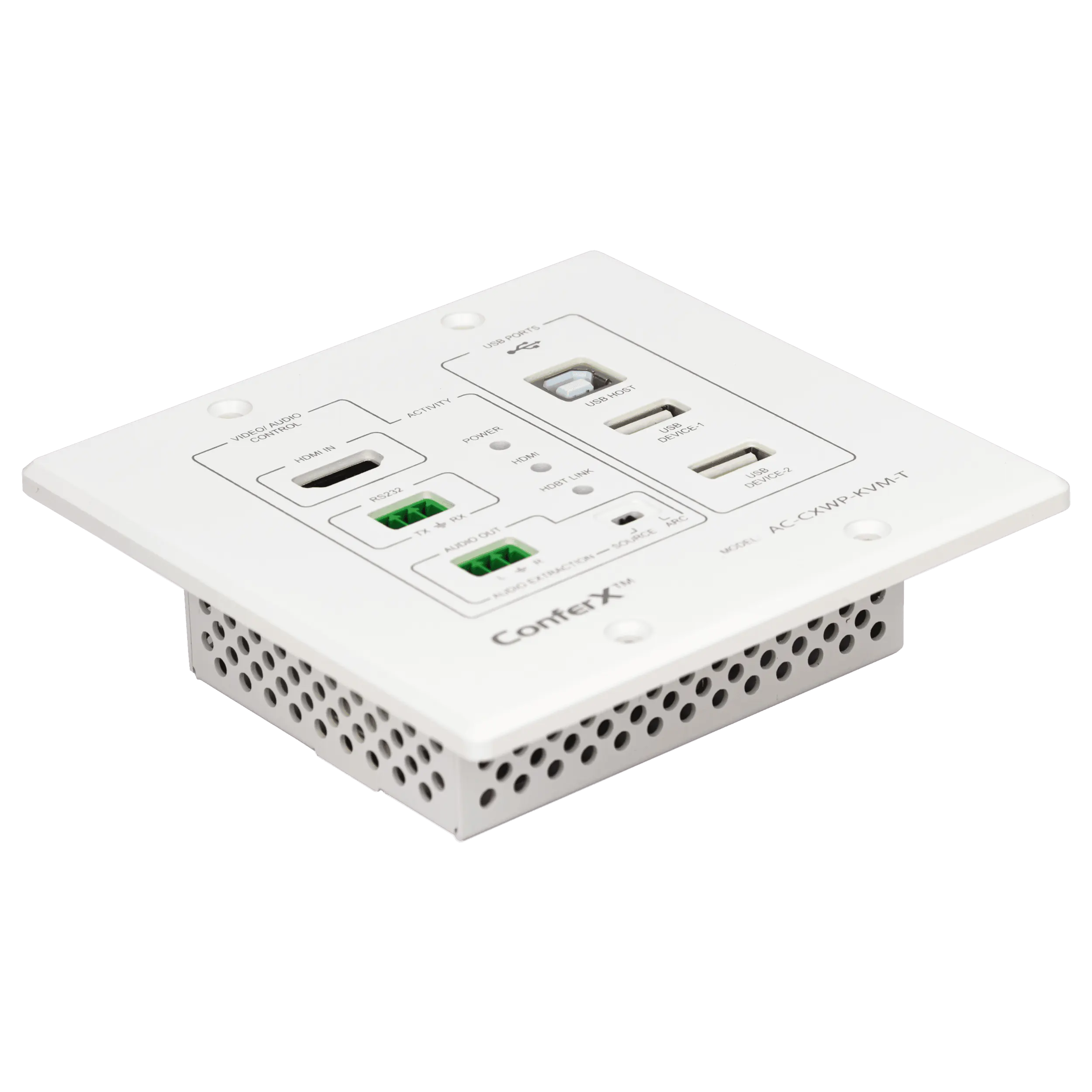

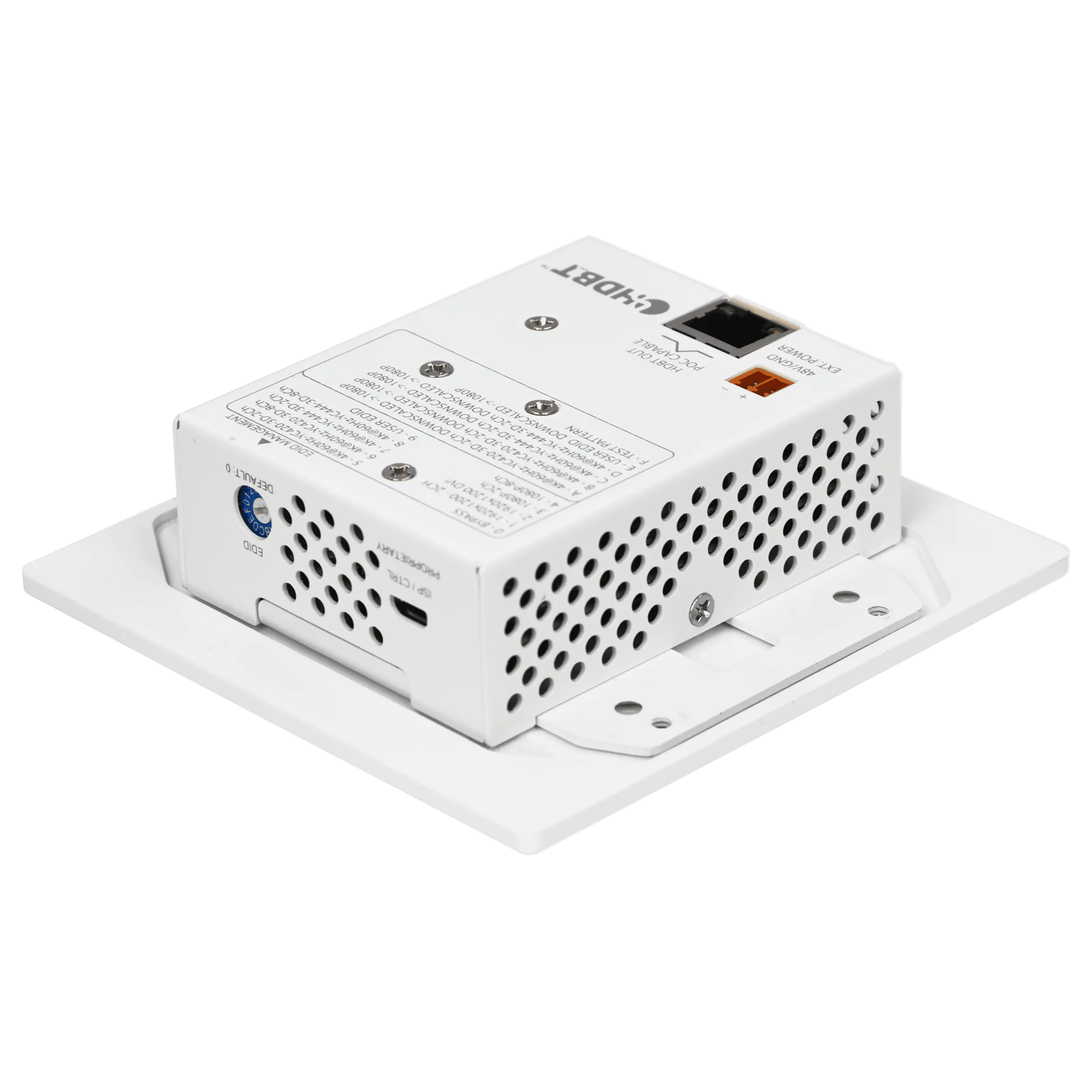

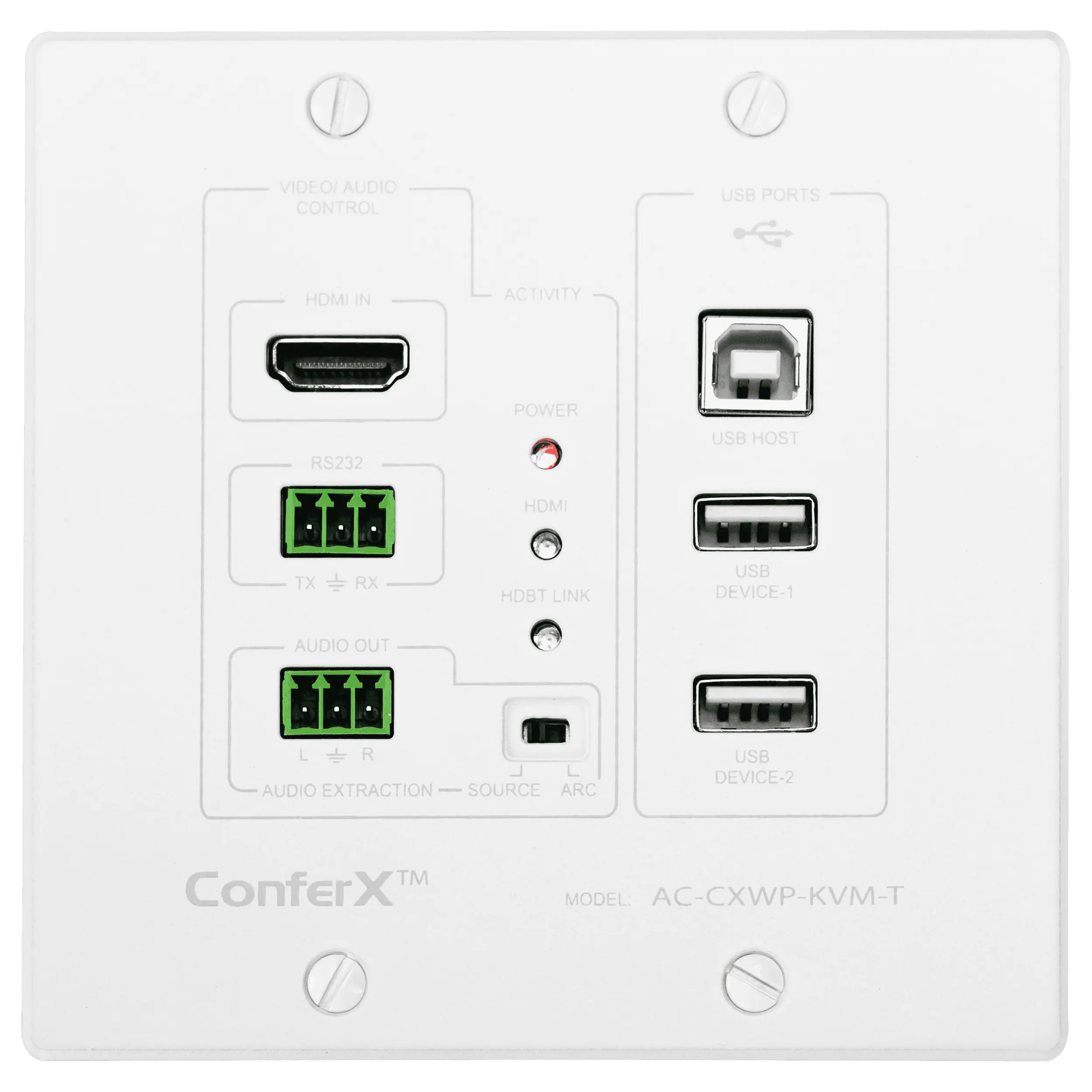

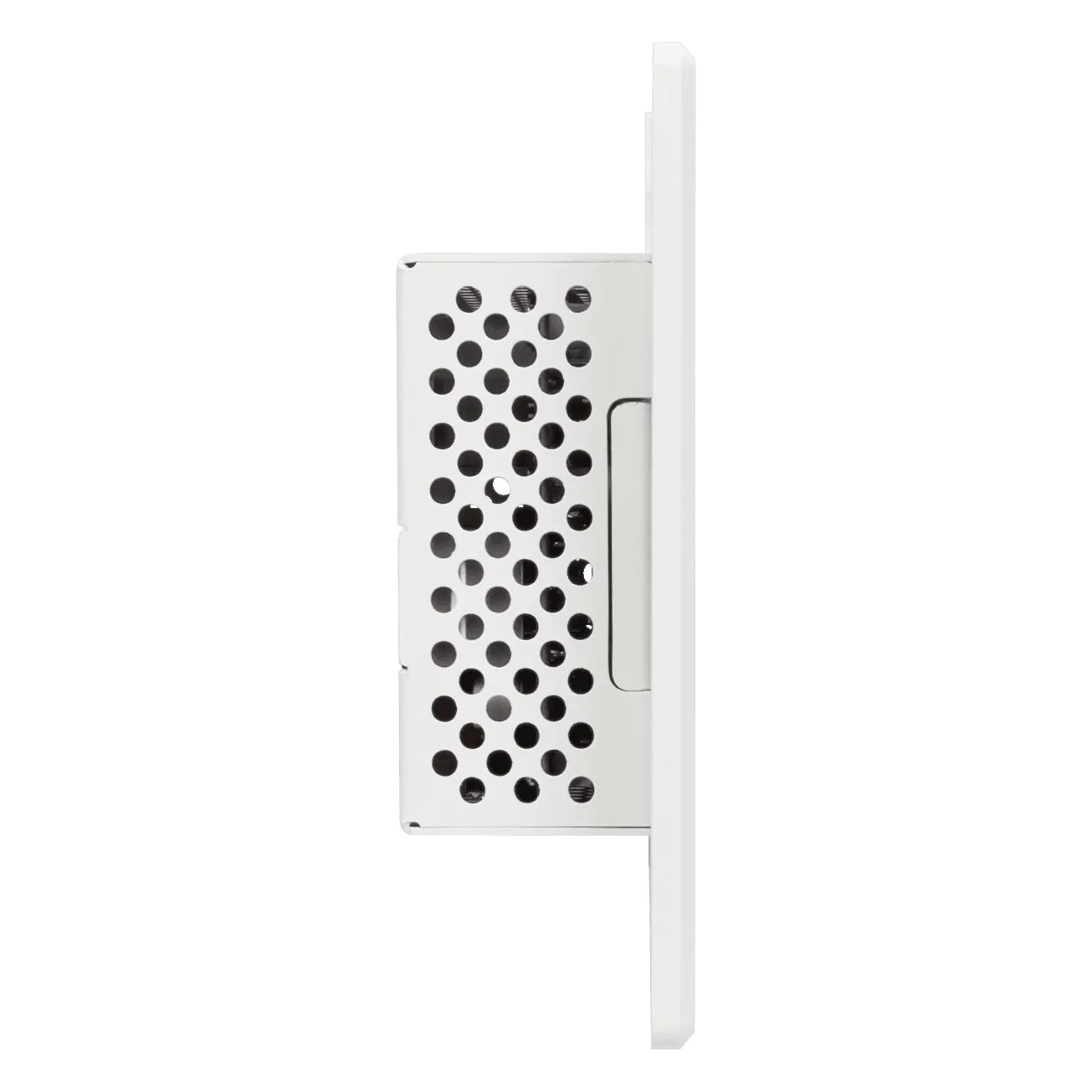

  • AC-CXWP-KVM-T (Transmitter)

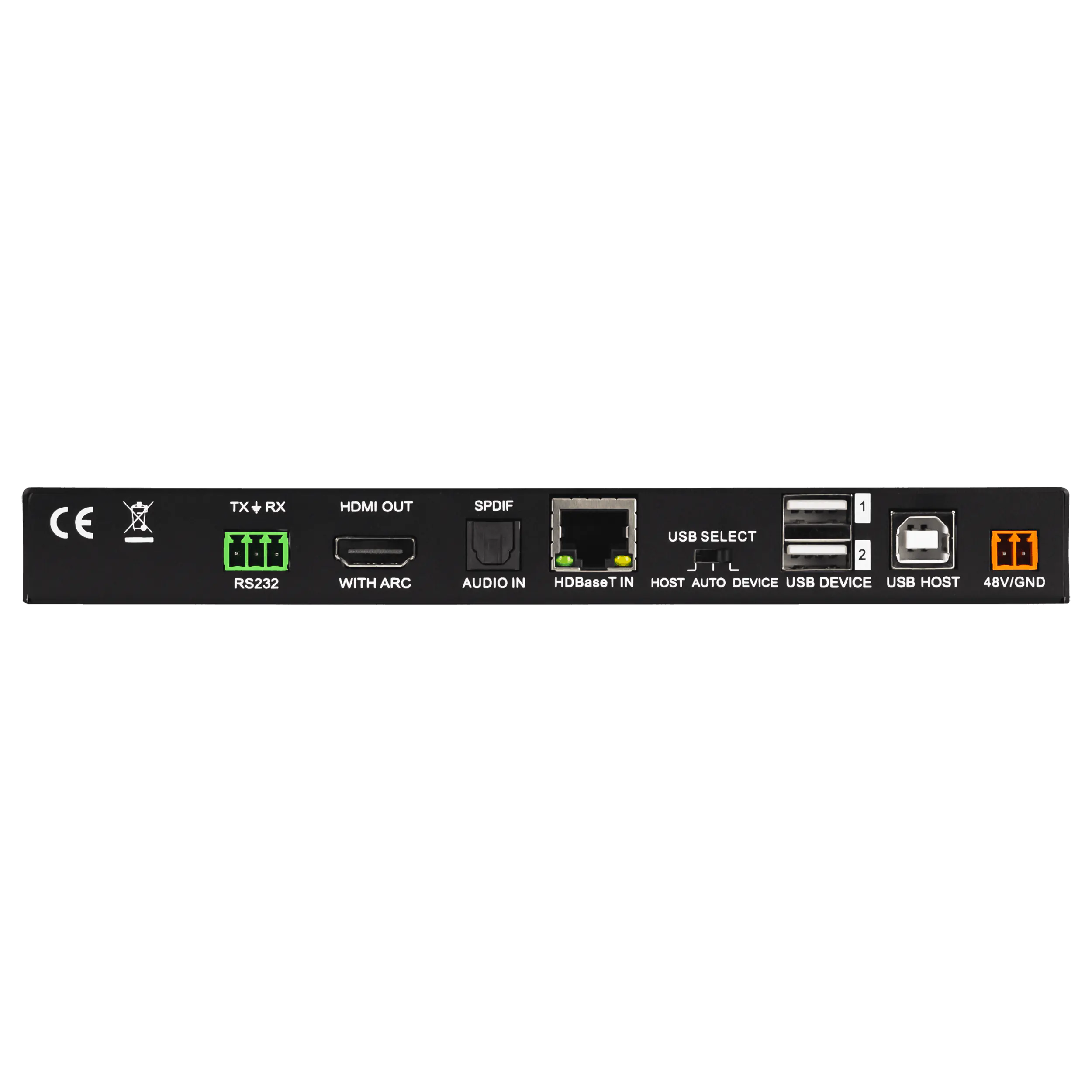

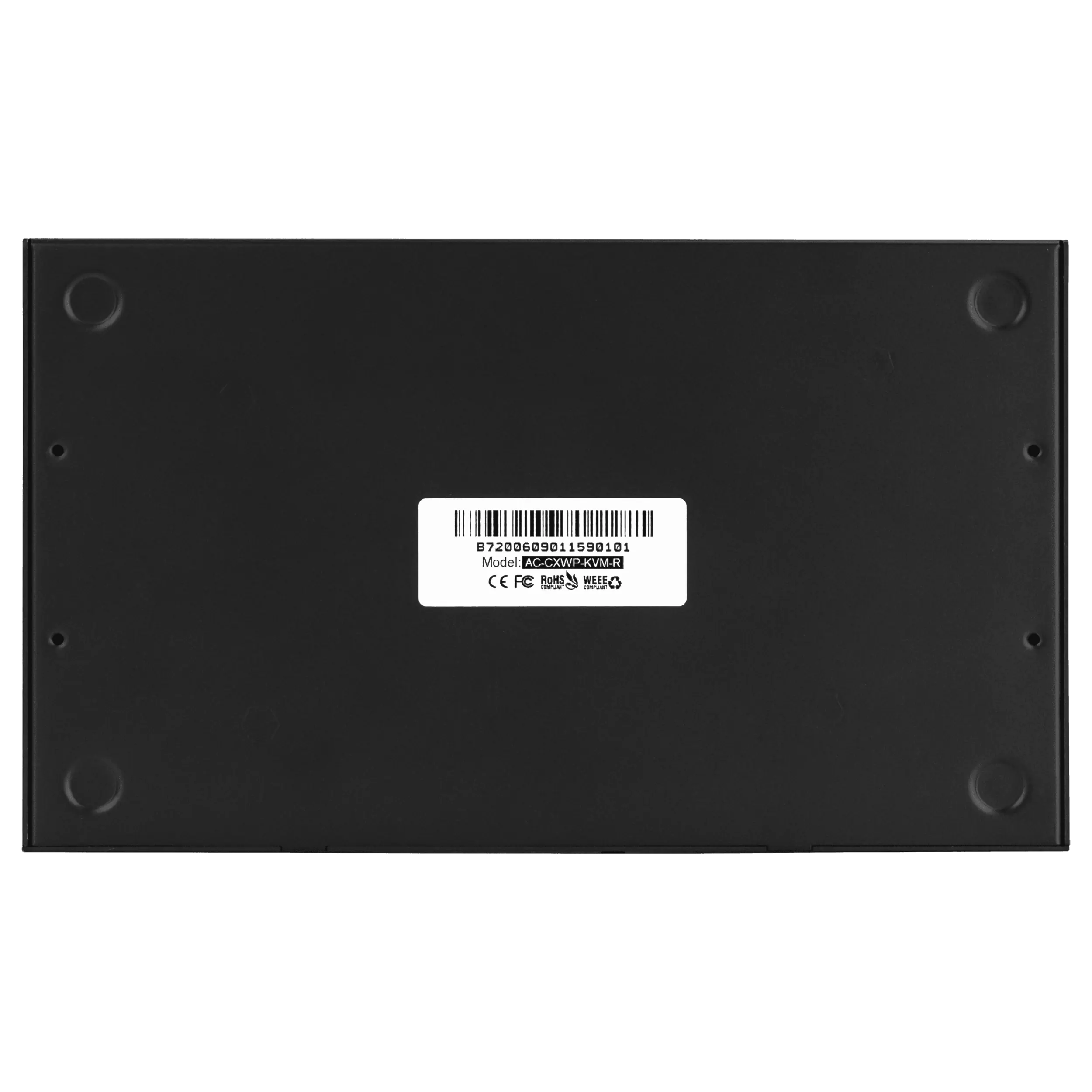

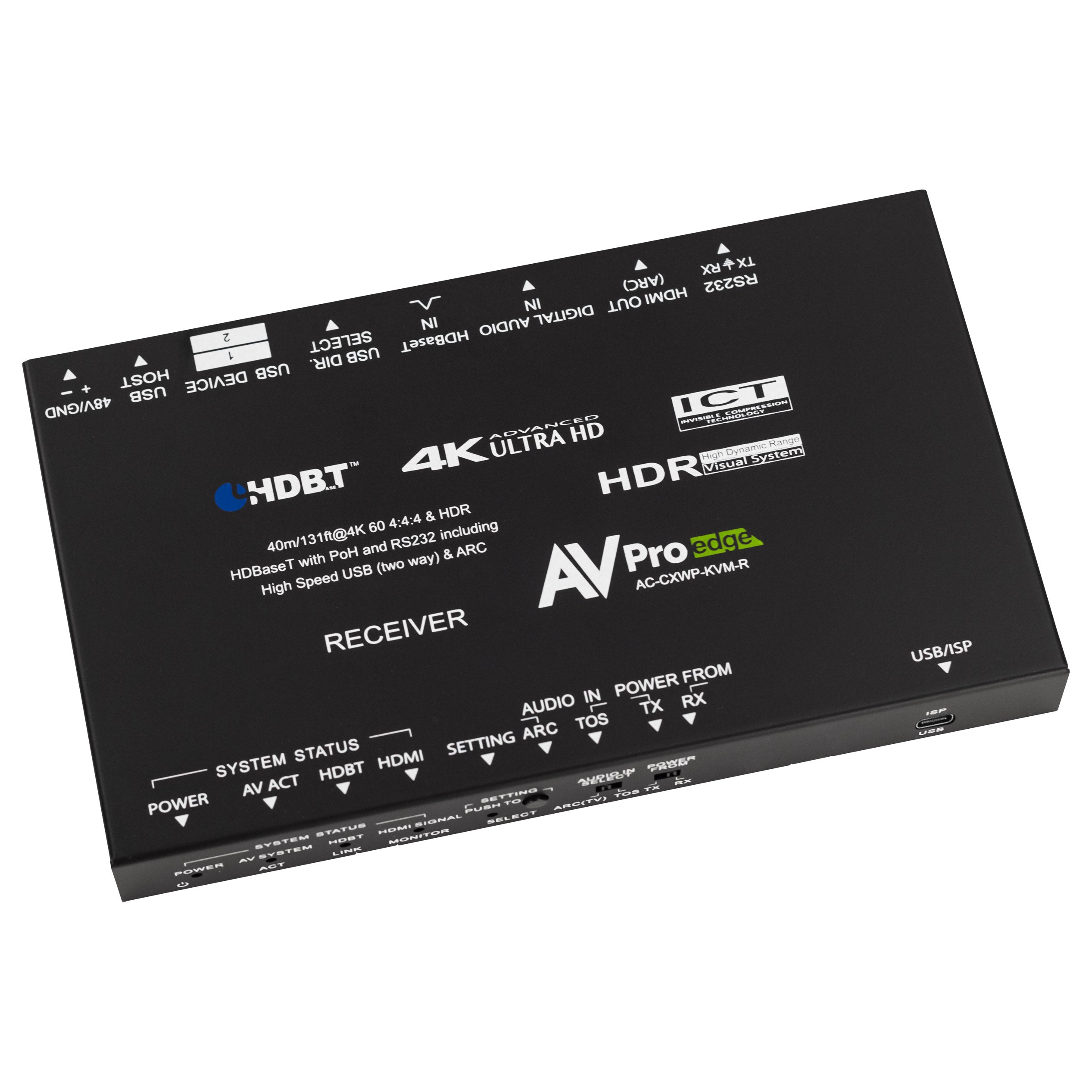

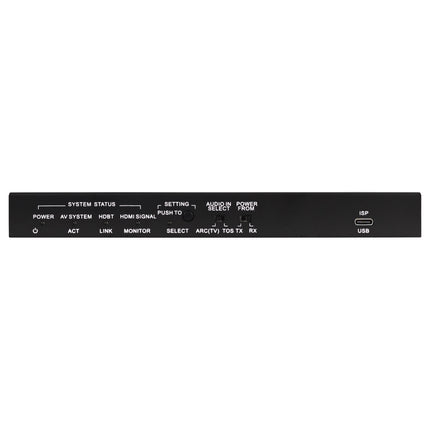

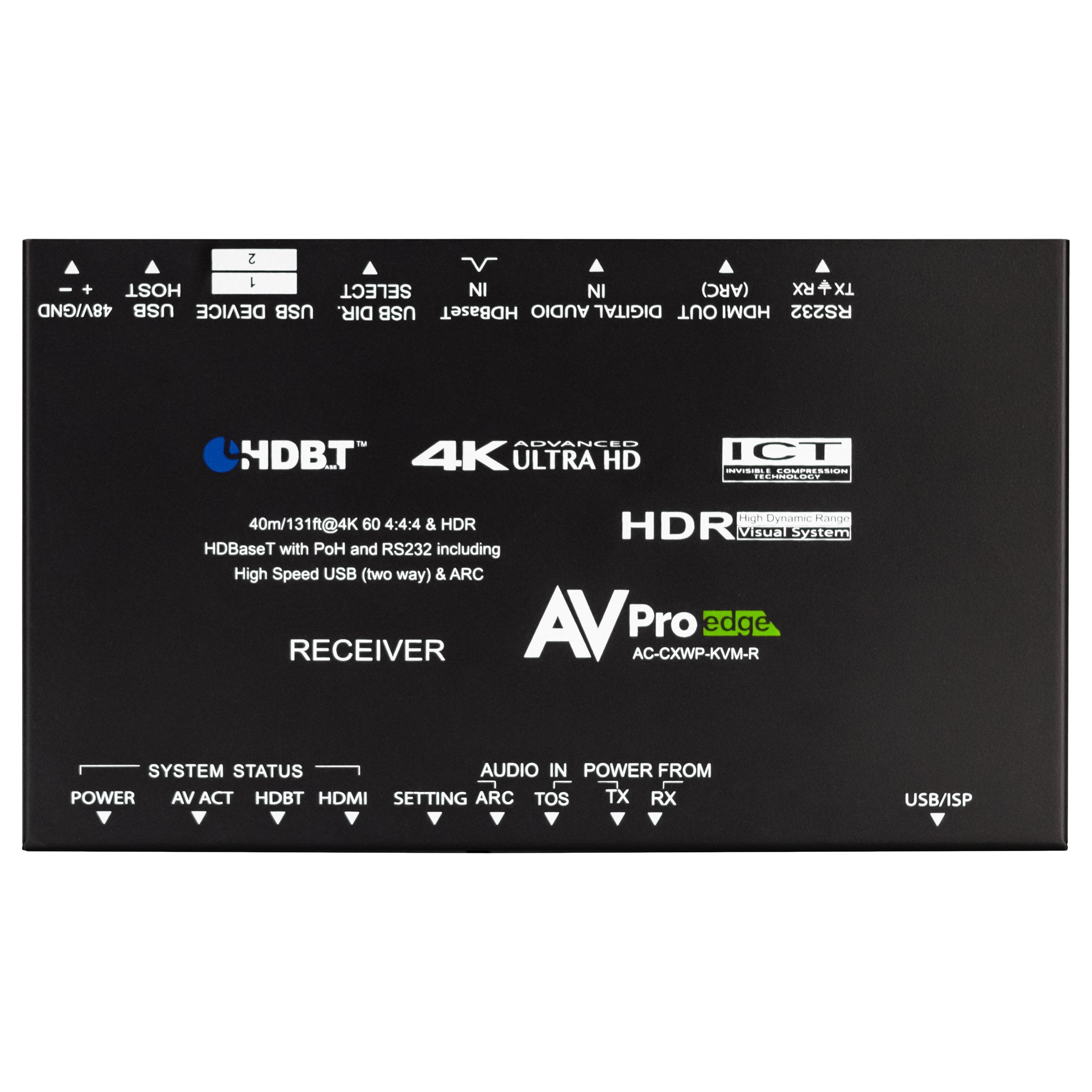

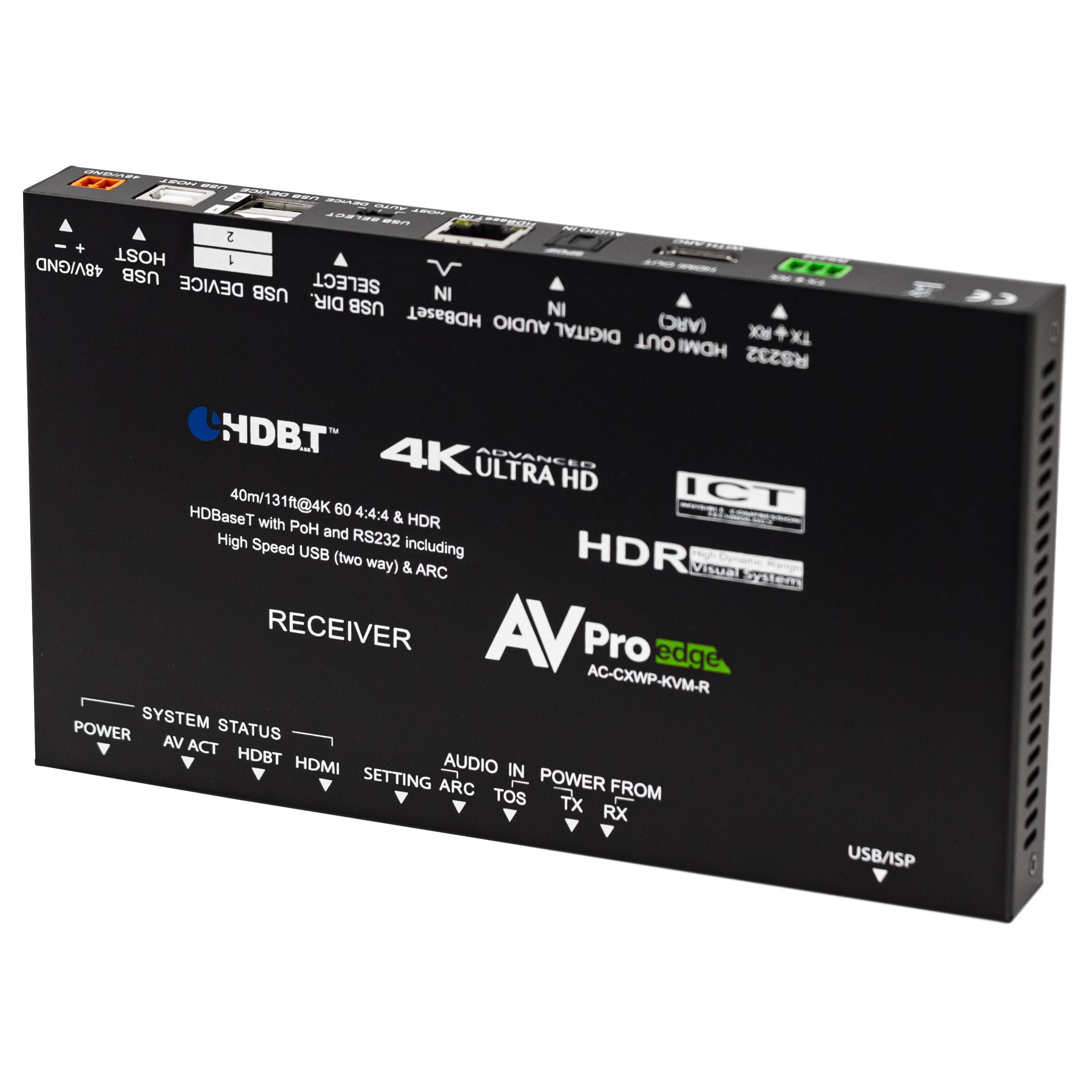

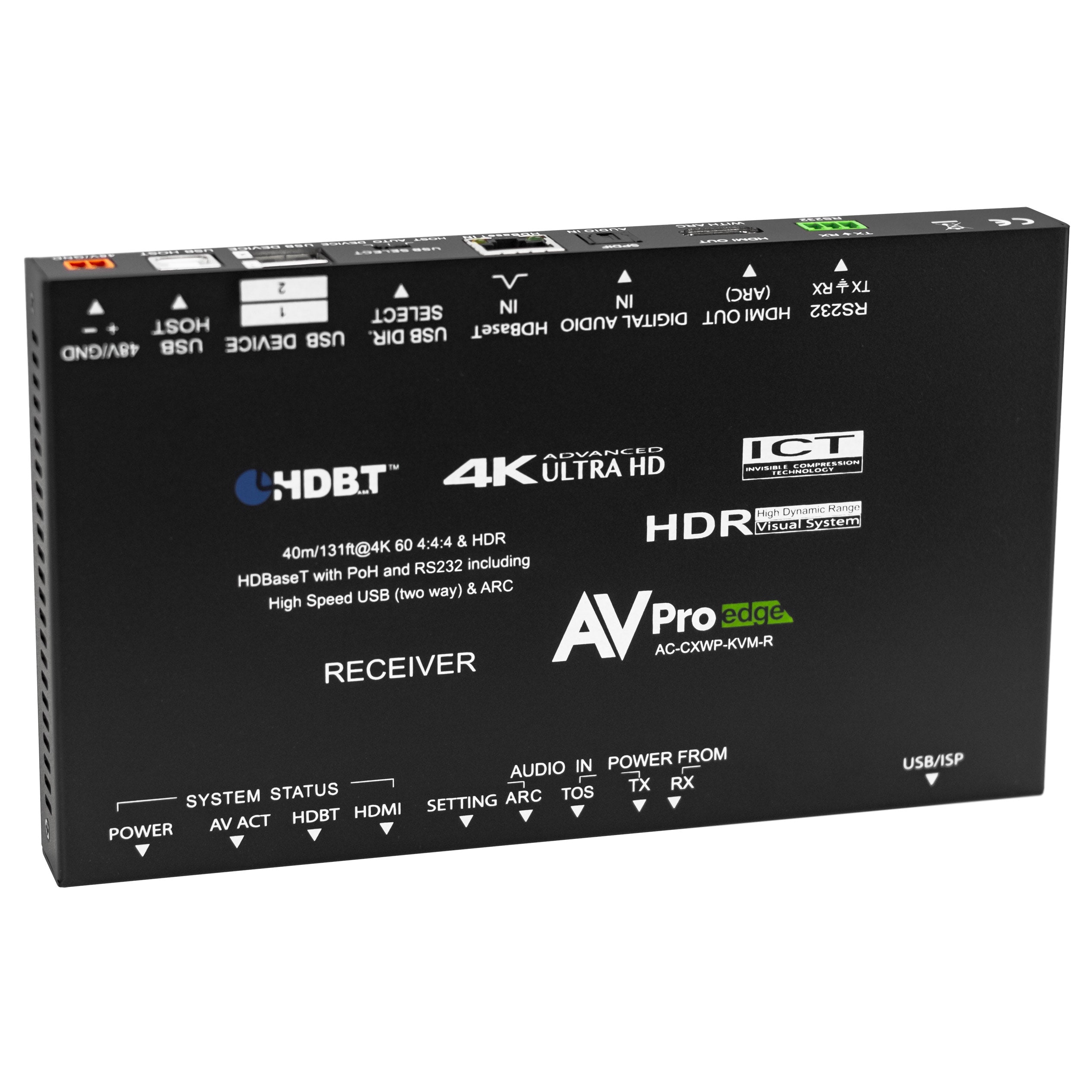

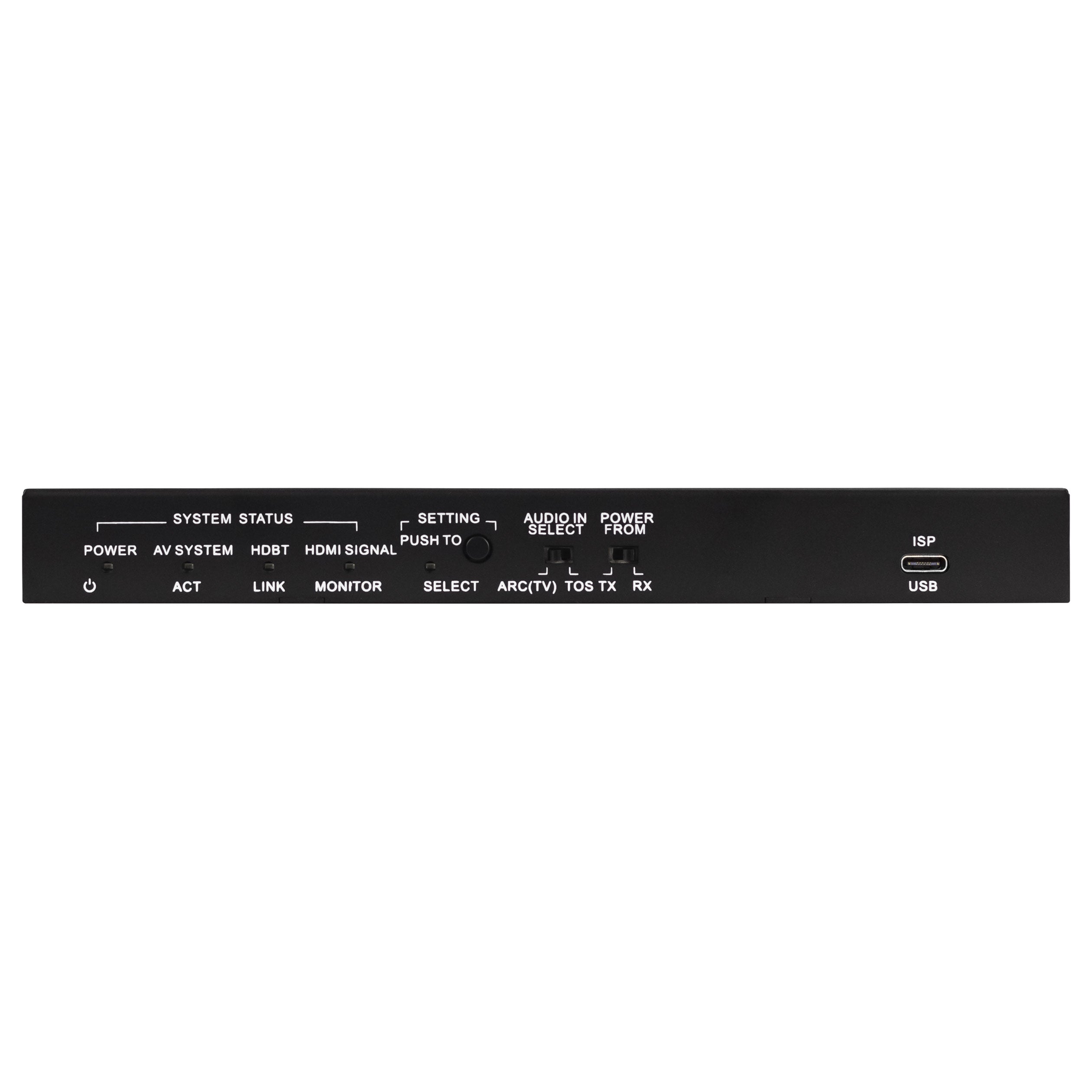

  • AC-CXWP-KVM-R (Receiver)
  • 1 x decora wall plate cover (white)
  • 4 x long electrical outlet screws
  • 4 x short screws
  • 48V/.5A Power Supply (One supplied)
  • 3 x 3-Pin Terminal blocks for Audio and RS232 Ports
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets
