2CH Dante Decoder

Description

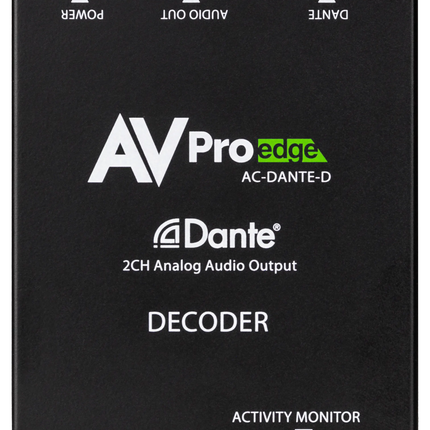

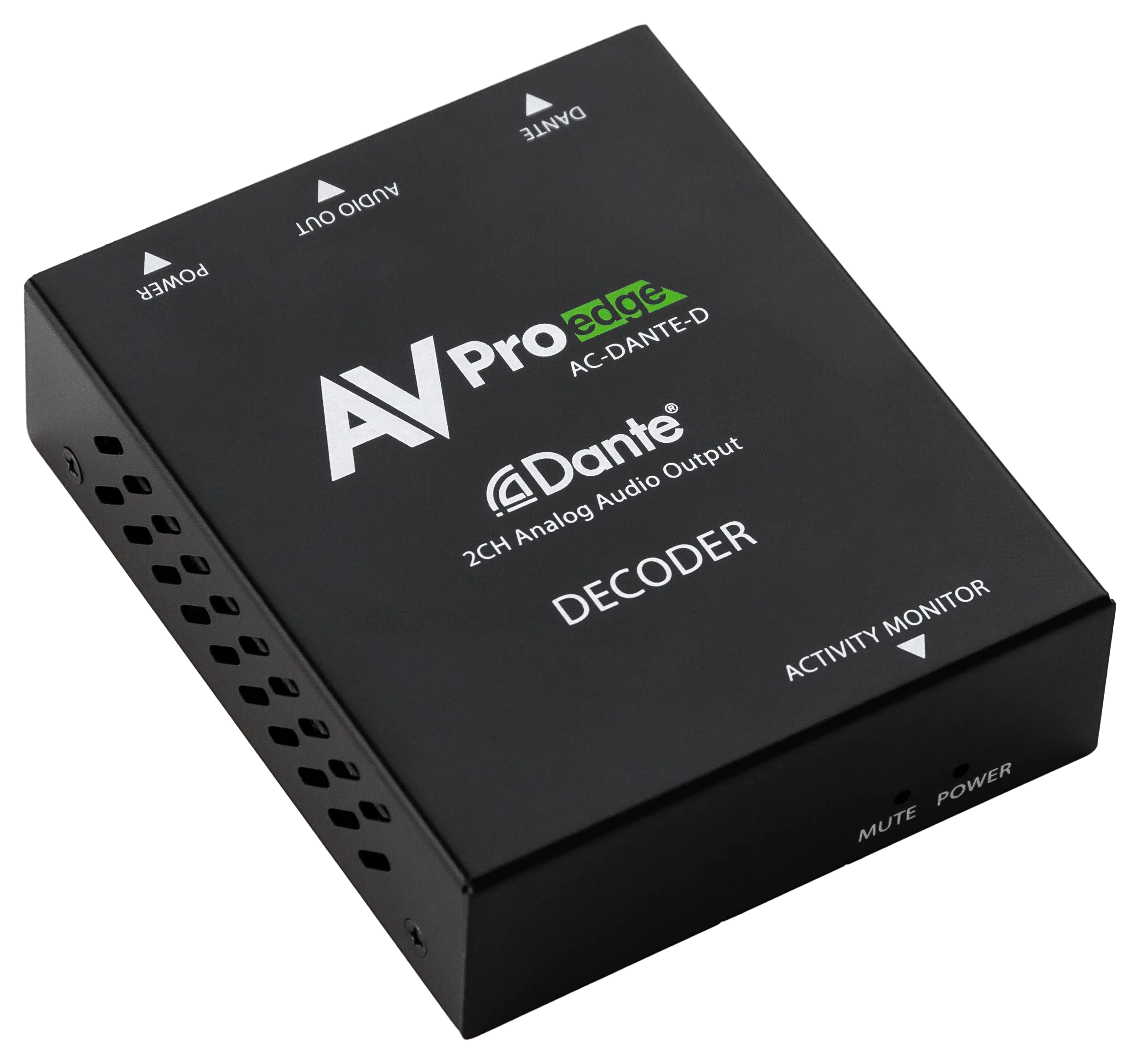

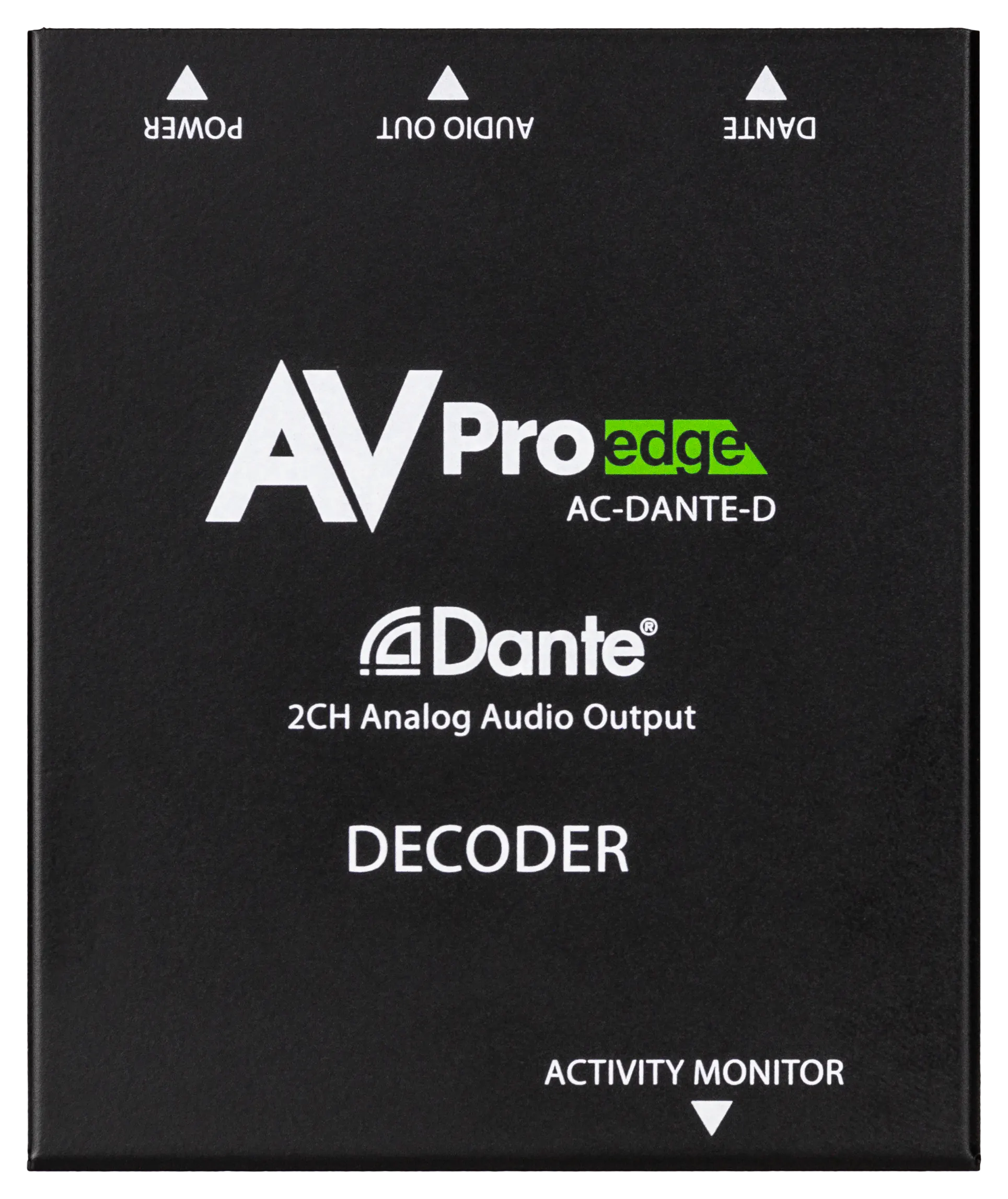

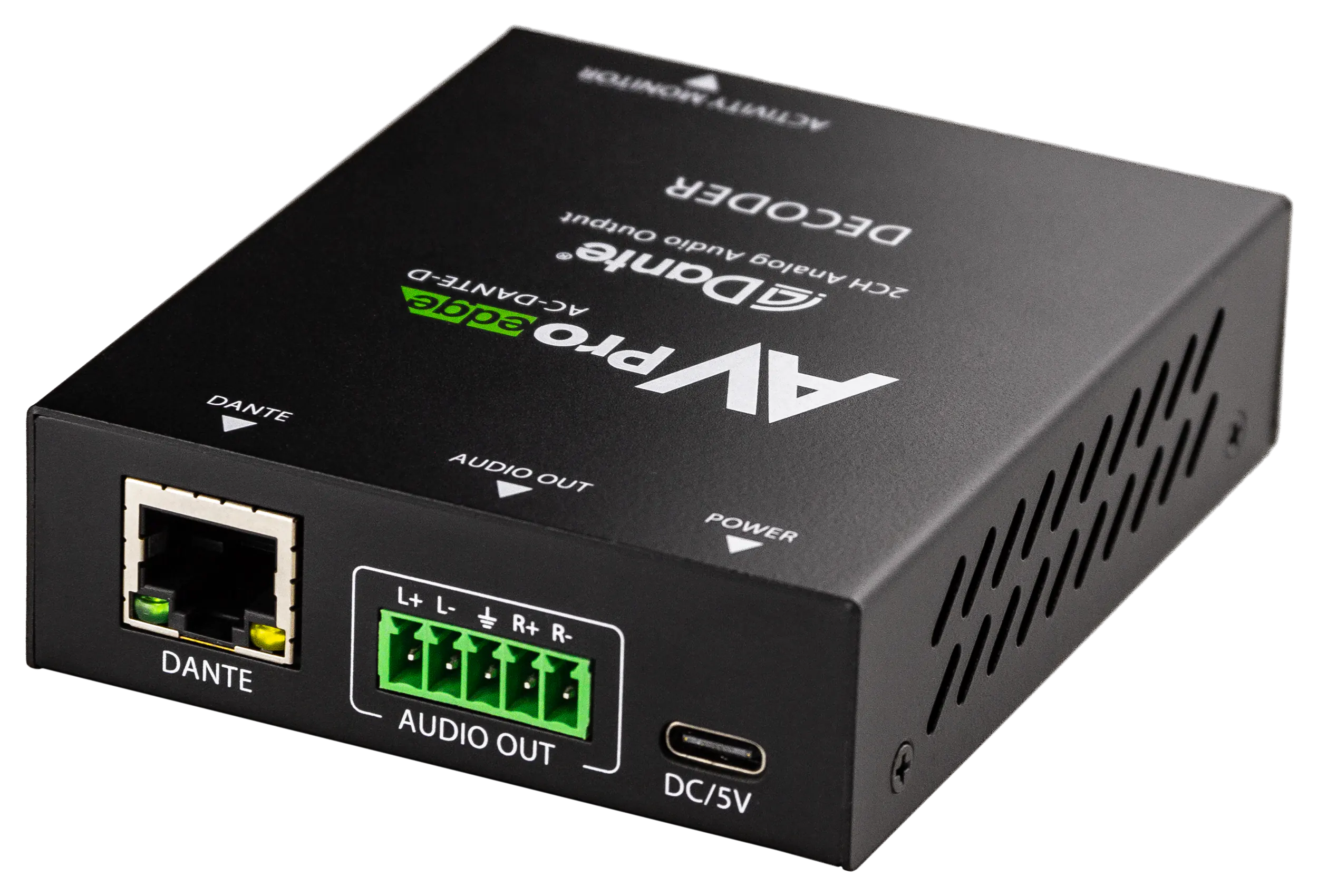

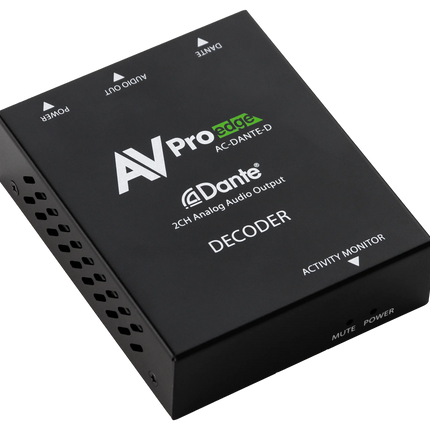

The AVPro Edge AC-DANTE-D is a compact, two-channel Dante network two-channel decoder. AVPro Edge employs Dante’s Ultimo chipset, providing 100% lossless analog conversion from digitally encoded content with sampling rates from 44.1kHz to as high as 96kHz, in 16-, 24- or 32-bit word lengths. When powered up and connected to a Dante network the AC-DANTE-D becomes ‘discovered’, ready to retrieve digital audio from Dante devices, including the AVPro Edge AC-DANTE-E encoder, using Dante Controller software. Two LED activity monitors on the chassis face indicate power and signal status.

Note: The Dante port is not PoE. Unit power is provided by an external AC-to-DC 5V-1A power converter via a USB Type A to Type C cable, both included.

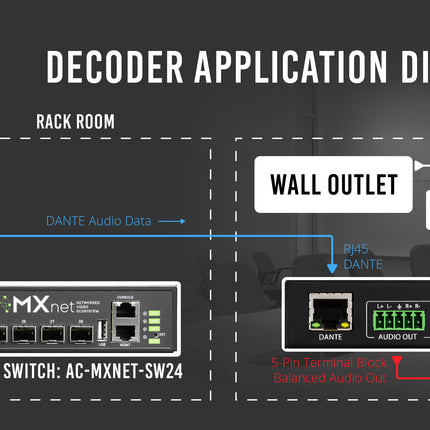

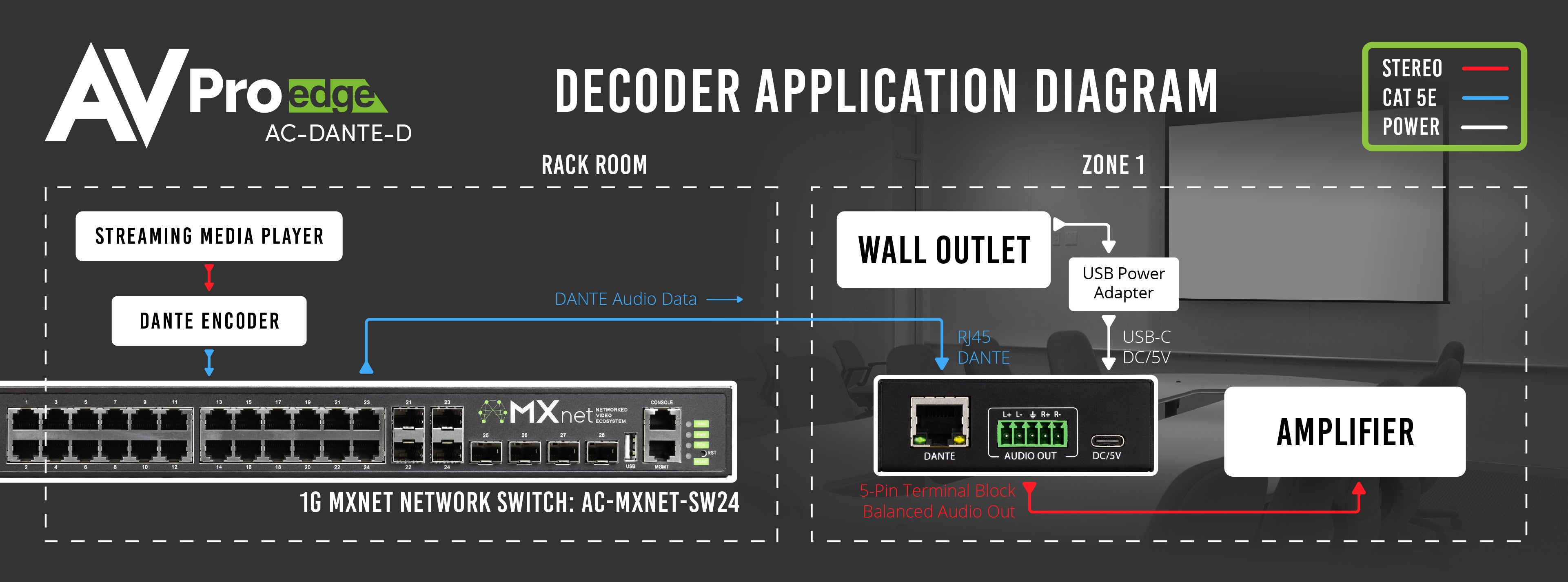

While Dante effectively makes use of Ethernet technology for signal transmission (CAT5e or CAT6 cabling, RJ-45 connectors, and standard network switches), it is not identical to Ethernet, with Dante networks typically isolated to their own closed system environment. All AVPro Edge MXNET 1G switches may be used stand-alone for Dante network configurations. Dante and MXNET 1G systems may coexist in hybrid fashion, sharing the same network switch. Transfer distance matches Ethernet at 100 meters (328 ft) with results dependent on cable quality, termination precision, and the degree of noise within the cable routing environment.

Small form factor sizing enables placement at or near end-point devices.

    2CH Dante Decoder

    Product form

    • Complete Dante system compatibility
    • Plug and play support
    • Sample rates up to 96 kHz
    • 16-, 24-, and 32-bit audio support

    SKU: AC-DANTE-D

    • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

    Description

    The AVPro Edge AC-DANTE-D is a compact, two-channel Dante network two-channel decoder. AVPro Edge employs Dante’s Ultimo chipset, providing 100% lossless analog conversion from digitally encoded content with sampling rates from 44.1kHz to as high as 96kHz, in 16-, 24- or 32-bit word lengths. When powered up and connected to a Dante network the AC-DANTE-D becomes ‘discovered’, ready to retrieve digital audio from Dante devices, including the AVPro Edge AC-DANTE-E encoder, using Dante Controller software. Two LED activity monitors on the chassis face indicate power and signal status.

    Note: The Dante port is not PoE. Unit power is provided by an external AC-to-DC 5V-1A power converter via a USB Type A to Type C cable, both included.

    While Dante effectively makes use of Ethernet technology for signal transmission (CAT5e or CAT6 cabling, RJ-45 connectors, and standard network switches), it is not identical to Ethernet, with Dante networks typically isolated to their own closed system environment. All AVPro Edge MXNET 1G switches may be used stand-alone for Dante network configurations. Dante and MXNET 1G systems may coexist in hybrid fashion, sharing the same network switch. Transfer distance matches Ethernet at 100 meters (328 ft) with results dependent on cable quality, termination precision, and the degree of noise within the cable routing environment.

    Small form factor sizing enables placement at or near end-point devices.
      • Key Benefits
      • Specs
      • Resources
      • In the Box
      • Accepts any Dante-platform audio signal up to 96kHz in16-, 24-, and 32-bit word lengths
      • Low profile, compact design for placement options
      • Auto device-discovery on a Dante network

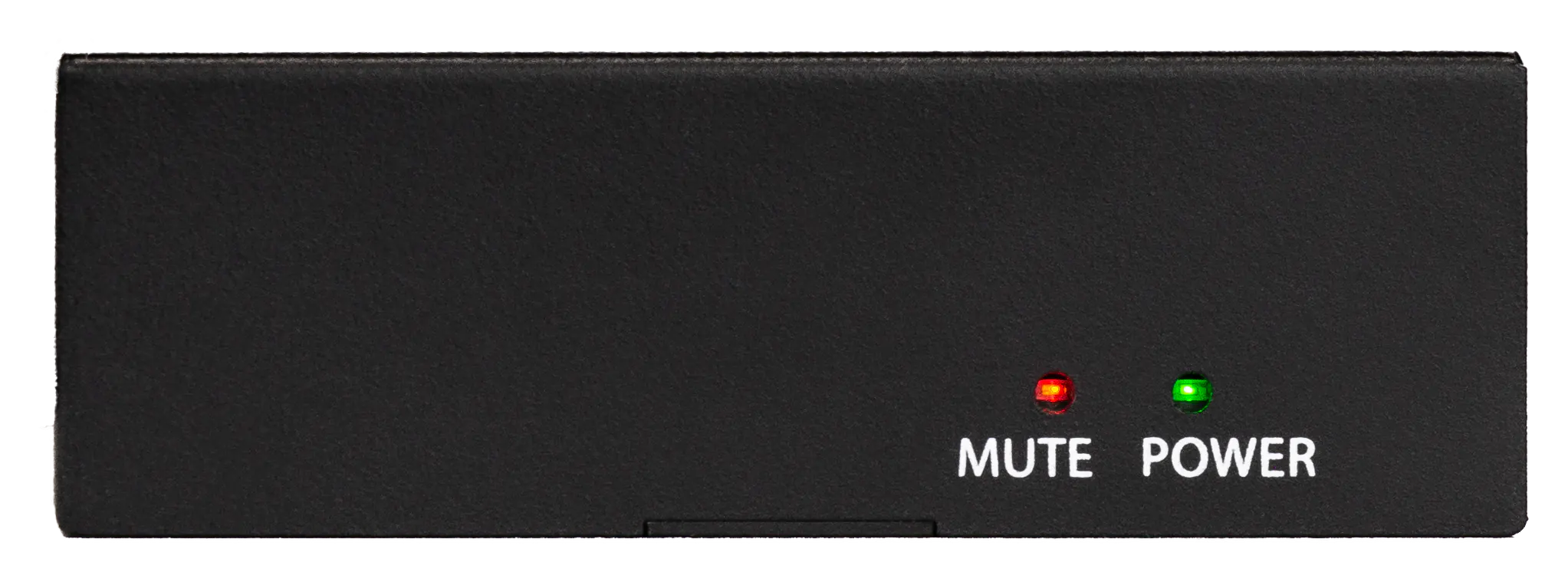

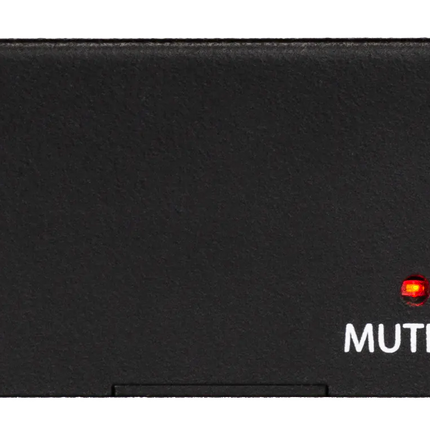

      • Activity LEDs provide power and signal status
      • Makes a convenient stand-alone connectivity pair with the AC-DANTE-E encoder
      Audio:
      Frequency Response20-20kHz
      Analog Output VoltageBalanced or unbalanced
      1 Vrms (2.828 Vp-p) @ 0 dBFS
      LatencyConfigurable 1,2,5 ms
      FormatLPCM
      Supported Sample Rates44.1, 48, 88.2, 96 kHz
      Supported Bit Depths16,24,32
      LatencyConfigurable 1,2,5 ms
      Audio Connections:

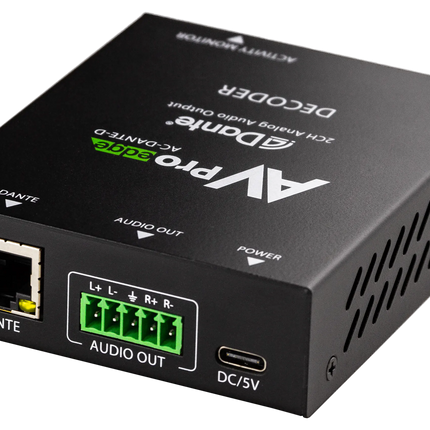

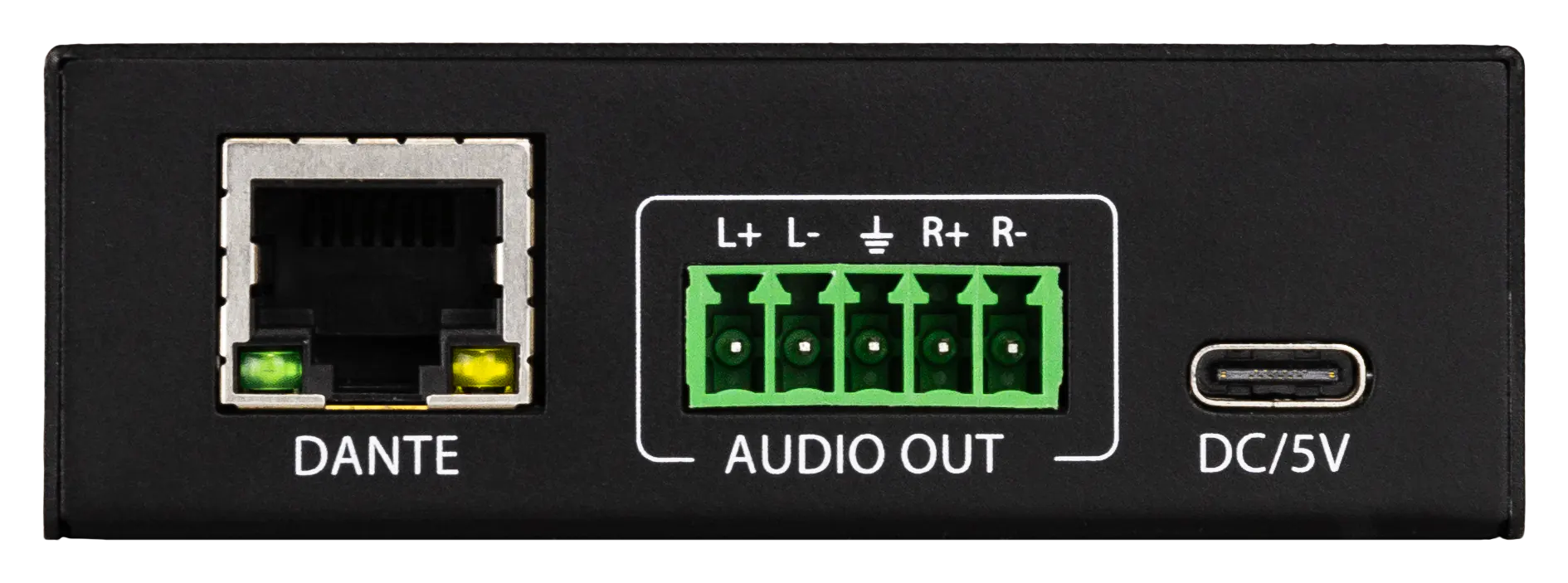

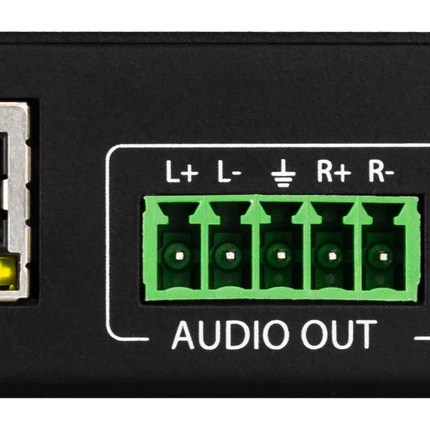

      Audio Output(1) 5-pin terminal block
      Dante Network Audio(1) RJ-45
      Power:
      USB Type-C Power AdapterInput: 100-240VAC, 50/60Hz, 0.5A
      Output: 5VDC, 1A
      Dimensions:
      MountingFurniture mount support
      Dimensions (Unit Only Width/Depth/Height)mm: 75 X 90 X 25
      inch: 2.95 X 3.55 X 1
      Dimensions (Packaged Width/Depth/Height)mm: 193 X 136 X 41
      inch: 7.6 X 5.35 X 1.62
      Weight (Unit)0.36 LBS/0.164 KG
      Weight (Packaged)0.7LBS/0.32 KG
      Product Warranty10 Years
      Specifications subject to change without notice. Mass & dimensions are approximate

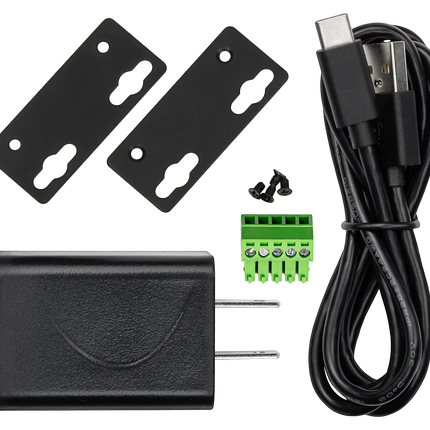

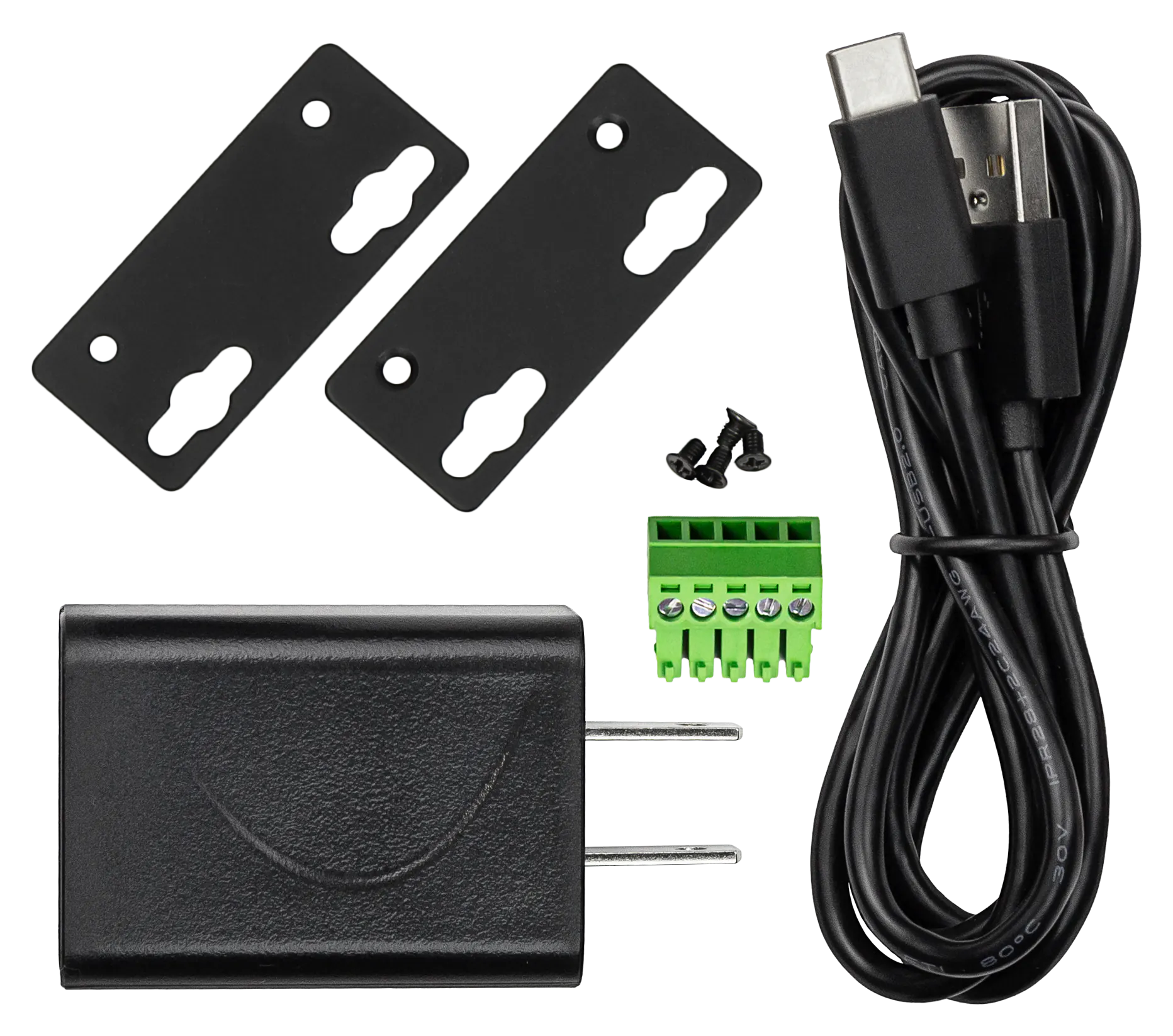

      • AC-DANTE-D (Unit)
      • 1 x USB Power Adapter
      • 1 x USB-A to USB-C Cable
      • 1 x 5-Pin Terminal Block
      • 2 x Mounting Brackets
      • 4 x Screws for Mounting Brackets
