STIX Test Ecosystem Signal Generator

Description

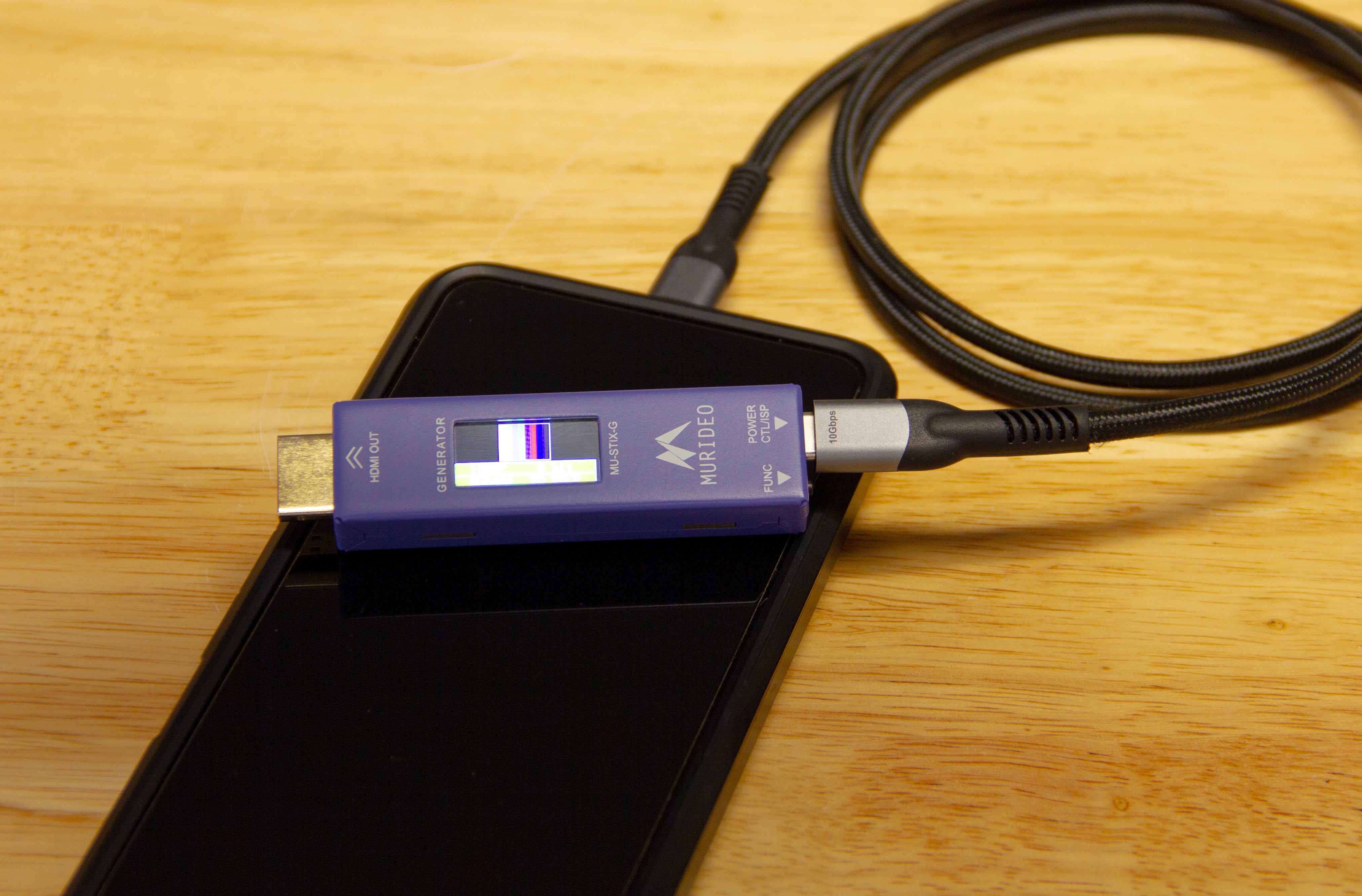

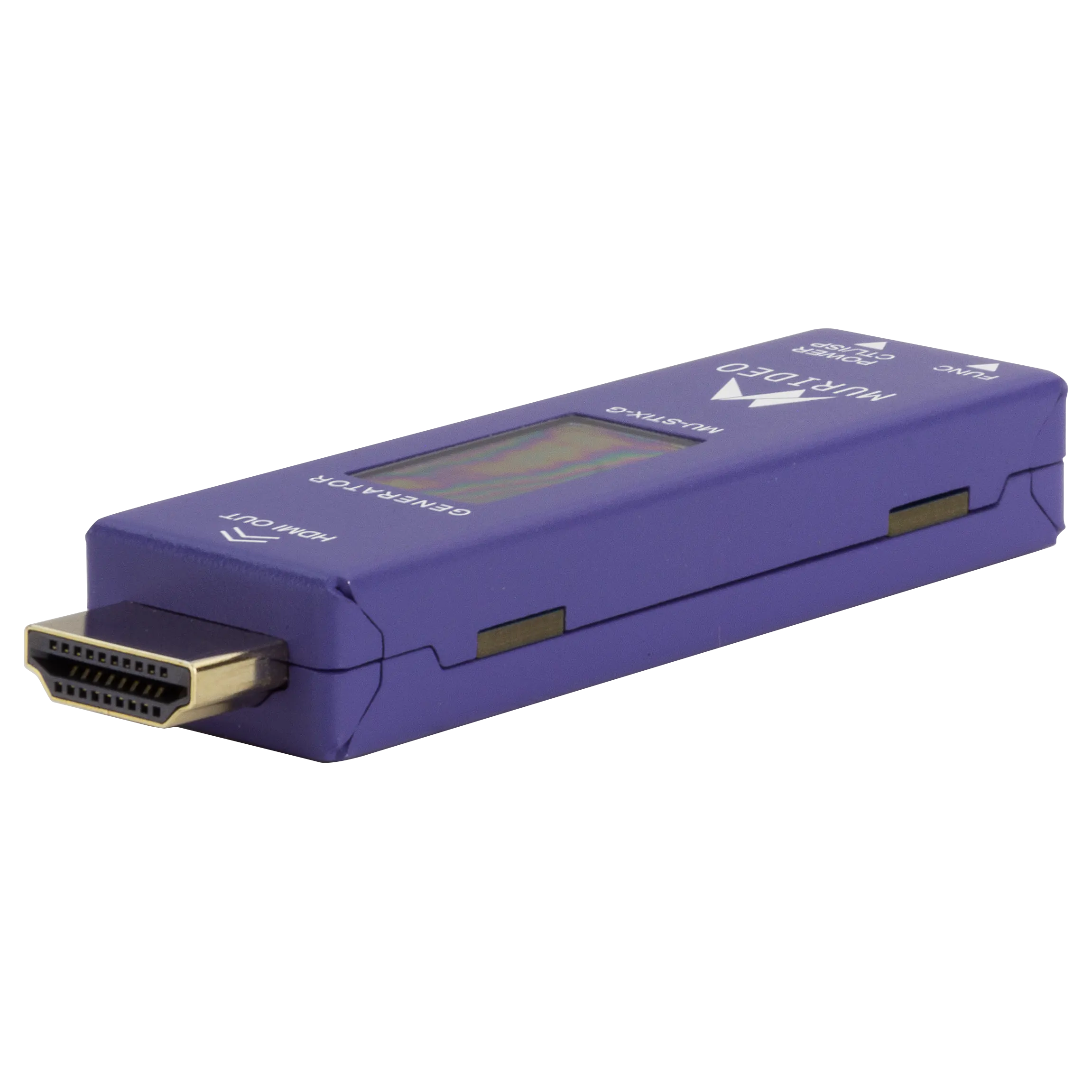

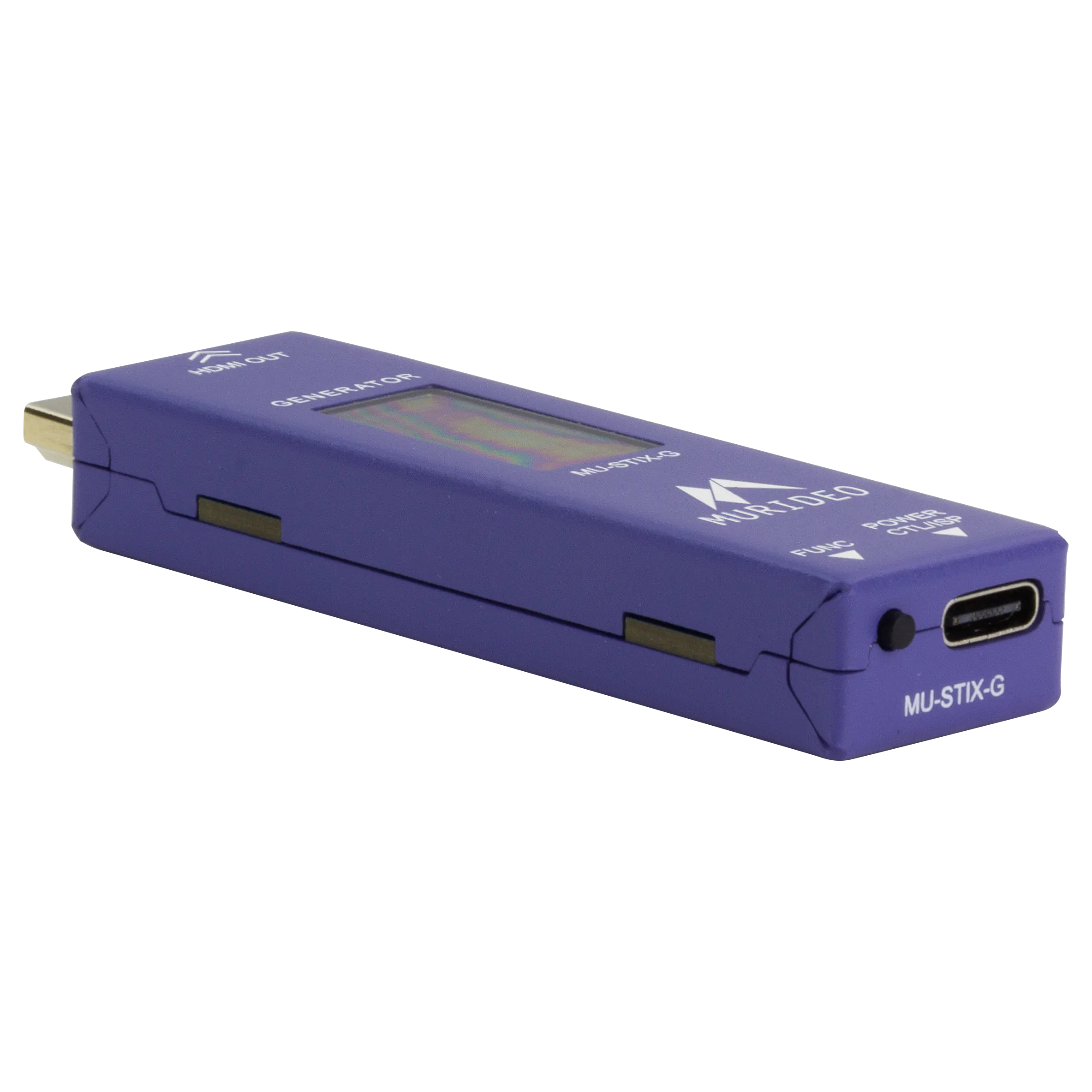

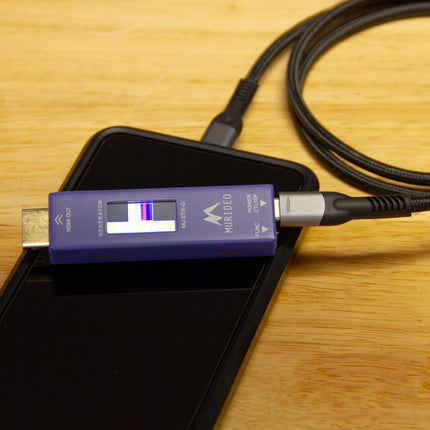

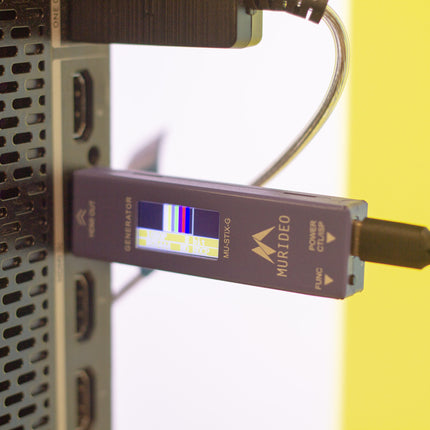

The MU-STIX-G is a thumb drive-sized HDMI pattern generator designed for Murideo’s STIX Ecosystem large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.

Initially developed as a resource for AVPro Edge internal quality control, the STIX Ecosystem was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.

Video test patterns at resolutions from 720p/ 60 fps through 8K/ 60 fps, including 4K/120 fps High Frame Rate, may be generated by the MU-STIX-G. When used in stand-alone applications, a mini OLED screen displays the pattern selected, resolution, bit rate, color space, and HDCP version. Within the STIX Ecosystem, the same information is displayed on the MU-STIX-CTL controller GUI.

The STIX Ecosystem enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

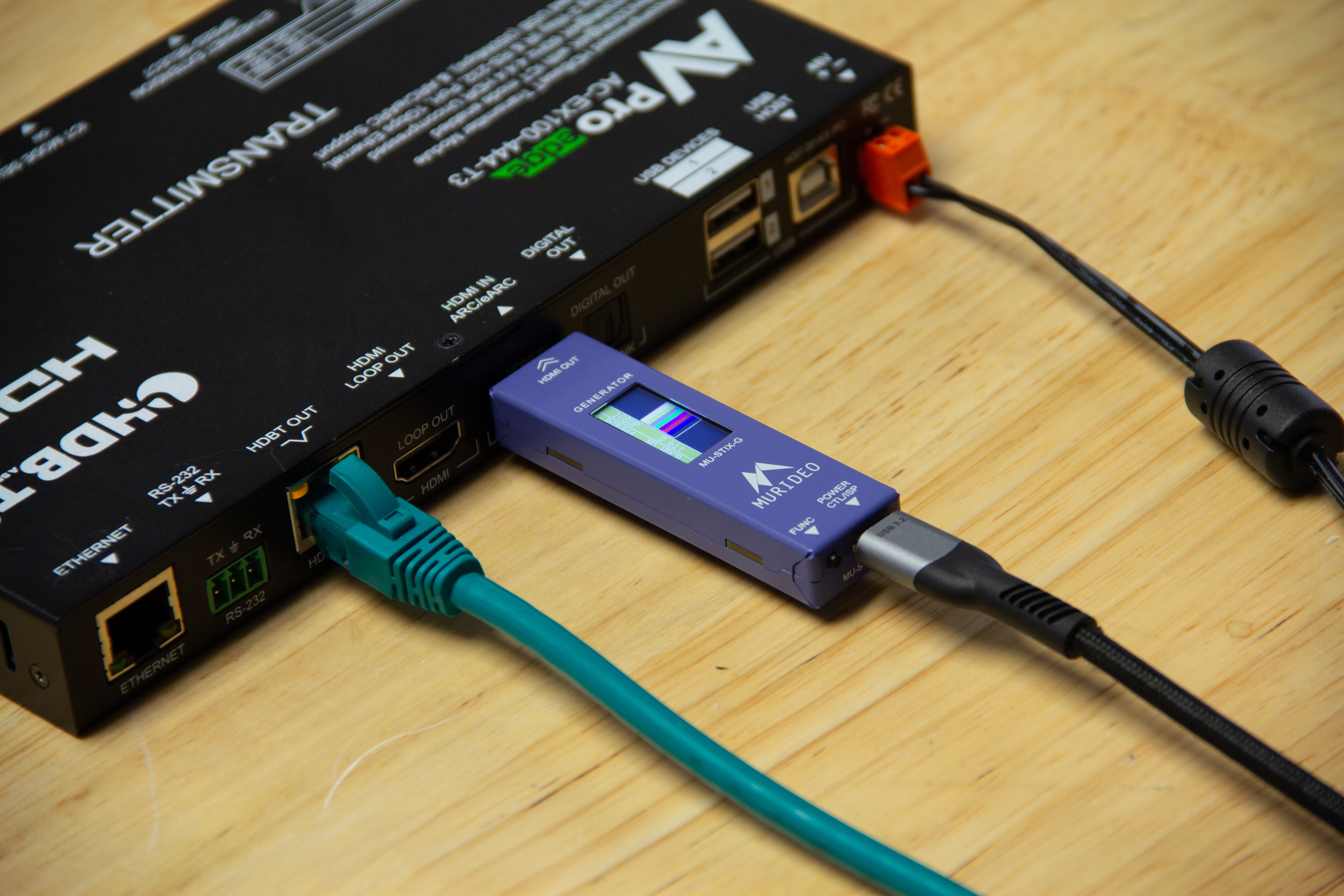

For stand-alone use, the MU-STIX-G is a convenient, cost-effective multi-resolution format generator for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required.

Read more

STIX Test Ecosystem Signal Generator

Product form

STIX Test Ecosystem Signal Generator

  • HDMI 2.1b, 8K 48 Gbps (FRL) compliant
  • Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
  • HDCP selectable at Off, 1.4, and 2.3 (1.4 is TDMS only)
  • 12 test patterns, including Pseudo-Random Binary Sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.
  • The STIX Ecosystem is compatible with any brand of HDMI devices

SKU: MU-STIX-G

  • Shipped today? Order within: Mar 24, 2025 13:00:00 -0500

Login

Description

The MU-STIX-G is a thumb drive-sized HDMI pattern generator designed for Murideo’s STIX Ecosystem large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.

Initially developed as a resource for AVPro Edge internal quality control, the STIX Ecosystem was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.

Video test patterns at resolutions from 720p/ 60 fps through 8K/ 60 fps, including 4K/120 fps High Frame Rate, may be generated by the MU-STIX-G. When used in stand-alone applications, a mini OLED screen displays the pattern selected, resolution, bit rate, color space, and HDCP version. Within the STIX Ecosystem, the same information is displayed on the MU-STIX-CTL controller GUI.

The STIX Ecosystem enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

For stand-alone use, the MU-STIX-G is a convenient, cost-effective multi-resolution format generator for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required.

Read more

  • Key Features
  • Specs
  • Resources

Low-cost, flexible output source

Match pattern generation with common output timings used by HDMI-based entertainment sources at low cost and with flexible configuration. Toggle through settings instead of switching sources.



Seven available signal timings

720p and 1080p @ 60 fps, 4K @ 30 fps, 60 fps, and 120 fps, and 8K 30 fps.



Selectable Color Depth

8-, 10-, and 12-bit color depth



Selectable Color Space

RGB, 4:2:0, 4:2:2, and 4:4:4 color space options are available



Ultra-compact Form Factor

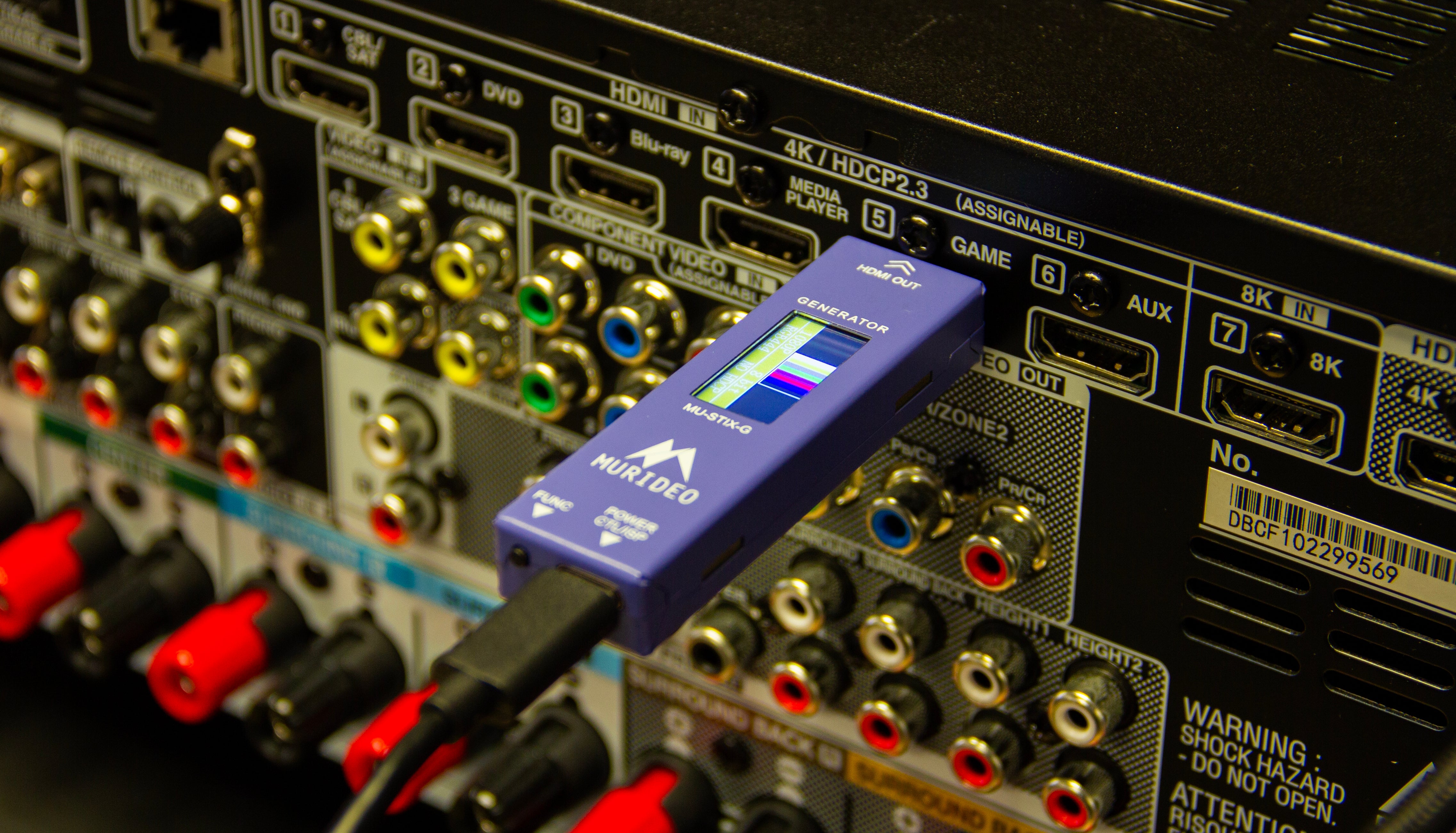

The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.



Integral component of the STIX Ecosystem

The STIX Ecosystem allows for asymmetrical scalability for MU-STIX-G deployment in end-to-end testing scenarios. Customized testing protocols may be configured based on the required source count and available MU-STIX-CTL slots.

VIDEO
HDMI VersionHDMI 2.1
HDCP Version1.4 and 2.3
HDCP ON/OFFYes
Resolution Timings

4K & 8K/30 Hz

720p, 1080p, 4K/60Hz

4K/120 Hz

Video EncodingRGB (Limited), YCbCr
Video Sampling ModelsRGB 4:4:4, YUV 4:4:4, YUV 4:2:2
Color Bit Depth8-, 10-, 12-bit
Patterns

Black, Checkbox, Stripes, Red, Green, Blue, White, White Ramp, Red

Ramp, Green Ramp, Blue Ramp, PRBS, Color Bars

Audio
Audio OutputNot Supported
Ports
HDMIMale Type-A
Firmware/ControlUSB Type-C
ENVIRONMENTAL
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
POWER
Power (Single Unit)5 VDC, 270 mA
Power Consumption1.35 W Max
DIMENSIONS
Dimensions (SIngle Unit Only  Height/Depth/Width)mm: 12 X 21 X 81.1
inch: 0.47 X 0.82 X 3.2
Weight (Single Unit)27g / 1oz

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
