Full 8K Ultra HD Uncompressed 48 Gbps with Dolby Vision, HDR10, HDR10+, and HLG Support - The AC-EXO-X-PLUS-KIT is fully compatible with all specified ITU 8K timings and bit rates. Its capabilities are future-forward through the complete evolution of the 8K format, making it a unique, invest-once product.
Near-Zero Latency - Latency is less than 8 microseconds, clinically measurable but visually imperceptible.
Extend USB 2.0/480 Mbps and 1 Gbps Ethernet - USB 2.0 extends KVM functionality for PCs or peripheral devices like mouse/keyboard. A 1 Gbps ethernet hub port extends LAN connectivity to a local display or other internet-connected devices.
eARC/ARC support - ARC simplified audio connections. However, high-bitrate audio formats like Dolby Atmos are transmitted from TV to sound systems via eARC, with lip-sync correction and improved CEC support.
IR & RS-232 Control - Configurable, bi-directional IR and RS-232 control.
4K/144 Hz Support - Match next-gen display performance with 4K/144 Hz extended frame rate support for ultra-sharp visuals with impressively smooth motion, enhanced gaming performance, and general computing with reduced motion blur and increased responsiveness.
Variable Refresh Rate - VRR synchronizes display refresh rates with GPU frame rates, reducing lag, judder, and frame tearing for smoother gameplay and more fluid video output.
Fiber Signal Transmission - In commercial environments where airborne digital “hash” swirls around unabated, fiber optic connectivity provides immunity from frequency-related interference to preserve image fidelity.

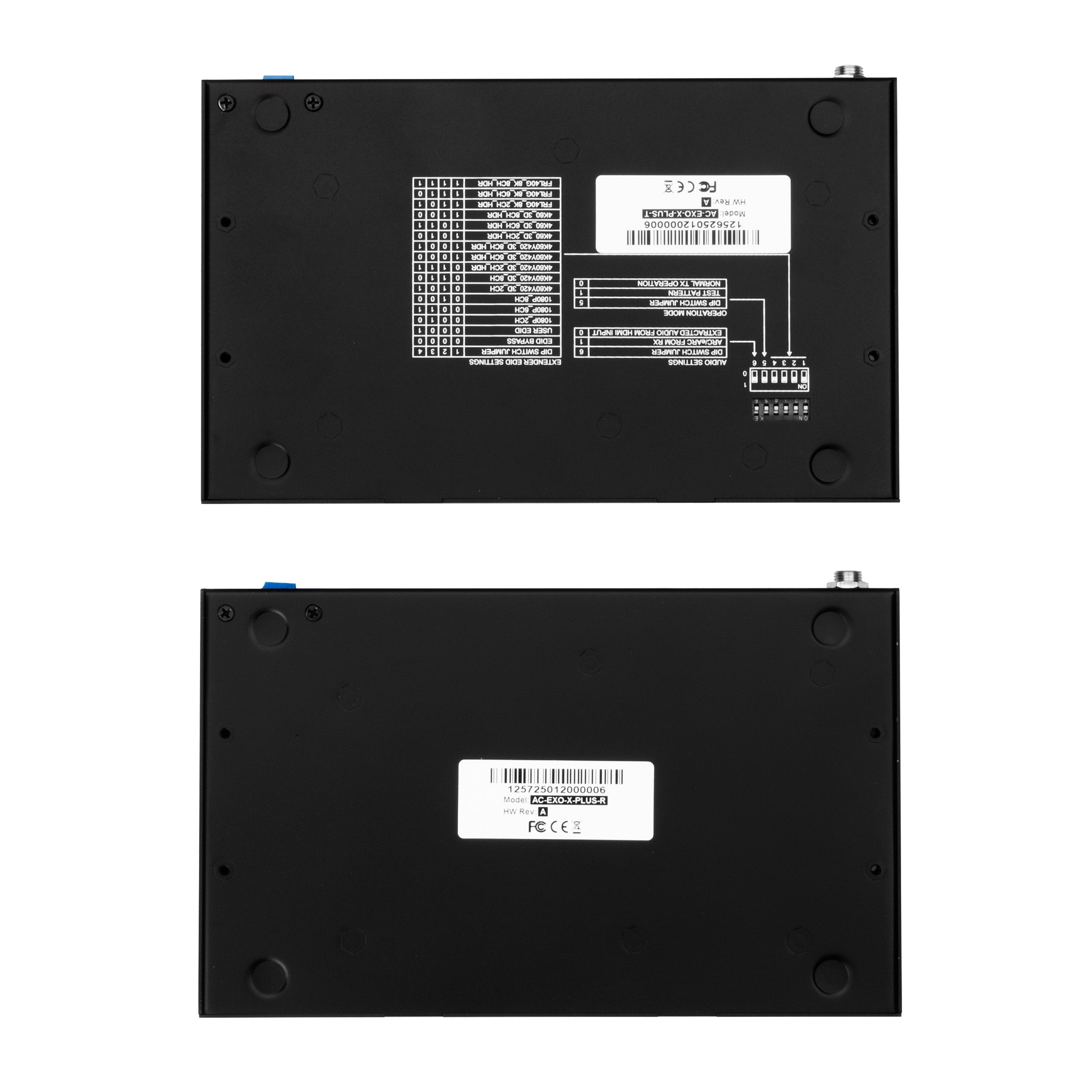

EDID management - Resolve EDID issues with preloaded and custom options. An EDID Copy function allows for acute copying and saving of known, working EDIDs for stable kit operation and HDCP repeatability.
Downscaling Output – The Transmitting unit has a downscaled loop-out for legacy display technologies, while the Receiving unit outputs full resolution from
HDMI 1 out and user-selectable auto-downscaling from HDMI 2 out.
Test Pattern Generation – The Transmitter can generate a test pattern to verify to aid with fiber verification, connected device configuration settings, or source viability.
PoC Power - Onboard output power for downstream devices (specifically RX unit)
| Video | |
| Video Resolutions | Up to 8K/60 Hz 4:4:4, 8K/30 Hz 4:4:4, 4K/120 Hz |
| HDR Formats | Dolby Vision, HDR10, HDR10+, HLG |
| Color Space | YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Bit Depth | Up to 16-bit |
| Downscaling | 8K / 4K to 1080p |
| Audio | |
| Audio Formats Supported (HDMI) | PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X |
| Audio Formats Supported Extracted (TOSLINK) | LPCM up to 5.1, 96 kHz 24-bit, Dolby Digital 5.1, DTS High Resolution Audio |
| ARC / eARC | |
| Formats Supported (HDMI) | PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X |
| Formats Supported (TOSLINK) | PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD |
| USB | |
| Version | USB 2.0 |
| Ports | (1) USB Type-C (Transmitter) (4) USB Type-A (Receiver) |
| Fiber | |
| Type | Multimode OM3 |
| Connector | Simplex LC (Lucent Connector) |
| Recommended Fiber | OM3 Cleerline SFF™ Fiber |
| Distance | |
| OM2 | Up to 40 m |
| OM3 | Up to 200 m |
| OM4 | Up to 300 m |
| HDMI In/Out (4K/60 Hz 4:4:4) | Up to 50 ft. (using Bullet Train HDMI) |
| HDMI In/Out (w/ AOC Cable) (4K/60 Hz 4:4:4) | Up to 130 ft. (using Bullet Train AOC) |
| Other | |
| Bandwidth | 48 Gbps (FRL6) |
| HDCP | HDCP 2.3 and earlier |

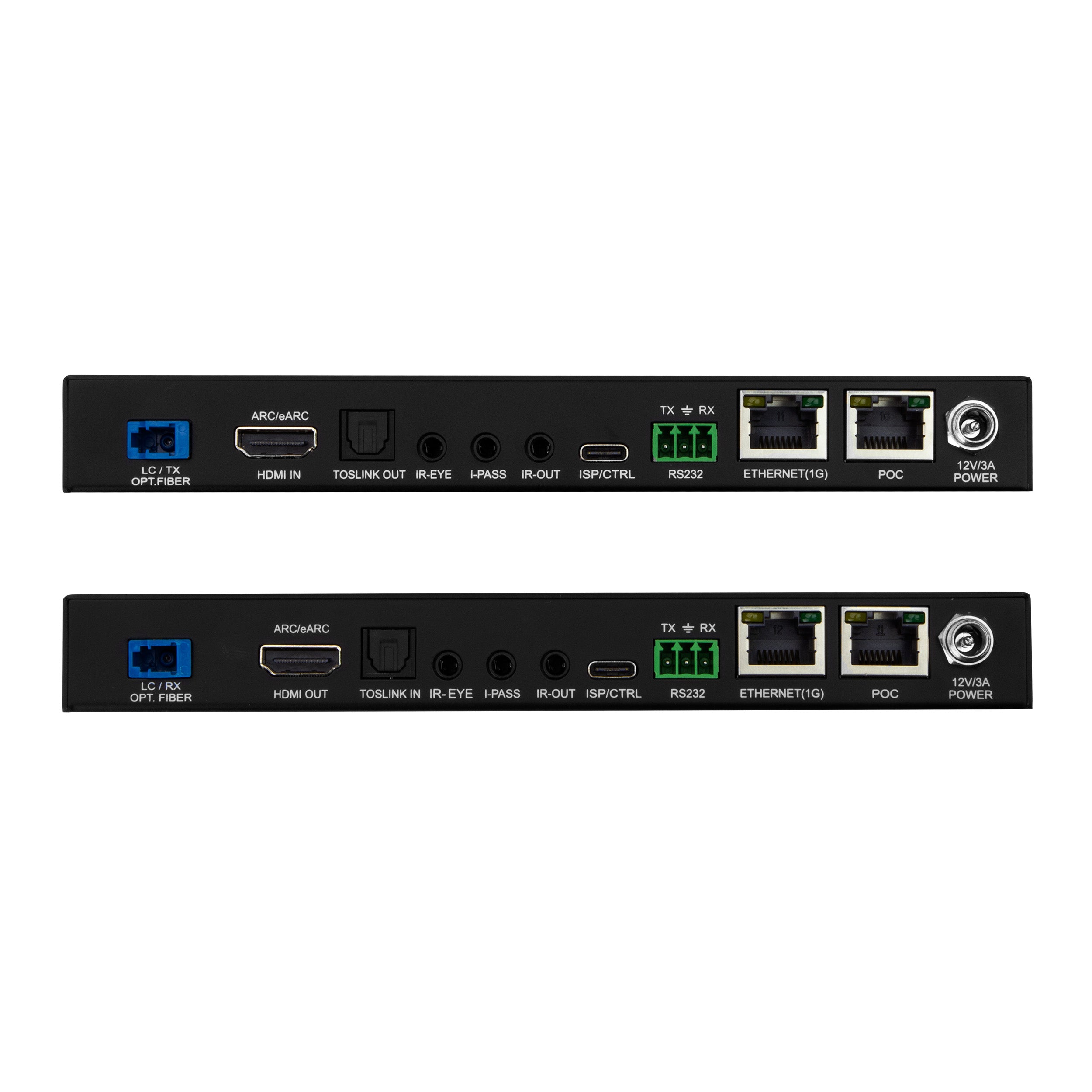

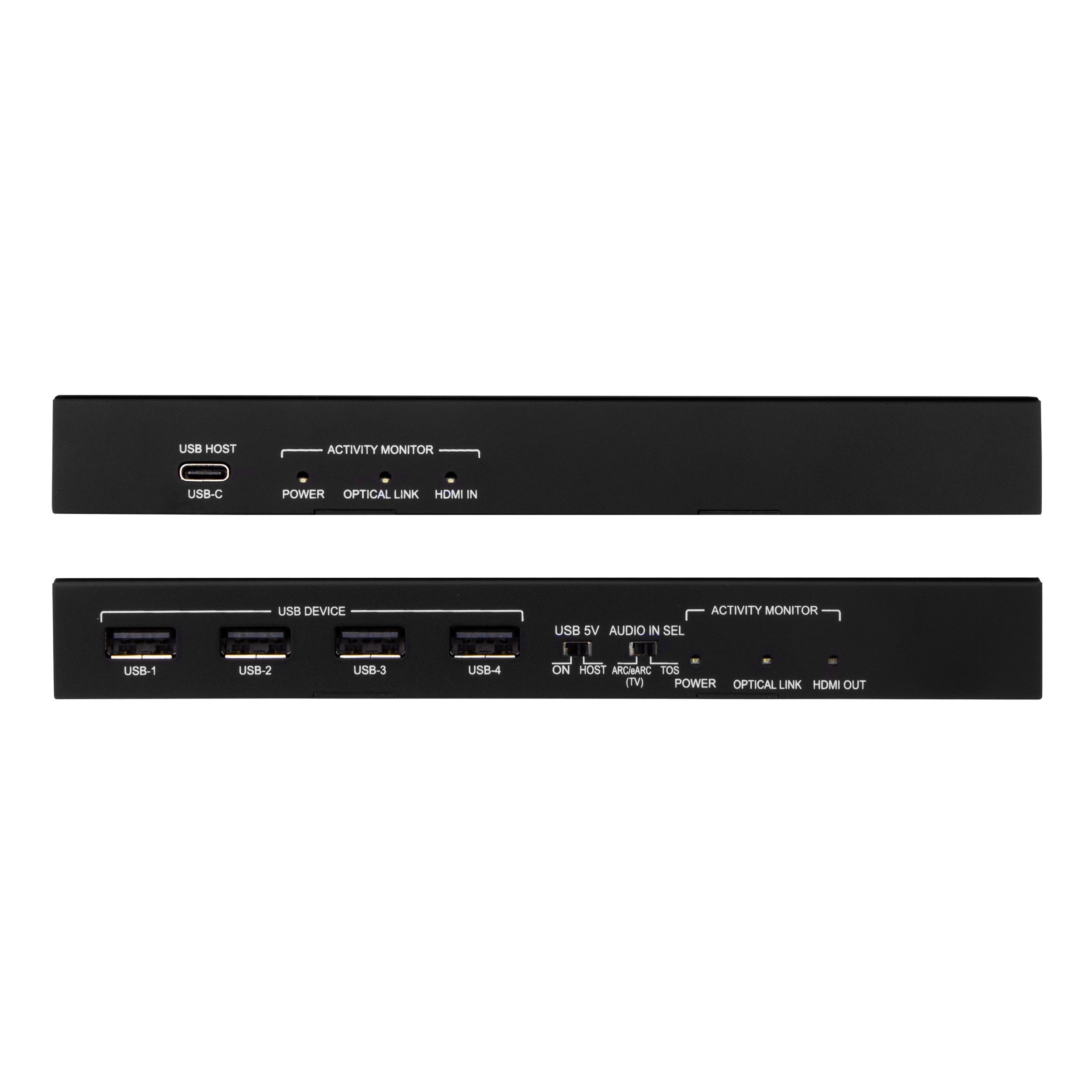

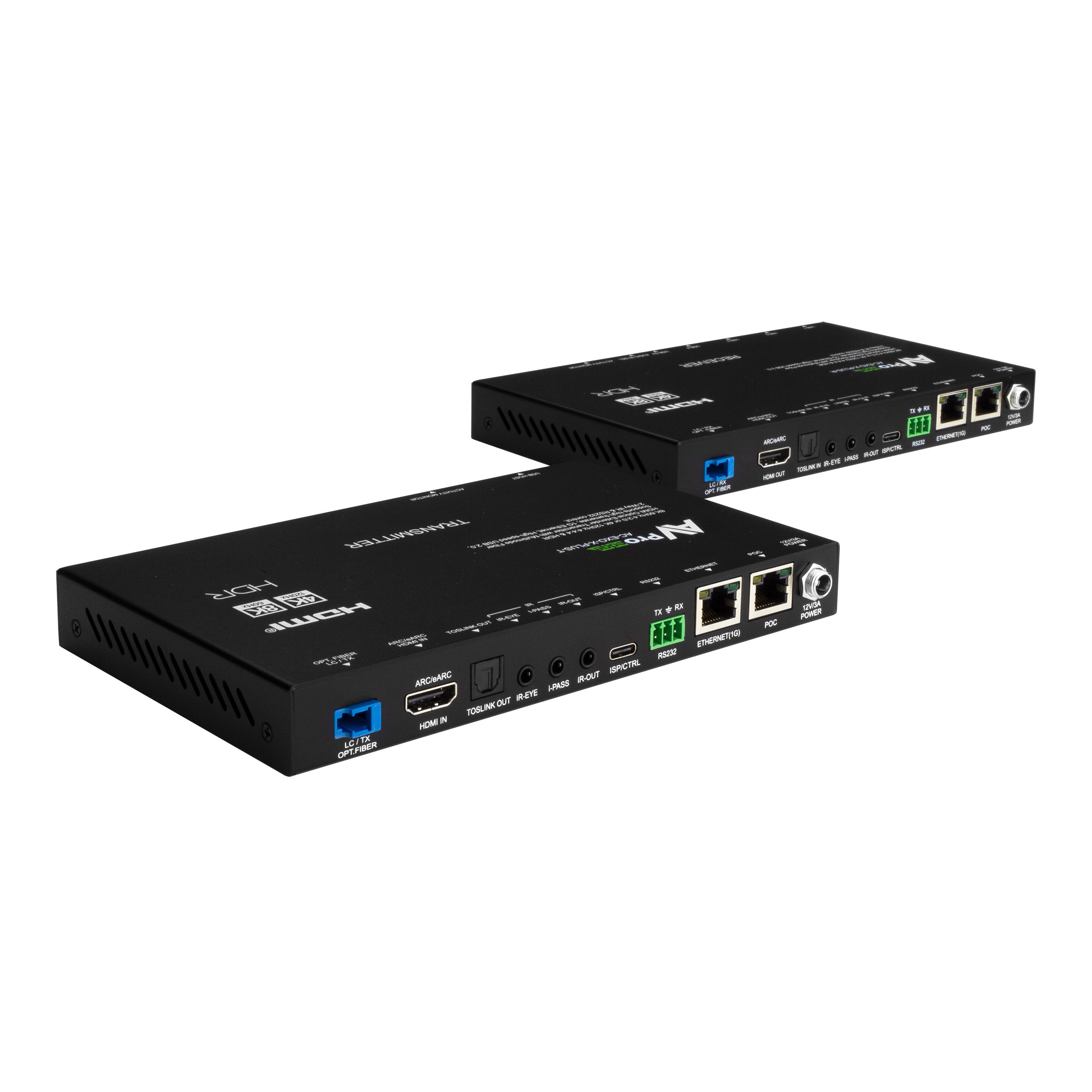

| Ports | |
| HDMI | HDMI Type A 19-pin, female |
| Audio (Extracted Digital) | TOSLINK |
| USB | (1) USB Type-C (Transmitter) (4) USB Type-A (Receiver) |
| Ethernet | RJ45 |
| IR TX | 3.5 mm Mono (2-Conductor) |
| IR RX | 3.5 mm Stereo (3-Conductor) |
| RS-232 | 3-Pin Euroblock |
| Firmware | USB Type-C |
| POC | RJ45 |
| Power In | Barrel connector |
| Environmental | |
| Operating Temperature | 23° to 125° F (-5° to 51° C) |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Humidity Range | 5% to 90% RH (No Condensation) |
| Power | |
| Power Consumption (Total) | 12 W Maximum |
| Power Supply | Input: 100-240 VAC ~ 50/60 Hz Output: 48 VDC, 0.5 A |
| Physical / Dimensions | |
| Mounting | Mounting brackets (screws included) |
| Dimensions (Unit Length/Width/Height) | mm: 109.474 x 179.324 x 22.098 inches: 4.31 x 7.06 x .87 |
| Dimensions (Packaged Length/Width/Height) | mm: 149.225 x 234.95 x 98.425 inches: 5.875 x 9.25 x 3.875 |
| Weight (Unit) | 1.26 lbs. (0.568 kg) |
| Weight (Packaged) | 3.9 lbs. (1.768 kg) |
| Regulatory | CE/FCC |
| Product Warranty | 10 Years |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |

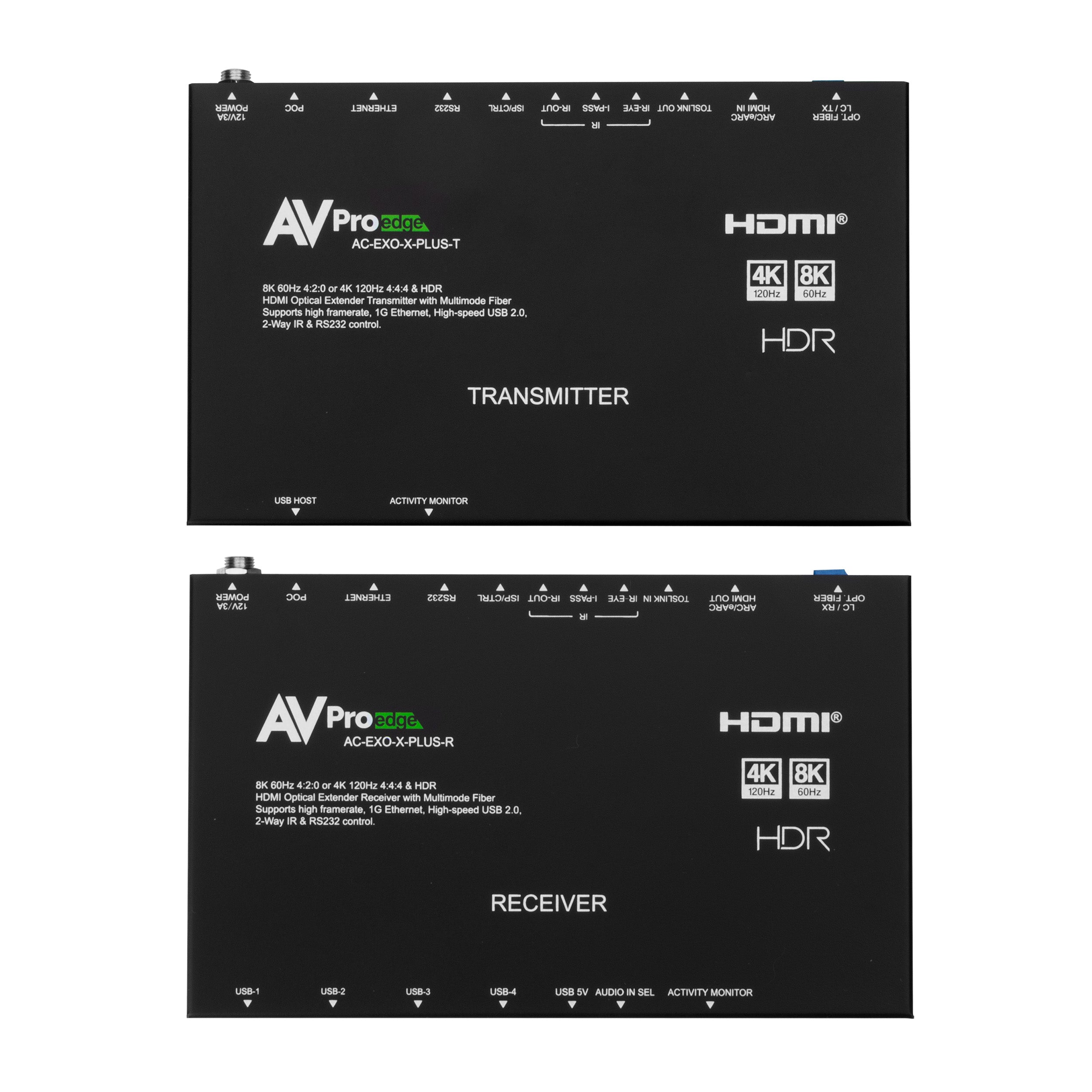

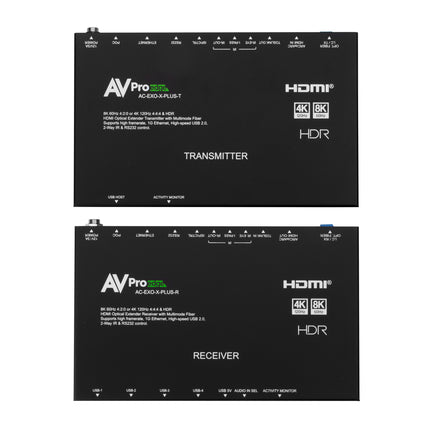

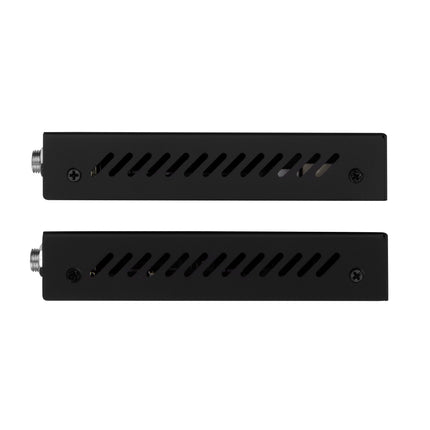

AC-EXO-X-PLUS-T (Transmitter)
- AC-EXO-X-PLUS-R (Receiver)
- 1 x 12 VDC/3 A Power Supply
- 1 x IR Tx Unit
- 1 x IR Rx Unit
- 2 x 3-pin Euroblock for RS-232 Ports
- 4 x Mounting Brackets
- 8 x Screws for Mounting Brackets
