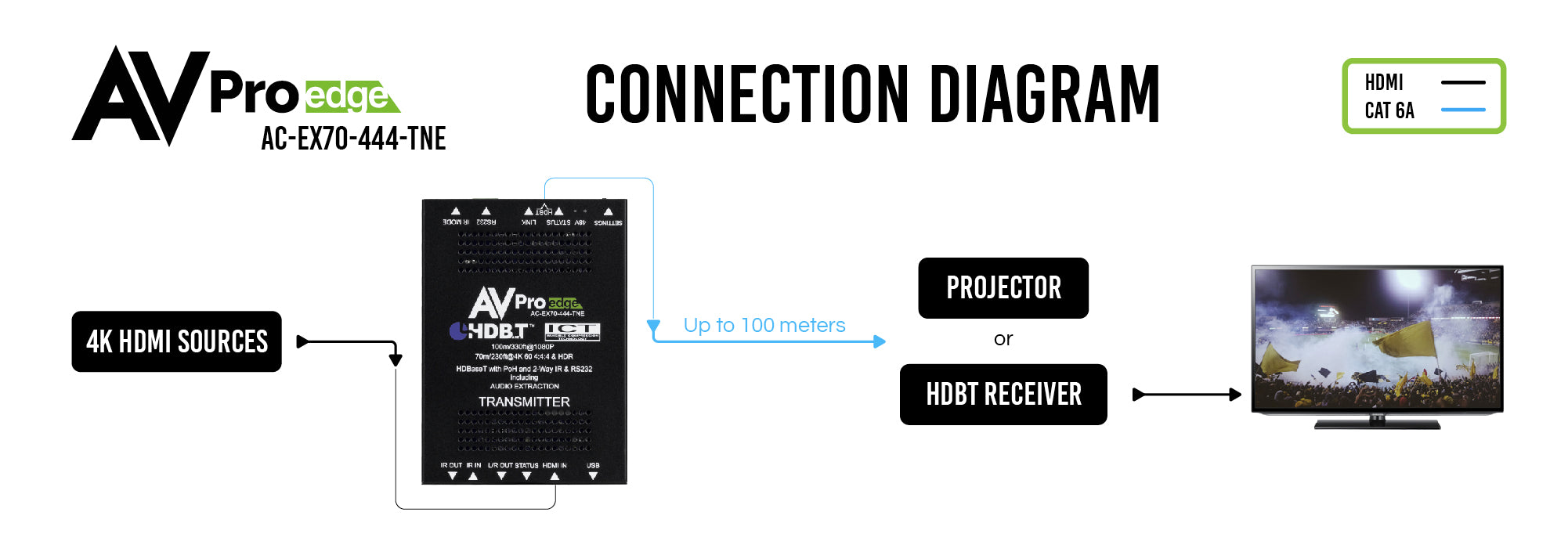

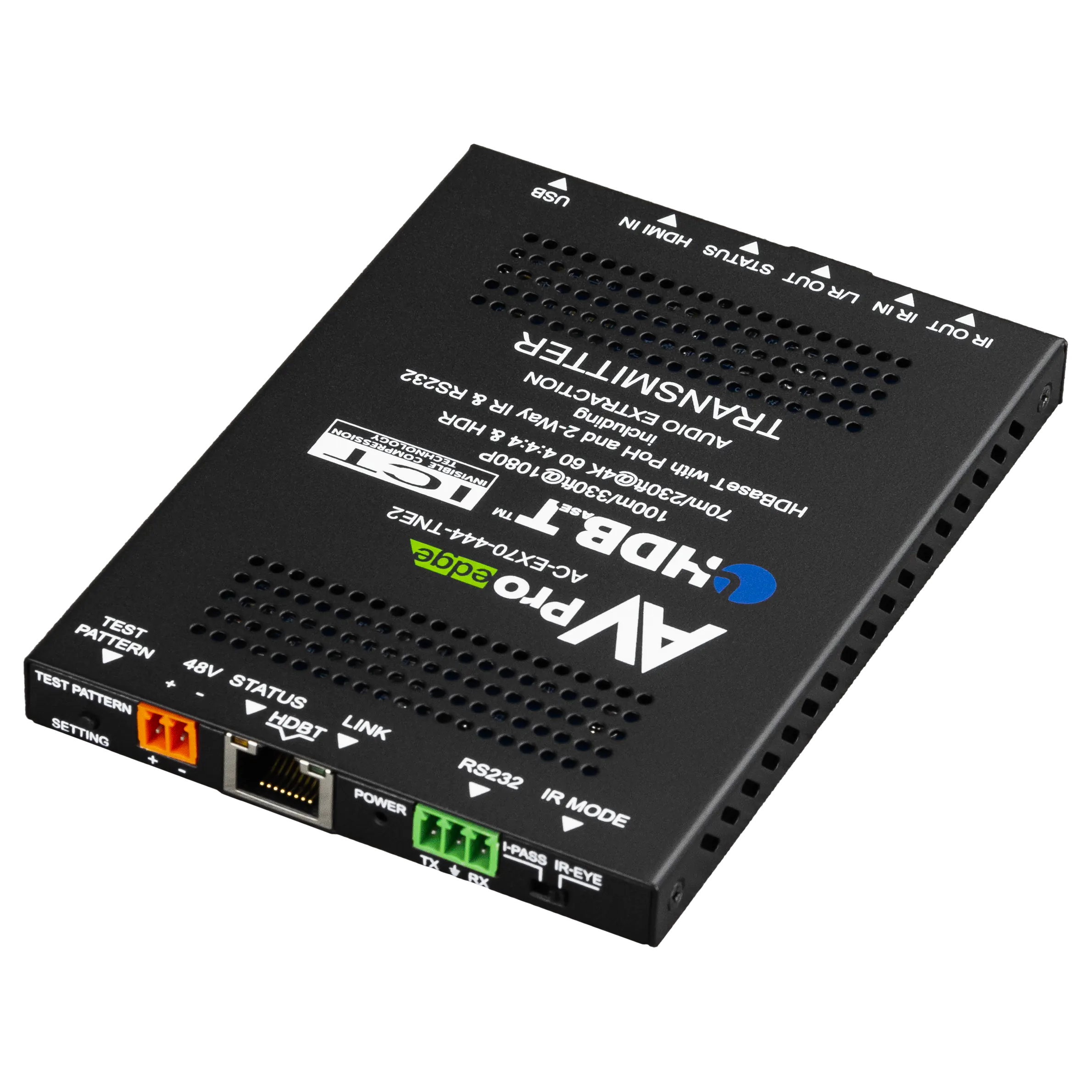

HDBaseT Compatibility: This device works with HDBaseT technology, which means any projector, display, or AVR that has an HDBaseT input can accept a signal from this device. This allows integrators to use professional products built for professional video distribution and not have to purchase an additional HDBaseT receiver unit.

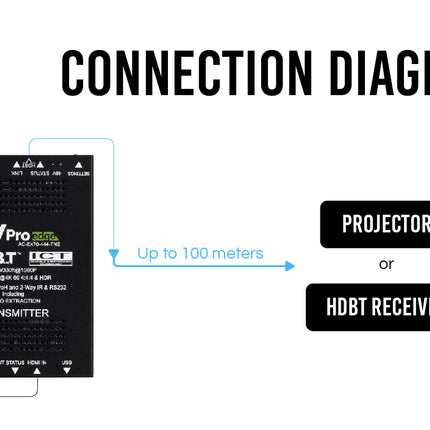

Distance: The chipset used in this device allows for the highest quality video signals to be passed very long distances. Full 4K signals can be transmitted 70 meters, while the less taxing 1080p signal can be transmitted a full 100 meters.

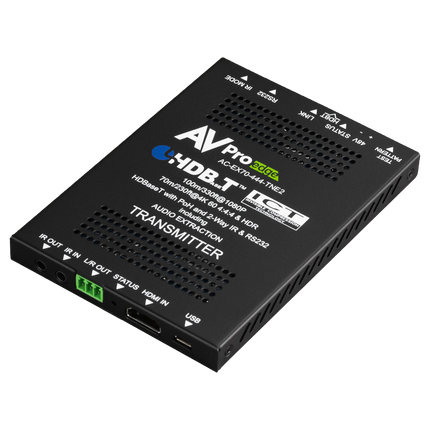

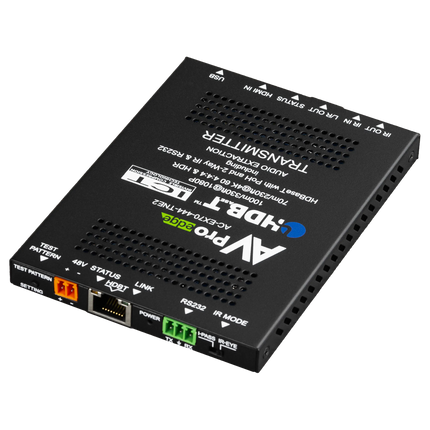

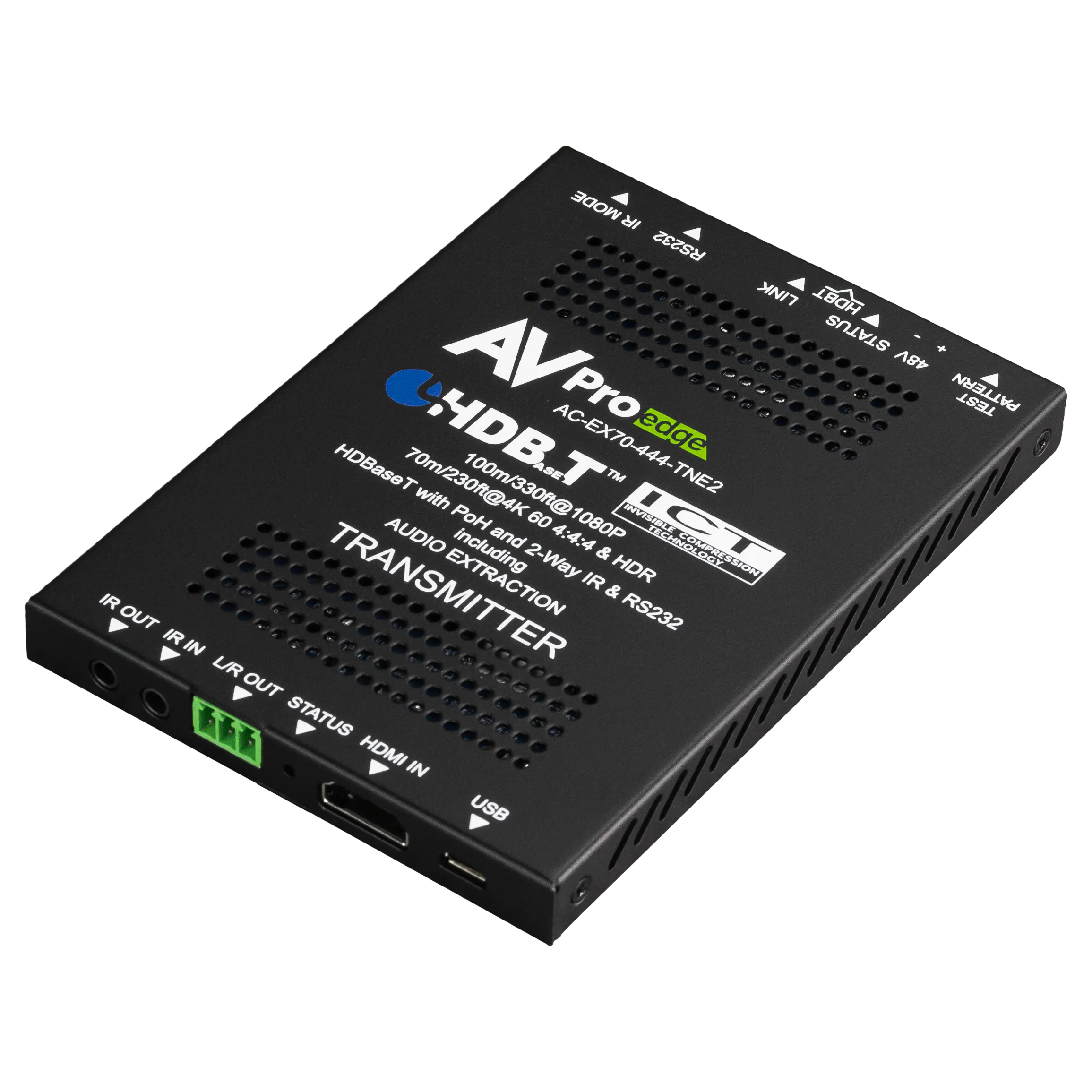

Slim Chassis: Because of the small form factor and the extremely slim design, this unit can be hidden anywhere. You can mount it to the side of a rack, or under a counter near your source without the end user even knowing it’s there.
Control: Get total control with RS232 & IP control for the unit from this TX unit, using HDBaseT functionality to send control signals over the same category cable being used for the video signal.
POE: With POE you can power this unit via a receiver unit, or you can use the power adapter that comes with this device to power a receiver on the other end.

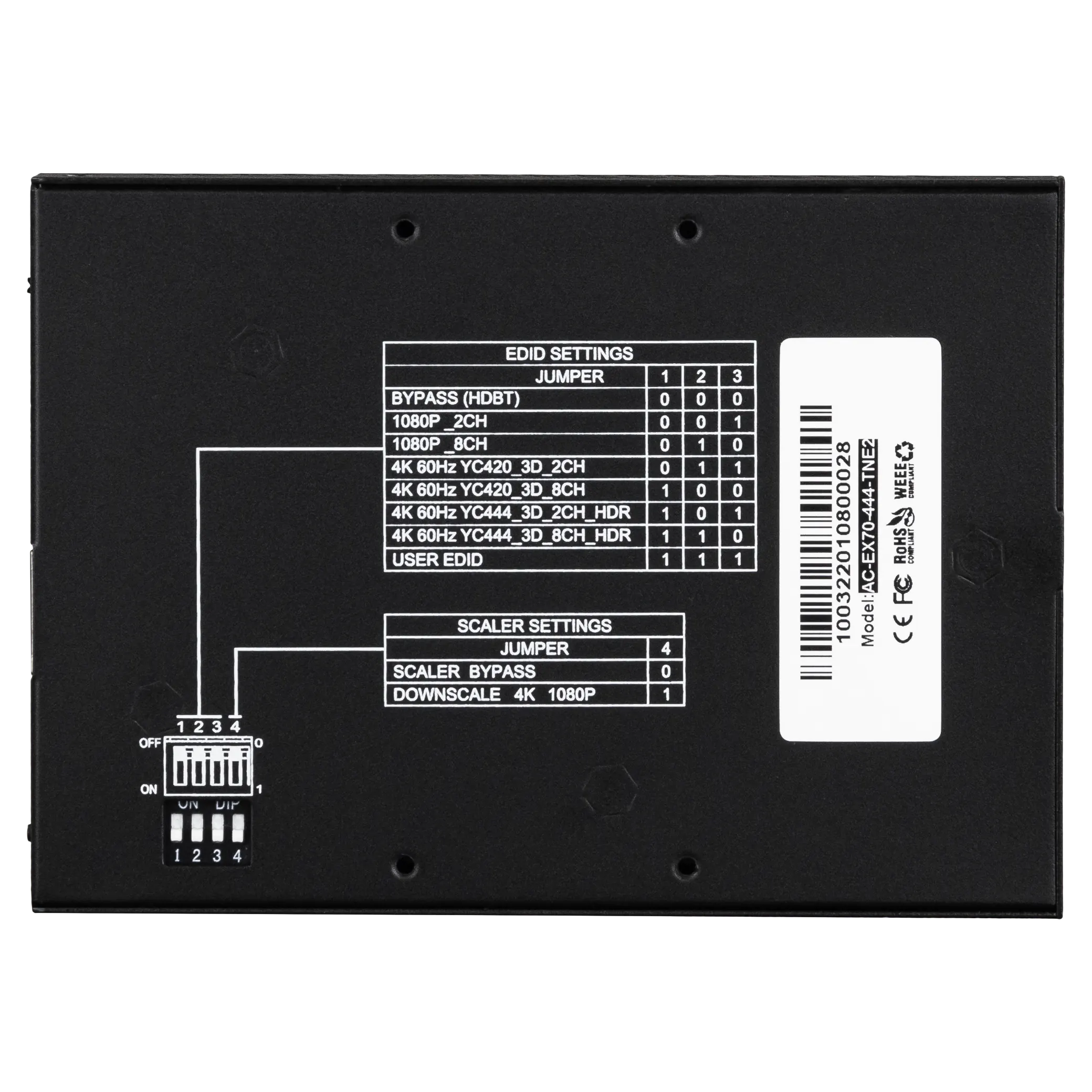

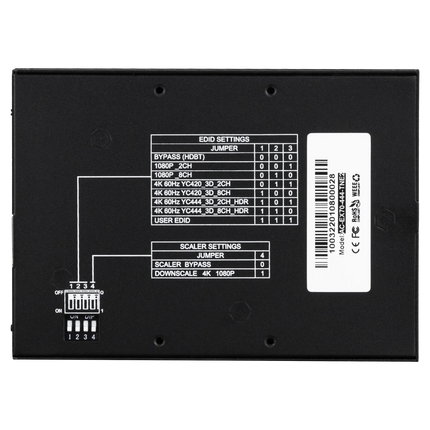

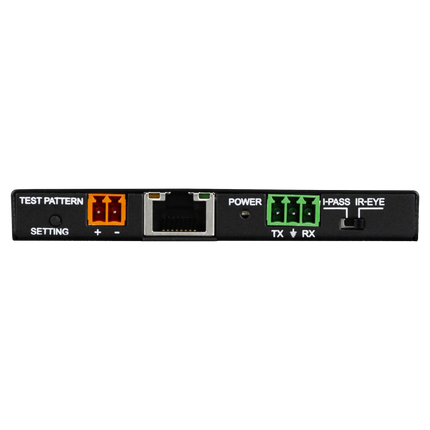

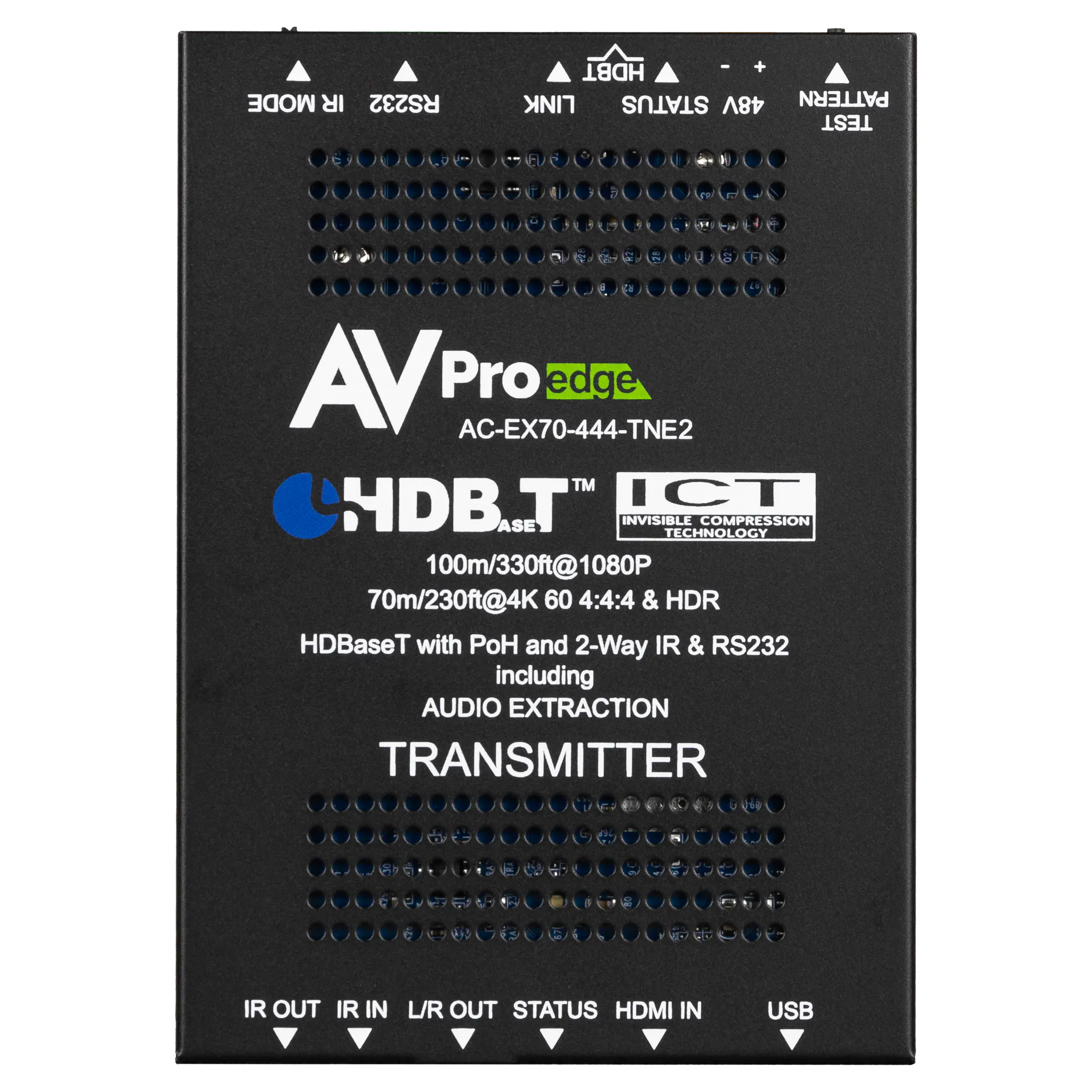

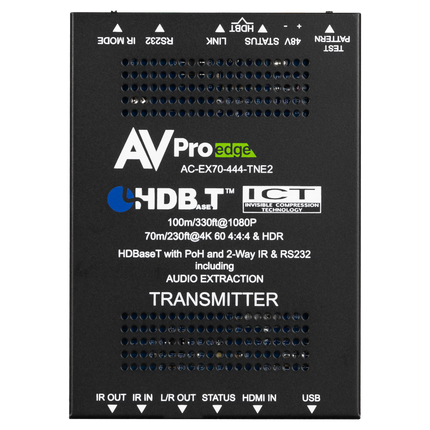

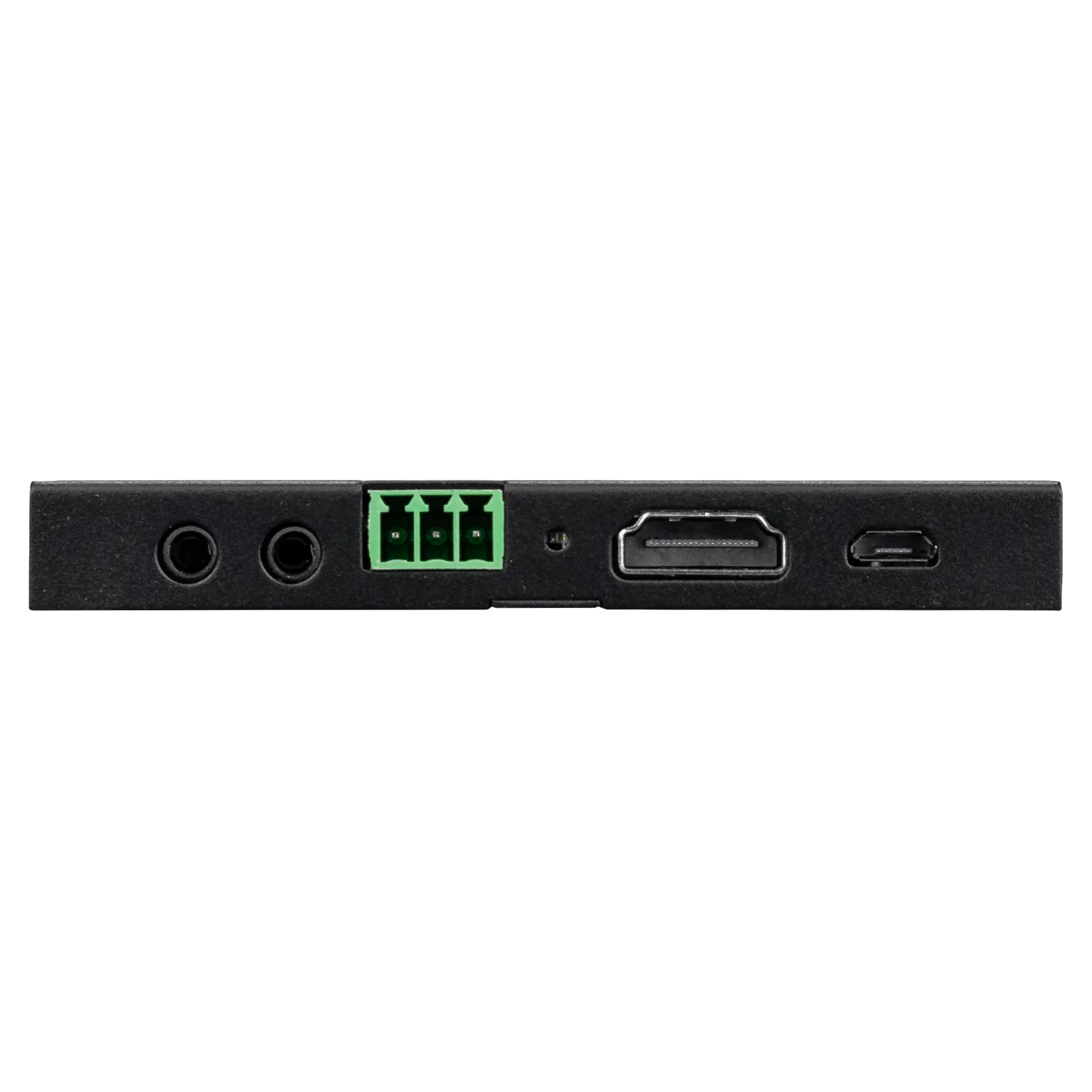

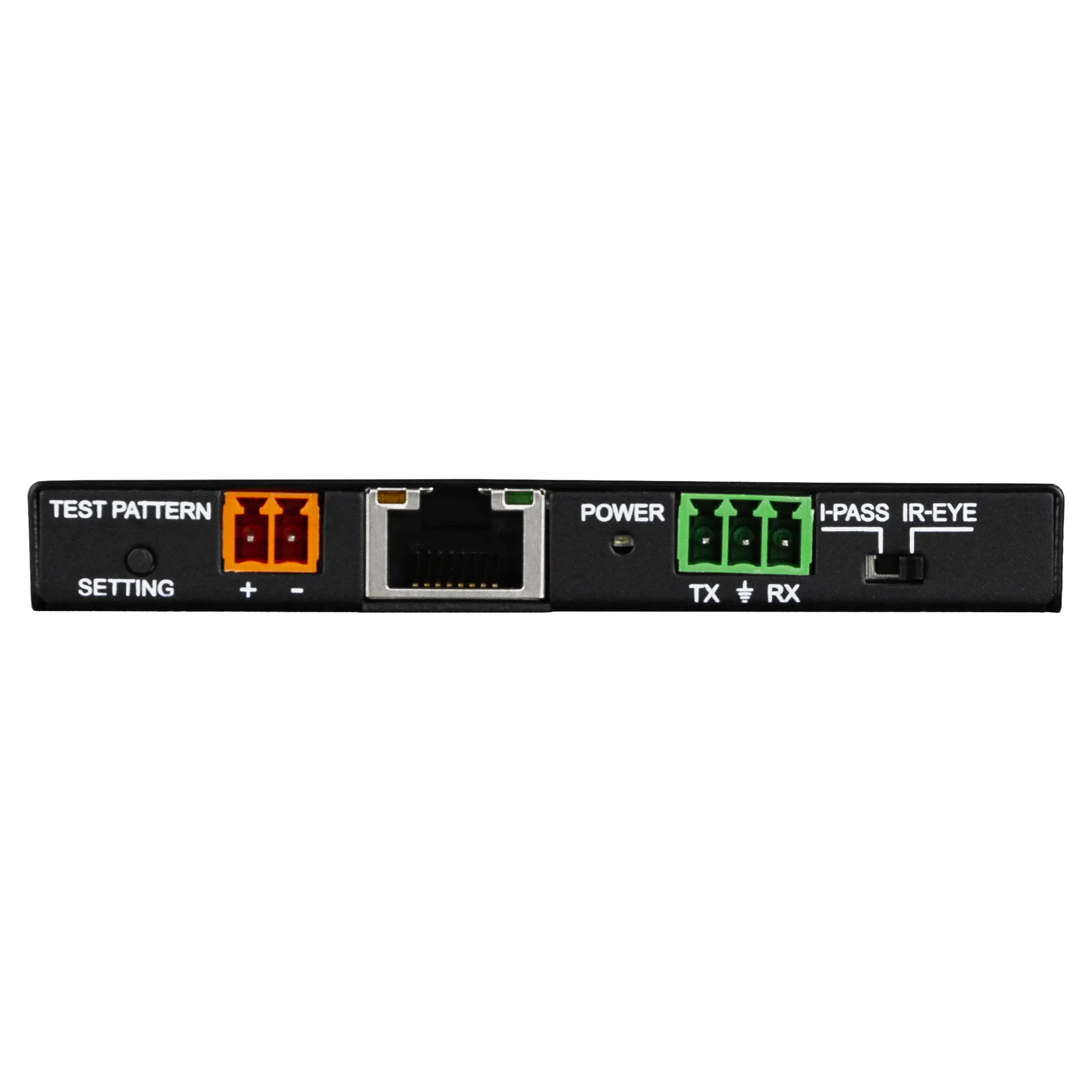

| Video: | |
| Video Resolutions | Up to 4K 60Hz 4:4:4 |
| VESA Resolutions | Up to DCI 4K (4096x2160) |
| HDR Formats/Resolutions | 420, 422, 444 (10 and 12 Deep Color) HDR10, HDR10+, HLG |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Subsampeling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Deep Color | Up to 16 bit (1080), Up to 12 bit (4K) |
| Audio: | |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digtal, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio Formats Supported Extracted | PCM 2 CH (No Downmix) |
| Distance: | |
| HDBaseT (CAT) Transmit Distance (4K) | 70M (230 Feet) |
| HDBaseT (CAT) Transmit Distance (Full HD) | 100M (330 Feet) |
| HDMI Lead In (up to 4K60 4:4:4) | Up to 50 Feet (using Bullet Train HDMI) |
| HDMI Lead IN (w/ AOC Cable) (up to 4K60 4:4:4) | Up to 130 Feet (using Bullet Train AOC) |
| Other: | |
| Bandwidth | 18 Gbps (w/ ICT) |
| HDCP | HDCP 2.2 and earlier |
| Ports: | |
| HDMI (input) | Type A |
| Audio (Extracted Analog) (output) | 3 pin terminal block (unbalanced) |
| IR Rx (input/output) | 3.5mm Stereo (3 Conductor) |
| RS232 | 3 pin terminal block |
| Environmental: | |
| Operating Temprature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power: | |
| Power Consumption (Total) | 9 Watts Max Pair |
| Power Supply | Input: AC 100-240V ~ 50/60Hz Output: DC 48V .5A (Wall Version) |
| Dimensions: | |
| Dimensions | mm: 132 x 100 x 18 inch: 5.19 x 3.94 x .69 |
| Dimensions (Packaged Length/Width/Height) (Kit) | mm: 137 x 194 x 45 inch: 5.38 x 7.62 x 1.75 |
| Weight (Unit) | .5lbs (.23Kg) |
| Weight (Packaged) | 1lbs (.45Kg) |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |

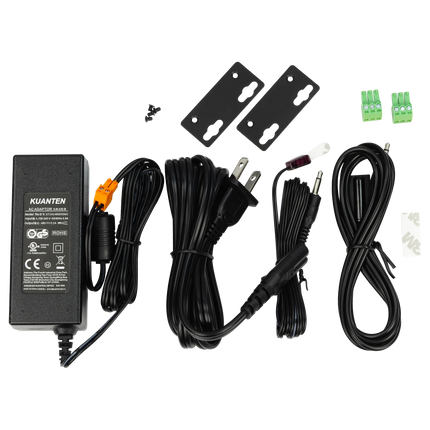

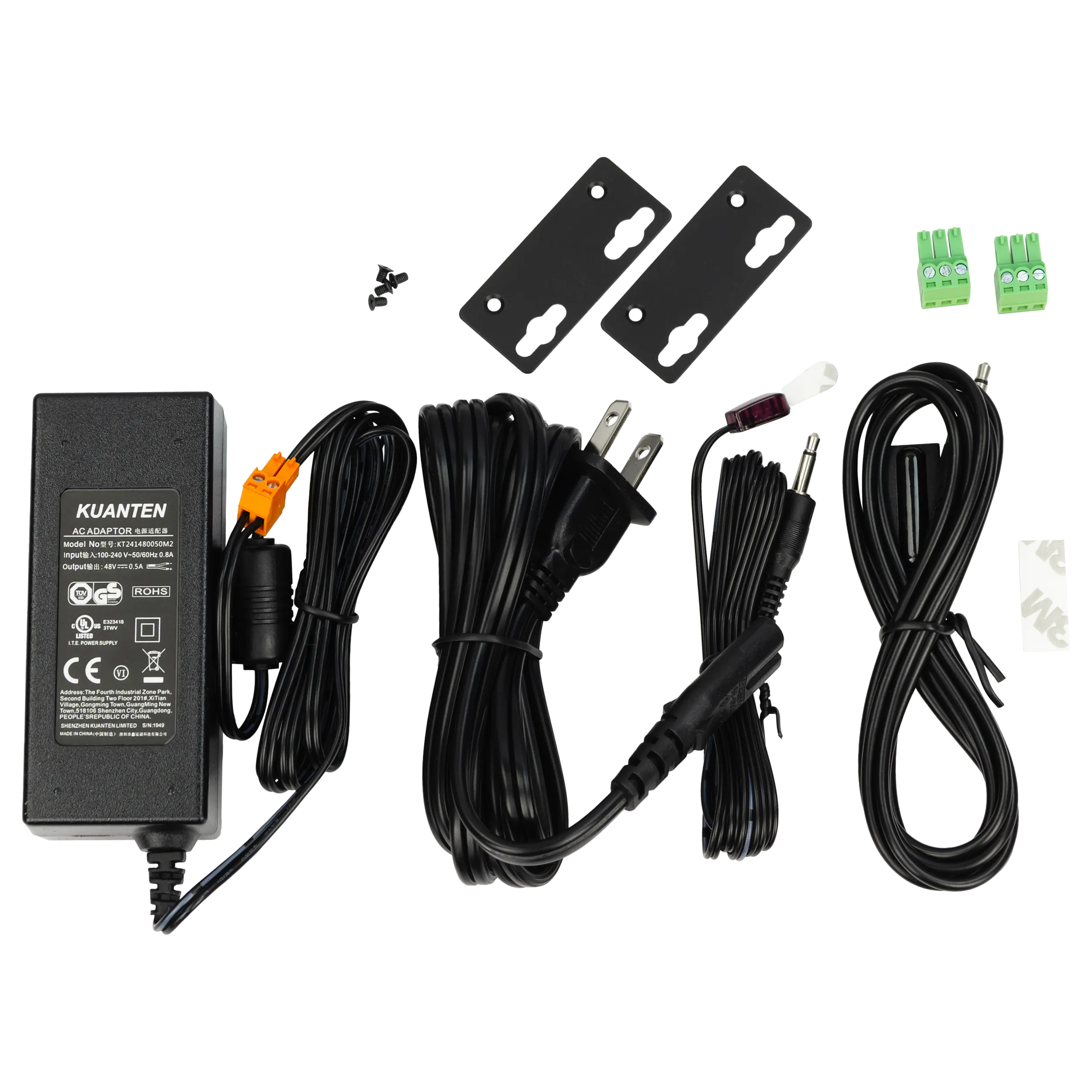

- AC-EX70-444-TNE (Transmitter)
- 1 x 48V Power Supply
- 1 x IR Tx Unit
- 1 x IR Rx Unit
- 2x 3 Pin Terminal blocks for Audio and RS232 Ports
- 2 x Mounting Brackets
- 4 x Screws for Mounting Brackets
