18Gbps Support (4K60 4:4:4) - This Distribution Amplifier offers the highest available bandwidth to ensure maximum stability in distributed HDMI systems, even at higher resolutions. With the added bandwidth, you can comfortably use all of the latest 4K sources without worrying about headroom. With these DA's, you are already prepared for all 4K and future 8K formats.
Cascading - The AC-DA14-AUHD-GEN2 was designed for cascading. So there will be no trouble cascading this unit for several "hops." There is even a built-in "cascade mode" that can be enabled for plug-and-play compatibility.
Full HDR Support - One often overlooked feature to include is the ability to maintain the integrity of HDR. We are 100% compatible with HDR and will repeat the signal in its complete integrity.

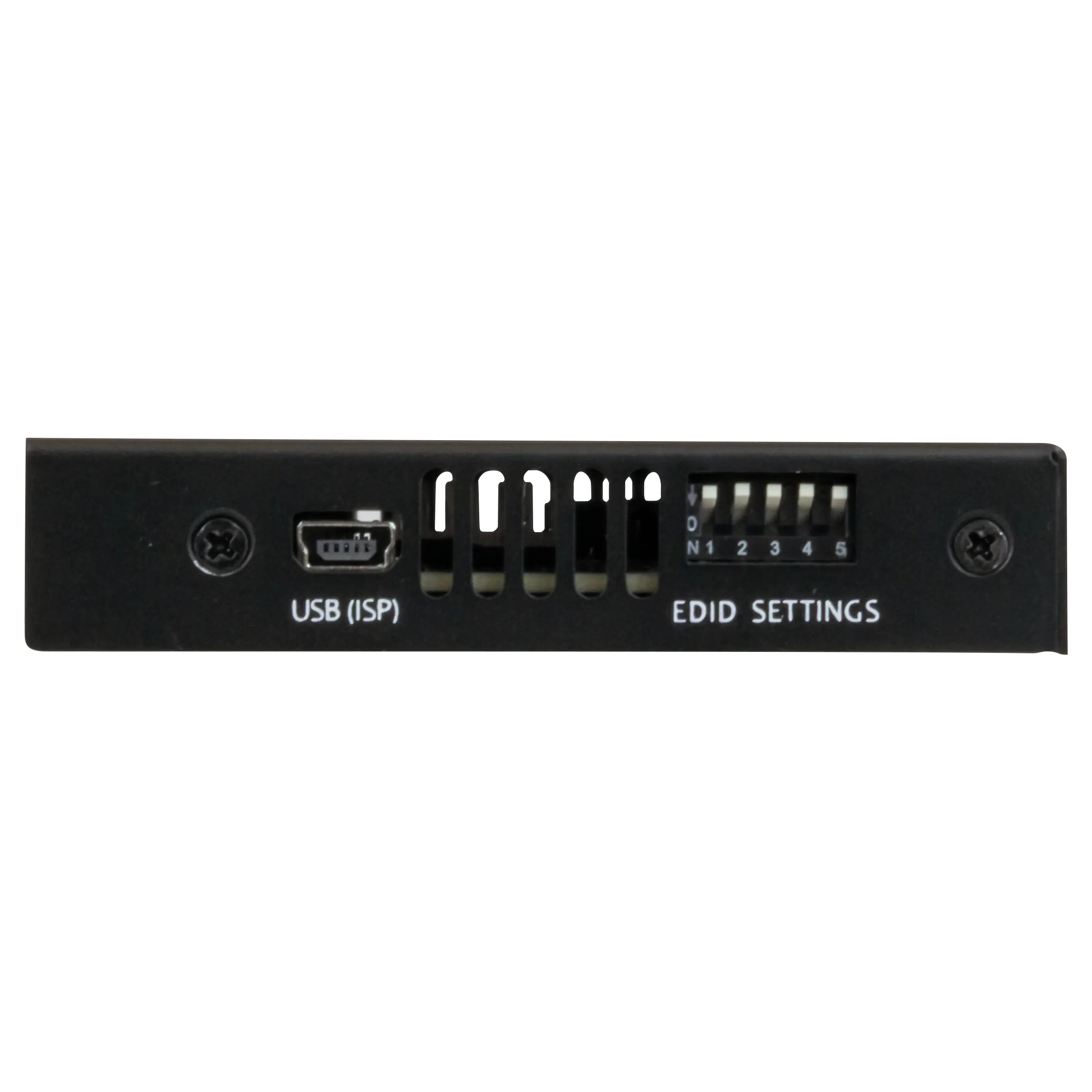

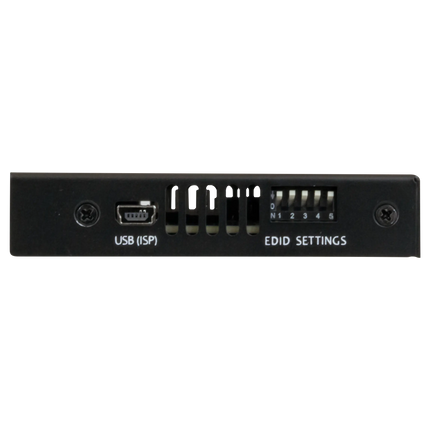

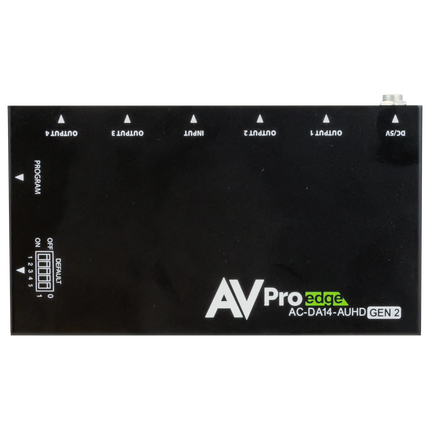

EDID Management - Advanced EDID management is on board so you can select from 16 different settings, including cascade mode, auto, and from display. This enhances your ability to get the proper signal throughout the system and ensures communication with any 3rd party device. In addition, the AC-DA14-AUHD-GEN2 has dual rotary EDID controls for 32 EDID combinations.
Ultra Low-Profile Design - The minimalist design makes the device even more versatile. Designed to fit in any nook or cranny, you don't need to worry about finding space for the DA allowing you to focus on other elements of the job.
|Video Resolutions||Up to 4K 60Hz 4:4:4|
|VESA Resolutions||Up to DCI 4K (4096X2160) 5K (UP TO 5120X3200|
|HDR Formats/Resolutions||420, 422, 444 (10 AND 12 DEEP COLOR)|
HDR10, HDR10+, DOLBY VISION, HLG
|Color Space||YUV (Component), RGB |
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
|Chroma Subsampling||4:4:4, 4:2:2, 4:2:0 Supported|
|Deep Color||Up to 16 bit (1080P) UP TO 12 BIT (4K)|
|Audio Formats Supported HDMI||PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos|
|HDCP||HDCP 2.2 and Earlier|
|Operating Temperature||23 to 125°F (-5 to 51°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Humidity Range||5-90% RH (No Condensation)|
|Power Consumption (Total)||4 watts max|

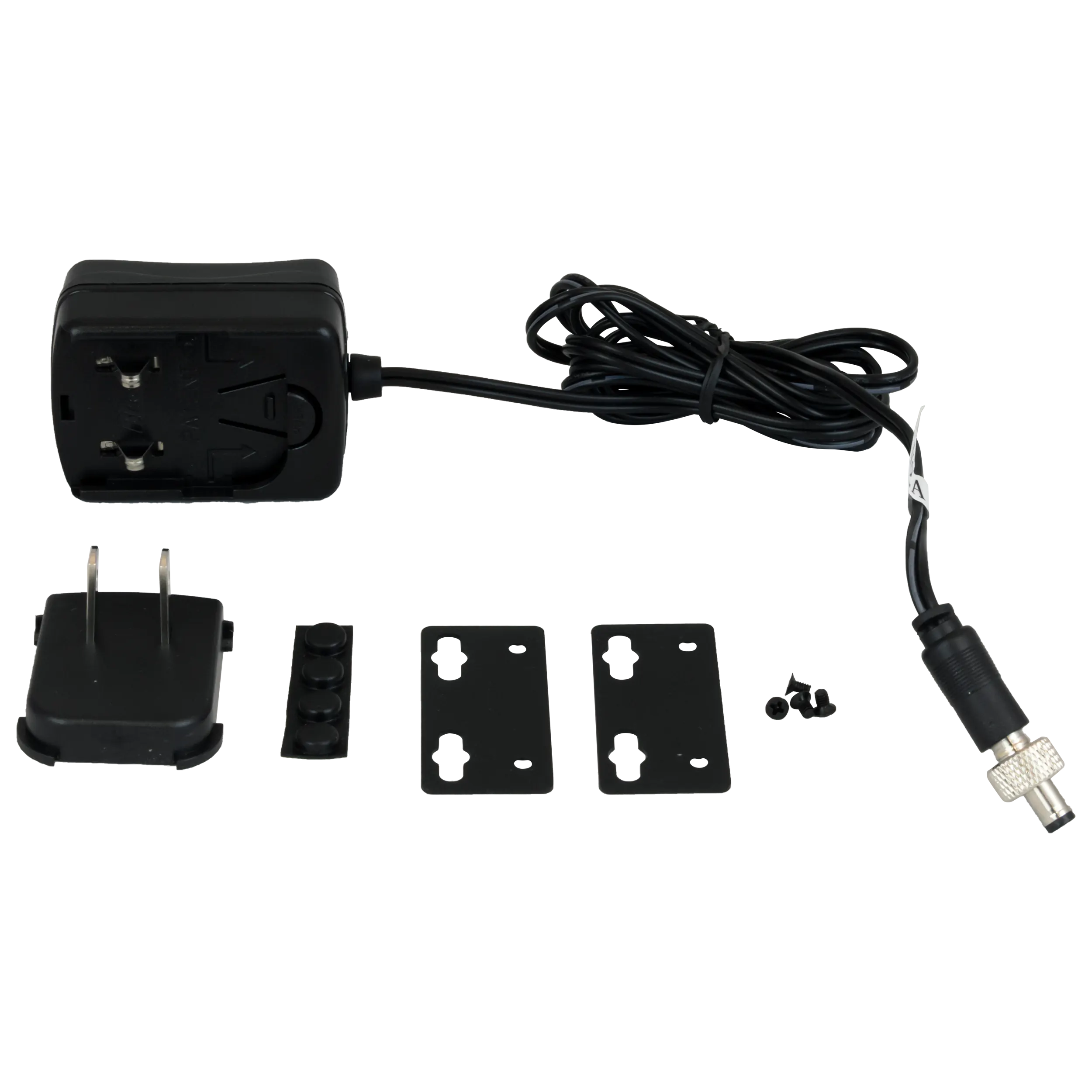

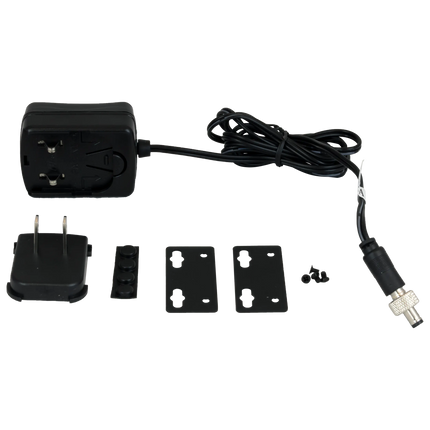

|Power Supply||Input: AC 100-240V ~ 50/60Hz|
Output: DC 5V 2A
|Dimensions (Unit Only Length/Width/Height)||mm: 16.764 X 85.725 X 144.526|
inch: .66 X 3.375 X 5.69
|Dimensions (Packaged Length/Width/Height) (Kit)||mm: 76.2 X 180.975 X 304.8|
inch: 3 X 7.125 X 12
|Weight (Unit)||0.57 lbs (0.26 Kg)|
|Weight (Packaged)||1.21 lbs (0.55 Kg)|
|*Specifications subject to change without notice. Mass & dimensions are approximate|
