Director D2800

Description

8-Channel High-Power Network DSP Amplifier

 In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® D Series Model D2800 has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.

Bus A inputs on the Director Model D2800 are selectable between Stereo Coaxial, TOSLINK Digital, and Analog. Bus B is Stereo Analog with loop-through outputs. Helpful system interface features include a global 12 VDC in/out trigger and zone-independent 12 VDC triggers.

8, 100-watt channels into 8 Ohms become 200 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 400 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Popular in the M Series, the D Series now features built-in speaker profiles from members of AudioControl’s Sound Partners™ program, offering DSP-optimized speaker calibrations from a growing list of prominent loudspeaker manufacturers.

Discover for yourself the countless critical ways in which AudioControl D series amplifiers contribute to successful commercial, residential, and Pro Audio systems.

Director D2800

Product form

8-Channel High-Power Network DSP Amplifier

  • 8 channels, up to 4 Zones
  • 100 W into 8 Ohms, 200W into 4 Ohms
  • Powerful Web interface with DSP Control
  • Control System Integration

SKU: ACP-DZ-D2800

  • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

Description

8-Channel High-Power Network DSP Amplifier

 In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® D Series Model D2800 has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.

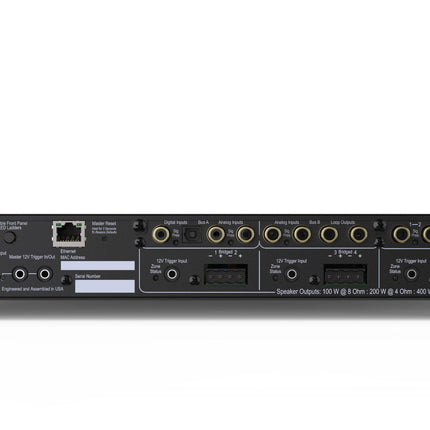

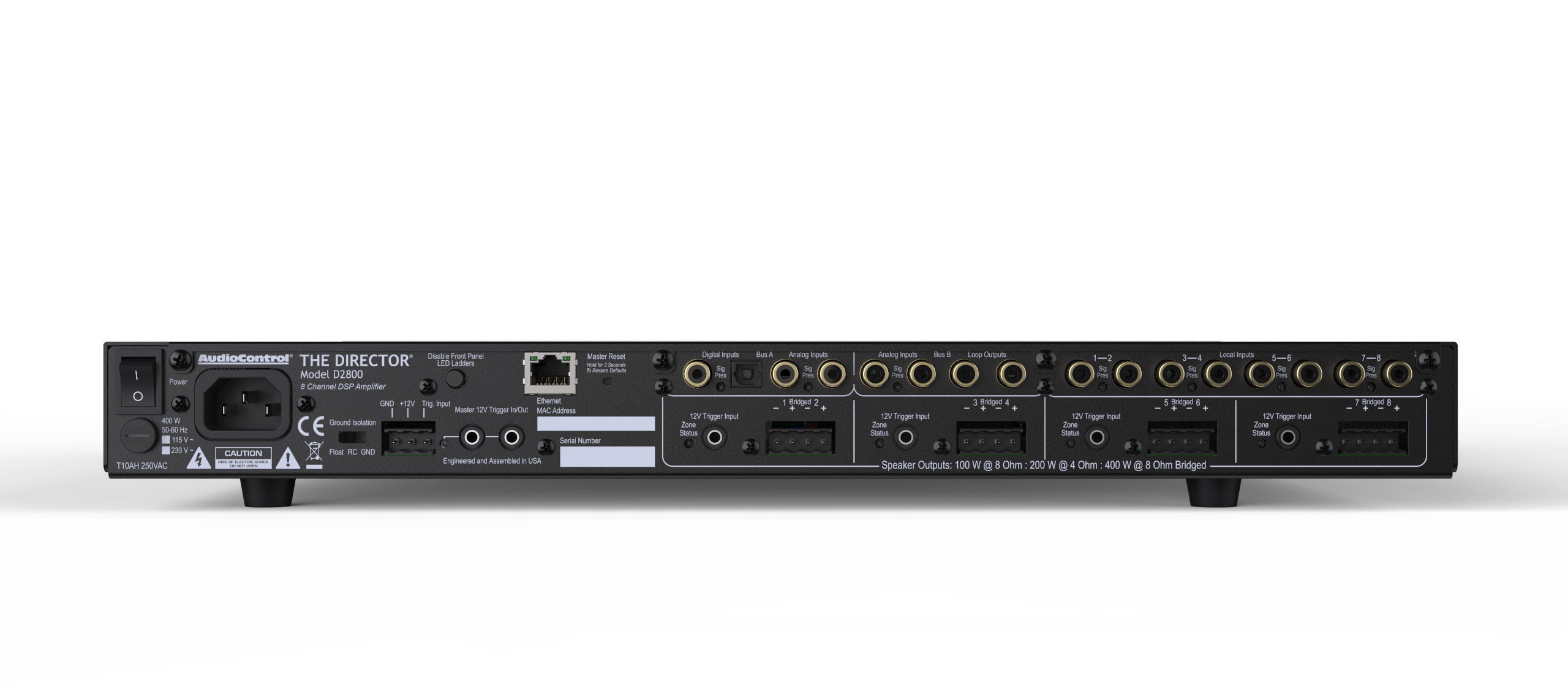

Bus A inputs on the Director Model D2800 are selectable between Stereo Coaxial, TOSLINK Digital, and Analog. Bus B is Stereo Analog with loop-through outputs. Helpful system interface features include a global 12 VDC in/out trigger and zone-independent 12 VDC triggers.

8, 100-watt channels into 8 Ohms become 200 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 400 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Popular in the M Series, the D Series now features built-in speaker profiles from members of AudioControl’s Sound Partners™ program, offering DSP-optimized speaker calibrations from a growing list of prominent loudspeaker manufacturers.

Discover for yourself the countless critical ways in which AudioControl D series amplifiers contribute to successful commercial, residential, and Pro Audio systems.

  • FEATURES
  • POWER AND CONTROL AT YOUR FINGERTIPS
  • SPEAKER OPTIMIZATION PROFILES
  • SPECIFICATIONS
  • RESOURCES
  • Network DSP Amplifier With Volume Control
  • 8 Channels x 100 Watts into 8 Ohms (All Channels Driven)
  • 8 Channels x 200 Watts into 4 Ohms (All Channels Driven)
  • 4 Bridgeable Channels of 400 Watts into 8 Ohms
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names Amplifiers & All Zones
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive™ Anti-Clipping Speaker Protection
  • Local Inputs with Pass Through/Loop Outputs
  • Coaxial and TOSLINK Digital Inputs
  • Compact 1U Rack Space (Includes Rack Mount Brackets)
  • Commercial, Residential, and Pro Audio Compatible

​The Director® D Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, local and bus inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.







AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.



AUDIOCONTROL SOUND PARTNERS™



INPUTS
Inputs: 4 Stereo Local Inputs, 1 Stereo Bus Input

Inputs: Selectable Coaxial Digital/TOSLINK Digital/Analog Bus Input
Input Sensitivity: 1 Vrms for full output, level at maximum
Input Gain: 30 dB

CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
Network Connection/Protocol: 10Base-T Ethernet TCP/IP
Communication Protocol: HTTP or Telnet
OUTPUTS
Amplifier Channels: 8
Power Output (8 Ω): 100 W per channel
Power Output (4 Ω): 200 W per channel
Power Output (8 Ω Bridged Mono): 400 W
Minimum Speaker Load: 4 Ω
Preamp Audio Outputs: 4 Stereo Local Loop Outputs, 1 Stereo Bus Loop Output
WEIGHT & DIMENSIONS
Dimensions: 17” W x 15.5” D x 1.75” H (1 U)
Weight: 14.2 lbs. (6.4 kg)
PERFORMANCE
Signal to Noise: >97 dB, A-wtd, ref full output
Crosstalk: > 80 dB @ 1 kHz
Damping Factor: >300
IN THE BOX
The Director Model D2800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty

MANUAL
DATA SHEET
DRIVERS
AUTOMATION TABLE
FIRMWARE
SPEAKER PROFILES
