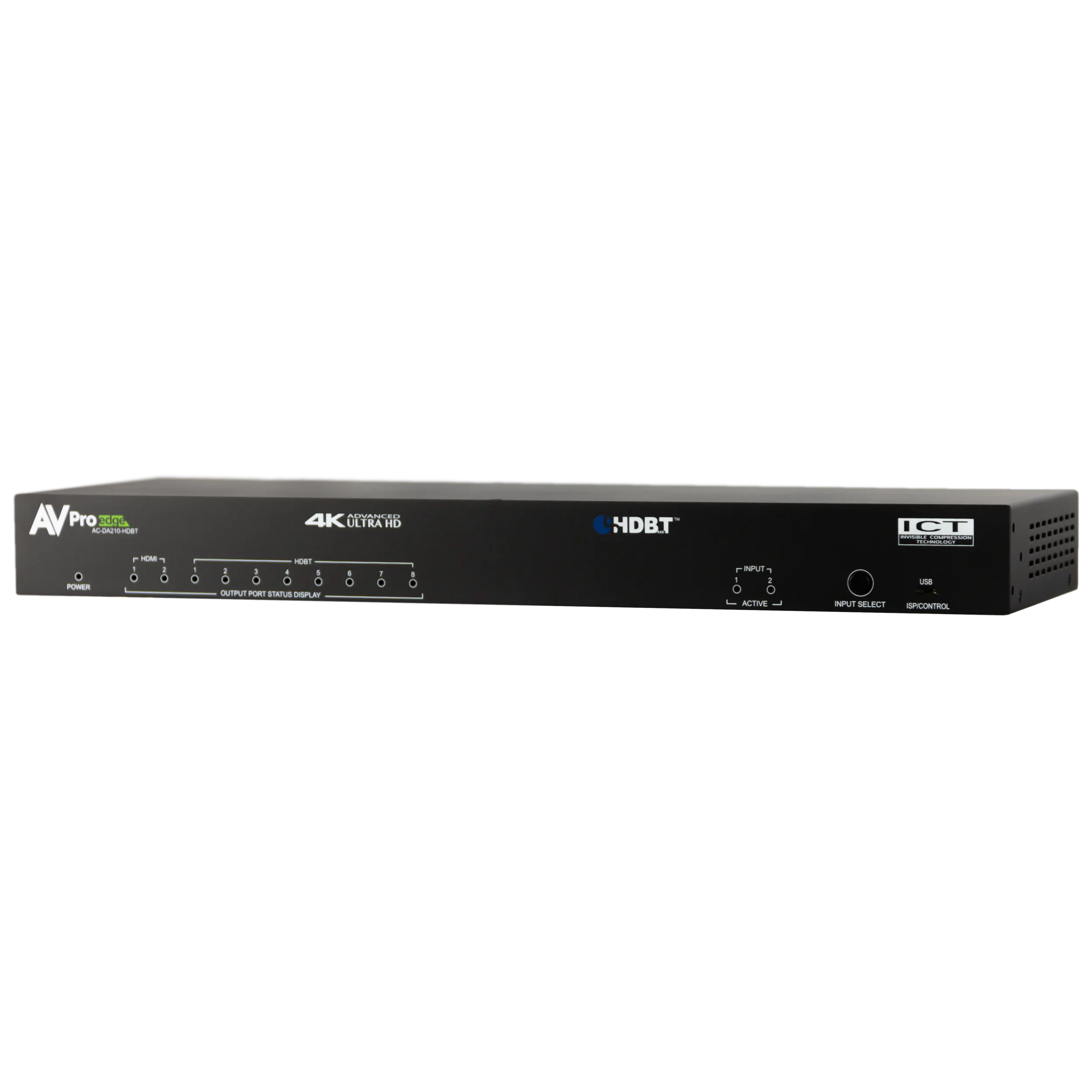

18Gbps 2x10 HDBaseT Distribution Amplifier

Description

The AC-DA210-HDBT is designed for massive distributions over extreme distances. Using tried and true HDBaseT Technology, paired with AVPro Edge’s proprietary ICT compression, this distribution amplifier has simplified long-distance signal flow, delivering 18Gbps 4K to each connected display.

Simplicity and "Plug & Play" are the focal points of this unit. With RS-232 and IR, you can also manage your endpoints for things like Power On or Power Off. The unit has two switchable inputs making for more robust systems. The dual HDMI inputs allow you to expand the switching virtually forever.

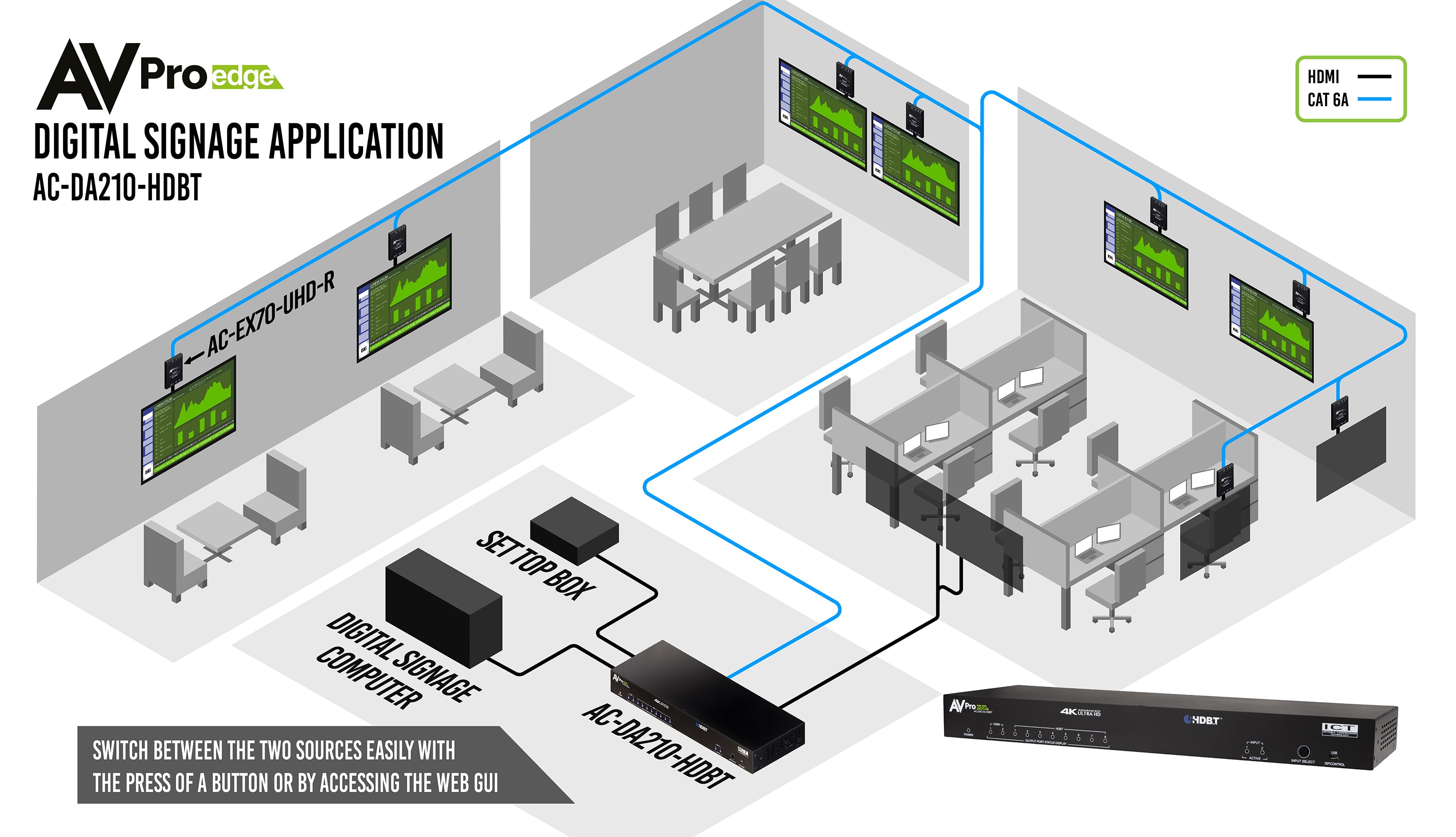

The AC-DA210-HDBT is ideal for retail spaces, bars, restaurants, showrooms, and public spaces where you want consistent messaging, images, or signage across large spaces. Two inputs allow you to switch between sources like custom signage, menus, and even HDCP-protected content.

18Gbps 2x10 HDBaseT Distribution Amplifier

Product form

  • 18Gbps Uncompressed Bandwidth Support on HDMI
  • 18Gbps wit ICT on HDBaseT outputs
  • • Full HDR, HDR10+, HLG, & Dolby Vision Support
  • HDMI 2.0

SKU: AC-DA210-HDBT

  • Shipped today? Order within: Dec 05, 2024 13:00:00 -0600

Description

The AC-DA210-HDBT is designed for massive distributions over extreme distances. Using tried and true HDBaseT Technology, paired with AVPro Edge’s proprietary ICT compression, this distribution amplifier has simplified long-distance signal flow, delivering 18Gbps 4K to each connected display.

Simplicity and "Plug & Play" are the focal points of this unit. With RS-232 and IR, you can also manage your endpoints for things like Power On or Power Off. The unit has two switchable inputs making for more robust systems. The dual HDMI inputs allow you to expand the switching virtually forever.

The AC-DA210-HDBT is ideal for retail spaces, bars, restaurants, showrooms, and public spaces where you want consistent messaging, images, or signage across large spaces. Two inputs allow you to switch between sources like custom signage, menus, and even HDCP-protected content.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

18Gbps 4K HDBaseT Distribution (4K60 4:4:4) - Full 4K resolution is becoming increasingly important in mass distribution applications. In many of these applications images are being viewed at very close proximity and having 4K is key to delivering a sharp message. Additionally, this feature is valuable in public spaces where digital documentation is being shown, making messages and memos readable. Don’t settle for limited 4K, deliver high bandwidth 18Gbps 4K60 (4:4:4) images to every connected display.



Cascading - The AC-DA210-HDBT was built to be cascaded into additional units, allowing you to distribute your content to 100’s of displays. The AC-DA210-HDBT also has two HDMI outputs so that you can daisy chain both sources and switch them across massive cascaded systems.



Audio De-embedding - A truly unique feature to the AC-DA210-HDBT.  Often times you need to extract compatible audio from the sources that is prepped for a secondary audio amplifier.  With this unit you have options. You can choose to extract your audio from the unit by 2CH Phoenix, SPDIF, and Toslink Optical increasing the possibilities and compatibility. The deembedded audio is always active so you just need to plug and go. Audio always follows the active source.

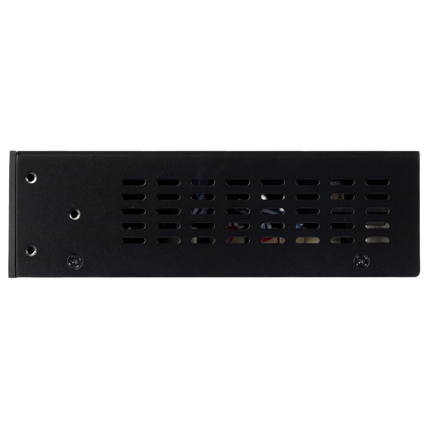

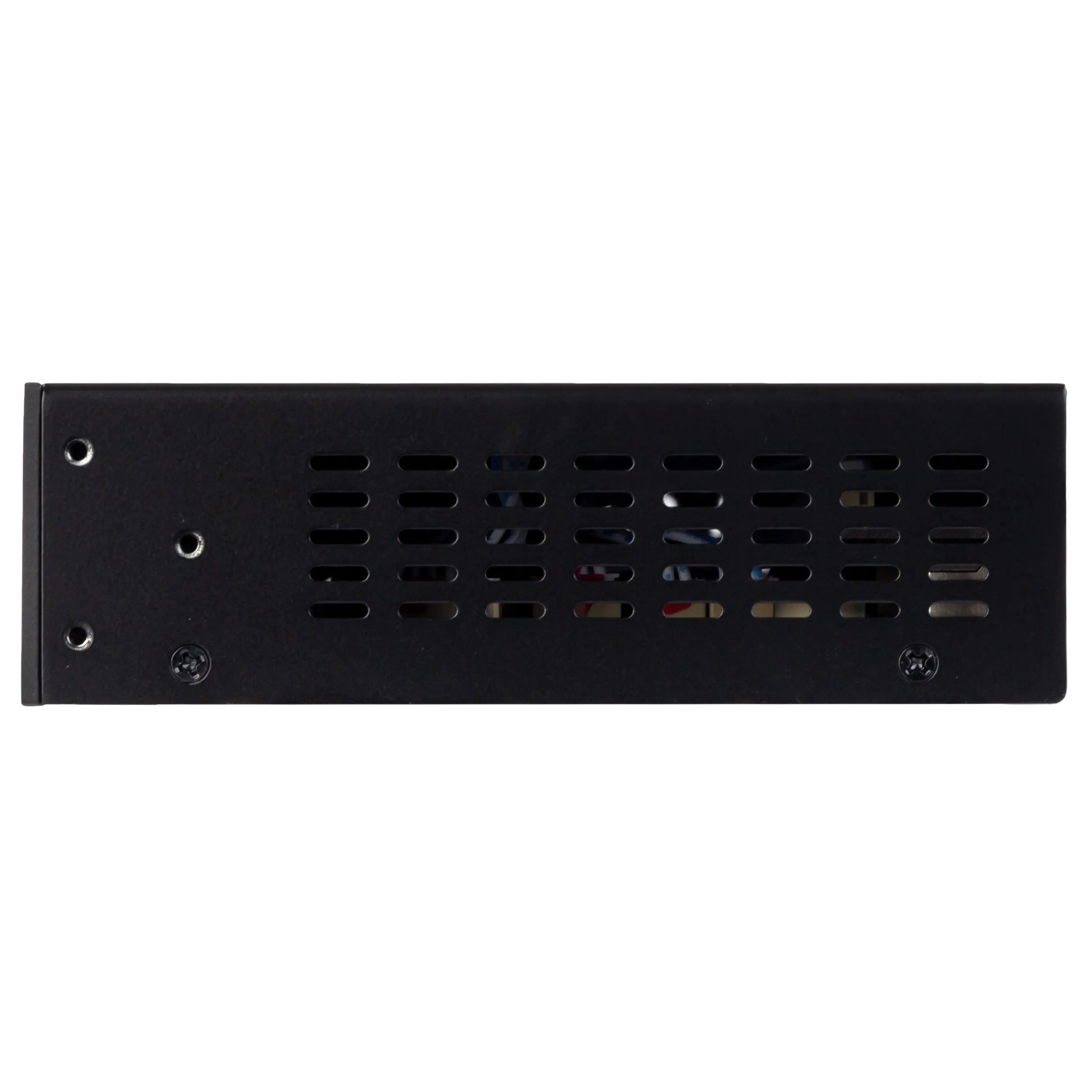

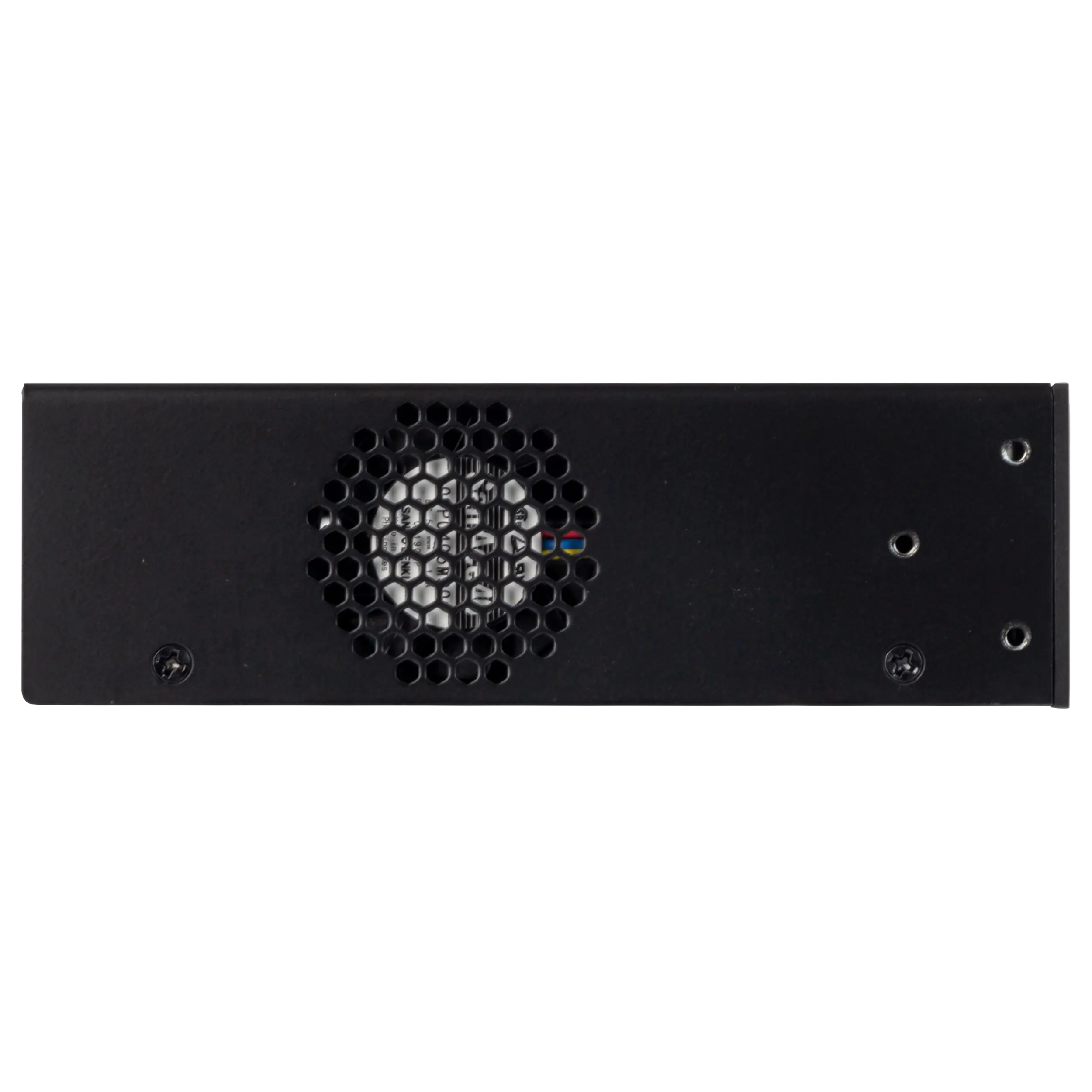

"Max Flow" Chassis - The 19 inch 1U Rack Mount Chassis is designed for maximum air flow, this is ideal for stacking in tight racks.  You can walk off the job knowing that your core distribution will remain calm and cool under pressure for years to come.



Ultra Low-Profile Receivers w/ PoH - The AC-DA210-HDBT is compatible with the AC-EX70-444-RNE Ultra Slim HDBaseT receivers. On top of saving a ton a space and being able to put it anywhere, it is fully powered by PoH (Power Over HDBaseT) eliminating the need for bulky power supplies on the display end. IR and RS-232 signals can also pass through to the receivers for remote control.



Video:
Video ResolutionsUp to 4K 60Hz 4:4:4
VESA ResolutionsUp to DCI 4K (4096X2160)
HDR Formats/Resolutions420, 422, 444 (10 AND 12 DEEP COLOR)
HDR10, HDR10+, DOLBY VISION, HLG
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080P) UP TO 12 BIT (4K)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Extracted Audio2ch (3 Pin Terminal Block, Unbalanced)
Digital (Toslink and SPDIF)
Distance:
HDBaseT (CAT) Distance (4k)70 Meters / 230 Feet (CAT 6a)
HDBaseT (CAT) Distance (Full HD)100 Meters / 330 Feet (CAT 6a)
HDMI In/Out (4k60 4:4:4)UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI In/Out (W/ AOC Cable) (4k60 4:4:4)UP TO 130 FEET (USING BULLET TRAIN AOC)
Other:
Compatible ReceiversAC-EX70-444-RNE, AC-EX70-UHD-R
Bandwidth18 Gbps
HDCPHDCP 2.2 and Earlier
Control:
PortsLAN, RS232, IR, Micro USB
Lan WebOSYes

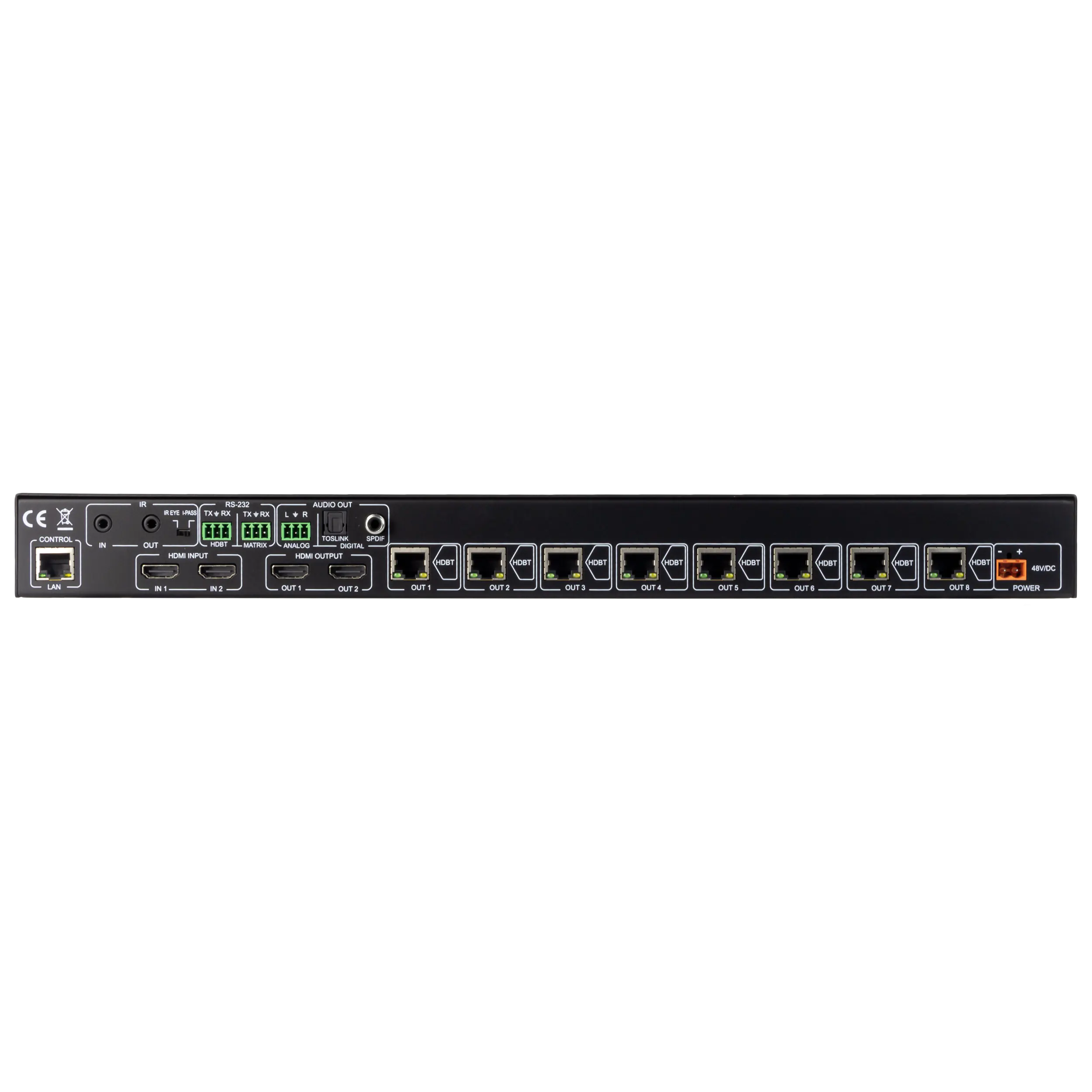

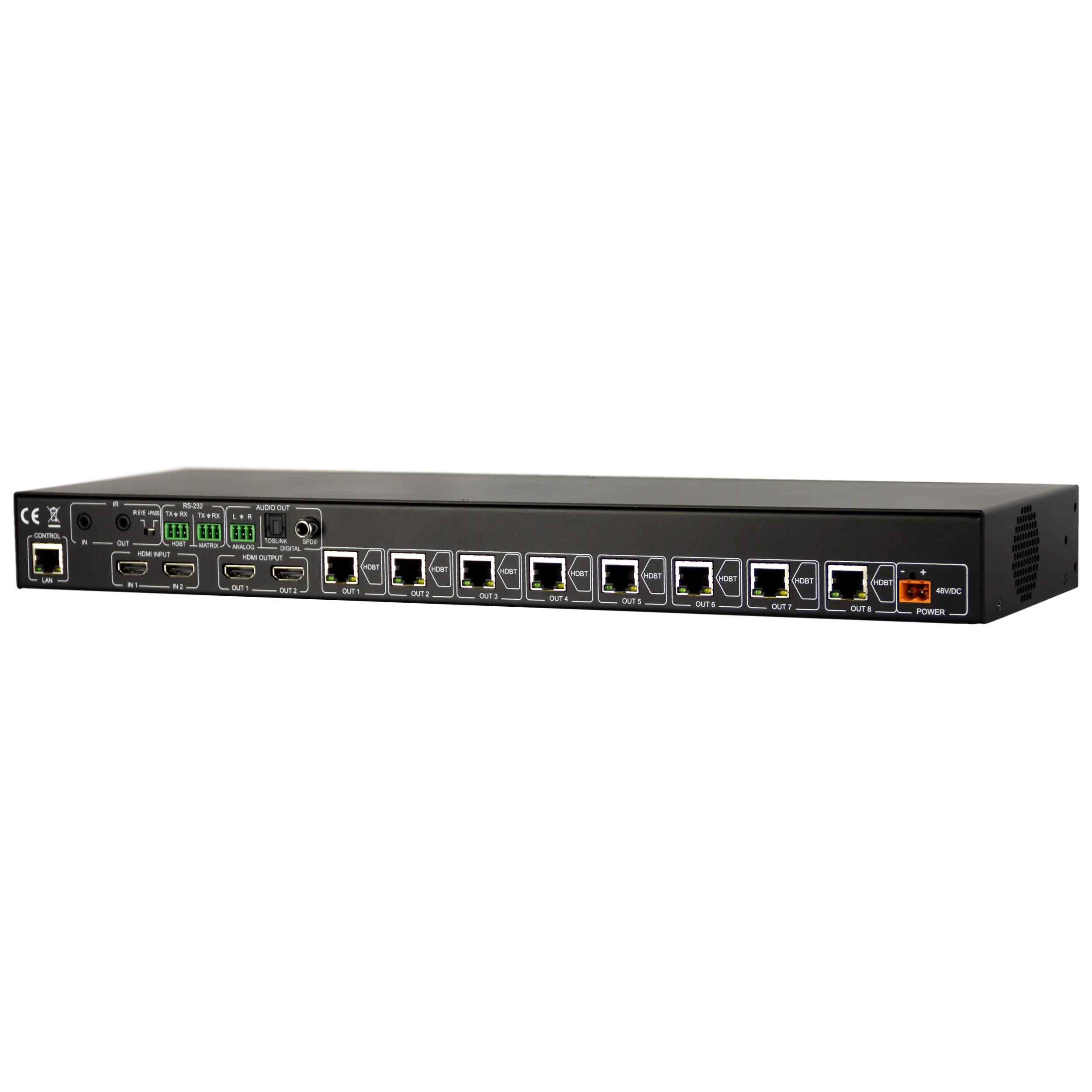

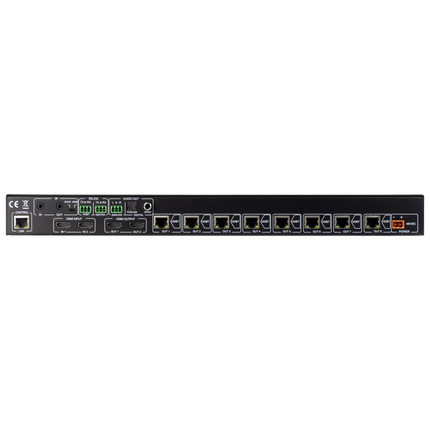

Ports:
HDMI  (TX & RX)Type A
HDBaseTRJ45 W/ POH for HDBaseT Receivers
IR (TX & RX)3.5mm Stereo
RS2323 Pin Terminal Block
Power2 Pin Terminal Block
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)60 watts max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 48V 2.5A
Dimensions:
Dimensions (Unit Only Length/Width/Height) mm: 43.69 x 143 x 441.45
inch: 1.72 x 5.63 x 17.38
Dimensions (Packaged Length/Width/Height) (Kit)mm: 88.9 x 336.55 x 495.3
inch: 3.5 x 13.25 c 19.5
Weight (Unit)4.8 lbs (2.18 Kg)
Weight (Packaged)7.4 lbs (3.36 Kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate

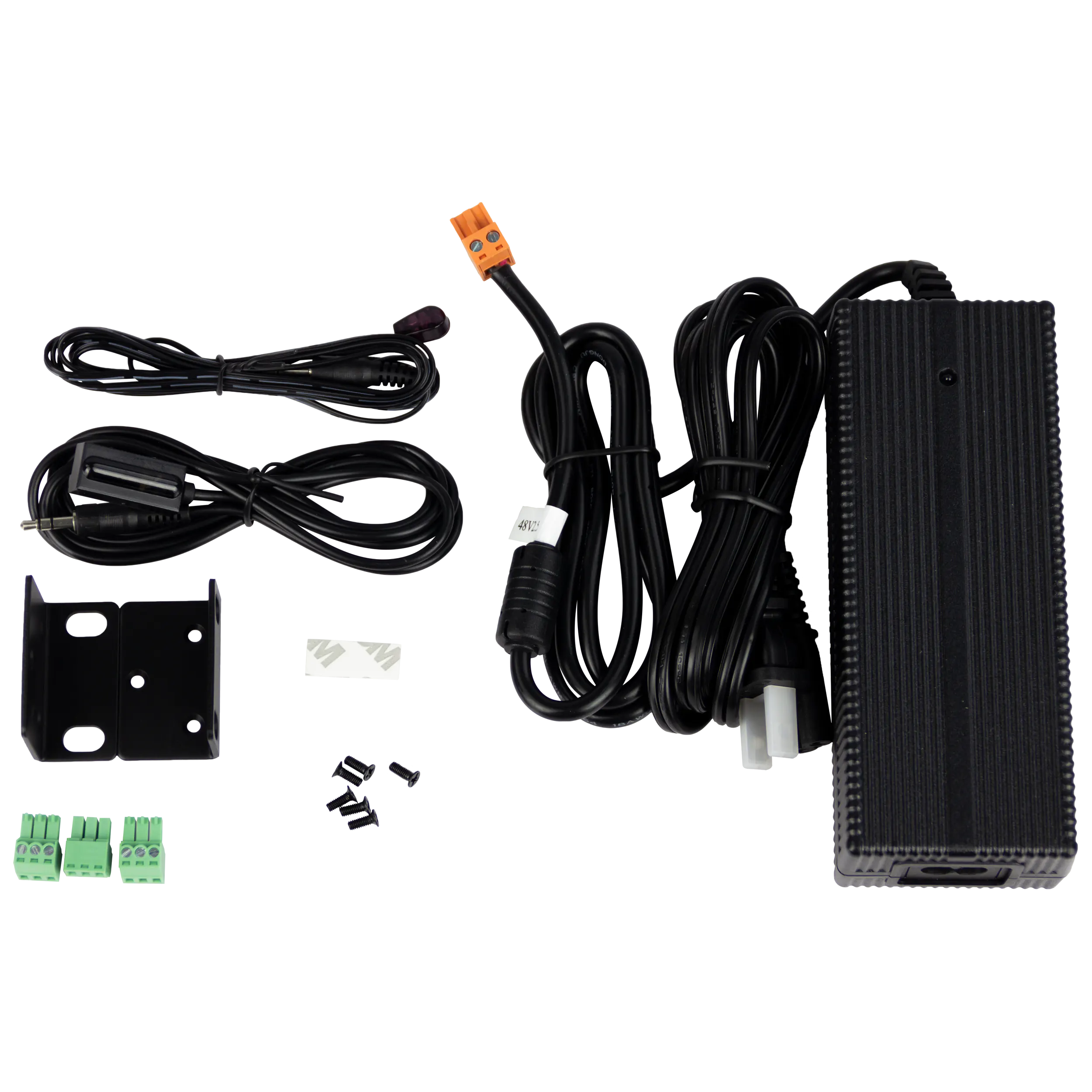

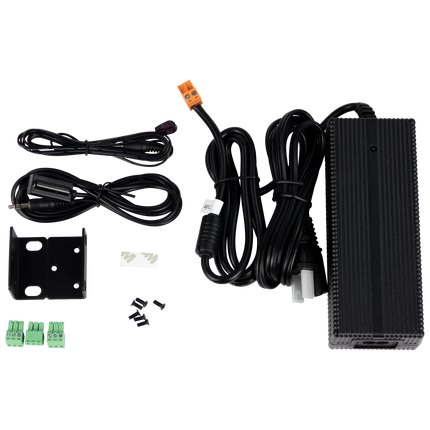

  • AC-DA210-HDBT
  • 3 x Terminal Blocks (RS-232 and 2CH Audio)
  • 48v Power Supply (100-240 Input)
  • 2 x Mounting Brackets
  • 6 x Screws for Mounting Brackets
