Basic HDMI Wall Plate Kit

Description


Please note, this product must be used as a transmitter and receiver kit. It will not work as a transmitter or receiver for any matrix switch.

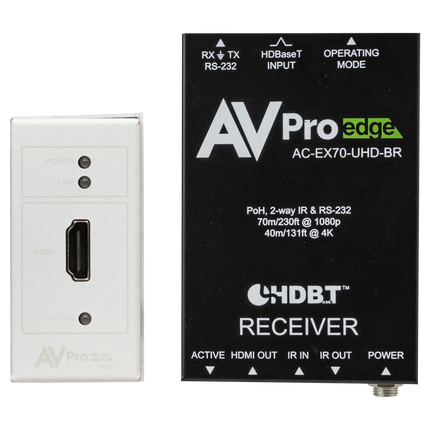

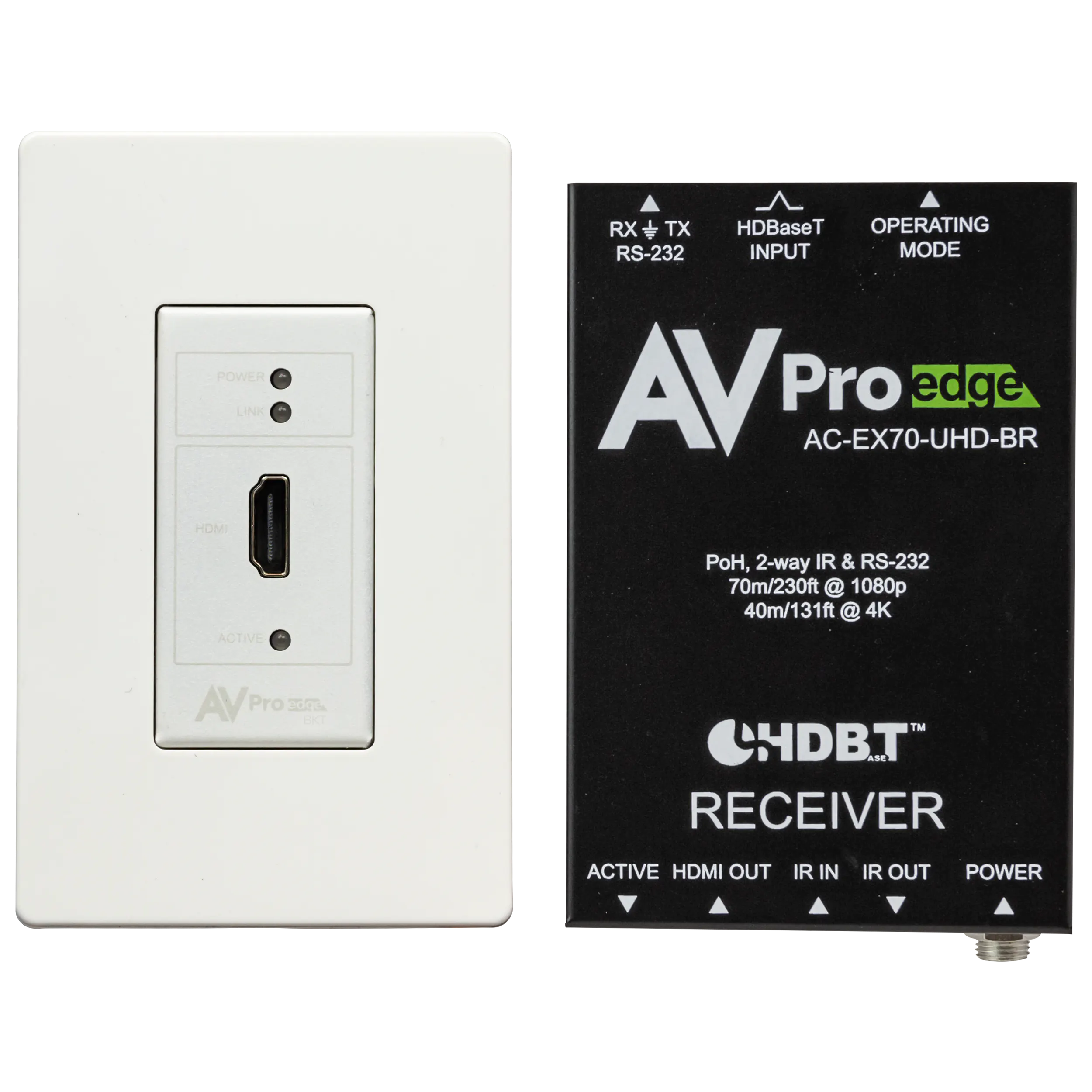

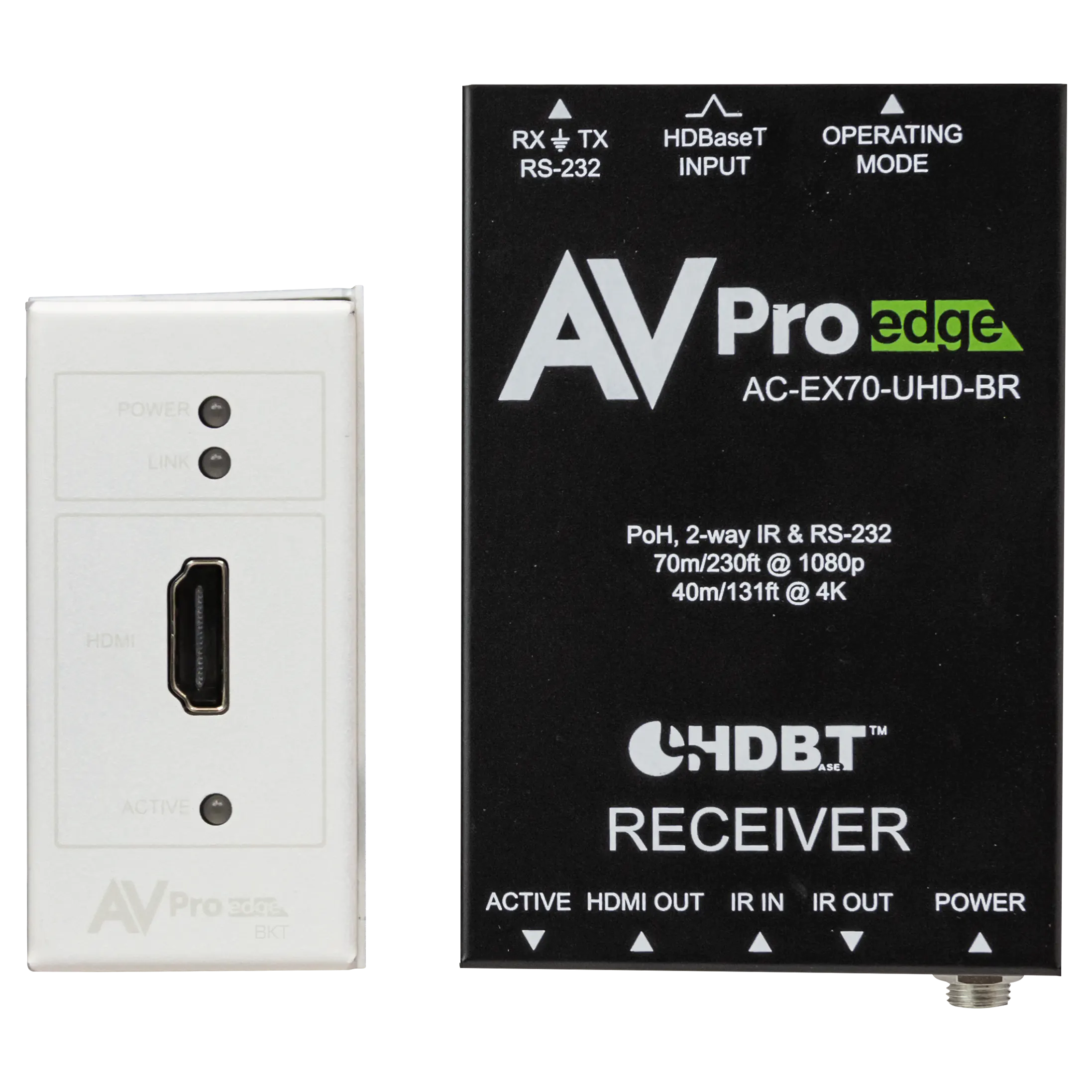

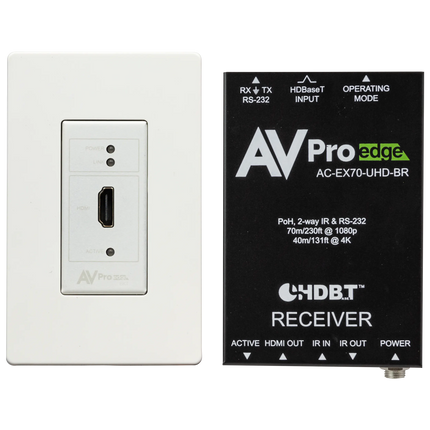

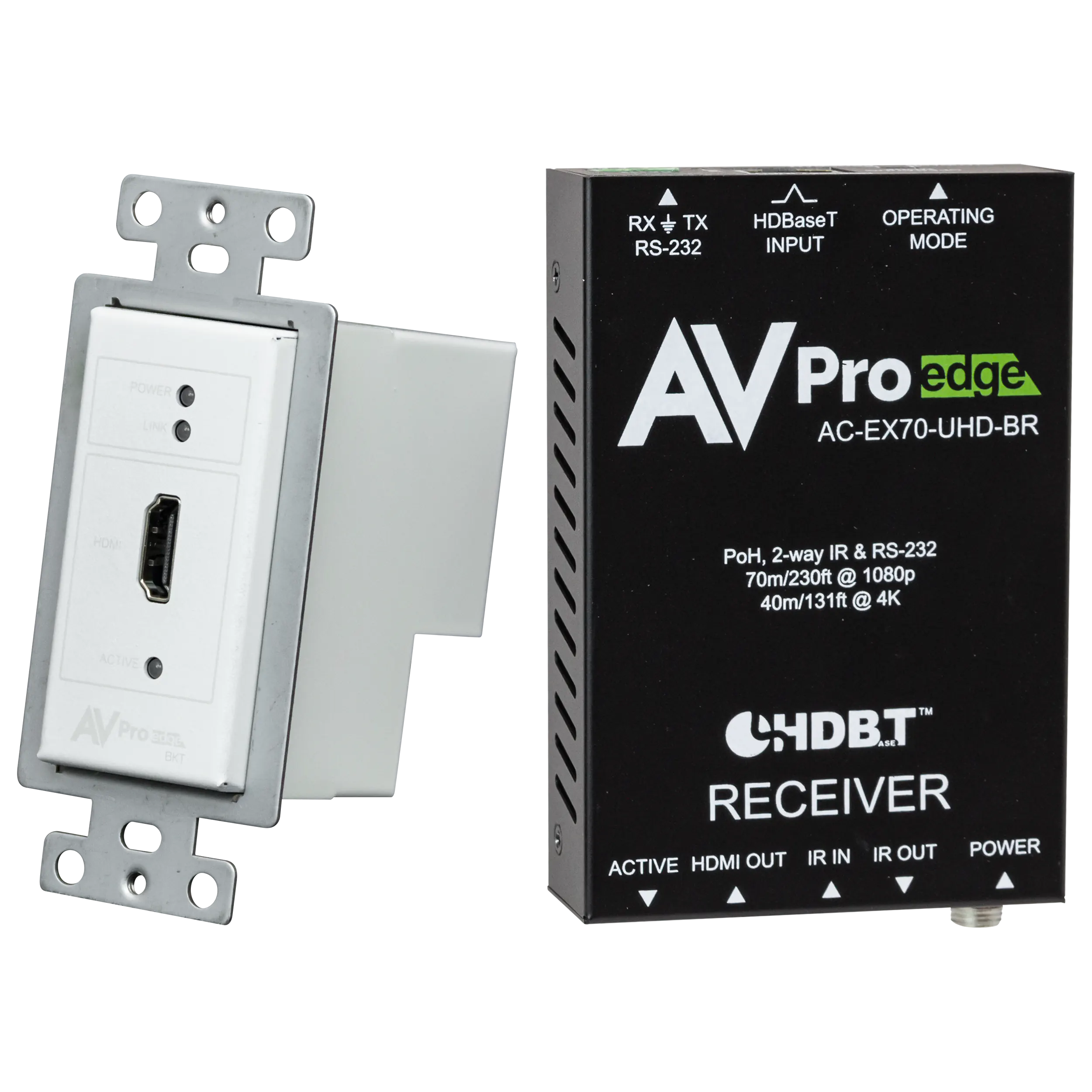

This basic HDBaseT wall plate transmitter/receiver kit is a cost-effective HDMI extension product from AVPro Edge’s ConferX line. Able to handle 4k at 10.2 Gbps, this single gang wall plate transmitter fits in any standard mud ring and works with standard category cable to deliver a stable signal long distances. This extender kit can send a 4k signal 40 Meters and a 1080p signal 70 meters using CAT6a with HDBaseT technology.


This is the ideal video extension solution for single office settings, home theaters, conference rooms, huddle spaces, and any other place you need to deliver an HDMI signal over a long distance. Perfect for any basic HDMI extension job and able to handle resolutions from PCs, Apple products, Tablets, Blu-ray Players, or any other HDMI source outputting 4K at 30hz.

Basic HDMI Wall Plate Kit

Product form

  • HDMI 2.0 Input
  • HDCP 2.2
  • Single-gang, Low Heat
  • Not for use as a Tx or Rx for any matrix switch

SKU: AC-CXWP-HDMO-BKT

  • Shipped today? Order within: Nov 12, 2024 13:00:00 -0600

Description


Please note, this product must be used as a transmitter and receiver kit. It will not work as a transmitter or receiver for any matrix switch.



This basic HDBaseT wall plate transmitter/receiver kit is a cost-effective HDMI extension product from AVPro Edge’s ConferX line. Able to handle 4k at 10.2 Gbps, this single gang wall plate transmitter fits in any standard mud ring and works with standard category cable to deliver a stable signal long distances. This extender kit can send a 4k signal 40 Meters and a 1080p signal 70 meters using CAT6a with HDBaseT technology.


This is the ideal video extension solution for single office settings, home theaters, conference rooms, huddle spaces, and any other place you need to deliver an HDMI signal over a long distance. Perfect for any basic HDMI extension job and able to handle resolutions from PCs, Apple products, Tablets, Blu-ray Players, or any other HDMI source outputting 4K at 30hz.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

UHD over Category Cable - The length of manufactured HDMI cable is unchangeable after it’s made, and they are unreliable after about 25FT. HDMI connectors can only be terminated in a specialized factory environment due to their extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. On the other hand, CAT-6A cables are available widely and can be reworked easily by the installer or end-user.



Distance - By using AC-CXWP-HDMO-BKT, the transmission distance for HD 1080P is 70 meters & 4K is up to 40 meters

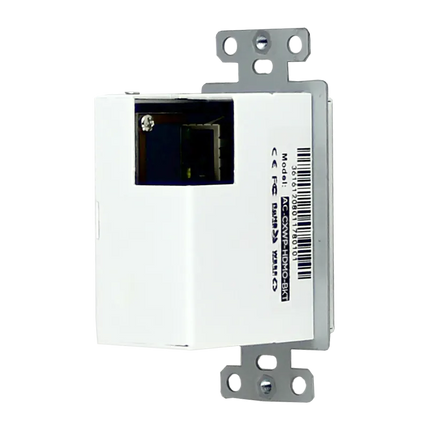

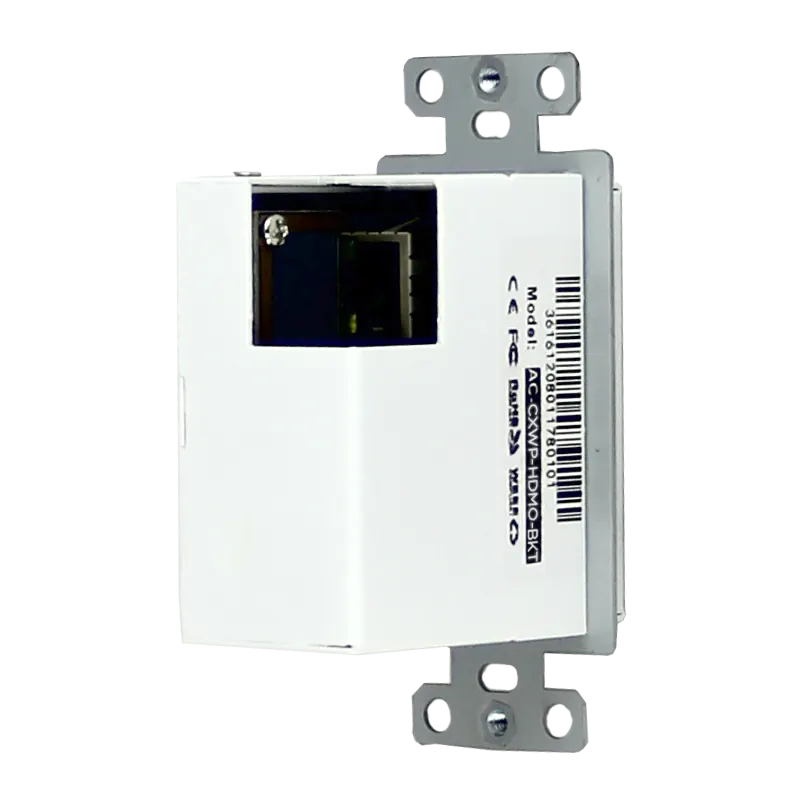

Single Gang - Save space and make a squeaky clean installation with the single gang configuration. This wall plate fits in more places than ever. It’s perfect for mounting in a wall, on a desk or podium top, or any other place where you need a solid and sleek HDMI connection.



Limitations - The AC-CXWP-HDMO-BKT from AVPro Edge is designed to give a very affordable option in HDMI extension. This is our most basic HDMI extender, meaning it doesn’t have the features you would find in our other models - Ethernet, ARC, eARC, USB, Audio Extraction, I-Pass IR, and longer distances with 4K. This product must be used as a transmitter and receiver kit, it will not work as a transmitter and receiver for any matrix switch.

Video:
Video ResolutionsUp to 4K 60Hz 4:2:0 8bit
VESA ResolutionsUp to 2560x2048 (QSXGA)
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 BIT (1080), Up to 10 bit (4K)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Distance:
Distance 1080p70m (230 feet) (with CAT 6a/7)
Distance 4K & HDR40m (131 feet) (with CAT 6a/7)
Other:
Bandwidth10.2 Gbps
CECYes
HDCPHDCP 2.2 and Earlier
Ports:
HDMI (Input)Type A
HDBaseT (Output to Receiver)RJ45
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)12 watts (16.5 when paired with receiver)
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 12V 2a
Dimensions:
Dimensions (TX Unit Only) (Length/Width/Height) mm: 70 x 65 x 31
inch: 2.75 x 2.55 x 1.22
(without wall Decora cover)
Wall spaceSingle-gang
compatible box typesmud rings, stud mount, clamp mount, metal & plastic boxes, lv boxes
Dimensions
(Kit Packaged Length/Width/Height)
mm: 184 x 317.5 x 82.55
inch: 7.25 x 12.5 x 3.25
Weight (Kit Packaged)1.5lbs (0.68Kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate
  • AC-CXWP-HDMO-T (Transmitter)
  • 1 x decora wall plate cover (white)
  • 2 x long electrical outlet screws
  • AC-EX70-UHD-BR (Receiver)
  • 12V 2A Locking Power Supply
  • 2 x Mounting Brackets
