AXION switches are outfitted with a sophisticated suite of flexible features enabling integrators to autonomously craft input and output signal routing for audio, video, or control to meet any system requirement and to overcome unexpected on-site obstacles head-on.

AXION_group_front
AXION is a customizable video distribution system allowing you to build any configuration up to 16 sources throughout 16 displays with this various input and output selection. The backbone of this line starts with the fully modular 16x16 matrix chassis with 8 input and 8 output card slots, AC-AXION-X. AXION X is engineered for high-end systems and can handle any HDMI 2.0 signal, including 4K, HDR, Dolby Vision, Dolby Atmos® and DTS:X®.

AXION PREMIUM FIXED MATRIX SWITCHERS

The AXION 4 and 8 are high bandwidth audio/video matrix switchers. What makes these products unique is the ability to downmix bitstream audio beyond 7.1 channel into a 2-channel audio signal via all inputs, including Dolby Atmos® and DTS:X®. These matrix switcher’s back-end interfaces have been completely redesigned from the ground up, allowing complete control through the AVPro Edge User Interface.
Axion_8

AC-AXION-8

8 HDMI Input, 8 HDBaseT/HDMI Output Matrix Switcher with Dolby Atmos & DTS:X Audio Downmixing
Axion_4

AC-AXION-4

4 HDMI Input, 4 HDBaseT/HDMI Output Matrix Switcher with Dolby Atmos & DTS:X Audio Downmixing

A SWITCH BUILT TO YOUR SPECIFICATIONS.

AC-AXION-X

AXION X defines AVPro Edge’s expression for the current state-of-the-art in 4K matrix switchers. Featuring a chassis-based modular card architecture and custom-configurable for as many as 16 inputs by 16 outputs, Axion X is a world-class device deserving of your full attention.

Design and engineering was focused at fully addressing the needs expressed by custom integrators for a complete, synergistic, diversified product solution that would effectively manage any 4K video signal containing static or dynamic metadata, a companion high bitrate audio codec providing an immersive soundtrack, plus assorted system control signals.

AXION X is outfitted with a sophisticated suite of flexible features enabling integrators to autonomously craft input and output signal routing for audio, video, or control to meet any system requirement and to overcome unexpected on-site obstacles head-on.

  • Uncompressed 18Gbps Bandwidth Support
  • 4K/60fps 4:4:4 HDMI Bandwidth
  • Supports HDR10, HDR10+, Dolby Vision and HLG
  • Dolby Atmos and DTS:X Audio Downmixing Capability
  • AVPro Edge Developed Intuitive User Interface
  • IR, RS-232 and LAN Control Options
  • Independent Breakaway Audio Matrixing
Axion_X_Stack2

INPUT CARD OPTIONS

AC-AXION-IN-AUHD

Dual 18Gbps HDMI input ports with dual HDMI loop out ports
  • Input A: (1) HDMI + 1 Mirrored HDMI
  • Input B: (1) HDMI + 1 Mirrored HDMI
AC-AXION-IN-AUHD_front_SMALL_d99d98e7-23c6-49d3-9050-3f531c370779

AC-AXION-IN-AVDM

Dual 18Gbps HDMI input ports that downmix 8+ channel audio to two-channel via the audio extraction port and dual HDMI loop out ports
  • Input A: (1) HDMI + 1 Mirrored HDMI
  • Input B: (1) HDMI + 1 Mirrored HDMI
Dolby_Atmos_Vertical_RGB_Black_4x_e06fb499-1b4f-468b-a531-703918bdb612
DTS_X_Black_TM
AC-AXION-IN-AUHD_front_SMALL_d99d98e7-23c6-49d3-9050-3f531c370779

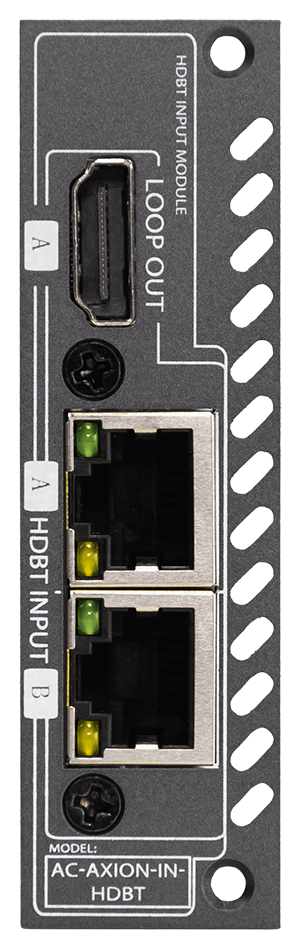

AC-AXION-IN-HDBT

Dual 18Gbps ICT HDBaseT input ports with a single mirrored HDMI port
  • Input A: (1) HDBaseT + 1 Mirrored HDMI
  • Input B: (1) HDBaseT
AC-AXION-IN-HDBT_front_small_3bd8ef89-ba0a-49c1-84b0-cbda5ee4f9d9

AC-AXION-IN-MCS

Dual 18Gbps HDMI input ports with dual HDMI loop out ports and MCS (Mission Critical Scaling)
  • Input A: (1) HDMI + 1 Mirrored HDMI
  • Input B: (1) HDMI + 1 Mirrored HDMI
AC-AXION-IN-MCS_front_small_8130a85e-0f31-42c0-a3c0-16ca08acd146

AC-AXION-IN-AUDIO

Dual RCA 2 Channel and Toslink inputs
  • Input A: (1) RCA & Mini Toslink
  • Input B: (1) RCA & Mini Toslink
AC-AXION-IN-AUDIO_front_small_1c7b2460-f3c0-4db5-8360-57d1d536472d

OUTPUT CARD OPTIONS

AC-AXION-OUT-AUHD

Dual 18Gbps HDMI output ports
  • Output A: (1) HDMI
  • Output B: (1) HDMI
AC-AXION-OUT-AUHD_front_small_0e268ae0-55af-45fa-90cd-0d4d8d21ce92

AC-AXION-OUT-HDBT

Dual 18Gbps ICT HDBaseT output ports with a single mirrored HDMI port
  • Output A: (1) HDBT + 1 Mirrored HDMI
  • Output B: (1) HDBT
AC-AXION-OUT-HDBT_front_small_e66a4117-56ae-4a68-b7ec-414b37de136b

AC-AXION-OUT-MCS

Dual 18Gbps HDMI output ports with MCS (Mission Critical Scaling) and a single mirrored HDMI port
  • Output A: (1) HDMI + Mirrored HDMI
  • Output B: (1) HDMI
AC-AXION-OUT-MCS_front_small_41e42d2c-bb76-4189-8284-0cdbe1667b3f

AC-AXION-OUT-HDBT-L

Dual 18Gbps ICT HDBaseT output ports with a single mirrored HDMI port (no CEC, no OTA firmware updates)
  • Output A: (1) HDBT + 1 Mirrored HDMI
  • Output B: (1) HDBT
AC-AXION-OUT-HDBT-L_front_small_1865c5f1-8501-43ea-b2ca-6229e7e03078
