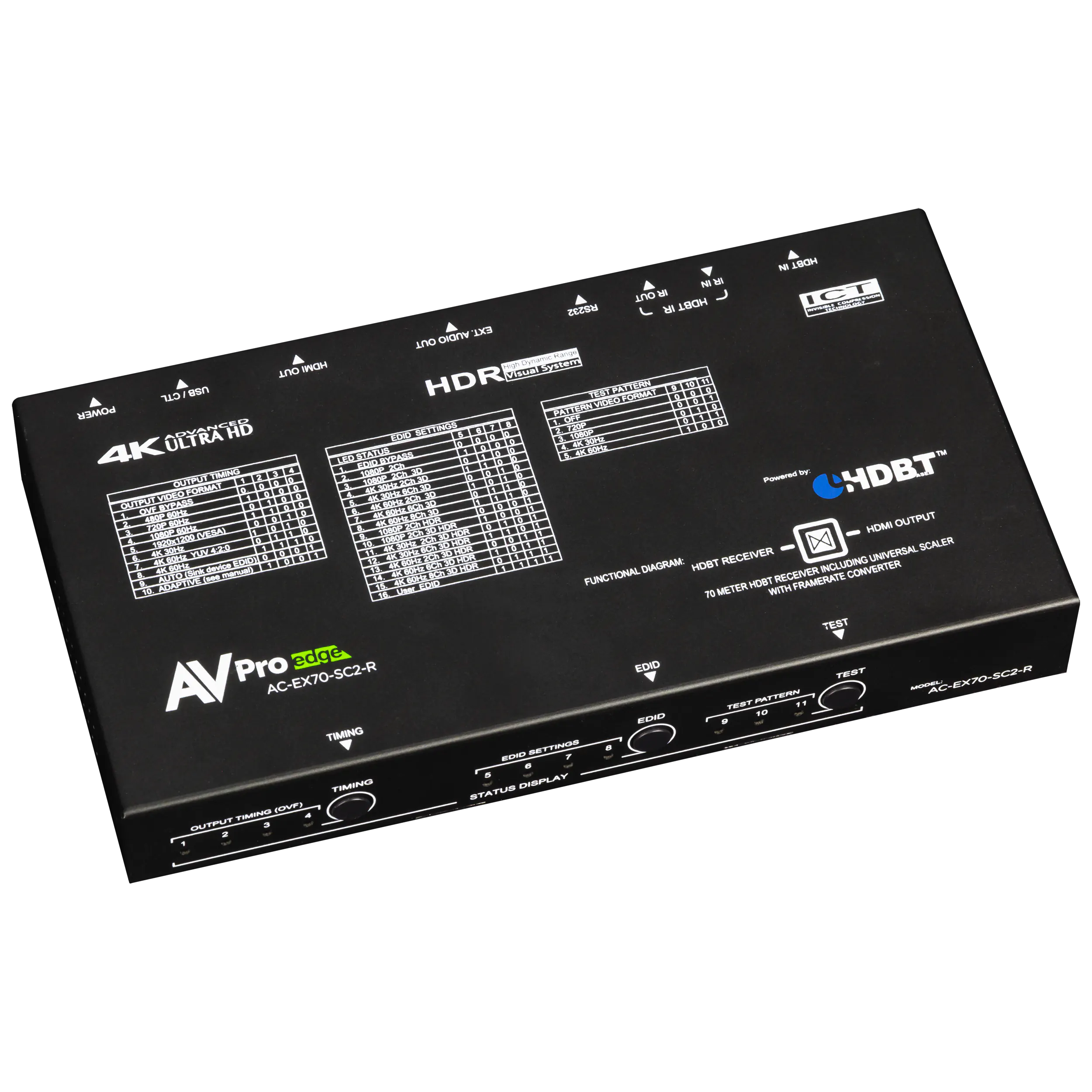

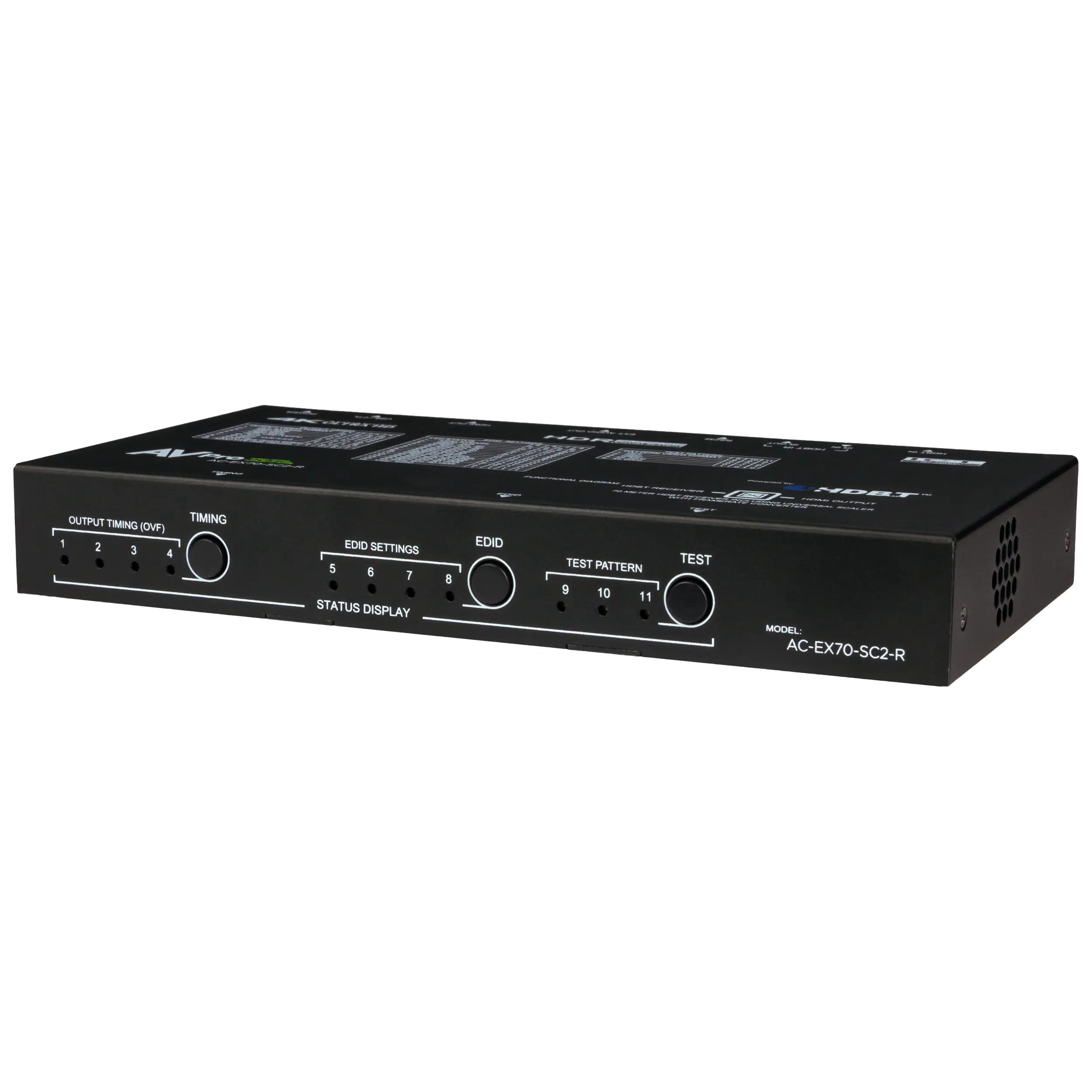

70M 18Gbps HDBaseT Receiver and Scaler

Description

AVPro Edge's AC-EX70-SC2-R is the ideal solution for integrators who need to distribute a signal long distances to various displays and keep an optimal picture. Integrators will enjoy the versatility of not only controlling up/down scaling but also handling EDID issues (including 4K HDR EDIDs) and accessing audio from the stream. This HDBaseT receiver/scaler is ready for 18Gbps 4K HDR signaling. Yet, if you have 480, 720, or 1080 displays, the AC-EX70-SC2-R will ensure they're getting the resolutions and picture type you set.

​Distributing the audio/video via HDBaseT allows us to send a stable signal without relying on IP distribution from a network switch. This ensures the picture quality stays intact and won't be degraded over time.

This product works alongside all of AVPro Edge's HDBaseT Matrix Switchers to give your customers the best resolution possible.

70M 18Gbps HDBaseT Receiver and Scaler

Product form

  • HDMI 2.0
  • Interlaced to Progressive Scaling
  • Full HDR Support
  • 18Gbps Bandwidth Support with ICT

SKU: AC-EX70-SC2-R

  • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

Description

AVPro Edge's AC-EX70-SC2-R is the ideal solution for integrators who need to distribute a signal long distances to various displays and keep an optimal picture. Integrators will enjoy the versatility of not only controlling up/down scaling but also handling EDID issues (including 4K HDR EDIDs) and accessing audio from the stream. This HDBaseT receiver/scaler is ready for 18Gbps 4K HDR signaling. Yet, if you have 480, 720, or 1080 displays, the AC-EX70-SC2-R will ensure they're getting the resolutions and picture type you set.

​Distributing the audio/video via HDBaseT allows us to send a stable signal without relying on IP distribution from a network switch. This ensures the picture quality stays intact and won't be degraded over time.

This product works alongside all of AVPro Edge's HDBaseT Matrix Switchers to give your customers the best resolution possible.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Full HDR Support: With many HDR EDID's to choose from, HDR can now be activated on capable displays no matter what the infrastructure requires. This allows flexibility in system design and will enable you to maximize budgets by providing HDR content where you want it.



Fixed Output Up/Down Scaling: This is possibly one of the most critical features in a hybrid system. Most AVR's, matrix switchers, and other peripherals cannot scale. This HDBaseT receiver allows you to set the resolution no matter what the signals deliver. Output 4K, even if the signal is sending 720p.



Interlaced to Progressive Scaling: This advanced technology will help installers overcome problematic 1080i sources by converting interlaced signals to progressive signals. For example, you can convert a 1080i signal to 1080P, 4K 30Hz, 4K 60Hz 4:2:0, or 4K 60Hz 4:4:4 at the user's will. Perfect for working with set-top boxes or satellite receivers.



Adaptive Scaling Mode: This EXCLUSIVE AVPro Edge technology was designed specifically to overcome problems with legacy sources, like set-top boxes outputting 720P or 1080i. Sink devices can exhibit stability issues when these legacy formats are implemented into modern, high-bandwidth distribution systems. The Adaptive Scaling Mode will convert all signals less than 1080P to 1080P and bypass 4K and HDR signals through untouched. This will allow you to install legacy sources in modern systems comfortably.



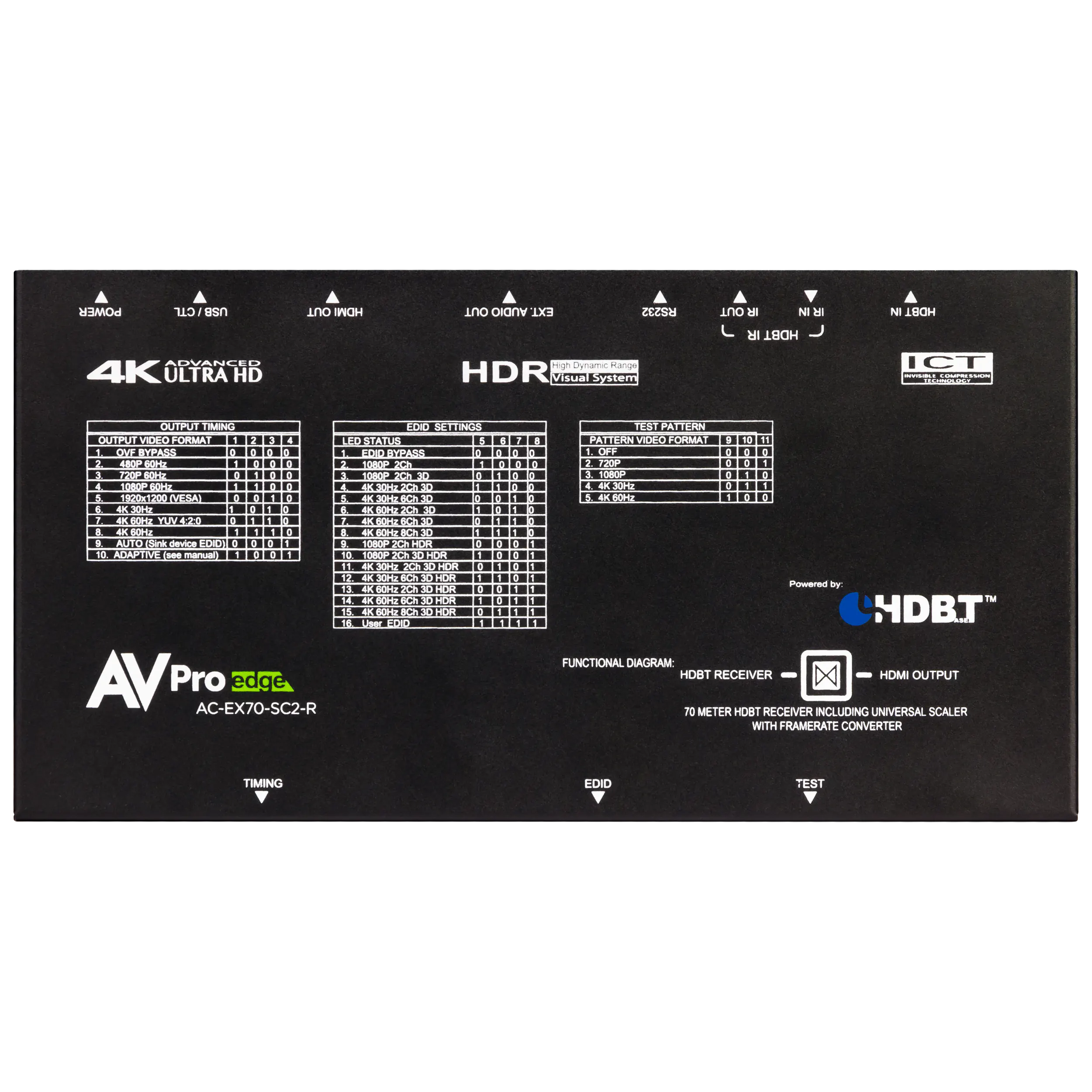

The Most Advanced EDID Management: This is the only receiver that will provide 16 pre-loaded EDID settings from legacy technology (480) to full 4K and HDR Options. The AC-EX70-SC2-R also has custom user EDID slots for future use, total customization, and EDID bypass for using the sink EDID.



L/R Audio De-Embedding: The AC-EX70-SC2-R has an audio output that allows audio to be stripped anywhere in a system and re-routed to where it's needed most. (PCM only, this does not downmix.) AC-EX70-SC2-R units can be combined to strip multiple streams from multiple outputs or sources.



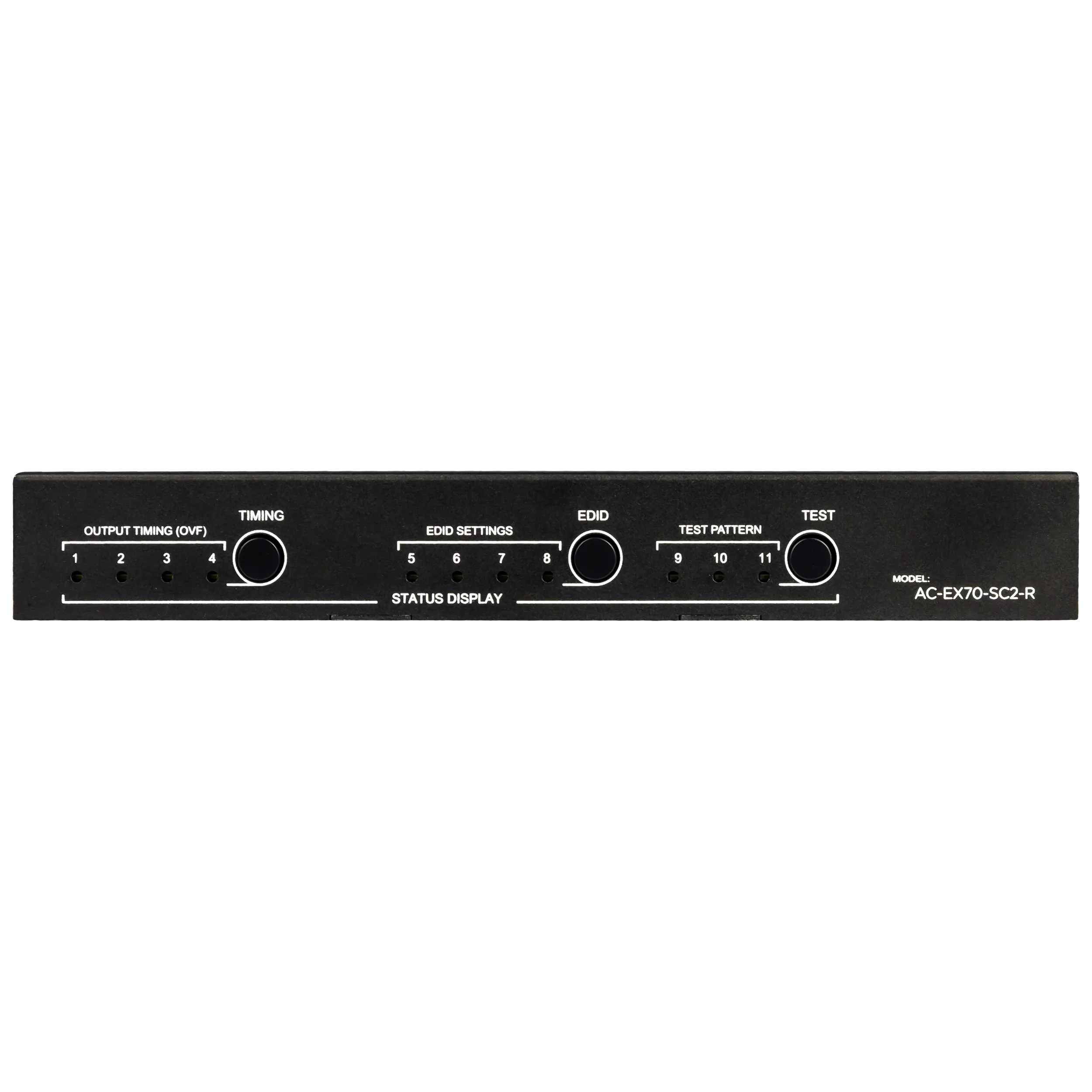

On-Board Troubleshooting: This receiver/scaler allows you to generate a 720P, 1080P, or 4K test pattern to identify external problems (source, repeater, displays, etc.) Now, you can be sure that your wiring is correct and get to the bottom of issues quickly without having to worry if the source or sink is working correctly

Video:
Video ResolutionsUp to 4K 60Hz 4:4:4
VESA ResolutionsUp to DCI 4K (4096X2160)
HDR Formats/Resolutions420, 422, 444 (10 AND 12 DEEP COLOR)
HDR10, HDR10+, HLG
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080P) UP TO 12 BIT (4K)
Audio:
Audio Formats Supported HDMIPCM 2 CH (No Downmix)
Audio Formats Supported Extracted (2 CH Port)PCM 2 CH (No Downmix)
Audio Formats Supported Extracted (Digital Toslink)PCM 2 CH (No Downmix)
Scaling:
Fixed Output Options
(Scales all input formats to the Same)
480P 60Hz, 720P 60Hz, 1080P 60Hz, 1920x1200 (Vesa), 4k 30Hz, 4k60Hz YUV 4:2:0, 4k60Hz, Auto (sink Device EDID) *See manual for more info
Framerate ConversionYes
Interlaced-> Progressive ConversionYes
Test Pattern GeneratorYes
Distance:
HDBaseT (CAT) Distance (4K)70 Meters / 230 Feet (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4)Up to 50 Feet (using Bullet Train HDMI)
HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4)Up to 130 Feet (using Bullet Train AOC)
Other:
Bandwidth18 Gbps
HDCPHDCP 2.2 and Earlier

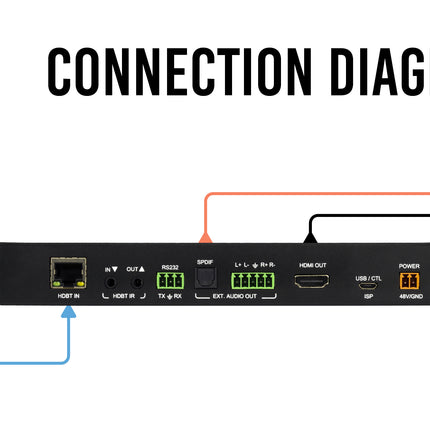

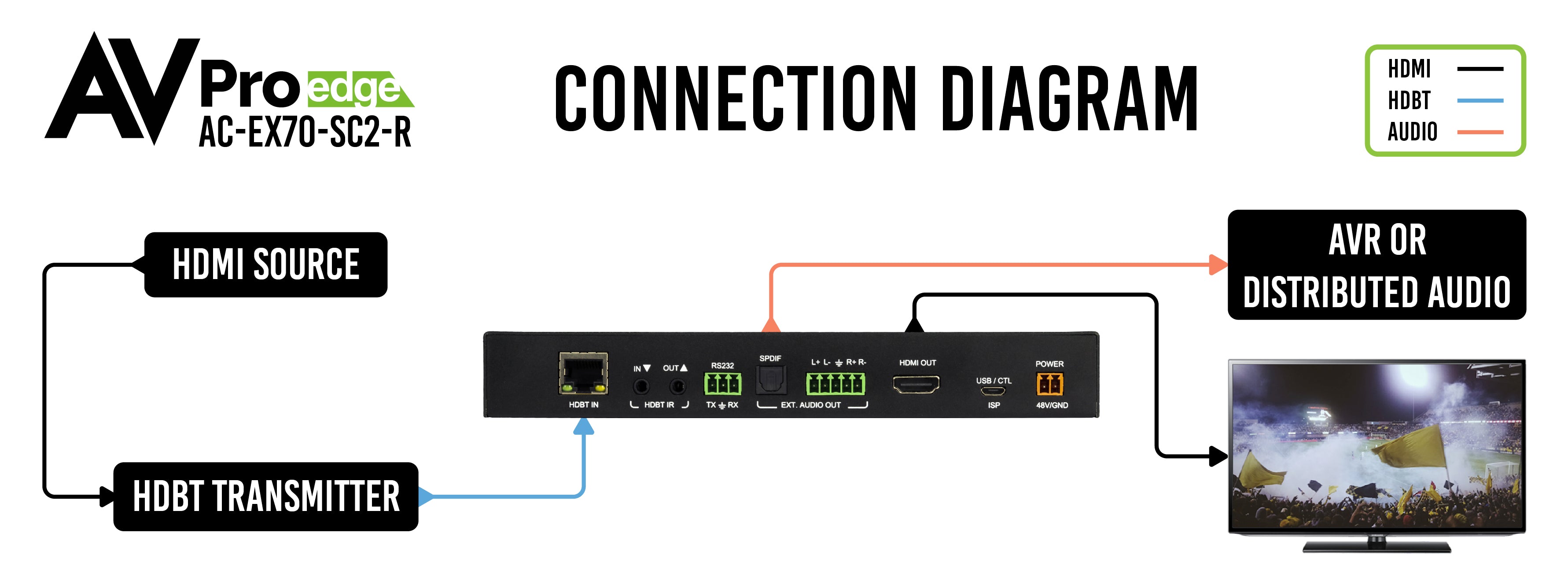

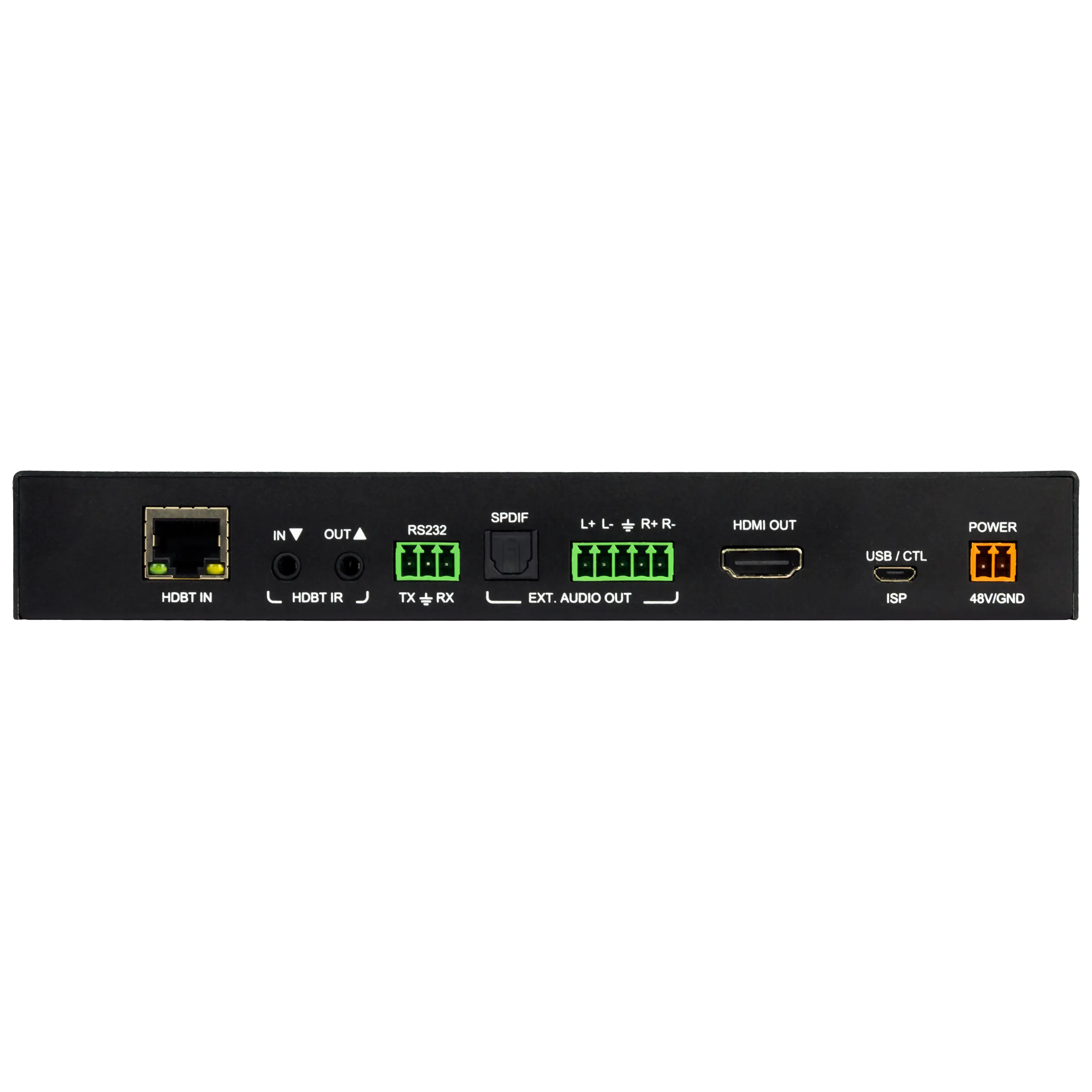

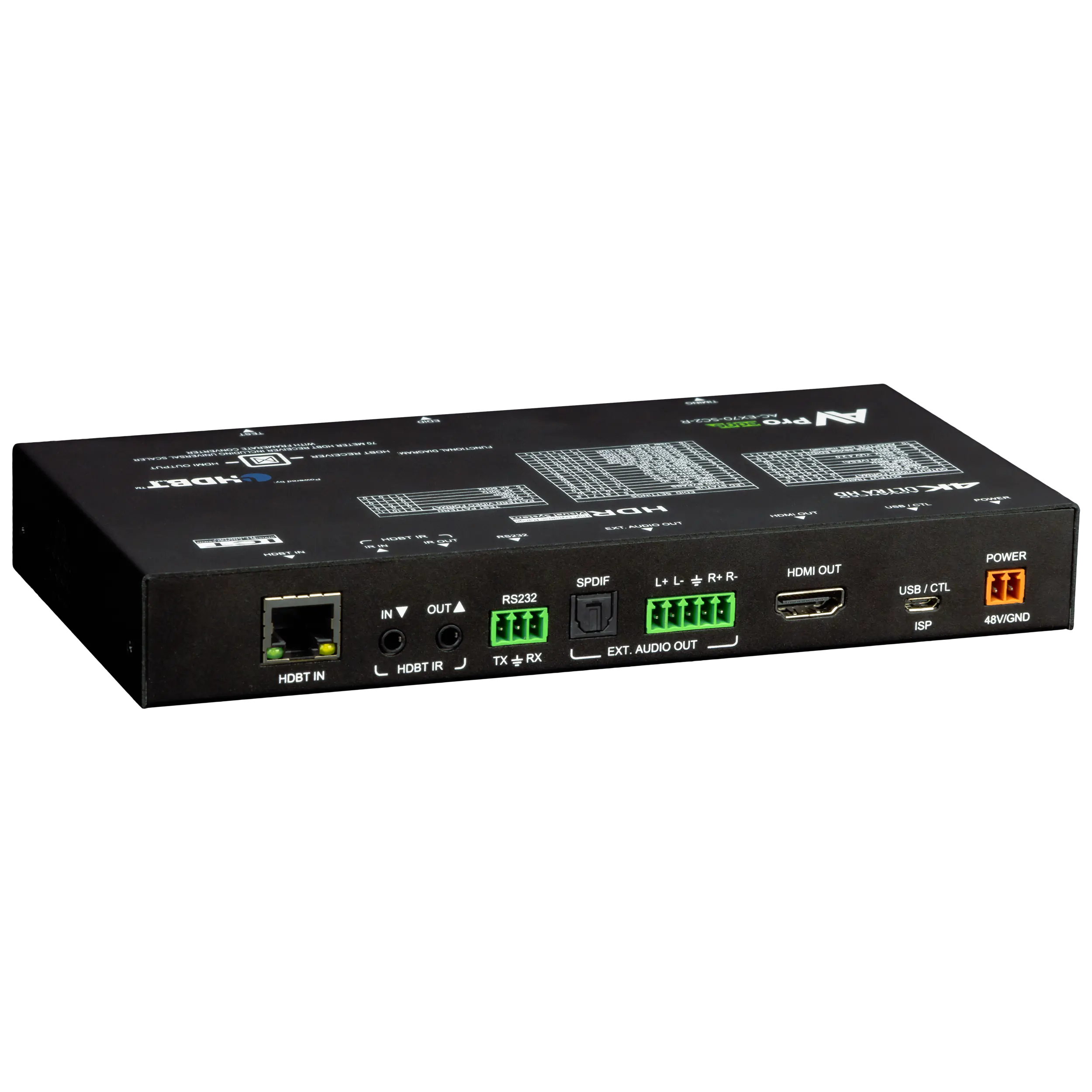

Ports:
HDMIType A
HDBaseTRJ45
Audio (Extracted Analog)5 Pin Terminal Block (balanced)
Audio (Extracted Digital)Optical Toslink
IR TX 3.5mm Mono (2 conductor)
IR RX 3.5mm Mono (3 conductor)
RS2323 Pin Terminal Block
Power2 Pin Terminal Block
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)24 watts max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 48V 1A
Dimensions:
Dimensions (Unit Only Length/Width/Height) MM: 107.92 X 184.15 X 28.1
inch: 4.25 X 7.25 X 1.11
Dimensions (Packaged Length/Width/Height) (Kit)MM: 184.2 X 316 X 79.5
inch: 7.25 X 12.44 X 3.13
Weight (Unit)0.7 lbs (0.32 KG)
Weight (Packaged)1.4 lbs (0.64 KG)
*Specifications subject to change without notice.  Mass & dimensions are approximate

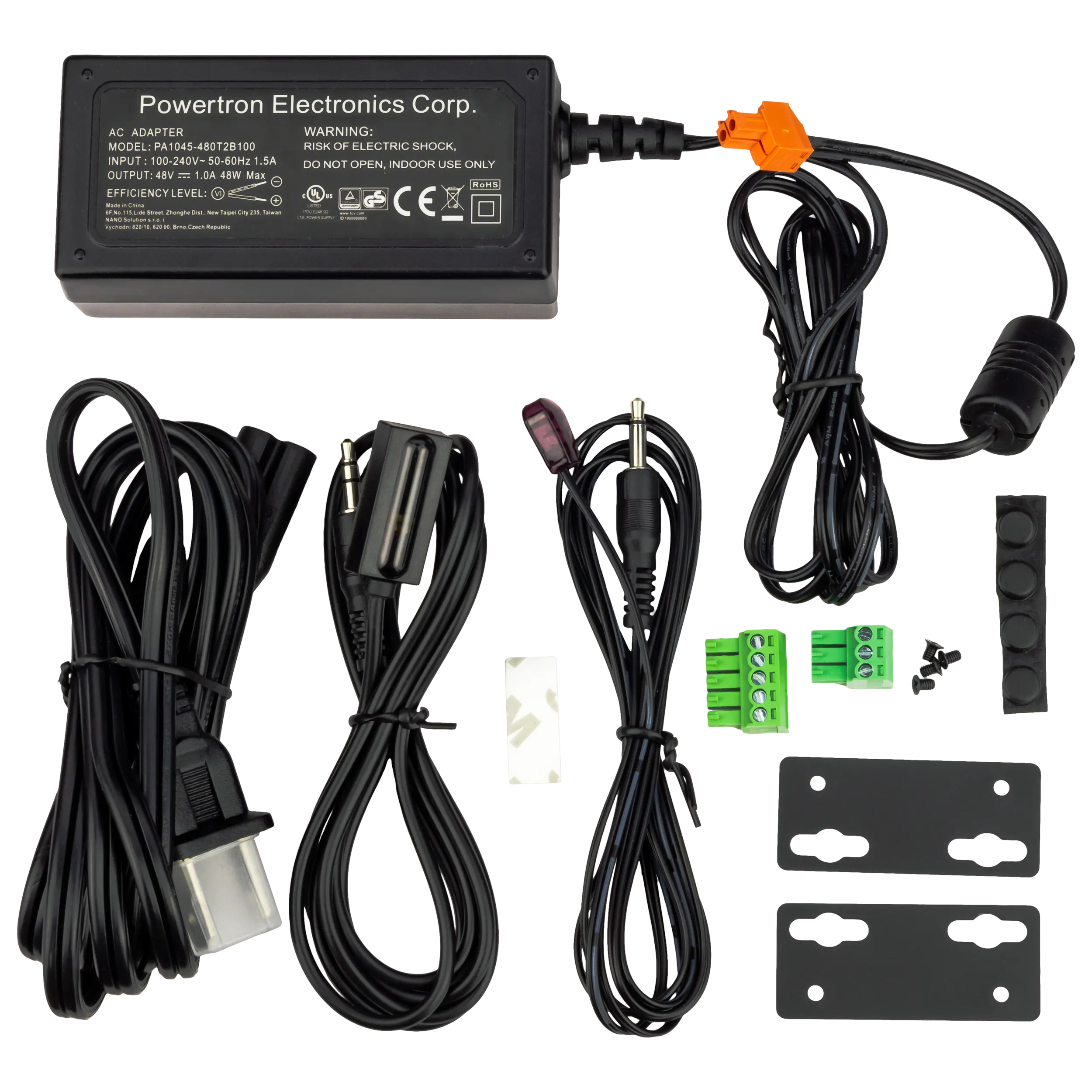

  • AC-EX70-SC2-R
  • 48V Power Supply
  • IR Receiver
  • IR Emitter
  • 3-Pin Terminal block
  • 2-Pin Terminal block
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets
  • Rubber Feet

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
