Bullet Train Professional Series USB 3.2 Gen 2 Type-C to Type-C Cables
- VendorBullet Train
Bullet Train Professional Series USB 3.2 Gen 2 Type-C to Type-C Cables
- VendorBullet Train
- Overview
- Specs
- Resources
Overview
Key Features
- Backward Compatibility: Automatically detects and operates at the highest possible speed, even with older USB devices.
- Precision-Machined Connectors: Ensure secure, repeatable connections through frequent plugging and unplugging cycles.
- Enhanced EMI/RFI Shielding: Multi-layer shielding guards against signal loss or interference, preserving reliable performance in dense electronic environments.
- Lifetime Warranty: Bullet Train’s no-hassle guarantee covers you and your clients for ultimate peace of mind.

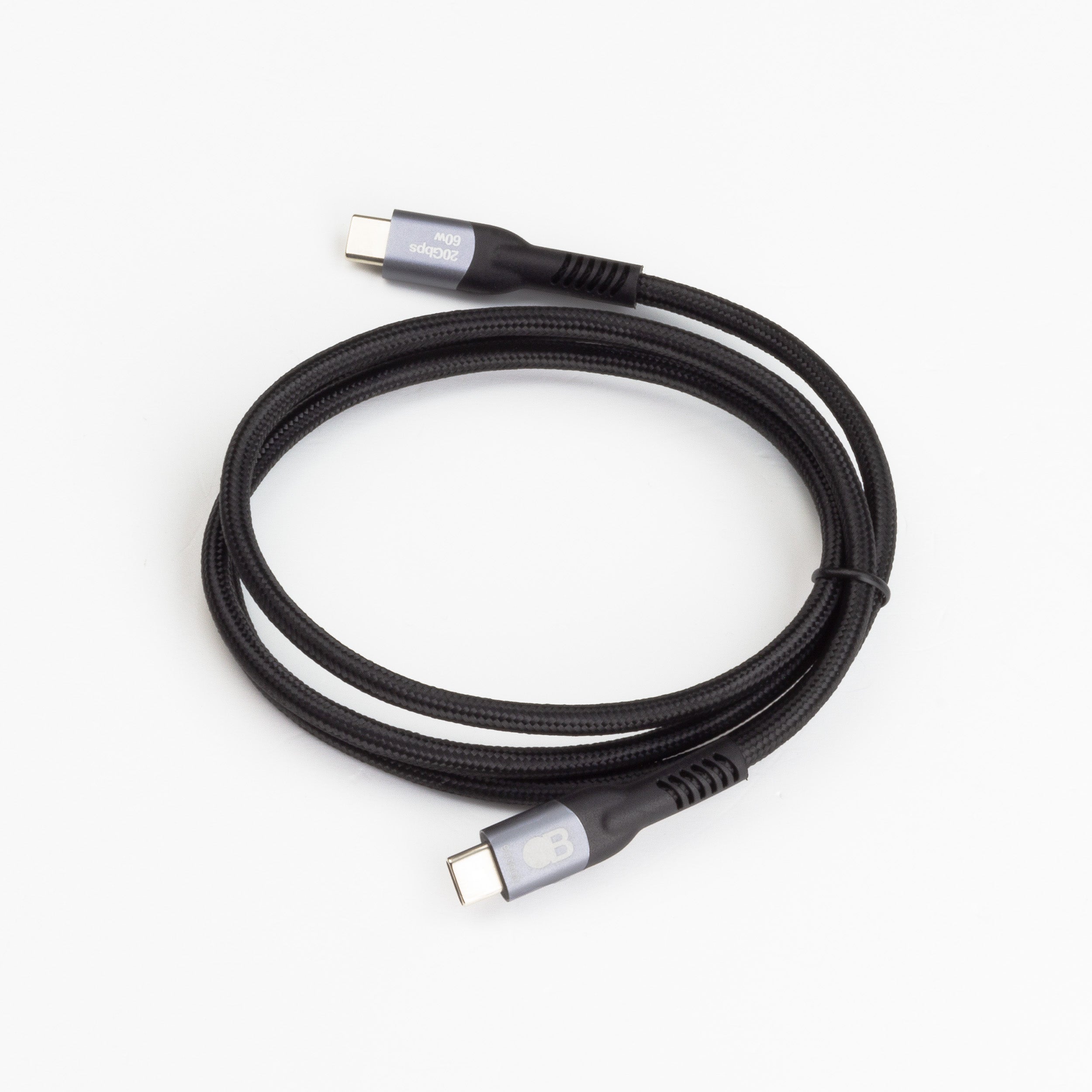

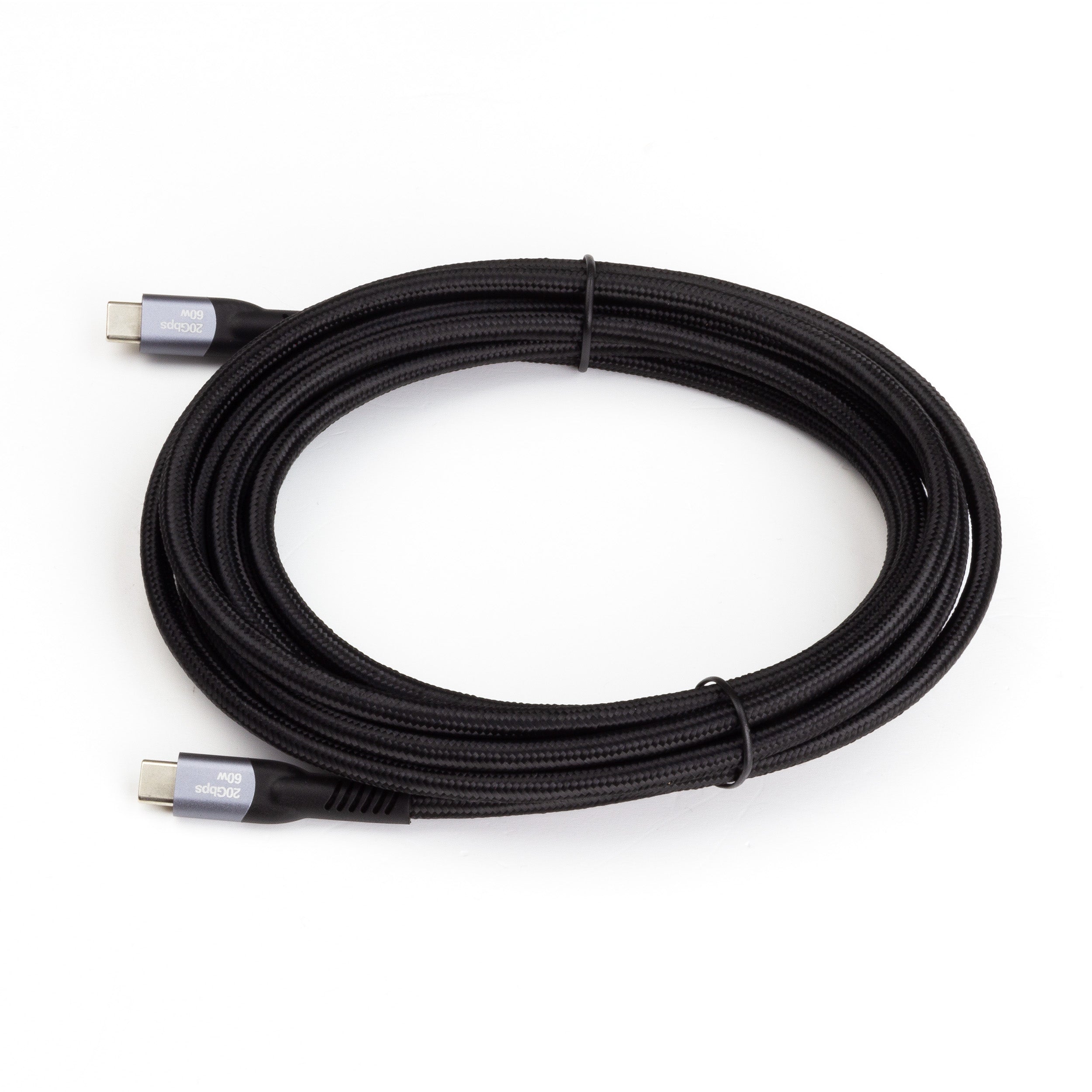

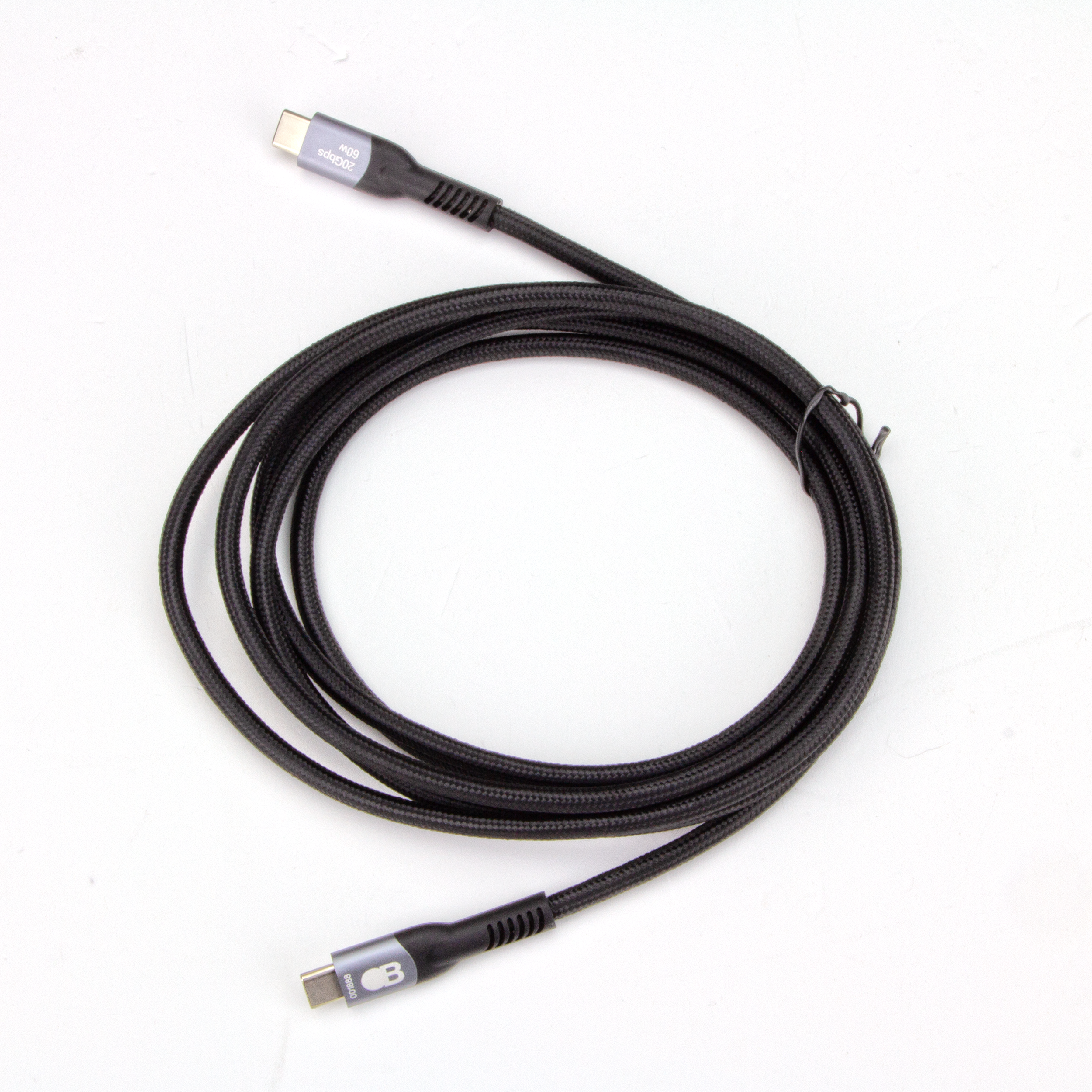

Passive USB-C Cables (1–3 Meters)
- All-Copper Construction: Offers low attenuation, high signal clarity, and reliable data transmission.
- Braided Outer Jacket: Designed to resist wear and tear from regular plugging and unplugging.
- Up to 20 Gbps: Four-lane bidirectional support handles demanding tasks with ease.
- Use Cases: Ideal for everyday device connections, short-range mobile charging, docking stations, and quick data transfers.
Active Optical USB 3.2 Gen 2 Type-A to Type-C Cables (5–15 Meters)
- OM3 Fiber + Copper Hybrid: High-purity fiber maintains signal integrity over long distances; copper lines deliver power and control signals.
- Data Center-Grade Transceivers: Minimizes interference (EMI/RFI), lowers latency, and extends cable lifespan for continuous high-speed performance.
- Up to 20 Gbps & 60 W PD (40 W at 15 m): Perfect for extended runs in large meeting rooms, classrooms, or mission-critical installations.
- Use Cases: Recommended for setups requiring stable, long-distance connectivity with high data rates and power requirements.
Description
What is the best way to describe Bullet Train professional-grade Type-C to Type-C USB cables? They just work. Capable of four-lane bidirectional data transfer at speeds up to 10 Gbps (20 Gbps total), commercial integrators can confidently specify and deploy Bullet Train USB-C Gen 2 cable for unrivaled performance and unfailing reliability across all markets, such as Collaboration/Office, Educational, and Hospitality, or in mission-critical spaces like First-response Centers, Governmental Agencies, and Medical.
Bullet Train USB all-copper-based Type-C to Type-C cables are available in one, two, and three meters, with hybrid active optical cables in five, eight, and 15 meters. Construction features 99.99% oxygen-free, attenuation-resistant, high-purity copper with gold-plated connection points for maximum conductivity and to eliminate corrosion-induced data dropouts. Durable outer jackets include a soft-sided static-reducing braid for out-of-wall cables and a pliable, snag-resistant thermoplastic elastomer polymer for extended-length in-wall routed fiber-based cables.

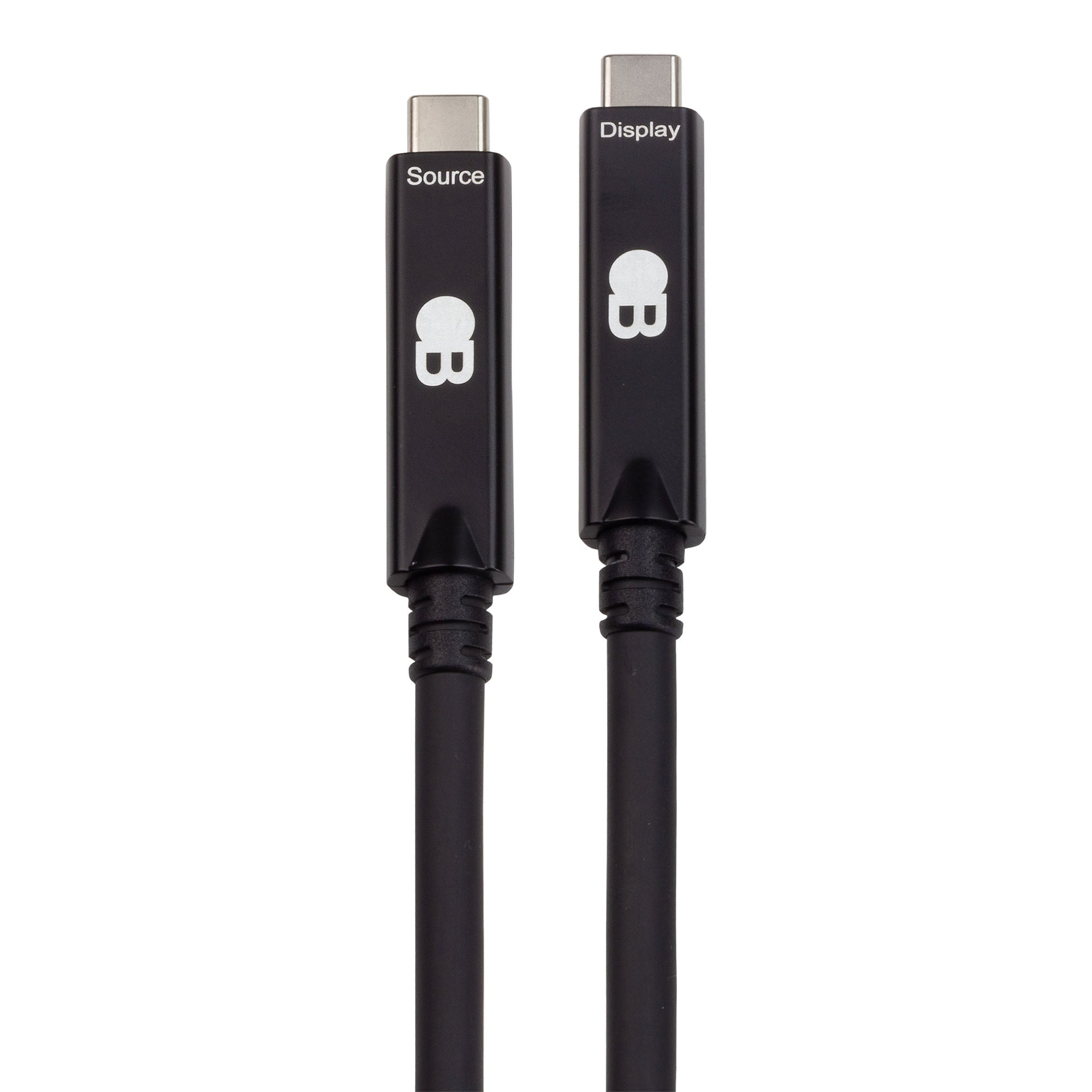

Hybrid AOC models benefit from high-purity, low-refraction OM3 fiber for precision data transport, supplemented by OFC high-conductivity copper for power and control signals. Data Center-grade AOC transceivers incorporated into the precision-machined headshells were selected for 100% duty cycles and an extended lifespan.
Bullet Train Professional Type-C to Type-C USB cable design capitalizes on AVPro Edge's signal transmission expertise and Murideo's video science prowess.
It gives integrators a risk-free, performance-oriented, sensible alternative to e-commerce chance-taking. It provides demanding clients with performance-oriented cabling from a benchmark-setting manufacturer in the world of high-bandwidth signal transfer.
Specs
| USB Type | USB 3.2 Gen 2 (2x2) |
| Connector Type | USB Type-C Male to USB Type-C Male |
| Available Lengths | BT-USBC-01 - 1 m (3.2 ft.) BT-USBC-02 - 2 m (6.5 ft.) BT-USBC-03 - 3 m (9.8 ft.) |
| Max Bandwidth | 20 Gbps |
| DisplayPort Modes | DP 2.1 + USB 2.0 DP 1.4 + USB 3.2 10 Gbps |
| DisplayPort Resolution | Up to 4K/60 Hz |
| Retention Force | 4 kg / 8.8 lbs. |
| Wire Gauge | BT-USBC-01 - 32 AWG x 24 AWG BT-USBC-02 - 32 AWG x 24 AWG BT-USBC-03 - 30 AWG x 21 AWG |
| Internal Wire Construction | 8C (4 x Differential signal pairs) |
| Cable Impedance | 95 Ohms ± 5 Ohms |
| Cable Outer Diameter | BT-USBC-01 - 4.8 mm (.188 inches) BT-USBC-02 - 4.8 mm (.188 inches) BT-USBC-03 - 5.8 mm (.228 inches) |
| Plug Dimensions (L x W x D) | mm: 17.8 x 8.55 x 2.4 inches: .700 x .336 x .094 |
| Plug Material | Nickel-plated |
| Casing Material | Aluminum |
| Outer Shielding Material | PVC Jacket (UL VW-1) |
| Bend Radius | 30 mm |
| EMI/EMC/Safety Certifications | UL |
| Environmental | RoHS |
| Lead-free (Pb-free) | Yes |
| Warranty | Lifetime |
| USB Type | USB 3.2 Gen 2 (2x2) |
| Connector Type | USB Type-C Male to USB Type-C Male |
| Available Lengths | BT-USBC-05 - 5 m (16.4 ft.) BT-USBC-08 - 8 m (26.2 ft.) BT-USBC-15 - 15 m (49.2 ft.) |
| Max Bandwidth | 20 Gbps |
| DisplayPort Modes | DP 2.1 + USB 2.0 DP 1.4 + USB 3.2 10 Gbps |
| DisplayPort Resolution | Up to 4K/60 Hz |
| Retention Force | 3 kg / 6.6 lbs. |
| Wire Gauge | 28 AWG x 24 AWG x 21 AWG |
| Internal Wire Construction | Fiber + 5x conductors for SuperSpeed RX/TX 2x conductors for CC/VCON 1x pair for SBU1/SBU2 1x pair for VBUS/GND 1x pair for D+/D- |
| Cable Impedance | 90 Ohms ± 10% |
| Cable Outer Diameter | 6.5 mm (.226 inches) |
| Plug Dimensions (L x W x D) | mm: 44.5 x 12.6 x 8 inches: 1.75 x .496 x .315 |
| Plug Material | Silver-plated |
| Casing Material | Zinc Alloy |
| Outer Shielding Material | TPE Jacket |
| Bend Radius | 65 mm |
| EMI/EMC/Safety Certifications | UL |
| Environmental | RoHS |
| Lead-free (Pb-free) | Yes |
| Warranty | Lifetime |
