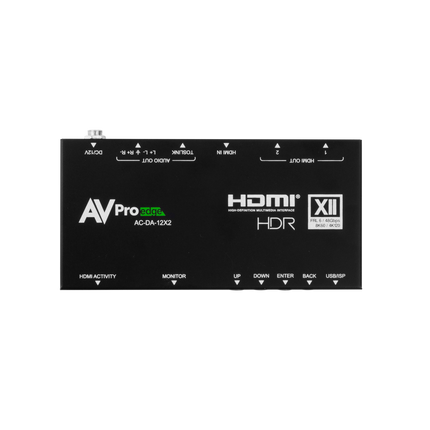

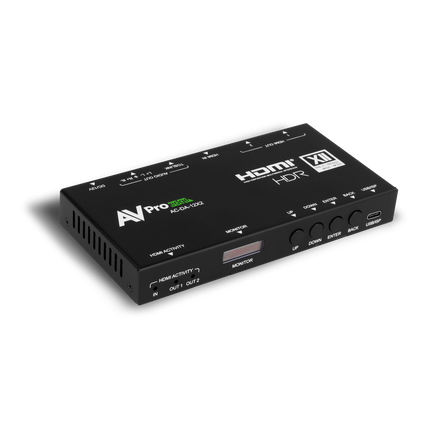

48Gbps 1x2 HDMI Distribution Amplifier

Description

AC-DA-12X2 is an AVPro Edge one-input to two-output, 48 Gbps HDMI 2.1b distribution amplifier that flawlessly divides incoming HDMI signals up to 8K/60 fps into two separate output streams. Current 8K media consoles or 4K sources pass through HDMI 1 to a capable display, while downscaling may be enabled to allow HDMI Output #2 to lower output resolution for compatibility with legacy display devices, particularly projectors.

Another everyday AC-DA-12X2 use is sending HDMI Out #2 signal into legacy AVRs whose dated HDMI circuitry limits video connectivity while audio-wise, 3D immersive format decoding remains viable, enabling the audio playback device to continue operational for as long as required.

Additional features such as extensive EDID management, extracted audio, and USB setup capability make the AC-DA-12X2 perfect for use by residential and commercial integrators whenever mixed-use systems pose installation challenges.

48Gbps 1x2 HDMI Distribution Amplifier

Product form

  • 48 Gbps Bandwidth (Fixed Rate Link 6)
  • Custom EDID Blend (combine EDIDs from different devices)
  • Extended 4-Block EDID Support for Demanding NextGen Displays
  • Supports Gaming-Focused HDMI 2.1b Features
  • Extracted Audio for up to 7.1 Digital or 2-Ch Analog

SKU: AC-DA-12X2

  • Shipped today? Order within: Nov 06, 2024 13:00:00 -0600

Description

AC-DA-12X2 is an AVPro Edge one-input to two-output, 48 Gbps HDMI 2.1b distribution amplifier that flawlessly divides incoming HDMI signals up to 8K/60 fps into two separate output streams. Current 8K media consoles or 4K sources pass through HDMI 1 to a capable display, while downscaling may be enabled to allow HDMI Output #2 to lower output resolution for compatibility with legacy display devices, particularly projectors.

Another everyday AC-DA-12X2 use is sending HDMI Out #2 signal into legacy AVRs whose dated HDMI circuitry limits video connectivity while audio-wise, 3D immersive format decoding remains viable, enabling the audio playback device to continue operational for as long as required.

Additional features such as extensive EDID management, extracted audio, and USB setup capability make the AC-DA-12X2 perfect for use by residential and commercial integrators whenever mixed-use systems pose installation challenges.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

48 Gbps Support (8K FLR 6) - Full 8K bandwidth extension (select 10K FRL 3, FRL 4, and FRL 5 resolutions supported). Available dynamic range headroom for any 8K source.



Downscaling – Each HDMI output may configured for downscaling. An 8K signal may be downscaled to 4K or 1080p, while 4K content may be downscaled to 1080p for systems with legacy display technology.



Extracted Audio – Multi-channel digital audio up to 7.1 may be intercepted from the HDMI stream and output via TOSLINK. 2-channel Analog audio may be output via the 5-pin balanced terminal block; however, note that the source must originate as 2-channel PCM.

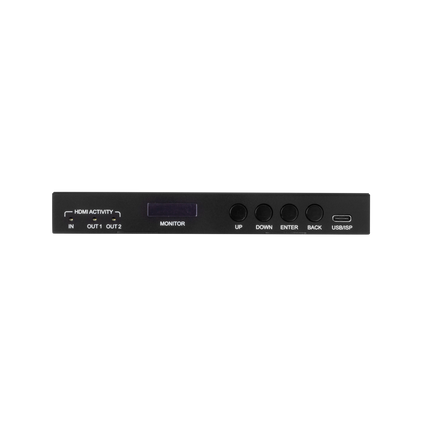

Fixed FRL Rate – The FRL rate may be set to a fixed rate from a front panel menu setting or via the device API. First-generation new technology displays may not be able to contend with higher bandwidth signals as the latest models do. Limiting the signal bandwidth to first-gen models in mixed systems maintains system stability.



Extended EDID Management – The AC-DA-12X2 features 20 pre-configured EDID slots, including support for FRL Lanes 3 through 6 and three User EDID slots.



HF-EEODB (HDMI Forum EDID Extension Override Data Block) is also supported. HF-EEODB is used to optionally expose an extension count different than the base block claims, revealing more EDID data. Our deep-look, 4-Block EDID Support analyzes up to 512 bytes of EDID data to ensure HDMI handshake and HDCP compatibility with the latest next-gen displays containing a massive amount of EDID data.



Gaming-Focused HDMI 2.1b Features – Quick Media Switching for multimedia use is based on Variable Refresh Rate technology, developed to ensure smooth gameplay from PS5, Xbox Series X, and PC games. VRR reduces or eliminates artifacts such as image tearing (like tearing a piece of paper), and judder (slow “camera” pans that should be smooth but instead abruptly stutter).



USB Command List Control – The front panel USB-C port enables Windows Input and Output command setup control, assisted by MyUart (available for free download).

Video:
Video ResolutionsUp to 8K 60Hz 4:4:4/8K 30Hz 4:4:4/4k 120Hz
HDR Formats/Resolutions420, 422, 444 (10 AND 12 DEEP COLOR)
HDR10, HDR10+, DOLBY VISION, HLG
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit
Scaling (resolution, Output 2 & 4 only)8k to 4k or 8k/4k to 1080p
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (TOSLINK)LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio
Audio Formats Supported Extracted (2CH Port)PCM 2 CH
Distance:
HDMI In/Out (4k60 4:4:4)UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI In/Out (W/ AOC Cable) (4k60 4:4:4)UP TO 130 FEET (USING BULLET TRAIN AOC)
Other:
Bandwidth48 Gbps (FRL 6)
HDCPHDCP 2.3 and Earlier

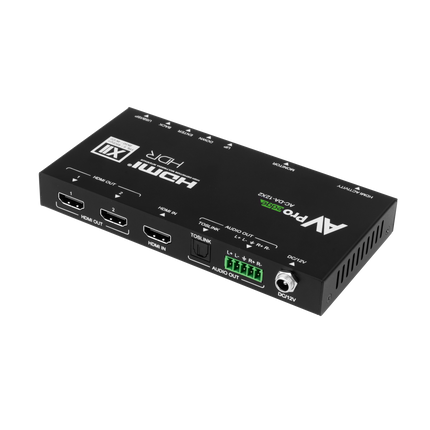

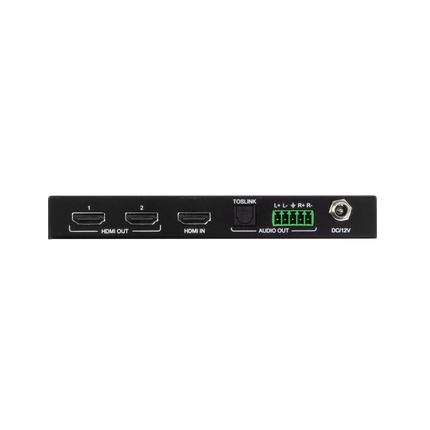

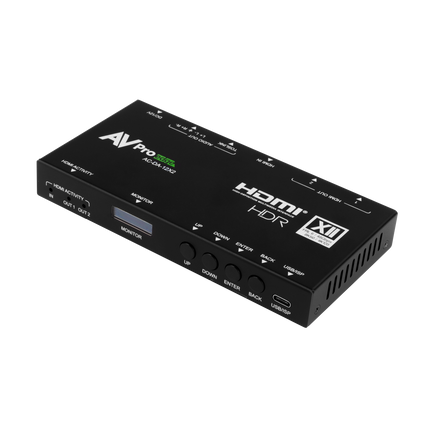

Ports:
HDMIType A
Audio (Extracted Digital)Toslink
Audio (Extracted Analog)5 PIN Terminal Block (Balanced)
FirmwareUSB C
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)3 watts max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 12V 3A
Dimensions:
Dimensions (Unit Only Length/Width/Height) mm: 76.2 X 75.44 X 304.8
inch: 3 X 2.97 X 12
Dimensions (Packaged Length/Width/Height) (Kit)mm: 150.88 X 76.2 X 20.6375
inch: 5.94 X 3 X .81
Weight (Unit)0.68 lbs (0.31 Kg)
Weight (Packaged)1.21 lbs (0.55 Kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate



  • AC-DA-12X2 Unit
  • 12V Power Supply
  • x1 5 Pin Terminal black for extracted audio port
  • Mounting Brackets
