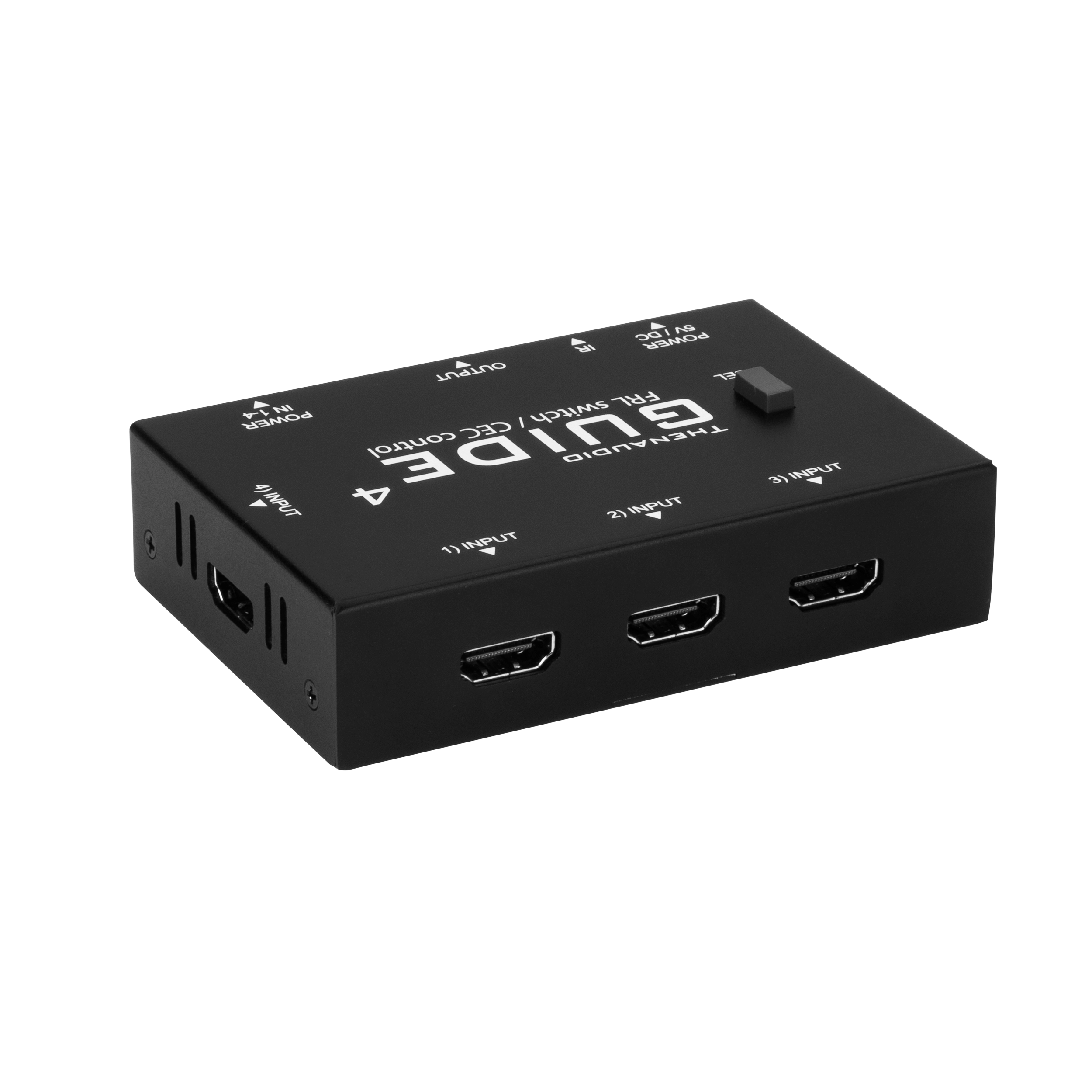

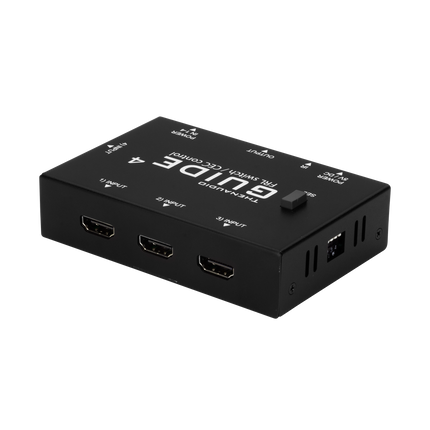

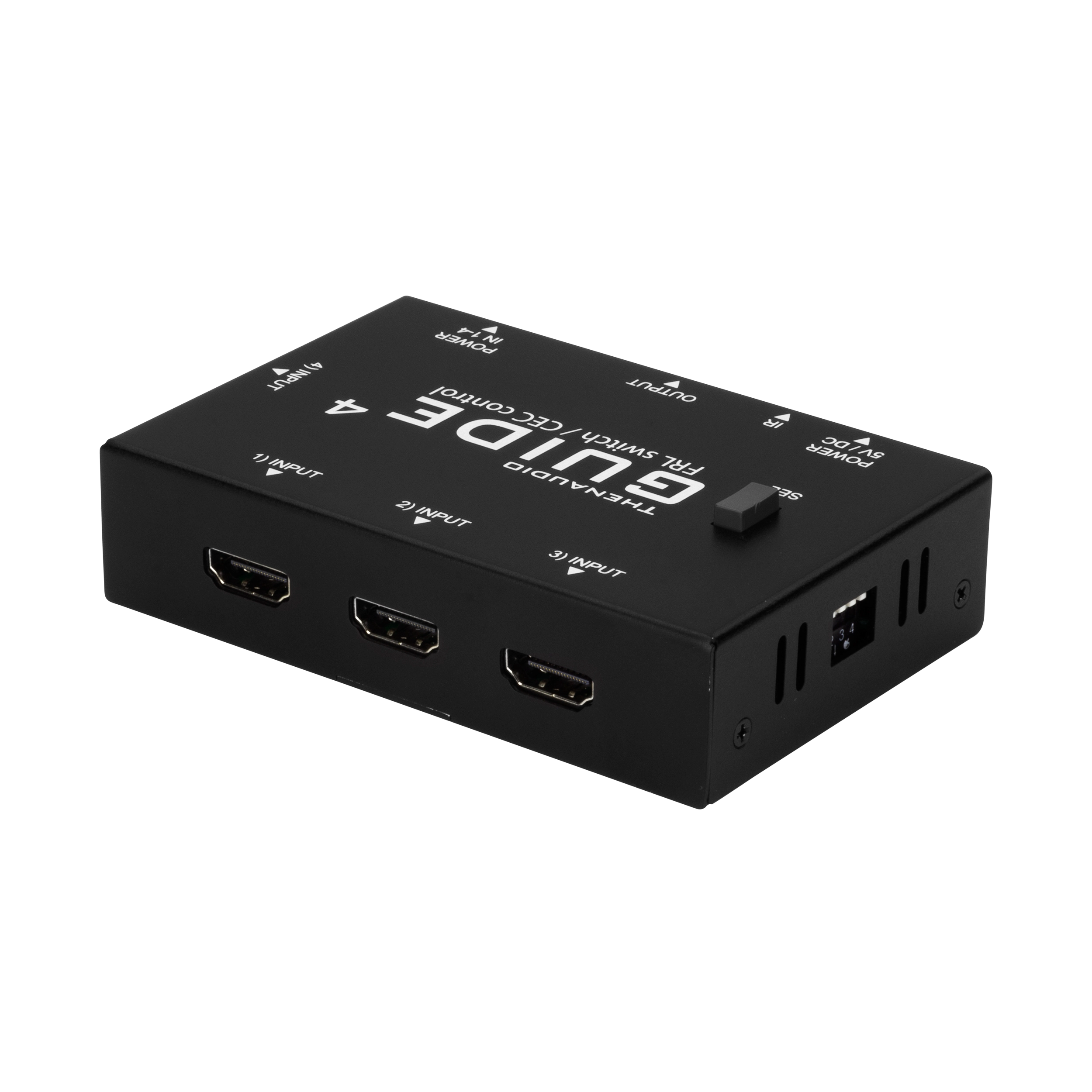

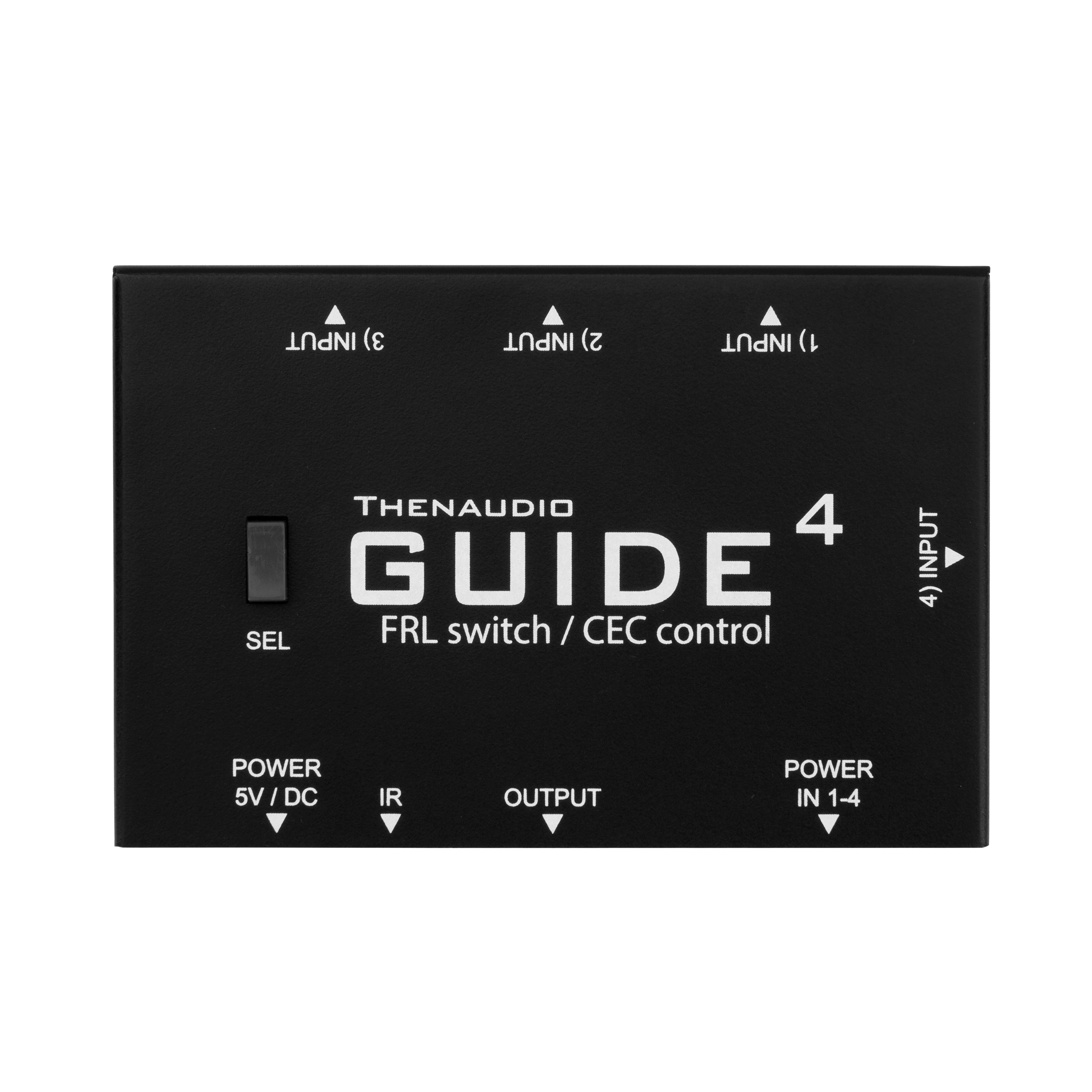

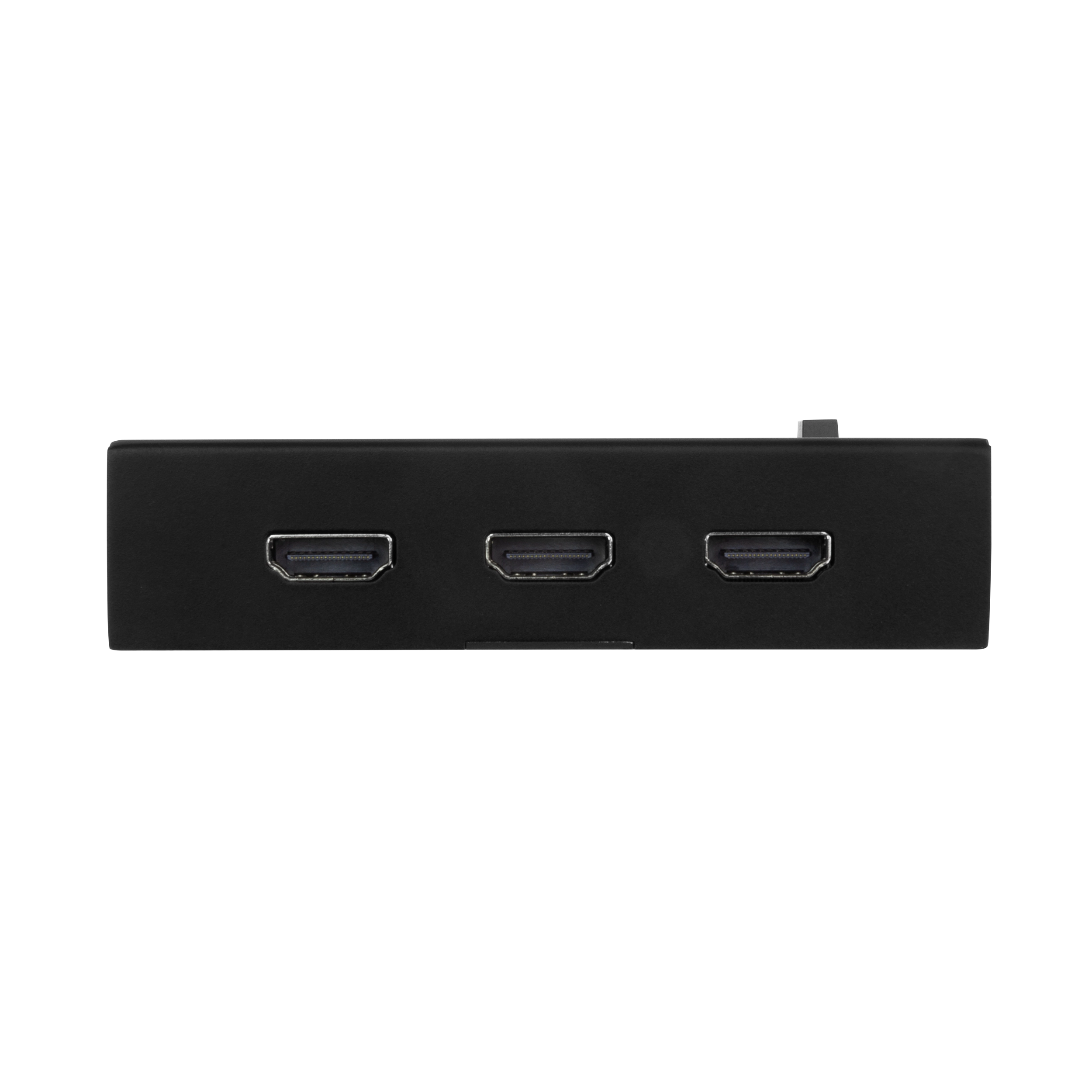

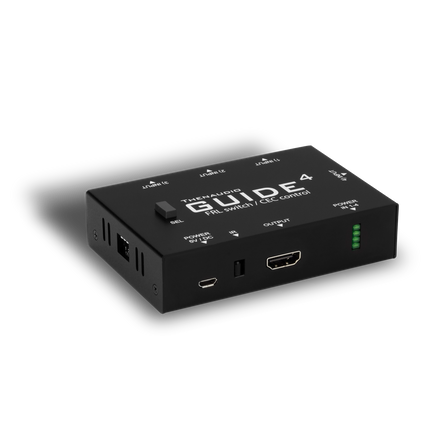

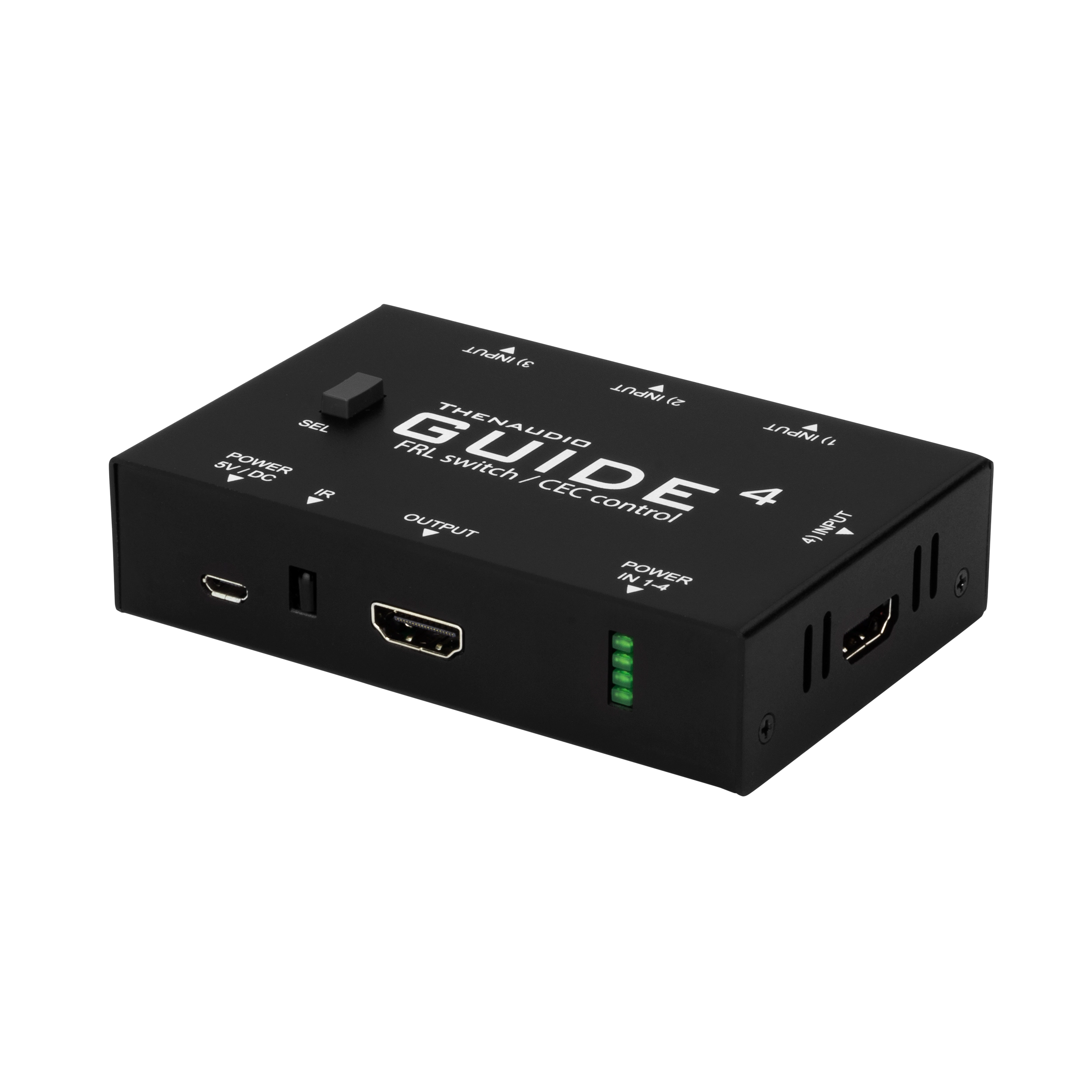

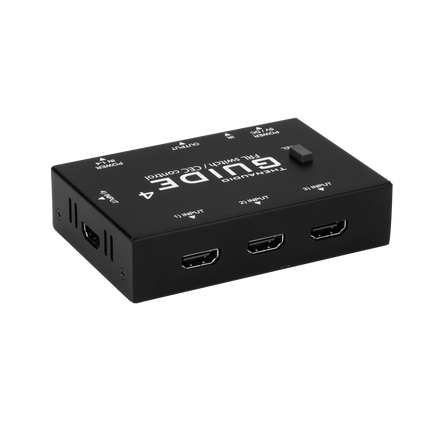

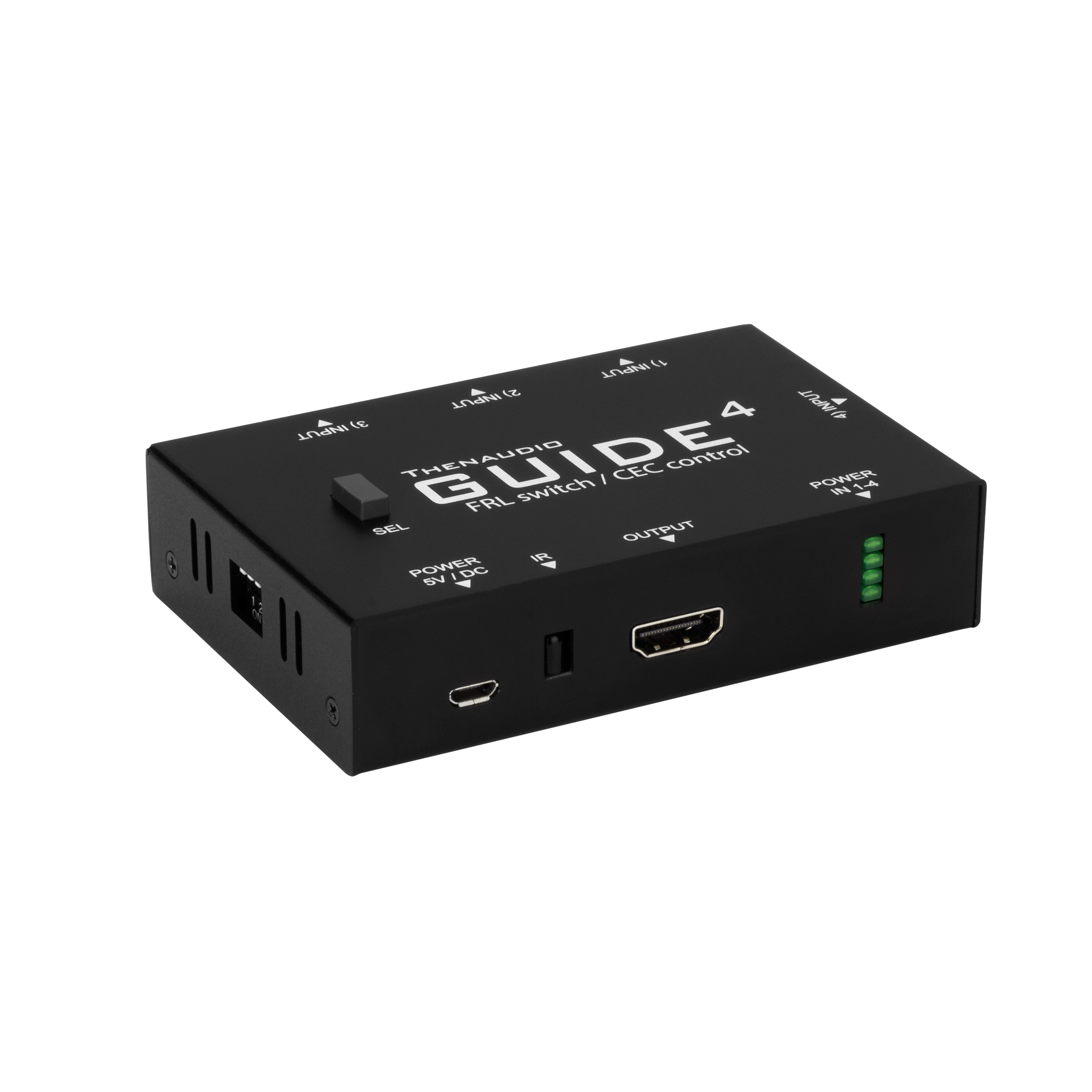

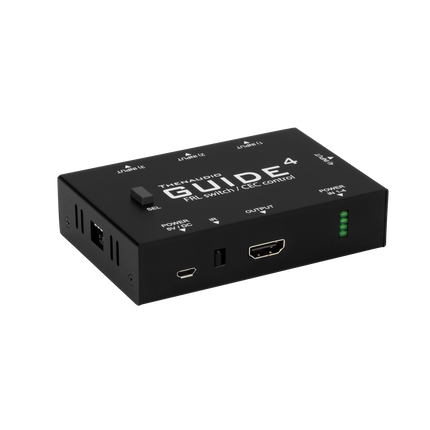

GUIDE-4 HDMI 2.1 4×1 Switch

Description

The first HDMI 2.1 Televisions and Projectors on the market may only have had a single HDMI input capable of over 18 Gbps HDMI performance. THENAUDIO’s
4-input/1-output GUIDE-4 smartly solves this dilemma for NextGen HDMI signals up to 8K/60 fps, FRL 6, and 48 Gbps. Media consoles such as PlayStation 5, Xbox Series X, a dedicated gaming PC, and even an outboard ATSC 3.0 tuner present connectivity issues for under-equipped video displays.

THENAUDIO’s comprehensive CEC interactivity enables all GUIDE-4 inputs to be visible on the TV’s CEC network scan, with the inputs appearing linked onscreen to the HDMI input the GUIDE-4 output is connected to. For example, when GUIDE-4 is connected to HDMI Input 3 of a display, the onscreen data populates under Input 3 as having four associate inputs. Additionally, the TV remote may access each of these with the actual switching occurring automatically inside the GUIDE-4. Another access feature is pressing the Menu button on the remote control for the desired source. Pressing the PlayStation 5 remote control menu button will issue a string of specific CEC commands, which GUIDE-4 will process, enabling the PlayStation to cue up its input within the TV input, then changing the TV to HDMI Input 3 (the above example).

GUIDE-4 inputs may be selected by IR command by respective device controls, third-party automation processors, or the manual onboard toggle button.

GUIDE-4 HDMI 2.1 4×1 Switch

Product form

  • Video format support up to 48Gbps FRL6 from any HDMI source
  • Supports Dolby Atmos, DTS:X
  • Supports CEC switching and command passthrough

SKU: GUIDE-4

  • Shipped today? Order within: Dec 03, 2024 13:00:00 -0600

Description

The first HDMI 2.1 Televisions and Projectors on the market may only have had a single HDMI input capable of over 18 Gbps HDMI performance. THENAUDIO’s
4-input/1-output GUIDE-4 smartly solves this dilemma for NextGen HDMI signals up to 8K/60 fps, FRL 6, and 48 Gbps. Media consoles such as PlayStation 5, Xbox Series X, a dedicated gaming PC, and even an outboard ATSC 3.0 tuner present connectivity issues for under-equipped video displays.

THENAUDIO’s comprehensive CEC interactivity enables all GUIDE-4 inputs to be visible on the TV’s CEC network scan, with the inputs appearing linked onscreen to the HDMI input the GUIDE-4 output is connected to. For example, when GUIDE-4 is connected to HDMI Input 3 of a display, the onscreen data populates under Input 3 as having four associate inputs. Additionally, the TV remote may access each of these with the actual switching occurring automatically inside the GUIDE-4. Another access feature is pressing the Menu button on the remote control for the desired source. Pressing the PlayStation 5 remote control menu button will issue a string of specific CEC commands, which GUIDE-4 will process, enabling the PlayStation to cue up its input within the TV input, then changing the TV to HDMI Input 3 (the above example).

GUIDE-4 inputs may be selected by IR command by respective device controls, third-party automation processors, or the manual onboard toggle button.

  • Key Benefits
  • Specs
  • Resources

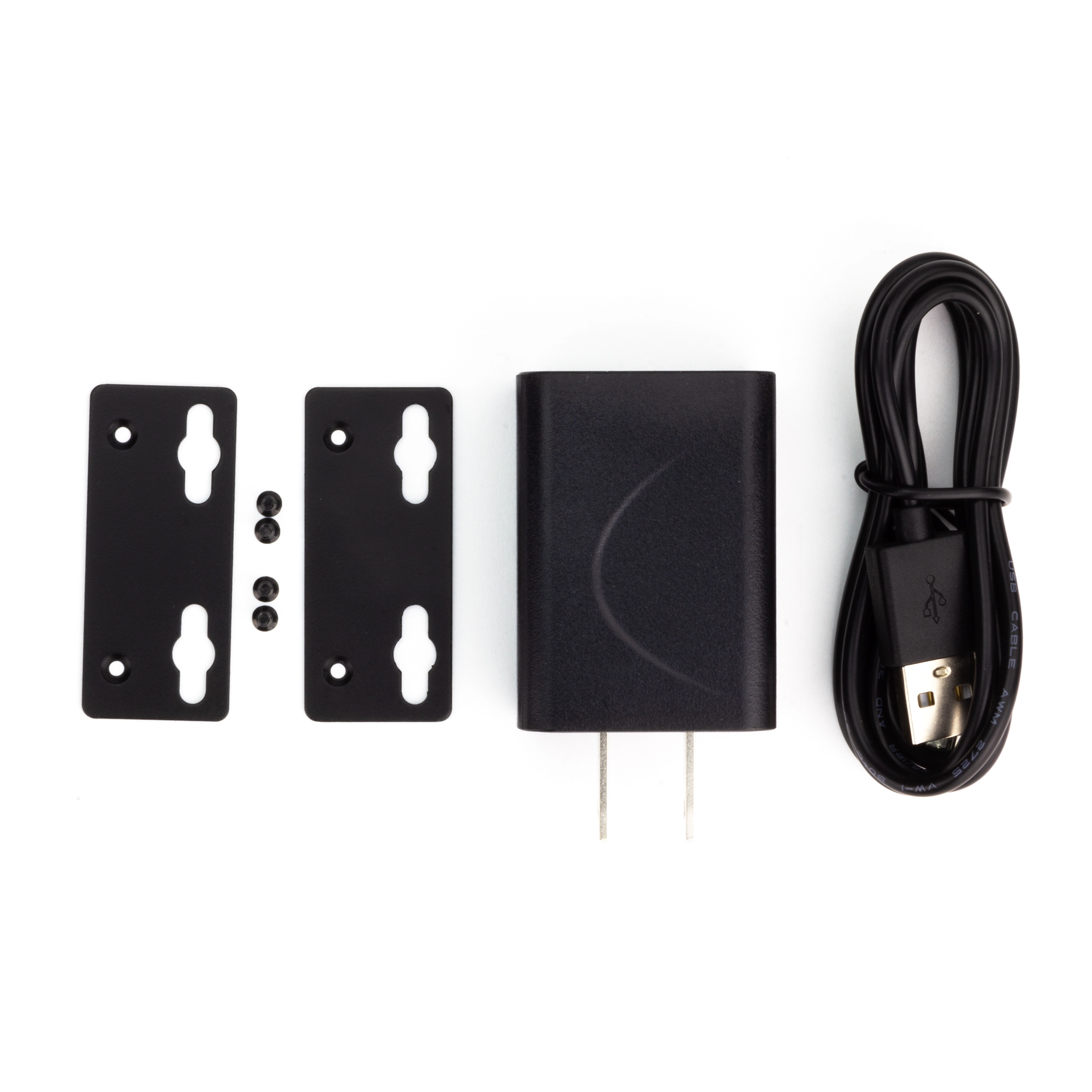

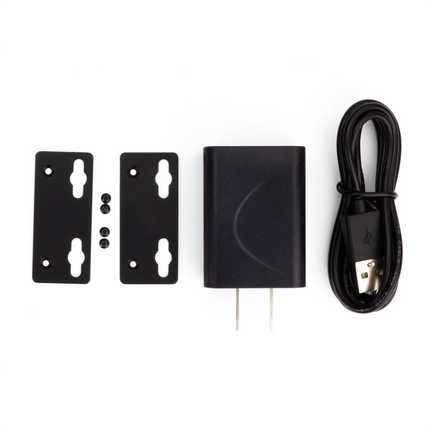

  • In the Box

Four Additional Remote-Controllable HDMI 2.1 Inputs: Each input supports 4K/120 fps, 10/12-bit HDR, 8K/60 fps, and any format up to 48 Gbps, including features such as VRR, ALLM, and others.



Audio Support: There are no limitations for all standard and 3D-immersive digital audio codecs.



CEC Identification: Each input appears on screen and is-accessible.



CEC Command Support: Each GUIDE-4 input is identified and separately addressed in the CEC information command structure while connected to a common HDMI 2.1 port on the display.



Perfect Pass-Through: Video data is never decoded or re-encoded nor undergoes any processing.



Easily Controllable Inputs: Connected Guide-4 sources may be controlled by the TV remote, or a source may be selected by pressing the Menu button on its respective remote. Third-party control is possible via IR, or inputs on the unit may be selected by toggling through the onboard manual push-button.

WEIGHT0.4 kg
DIMENSIONS11 × 7 × 3 cm
PLUG STYLEEU plug, US plug
  • GUIDE-4 processor
  • 5V power supply with US or EU plug.
