70M 18Gbps HDBaseT Receiver

Description

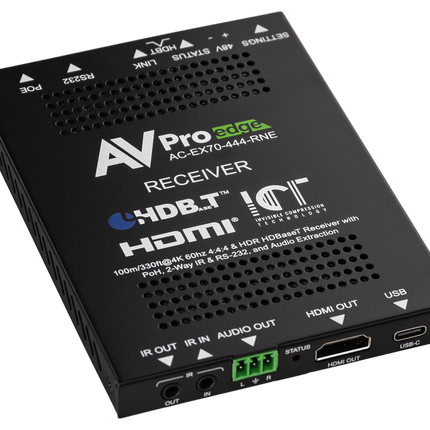

The AC-EX70-444-RNE is a revolutionary 4K60 4:4:4, HDR, and 18Gbps supported HDBaseT Receiver built to work with the AVPro Edge HDBaseT Matrix Switchers.

This HDBaseT receiver is the perfect companion to AVPro Edge's HDBaseT matrix switchers. A slim design and rich features make this small unit the ideal solution for HDR distribution. Using standard category cable you can distribute an 18Gbps signal up to 70 meters. Utilizing ICT (Invisible Compression Technology), we can deliver a virtually lossless high bandwidth 4K HDR signal with support for all signals up to 18Gbps. Deep color and HDR metadata remain intact, making the transmission free of artifacts like banding. Other similar devices will deliver a sub-par image with visible banding and color shifting.

70M 18Gbps HDBaseT Receiver

Product form
  • HDBaseT Receiver
  • HDMI 2.0
  • 18Gbps Bandwidth Support (using ICT)
  • Full HDR Support

SKU: AC-EX70-444-RNE

  • Shipped today? Order within: Jul 22, 2024 13:00:00 -0500

Description

The AC-EX70-444-RNE is a revolutionary 4K60 4:4:4, HDR, and 18Gbps supported HDBaseT Receiver built to work with the AVPro Edge HDBaseT Matrix Switchers.

This HDBaseT receiver is the perfect companion to AVPro Edge's HDBaseT matrix switchers. A slim design and rich features make this small unit the ideal solution for HDR distribution. Using standard category cable you can distribute an 18Gbps signal up to 70 meters. Utilizing ICT (Invisible Compression Technology), we can deliver a virtually lossless high bandwidth 4K HDR signal with support for all signals up to 18Gbps. Deep color and HDR metadata remain intact, making the transmission free of artifacts like banding. Other similar devices will deliver a sub-par image with visible banding and color shifting.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Invisible Compression Technology: ICT revolutionized HDMI extension technology implemented into HDBaseT. Bandwidth limitations with 4K signals sent through copper category 5E, 6, and 6A cabling are overcome by our proprietary algorithm. Compatible with all HDR and high-bitrate audio codec metadata, the highest quality display devices remain artifact-free when accepting ICT signals.



Extend 4K60 4:4:4 with HDR Signals: HDCP was conceived to assure content holders copy protection for their media. The 19 conductor HDMI format was designed to facilitate this process when transporting media between devices, using a total of 8, small gauge wires to handle video information with the bulk of those remaining devoted to system policing. It wasn’t envisioned that sources would be placed elsewhere than the immediate display location, and the first HDMI cable designs dramatically exemplified these inherent problems with a useable HDMI cable length barely exceeding fifteen feet. Over time, this thankfully has been addressed in a variety of well-sorted ways, including AVPro Edge Bullet Train cables. Still, there are no “on-site, made to length” HDMI cables however with unrivaled ease, the extraordinary AC-EX70-444-RNE extends a high bandwidth UHD 4K source an impressive two hundred and thirty feet including Dolby Vision, HDR10, HDR10+, or HLG.



On-board Troubleshooting: Leave your Fox & Hound test kit behind in the shop? The AC-EX40-444-KIT has you covered. When required, the transmitter can generate a 1080P or 4K test pattern to aid with wire verification, switcher configuration settings, or source viability.



Bi-Directional IR & RS232 Management: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa. Send control signals up to 70 meters over HDBaseT to accomplish long distance device control allowing for more flexibility in system design and installation.

Video:
Video ResolutionsUp to 4K 60Hz 4:4:4
VESA ResolutionsUp to DCI 4K (4096x2160)
HDR Formats/Resolutions420, 422, 444 (10 and 12 Deep Color)
HDR10, HDR10+, Dolby Vision (24/30 Frames), HLG, Dolby Vision
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080), Up to 12 bit (4K)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (2CH Port)PCM 2 Ch (No Downmix)
Distance:

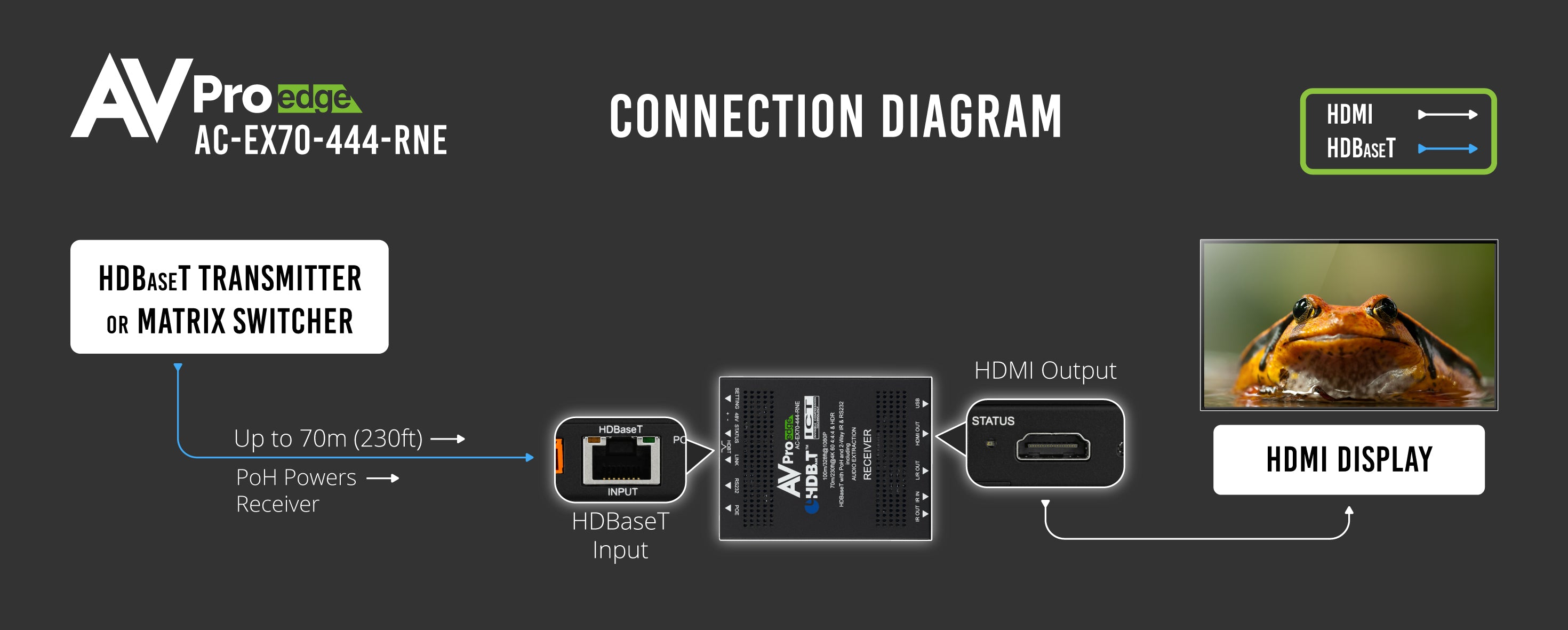

HDBaseT (CAT) Distance (4K)70 Meters / 230 Feet (Cat 6a)
HDBaseT (CAT) Distance (Full HD)100 Meters / 330 Feet (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4)Up to 50 Feet (using Bullet Train HDMI)
HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4)Up to 130 Feet (using Bullet Train AOC)
Other:
Bandwidth18 Gbps (W/ ICT)
HDCPHDCP 2.3 and Earlier

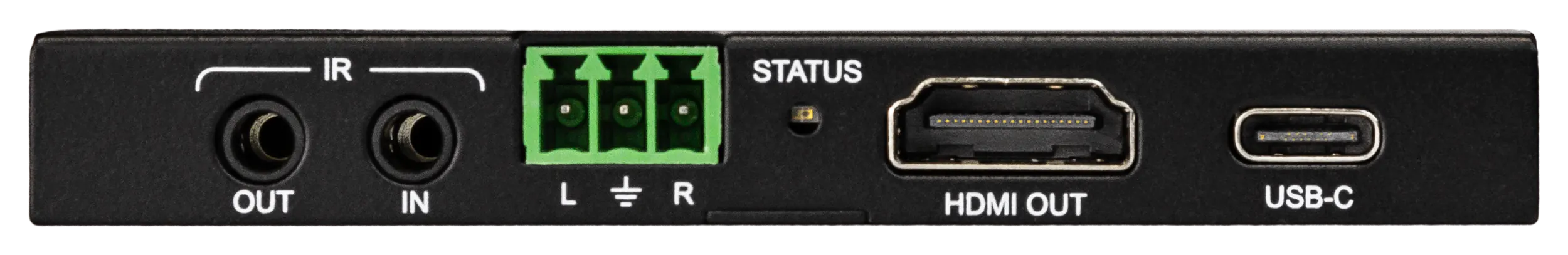

Ports:
HDMI Type A
HDBaseTRJ45 w/ PoH for HDBaseT Receivers
Audio (Extracted Analog)3 pin terminal block (Unbalanced)
IR TX3.5MM Mono (2 Conductor)
IR RX 3.5mm Stereo (3 Conductor)
RS-232 3 Pin Terminal Block
Power  2 Pin Terminal Block
Environmental:
Operating 23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)12 Watts Max
Power Supply - MatrixInput: AC 100-240V ~ 50/60Hz
Output: DC 48V 0.5A
Dimensions:
Dimensions (Unit Only Height/Depth/Width)mm: 132 X 100 X 18
inch: 5.19 X 3.94 X 0.69
Dimensions (Packaged Height/Depth/Width)mm: 137 X 194 X 45
inch: 5.38 X 7.62 X 1.75
Weight (Unit)0.5 lb/0.23 kg
Weight (Packaged)1 lbs/0.45 kg
*Specifications subject to change without notice.  Mass & dimensions are approximate

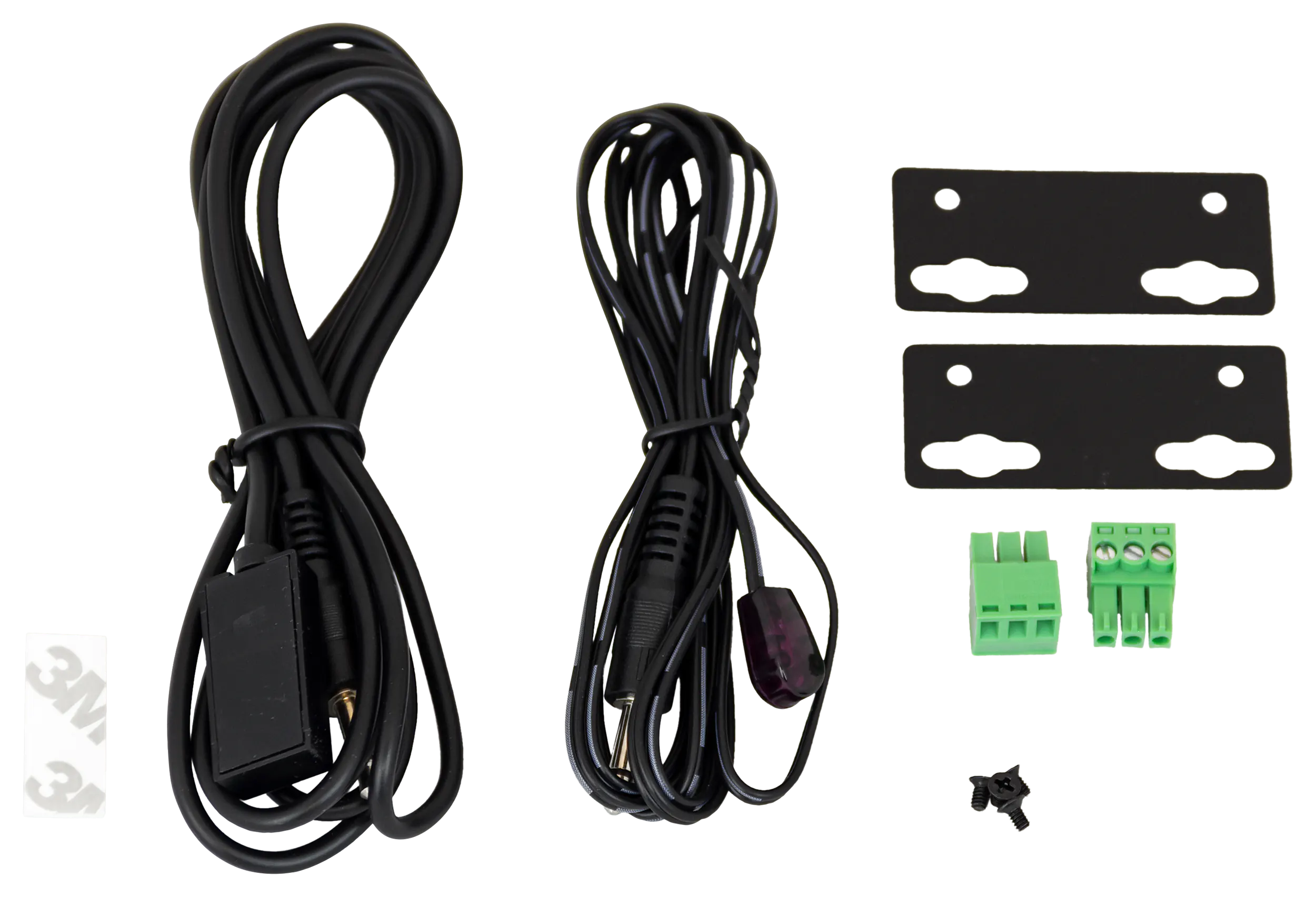

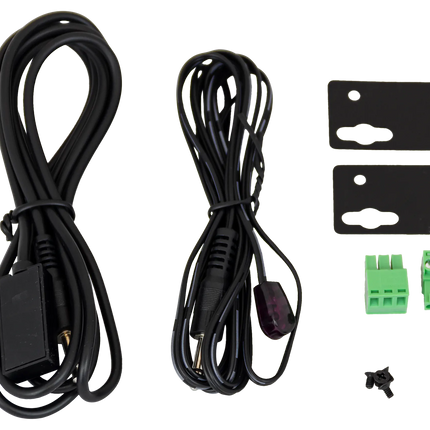

  • AC-EX70-444-RNE (Receiver)
  • 2 x 3 Pin Terminal blocks for Audio and RS232 Ports
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets

*Optional 3 Pin to Stereo Audio Cables available for purchase
