HDMI Wall Plate Transmitter via HDBaseT

Description

This single gang, HDBaseT wall plate transmitter is a part of ConferX’s line of professional audio video products. Installing this sleek transmitter is a breeze as it’s built to fit any standard single gang mug ring, but its sleek design is only the beginning. If using the AC-EX70-444-RNE-P, the AC-CXWP-HDMO-T can transmit an HDMI or USB-C signal over CAT 6a for up to 100 meters when using 1080p, and up to 70 meters with working with 4K. The entire ConferX line of products is built to military-grade standards to ensure stable connections for long periods. We are so sure about that. It comes with our no-nonsense 10-year warranty.

Simplify installations in schools, offices, meeting rooms, and huddle rooms. Once integrated into your client’s system, they now have the perfect solution for sharing information from any computer or source. This unit is designed to work flawlessly with all PC, VESA, and traditional resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. With the AC-CXWP-HDMO-T, you get a sleek look your client will like, a stable connection that lasts, and a product that works seamlessly with any source you throw at it.

Welcome to ConferX, the professional choice for video distribution solutions.

HDMI Wall Plate Transmitter via HDBaseT

Product form

  • HDMI Auto Sensing Input
  • HDCP 2.2
  • Single-gang, Low Heat
  • EDID Management

SKU: AC-CXWP-HDMO-T

  • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

Description

This single gang, HDBaseT wall plate transmitter is a part of ConferX’s line of professional audio video products. Installing this sleek transmitter is a breeze as it’s built to fit any standard single gang mug ring, but its sleek design is only the beginning. If using the AC-EX70-444-RNE-P, the AC-CXWP-HDMO-T can transmit an HDMI or USB-C signal over CAT 6a for up to 100 meters when using 1080p, and up to 70 meters with working with 4K. The entire ConferX line of products is built to military-grade standards to ensure stable connections for long periods. We are so sure about that. It comes with our no-nonsense 10-year warranty.

Simplify installations in schools, offices, meeting rooms, and huddle rooms. Once integrated into your client’s system, they now have the perfect solution for sharing information from any computer or source. This unit is designed to work flawlessly with all PC, VESA, and traditional resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. With the AC-CXWP-HDMO-T, you get a sleek look your client will like, a stable connection that lasts, and a product that works seamlessly with any source you throw at it.

Welcome to ConferX, the professional choice for video distribution solutions.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

UHD over Category Cable - The length of manufactured HDMI cable is unchangeable after it’s made, and they are unreliable after about 25FT. HDMI connectors can only be terminated in a specialized factory environment due to their extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. On the other hand, CAT-6A cables are available widely and can be reworked easily by the installer or end-user.



Distance - By using AC-CXWP-HDMO-T, the transmission distance for HD 1080P is 100 meters (330ft) & 4K is up to 70 meters (230ft)

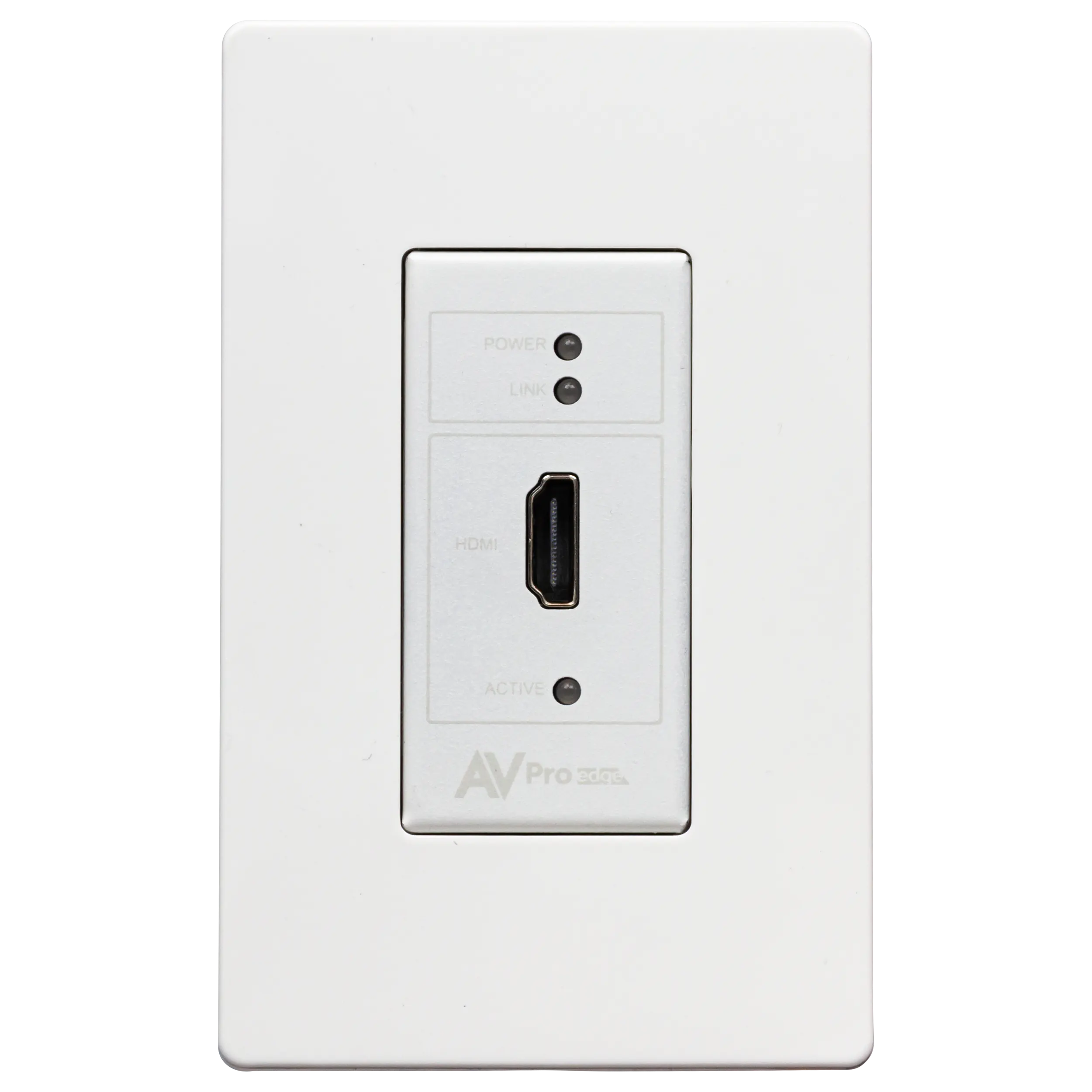

Auto Sensing - This wall plate is designed to be a “Set it & forget it” piece of hardware. When the user plugs in their device, the wall plate automatically senses the signal and makes it active. With indicator lights on the face of the wall plate, you know whether or not you have a solid connection or not.

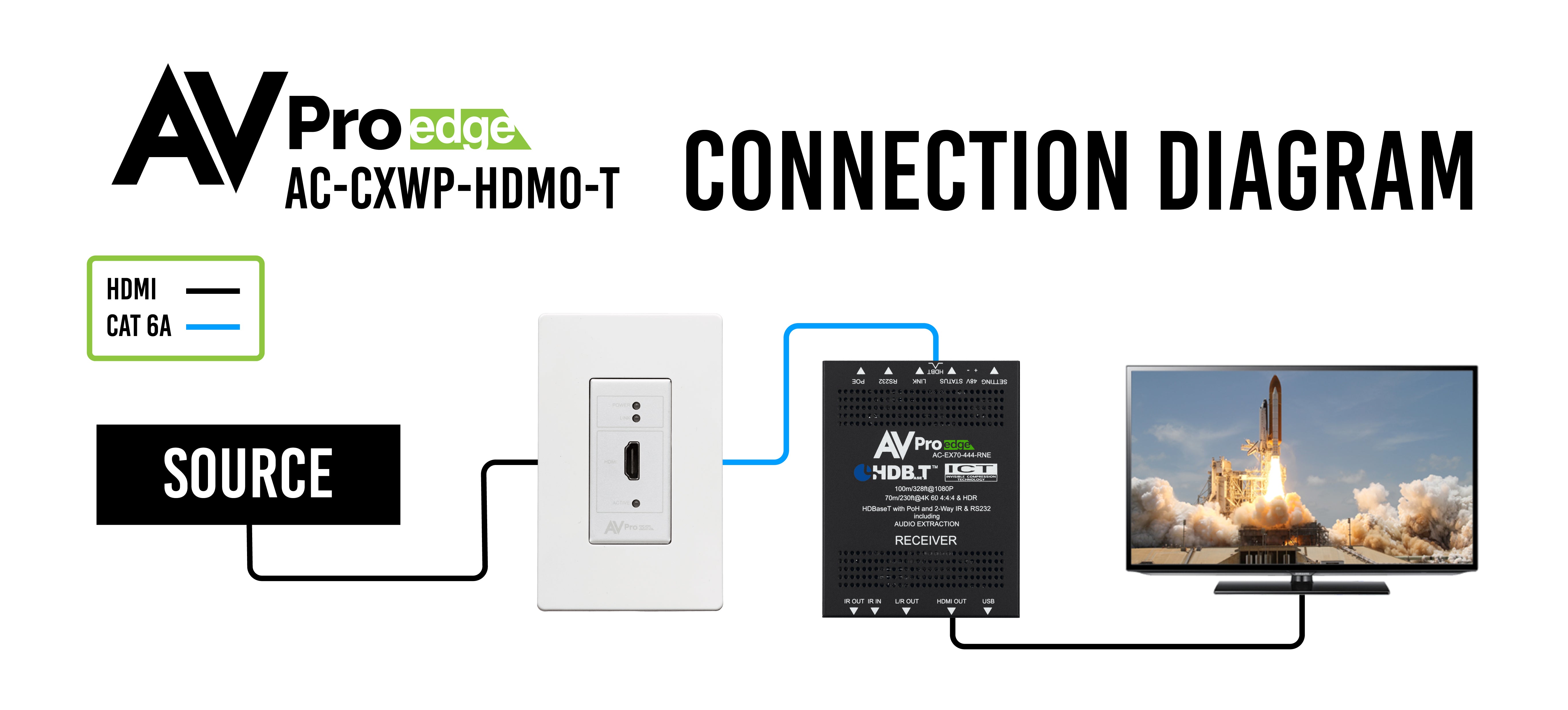

Power - No local power is required when you use the AC-CXWP-HDMO-T. Power is provided by ultra-stable PoE technology. Optionally, you can power it locally with any HDBaseT Receiver or projector that takes HDBaseT input.



Single Gang - Save space and make a squeaky clean installation with the single gang configuration. This wall plate fits in more places than ever. It’s perfect for mounting in a wall, on a desk or podium top, or any other place where you need a solid and sleek HDMI connection.



Video:
Video ResolutionsUp to 4K 60Hz 4:2:0 & 4k30 4:4:4
VESA ResolutionsUp to 2560x2048 (QSXGA)
HDR Formats/Resolutions4k24 4:2:2 12 bit, 4k24 4:2:0 10 bit
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 BIT (1080), Up to 12 bit (4K)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Distance:
Distance 1080p100m (330 feet) (With CAT 6a/7)
Distance 4K & HDR70m (230 feet) (with CAT 6a/7)
Other:
Bandwidth10.2 Gbps
CECYes
HDCPHDCP 2.2 and Earlier
Ports:
HDMI (Input)Type A
HDBaseT (Output to Receiver)RJ45
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)8 watts (16.5 when paired with receiver)

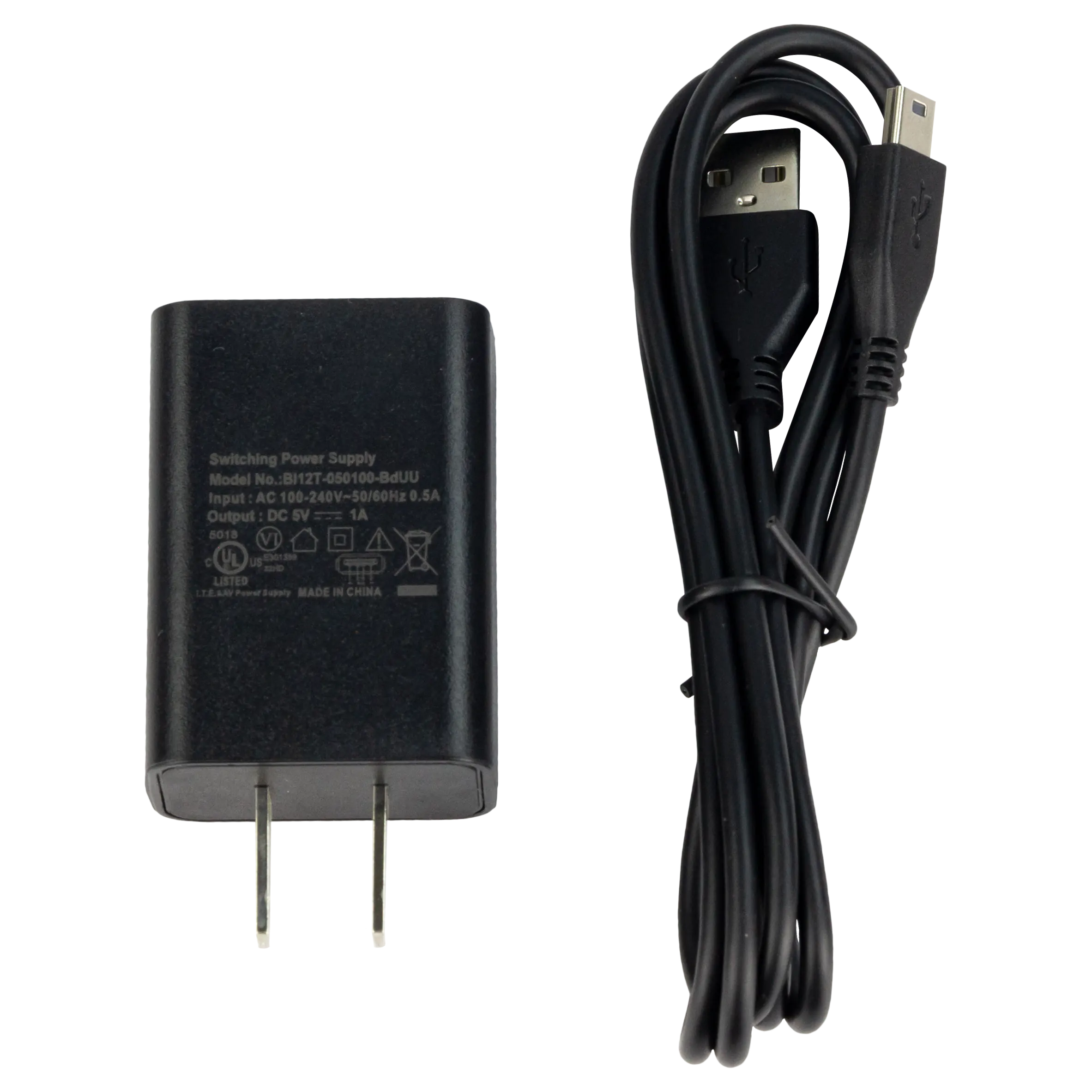

Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 5V (mini USB)
Dimensions:
Dimensions (Single Unit Only) (Length/Width/Height) mm: 70 x 65 x 31
inch: 2.75 x 2.55 x 1.22
(without wall Decora cover)
Wall spaceSingle-gang
Compatible Box TypesMud Rings, Stud Mount, Clamp Mount, Metal & Plastic Boxes, LV Boxes
Dimensions
(Packaged Length/Width/Height)
mm: 159 x 137 x 89
inch: 6.25 x 5.375 x 3.5
Weight (Unit)0.4lbs (0.18Kg)
Weight (Packaged)0.5lbs (0.23Kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate

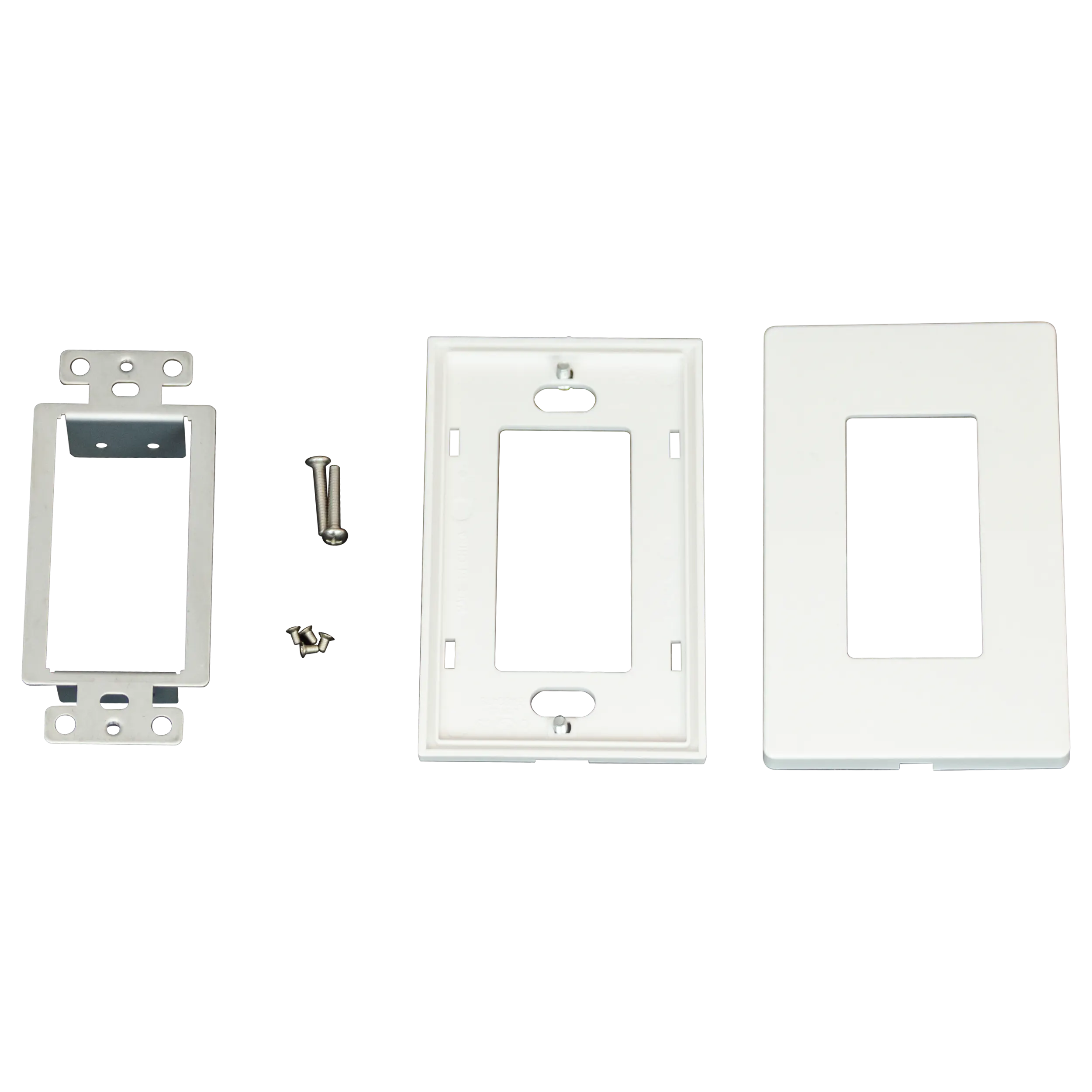

  • AC-CXWP-HDMO-T transmitter unit
  • 1 x decora wall plate cover (white)
  • 2 x long electrical outlet screws

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
