12x12 Audio-Only Matrix Switching Aggregation Hub

Description

Proof innovation never tires at AVPro Edge is found in this departure from our regular cadence of intensive video technologies development, as we introduce our first full width chassis product dedicated solely for audio use, the AC-AEX-RC-HUB. An engineering contemplation brought to fruition, it was conceived to harvest as many as eight decentralized audio-oriented sources at various distances from a centrally located third-party distribution system -  joining four additional audio sources neighboring the AC-AEX-RC-HUB, then aggregated into a common endpoint with matrixing capabilities for seamless  system integration. Control is mastered from the AVPro Edge GUI, or the API interfaces with automation systems like Control 4, Crestron, Elan, Savant and more to transparently traffic audio signals discretely behind the scenes.

    12x12 Audio-Only Matrix Switching Aggregation Hub

    Product form
    • AC-AEX-T transmitter required for PoC 328ft (100m) using Unshielded Twisted Pair 426ft (130m) using Shielded Twisted Pair
    • 12 digital Toslink and analog RCA stereo outputs with AVPro Edge Dual-Play simultaneous output
    • Retrieve audio from TV-led apps and built-in ATSC tuners from displays for playback on architectural speakers
    • Includes a future-use input provision for Web-based audio such as Josh.ai VoiceCast.
    • Expand audio capabilities of video matrix switchers to an additional 12 zones

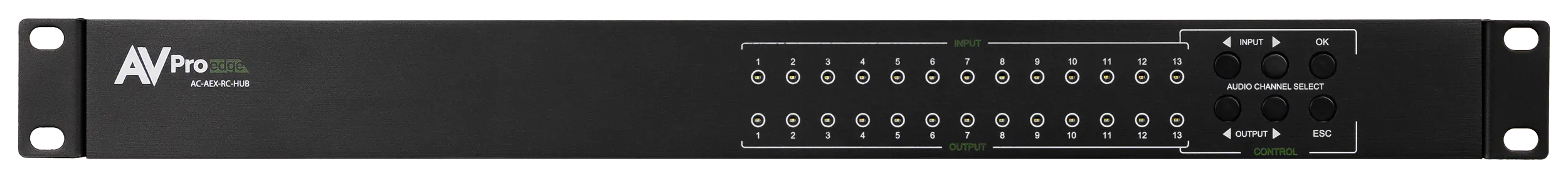

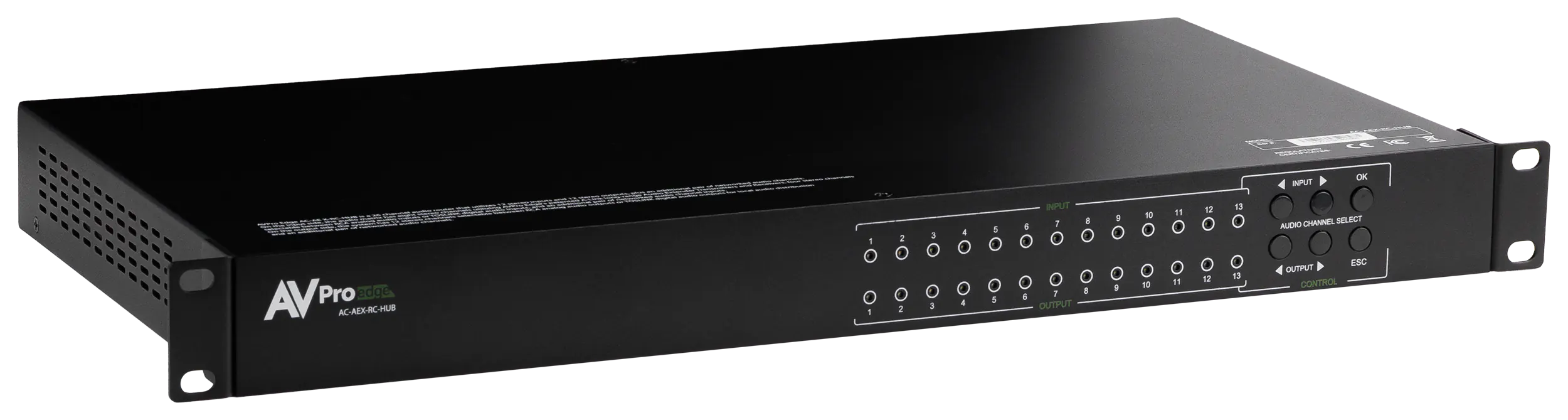

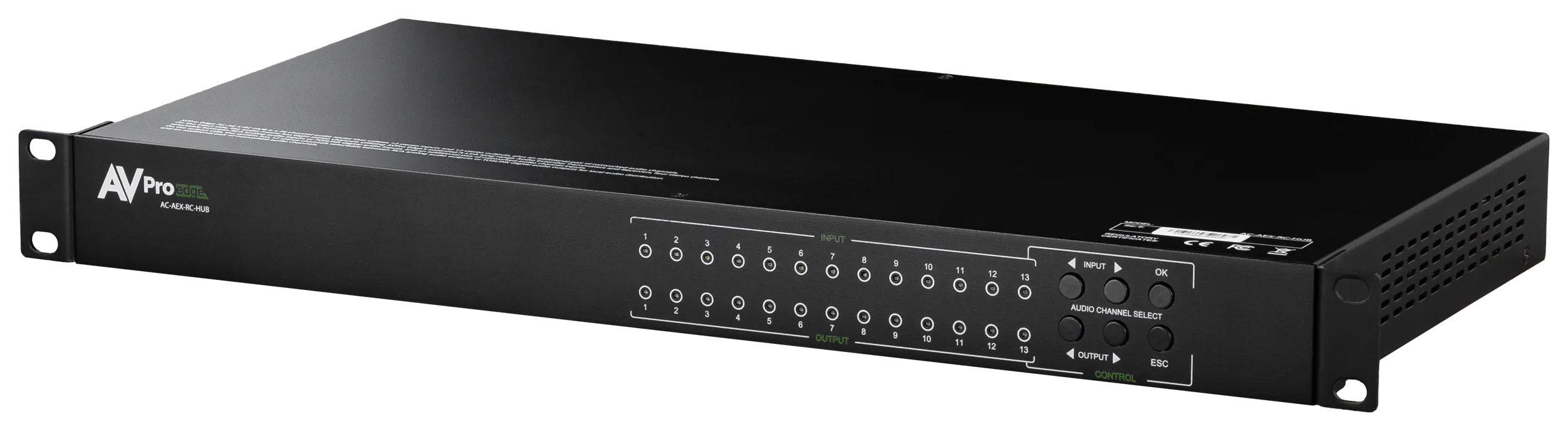

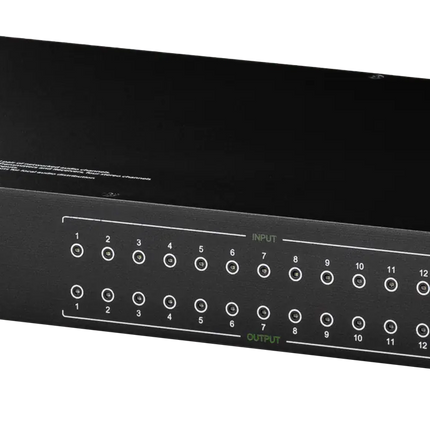

    SKU: AC-AEX-RC-HUB

    • Shipped today? Order within: Apr 21, 2024 13:00:00 -0500

    Description

    Proof innovation never tires at AVPro Edge is found in this departure from our regular cadence of intensive video technologies development, as we introduce our first full width chassis product dedicated solely for audio use, the AC-AEX-RC-HUB. An engineering contemplation brought to fruition, it was conceived to harvest as many as eight decentralized audio-oriented sources at various distances from a centrally located third-party distribution system -  joining four additional audio sources neighboring the AC-AEX-RC-HUB, then aggregated into a common endpoint with matrixing capabilities for seamless  system integration. Control is mastered from the AVPro Edge GUI, or the API interfaces with automation systems like Control 4, Crestron, Elan, Savant and more to transparently traffic audio signals discretely behind the scenes.

      • Key Benefits
      • Specs
      • Resources
      • In the Box



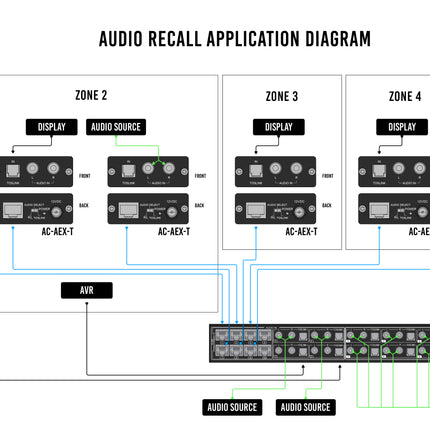

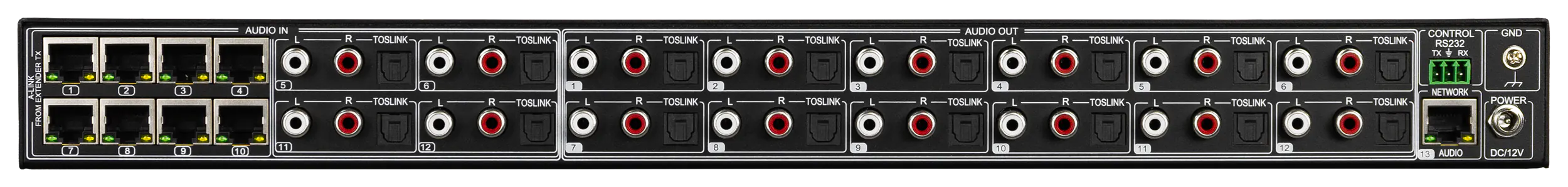

      12 AUDIO INPUTS, 8 VIA POWER OVER CABLE (POC) - The AC-AEX-RC-HUB configuration features 12 audio inputs and 12 audio outputs with I/O connections using Toslink or analog RCA, with eight of the inputs uniquely designed for retrieving audio from sources located remotely from core system distribution components, via Power over Cable (PoC) Ethernet category cable. Distances up to 100m are possible with Unshielded Twisted Pair, extending to 130m when using Shielded Twisted Pair.
      NOTE: An AVPro Edge AC-AEX-T Digital/Analog Audio Extender Transmitter (not included with the AC-AEX-RC-HUB) must be paired to each of these eight inputs for complete operation.

      AC-AEX-T IN-RACK USE - Transmitters may also be placed in the system rack, connecting to the AC-AEX-RC-HUB with short RJ-45 jumpers for rack-based sources such as multi-output music streamers and satellite radio tuners. AC-AEX-T units will fit the AC-EZRACK-15 for a clean rack environment.

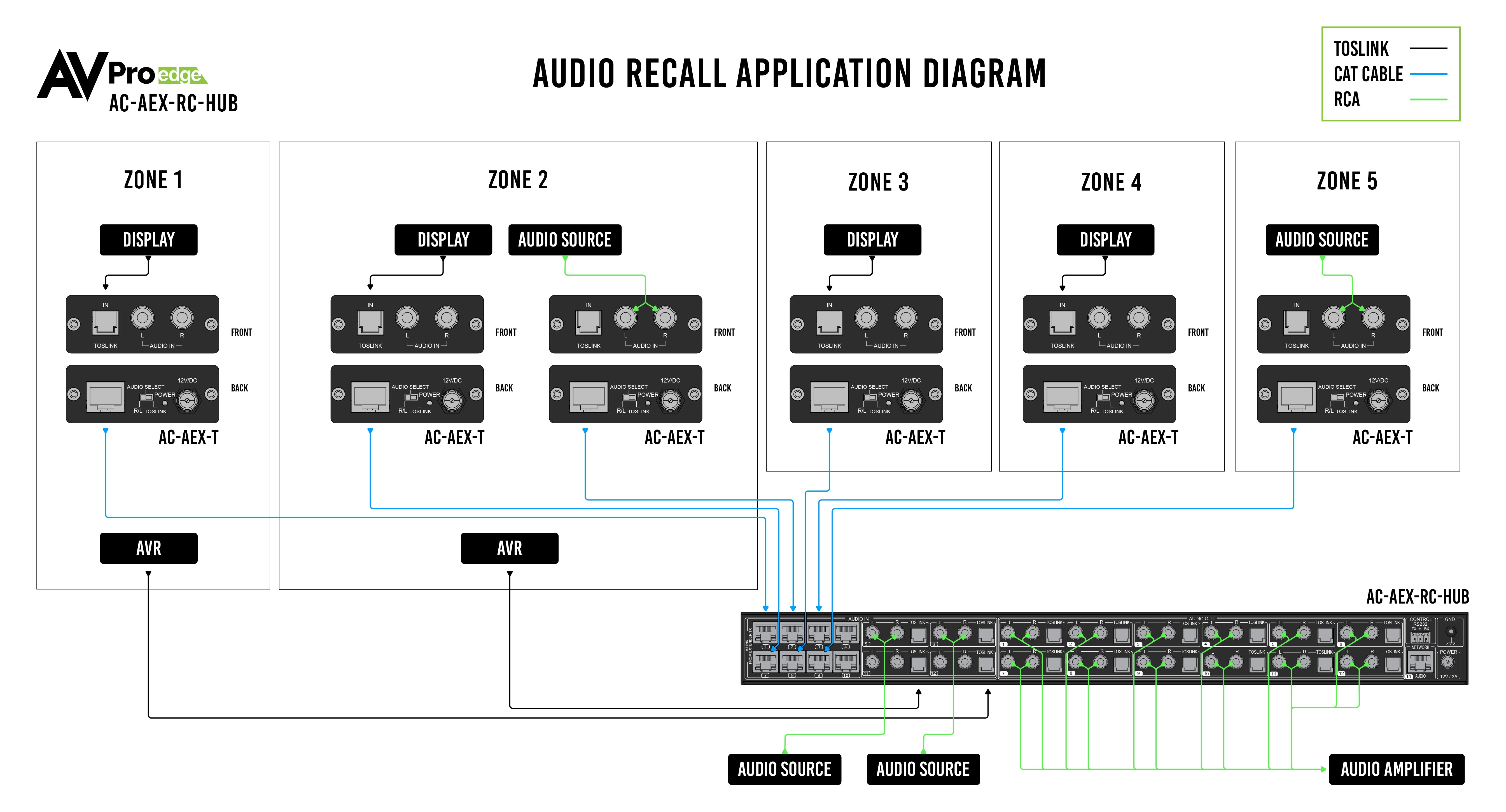

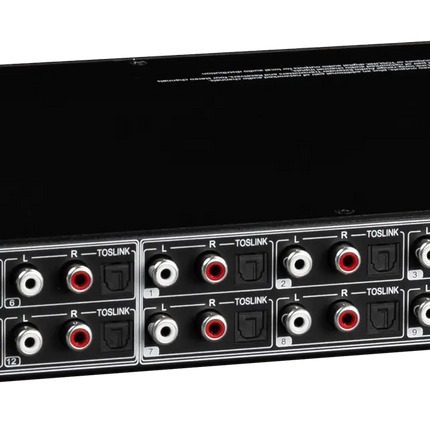

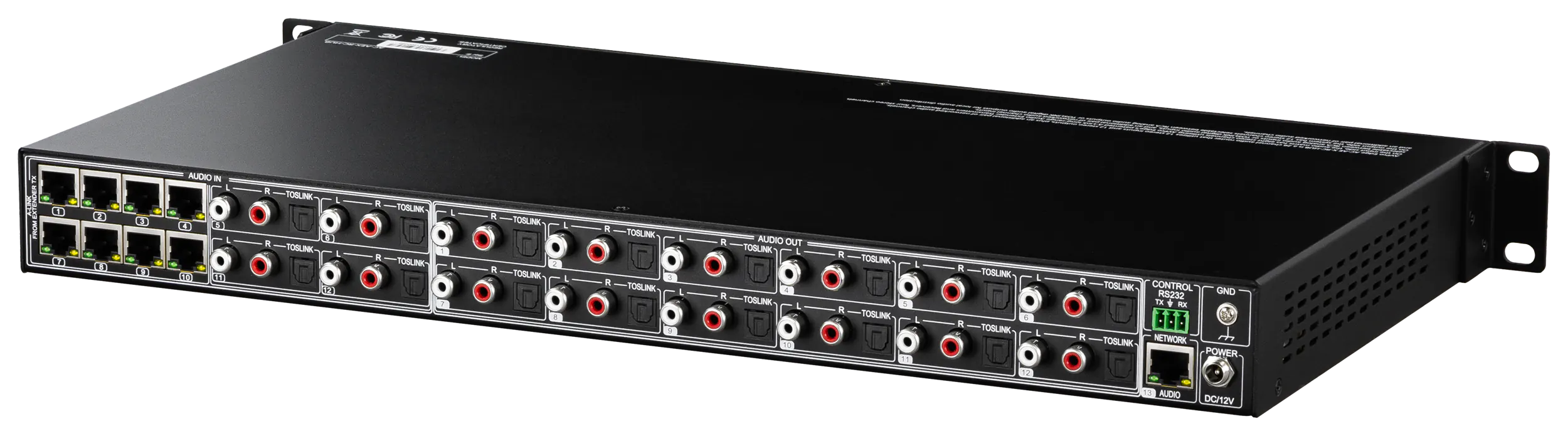

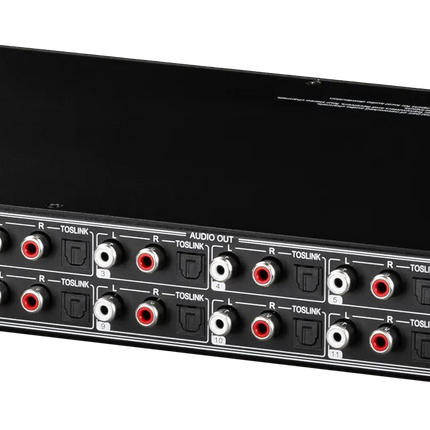

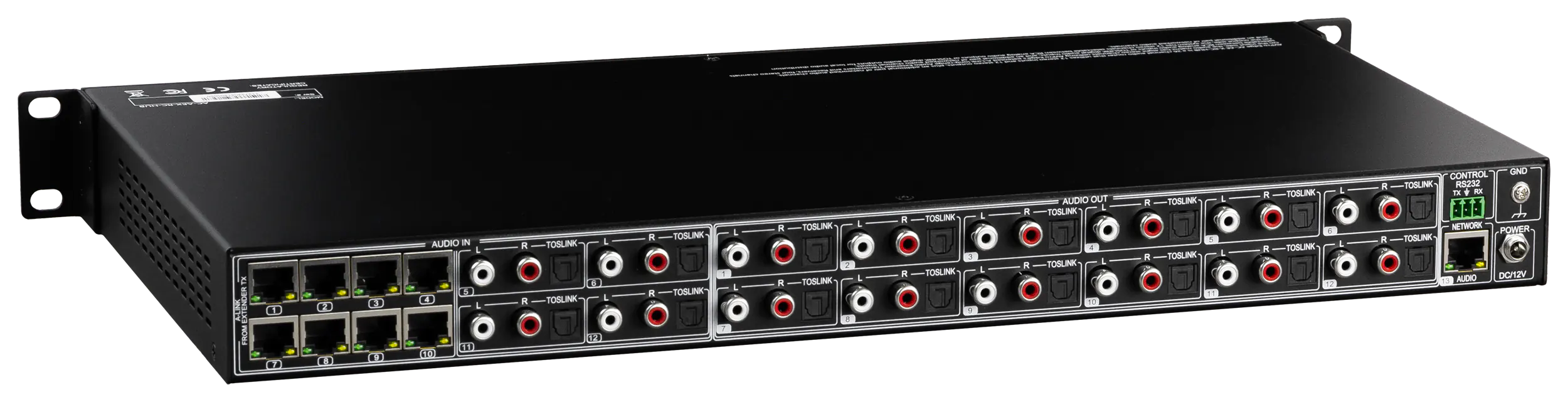

      12 AUDIO OUTPUTS - Toslink signals are 2 CH PCM stereo (there is no multichannel downmixing) and analog signals are Left/Right stereo via RCA connectors. Signal is simultaneously output for both formats.

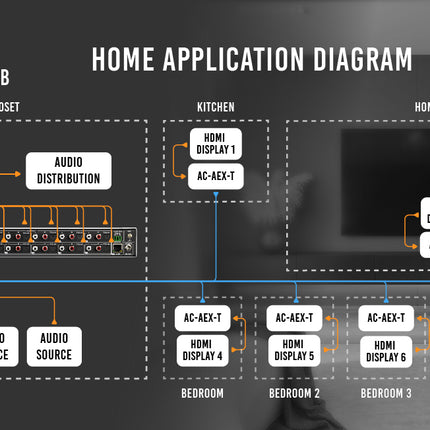

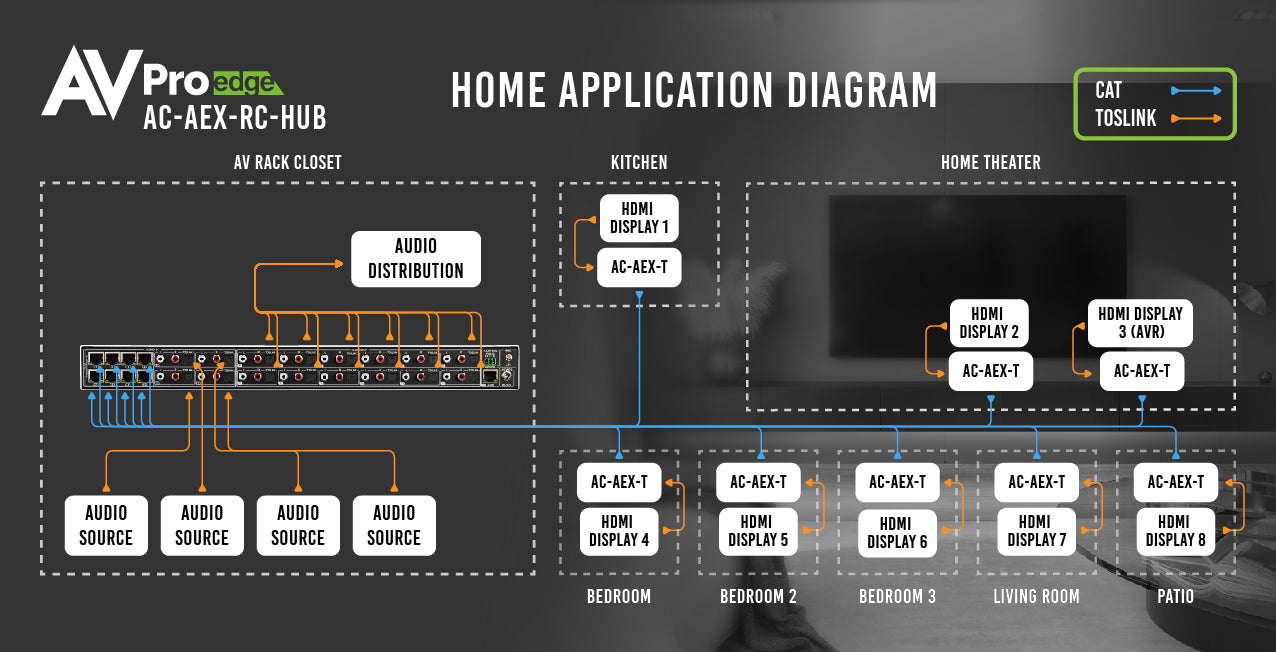

      TV AUDIO FROM ARCHITECTURAL SPEAKERS - The AC-AEX-T transmitter may be inconspicuously placed behind the thinnest OLED, sending audio from TV-led apps or ATSC tuners back to the AC-AEX-RC-HUB for routing to the system, then passing on to architectural speakers in the TV location through system distribution components. No need for difficult to conceal mini-amplifiers, often unusable on certain TV brands, requiring more cable management.

      EXPAND AUDIO OUTPUTS ON MANY AVPRO EDGE VIDEO MATRICES - System designs often consist of more audio-oriented areas than video destinations. Another interesting application for AC-AEX-RC-HUB is expansion of the audio outputs from a video matrix, such as the AVPro Edge Axion series, to 12 additional zones. Make audio from the big game available in areas where video is impractical.

      AUDIO ADJUSTMENTS - 7 onboard pre-set EQ curves shape the sound as desired, plus output volume and Lt/Rt balance may be tailored to meet your needs.

      Audio:
      MuteAvailable on all Outputs
      Analog Input Voltage1Vrms, 2.3 Vp-p
      Analog Output Voltage1Vrms, 2.828 Vp-p
      Digital2 Channel PCM, Supported rates
      32, 44.1, 48, 88.2, 96, 176, 192 kHz
      Latency30ms
      Control:
      InterfacesRS-232, IP/LAN
      Audio Inputs:
      AEX Audio8
      RCA4
      Digital (TOSLINK)4
      Audio Outputs:
      AEX Audio0
      RCA12
      Digital (TOSLINK)12
      Power:
      Power Consumption (Total)3 watts max
      DC PowerDC 12V 1A
      Dimensions:
      Dimensions
      (Single Unit Only HEIGHT/WIDTH/DEPTH)
      MM: 44.45 x 444.5 x 234.95
      INCH: 1.75 x 17.5 x 9.25
      Dimensions
      (Packaged HEIGHT/WIDTH/DEPTH)
      MM: 127 x 571.5 x 381
      INCH:  5 x  22.5 x 15
      Weight (Single Unit only)6.6 LBs  (2.99 KG)
      Weight (Packaged)9lbs (4.08KG)
      *Specifications subject to change without notice.  Mass & dimensions are approximate

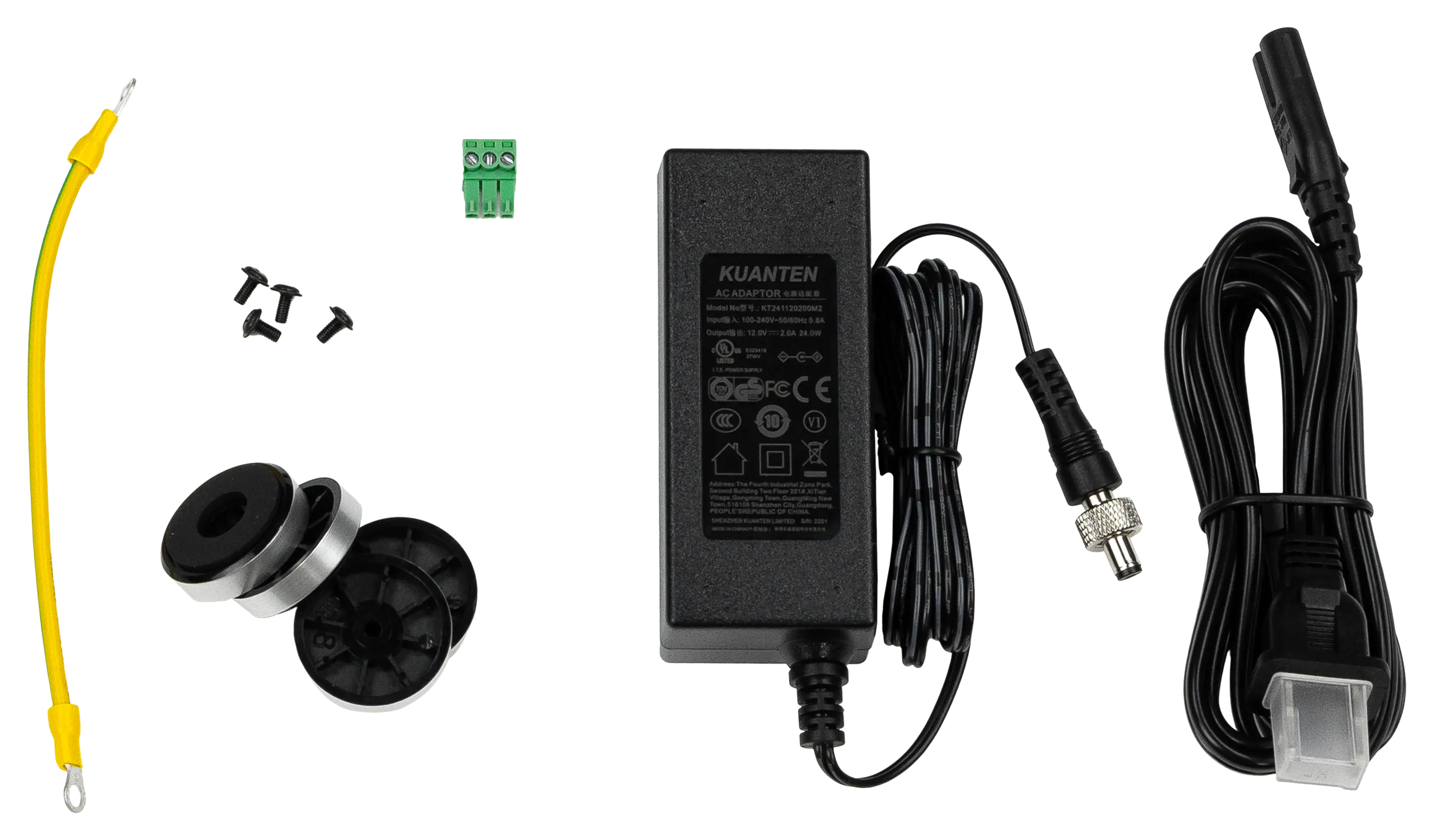

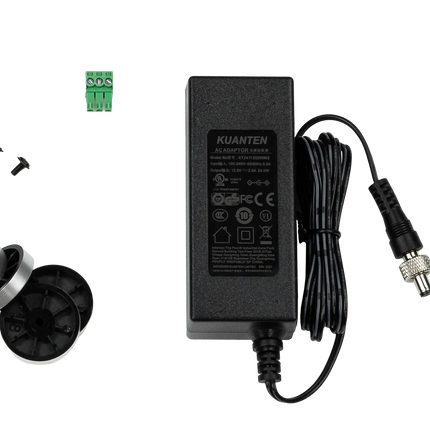

      • AC-AEX-RC-HUB (Audio Matrix Switching Hub)
      • 12V/2A Locking Power Supply
      • 1 x Three Pin Terminal Block
      • 2 x Rack Mounting Brackets (attached)
      • 4 x Rubber Feet and Screws
      • 1 x Rack Grounding Wire

      WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
      ​For more information, go to www.P65Warnings.ca.gov.
