70M 10Gbps HDBaseT Extender Kit with ARC

Description

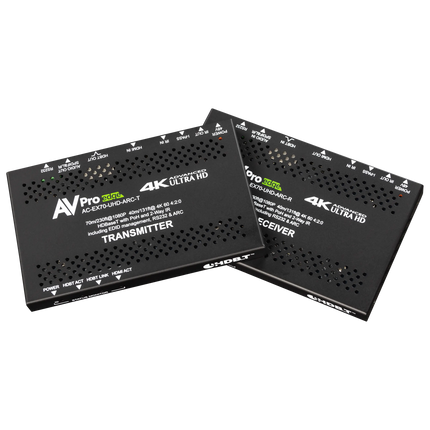

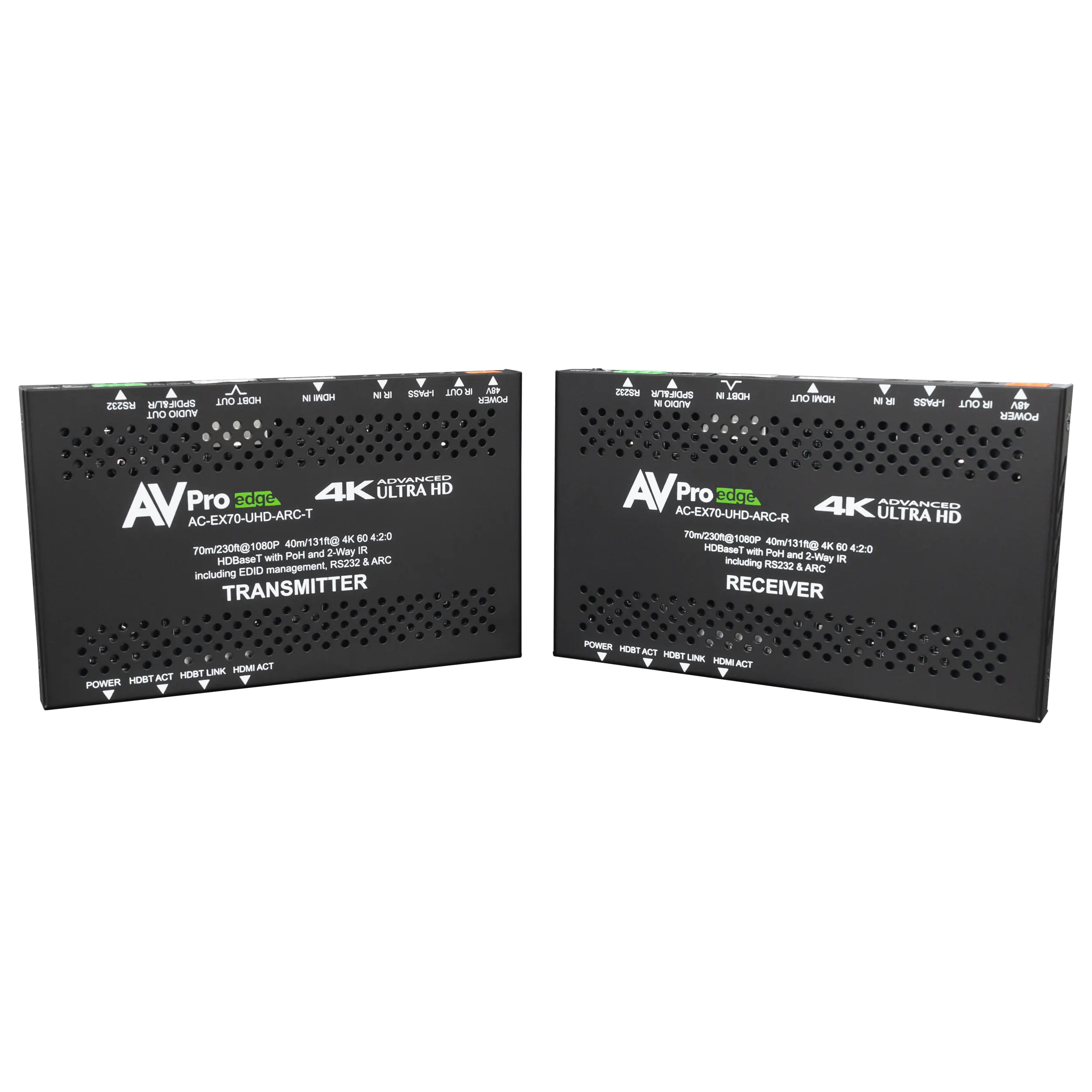

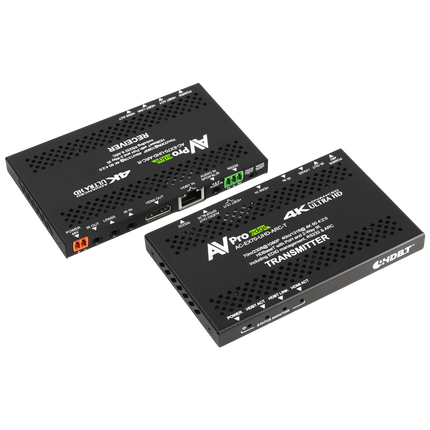

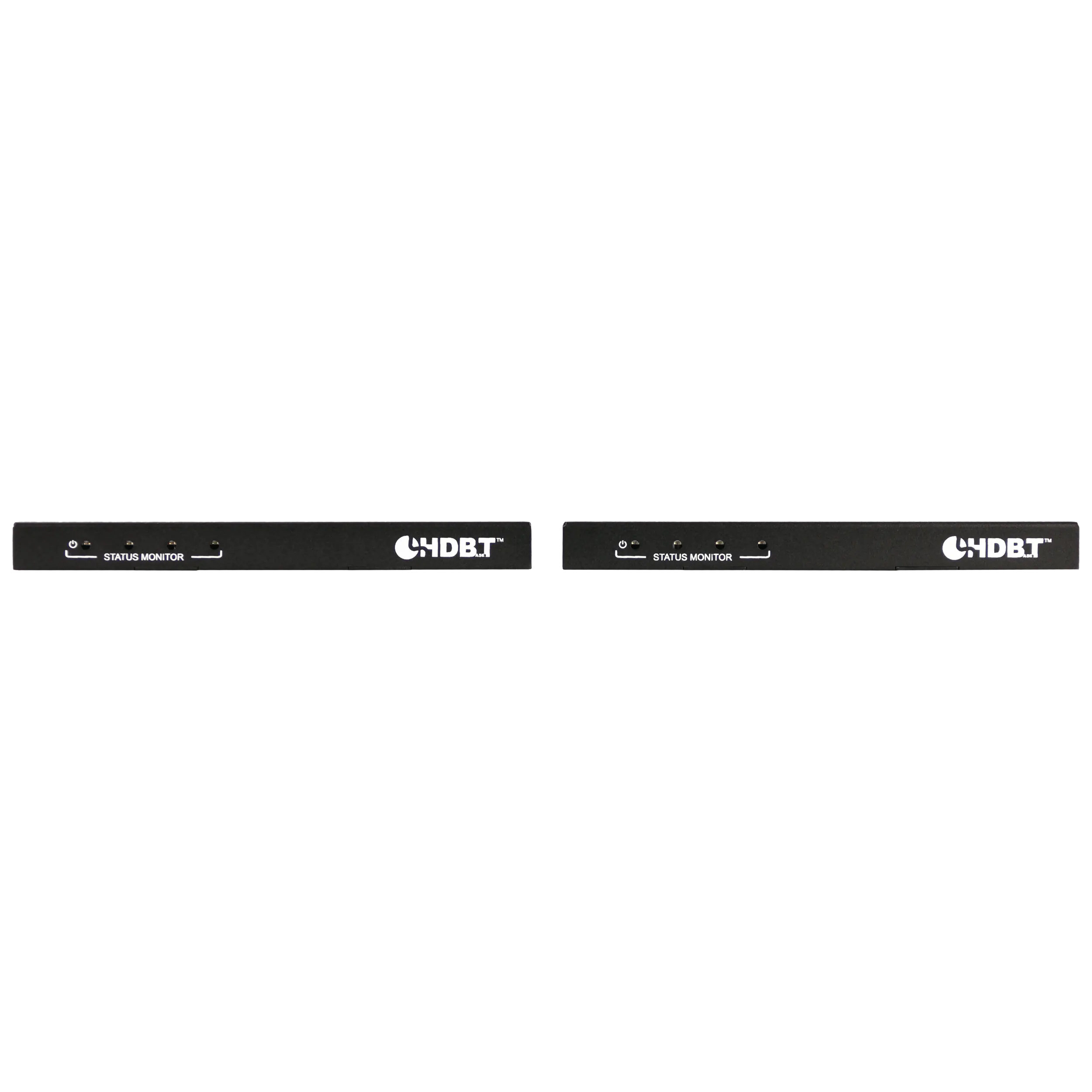

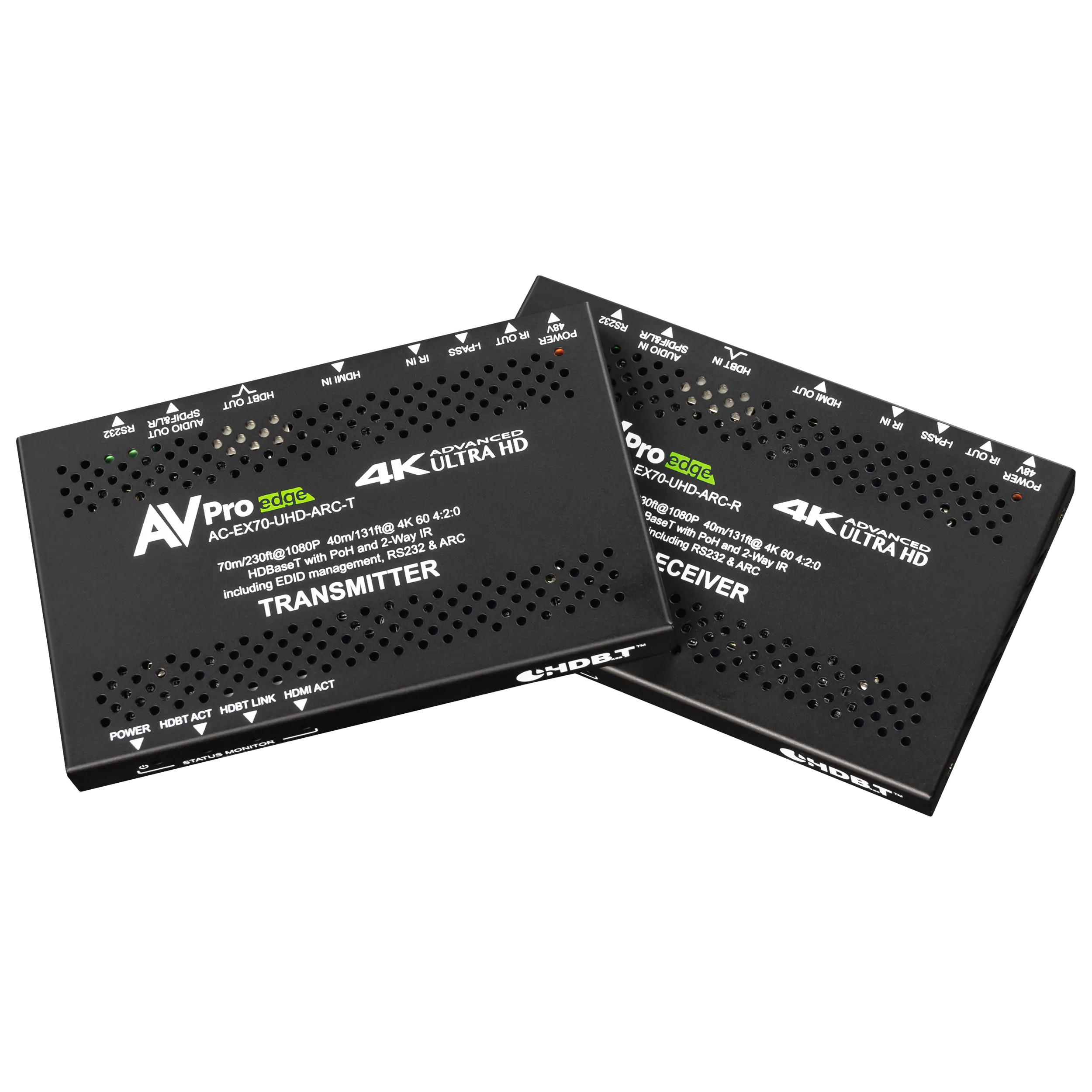

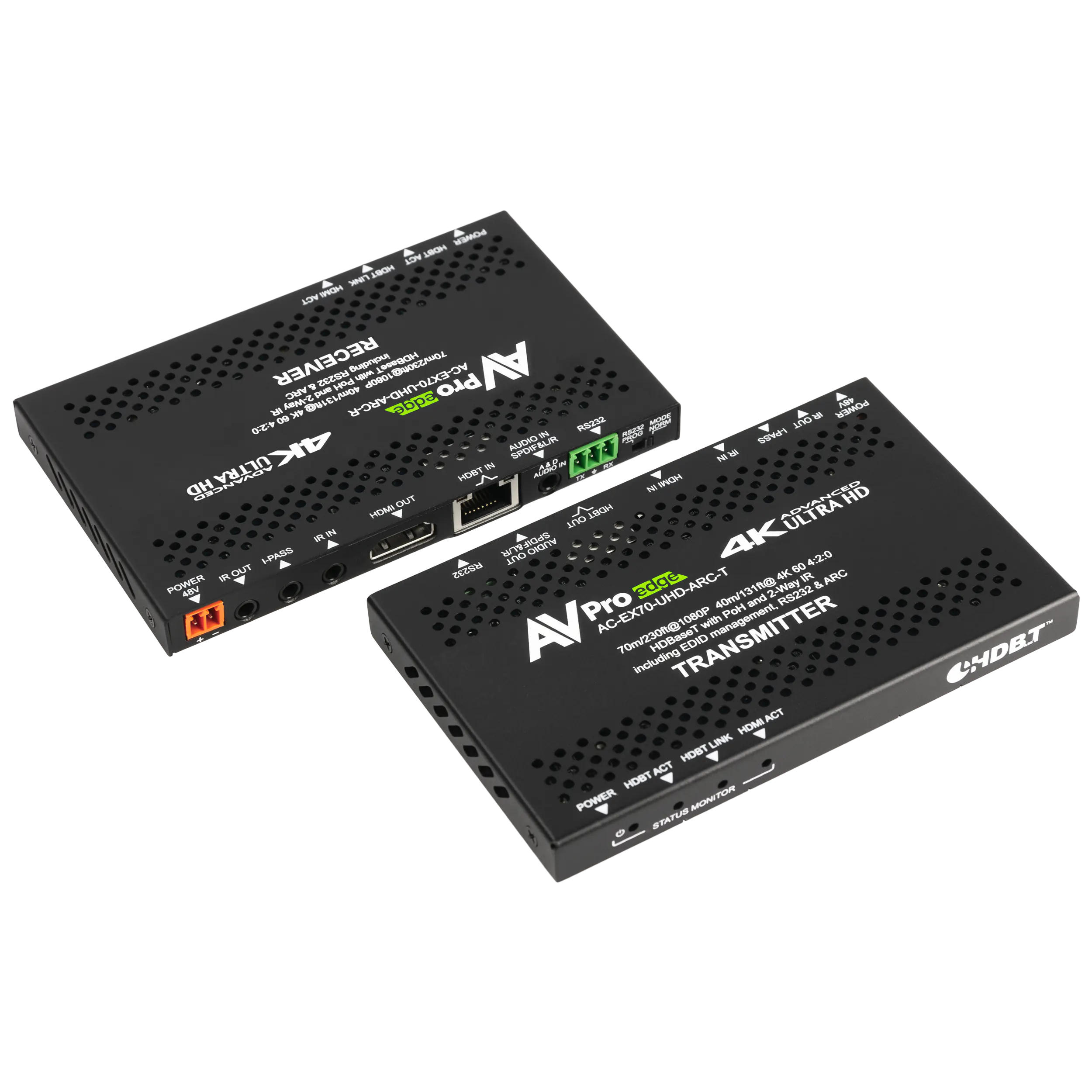

The AC-EX70-UHD-ARC consists of a transmitter and receiver that connect via single 6a/7 UTP/STP. Connecting an HDMI signal to the transmitter allows for sending HDMI signals up to 70 meters at 1080p and up to 40 meters at 4K60 4:2:0, 4K30 4:4:4. It solves commercial and residential market problems for distributing high-value 4K UHD content from rack to display with the additional ability to send an audio signal bi-directionally through HDMI's Audio Return Channel (ARC).

AVPro Edge uses HDBaseT technology to send 4K signals long distances to deliver video anywhere in your installation and send the local audio signal back to your rack with the ARC feature.

70M 10Gbps HDBaseT Extender Kit with ARC

Product form
  • HDMI 2.0
  • 4K60 4:2:0, 4K30 4:4:4
  • Audio Return Channel
  • EDID Management

SKU: AC-EX70-UHD-ARC

  • Shipped today? Order within: Jun 19, 2024 13:00:00 -0500

Description

The AC-EX70-UHD-ARC consists of a transmitter and receiver that connect via single 6a/7 UTP/STP. Connecting an HDMI signal to the transmitter allows for sending HDMI signals up to 70 meters at 1080p and up to 40 meters at 4K60 4:2:0, 4K30 4:4:4. It solves commercial and residential market problems for distributing high-value 4K UHD content from rack to display with the additional ability to send an audio signal bi-directionally through HDMI's Audio Return Channel (ARC).

AVPro Edge uses HDBaseT technology to send 4K signals long distances to deliver video anywhere in your installation and send the local audio signal back to your rack with the ARC feature.
  • Key Benefits
  • Specs
  • Resources
  • In the Box

Extend 4K HDMI: The manufactured HDMI cable length is unchangeable and unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in a specialized factory environment due to their high frequencies and density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-6A cables are widely available and can be reworked easily by the installer or end-user.



Audio Return Channel: ARC allows you to deliver local audio from internal smart tv apps like Netflix, Hulu, or Disney+ back to your headend. You can then distribute this audio through amplifiers for enhanced audio experiences. Audio return channel is not available through the tos out or L/R out ports on the transmitter, only through the HDMI port.



Distance: By using AC-EX70-UHD-ARC, the transmission distance for HD 1080P is up to 70 meters (230’), and UHD 4K resolution reaches an impressive 40 meters (115’).



Control: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa.



Bi-Directional Power: The PoH (Power over HDBaseT) function is intended to power Rx from the Tx or Tx from the Rx. The advantage of a lightweight (160 gram) super-slim extender is it can be mounted anywhere where space is premium.



Field Updates: Should a firmware update be necessary, it can be accomplished in the field

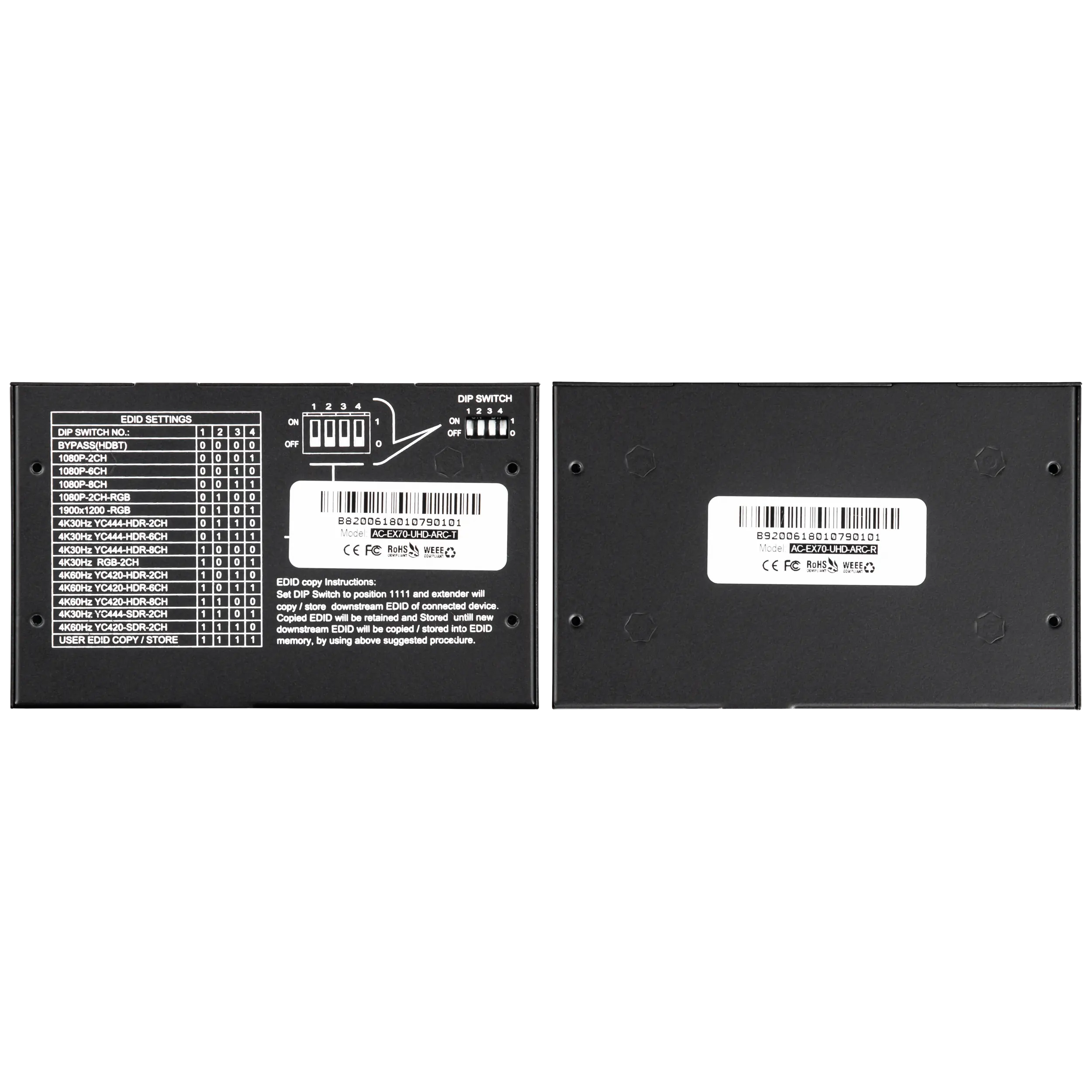

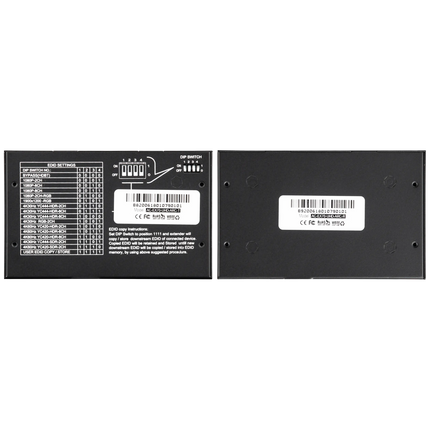

Total EDID Management: The AC-EX70-UHD-ARC has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs. The following EDID options are available:

  • EDID Bypass
  • 1080P 2CH Audio
  • 1080P 8CH Audio
  • 4K60 4:2:0 2CH Audio
  • 4K60 4:2:0 8CH Audio
  • 4K60 4:4:4 HDR 2CH Audio
  • 4K60 4:4:4 HDR 8CH Audio
  • USER EDID – EDID Copy

The EDID Copy Function allows you to copy and save from any display or projector you want to.



I-Pass: Plug your Control System emitter ports directly into the IR port on the transmitter (via mono 3.5mm cable) for clean and reliable IR pass-through. Our unique VPC (Voltage Protection Circuit) allows you to do this without wear and tear on the sensitive electronics inside.

Video:
Video ResolutionsUp to 4K 60Hz 4:2:0 & 4K30 4:4:4
VESA ResolutionsUp to DCI 4k (4096x2160)
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080) Up to 12 bit (4K)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
ARC SupportYes
Distance:
HDBaseT Distance (4K 60 4:2:0)40 Meters  (131 Feet)  (Cat 6a)
HDBaseT Distance (Full HD)70 Meters  (230 Feet) (Cat 6a)
HDMI Lead In/OutUp to 50 Feet (Using Bullet Train HDMI)
HDMI Lead In/Out (W/ AOC Cable)Up to 130 Feet (Using Bullet Train AOC)
Other:
Bandwidth10.2 Gbps
CECYES
HDCPHDCP 2.3 and Earlier

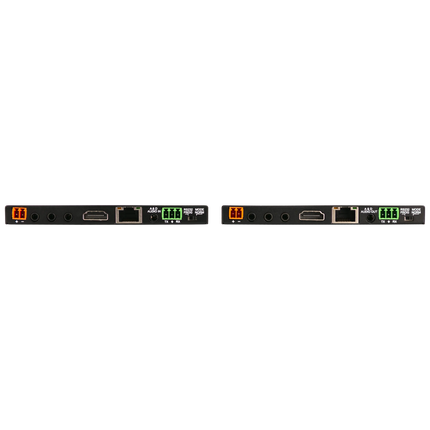

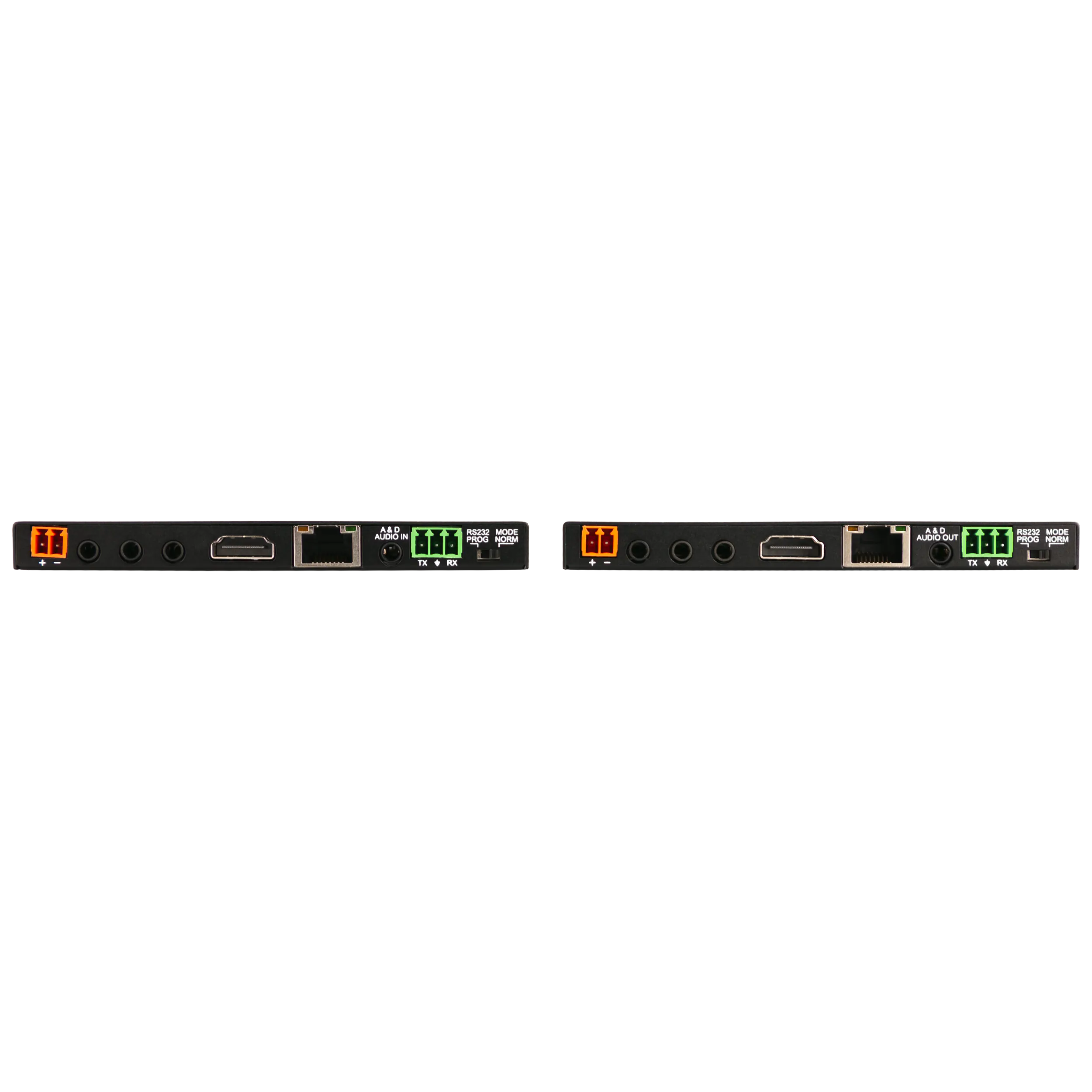

Ports:
HDMIType A
HDBaseTRJ45 w/ PoH for HDBaseT Receivers
IR 3.5mm
Audio INPUT/OUTPUT (RX/TX)3.5mm Stereo / Mini Toslink
RS-2323 Pin Terminal Block
Power (TX & RX)2 pin terminal block
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)12 Watts Max
Power Supply - MatrixInput: AC 100-240V ~ 50/60Hz
Output: DC 48V 0.5A
Dimensions:
Dimensions (Unit Only Height/Depth/Width)mm: 11.7 x 75.2 x 122
inch: 0.46 x 2.96 x 4.8
Dimensions (Packaged Height/Depth/Width)mm: 86 x 133 x 155
inch: 3.4 x 5.3 x 6.1
Weight (Unit)0.2 lbs (0.09 kg)
Weight (Packaged)1.6 lbs (0.73 KG)
*Specifications subject to change without notice.  Mass & dimensions are approximate

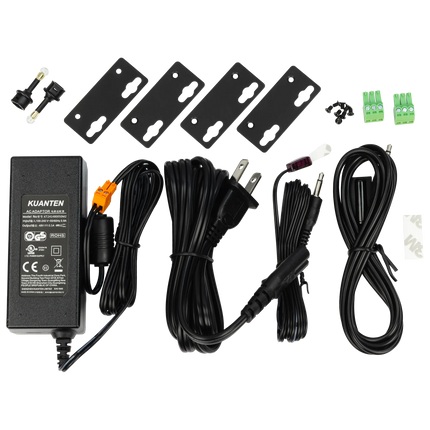

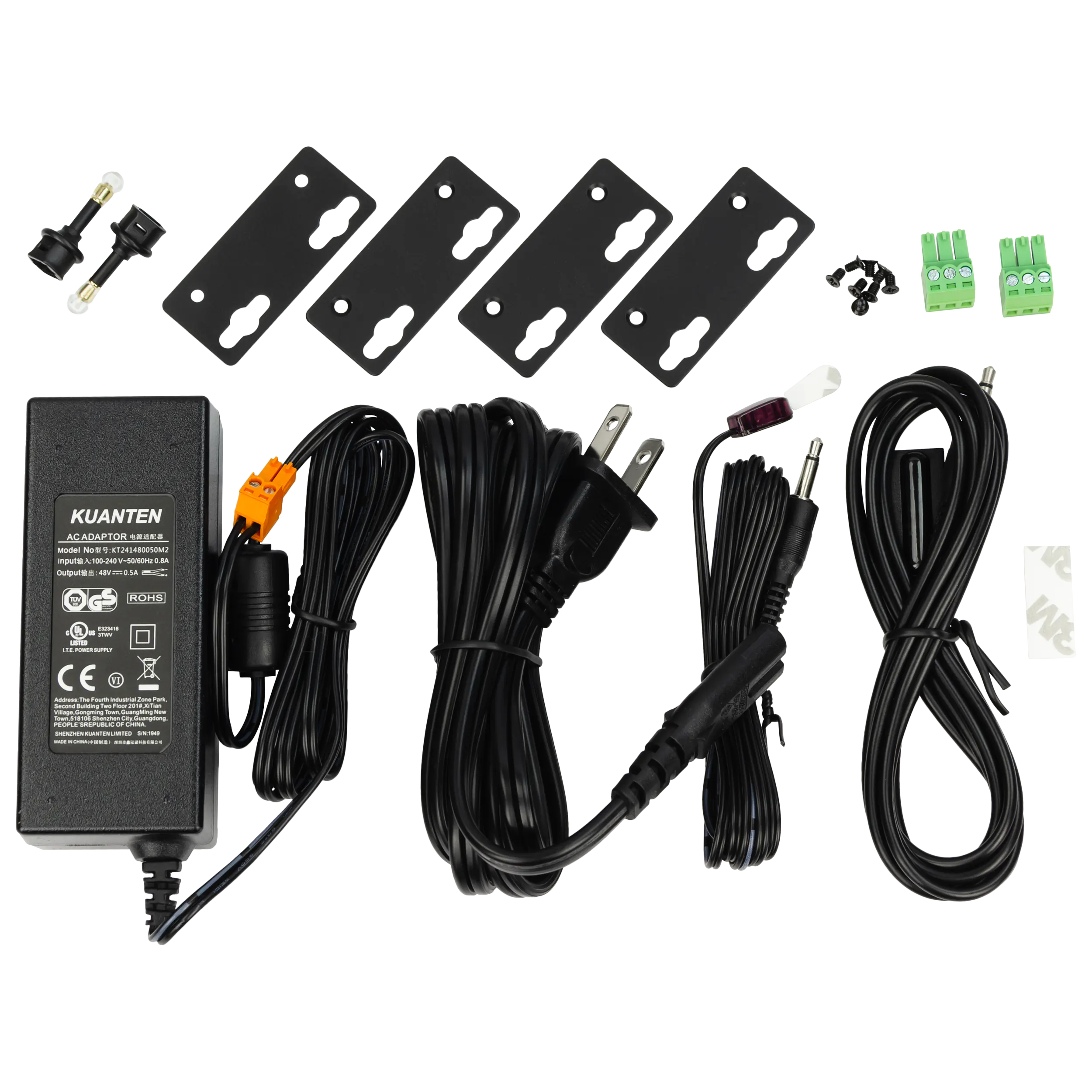

  • AC-EX70-UHD-ARC-T (Transmitter)
  • AC-EX70-UHD-ARC-R (Receiver)
  • 48V 0.5A Power Supply (Can be powered at the Transmitter or Receiver)
  • 1 x IR Tx Unit
  • 1 x IR Rx Unit
  • 2 x Mini-Toslink adaptors
  • 2 x 3 Pin Terminal Connectors (For RS-232 Control)
  • 4 x Mounting Brackets
  • 8 x Screws for Mounting Brackets

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
