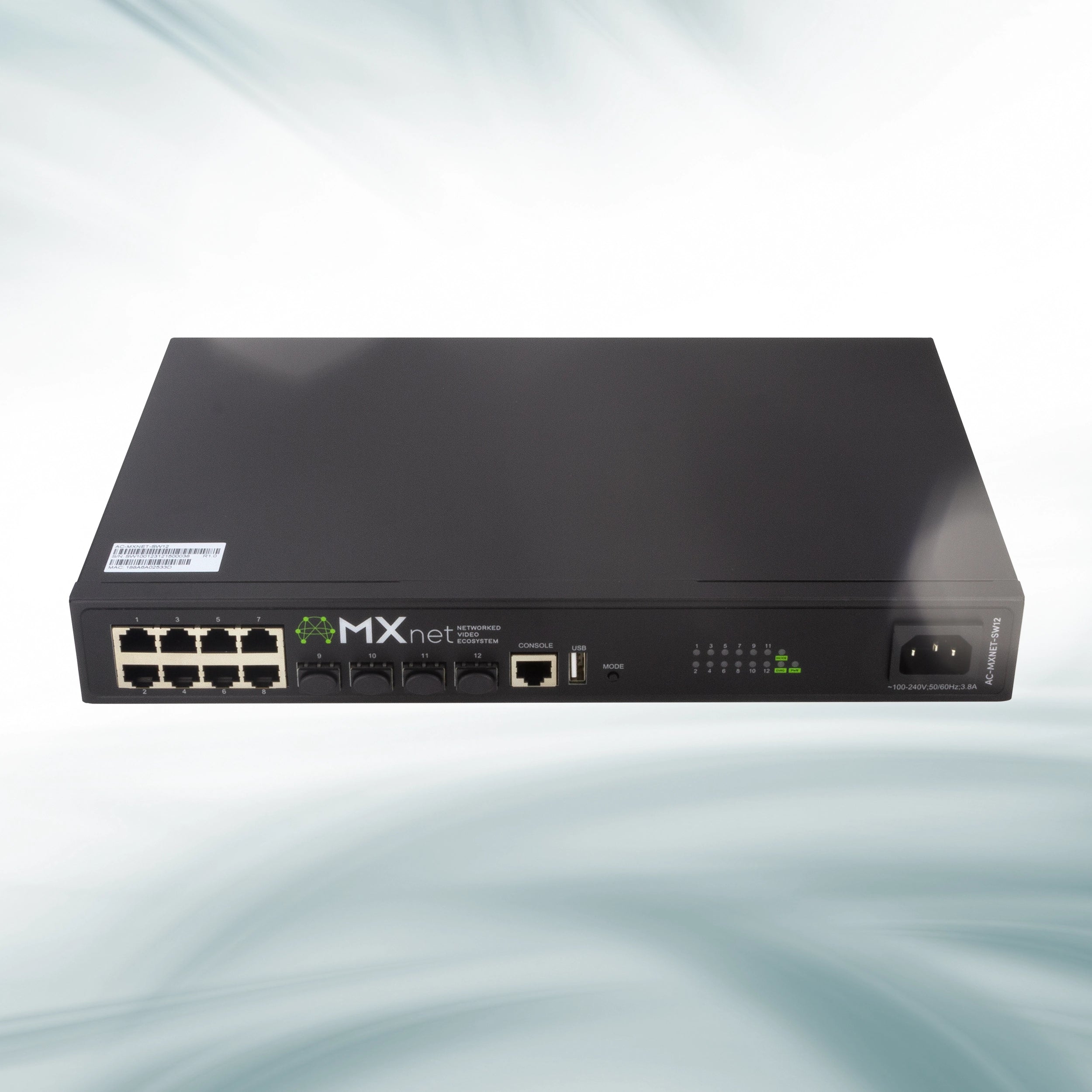

MXnet 1G 12 Port Network Switch

Description

Slotting into the MXnet ecosystem as a fast switching, low latency 12-port network switch for basic systems, the AVPro Edge AC-MXNET-SW12 is also perfect as a stackable add-on unit to our 24-port and 48-port switches, providing a flexible, lower cost extension option for planned or emergency system expansion. Four 10 Gbps SFP+ ports facilitate link aggregation through MXNet’s Mentor software.

AC-MXNET-SW12 leverages the network operating system developed by AVPro Edge for the AC-MXNET-SW24 and AC-MXNET-SW48 network switches to analyze multicast packetization and optimize switch speed for data throughput. Like all AVPro Edge switches, the AC-MXNET-SW12 is preconfigured for plug-and-play simplicity with the MXnet ecosystem.

MXnet 1G 12 Port Network Switch

Product form
  • Eight copper PoE+ ports with 370 watts of available power
  • Four 10 Gbps SFP+ ports
  • MXnet 24- and 48-port network switch stackable with 40 Gbps link aggregation
  • Packet pass-through optimized for MXnet AV-o-IP performance

SKU: AC-MXNET-SW12

  • Shipped today? Order within: Jul 14, 2024 13:00:00 -0500

Description

Slotting into the MXnet ecosystem as a fast switching, low latency 12-port network switch for basic systems, the AVPro Edge AC-MXNET-SW12 is also perfect as a stackable add-on unit to our 24-port and 48-port switches, providing a flexible, lower cost extension option for planned or emergency system expansion. Four 10 Gbps SFP+ ports facilitate link aggregation through MXNet’s Mentor software.

AC-MXNET-SW12 leverages the network operating system developed by AVPro Edge for the AC-MXNET-SW24 and AC-MXNET-SW48 network switches to analyze multicast packetization and optimize switch speed for data throughput. Like all AVPro Edge switches, the AC-MXNET-SW12 is preconfigured for plug-and-play simplicity with the MXnet ecosystem.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Fast Switching – Nearly instant source-to-source switching from encoders to decoders. MXnet switches sources with the exact timings and same resolution in less than two seconds, with zero visible black frames.



Low Latency – Average audio with video latency time is 35 ms, virtually undetectable to the eye and by ear. Latency varies depending on signal type and matching decoder model. The findings for our latency testing are:



  • MXnet Point to Point (HDMI or Decoder Analog Out)
    • Equal to or less than 33 ms (the approximate equivalent of 1 video frame)
  • MXnet Encoder (Non-Downmixing/2CH PCM Only)
    • Equal to or less than 1 ms
  • MXnet Encoder (AVDM)
    • Equal to or less than 60 ms
    • 60 ms is achieved when downmixing High Bit Rate audio (Dolby TrueHD or DTS Master Audio), though it typically tests as slightly less. Less than 100 ms is considered indistinguishable




IAVP (Intelligent A/V Processing) – AVPro Edge has re-engineered every system module for optimization with multicast processing, including a comprehensive reworking of IGMP, Jumbo Frames, Spanning Tree, and multicast filtering.



MXnet NOS (Network Operating System) – Multicast CPU utilization has also been completely reworked, resulting in remarkable data throughput efficiency.
When the switch is fully populated, processor loads never exceed 40%.
System boot times are 1 minute and 45 seconds from cold power-up to full operational functionality, including POE device power-up.

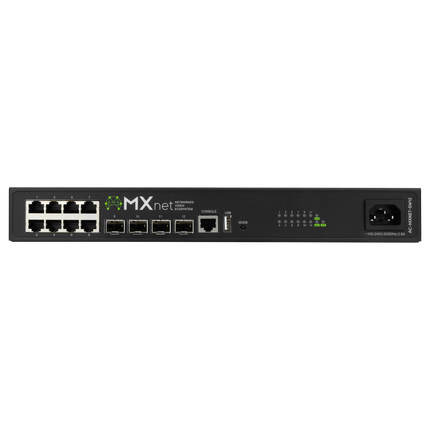

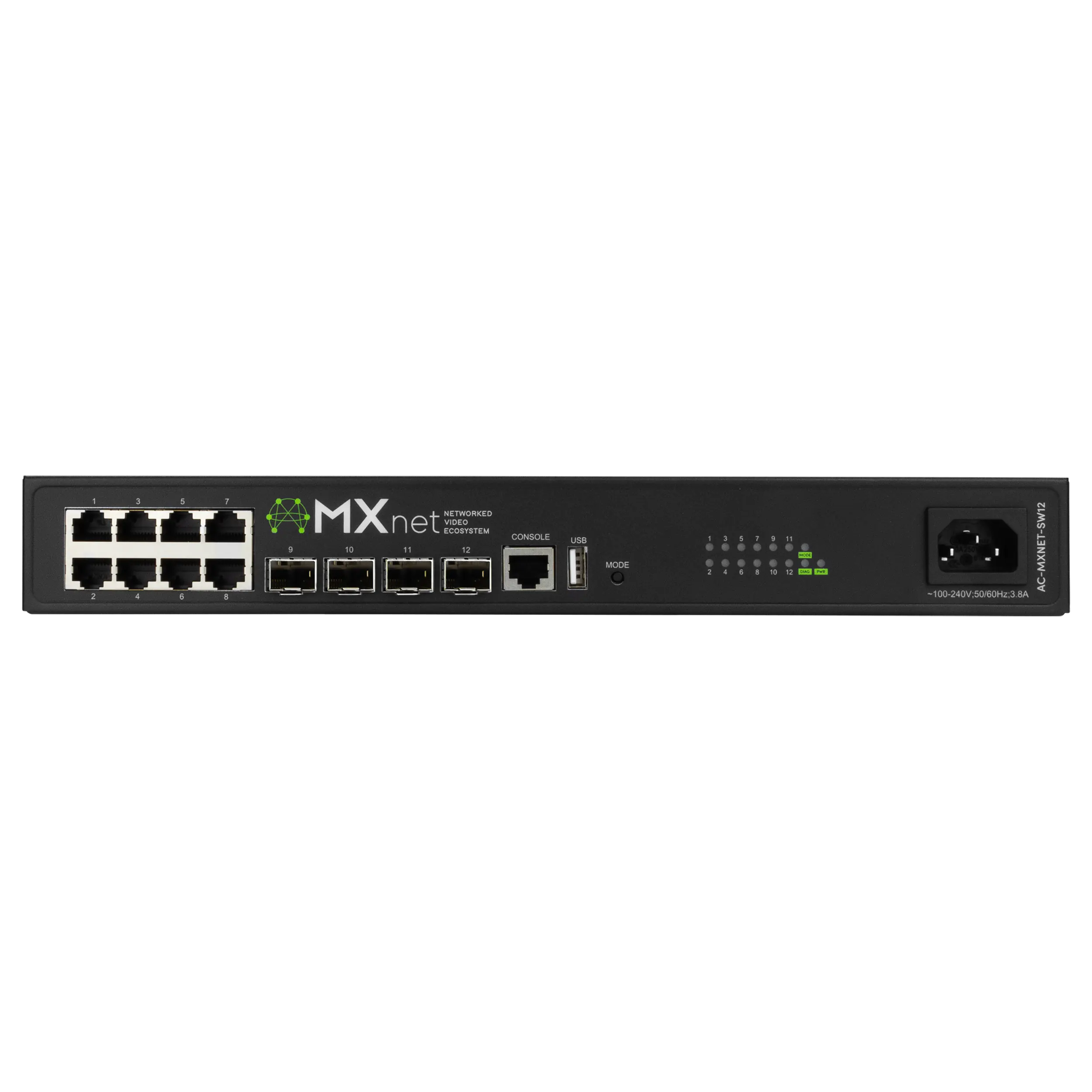

Ports:
Physical port8 x 10/100/1000BaseT RJ-45 Ports
4 x 10G SFP+ Ports
Performace:
ConfigurationLayer 2 and Layer 2+
Switching Capacity96 Gbps
Forwarding rate71.4 Mpps
Jumbo Frame10K
MAC Address16K
Packet Buffer12MB
VLAN Table4K
ACL Table512
Environmental:
Relative Humidity5%~90% non-condensing, storage 95%
TemperatureWorking 0°C~50°C, storage -40°C~70°C
Power:
Power SupplyAC:100~240VAC, 50~60Hz
Power Consumption<150W
PoEIEEE 802.3af,IEEE 802.3at, Total PoE power: 125W
Dimensions:
Dimensions (Unit Only Height/Depth/Width) mm: 44.45mm x 219.202mm x 323.85mm
inch: 1.75 X 8.63 X 12.75
Dimensions  (Packaged Height / Depth / Width)mm: 114.3mm x 431.8mm x 330.2mm
inch: 4.5 x 17 x 12.75
Weight (Unit)5.08LBs / 2.29KG
Weight (Packaged)7.5LBs / 3.40KG
RegulatoryCE/FCC/UL
Product Warranty10 Years
Specifications subject to change without notice.  Mass & dimensions are approximate

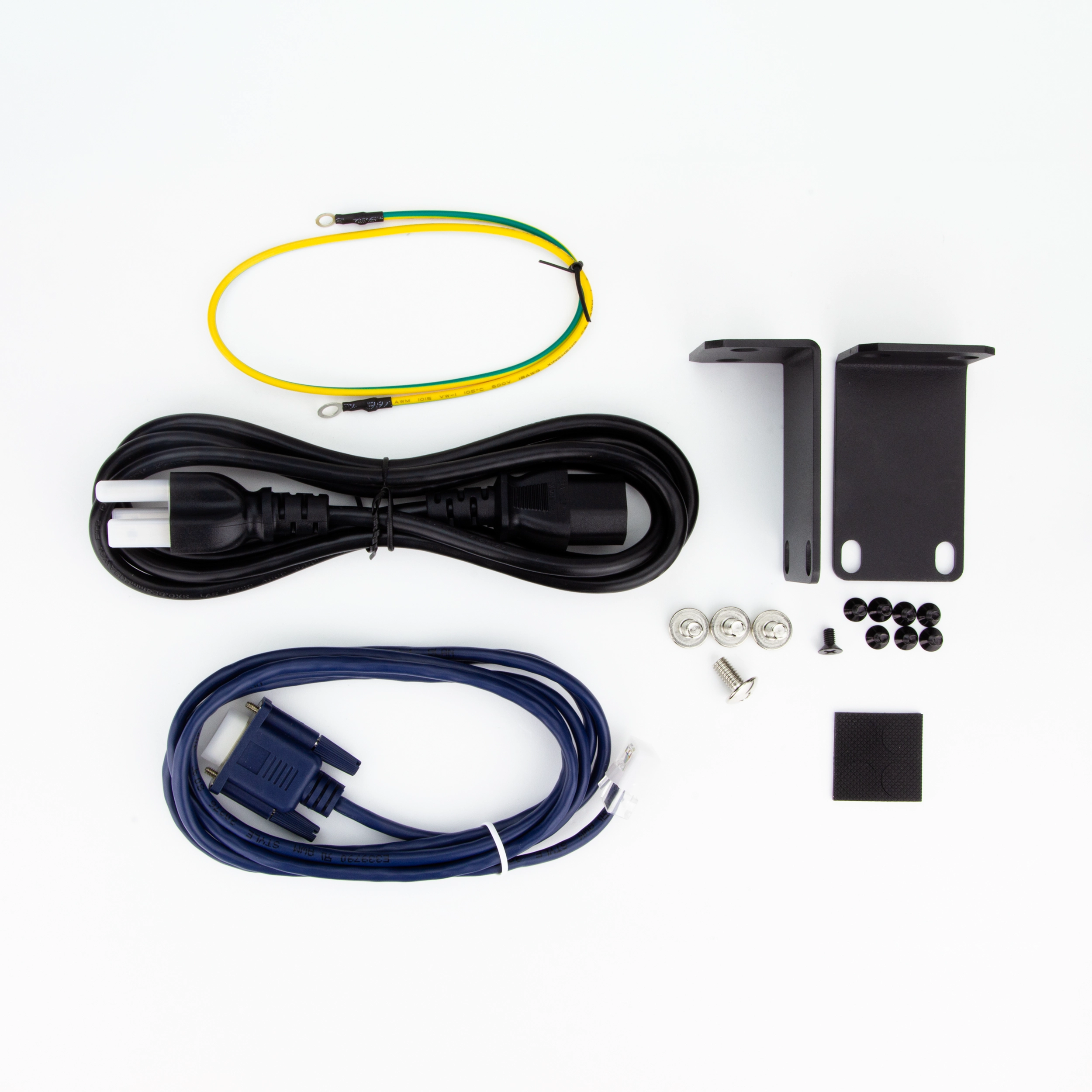

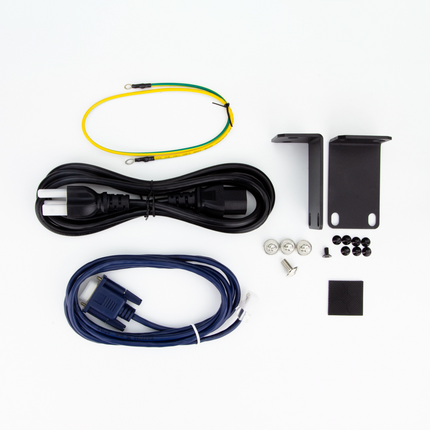

  • AC-MXNET-SW12 Network Switch
  • 1x Power Cable
  • 1x RJ45 -> DB9 Console Cable
  • 1x Grounding Cable
  • 2x Rack Mount Brackets
  • 1x Screw Package
  • 4x Rubber Pads
  • 1x Quick Installation Guide
  • 1x Warranty Card
  • 1x QC Card
