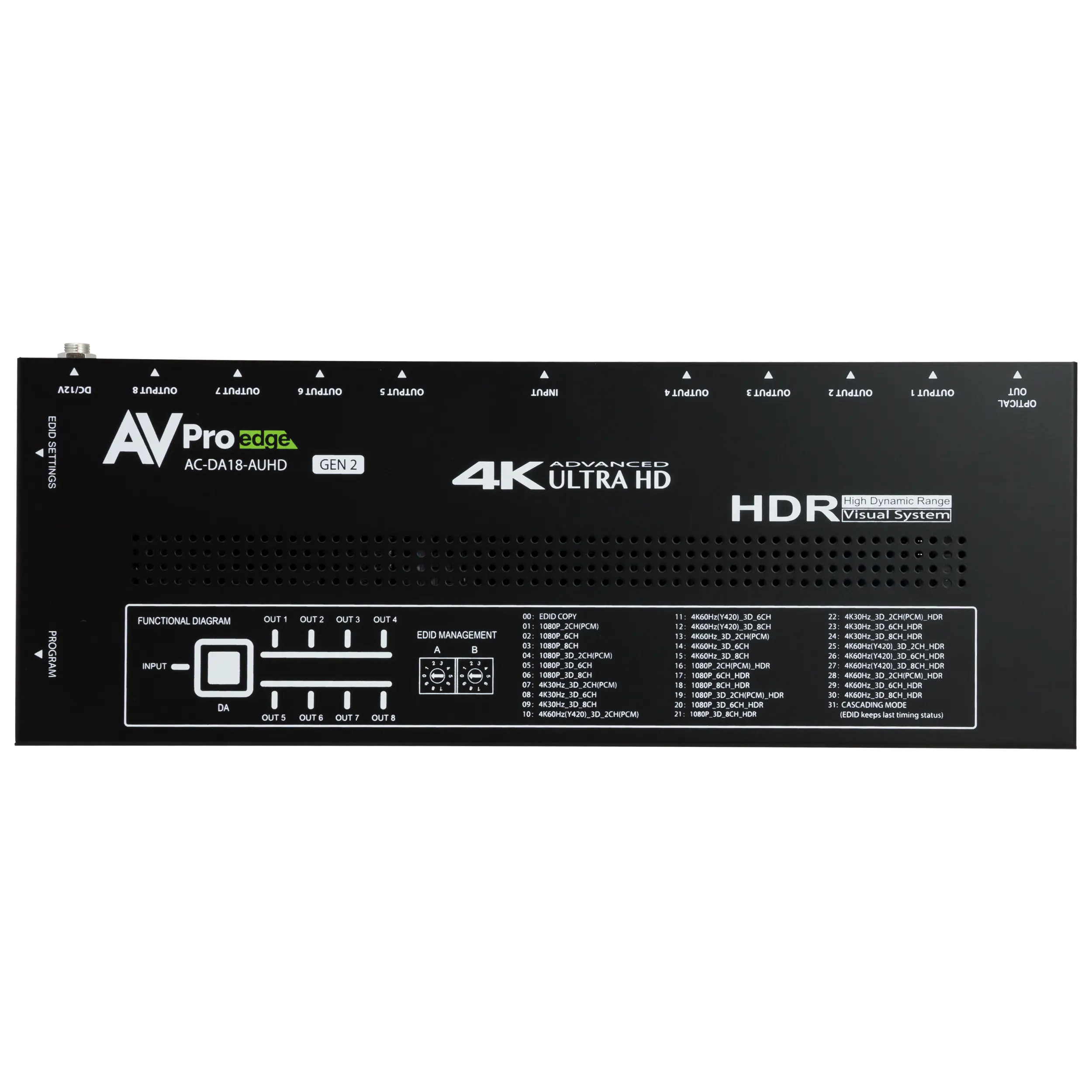

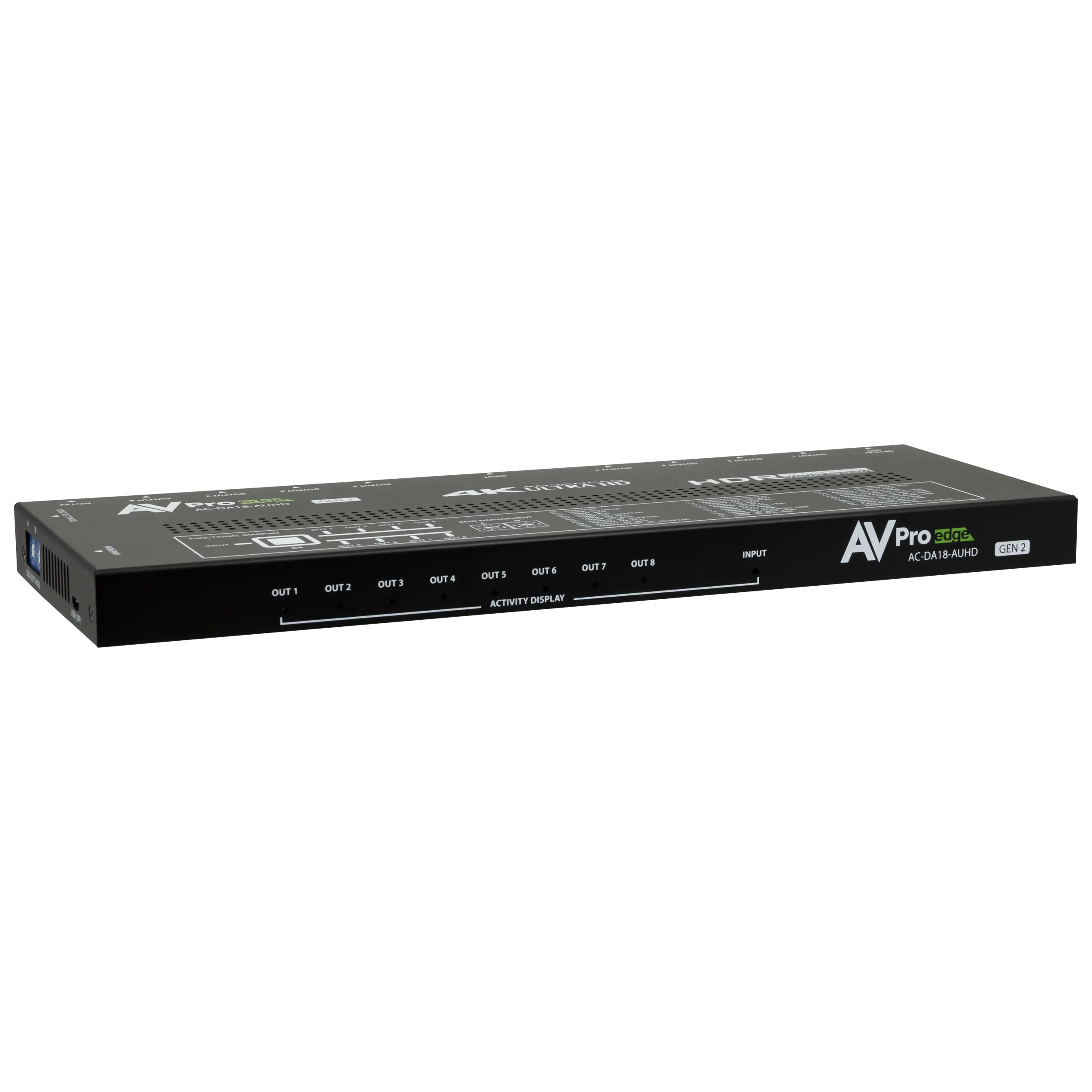

18Gbps 1x8 HDMI Distribution Amplifier

Description

The AC-DA18-AUHD-GEN2 is a part of the AVPro Edge 18Gbps distribution amplifier Family. This product is ideal in applications where stable distribution is critical. In addition, this distribution amplifier can be cascaded for extended distances and additional outputs.

Full 18Gbps and HDR support ensure military-grade stability even at the highest bandwidths. Install this distribution amplifier confidently in your next bar, restaurant, digital signage, commercial or residential job and see the difference.

18Gbps 1x8 HDMI Distribution Amplifier

Product form
  • HDMI 2.0
  • HDCP 2.2
  • 18Gbps Bandwidth
  • Advanced EDID Management

SKU: AC-DA18-AUHD-GEN2

  • Shipped today? Order within: Mar 03, 2024 13:00:00 -0600

Description

The AC-DA18-AUHD-GEN2 is a part of the AVPro Edge 18Gbps distribution amplifier Family. This product is ideal in applications where stable distribution is critical. In addition, this distribution amplifier can be cascaded for extended distances and additional outputs.

Full 18Gbps and HDR support ensure military-grade stability even at the highest bandwidths. Install this distribution amplifier confidently in your next bar, restaurant, digital signage, commercial or residential job and see the difference.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

18Gbps Support (4K60 4:4:4) - This Distribution Amplifier offers the highest available bandwidth to ensure maximum stability in distributed HDMI systems, even at higher resolutions. With the added bandwidth, you can comfortably use all of the latest 4K sources without worrying about headroom. With these DA's, you are already prepared for all 4K and future 8K formats.

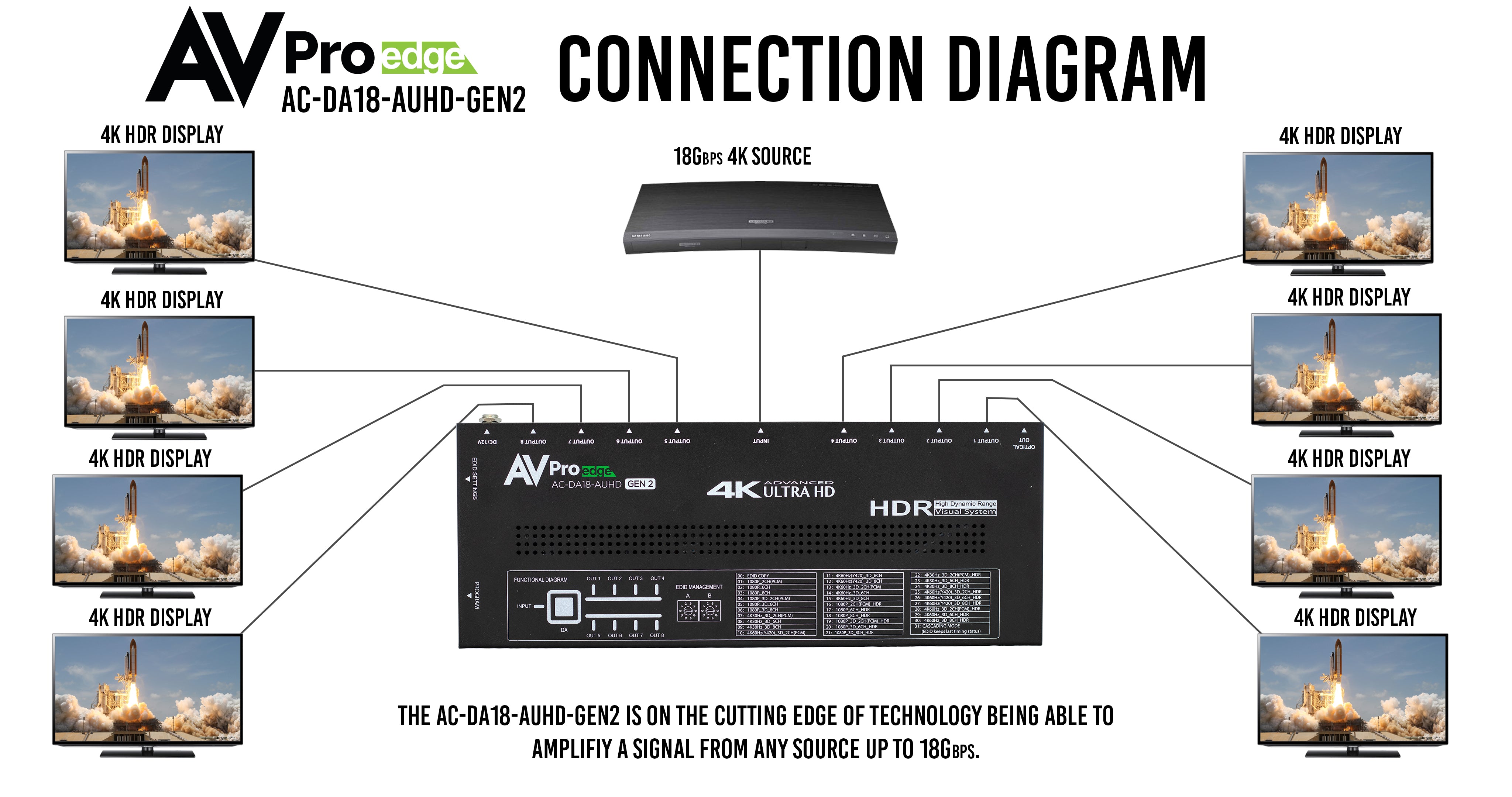

Cascading - The AC-DA18-AUHD-GEN2 was designed for cascading. So there will be no trouble cascading this unit for several "hops." There is even a built-in "cascade mode" that can be enabled for plug-and-play compatibility.



Full HDR Support - One often overlooked feature to include is the ability to maintain the integrity of HDR. We are 100% compatible with HDR and will repeat the signal in its complete integrity.

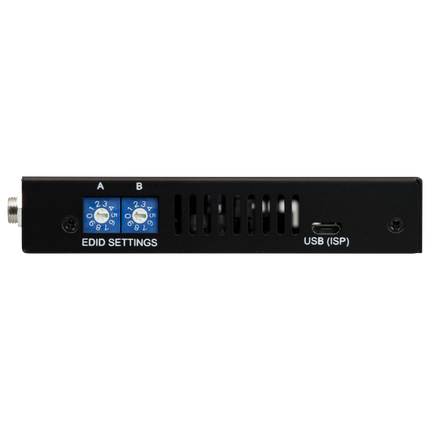

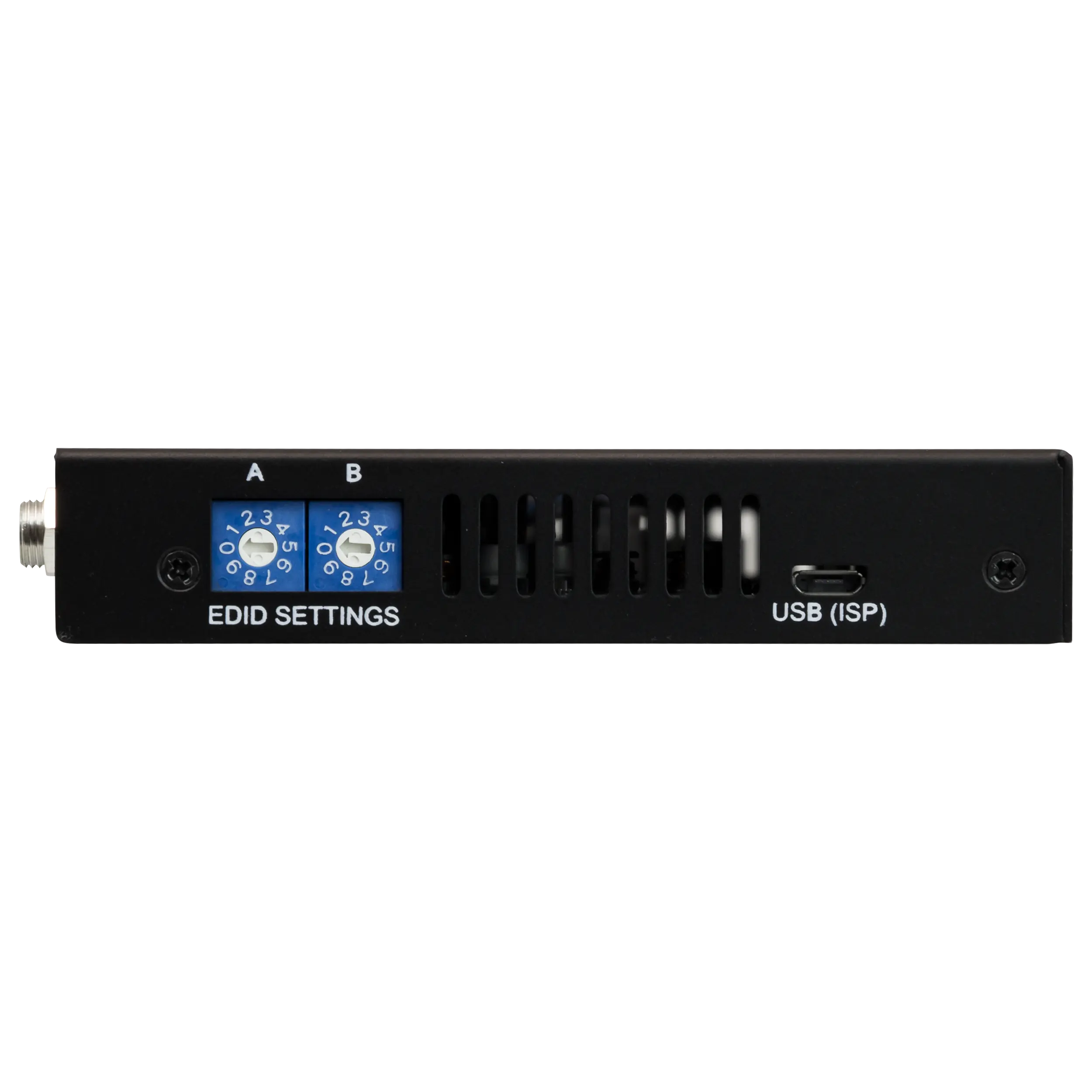

EDID Management - Advanced EDID management is on board so you can select from 16 different settings, including cascade mode, auto, and from display. This enhances your ability to get the proper signal throughout the system and ensures communication with any 3rd party device. In addition, the AC-DA18-AUHD-GEN2 has dual rotary EDID controls for 32 EDID combinations.

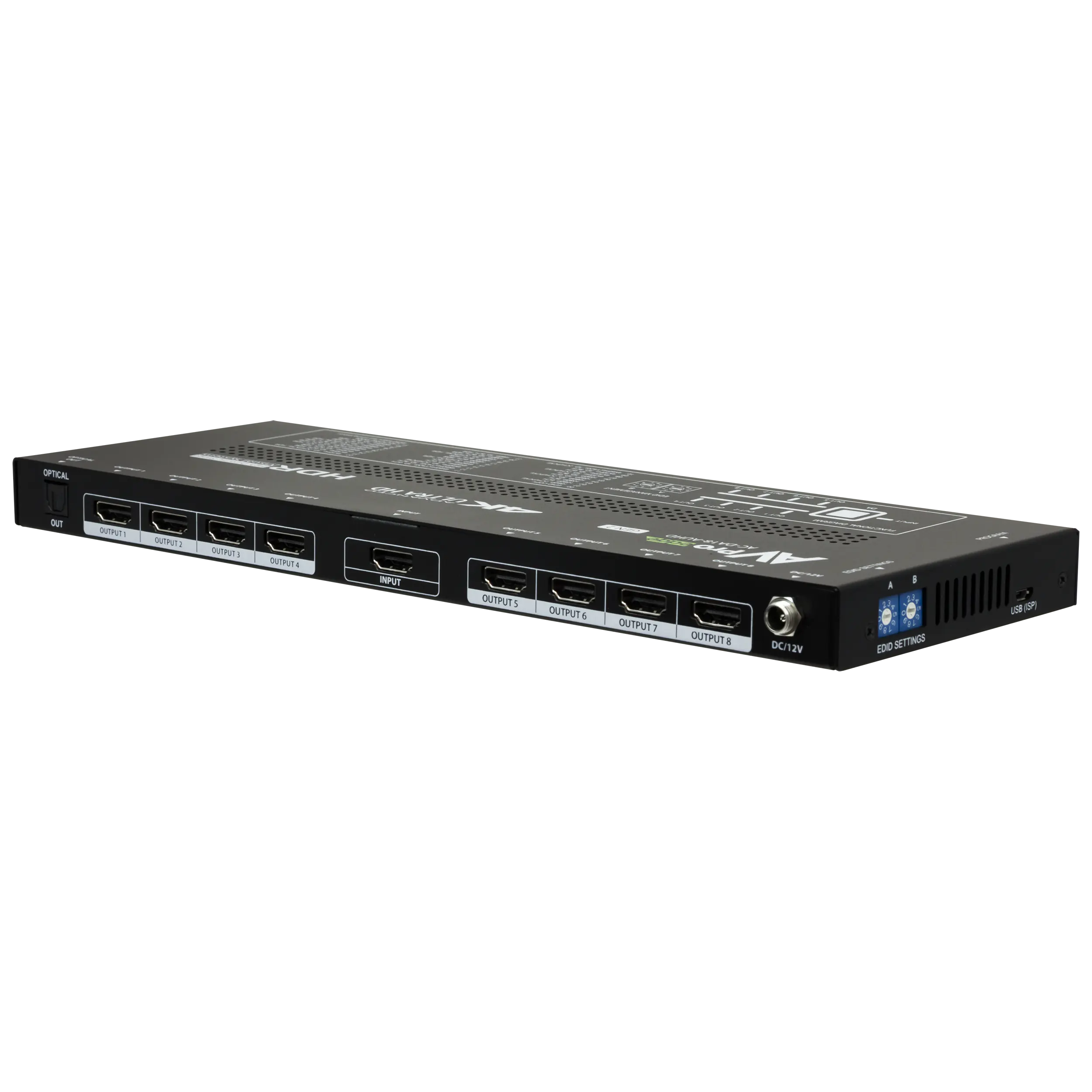

Ultra Low-Profile Design - The minimalist design makes the device even more versatile. Designed to fit in any nook or cranny, you don't need to worry about finding space for the DA allowing you to focus on other elements of the job.

Video:
Video ResolutionsUp to 4K 60Hz 4:4:4
VESA ResolutionsUp to DCI 4K (4096X2160)
HDR Formats/Resolutions420, 422, 444 (10 AND 12 DEEP COLOR)
HDR10, HDR10+, DOLBY VISION, HLG
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080P) UP TO 12 BIT (4K)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Distance:
HDMI In/Out (4k60 4:4:4)Up to 50 Feet (Using Bullet Train HDMI)
HDMI In/Out (W/ AOC Cable) (4k60 4:4:4)Up to 130 Feet (Using Bullet Train AOC)
Other:
Bandwidth18 Gbps
HDCPHDCP 2.2 and Earlier

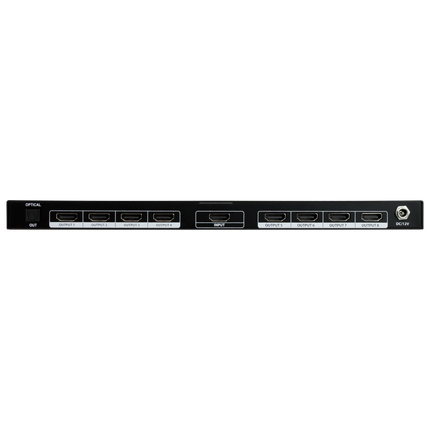

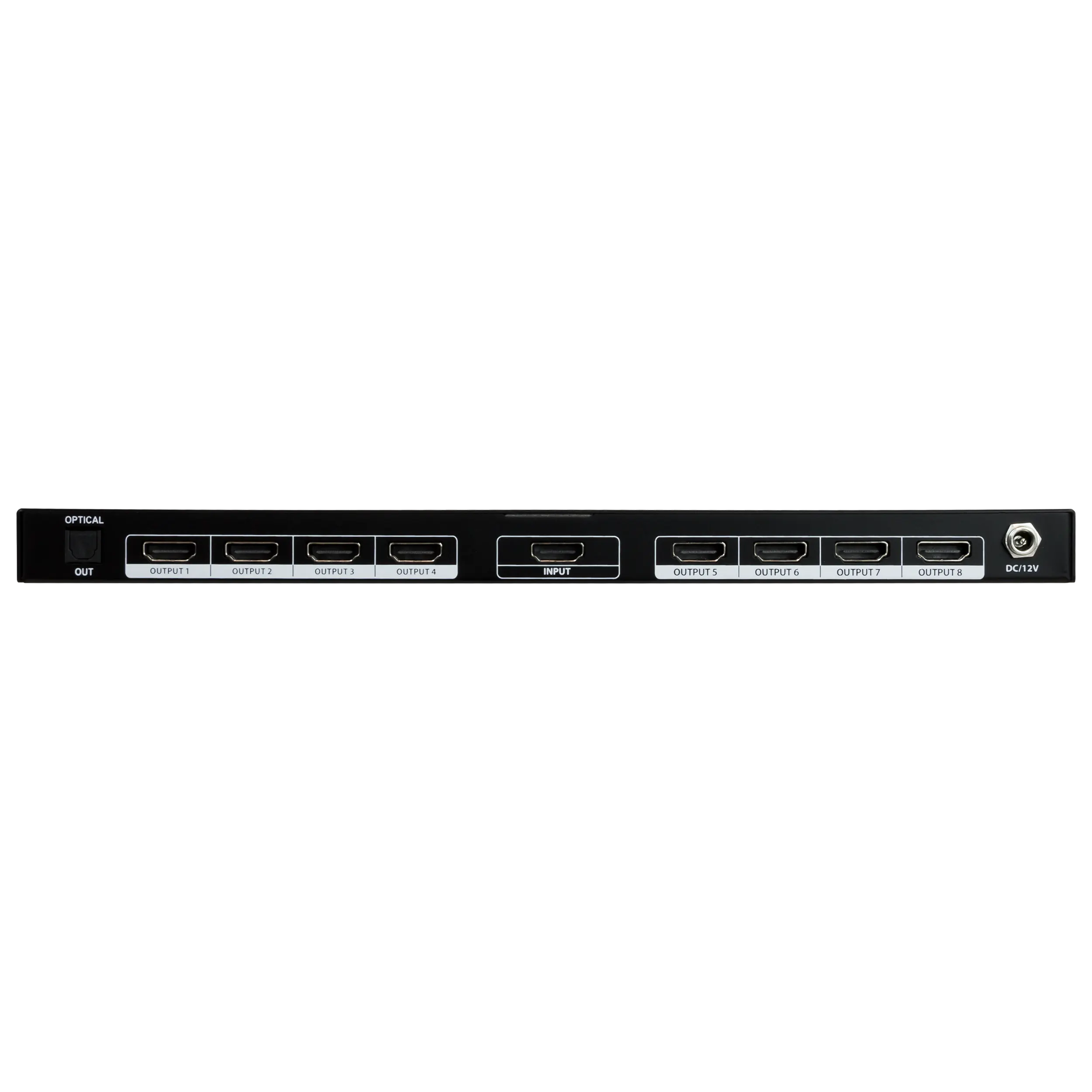

Ports:
HDMIType A
LANRJ45 w/ Web Interface / Control
FirmwareMicro USB
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)12 watts max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 12V 2A
Dimensions:
Dimensions (Unit Only Width/Depth/Height) mm: 300 x 115.57 x 21.24
inch: 11.81 x 4.55 x 0.84
Dimensions (Packaged Width/Depth/Height)mm: 317.5 x 184.15 x 76.2
inch: 12.5 x 7.25 x 3
Weight (Unit)2 lbs (0.90 Kg)
Weight (Packaged)2.5 lbs (1.2 Kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate

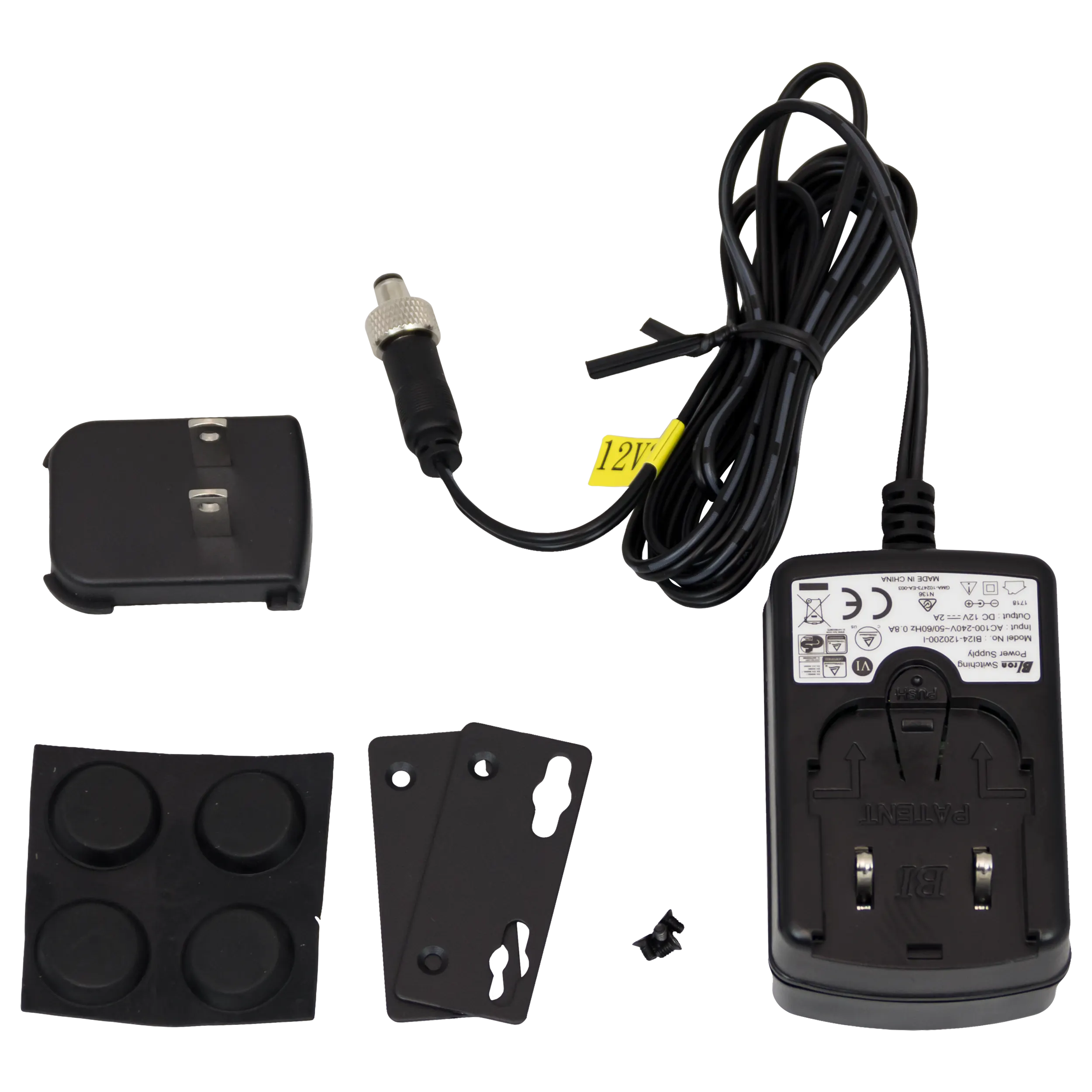

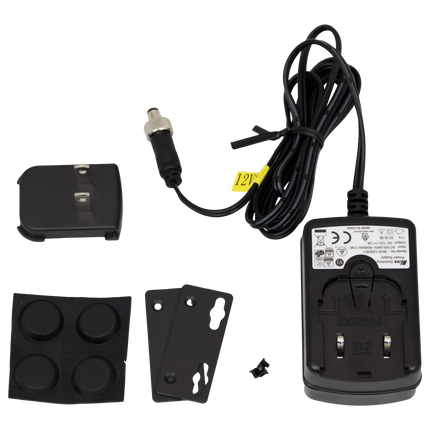

  • AC-DA18-AUHD-GEN2
  • 12V Locking Power Supply (100-240v input)
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets
