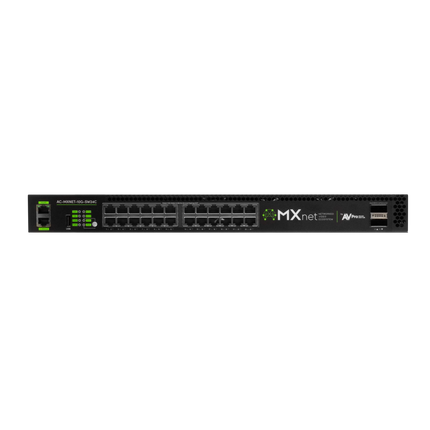

MXnet 10G 24 Port Copper PoE Network Switch

Description

The AC-MXNET-10G-SW24C is a 24-port, 10Gbps hybrid PoE++/PoE+ (Ports 1-8 are PoE++, ports 9-24 are PoE+) network switch developed and manufactured by AVPro. The switch design seamlessly supports wide-ranging Audio/Video-over-IP applications, including SDVoE, Dante, AVPro Edge MXnet 10G, and others, using the latest Multigigabit campus-level switch chipset.

Doubled up to cascade in Virtual Switch Framework mode and for operation as a singular switch with an aggregate total of 48 endpoints (16 TCVRs configured as Encoders and 32 configured as Decoders), the AC-MXNET-10G-SW24C supports plug-and-play functionality without manual configuration.

Purpose-designed and built to a Carrier-Grade rating for high reliability and mission-critical applications, the AC-MXNET-10G-SW24C can accommodate two hot-swappable 530-watt power supply modules for instantaneous auto-redundancy. (Note: The AC-MXNET-10G-SW24C is shipped with a single PSU).

With 24 x 10G-mGig RJ45 ports with a total bandwidth of 480Gbps and two 40Gbps QSFP+ stacking ports with 160Gbps total bandwidth, the AC-MXNET-10G-SW24C has a calculated switching capacity of 640Gbps, providing an abundant amount of headroom safety and a generous forwarding rate for high data throughput and uniform distribution of traffic for improved network efficiency.

The AC-MXNET-10G-SW24C has been pre-configured with Quality of Service (QoS) settings optimized for Dante audio streams. These settings prioritize Dante audio packets above other network traffic, reducing latency and packet loss to ensure high-quality, uninterrupted audio streaming. AVPro is the first professional AV manufacturer to implement QoS pre-configurations specifically for Dante traffic, demonstrating our commitment to enhancing audio streaming quality in residential and commercial environments.

MXnet 10G 24 Port Copper PoE Network Switch

Product form

  • 8 ports are PoE++ Type 3 @ 60 watts
  • 16 ports are PoE+ Type 2 @ 30 watts
  • 2 X 40G QSFP+ Stacking Uplink Ports
  • 680Gbps Switching Capacity Headroom

SKU: AC-MXNET-10G-SW24C

  • Shipped today? Order within: Oct 06, 2024 13:00:00 -0500

Description

The AC-MXNET-10G-SW24C is a 24-port, 10Gbps hybrid PoE++/PoE+ (Ports 1-8 are PoE++, ports 9-24 are PoE+) network switch developed and manufactured by AVPro. The switch design seamlessly supports wide-ranging Audio/Video-over-IP applications, including SDVoE, Dante, AVPro Edge MXnet 10G, and others, using the latest Multigigabit campus-level switch chipset.

Doubled up to cascade in Virtual Switch Framework mode and for operation as a singular switch with an aggregate total of 48 endpoints (16 TCVRs configured as Encoders and 32 configured as Decoders), the AC-MXNET-10G-SW24C supports plug-and-play functionality without manual configuration.

Purpose-designed and built to a Carrier-Grade rating for high reliability and mission-critical applications, the AC-MXNET-10G-SW24C can accommodate two hot-swappable 530-watt power supply modules for instantaneous auto-redundancy. (Note: The AC-MXNET-10G-SW24C is shipped with a single PSU).

With 24 x 10G-mGig RJ45 ports with a total bandwidth of 480Gbps and two 40Gbps QSFP+ stacking ports with 160Gbps total bandwidth, the AC-MXNET-10G-SW24C has a calculated switching capacity of 640Gbps, providing an abundant amount of headroom safety and a generous forwarding rate for high data throughput and uniform distribution of traffic for improved network efficiency.

The AC-MXNET-10G-SW24C has been pre-configured with Quality of Service (QoS) settings optimized for Dante audio streams. These settings prioritize Dante audio packets above other network traffic, reducing latency and packet loss to ensure high-quality, uninterrupted audio streaming. AVPro is the first professional AV manufacturer to implement QoS pre-configurations specifically for Dante traffic, demonstrating our commitment to enhancing audio streaming quality in residential and commercial environments.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Processing Performance: A 680Gbps calculated switching capacity combined with a forwarding rate of 480Mpps signifies ample headroom for high data throughput and network efficiency.



Virtual Switch Framework: Synthesizes multiple AC-MXNET-10G-SW24C switches in the same layer into one logical device for high availability and scalability.



Carrier-Grade Build Rating: Carrier-Grade hardware and software design features high reliability and fail-safe redundancy capabilities for mission-critical applications, providing 99.999% uptime availability.



Fast Switching with Near-Zero Latency: Source-to-source switching to endpoints is virtually instantaneous if scaling is not required (100µs frame latency, or 1/150th of a frame). With scaling in use, the switching speed is between one to two frames, or about 17-34 milliseconds, considered visually imperceptible.



Preconfigured Comprehensive QoS: Quality of Service settings are optimized for Dante and SDVoE streams. Advanced load-balance configuration for SDVoE and MXnet applications optimize network performance by distributing high-volume data transfers and multicast streaming traffic across multiple paths to reduce congestion to optimize latency and other critical performance metrics.



Dante Audio Prioritized: AVPro is the first professional AV manufacturer to implement Dante-oriented QoS traffic prioritization to enhance network streaming performance in residential and commercial environments.



Class-Leading Performance: MXnet switches are the highest-performing switches in the AVoIP market segment.

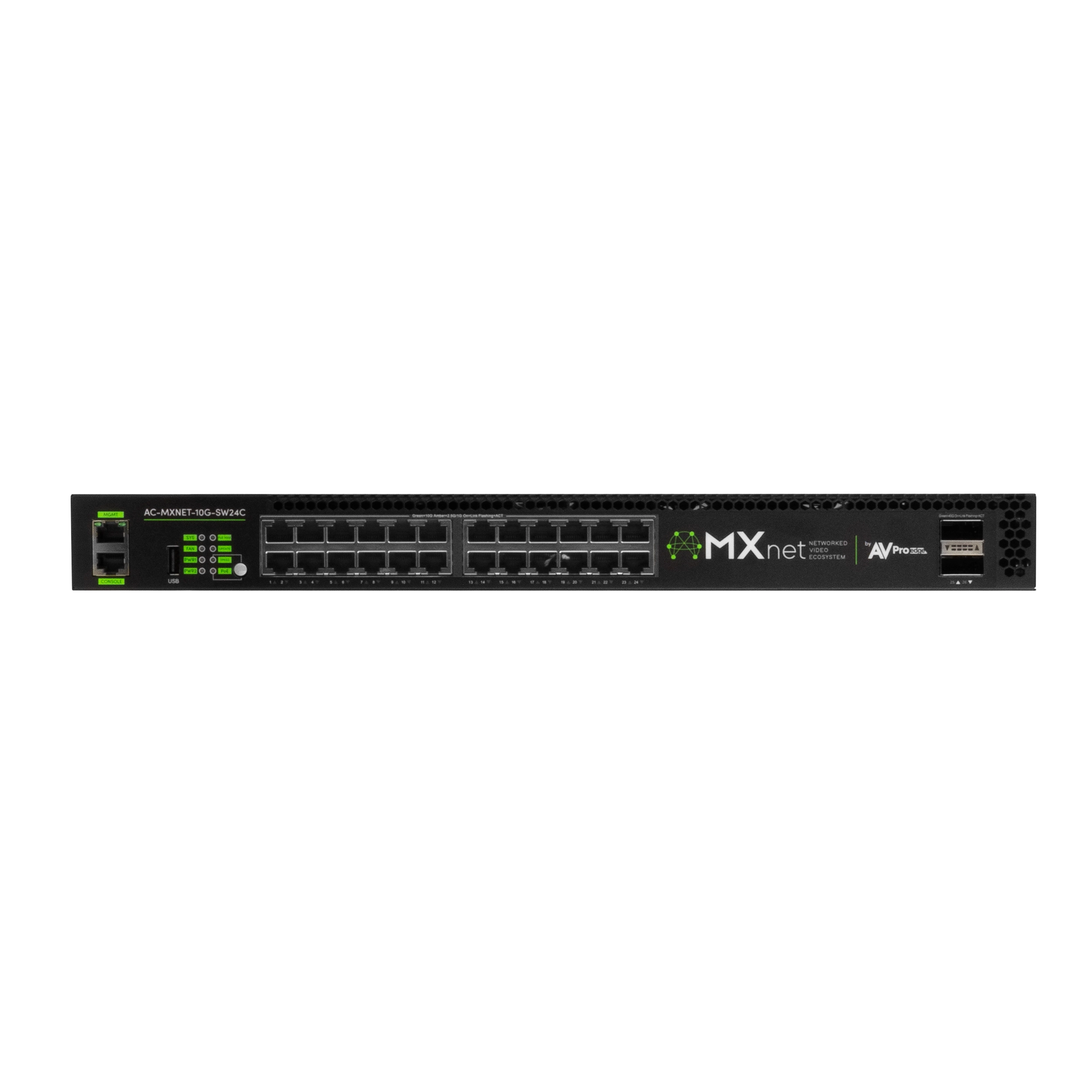

Ports:
Ethernet(24) × 10G-mGig RJ45 Ports
RJ-45 Ports 1 through 8: POE++ Up to 60 Watts
RJ-45 Ports 9-24: POE+ Up to 30 Watts
(2) QSFP+ 40G Ports
(1) × 10/100/1000BASE-T Management Port (MGMT)
HDMIN/A
AudioN/A
IRN/A
RS232(1) × RJ45 console port (Out-of-Band) (9600 baudrate)
USB(1) × USB 2.0 Type-A for MXNet Service and storage
Distance:
Ethernet100 Meters/330 Feet over CAT 6a
SFP+ and Fiber10G SFP+ AOC cable up to 3 meters, 10G SFP+ Multimode transceiver over Multimode fiber up to 550 meters 10G SFP+ Single mode transceiver over Single mode fiber up to 20 Kilometers
Environmental:
Operating Temperature0°C ~ 50°C
Storage Temperature-40°C ~ 70°C
Operating Humidity5%~95% noncondensing
Performance:
Max SDVoE Endpoints24 (32 with QSFP+ 4x10G Hardware Profile Mode)
Switching Capacity 680Gbps
Forwarding Rate480Mpps
MAC ADDRESS 32K
Routing Table16K
Jumbo Frame 16K
L3 Interface1K
Power:
Max Power Consumption530W (1060W if using dual power supply) (2nd PSU Not Included)
POE PowerIEEE 802.3af (POE 15.4W)
IEEE 802.3at (POE+ 30W)
IEEE 802.3bt (POE++ 60W) (Only ports 1-8)
Total POE Power Budget: 1000W
Thermal dissipation1812.176 BTU/hr
Power Supply UnitAC: 100~240VAC, 50~60Hz
DC: Input 48V-57V

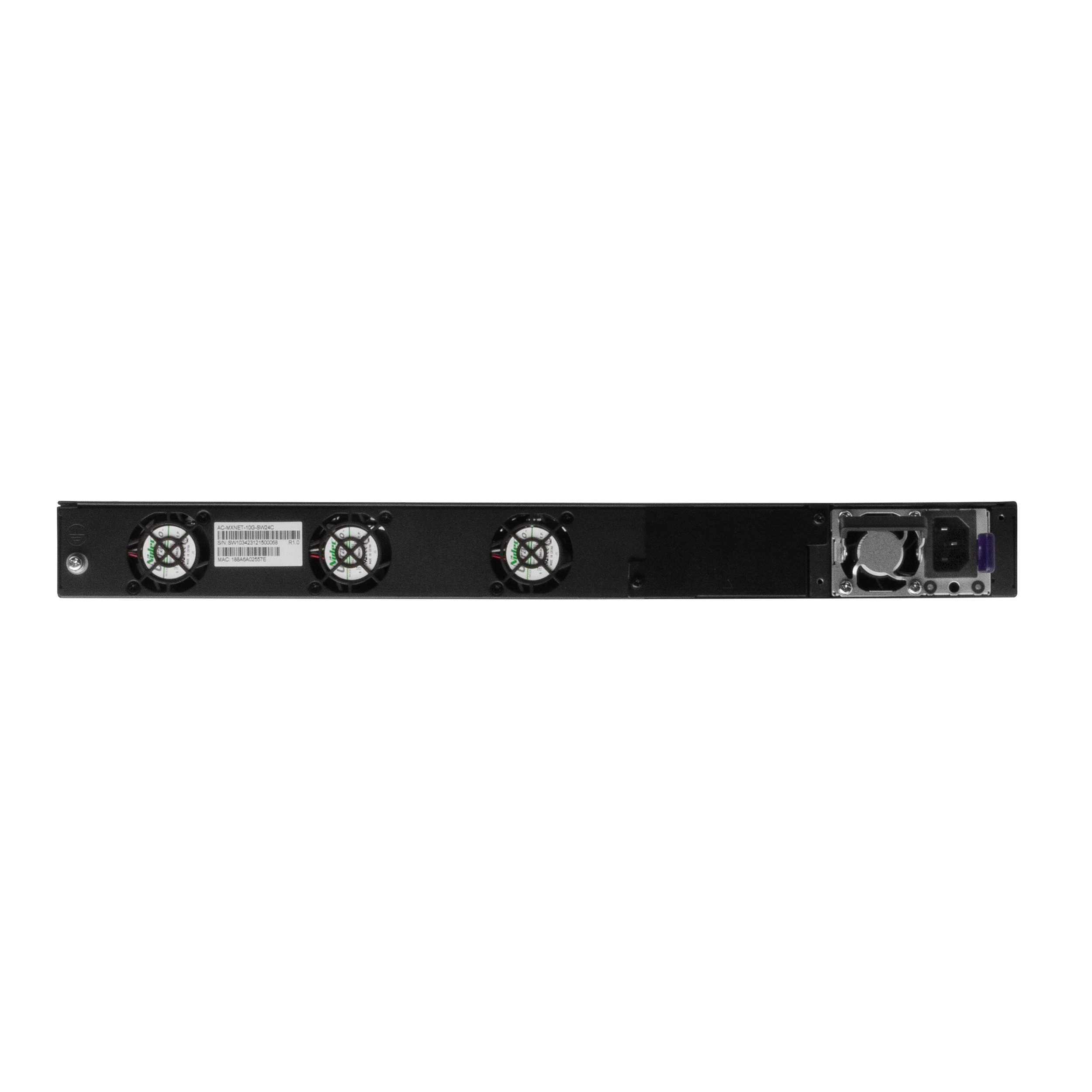

Up to two modular hot-swappable AC power supply units (only one PSU included with purchase)
MountingRack mount
Dimensions:
Height x Width x Depth (Single Unit)Millimeters:  44 x 440 x 380
Inches:  1.73 x 17.32 x 14.96
Height x Width x Depth (Packaged)Millimeters:  161.9 x 463.55 x 558.8
Inches:  6.375 x 18.25 x 22
Weight (Unit)12 lbs. (5.44 kg)
Weight (Packaged)16 lbs. (7.26 kg)
RegulatoryCE/FCC
Product Warranty10 Years
Specifications subject to change without notice.  Mass & dimensions are approximate

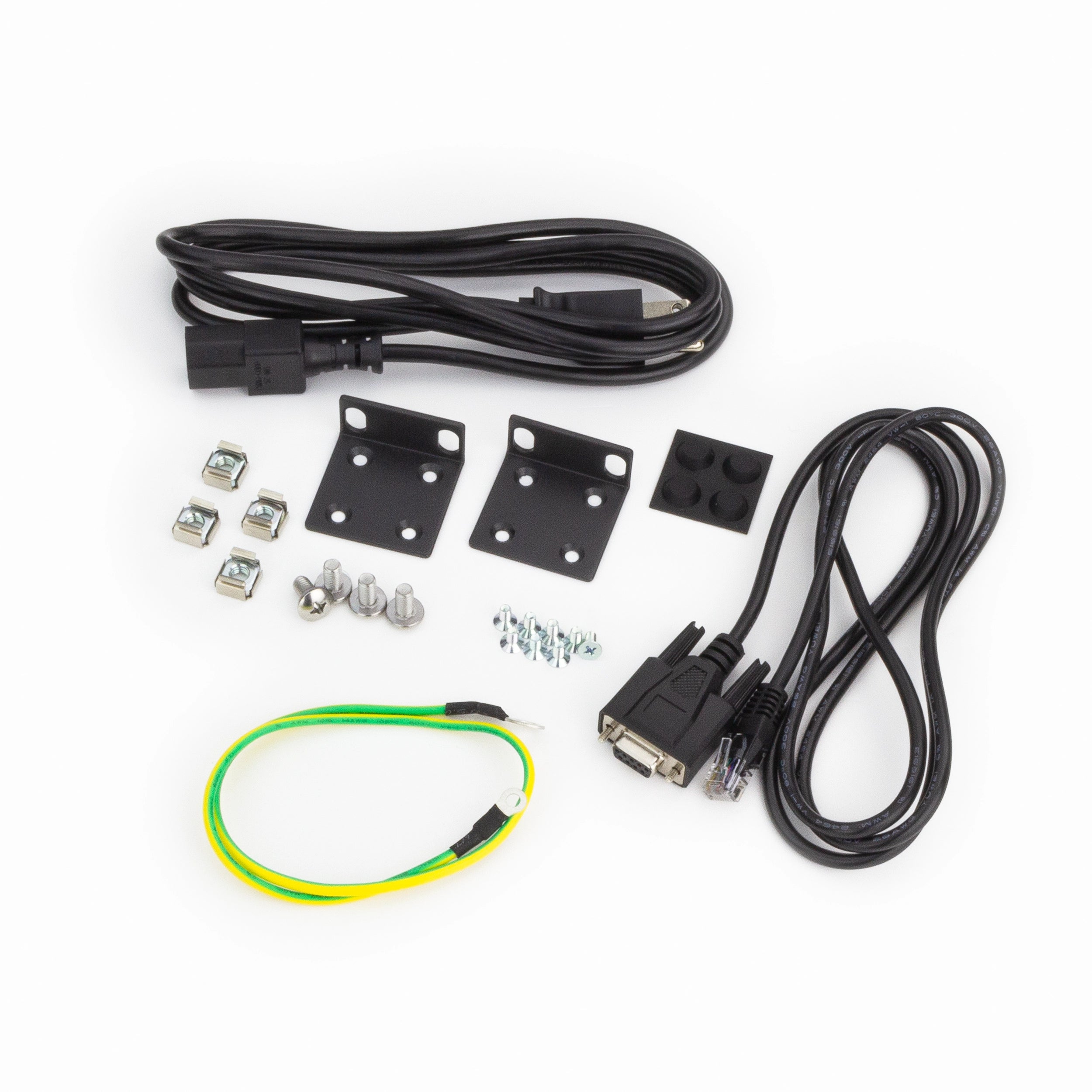

  • Network Switch

  • Power cable
  • Rack screws and nuts
  • Rack mount ears and screws
  • Rubber feet
  • Grounding wire
  • Serial to RJ45 cable
