MXnet 10G SDVoE Transceiver with with Icron Technologies, the ExtremeUSB® and Dante

Description

The AC-MXNET-10G-TCVR-PRO simultaneously leverages the full technological architecture of its AC-MXNET-10G-TCVR stablemate, and augments platform versatility with the addition of engineering sciences from USB extension leader Icron, plus Audinate’s ubiquitous Dante to an already powerful silicon résumé.

AVPro Edge has cultivated several advanced concepts into MXnet 10G and SDVoE making it a tour de force that, just a single year ago, seemed implausible. Its design is indispensable, unique and destined to become an instant classic. The new AC-MXNET-10G-PRO serves as another flexible gateway in the next generation 10G lineup of heavy-duty AV-over-IP multicast offerings from AVPro Edge.

Icron USB
Patented by Icron Technologies, the ExtremeUSB® suite of features enables extension of native USB connections beyond the traditional USB standard 5 meter limitation. Through precise control over strict USB specification timing requirements with physical transmission media, including both Category wire and fiber, ExtremeUSB manages turnaround time quotients in the USB protocol between the local point and all remote points. ExtremeUSB maintains these transmission and acknowledgment requirements transparently and driver-free. Specialized algorithms manage and correct error-prone situations while handling techniques, unique to separate USB transfer types, keep USB links active via a proxy process to overcome extension-incurred delays.

Additional ExtremeUSB features such as driver-free plug and play and compatibility with Windows, Mac OS and Linux provide consistently reliable, transparent user experiences. Vastly extended operational distances made possible by ExtremeUSB enables broader market applications, including medical, military, education and pro AV.

Audinate Dante
Replacing antiquated traditional Pro A/V cabling protocols, which were often practiced as linking one device to another, with different devices and their associated applications requiring different cabling types, Audinate’s Dante (Digital Audio Network Through Ethernet) platform packetizes audio in a similar fashion to MXnet 10G and SDVoE, with virtually matching specifications.

Signal flow and routing are software defined, untethered from previous rigid disciplines. Dante Audio is 100% lossless, 24-bit or 32-bit, for all conventional industry sample rates from 44.1kHz up to 192kHz. Latency is ultra-low at 1ms or less, with sub-microsecond synchronization.

The AC-MXNET-10G-TCVR-PRO uses the installed Dante Module to encode stereo audio from an HDMI video source into two separate Dante audio streams. This enables HDMI audio to be distributed to decoders on an MXnet 10G network, simultaneously sending the Dante-encoded 2-ch audio streams onto an existing Dante network for site-wide distribution to other Dante-enabled products. The AC-MXNET-10G-TCVR-PRO does not decode Dante audio.

MXnet 10G SDVoE Transceiver with with Icron Technologies, the ExtremeUSB® and Dante

Product form
  • Icron Technologies, the ExtremeUSB®
  • Dante Platform
  • HDMI 2.0
  • 18Gbps Bandwidth Support

SKU: AC-MXNET-10G-TCVR-PRO

  • Shipped today? Order within: May 18, 2024 13:00:00 -0500

Description

The AC-MXNET-10G-TCVR-PRO simultaneously leverages the full technological architecture of its AC-MXNET-10G-TCVR stablemate, and augments platform versatility with the addition of engineering sciences from USB extension leader Icron, plus Audinate’s ubiquitous Dante to an already powerful silicon résumé.

AVPro Edge has cultivated several advanced concepts into MXnet 10G and SDVoE making it a tour de force that, just a single year ago, seemed implausible. Its design is indispensable, unique and destined to become an instant classic. The new AC-MXNET-10G-PRO serves as another flexible gateway in the next generation 10G lineup of heavy-duty AV-over-IP multicast offerings from AVPro Edge.

Icron USB
Patented by Icron Technologies, the ExtremeUSB® suite of features enables extension of native USB connections beyond the traditional USB standard 5 meter limitation. Through precise control over strict USB specification timing requirements with physical transmission media, including both Category wire and fiber, ExtremeUSB manages turnaround time quotients in the USB protocol between the local point and all remote points. ExtremeUSB maintains these transmission and acknowledgment requirements transparently and driver-free. Specialized algorithms manage and correct error-prone situations while handling techniques, unique to separate USB transfer types, keep USB links active via a proxy process to overcome extension-incurred delays.

Additional ExtremeUSB features such as driver-free plug and play and compatibility with Windows, Mac OS and Linux provide consistently reliable, transparent user experiences. Vastly extended operational distances made possible by ExtremeUSB enables broader market applications, including medical, military, education and pro AV.

Audinate Dante
Replacing antiquated traditional Pro A/V cabling protocols, which were often practiced as linking one device to another, with different devices and their associated applications requiring different cabling types, Audinate’s Dante (Digital Audio Network Through Ethernet) platform packetizes audio in a similar fashion to MXnet 10G and SDVoE, with virtually matching specifications.

Signal flow and routing are software defined, untethered from previous rigid disciplines. Dante Audio is 100% lossless, 24-bit or 32-bit, for all conventional industry sample rates from 44.1kHz up to 192kHz. Latency is ultra-low at 1ms or less, with sub-microsecond synchronization.

The AC-MXNET-10G-TCVR-PRO uses the installed Dante Module to encode stereo audio from an HDMI video source into two separate Dante audio streams. This enables HDMI audio to be distributed to decoders on an MXnet 10G network, simultaneously sending the Dante-encoded 2-ch audio streams onto an existing Dante network for site-wide distribution to other Dante-enabled products. The AC-MXNET-10G-TCVR-PRO does not decode Dante audio.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Icron USB

USB Speeds - Supports USB Low, Full and High Speeds



Max Throughput - Up to 480Mbps



Device Compatibility - Support for up to 31 USB devices, including hubs.



Maximum Range - Cat6A (or better) up to 100 meters; Fiber up to 500 meters (multimode) and 10 Kilometers (single-mode).



True Plug and Play - Compatible with Windows, Mac OS and Linux.



Driverless - No software drivers required



Audinate Dante

Compression-free - 100% Lossless audio



Available Signal Types - Sample rates from 44.1kHz up to 192kHz, 24-bit and 32-bit.



Ultra-Low Latency -  Latency is imperceptible at less than 1ms, with sub-microsecond synchronization.



High Channel Capacity - Up to 512 x 512 channels (48kHz / 24-bit) may be sent to compatible devices.



For a comprehensive, in-depth description of all transceiver platform features, please see the AC-MXNET-10G-TCVR product page.

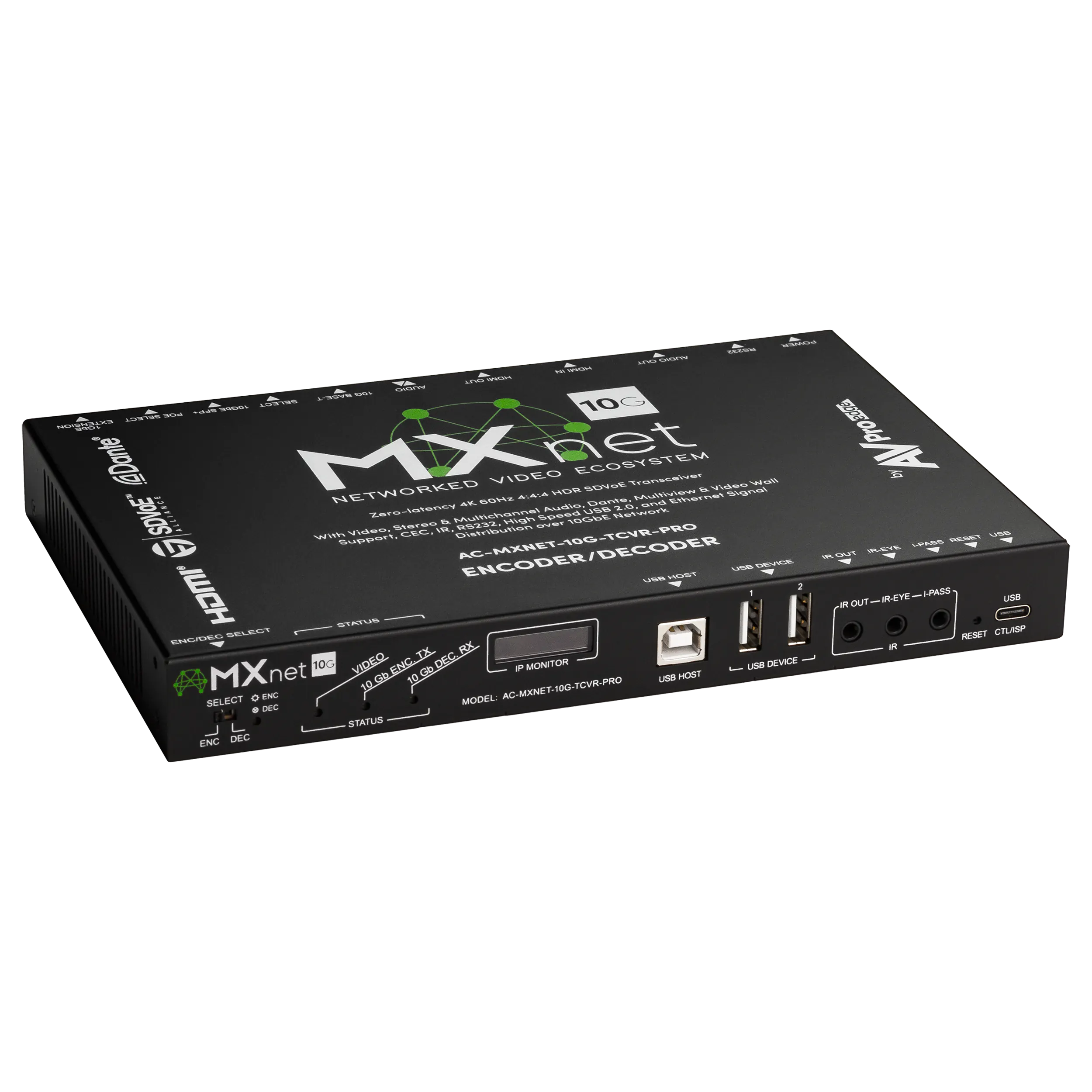

Ports:
Ethernet

(1) 10G female RJ45 port for SDVoE and Dante streams transmissions

(1) 1G female RJ45 port for Ethernet extension or CBOX control. Both are PoE compatible.

SFP+(1) 10G SFP+ Port used for SDVoE and Dante streams transmissions
HDMI(1) HDMI input
(1) HDMI output
Audio(1) TOSLINK
(1) x 3 Pin Terminal Block
(1) 3.5mm female stereo jack. It can be audio input or audio output, depending on if TCVR is in Encoder or Decoder mode respectively.
IR(1) 3.5mm IR OUT Port
(1) 3.5mm IR-EYE Port
(1) 3.5mm I-PASS Port
RS232(1) x 3 Pin Terminal Block for MXnet System Control
USB(1) USB Type-C for MXnet Service
(1) USB Type-B full speed USB 2.0 480Mbps Data Rate
(2) USB Type-A full speed USB 2.0 480Mbps Data Rate
Distance:
Ethernet100 Meters/330 Feet over CAT 6a
SFP+ and Fiber

10G SFP+ AOC cable up to 3 meters

10G SFP+ Multimode transceiver over Multimode fiber up to 550 meters

10G SFP+ Single mode transceiver over Single mode fiber up to 20 Kilometers

SFP+ and Copper10G SFP+ Copper up to 100 meters/330 Feet over CAT 6a
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity5-90% RH (No Condensation)
Thermal dissipationEncoder 39.32 BTU/hr, Decoder 33.56 BTU/hr
Power:
Power ConsumptionEncoder ≈7W, Decoder ≈8W
PoE (Power over Ethernet)IEEE 802.3af (15.4W)
Power Supply UnitInput: AC 120-240V, 50/60Hz, 0.8A
Output: DC 12V, 2A
Dimensions:
MountingRack and Furniture mount support
Dimensions (Unit)mm: 215 × 140 × 25
inch: 8.46 × 5.51 × 0.98
Dimension (Packaged)mm: 310 × 180 × 54
inch: 12.2 × 7.09 × 2.13
Weight (Unit)1.76 lbs./0.8 kg
Weight (Packaged)2.25 lbs./1.02 kg
RegulatoryCE/FCC
Product Warranty10 Years
*Specifications subject to change without notice.  Mass & dimensions are approximate
  • AC-MXNET-10G-TCVR-PRO (Transceiver)
  • 1 x IR Tx Unit
  • 1 x IR Rx Unit
  • 2 x ​Mounting Brackets
  • 4 x Rubber Feet
  • 3 x 3-Pin to L/R RCA Audio Cable
