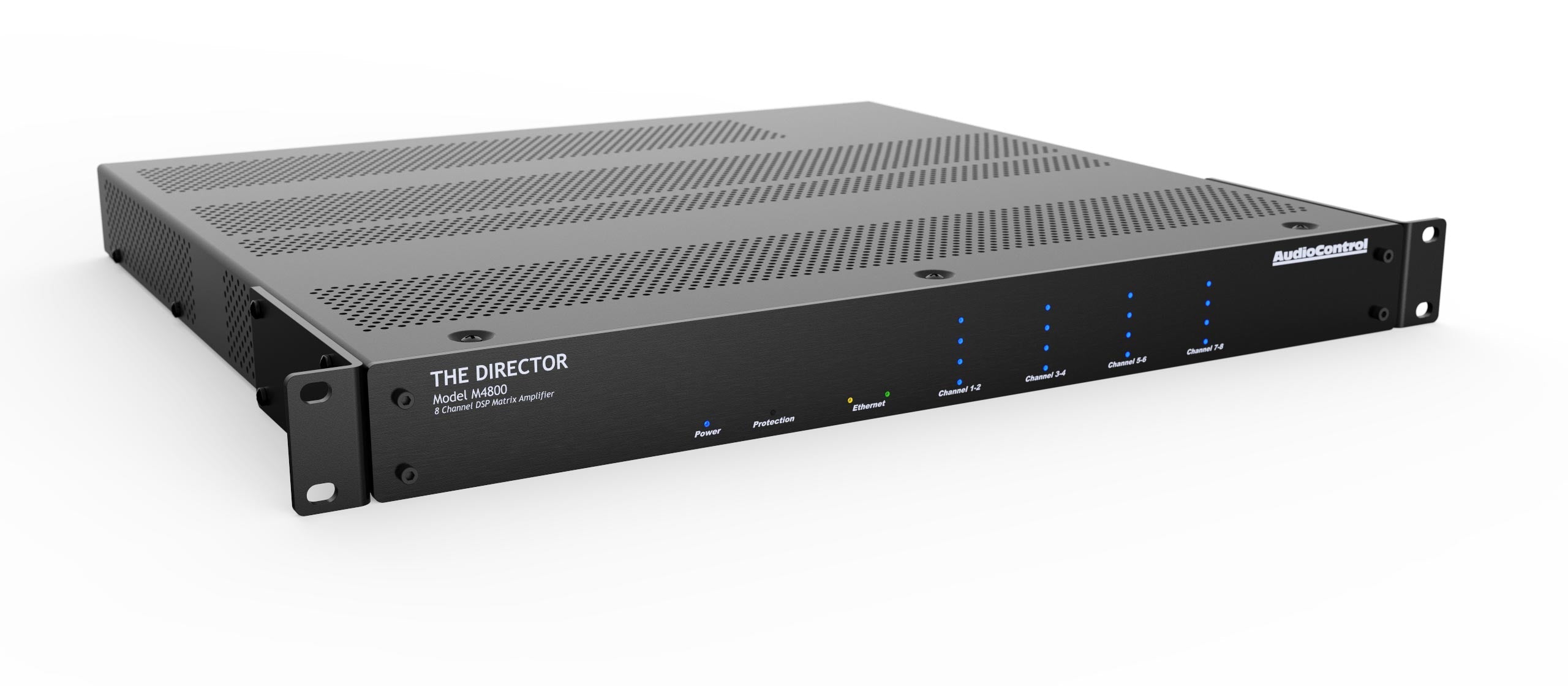

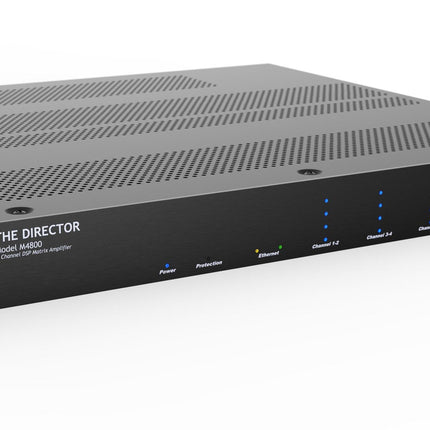

Director M4800
- VendorAudioControl
Director M4800
- VendorAudioControl
- FEATURES
- POWER AND CONTROL AT YOUR FINGERTIPS
- SPEAKER OPTIMIZATION PROFILES
- SPECIFICATIONS
- RESOURCES
- Network DSP Signal Matrix Amplifier With Volume Control
- 8 Channels x 100 Watts at 8 Ohms (All Channels Driven)
- 8 Channels x 200 Watts at 4 Ohms (All Channels Driven)
- Bridgeable to 400 Watts of Bridged Power
- Digital Signal Processing (DSP) Performance
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
- Built-in Matrix Routes Analog or Digital Inputs to Any Zone or Digital Bus Output
- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for All Zones & Amplifier
- Digital Signal Sense
- Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
- AudioControl LightDrive™ Anti-Clipping Speaker Protection

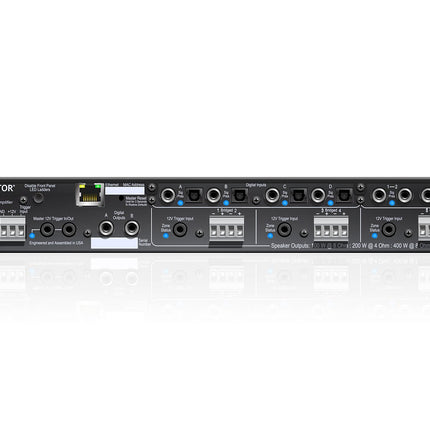

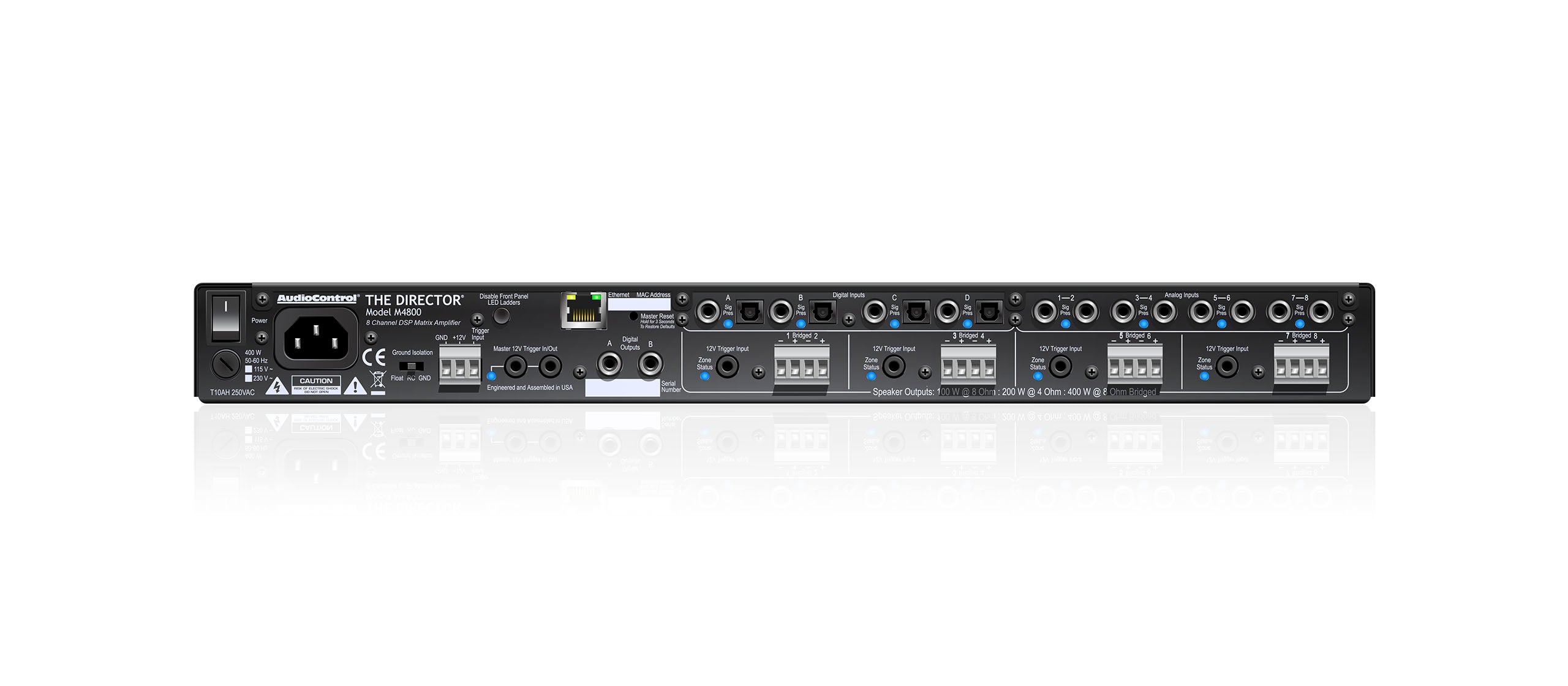

- Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
- Dual Digital Audio Bus Outputs
- Compact 1U Rack Space (Includes Rack Mount Brackets)
- Home and Commercial Installations
The Director® M Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, local and bus inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.
 |  |  |
 |  |  |
Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
AUDIOCONTROL SOUND PARTNERS™
 |  |  |  |
 |  |  |  |
| INPUTS Inputs: 4 Stereo Analog Local Inputs, 4 Coaxial/TOSLINK S/PDIF Inputs Input Sensitivity: 1 Vrms for full output, level at maximum Input Gain: 30 dB | CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure Network Connection/Protocol: 10Base-T Ethernet TCP/IP Communication Protocol: HTTP or Telnet |
| OUTPUTS Amplifier Channels: 8 Power Output (8 Ω): 100 W per channel Power Output (4 Ω): 200 W per channel Power Output (8 Ω Bridged Mono): 400 W Minimum Speaker Load: 4 Ω Preamp Audio Outputs: 2 Coaxial Digital S/PDIF BUS Outputs | WEIGHT & DIMENSIONS Dimensions: 17” W x 15.5” D x 1.75” H (1 RU) Weight: 16.5 lbs. (9.5 kg) |
| PERFORMANCE Crosstalk: > 80 dB @ 1 kHz Damping Factor: >300 Signal to Noise: >95 dB, A-wtd, ref full output Crosstalk: >80 dB @ 1 kHz DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth | IN THE BOX The Director Model M4800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
