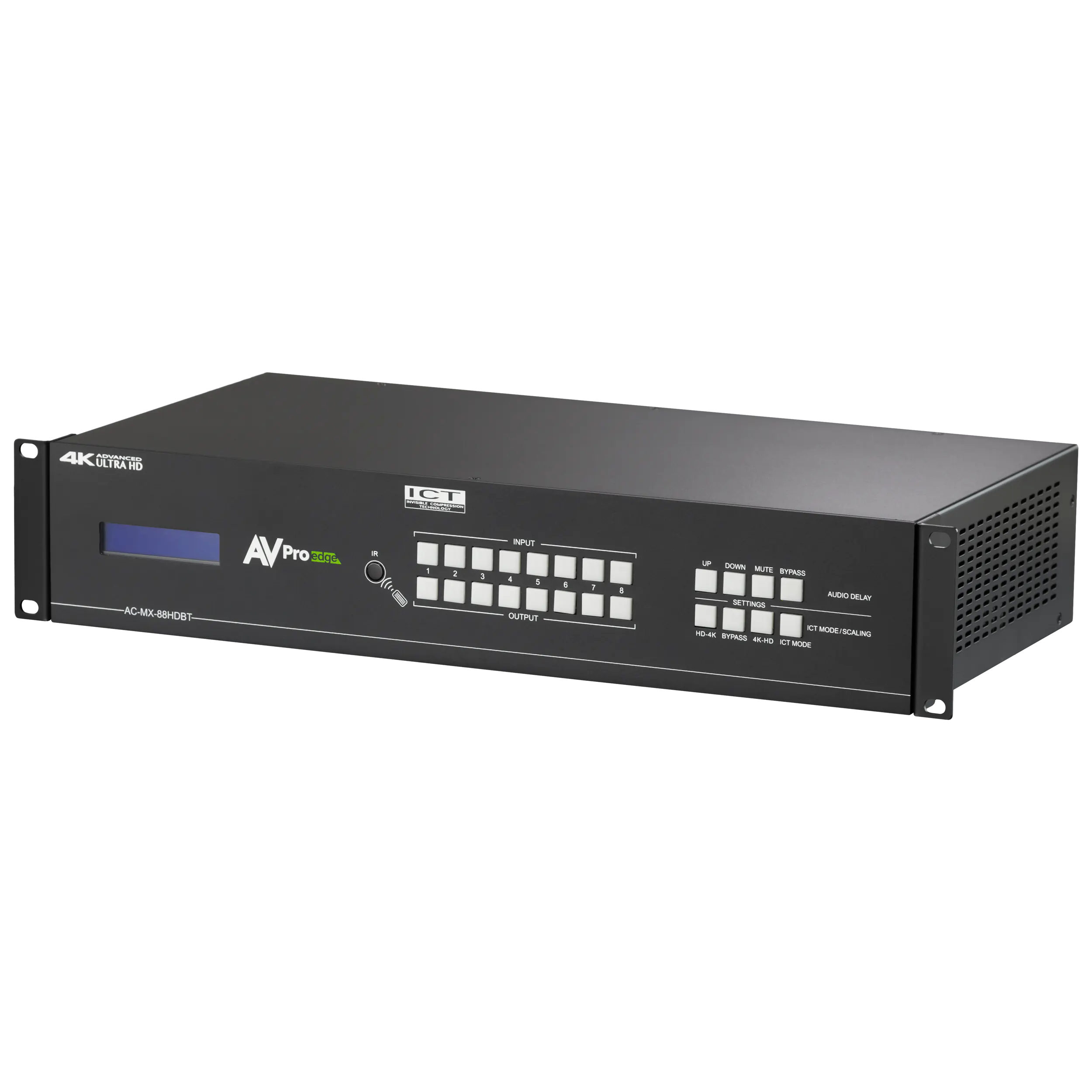

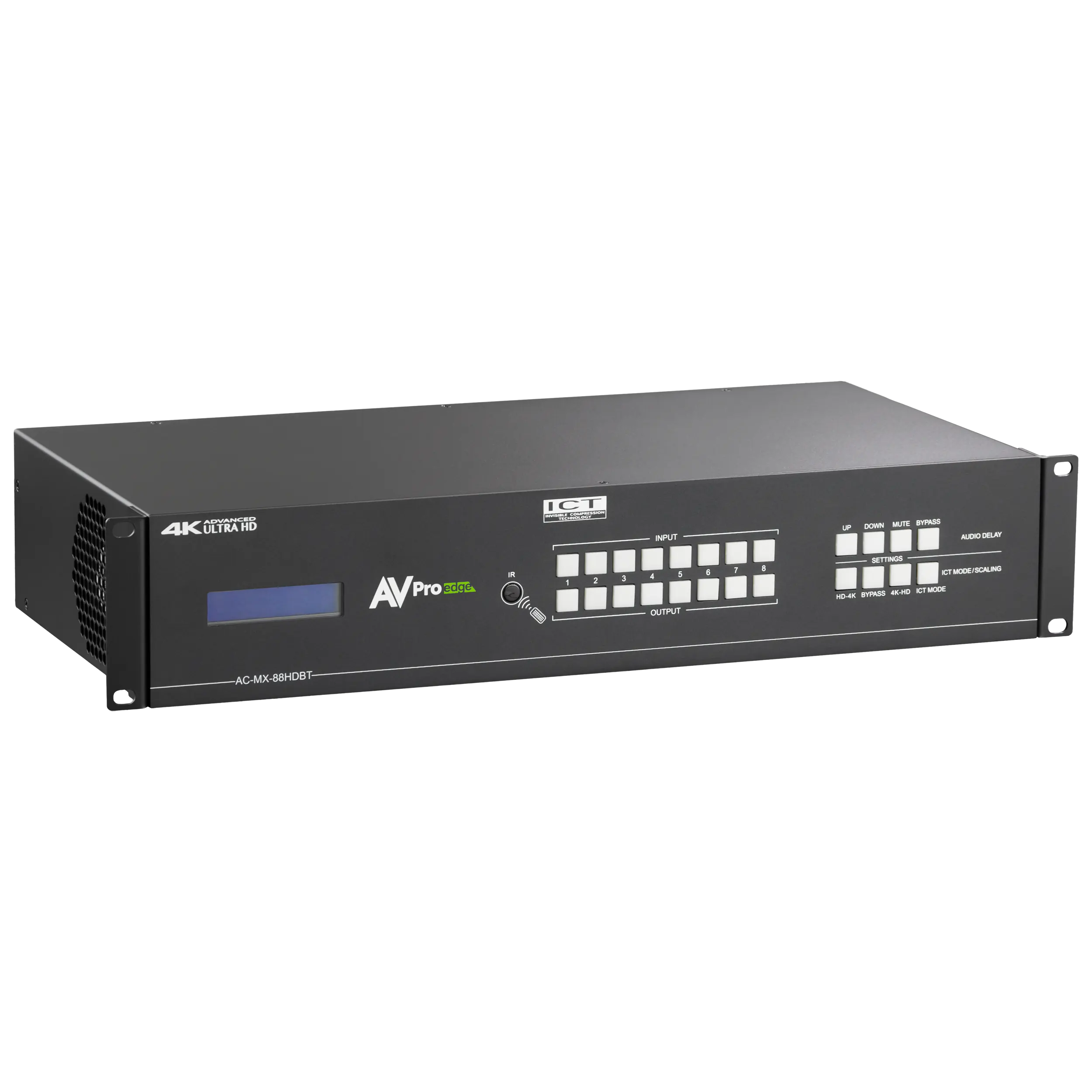

HDBaseT Compatibility Mode (HDBT-C) -This EXCLUSIVE AVPro Edge technology allows you to convert high bandwidth signals that are between 9Gbps - 18Gbps like UHD Players, HDR Content, Gaming Systems, PC's, and Media Players. The conversion uses a proprietary algorithm that impacts the original image as little as possible so you can transmit your HDR and high bandwidth signals over long-distance transmission to a display that supports 4K but does not support 18Gbps. Best of all, this is managed on a per output basis, so you have complete control over what individual runs are "down-clocked."
ICT Technology on the HDBaseT Outputs - ICT (Invisible Compression Technology) is a revolution in HDMI extension technology. This proprietary technology can compress high bandwidth HDMI signals into a more manageable size to fit through a CAT Cable "pipe." The ICT algorithm can manage all flavors of HDR including 4:4:4, 4:2:2, and 4:2:0 as well as signals up to 18Gbps and 4K 60Hz 4:4:4. The architecture of ICT allows it to be compatible with all chroma subsampling types, color spaces and HDMI Deep Color up to 12 Bit. Our technology is unique because it is truly invisible. It is not only invisible to the human eye, but also to HDMI test gear and other sink devices, what comes in is what goes out. What makes ICT special is that we preserve HDR Metadata and color information and depth in its full, original, integrity. Other compression technologies sacrifice these to save space and it will cause very visible banding, color shifting and motion artifacts in the image.
This technology is backed by extensive testing in side-by-side comparisons of ICT vs. directly connected sources. The setup is two identical displays and a single source. The source is split and sent to both displays, one using ICT and one with an 18Gbps cable. The movie is shown in HDR and evaluators are brought in to determine which one is compressed. The results are conclusive, it is invisible. Even to the most trained eye.
4K Up/Down Scaling - Like other AVPro Edge Matrix Switchers this unit comes with scalers built-in on each of its outputs. With this scaler you can upscale an HDMI output from 1080p > 4K. With the HDBaseT outputs, you can scale from 4K >1080p for HDBaseT compatibility when using 3rd party HDMI extenders. There is a limitation to scaling with this unit, you are not able to downscale on the HDMI outputs, and you are not able to upscale on the HDBaseT outputs.
Extreme EDID Management - With 29 on-board EDID's, including HDR EDID's, not getting a picture is simply a thing of the past. You can manage the input side of the switch by selecting a preloaded EDID. We also can INSTANTLY read an EDID from any connected display and apply it to the desired input, all with the push of a button. Goodbye EDID problems...
Dual Audio De-Embedding - Our unique Audio De-Embedding allows:

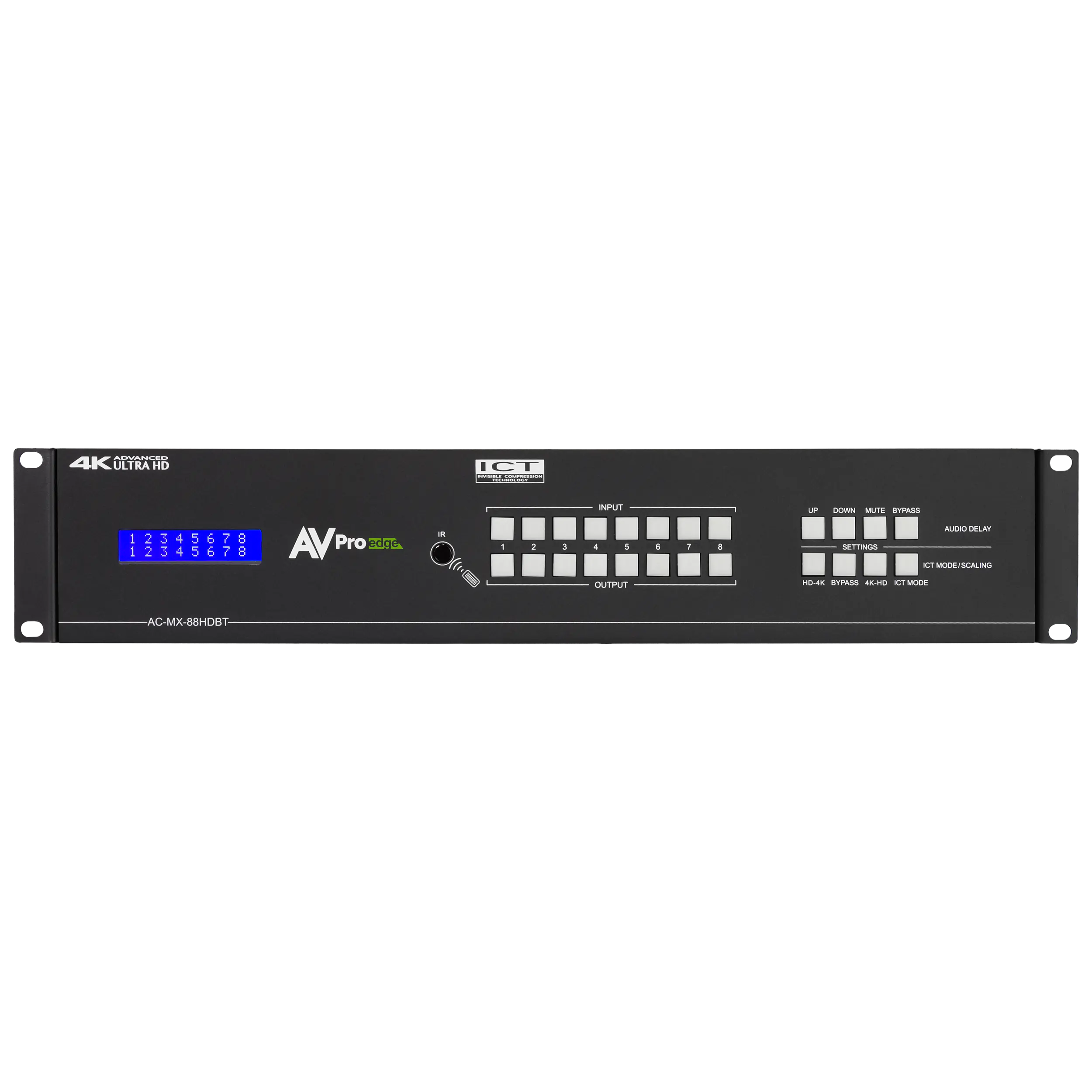

Audio Delay -With the AC-MX-88HDBT you can manage audio delay on the balanced or digital outputs per output. This features up to 630ms of delay, so your lip sync problems vanish. Audio delay can be managed directly from the front panel for ease of use and simple setup with the push of a button.
Built-in Test Pattern - The unit features an internal test pattern that can be initialized to verify that the infrastructure after the matrix is intact. This saves hours of painful troubleshooting and allows you to identify problems before they become problems. The pattern is per output.

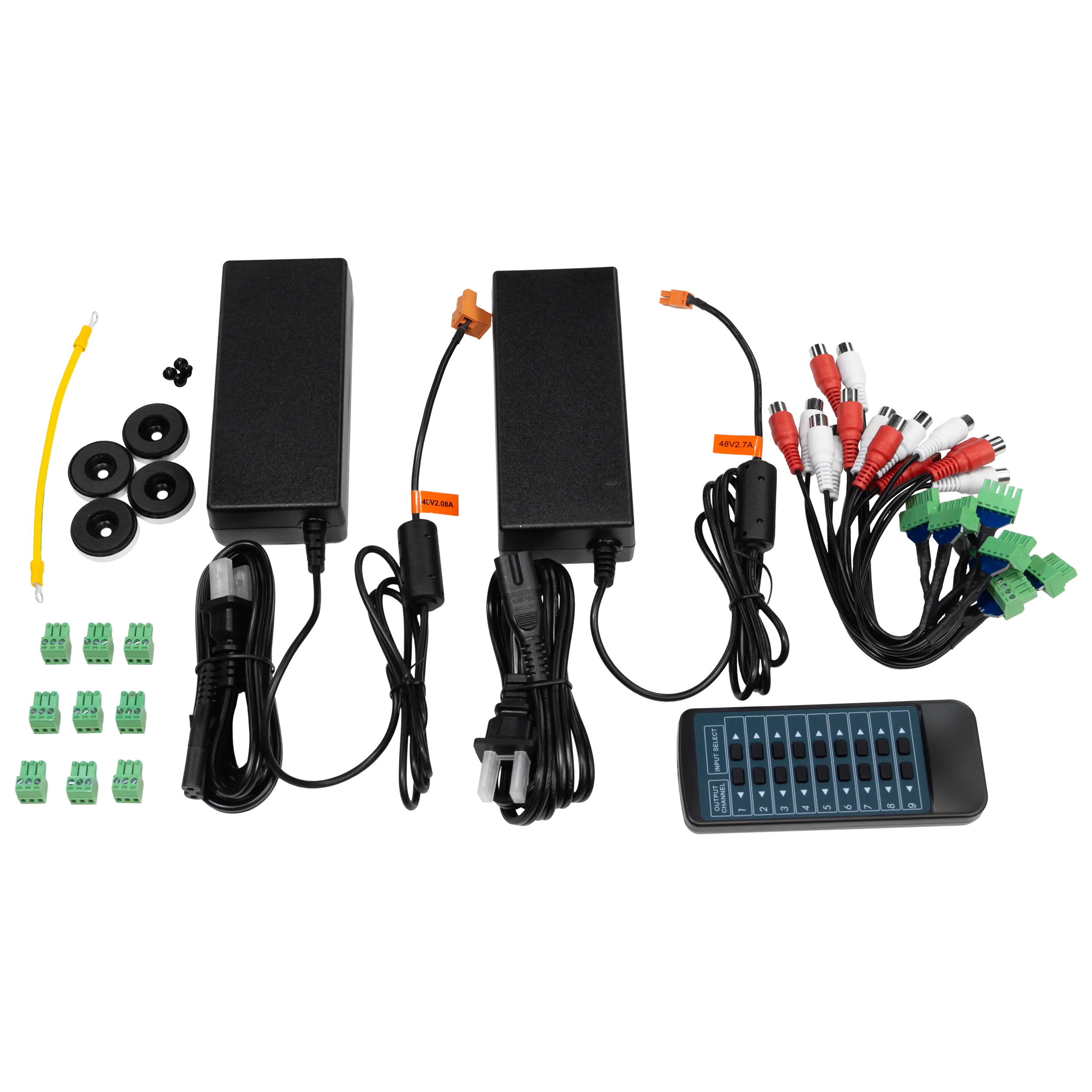

Receiver Options - There are two receiver options:
|Video Resolutions||Up to 4K 60Hz 4:4:4|
|VESA Resolutions||Up to DCI 4K (4096x2160)|
|HDR Formats/Resolutions||420, 422, 444 (10 and 12 Deep Color) HDR10, HDR10+, Dolby Vision (24/30 Frames), HLG|
|Color Space||YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)|
|Chroma Subsampling||4:4:4, 4:2:2, 4:2:0 Supported|
|Deep Color||Up to 16 bit (1080), Up to 12 bit (4K)|
|Scalers (HDMI) Per Output Optional||1080P to 4K (Resolution Only, Framerate stays the same)|
|Scalers (HDBaseT) Per Output Optional||4K to 1080P (Resolution Only, Framerate stays the same)|
|HDMI Output||Mirrored HDMI Outputs (HDBaseT 1-8)|
|Audio Formats Supported HDMI||PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digtal, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos|
|Audio Formats Supported Extracted (Toslink)||PCM 2 Ch, LPCM 6 Ch, LPCM 7 Ch, Dolby Digital, Dolby Digital Plus (Always Downmixed)|
|Audio Formats Supported Extracted (2CH Port)||PCM 2 CH (Always Downmixed)|
|Audio Extraction Location||Bind to Input, Bind to Output |
or Matrix (Independent)
|Audio Delay (Per Output, Extracted)||Up to 630MS|

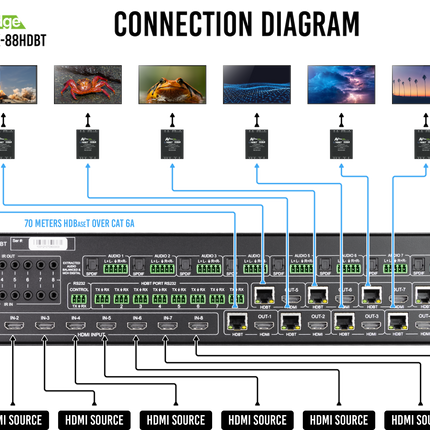

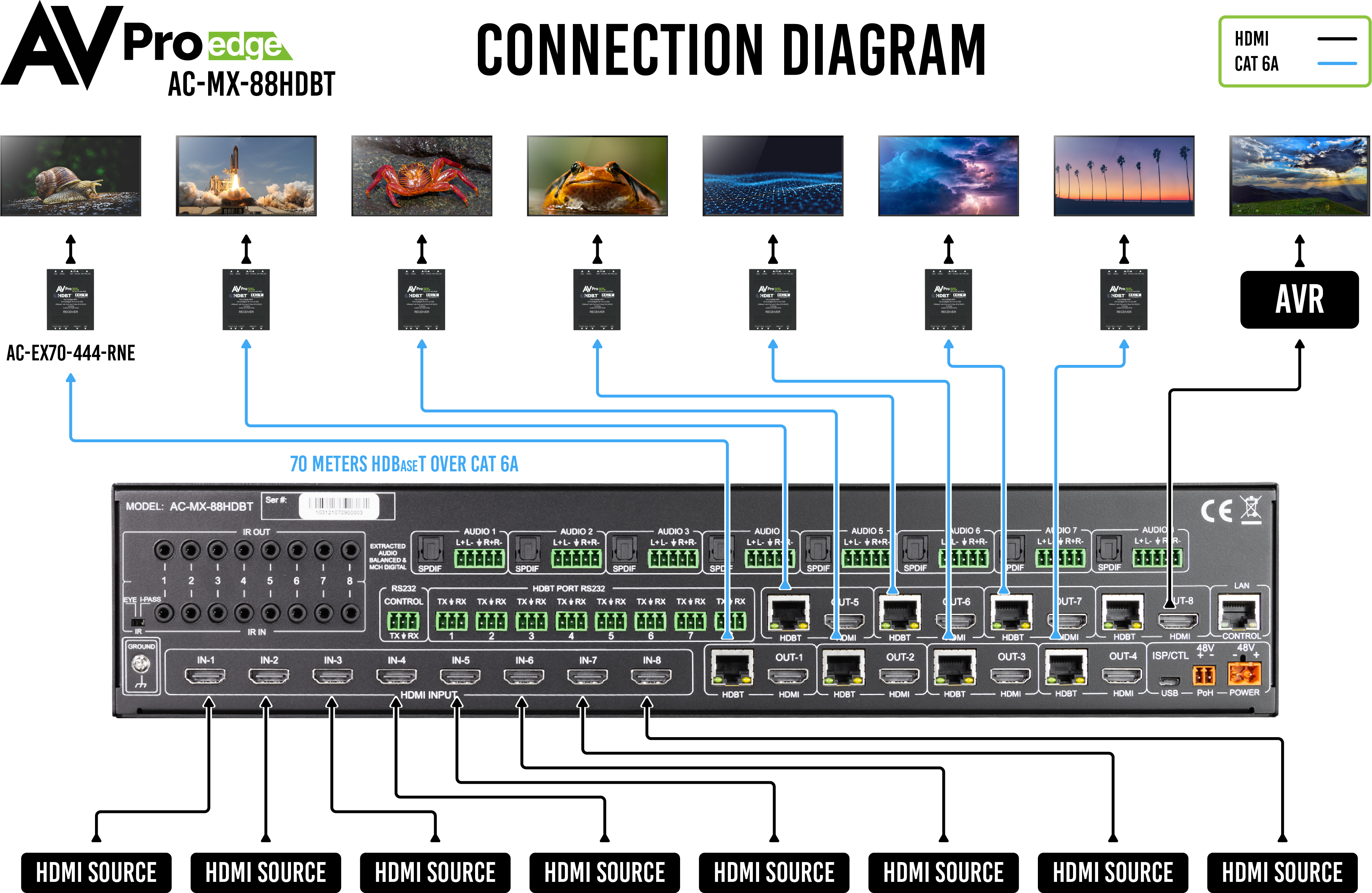

|HDBaseT Out (4K60 4:4:4 & HDR) w/ AC-EX70-444-RNE||70 Meters / 230 Feet (Cat 6a)|
|HDBaseT Out (1080P) w/ AC-EX70-444-RNE||100 Meters / 330 Feet (Cat 6a)|
|HDBaseT Out (4K60 4:2:0 Max) w/ AC-EX70-UHD-R||40 Meters / 131 Feet (Cat 6a)|
|HDBaseT Out (1080P) w/ AC-EX70-UHD-R||70 Meters / 230 Feet (Cat 6a)|
|HDMI In/Out (4K60 4:4:4)||Up to 50 Feet (using Bullet Train HDMI)|
|HDMI In/Out (w/ AOC Cable) (4K60 4:4:4)||Up to 130 Feet (using Bullet Train AOC)|
|Bandwidth HDMI||18Gbps Uncompressed|
|Bandwidth HDBaseT||18Gbps (Uses ICT above 10.2Gbps signals)|
|HDCP||HDCP 2.3 and Earlier|
|PoH for Receivers (No need to power receivers)||Yes, all outputs|

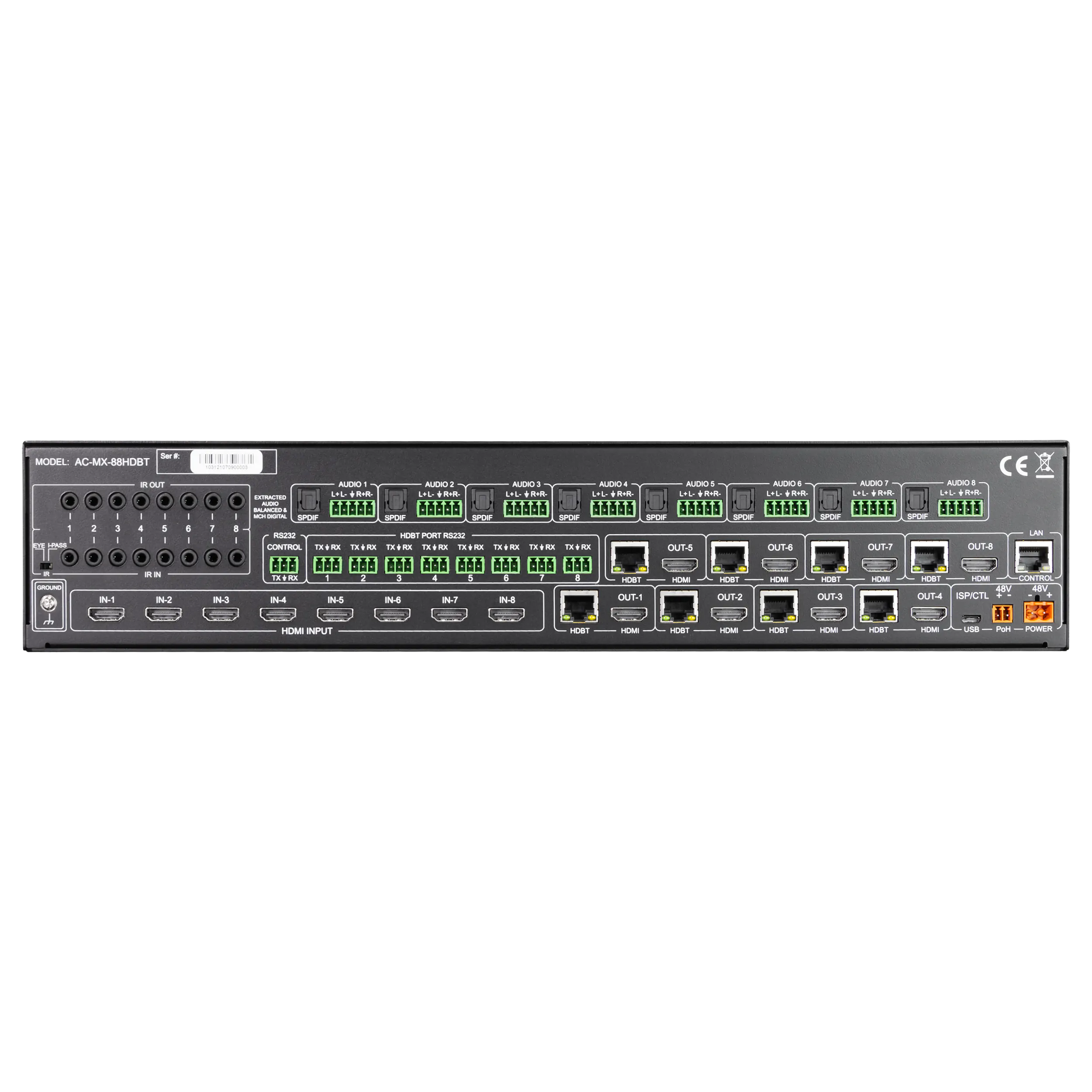

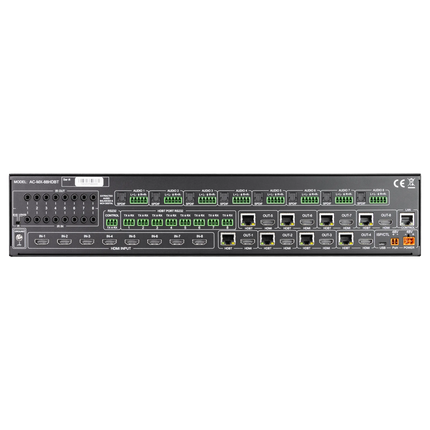

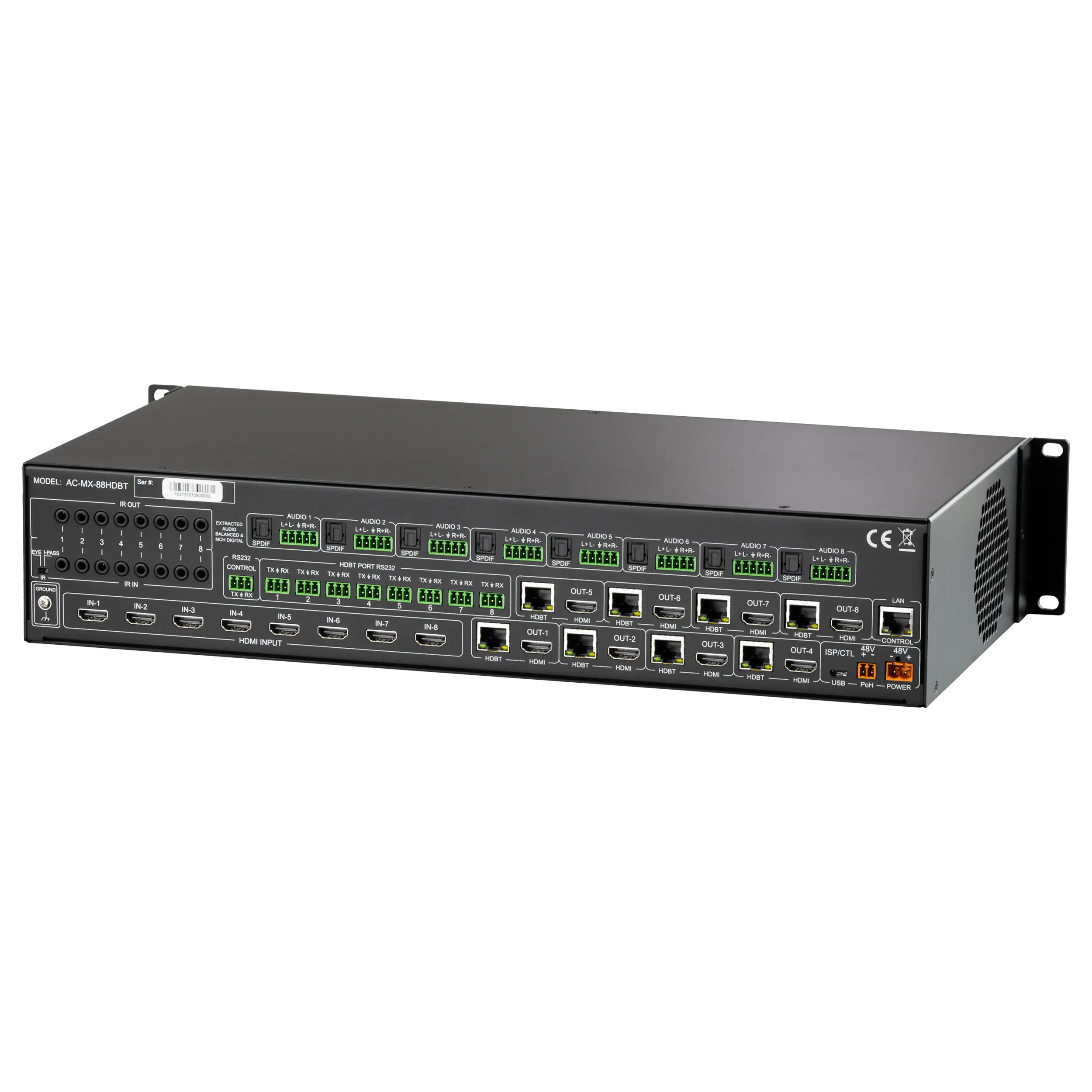

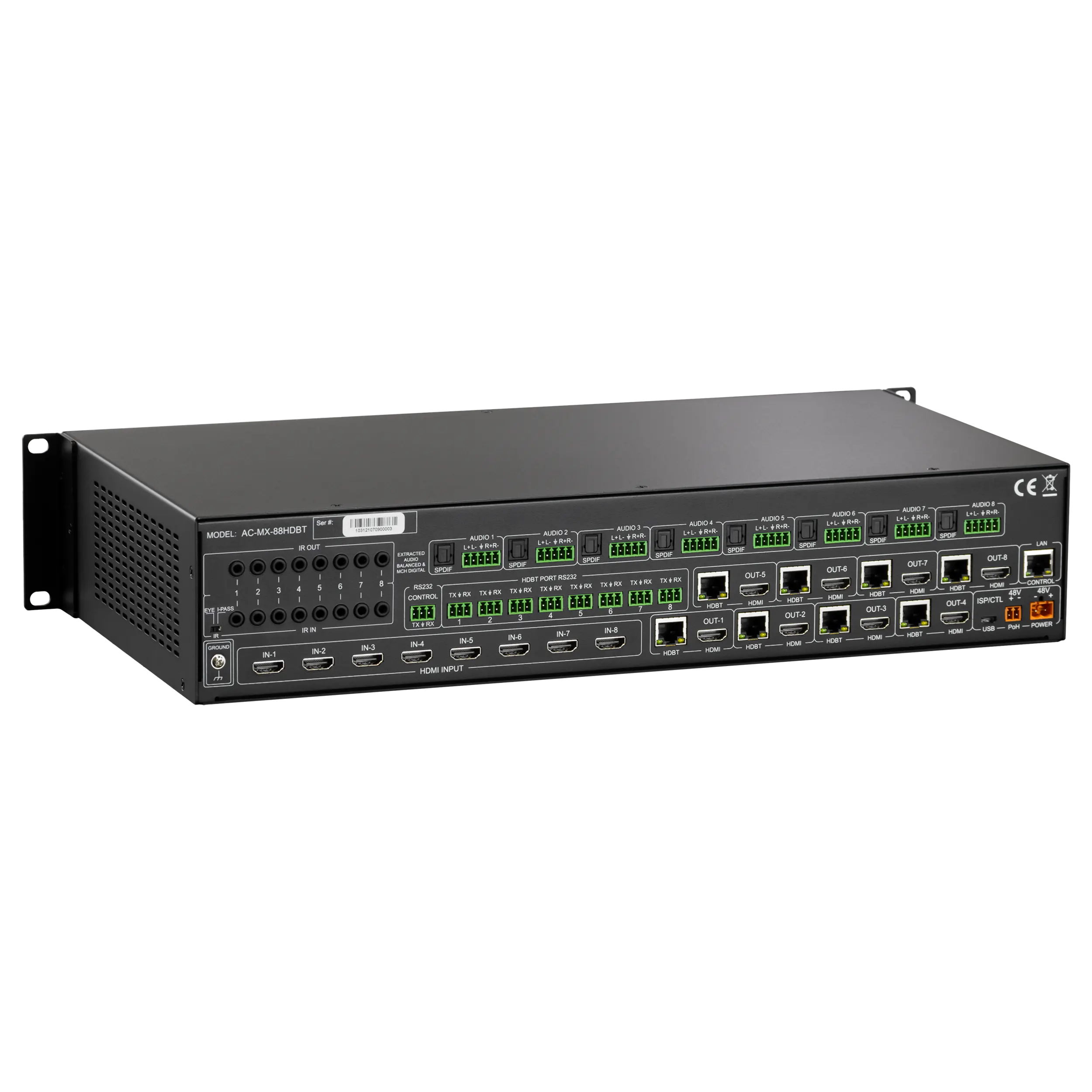

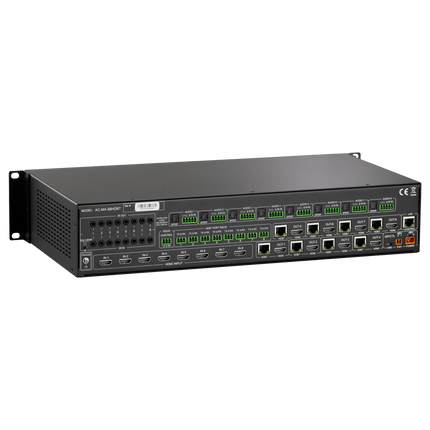

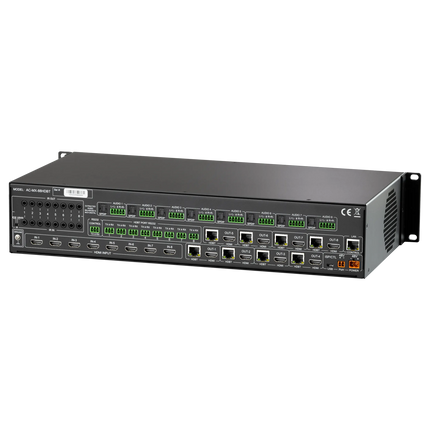

|Ports||LAN, RS232, IR, Micro USB|
|Drivers||C4, RTI, ELAN, Crestron, URC (for more - see Drivers Page)|
|LAN Web OS||YES|
|HDBaseT||RJ45 w/ PoH for HDbaseT Receivers|
|LAN||RJ45 w/ Web Interface/Control|
|Audio (Extracted Digital)||Toslink|
|Audio (Extracted Analog)||5 pin terminal block (balanced)|
|IR Rx||3.5mm Stereo (3 Conductor)|
|RS232||3 pin terminal block|
|Operating Temperature||23 to 125°F (-5 to 51°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Humidity Range||5-90% RH (No Condensation)|
|Power Consumption (Total)||56 Watts Max|
|Power Supply - Matrix||Input: AC 100-240V ~ 50/60Hz|
Output: DC 48V 2A
|Dimensions (Unit Only Height/Depth/Width)||mm: 89.52 X 228.6 X 441.33|
inch: 3.52 X 9 X 17.38
|Dimensions (Packaged Height/Depth/Width)||mm: 136 X 375 X 495|
inch: 5.34 X 14.75 X 19.5
|Weight (Unit)||10 lbs. (4.54 KG)|
|Weight (Packaged)||14.6 lbs. (6.62 kg)|
|*Specifications subject to change without notice. Mass & dimensions are approximate|
