Architect P800

Description

8 Channel High-Power Multi-Zone Amplifier

The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series, delivering 100 watts RMS per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven.

8 channels of high-power amplification are output from the compact 1 U chassis, with the Architect P800 delivering 100 watts per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 400 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect P800 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.

Available in a robust black powder coat finish, the Architect Model P800 is designed, engineered, and manufactured at AudioControl facilities located in Seattle, USA. The Architect ‘P’ series is covered by AudioControl’s legendary 5-year warranty and is available exclusively to the residential, custom install, and Pro Audio markets through AudioControl authorized dealers.

Read more

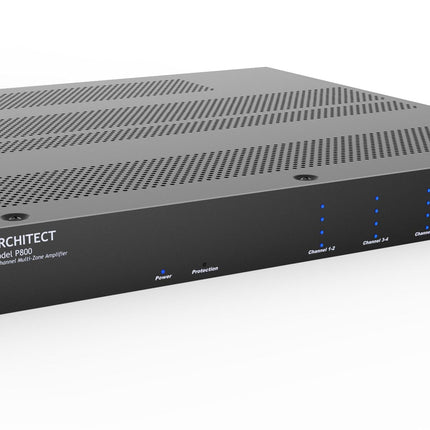

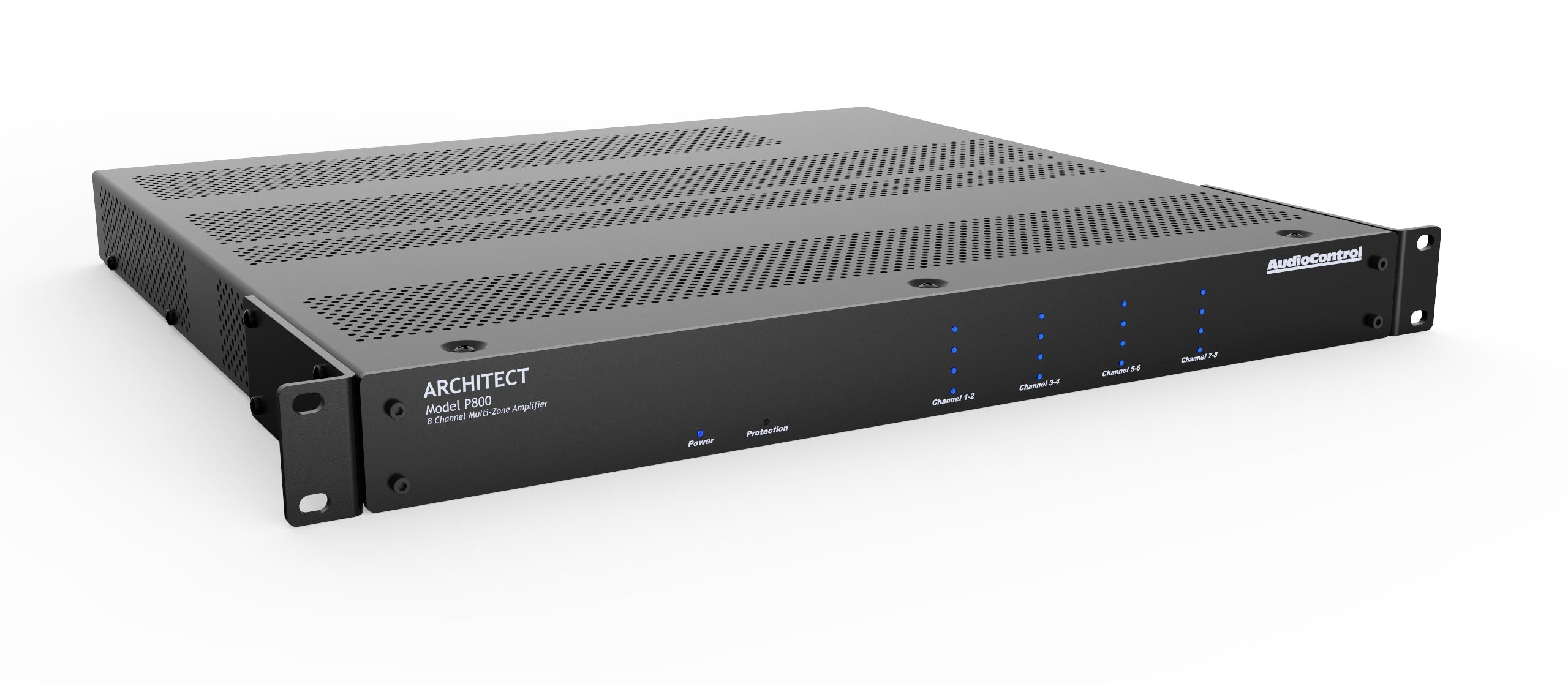

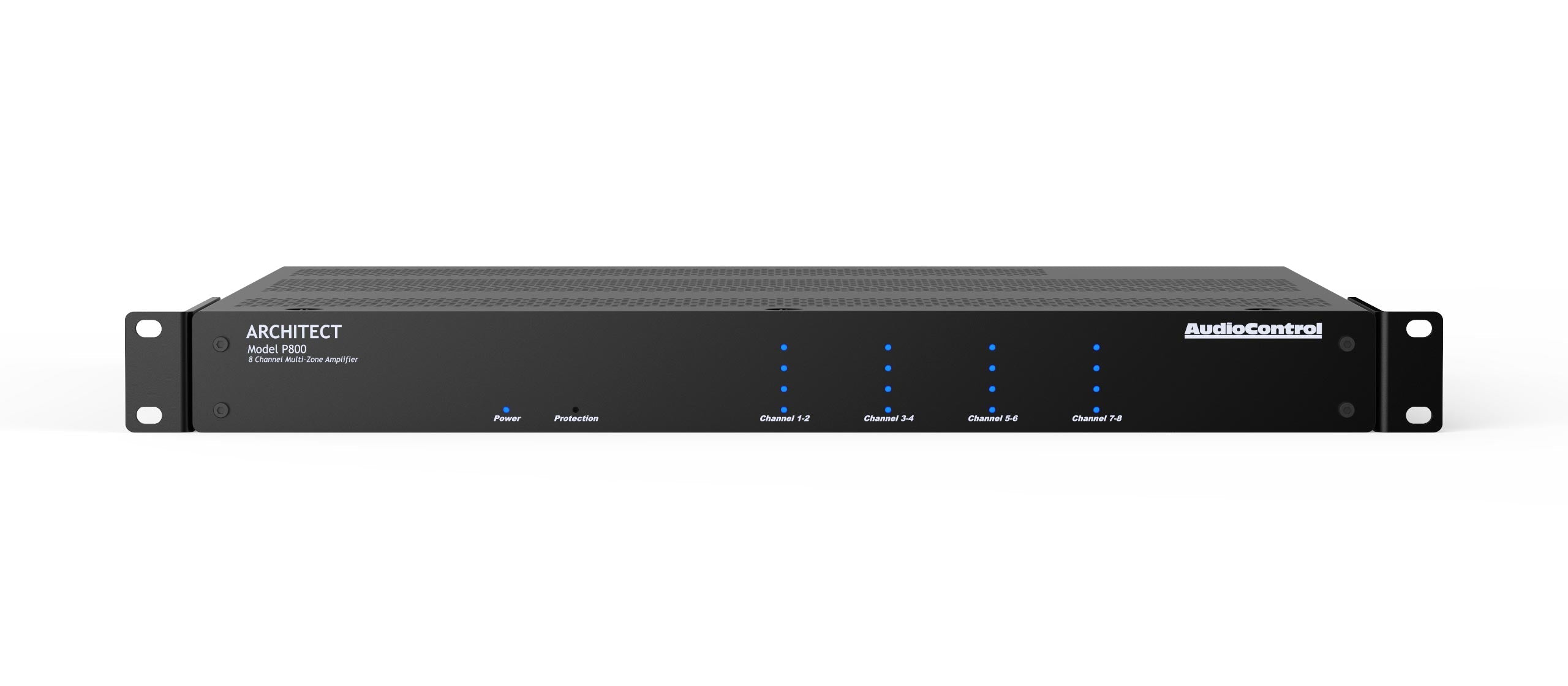

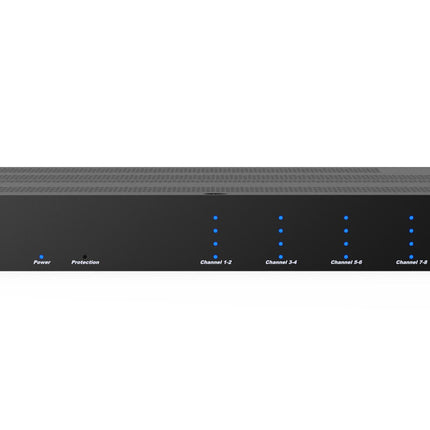

Architect P800

Product form

8-Channel High-Power Multi-Zone Amplifier

  • 8 channels, up to 4 Zones
  • 100 W at 8 Ohms, 200 W at 4 Ohms
  • 4 Bridgeable Zone Outputs
  • All Inputs Selectable for Local Input or Group BUS

SKU: ACP-AZ-P800

  • Shipped today? Order within: Nov 21, 2024 13:00:00 -0600

Login

Description

8 Channel High-Power Multi-Zone Amplifier

The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series, delivering 100 watts RMS per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven.

8 channels of high-power amplification are output from the compact 1 U chassis, with the Architect P800 delivering 100 watts per channel into 8 ohms and 200 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 400 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect P800 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.

Available in a robust black powder coat finish, the Architect Model P800 is designed, engineered, and manufactured at AudioControl facilities located in Seattle, USA. The Architect ‘P’ series is covered by AudioControl’s legendary 5-year warranty and is available exclusively to the residential, custom install, and Pro Audio markets through AudioControl authorized dealers.

Read more

  • FEATURES
  • SPECIFICATIONS
  • RESOURCES
  • 8 Channels of High Power and AudioControl Performance
  • 100 watts per Channel at 8 Ohms (All Channels Driven)
  • 200 watts per Channel at 4 Ohms (All Channels Driven)
  • Bridgeable as an 4 channel amplifier at 400 watts
  • Low Standby Current Draw of Less Than 1 Watt
  • Compact Design Fits into 1 Rack Space
  • LightDriveTM Anti-Clipping Protection Circuitry
  • 2 x Input Buses (Digital and Analog)
  • Local Zone Input Trigger
  • 12v Trigger Input and Output
  • Signal-Sensing On All Channels
  • Input Busing and Level Controls
  • Mono-switch for Improved Bridging
  • Beefy Rack Mount Brackets Included
  • Five Year AudioControl Warranty

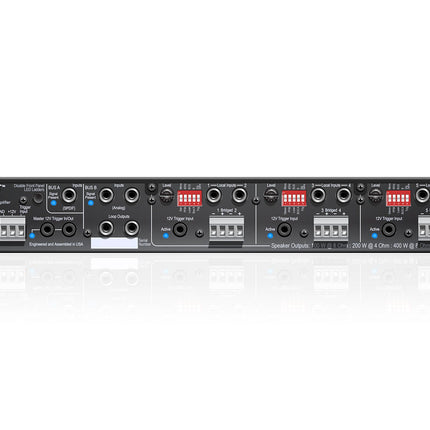

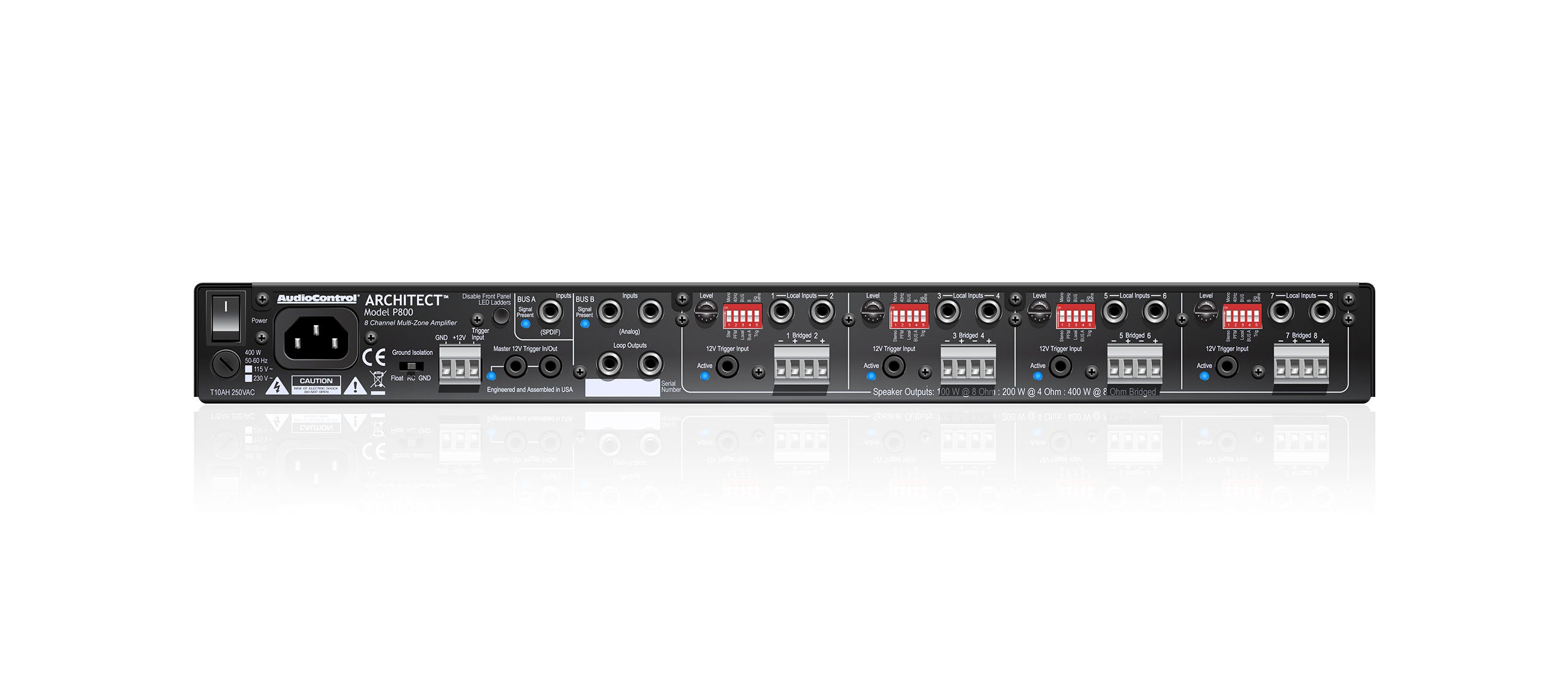

INPUTS
Inputs: 4 Stereo Local Analog Inputs, 1 Stereo Bus Coaxial Digital Input, 1 Stereo Bus Analog Input
Input Sensitivity: Variable 0 to Vrms
Analog Input Sensitivity: 1 Vrms for full output; level at maximum		AC POWER REQUIREMENTS
Standby: 0.8 W
Idle (main power on, all channels off): 35 W
All channels active: 60 W
All channels 1/8th rated power: 180 W
Full power (20 A residential service limited): 1036 W
Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads
OUTPUTS
Amplifier Channels: 8
1 Stereo Bus Analog Output
Power Output (8 Ω): 100 W per channel
Power Output (4 Ω): 200 W per channel
Power Output (Bridged Mono): 400 W
Minimum Speaker Load: 4 Ω		BTU/HR OUTPUT
Standby: 2.7 BTU/hr
Idle (main power on, all channels off): 120 BTU/hr
All channels active: 192 BTU/hr
All channels 1/8th rated power: 242 BTU/hr
Full power (20 A residential service limited): 680 BTU/hr
PERFORMANCE
Damping Factor: >200
Signal to Noise: >105 dB, (A-wtd, ref full output)
Crosstalk: >80 dB @ 1kHz
Gain: 30 dB
Analog Input Sensitivity: 1 Vrms for full output, level at maximum
DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth		WEIGHT & DIMENSIONS
Dimensions: 19″ W (w/rack ears) 17” W (w/o rack ears) x 15.8” D x 1.75″ H (1 U)
Weight: 15.0 lbs. (6.8 kg)
CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out		IN THE BOX
Architect Model P800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
