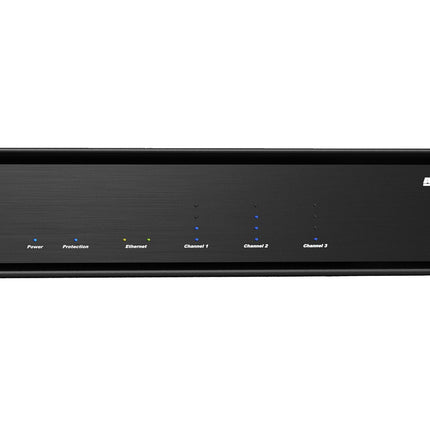

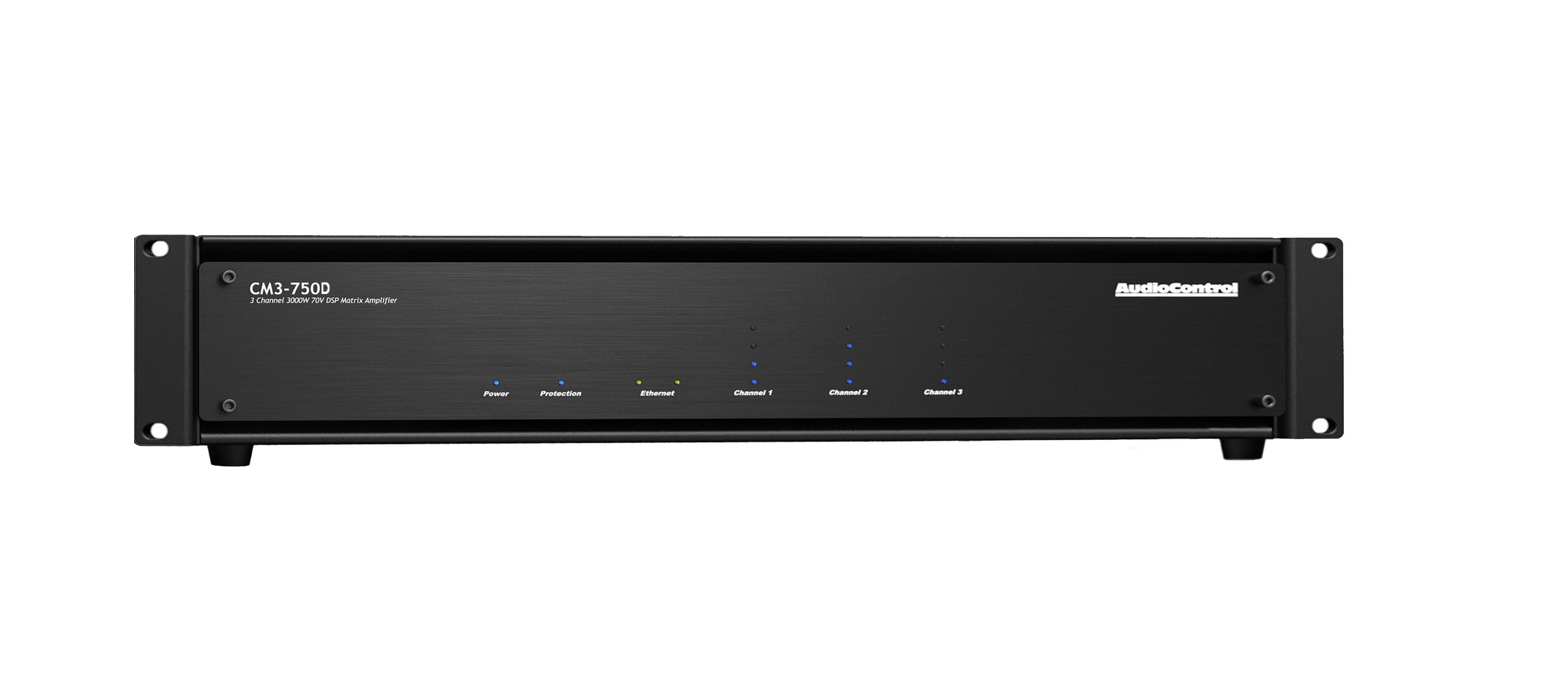

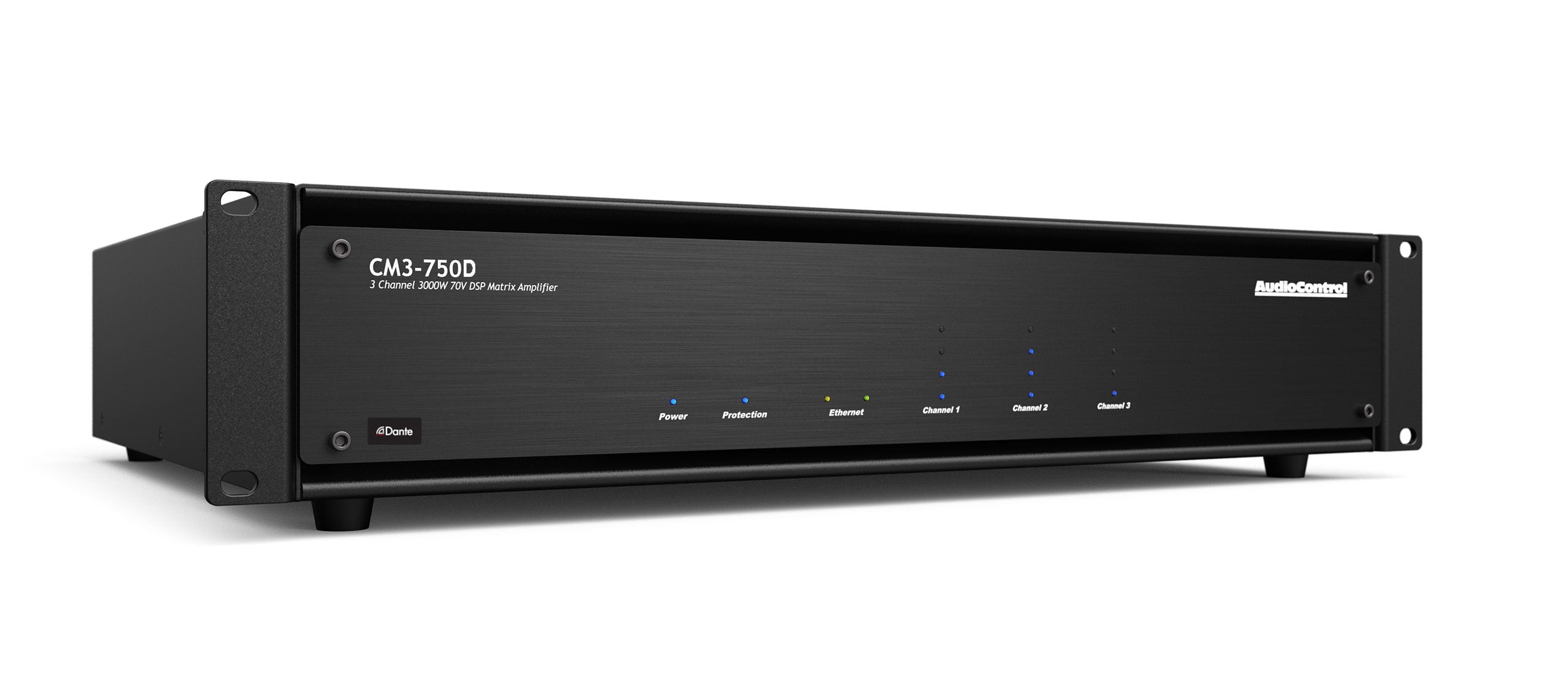

3-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante
SKU: ACP-CMD-3750
- Shipped today? Order within:
3-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante
SKU: ACP-CMD-3750
Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger
Control
The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.
Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.
AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.
INPUTS Inputs: 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Coaxial/TOSLINK Inputs Input Sensitivity: 1 Vrms for full output, level at maximum Input Gain: 30 dB | CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure Network Connection/Protocol: 10Base-T Ethernet TCP/IP Communication Protocol: HTTP or Telnet |
OUTPUTS Amplifier Channels: 3 Power Output (70 V/100 V): 750 W per channel Power Output (70 V/100 V Bridged): 1500 W Power Output (8 Ω/4 Ω): 625 W per channel Power Output (8 Ω Bridged): 1250 W Minimum Speaker Load: 2 Ω Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs | WEIGHT & DIMENSIONS Dimensions: 17” W x 15.5” D x 3.5” H (2 U) Weight: 18.5 lbs. (8.4 kg) |
IN THE BOX Model CM3-750, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
