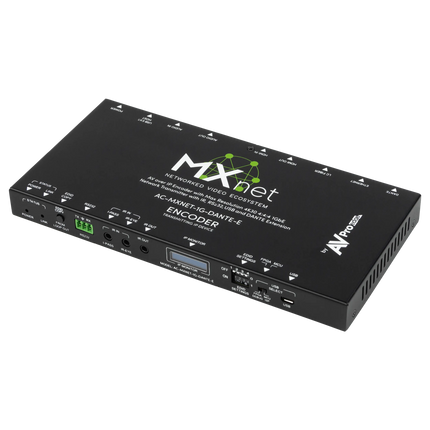

MXnet 1G Encoder with Dante

Description

AC-MXNET-1G-DANTE-E is a Dante audio-compatible encoder for the AVPro Edge MXnet 1G Ecosystem, identical to the AC-MXNET-1G-E in baseline configuration and technical profile. System design versatility is enhanced with Audinate engineering science onboard for lossless, ADC-DAC two-channel Dante audio encoding.  The AC-MXNET-1G-DANTE-E will simultaneously encode stereo audio from an HDMI video source, sending HDMI audio to an MXnet Decoder and placing the Dante-encoded audio onto the Dante network for site-wide distribution to any Dante-enabled device.

AVPro Edge employs Dante’s Ultimo chipset, with an ADC-DAC process that is 100% lossless while utilizing sampling rates from 44.1kHz to as high as 96kHz, in 16-, 24- or 32-bit word lengths, for high quality, near-zero latency distribution of voice and music signaling. Transfer distance matches Ethernet at 100 meters (328 ft) with results dependent on cable quality, termination precision, and the degree of noise within the cable routing environment.

NOTE: The chassis of the AC-MXNET-1G-DANTE-E is necessarily ‘wider’ (when viewing the unit face straightaway) to accommodate the Dante Ultimo chipset and support circuitry. Thermally, the inclusion of these added components to the main PCB modulates the internal static operating temperature of the unit in slight to moderate increments. To convect air flow properly (and for warranty compliance), the AC-MXNET-1G-DANTE-E must only be installed vertically in the AVPro Edge AC-EZRACK-15.

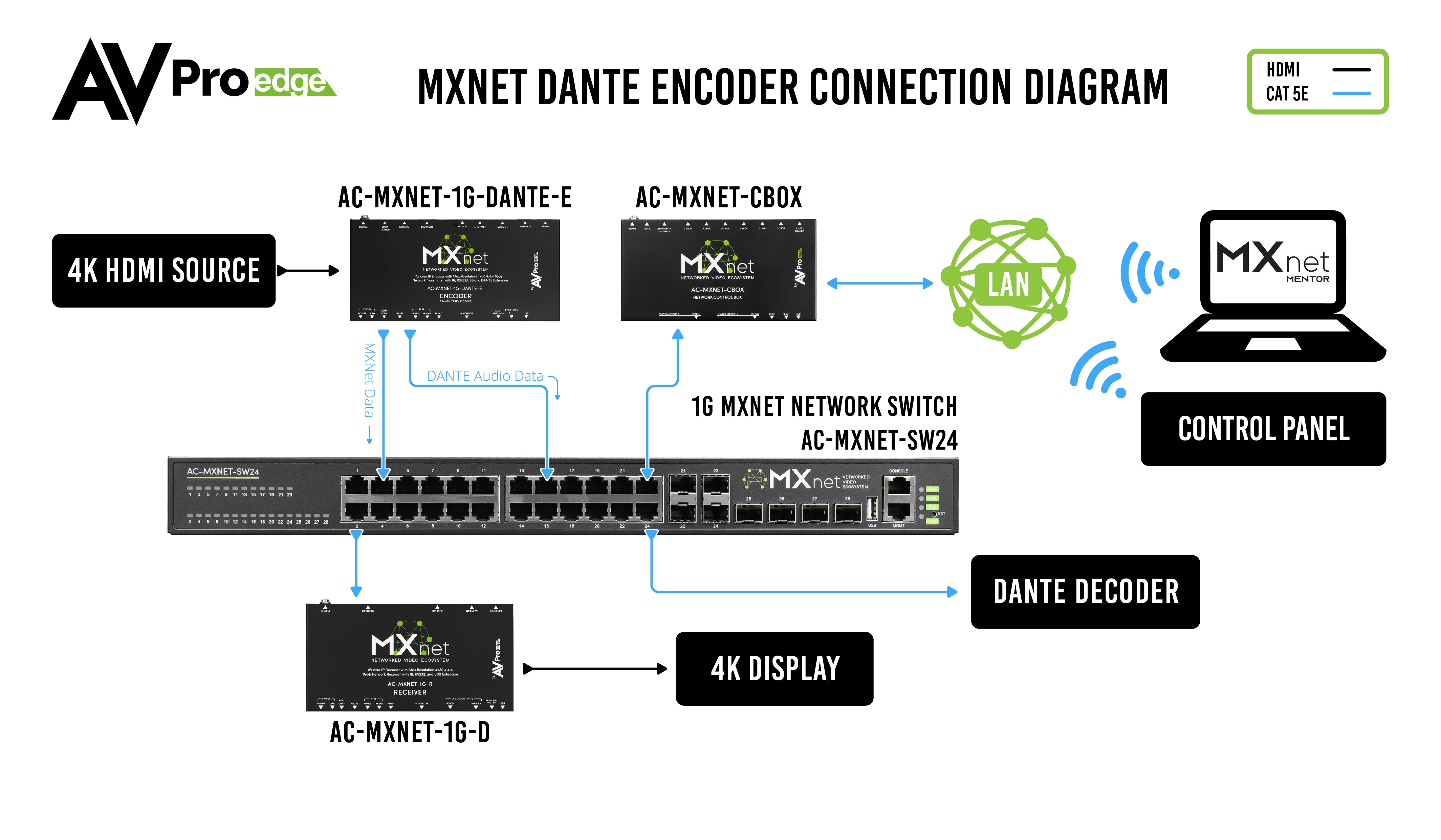

While Dante effectively makes use of Ethernet technology for signal transmission (CAT5e or CAT6 cabling, RJ-45 connectors, and standard network switches), it is not identical to Ethernet, with Dante networks typically isolated to their own closed system environment. All AVPro Edge MXnet 1G switches may be used stand-alone for Dante network configurations. Dante and MXnet 1G systems may coexist in hybrid fashion, sharing the same network switch (proper switch configuration required).

The AC-MXNET-1G-DANTE-E extended chassis integrates a Dante RJ-45 network port. When powered up and connected to a Dante network the AC-MXNET-1G-DANTE-E becomes ‘discovered’, available to patch audio to Dante-enabled devices using Dante Controller software, including AVPro Edge AC-MXNET-1G-DANTE-E units system-wide, or the AC-DANTE-D decoder. Dante port LEDs indicate link status and activity.

The AC-MXNET-1G-DANTE-E consolidates the advantages of Dante audio and the MXnet 1G ecosystem into a single chassis, providing streamlined flexibility to address end-users immediate needs while providing for resourceful future expansion.

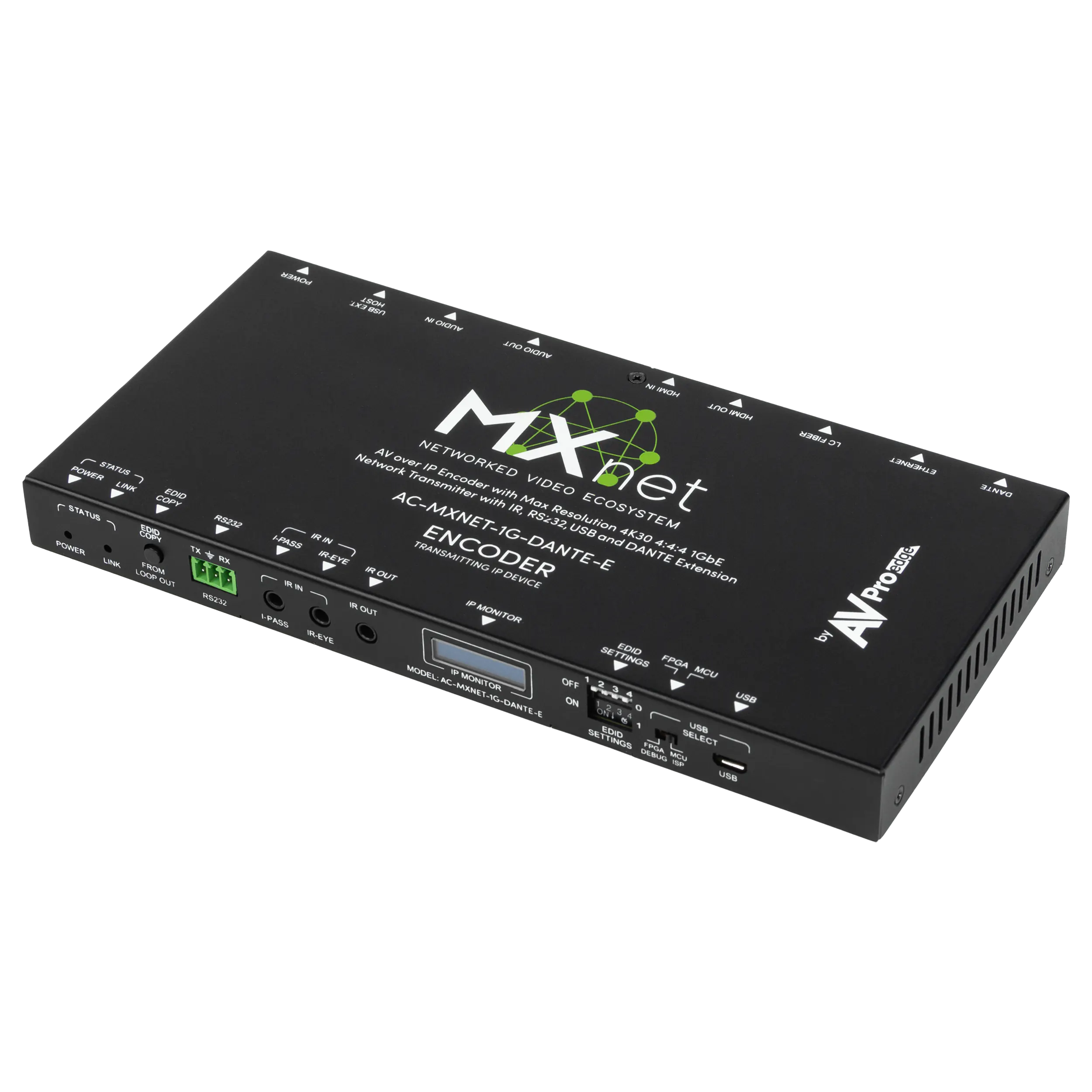

MXnet 1G Encoder with Dante

Product form
  • Dante Encoder
  • 1G Maximum Data Rate
  • SFP Fiber Connection for Long Runs
  • Bandwidth Management via MXNet Mentor

SKU: AC-MXNET-1G-DANTE-E

  • Shipped today? Order within: Jul 22, 2024 13:00:00 -0500

Description

AC-MXNET-1G-DANTE-E is a Dante audio-compatible encoder for the AVPro Edge MXnet 1G Ecosystem, identical to the AC-MXNET-1G-E in baseline configuration and technical profile. System design versatility is enhanced with Audinate engineering science onboard for lossless, ADC-DAC two-channel Dante audio encoding.  The AC-MXNET-1G-DANTE-E will simultaneously encode stereo audio from an HDMI video source, sending HDMI audio to an MXnet Decoder and placing the Dante-encoded audio onto the Dante network for site-wide distribution to any Dante-enabled device.

AVPro Edge employs Dante’s Ultimo chipset, with an ADC-DAC process that is 100% lossless while utilizing sampling rates from 44.1kHz to as high as 96kHz, in 16-, 24- or 32-bit word lengths, for high quality, near-zero latency distribution of voice and music signaling. Transfer distance matches Ethernet at 100 meters (328 ft) with results dependent on cable quality, termination precision, and the degree of noise within the cable routing environment.

NOTE: The chassis of the AC-MXNET-1G-DANTE-E is necessarily ‘wider’ (when viewing the unit face straightaway) to accommodate the Dante Ultimo chipset and support circuitry. Thermally, the inclusion of these added components to the main PCB modulates the internal static operating temperature of the unit in slight to moderate increments. To convect air flow properly (and for warranty compliance), the AC-MXNET-1G-DANTE-E must only be installed vertically in the AVPro Edge AC-EZRACK-15.

While Dante effectively makes use of Ethernet technology for signal transmission (CAT5e or CAT6 cabling, RJ-45 connectors, and standard network switches), it is not identical to Ethernet, with Dante networks typically isolated to their own closed system environment. All AVPro Edge MXnet 1G switches may be used stand-alone for Dante network configurations. Dante and MXnet 1G systems may coexist in hybrid fashion, sharing the same network switch (proper switch configuration required).

The AC-MXNET-1G-DANTE-E extended chassis integrates a Dante RJ-45 network port. When powered up and connected to a Dante network the AC-MXNET-1G-DANTE-E becomes ‘discovered’, available to patch audio to Dante-enabled devices using Dante Controller software, including AVPro Edge AC-MXNET-1G-DANTE-E units system-wide, or the AC-DANTE-D decoder. Dante port LEDs indicate link status and activity.

The AC-MXNET-1G-DANTE-E consolidates the advantages of Dante audio and the MXnet 1G ecosystem into a single chassis, providing streamlined flexibility to address end-users immediate needs while providing for resourceful future expansion.

  • Key Benefits
  • Specs
  • Resources
  • In the Box
  • Core features and technical profile identical to the AC-MXNET-1G-E
  • Combines Dante audio encoding/decoding with MXnet 1G resources in a single chassis
  • Simultaneous Dante encoding and decoding with bidirectional signal capabilities
  • Auto device-discovery on a Dante network
  • MXnet 1G switches may be used stand alone for Dante networks
  • Dante operation may be combined with MXnet 1G over ethernet networks
  • Connectivity with Dante-compatible devices including the AC-DANTE-D
Encoding
Video CodecProprietary Codec based on M-JPEG
Audio CodecProprietary Codec
Latency16ms@60Hz
Streaming ProtocolsTCP, UDP, IP, IGMP-V2, DANTE
Copy ProtectionHDCP 2.2 and earlier
Video Input/Ingestion
Signal TypeDVI 1.0 (ingested, outputs as HDMI), HDMI 2.0b
Video Resolution720p@50/60Hz; 1080p@24, 50 & 60Hz; 4K@30Hz
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 (Compresses to RGB Output)
RGB
Bit Depth per Color1080p (8-, 10-bit),  4K (8-, 10-bit) (Compresses to 8-bit Output)
Visually Lossless1080p@60Hz SDR RGB (8-bit), 4K@30Hz SDR RGB (8-bit)
Audio
Audio Format (end to end)PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution
Audio Format (HDMI Loopout)Same as End to End, with the addition of Dolby MAT 8Ch
Embedded AudioStereo Analog Audio (3.5 mm jack)
De-Embedded AudioBalanced Stereo Analog Audio (5-pin phoenix)

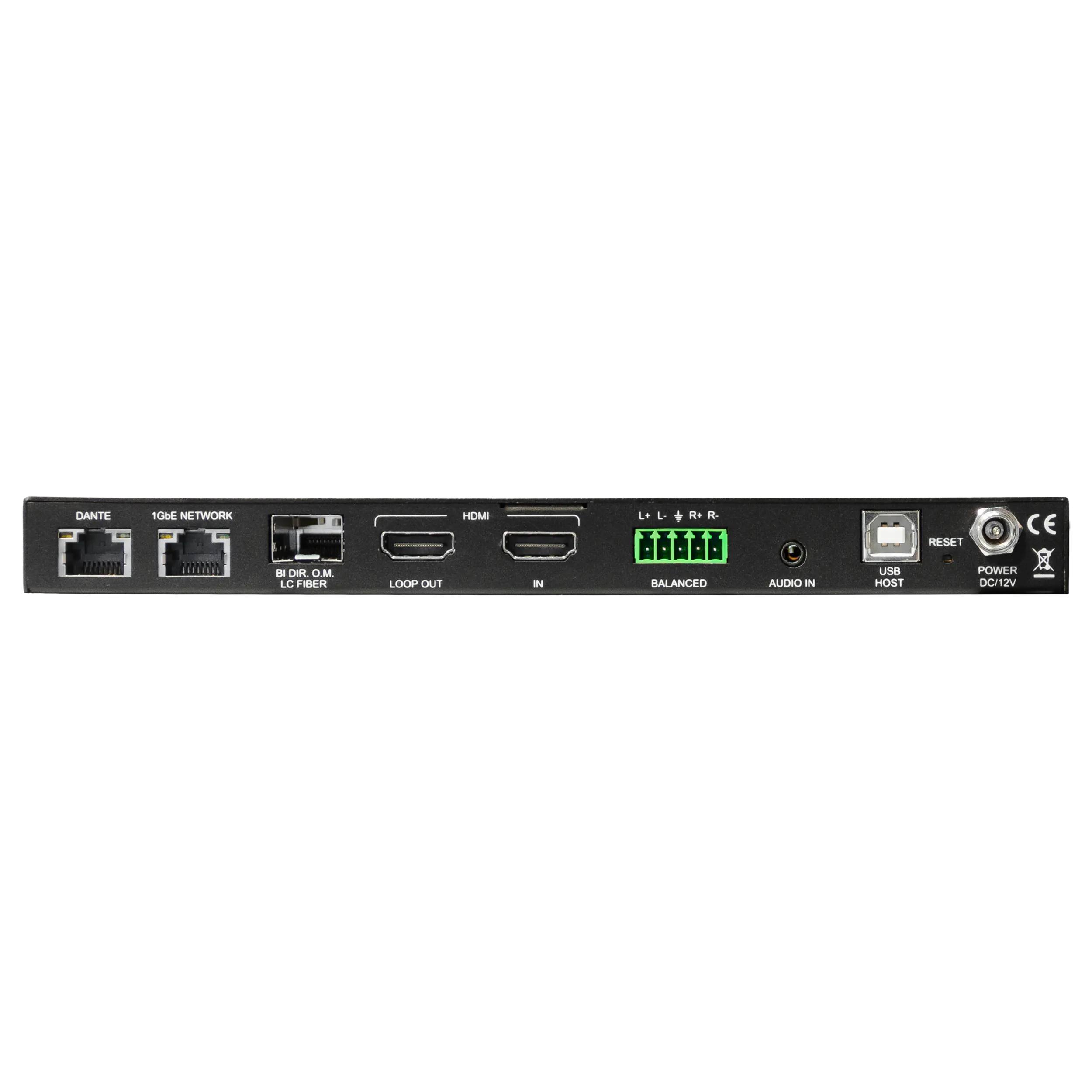

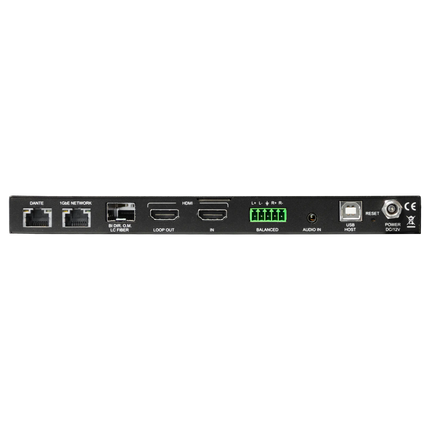

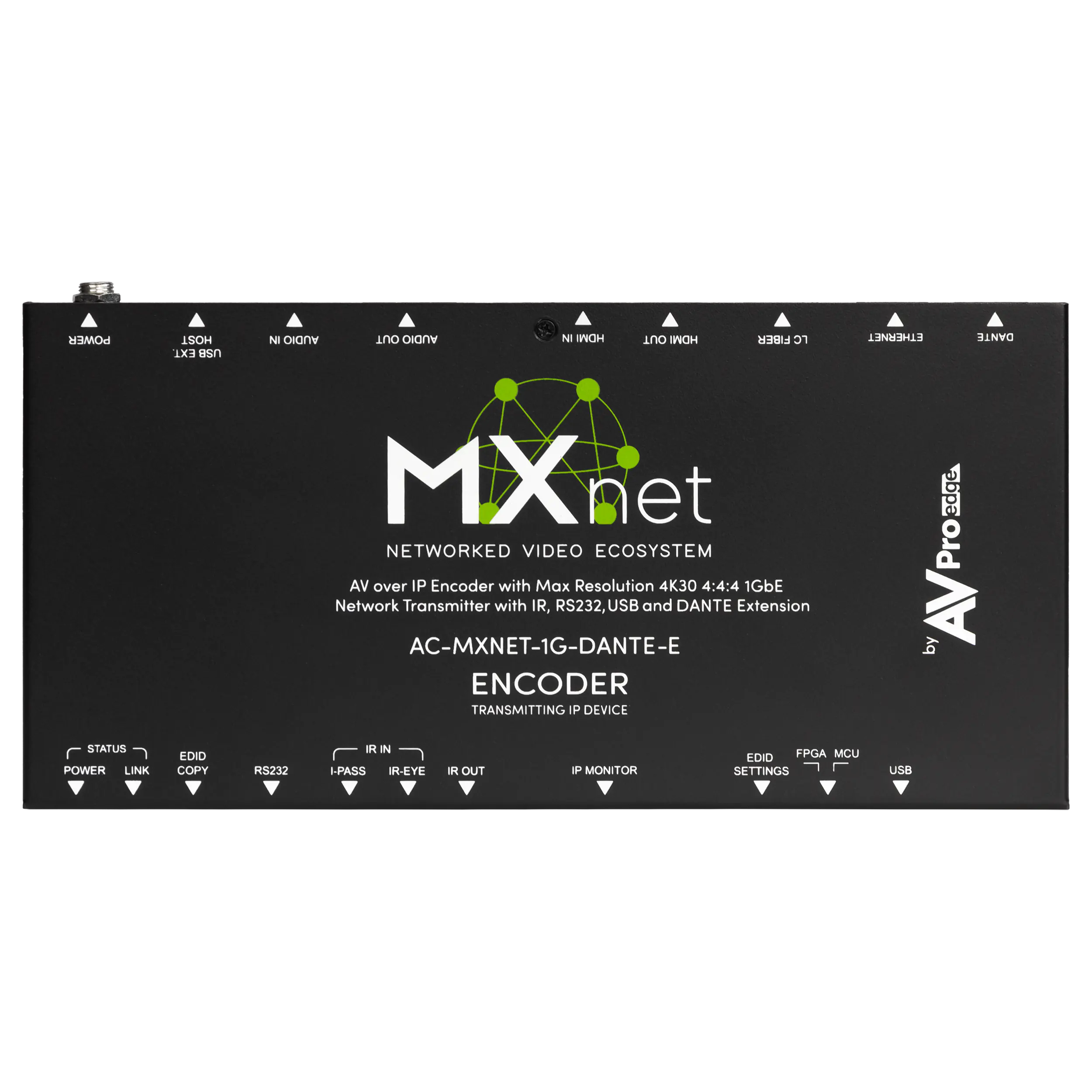

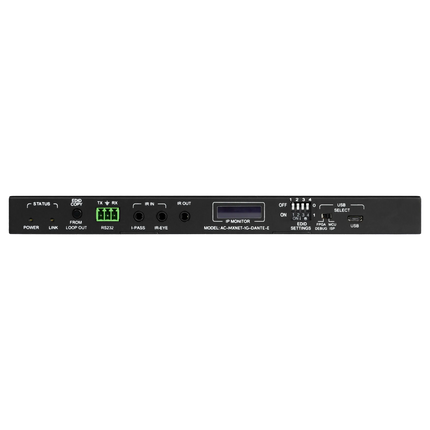

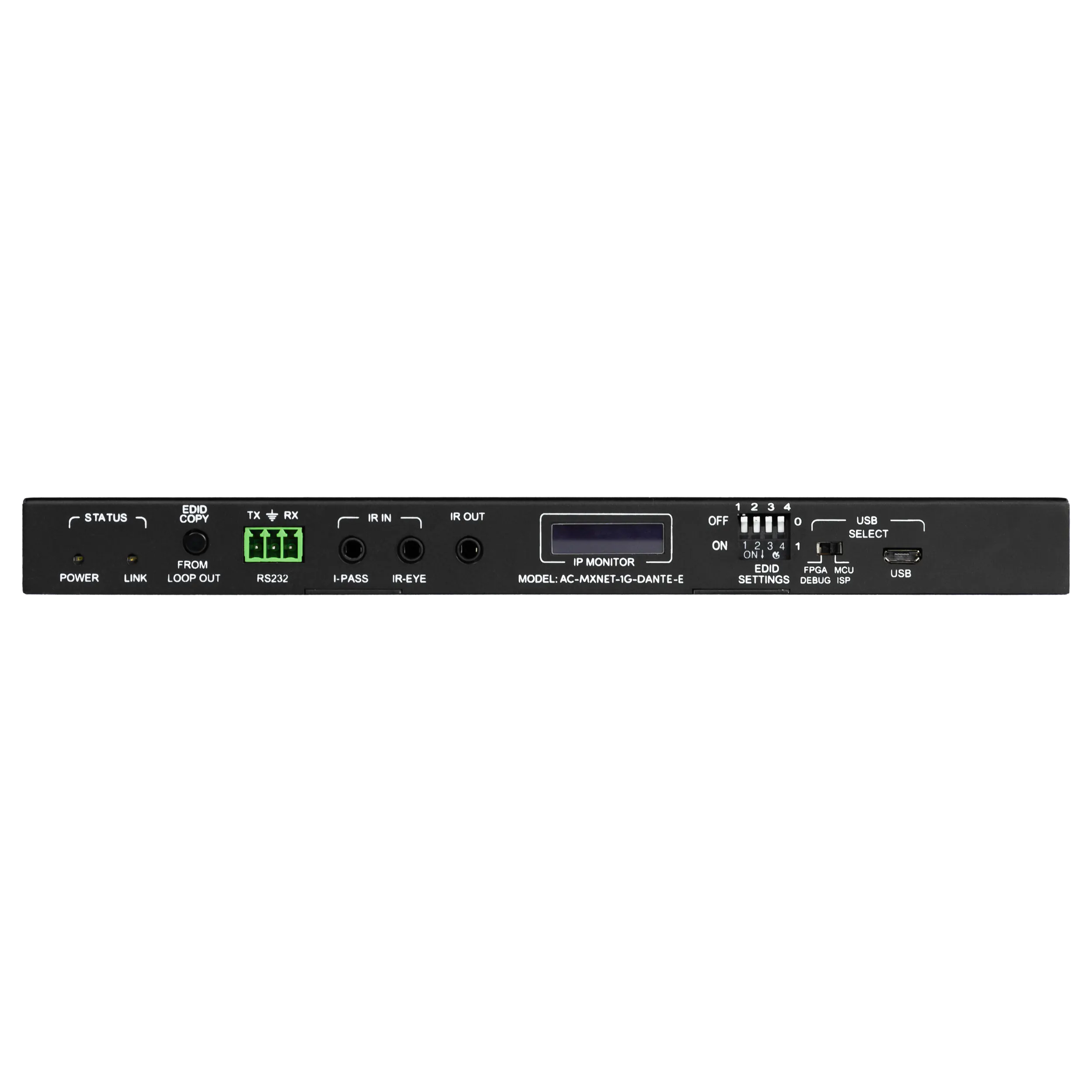

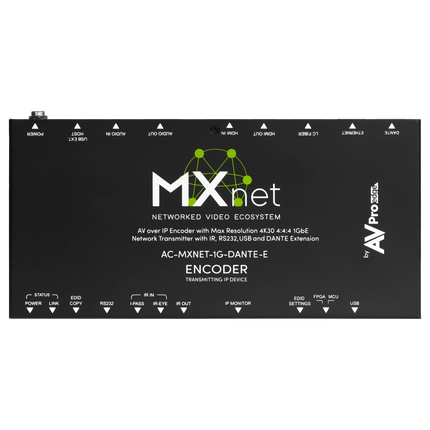

Ports
Ethernet(2) × female RJ45, PoE, one for MXnet signal transmission, one for Dante signal transmission
SFP(1) × SFP Slot
HDMI(2) × HDMI Type A 19-pin, female, one HDMI input, one HDMI loop out
Audio(1) × 5-pin Terminal Block, Balanced L/R Audio out
(1) × 3.5 mm mini stereo jack, Audio in
IR(1) x 3.5 mm mini-stereo jack (IR-PASS)
(1) x 3.5 mm mini-stereo jack (IR-EYE)
(1) x 3.5 mm mini-stereo jack (IR-OUT)
RS232(1) × 3-pin Terminal Block
USB(1) × USB 2.0 Type-B for USB extension and KVM
(1) × USB Micro for MXnet service
Distance
Ethernet100 Meters/330 Feet over CAT5e and above
SFP and Fiber1000BASE-SX SFP Transceiver Module
(MMF, 850nm, 550m, LC, DOM)
1000BASE-LX/LH SFP 1310nm 10km Transceiver Module
Environmental
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity5-90% RH (No Condensation)
CoolingFanless Cooling
Acoustic Noise Level0dB
Power
Max Power Consumption7.4W
PoE (Power over Ethernet)IEEE 802.3af (15.4W)
Power Supply UnitInput: AC 120-240V-50/60Hz 0.8A
Output: DC 12V 2A
Dimensions
MountingRack and furniture mount support
Dimensions (Unit Only Width/Depth/Height)mm: 215 x 104 x 20
inch: 8.46 x 4.09 x 0.79
Dimensions (Packaged Width/Depth/Height)mm: 310 x 180 x 54
inch: 12.2 x 7.09 x 2.13
Weight (Unit)1.29 lbs /0.59 kg
Weight (Packaged)1.73 lbs / 0.785 kg
RegulatoryCE/FCC/UL
Product Warranty10 Years
Specifications subject to change without notice.  Mass & dimensions are approximate





  • AC-MXNET-DANTE-1G-E (Encoder/Transmitter Device)
  • 1 x IR Emitter
  • 1 x IR Receiver
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets
  • 1 x 3-Pin Terminal Block
  • 1 x 5-Pin Terminal Block
