Full 8K Ultra HD, Uncompressed 48 Gbps Bandwidth - The AC-MX-44X is fully compatible with all specified ITU 8K timings and bit rates. Its capabilities are future-forward through the complete evolution of the 8K format, making it a unique, invest-once product.
5K Ultrawide 21:9 Aspect Ratio Capable - Synergistically supports 5K ultrawide 21:9 aspect ratio monitors and collaboration-configured displays.
4K/144 Hz Support - Match next-gen display performance with 4K/144 Hz extended frame rate support for ultra-sharp visuals with impressively smooth motion, enhanced gaming performance, and general computing with reduced motion blur and increased responsiveness.
HDMI 2.1 Capabilities: Features essential for a next-level, high-quality gaming experience include ALLM, HFR, QFT, QMS, and VRR.
Integrated User and End-user Interface - The integrated User Interface simplifies installation and configuration for installers and IT personnel. A custom, easy-to-use, limited-access interface can be created for end-users (hospitality and office employees or homeowners).
Audio Delay, Audio De-embedding, Downscaling, EDID management, and Test Pattern Generation – AVPro hallmark features that provide valuable tools to fine-tune and maintain projects and provide a positive client experience.
| Video | |
| Video Resolutions | Up to 8K/60 Hz 4:2:0, 8K/30 Hz 4:4:4, 4K/144 Hz |
| HDR Formats | Dolby Vision, HDR10, HDR10+, HLG |
| Color Space | YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Deep Color | Up to 16-bit (1080p), up to 12-bit (4K), up to 10-bit (8K) |
| Video Scaling (Optional) | 8K to 4K and 8K/4K to 1080p |
| HDCP | HDCP 2.3 and earlier |
| Additional HDMI 2.1 Features | ALLM, VRR, QMS, QFT, HFR |
| Audio | |
| Audio Formats Supported HDMI | LPCM up to 7.1, 192 kHz 24-Bit, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X |
| Audio Formats Supported Extracted (S/PDIF) | LPCM up to 5.1, 96 kHz 24-bit, Dolby Digital 5.1, DTS-HD High Resolution Audio |
| Audio Formats Supported Extracted (2-Ch. Port) | PCM 2-Ch. |
| Audio Extraction Location | Bind to Input, Bind to Output, or Matrix (Independent) |
| Audio Delay (Per Output, Extracted) | Up To 630 ms |
| Distance | |
| HDMI In/Out (4K/60 Hz 4:4:4) | Up to 50 ft.** |
| HDMI In/Out (w/ AOC Cable) (4K/60 Hz 4:4:4) | Up to 130 ft.** |
| Control | |
| Ports | LAN, RS-232, IR |
| Drivers | C4, RTI, ELAN, CRESTRON, URC (others available) |
| Web Interface | Yes |

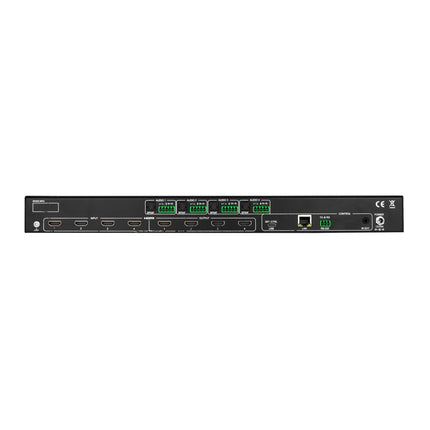

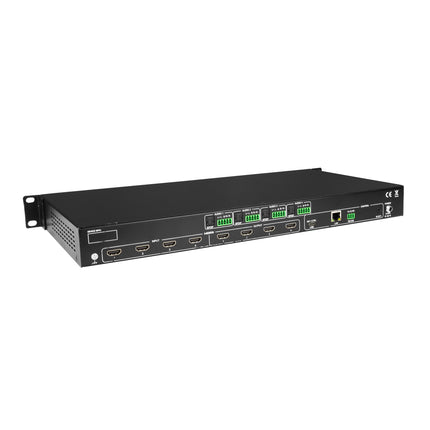

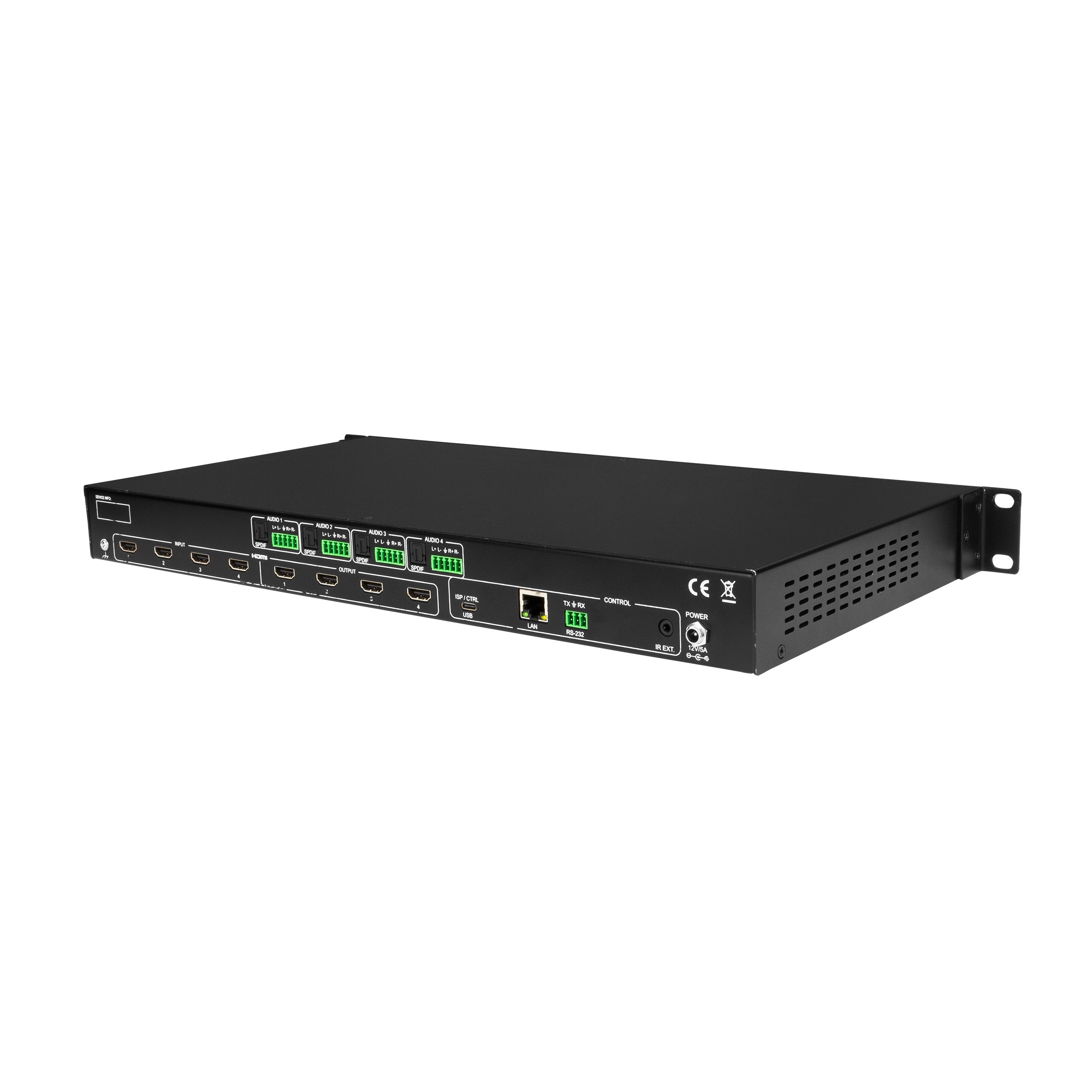

| Ports | |
| HDMI | Type-A |
| LAN | RJ45 w/ Web Interface & Control |
| Audio (Extracted Digital) | S/PDIF |
| Audio (Extracted Analog) | 5-pin Euroblock (Balanced) |
| IR Extension RX | 3.5 mm Stereo (3-Conductor) |
| RS-232 | 3-pin Euroblock |
| ISP/CTL | USB Type-C |
| Environmental | |
| Operating Temperature | 23 to 125° F (-5 to 51° C) |
| Storage Temperature | -4 to 140° F (-20 to 60° C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power | |
| Power Consumption (Total) | 40 W Max |
| Power Supply | Input: 100-240 VAC ~ 50/60 Hz |
| Output: 12 VDC , 5 A | |
| Physical / Dimensions | |
| Mounting | 1-RU Rack Mounting Brackets Rubber Feet |
| Dimensions (Unit Length/Width/Height) | mm: 225.425 X 439.7502 X 44.45 inches: 8.875 X 17.313 X 1.75 |
| Dimensions (Packaged Length/Width/Height) | mm: 375.65 x 565.15 x 125.39 inches: 14.75 x 22.25 x 4.93 |
| Weight (Unit) | 6.65 lbs. (3.18 kg) |
| Weight (Packaged) | 9.7 lbs. (4.39 kg) |
| Regulatory | CE/FCC |
| Product Warranty | 10 Years |
| *Specifications subject to change without notice. Mass & dimensions are approximate **Distances achieved with Bullet Train HDMI and AOC cables | |
(1x) AC-MX-44X Matrix Switcher
(1x) 12V Locking Power Supply w/ Cord
(1x) IR Remote Control
(1x) IR Extension Cable
(4x) 6-Pin 2CH Audio Extraction Cables
(1x) 3-Pin Terminal Block Connector
(2x) 1U Rack Mounting Brackets
(6x) Screws for Mounting Brackets
(4x) Rubber Feet
(4x) Rubber Feet Screws
(1x) Ground Wire
