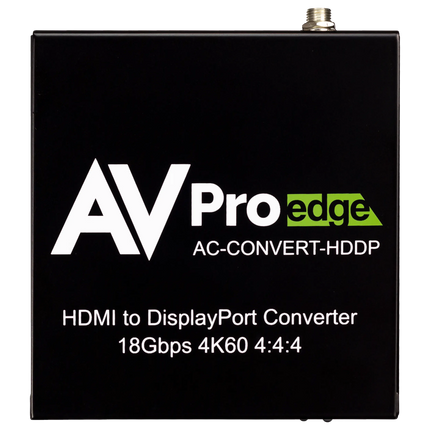

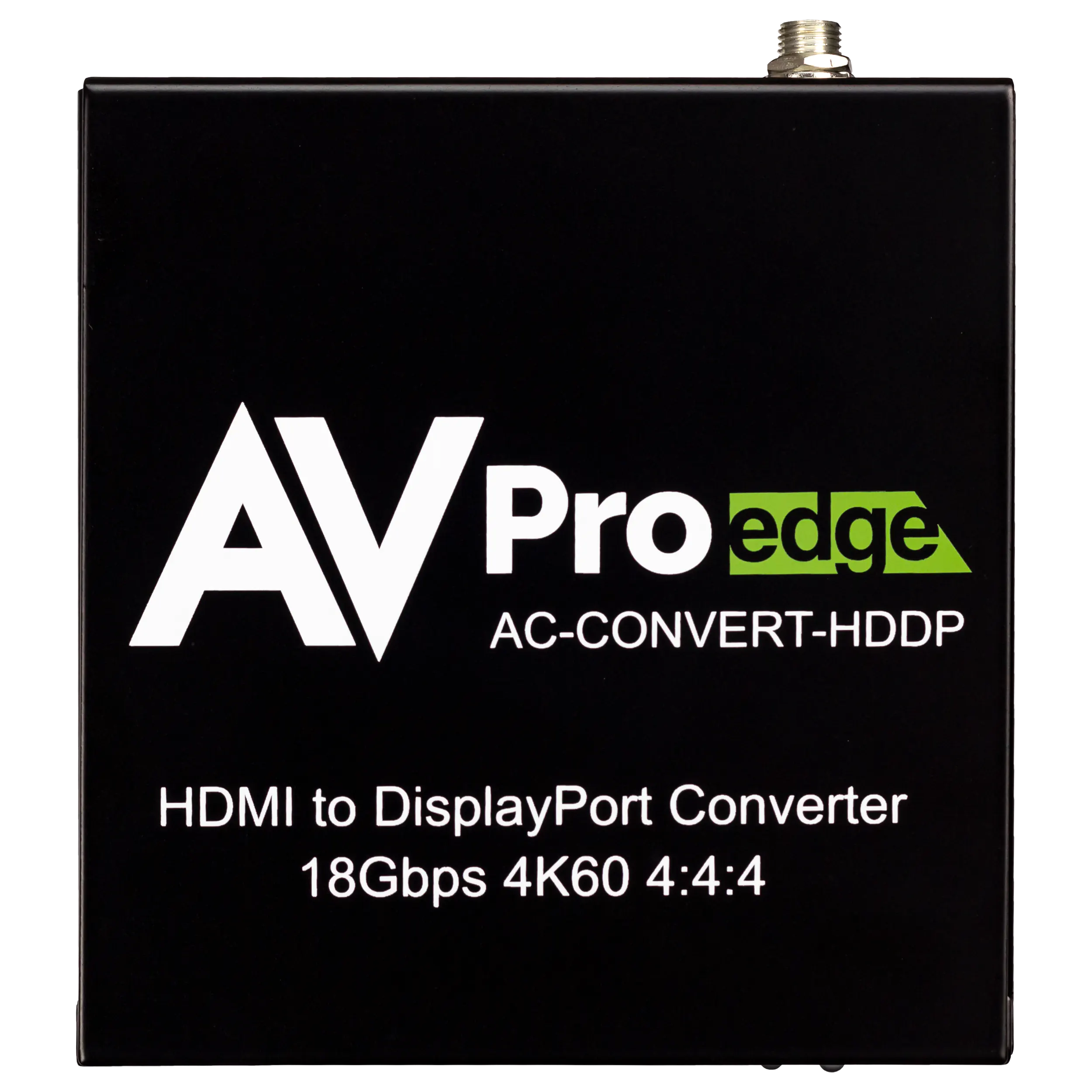

HDMI to DisplayPort Converter and 1x2 Distribution Amplifier

Description

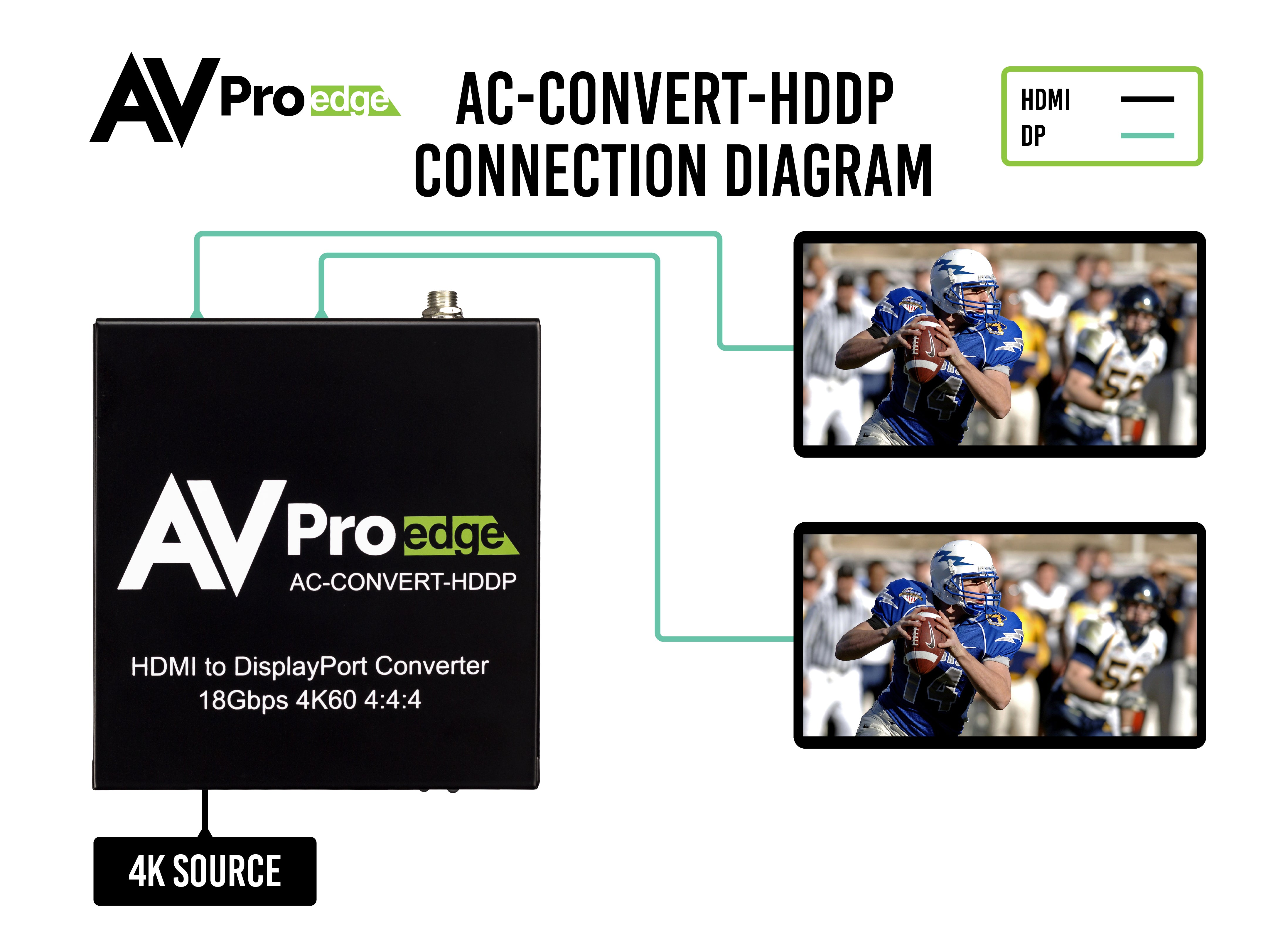

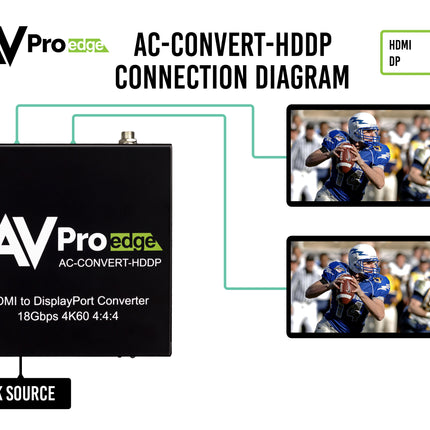

The AC-CONVERT-HDDP is a HDMI to DisplayPort Converter that can take an 18Gbps 4K60 (4:4:4) signal and convert it to DisplayPort 1.2 while retaining the 18Gbps bandwidth. Also a member of our 18Gbps Distribution Amplifier family, this product is ideal on all applications where stable distribution is key. It can also take in a 4K HDMI signal and distribute that signal through both of its DisplayPort outputs at the same time. This distribution amplifier offers plug-n-play installation which provides a hassle free setup without installing any software or drivers.

Full 18Gbps and HDR support ensures ultra-stability even at the highest of bandwidths. Install this converter/distribution amplifier with confidence in your next bar, restaurant, digital signage, commercial or residential installation.

HDMI to DisplayPort Converter and 1x2 Distribution Amplifier

Product form
  • HDMI 2.0
  • DisplayPort 1.2A Outputs (x2)
  • 18Gbps Bandwidth Support
  • Locking Power Connector

SKU: AC-CONVERT-HDDP

  • Shipped today? Order within: Jun 17, 2024 13:00:00 -0500

Description

The AC-CONVERT-HDDP is a HDMI to DisplayPort Converter that can take an 18Gbps 4K60 (4:4:4) signal and convert it to DisplayPort 1.2 while retaining the 18Gbps bandwidth. Also a member of our 18Gbps Distribution Amplifier family, this product is ideal on all applications where stable distribution is key. It can also take in a 4K HDMI signal and distribute that signal through both of its DisplayPort outputs at the same time. This distribution amplifier offers plug-n-play installation which provides a hassle free setup without installing any software or drivers.

Full 18Gbps and HDR support ensures ultra-stability even at the highest of bandwidths. Install this converter/distribution amplifier with confidence in your next bar, restaurant, digital signage, commercial or residential installation.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

18Gbps Support (4K60 4:4:4): This signal converter/distribution amplifier offers the highest available HDMI 2.0 bandwidth to ensure maximum stability in distributed HDMI systems, even at higher resolutions.  With the added bandwidth you can comfortably use all of the latest 4K sources without worrying about headroom.



DisplayPort 1.2a Conversion: This unit converts your HDMI 2.0 signal to a DisplayPort 1.2a. This allows you to pass 4K60 (4:4:4) through your display port infrastructure, but use HDMI sources like streaming devices, media players, UHD Blu-ray players and modern computers.



Ultra Low-Profile Design: The minimalist design makes the device even more versatile.  Designed to fit in any nook or cranny, you don't need to worry about finding space for the DA allowing you to focus on other elements of the job.

HDMI 2.0 to DisplayPort 1.2a Converter Splitter 1x2

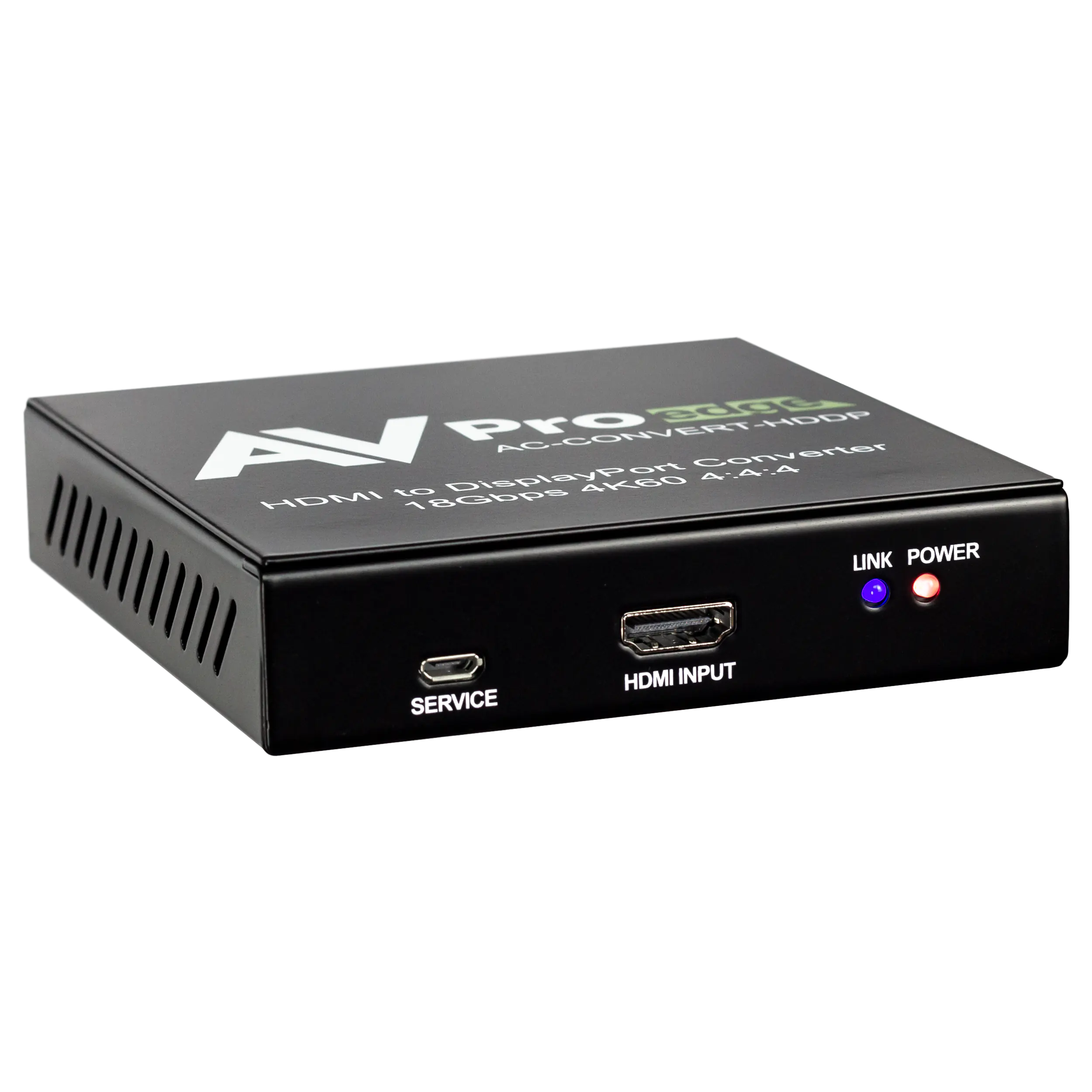

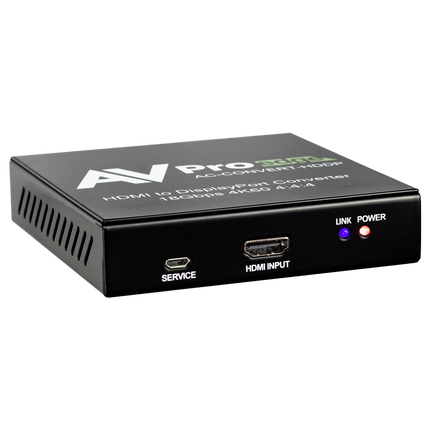

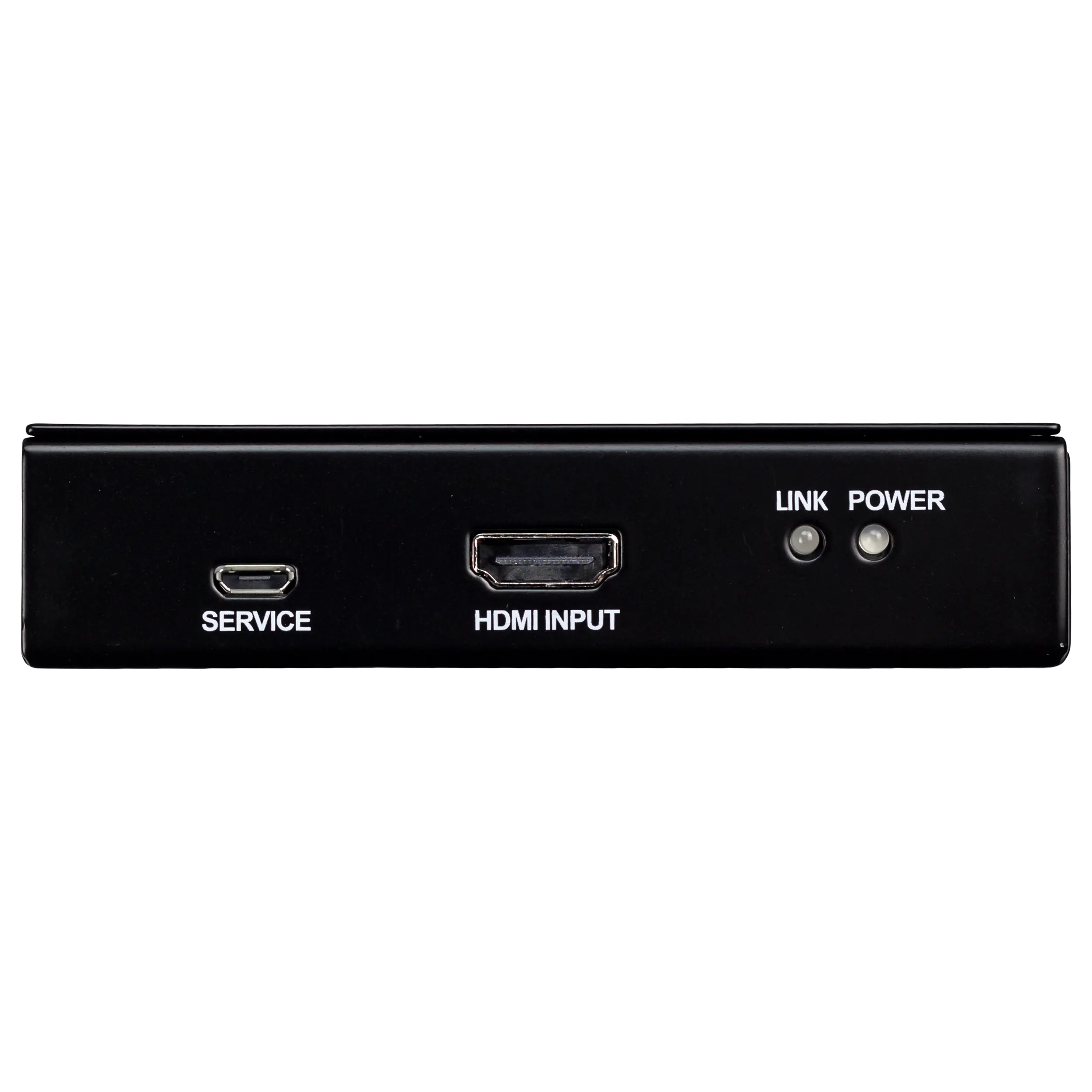

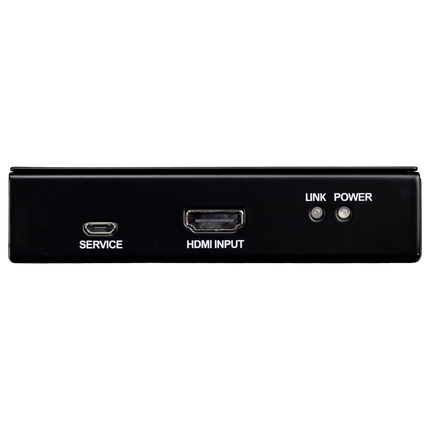

Input Interface1 X HDMI Type A Female
Resolution 3840 x 2160/ 4096  x 2160 @60Hz YUV 4:4:4

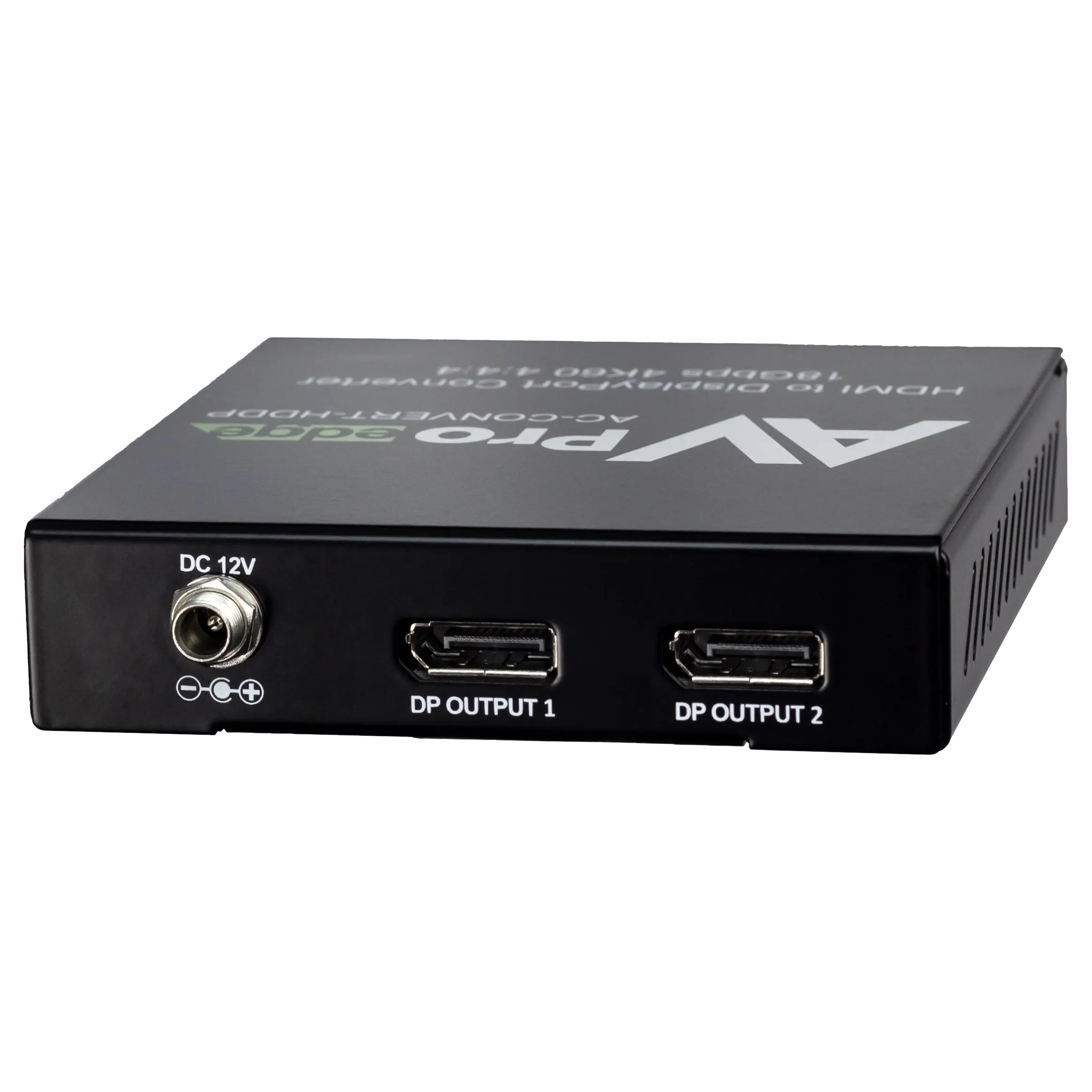

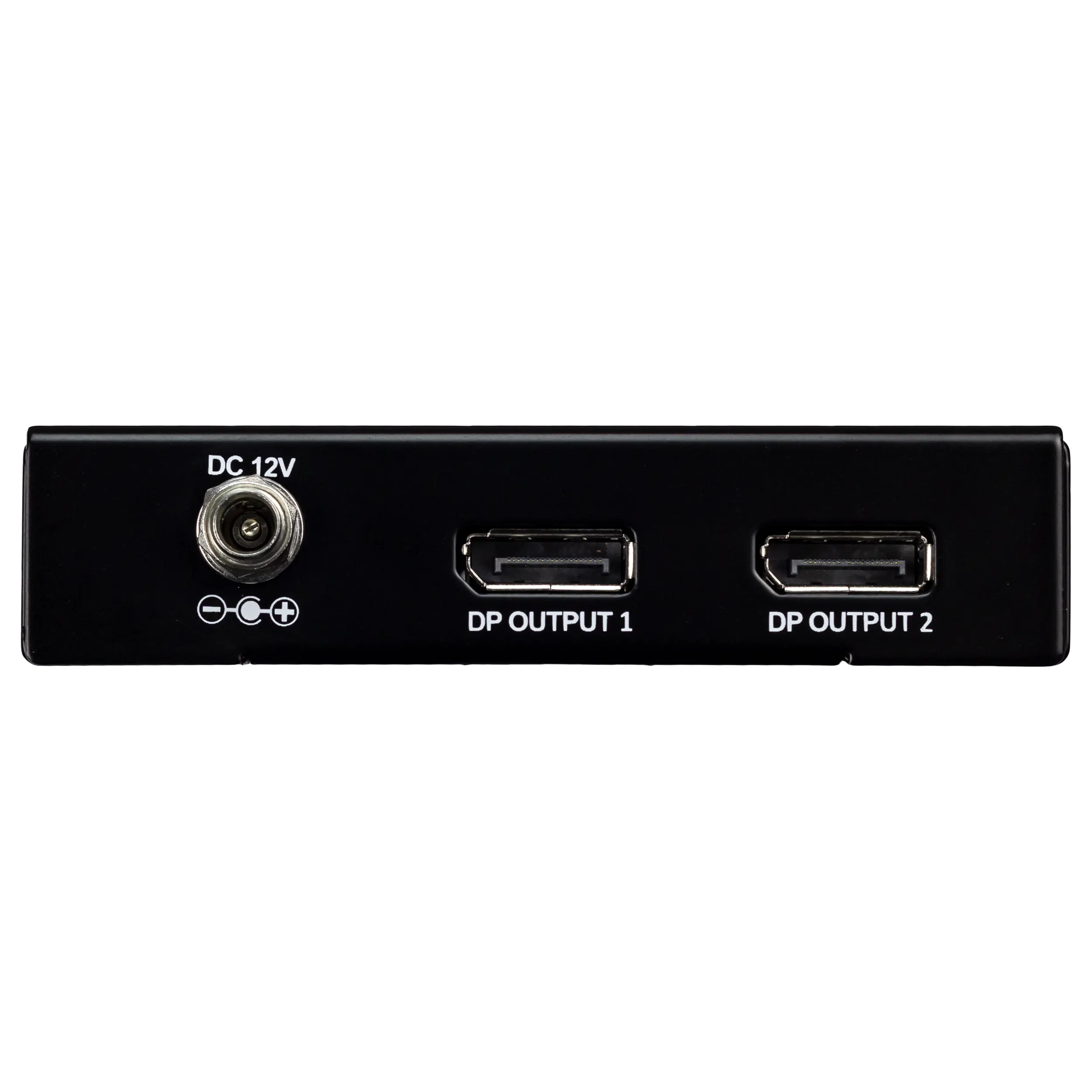

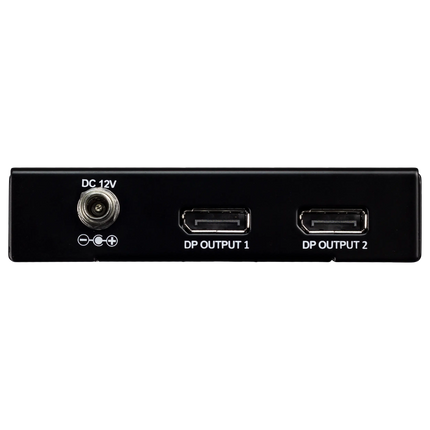

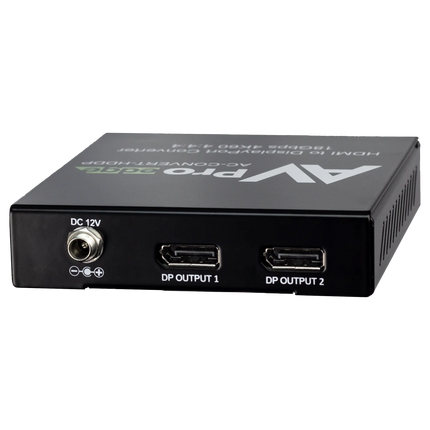

Output Interface2 x DisplayPort Female
Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4
Audio Stereo
32k~192kHz Sampling Rate
PowerDC 12V 2A, Locking Barrel Connector
EnvironmentOperating Temperature 0~45°C
Operating Humidity 20~90%
Storage Temperature -20~60°C
Dimensions (Width/Length/Height)MM: 108 x 114 x 24.6
INCH: 4.25 x 4.49 x 0.97
Weight0.78 lbs (356g)
*Specifications subject to change without notice.  Mass & dimensions are approximate
  • AC-CONVERT-HDDP
  • 12V/2A Power Supply
  • International Power Supply Adapters​
