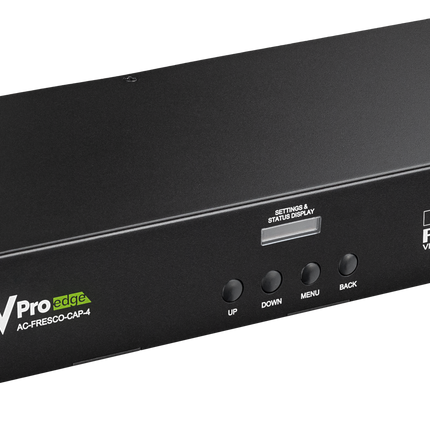

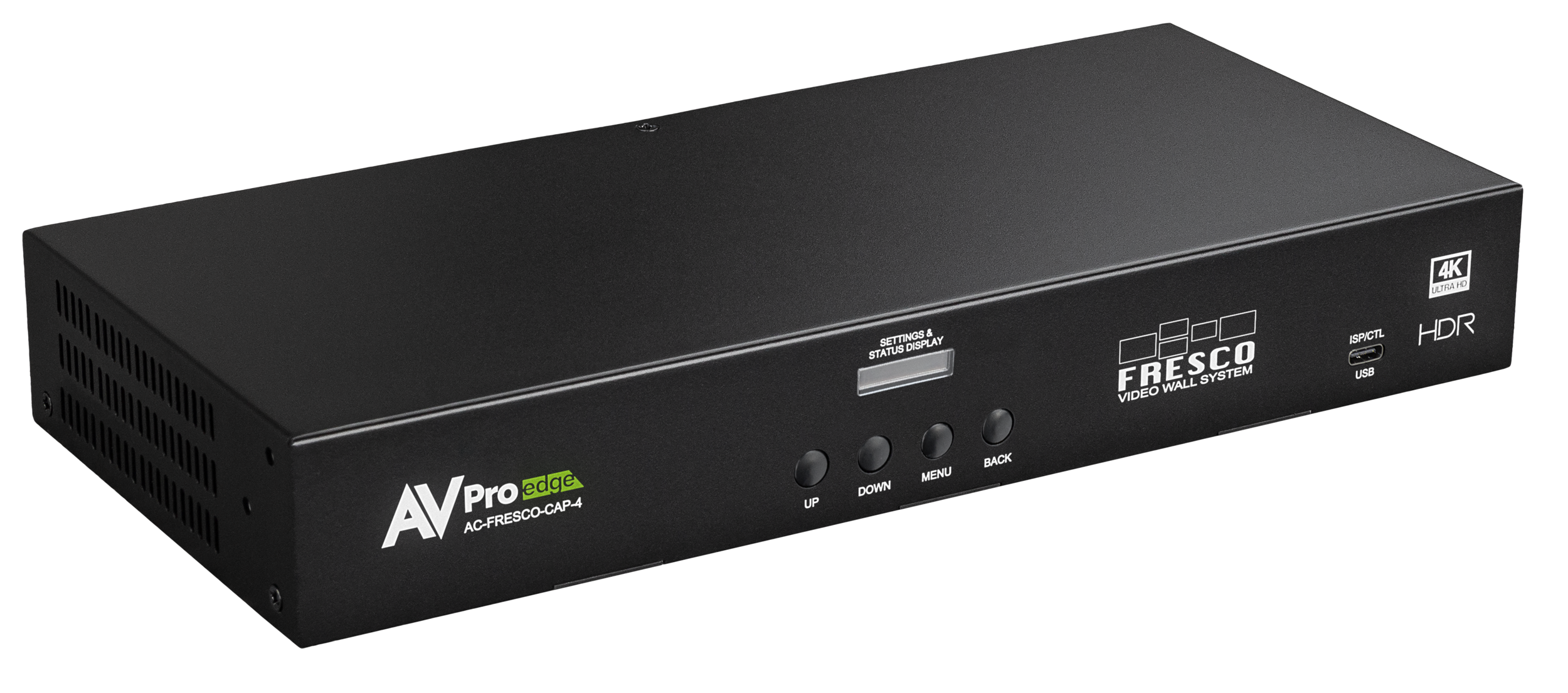

Fresco 4 Video Wall Processor

Description

Easy to use and ready to go, the Fresco 4 from AVPro Edge gives you the stable video wall solution every integrator has been looking for. Directly out of the box you are able to connect a source and 4 displays for a plug-in-play video wall. AVPro Edge’s head of Application Engineering John Tumbleson said it best:

"The biggest challenge to setting up a Fresco Video Wall is hanging the physical panels!"

Video walls give sports bars, retail stores, entertainment venues, and hotels an opportunity to "WOW’ their customers with big, bold and bright messaging. With the Fresco 4 you are able to process 4K video throughout your video wall, delivering a dynamic effect no one will soon forget. We included robust scaling features inside this processor that allows you to not only input 18Gbps 4K60 signals, but output them as well to each display.

Fully expandable, you are able to cascade multiple units to create video walls far beyond 2x2, if you had 10 AC-FRESCO-CAP-4’s you could create a video wall with 40 displays!

Capture regions are very important in a video wall set up, when installing the Fresco 4 setting up your capture regions has never been easier. By installing this free software, and connecting the Fresco 4 to your PC, you are able to enter all the measurements of your bezels and the software will layout your video wall perfectly, compensating for every bezel of every screen.



Fresco 4 Video Wall Processor

Product form

  • HDMI 2.0
  • 18Gbps Bandwidth Support
  • 4K > 720, 720 > 4K Scaling
  • 180° Video Rotation
  • Free PC Control and Setup software

SKU: AC-FRESCO-CAP-4

  • Shipped today? Order within: Dec 05, 2024 13:00:00 -0600

Description

Easy to use and ready to go, the Fresco 4 from AVPro Edge gives you the stable video wall solution every integrator has been looking for. Directly out of the box you are able to connect a source and 4 displays for a plug-in-play video wall. AVPro Edge’s head of Application Engineering John Tumbleson said it best:

"The biggest challenge to setting up a Fresco Video Wall is hanging the physical panels!"

Video walls give sports bars, retail stores, entertainment venues, and hotels an opportunity to "WOW’ their customers with big, bold and bright messaging. With the Fresco 4 you are able to process 4K video throughout your video wall, delivering a dynamic effect no one will soon forget. We included robust scaling features inside this processor that allows you to not only input 18Gbps 4K60 signals, but output them as well to each display.

Fully expandable, you are able to cascade multiple units to create video walls far beyond 2x2, if you had 10 AC-FRESCO-CAP-4’s you could create a video wall with 40 displays!

Capture regions are very important in a video wall set up, when installing the Fresco 4 setting up your capture regions has never been easier. By installing this free software, and connecting the Fresco 4 to your PC, you are able to enter all the measurements of your bezels and the software will layout your video wall perfectly, compensating for every bezel of every screen.



  • Key Benefits
  • Specs
  • Resources
  • In the Box

Easy to Use Software: Simple yet powerful, the Fresco 4’s video wall software makes setting up your video wall a breeze. Use the PC software, and you can input the dimensions of each display. The software will then adjust the picture to compensate for each bezel, giving you the ideal video wall image.



3 Steps to setting up the Fresco 4:

  1. Connect - Connect to the Fresco 4 via USB, RS-232 or LAN
  2. Measure - Enter panel measurements using millimeters for extreme accuracy
  3. Generate - Click on “Generate Video Wall”



That’s it!  Your Video Wall is ready!

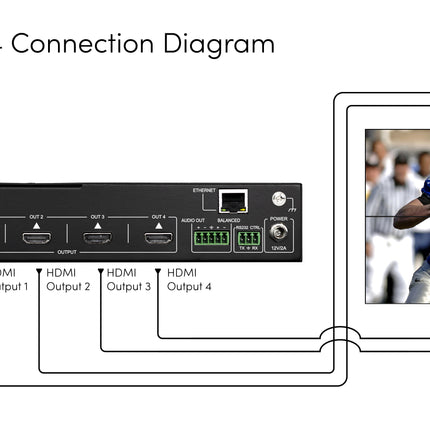

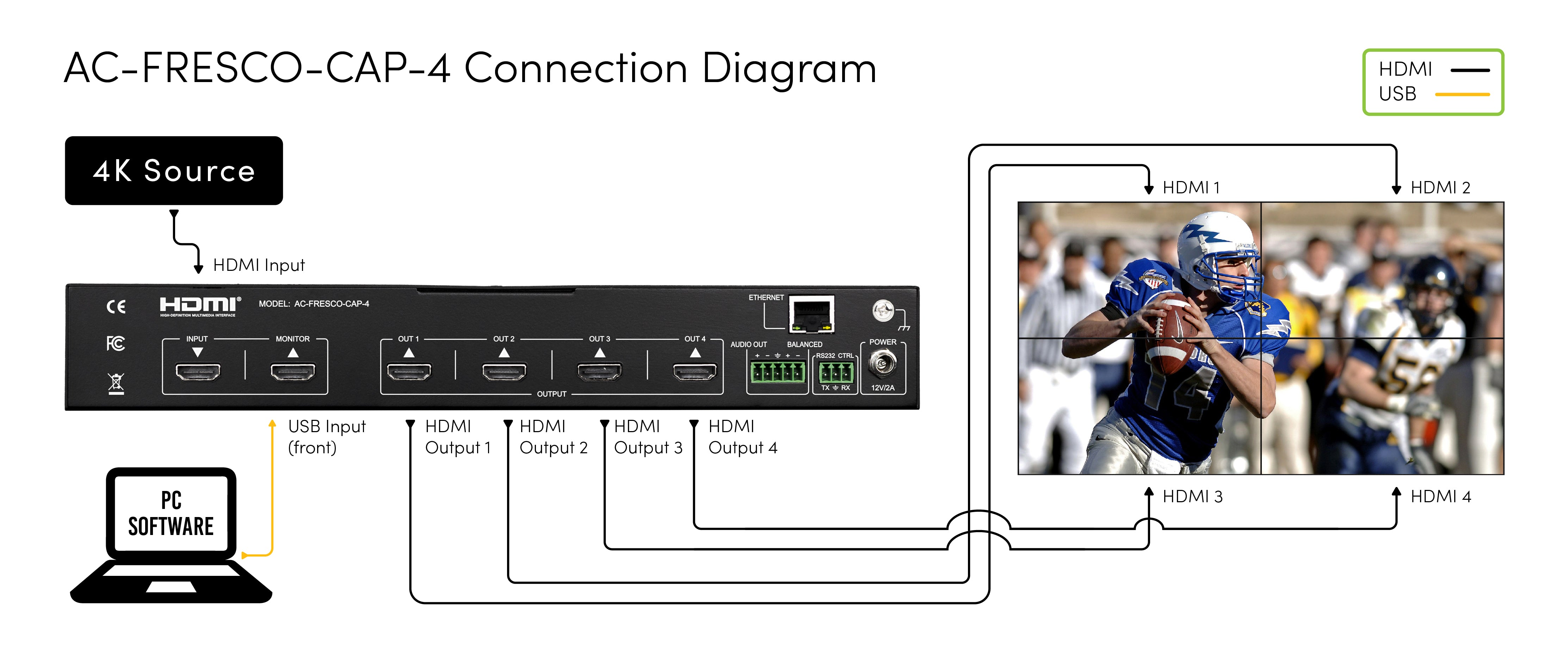

Plug-in-Play: Without any setup at all, directly out of the box, you can connect a source and 4 displays and you will have a video wall.



Cascade for Large Video Walls: Easily expand your video wall to 3x3 or larger by stacking Fresco 2x2 processors. The sky is the limit when using the cascading feature.



Built-in Scaling: You control what you want the output to be. Because the Fresco 4 has a built in scaler you are able to set the output signal to whatever works best for your system. Out put a 720 signal or output a 4K60 18Gbps signal or anything in between, the choice is yours.



Audio De-Embedding: Our unique Audio De-Embedding provides a digital coax output with 5 pin balanced stereo analog audio breakout.



Highly Flexible Panel Configurations: Mix and match different size panels with different bezel measurements even from different brands, and also build a cohesive video wall experience.

Video:
Video ResolutionsUp to 4k 60HZ 4:4:4
VESA ResolutionsUp to DCI 4k (4096x2160) 5k (Up to 5120x3200)
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080), up to 12 BIT (4k)
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (2CH Port)PCM 2 CH
Distance:
HDMI IN/OUT (4K60 4:4:4) Up to 50 Feet (Using Bullet Train HDMI)
HDMI IN/OUT (W/ AOC Cable) (4k60 4:4:4)Up to 130 Feet (Using Bullet Train AOC)
Other:
Bandwidth18 GBPS
HDCPHDCP 2.2and Earlier
Control:
PortsLAN, RS232, Micro USB
LAN WebOSYES

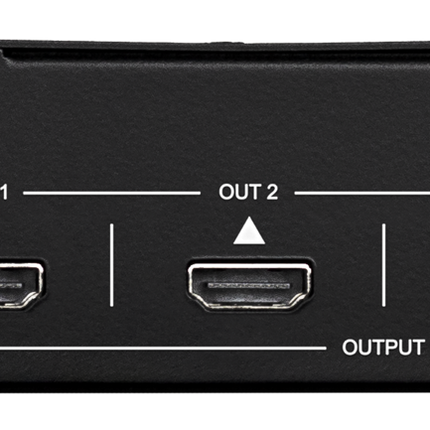

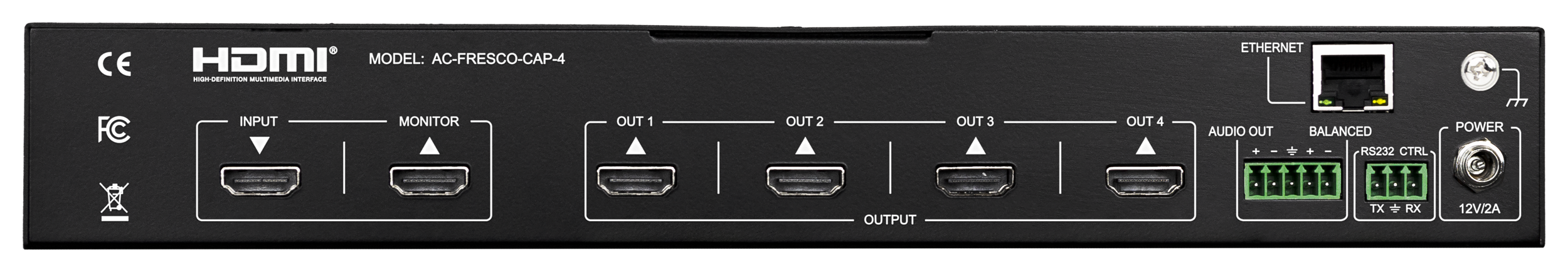

Ports:
HDMI   Type A
LANRJ45 w/ Web Interface/ Control
Audio (Extracted Analog)5 PIN TERMINAL BLOCK (BALANCED)
RS-2323 Pin Terminal Block
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)6 Watts Max
Power Supply - MatrixInput: AC 100-240V ~ 50/60Hz
Output: DC 12V  2A
Dimensions:
Dimensions  (Unit Only - Height/depth/width)mm: 30.5 x 138.3 x 296.9
inch: 1.2 x 5.45 x 11.69
Dimensions (Packaged Height/depth/width)mm: 76.2 x 184.2 x 317.5
inch: 3 x 7.25 x 12.5
Weight (Unit)2.5 lbs (1.13 Kg)
Weight (Packaged)3.5 lbs (1.59 Kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate

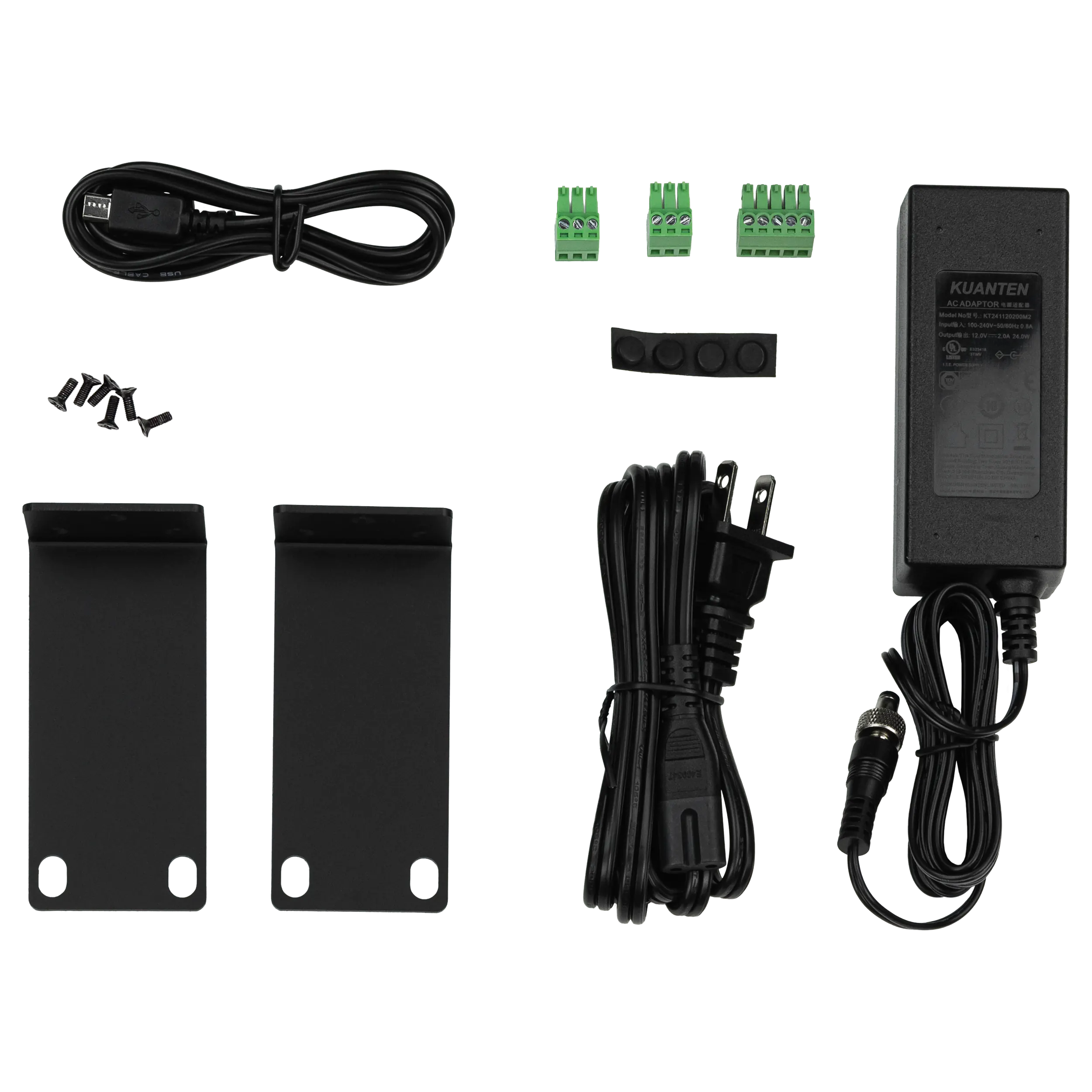

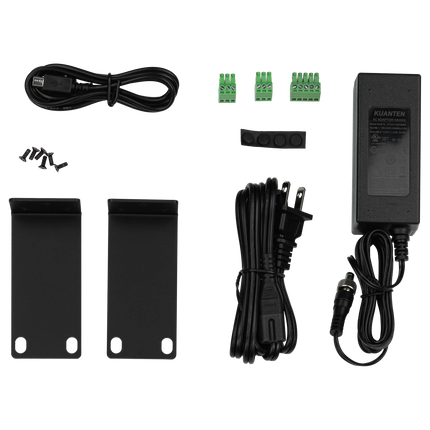

  • AC-FRESCO-CAP-4 (Video Wall Processor)
  • 12V/2A Locking Power Supply
  • 1 x Micro USB Cable
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets
  • 2 x 3-Pin Terminal Block
  • 1 x 5-Pin Terminal Block
  • 4 x Rubber Feet
