The Matrix Transformed - AVPro Edge is a contributing member company in the SDVoE Alliance, the next generation of AV-over-IP. The MXNet-10G ecosystem of controller, transceiver and switches represents an entirely new approach to AV system design at an unconstrained scale. Signal distance is essentially eliminated as a deciding factor in product selection or for utilizing system features.

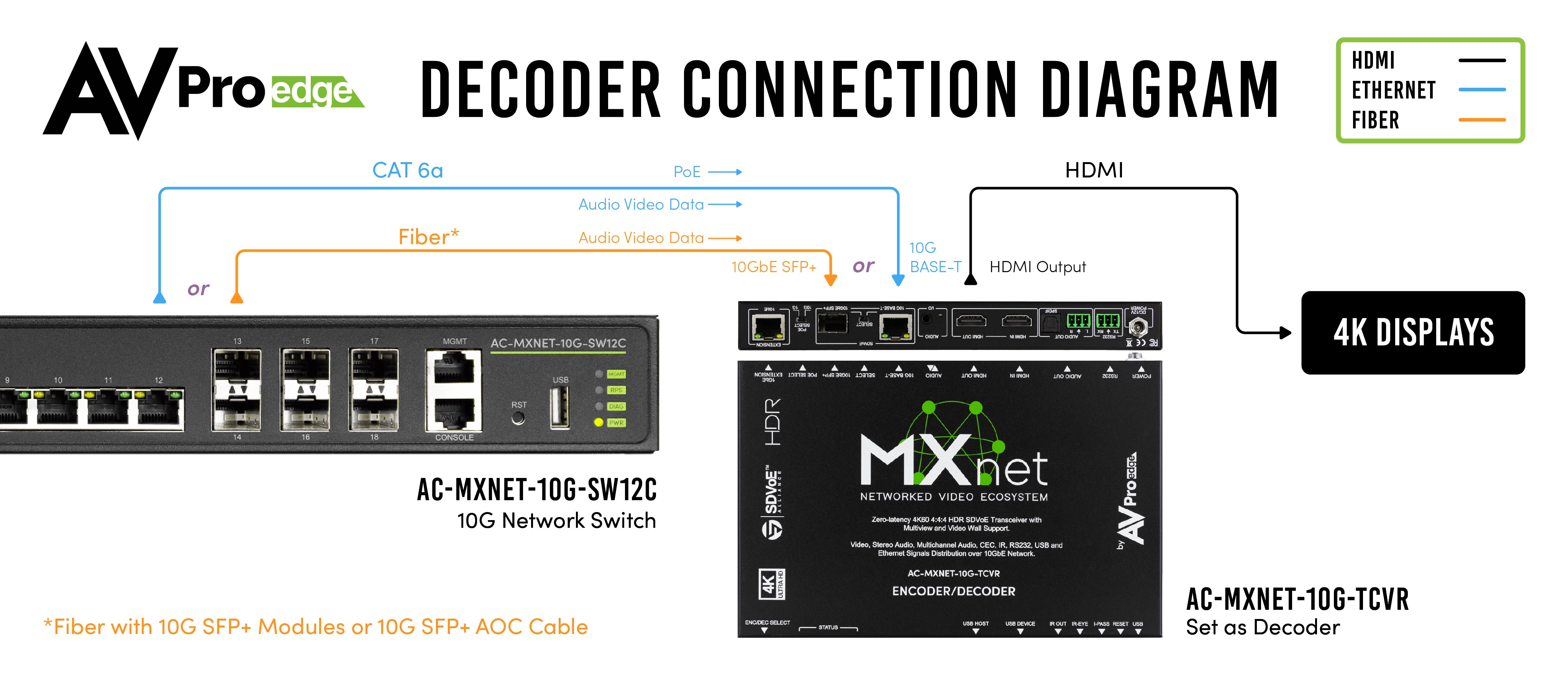

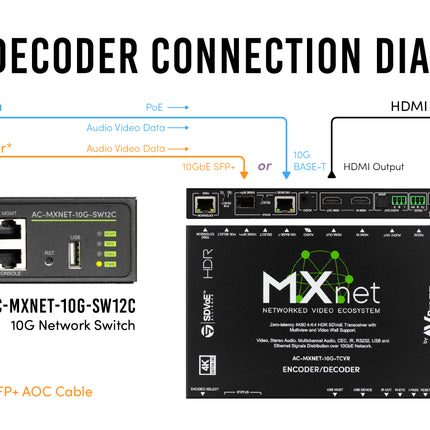

The AC-MXNET-10G-TCVR is perhaps the pivotal MXNet-10G ecosystem component performing dual heavy lifting, easily selectable from the front panel. As an Encoder-Transmitter, the AC-MXNET-10G-TCVR transcends traditional matrices by eliminating physical limitations such as input availability and source location, or stipulations with source format. The encoded source signal is “packetized”, then transported across the network to AC-MXNET-10G-TCVR units configured as decoder-receivers. The number of devices is limited only by the number of available switch ports.
Genlock Mode – Video signals transported through the MXNet-10G ecosystem are either uncompressed or use visually lossless, pixel-perfect imperceptible light compression. In mission critical applications, Genlock mode synchronizes decoder output with encoder input, matching the signal ‘as is’. This reduces latency to a maximum of 0.1ms (1/400th of a frame), equal to a traditional matrix switch for live performances, critical medical applications, or in a professional content mastering environment.
Seamless Fast Switching – When scaling is not bypassed in the decoder (as in Genlock mode), switching is still blazing fast… between one to two frames, or approximately 17-34 milliseconds. An AC-MXNET-10G-TCVR in decoder-receiver mode tethers to the display, avoiding re-sync and the dreaded “black screen”. Where required, an image can be Upscaled to 4K or Downscaled from 4K.
Multi-View Designed-In – Any monitor, television or projector connected to an AC-MXNET-10G-TCVR configured as a receiver (decoder) video end point can display MultiView compositing without additional equipment. Up to 32 images ( 8 x 4 or 4 x 8 ) may be displayed as Simple Grid, Hybrid Grid, Window Tiling, Picture-In-Picture (PIP) and Picture-And-Picture (PAP) or may be customized per application.
Video Wall Ready – The AC-MXNET-10G-TCVR includes provisions for bezel optimization and supports asymmetric layouts. Video walls up to 8 x 8 are possible, using AC-MXNET-10G-TCVR units paired with associated displays.
Audio Breakaway and Independent Routing – Any audio signal supported by HDMI 2.0b can be distributed over the MXNet-10G ecosystem. Clubs, sports bars, and family-themed venues benefit with breakaway audio. Premium residential projects frequently traffic video and multichannel audio via independent pathways. With the AVPro Edge AC-MXNET-10G-TCVR, outside-the-box creativity with the system blueprint is endless.
MXNet 10G Mentor - Access, via the AC- MXNET-10G-CBOX, enables rapid API system configuration and changes

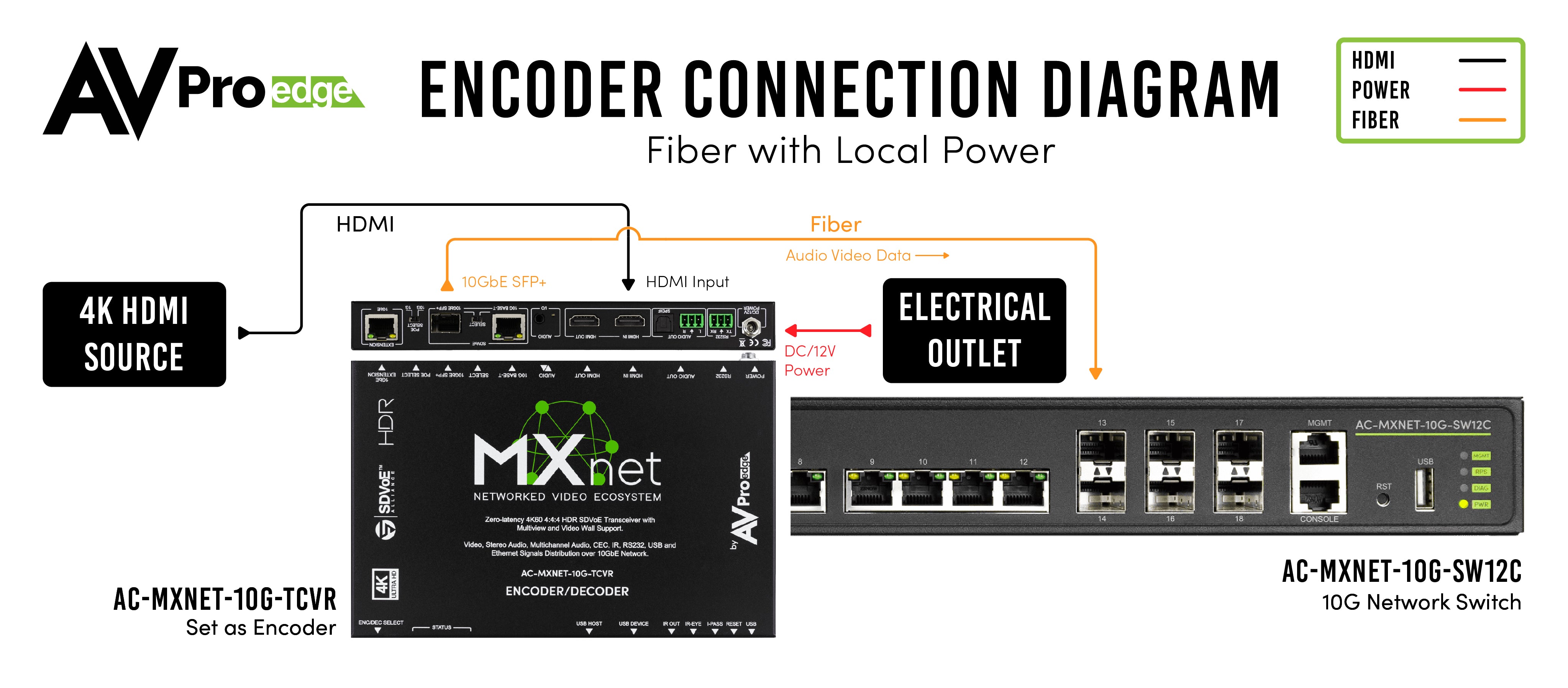

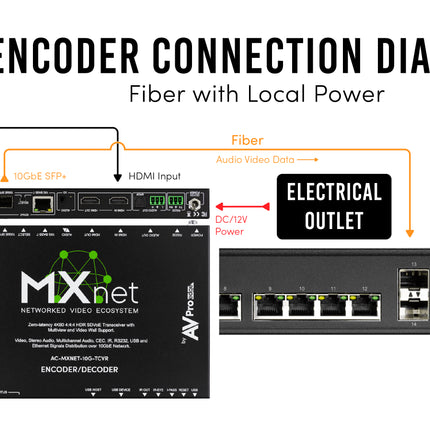

Open-Architecture System Layout – With both copper and fiber I/O’s, system design possibilities are unlimited. Across the hall or across the campus, signal integrity is highest in quality and lowest in latency with AC-MXNET-10G-TCVR encoders and decoders linked in operation. Never before have integration professionals been presented with a blank slate the magnitude of MXNet-10G.

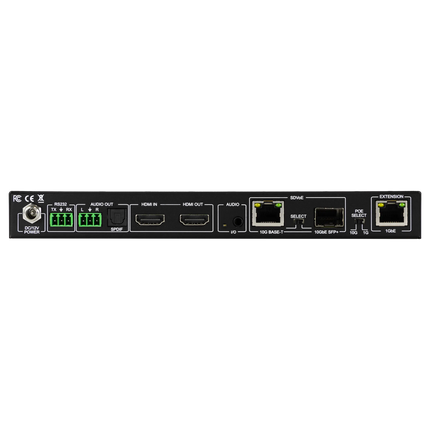

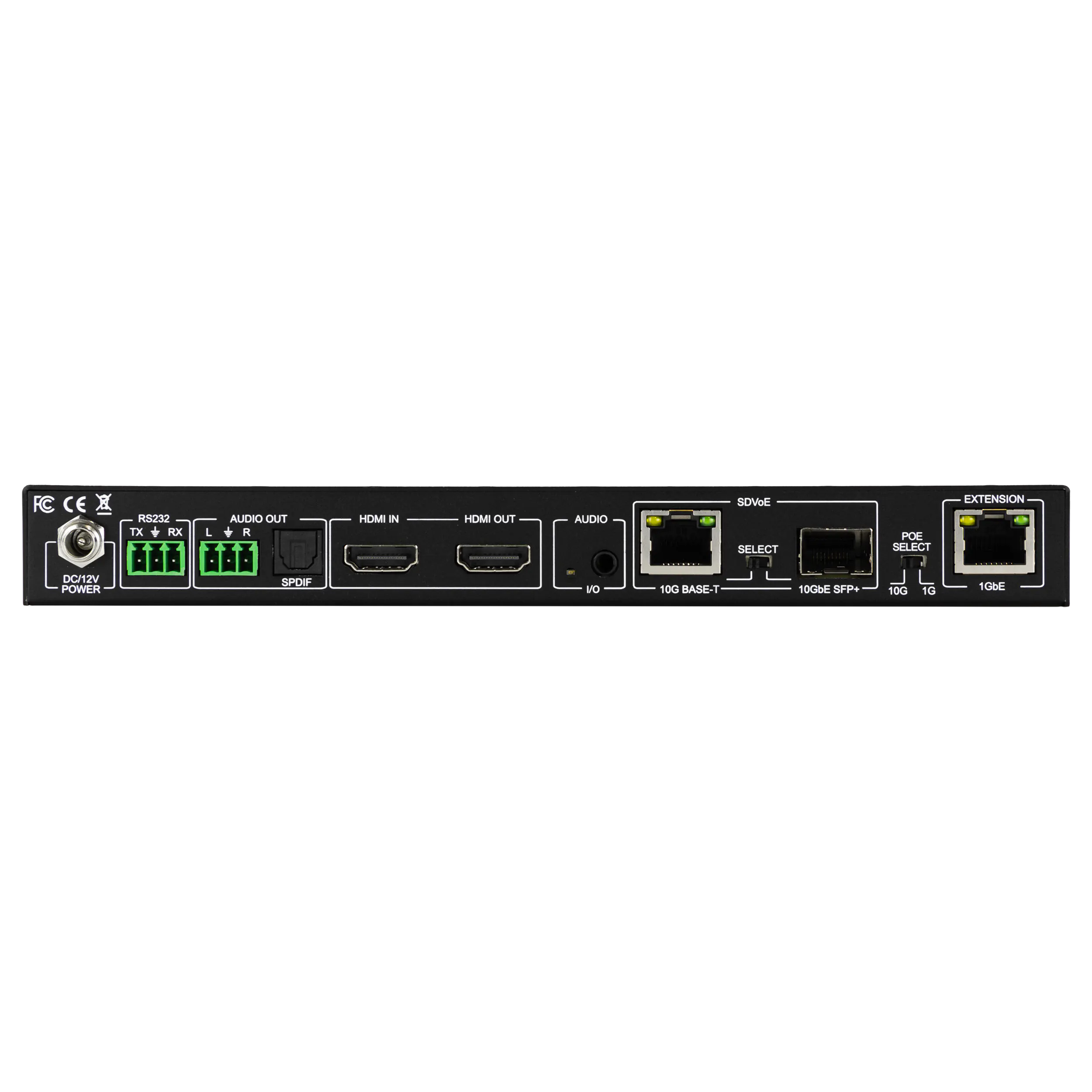

|Ethernet||(1) 10G female RJ45 port for SDVoE transmissions, (1) 1G female RJ45 port for Ethernet extension or CBOX control. Both are PoE compatible.|
|SFP+||(1) 10G SFP+ Port used for SDVoE transmissions|
|HDMI||(1) HDMI input|
(1) HDMI output
(1) x 3 Pin Terminal Block
(1) 3.5mm female stereo jack. It can be audio input or audio output, depending on if TCVR is in Encoder or Decoder mode respectively.
|IR||(1) 3.5mm IR OUT Port|
(1) 3.5mm IR-EYE Port
(1) 3.5mm I-PASS Port
|RS232||(1) x 3 Pin Terminal Block for MXNet System Control|
|USB||(1) USB Type-C for MXNet Service|
(1) USB Type-B
(2) USB Type-A
|Ethernet||100 Meters/330 Feet over CAT5e|
|SFP+ and Fiber||10G SFP+ AOC cable up to 3 meters, 10G SFP+ Multimode transceiver over Multimode fiber up to 550 meters, 10G SFP+ Single mode transceiver over Single mode fiber up to 20 Kilometers|
|Operating Temperature||23 to 125°F (-5 to 51°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Operating Humidity||5-90% RH (No Condensation)|
|Power Consumption||Encoder 11.5W, Decoder 9.816W|
|PoE (Power over Ethernet)||IEEE 802.3af (15.4W)|
|Power Supply Unit||Input: AC 120-240V, 50/60Hz, 0.8A|
Output: DC 12V, 2A
|Thermal dissipation||Encoder 39.32 BTU/hr, Decoder 33.56 BTU/hr|
|Mounting||Rack and Furniture mount support|
|Dimensions (Unit)||mm: 215 × 140 × 25 |
inch: 8.46 × 5.51 × 0.98
|Dimension (Packaged)||mm: 310 × 180 × 54|
inch: 12.2 × 7.09 × 2.13
|Weight (Unit)||1.76 lbs./0.8 kg|
|Weight (Packaged)||2.25 lbs./1.02 kg|
|Product Warranty||10 Years|
|Specifications subject to change without notice. Mass & dimensions are approximate|
