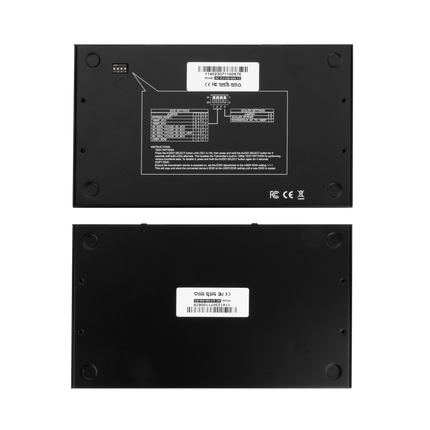

100M 18Gbps HDBaseT Extender

Description

AVPro Edge stands alone on the leading edge of HDBaseT evolution…again. Incorporating a newly designed, highly integrated System on Chip into our venerable AC-EX100-444 platform, we once more extend the boundaries of high-performance video distribution with our first HDBT Spec 3.0, point-to-point, long-distance Category cable extension package, the AC-EX100-444-KIT.

The AC-EX100-444-KIT introduces for the first time eARC into AVPro Edge extenders and touts an AVPro Edge exclusive 18Gbps Bandwidth-Adaptable Output Configuration, for uncompressed signal transfer or selectable compression using our transformative ICT algorithm, both with near-zero latency. Ethernet is augmented to 1Gbps, enhancing RX unit end-point value.

The AC-EX100-444-KIT has evolved into a refined powerhouse of potent features to continue the AVPro Edge tradition for future-forward, backwards-compatible, innovative designs with commercial and residential integrators in mind.

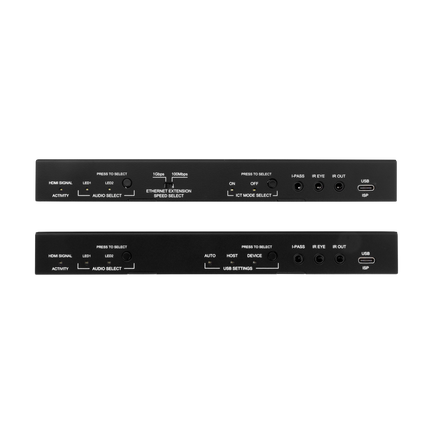

100M 18Gbps HDBaseT Extender

Product form

  • HDBaseT Spec 3.0 compliant (backward compatible)
  • HDMI 2.0
  • HDCP 2.3 (support for all previous versions)
  • eARC Support
  • Dolby Vision, HDR 10, HDR10+ Support

SKU: AC-EX100-444-KIT

  • Shipped today? Order within: Oct 05, 2024 13:00:00 -0500

Description

AVPro Edge stands alone on the leading edge of HDBaseT evolution…again. Incorporating a newly designed, highly integrated System on Chip into our venerable AC-EX100-444 platform, we once more extend the boundaries of high-performance video distribution with our first HDBT Spec 3.0, point-to-point, long-distance Category cable extension package, the AC-EX100-444-KIT.

The AC-EX100-444-KIT introduces for the first time eARC into AVPro Edge extenders and touts an AVPro Edge exclusive 18Gbps Bandwidth-Adaptable Output Configuration, for uncompressed signal transfer or selectable compression using our transformative ICT algorithm, both with near-zero latency. Ethernet is augmented to 1Gbps, enhancing RX unit end-point value.

The AC-EX100-444-KIT has evolved into a refined powerhouse of potent features to continue the AVPro Edge tradition for future-forward, backwards-compatible, innovative designs with commercial and residential integrators in mind.
  • Key Benefits
  • Specs
  • Resources
  • In the Box

Bandwidth-Adaptable Output Configuration: The AC-EX100-444-KIT is designed for up to 18Gbps uncompressed video transport however, if an existing wiring infrastructure proves insufficient for passing 18Gbps, our Invisible Compression Technology (ICT) can be selected for use by a toggle switch, reducing output bandwidth to 10.2Gbps for content display.

ICT is an in-house custom-engineered, compression-transparent, proprietary algorithm that continues to uphold AVPro Edge’s reputation as the standard for video excellence in HDMI matrix switching and signal extension. An industry first at its debut, ICT continues as the class-leading solution for commercial and residential integrators seeking to maintain state-of-the-art image fidelity at system-detached display locations when bandwidth reduction becomes unavoidable. ICT’s specialty is spotlighted by what you won’t see, such as banding, color wash-out, or compression and motion artifacts.

An AVPro Edge exclusive, this bandwidth reduction tool is only found on the AC-EX100-444-KIT. When compression must be used, USB/eARC/LAN retain their native bandwidth properties.

Extend 4K60 4:4:4 With HDR Signals: HDCP was conceived to assure content holders copy protection for their media. The 19 conductor HDMI format was designed to facilitate this process when transporting media between devices, using a total of 8, small gauge wires to handle video information with the bulk of those remaining devoted to system policing. It wasn’t envisioned that sources would be placed elsewhere than the immediate display location, and the first HDMI cable designs dramatically exemplified these inherent problems with a useable HDMI cable length barely exceeding fifteen feet. Over time, this thankfully has been addressed in a variety of well-sorted ways, including AVPro Edge Bullet Train cables. Still, there are no “on-site, made to length” HDMI cables however with unrivaled ease, the extraordinary AC-EX-100-444-KIT extends a high bandwidth UHD 4K source an impressive three hundred and twenty-eight feet (100 meters) including Dolby Vision, HDR10 or HDR10+.

Near-Zero Latency: Latency is less than 8 microseconds, measurable but visually undetectable.

Improved USB Bandwidth For KVM (Keyboard Video Mouse): USB bandwidth has been improved to 390Mbps, making the AC-EX100-444-KIT an ideal candidate for KVM applications. A connected computer via USB A to the T3 transmitter can be controlled from up to 100 meters away with a mouse or keyboard connected to the R3 receiver. The AC-EX100-444-KIT is a perfect solution for use in schools or any application requiring long distance USB control.

Downscaling: Problem-solving scaling circuitry is incorporated into the AC-EX100-444-KIT transmitter chassis, capable of rescaling UHD 4K (including HDR signals) to 1080P. Heavy lifting by the AC-EX100-444-KIT simplifies deployment and prevents diluted performance in a mixed system.

Audio Extraction: PCM 2 Channel L/R Audio can be extracted from the transmitter end through the TOSLINK digital output and sent to an AVR or distribution amplifier. NOTE: This port will only work when the source is set to output 2-Channel Audio. If downmixing is required, please see the AVPro Edge AC-AVDM-AUHD.

eARC Support: This is the first AVPro Edge extension kit to feature eARC, compatible with all high bitrate and immersive audio formats. eARC also makes HDCP “handshaking” between compatible products smoother without the frequent complications often associated with CEC.

Onboard Troubleshooting: Leave your Fox & Hound test kit behind in the shop? The AC-EX100-444-KIT has you covered. When required, the transmitter can generate a 1080p or 4K test pattern to aid with wire verification, switcher configuration settings, or source viability.

Control Options: Configurable, bidirectional control for IR & RS-232 signals provides a carefully nuanced added plus to the AC-EX100-444-KIT, consolidating wiring to a solitary pull and mitigating the use of supplemental devices for a clean, efficient installation. Simplified control requirements can take advantage of the AC-EX100-444-KIT’s I-PASS, forwarding commands directly from a control system IR-out port into the TX unit I-PASS input, proceeding to the receiving end and routing directly from the RX unit’s IR-out into the display’s IR input jack (if equipped) or through an attached IR emitter.
ESD (electrostatic discharge) protection adds a welcomed layer of defense for all connected products.

Cascadable: The AC-EX100-444-KIT features HDMI signal equalization and amplification, enabling “daisy chaining” with multiple AC-EX100-444-KIT extenders for ultra-long distance transmission. With AVPro Edge’s unique bi-directional power, there is no need for an intermediately located  power source. Simply power the first Tx and the second Rx and power will be provided to the middle remotely.

Video:
Video ResolutionsUp to 4K 60Hz 4:4:4
VESA ResolutionsUp to DCI 4K (4096x2160)
HDR FormatsHDR10, HDR10+, Dolby Vision (24/30 Frames), and HLG
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Color Bit DepthUp to 16 bit (1080), Up to 12 bit (4K)
Down Scaling4K (and HDR) down to 1080p
Audio:
Audio Formats Supported HDMIPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted
(Toslink, TX Only)
PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD
ARC/eARC:
Formats Supported HDMI ARC/eARC Out TXPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Formats Supported Toslink Out TXPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD
Distance:
HDBaseT (CAT) Distance (Uncompressed)70 Meters / 230 Feet (Cat 6a)
HDBaseT (CAT) Distance (Using ICT Compression)100 Meters / 330 Feet (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4)Up to 50 Feet (using Bullet Train HDMI)
HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4)Up to 130 Feet (using Bullet Train AOC)
Other:
Bandwidth18 Gbps Uncompressed  (ICT Mode OFF)
10.2 Gbps (ICT Mode ON)
HDCPHDCP 2.3 and Earlier

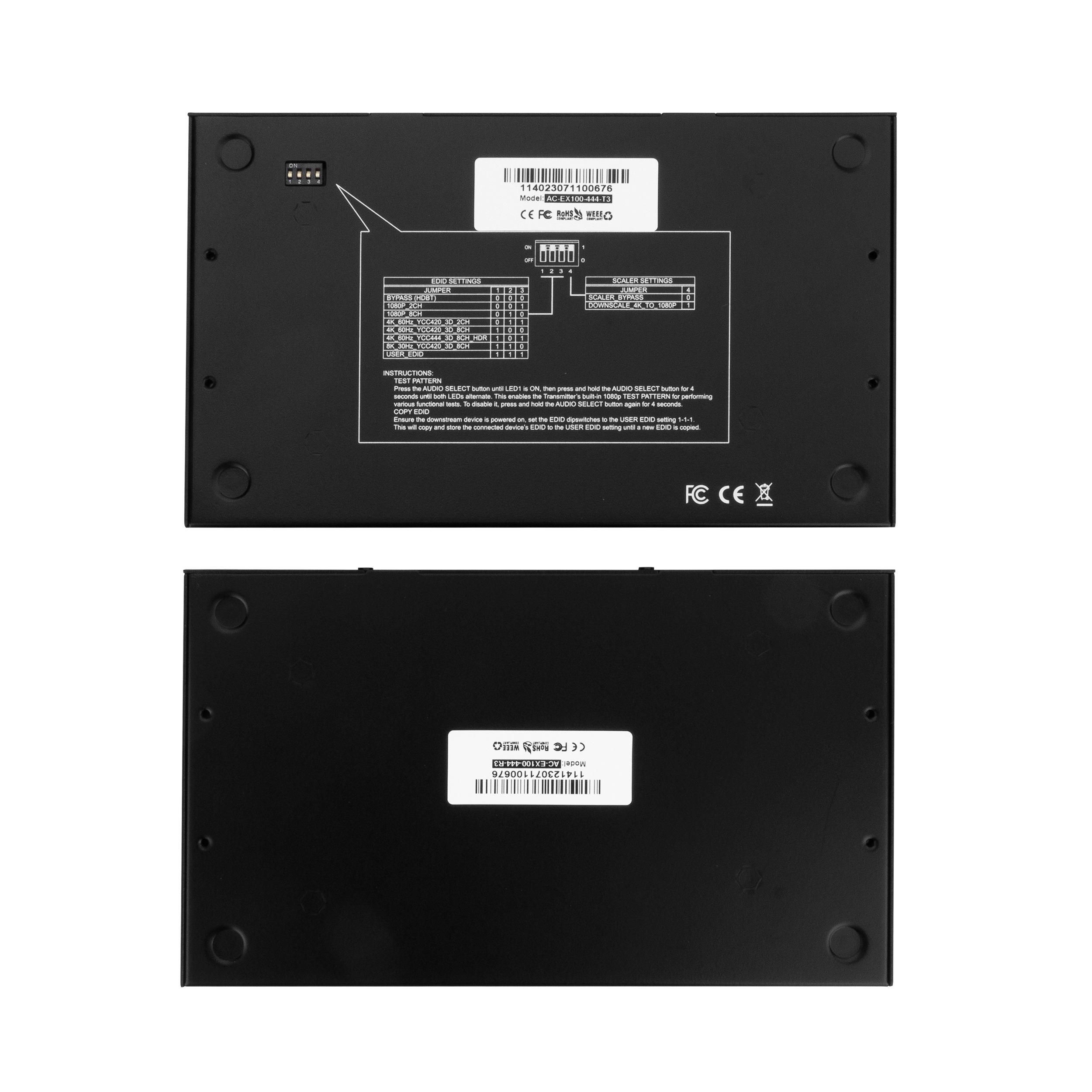

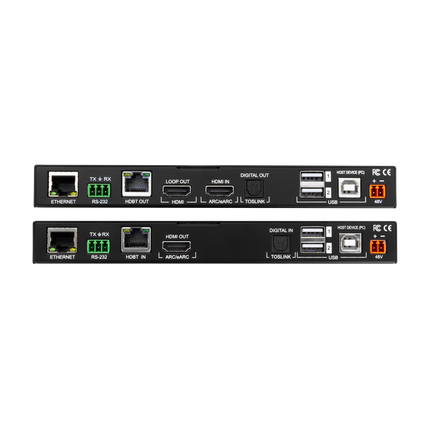

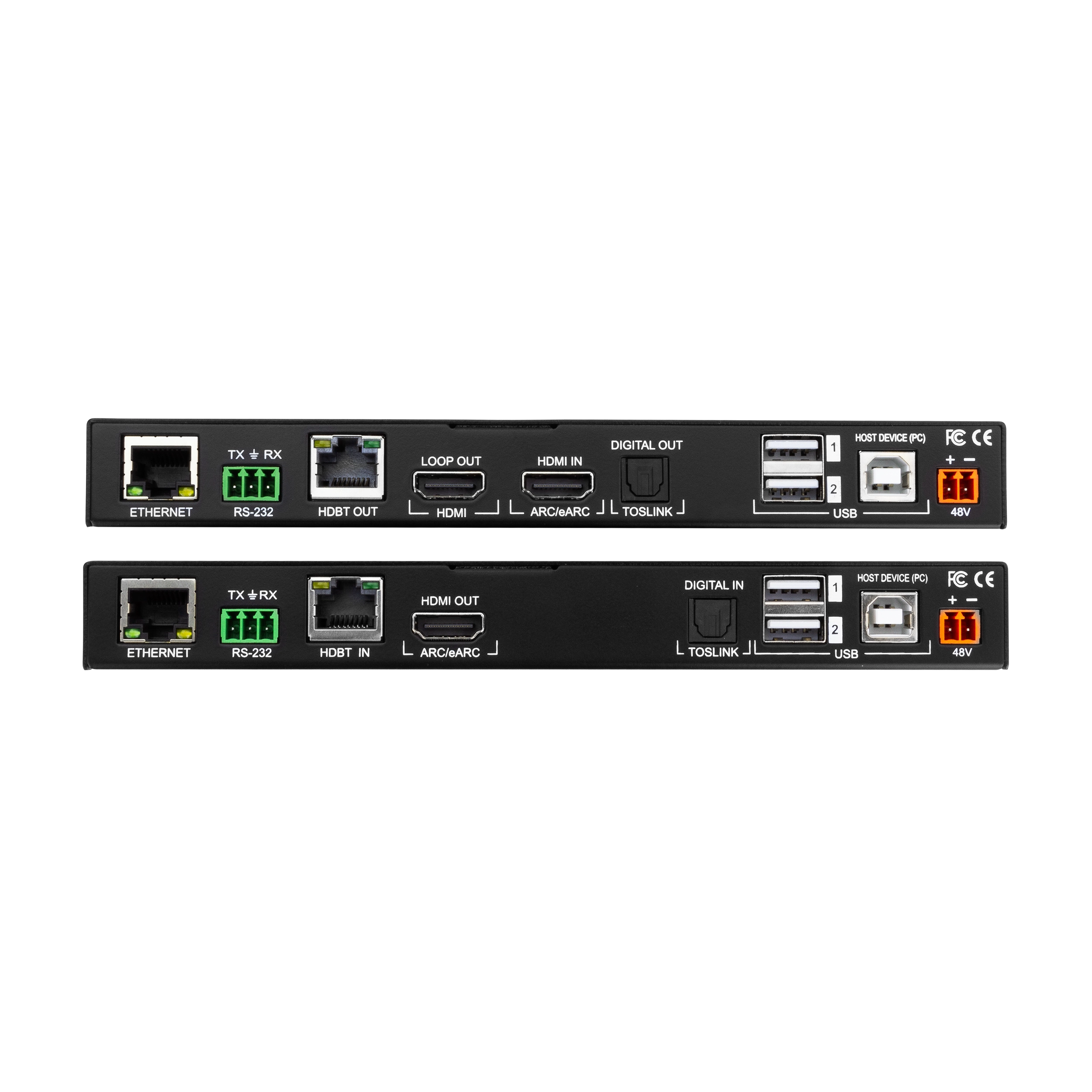

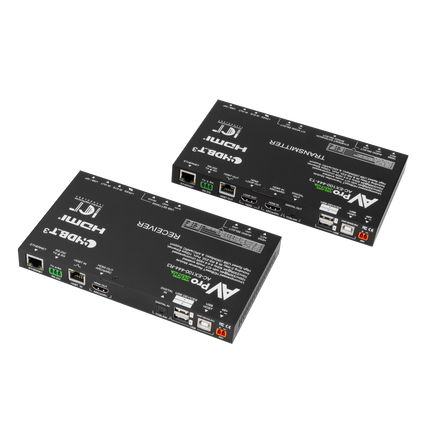

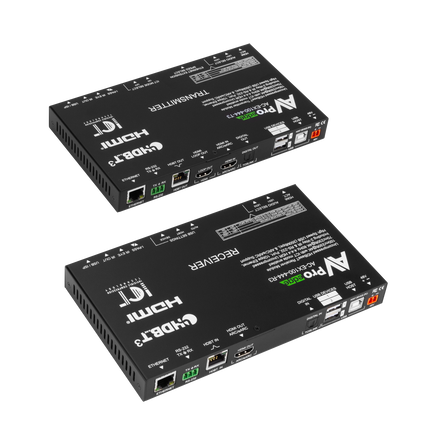

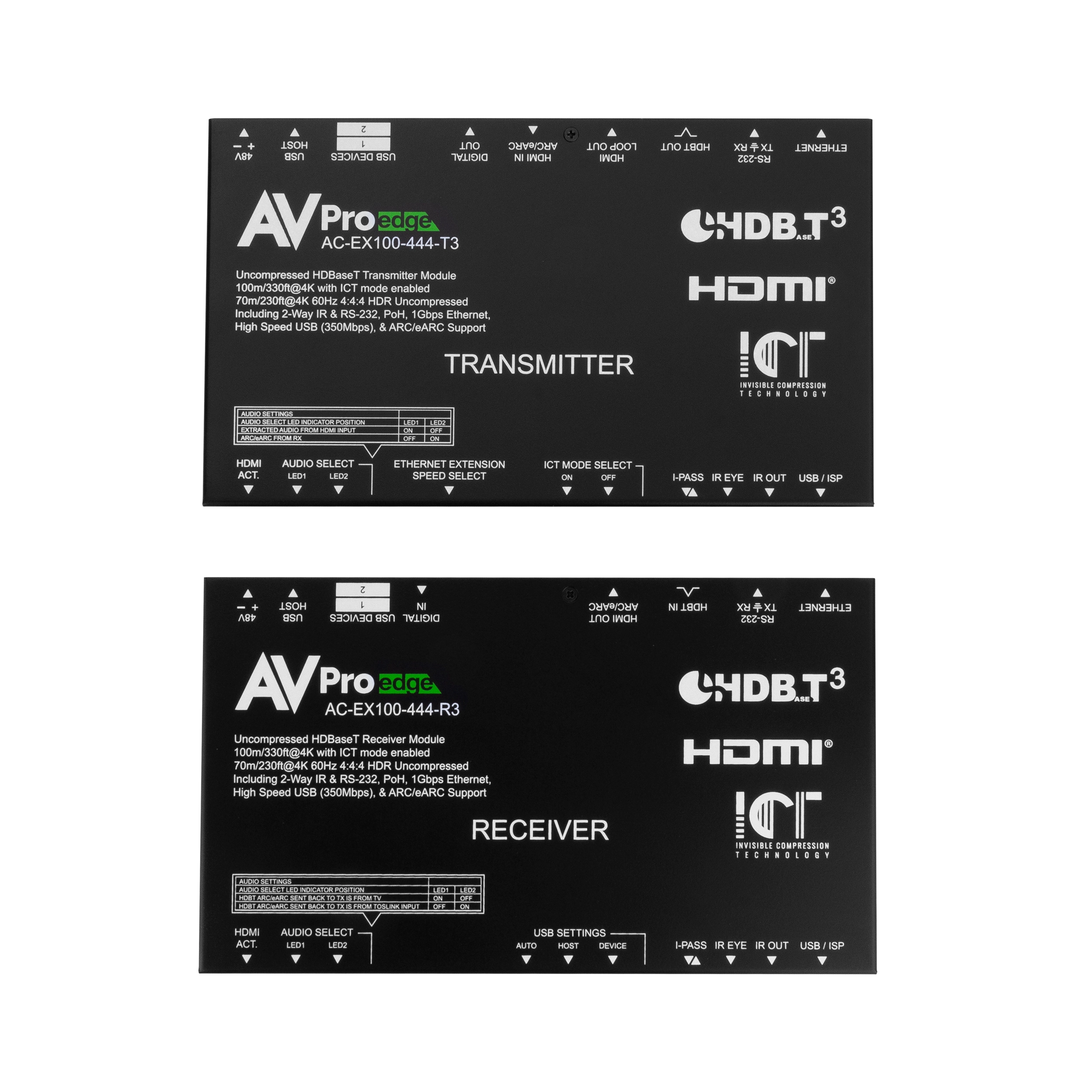

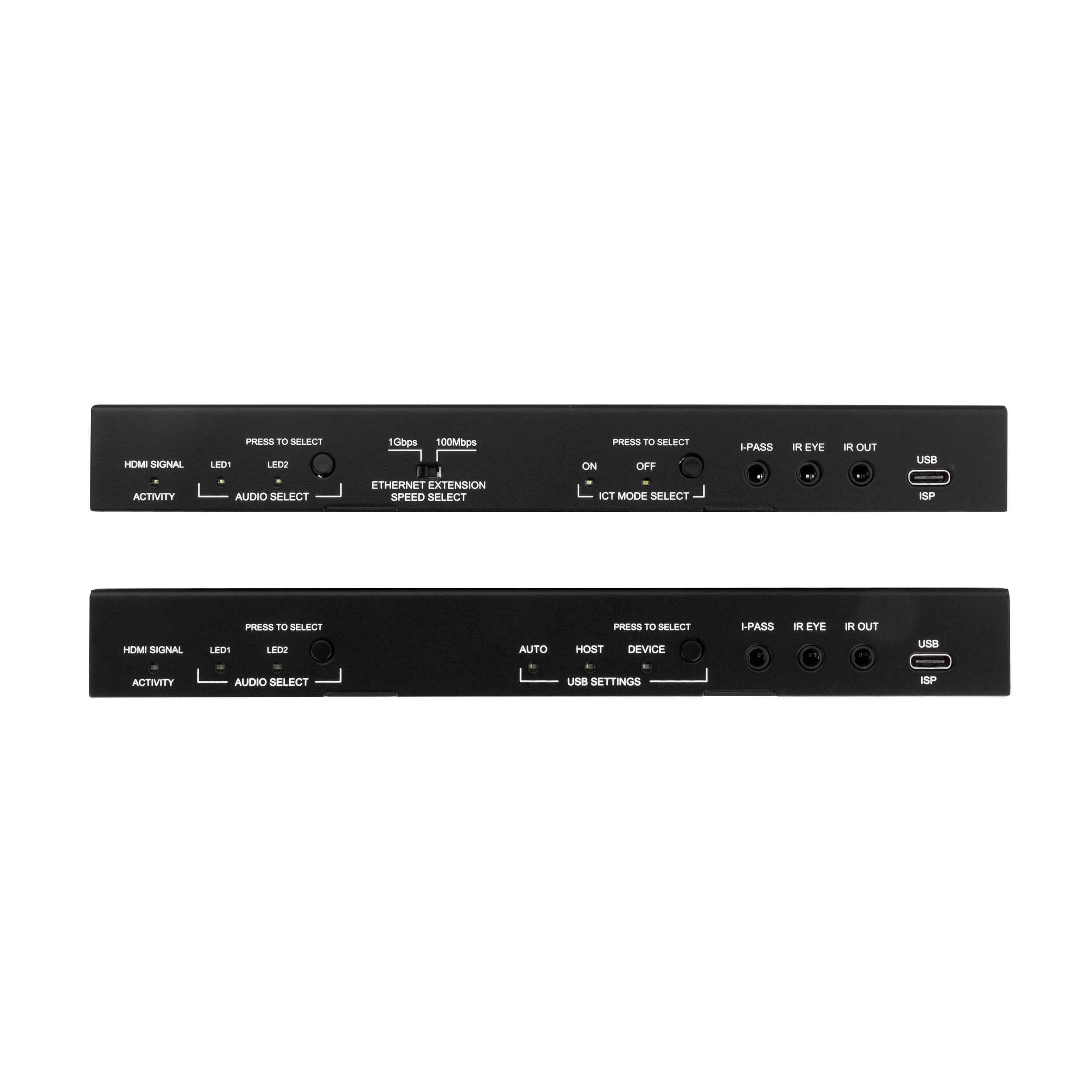

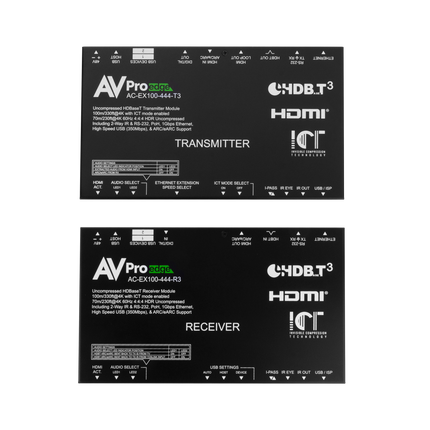

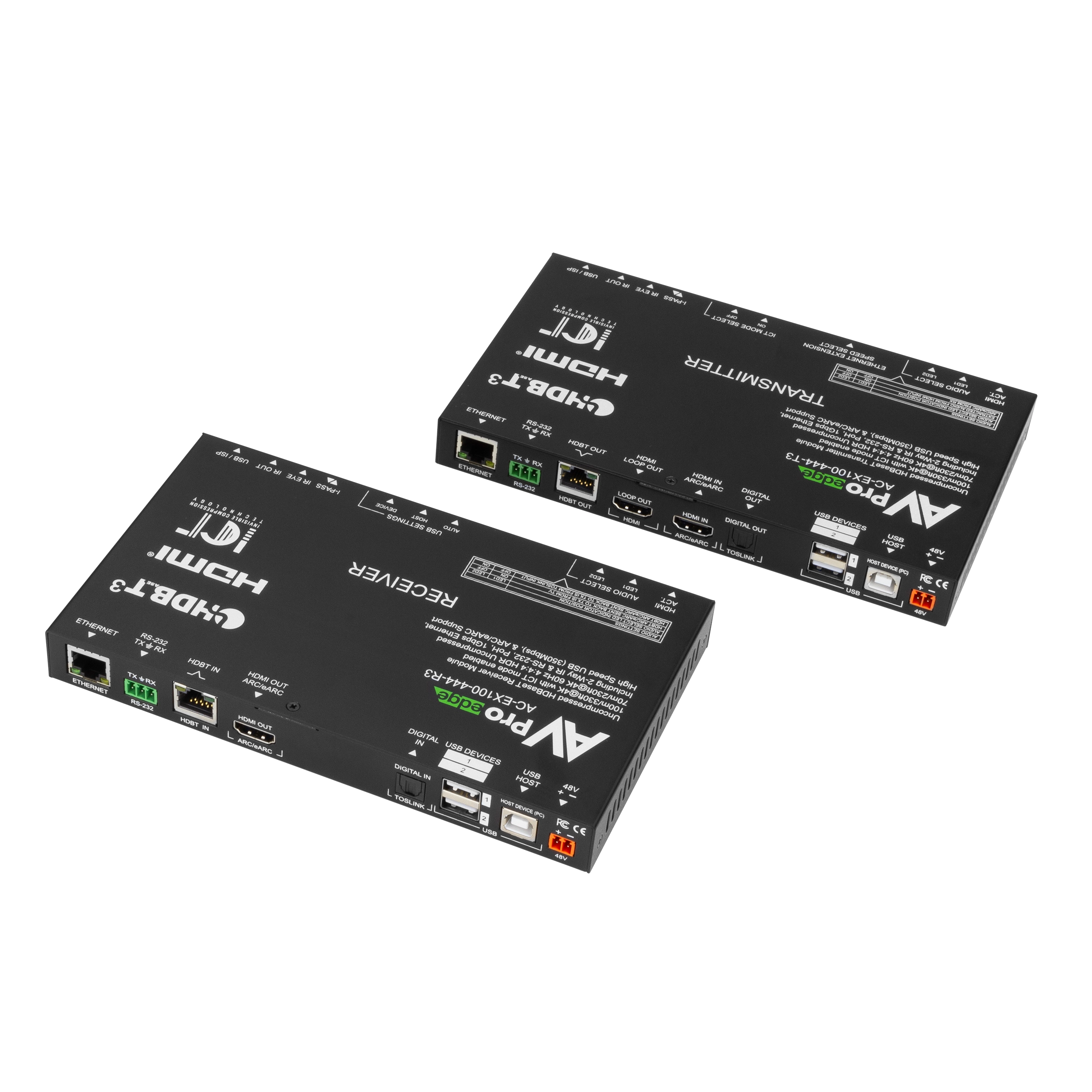

Ports:
HDMI  (TX & RX)Type A
HDBaseTRJ45 w/ PoH for HDBaseT Receivers
Extracted audio (TX  ONLY, RX is an Audio INPUT)Toslink
IR TX (TX & RX)3.5MM Mono (2 Conductor)
IR RX (TX & RX)3.5mm Stereo (3 Conductor)
RS-232 (TX & RX)3-Pin Terminal Block
Power  (TX & RX)2-Pin Terminal Block
Ethernet (TX & RX)×4 RJ45 Connections (10/100)
USB Selectable Host:
VersionUSB 2.0
TX portUSB host = USB type b (×1)  USB type a (×2)
RX portUSB host = USB type b (×1)  USB type a (×2)
Environmental:
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)12 Watts Max
Power Supply - MatrixInput: AC 100-240V ~ 50/60Hz
Output: DC 48V 0.5A
Dimensions:
Dimensions (Single Unit Only Width/Depth/Height) mm: 196.85 × 103.12 × 25.4
inch: 7.75 × 4.06 × 1
Dimensions (Kit Packaged Width/Depth/Height)mm: 314.45 × 184.15 × 77.98
inch: 12.38 × 7.25 × 3.07
Weight (Single Unit)1.4 lbs (0.64 kg)
Weight (Kit Packaged)3.8 lbs (1.7 kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate

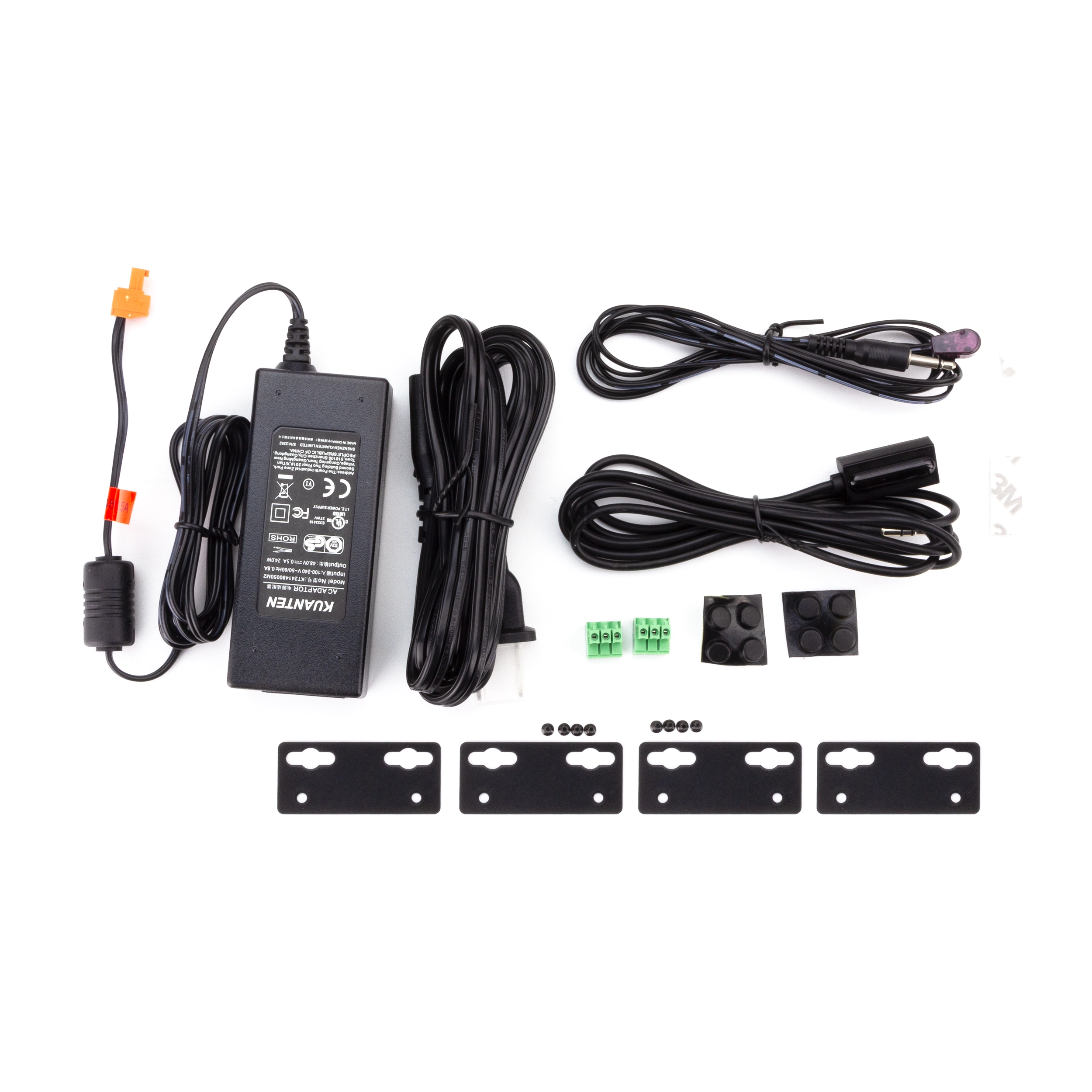

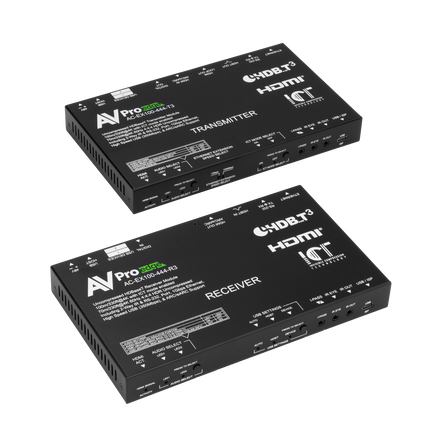

AC-EX100-444-KIT-GEN2:

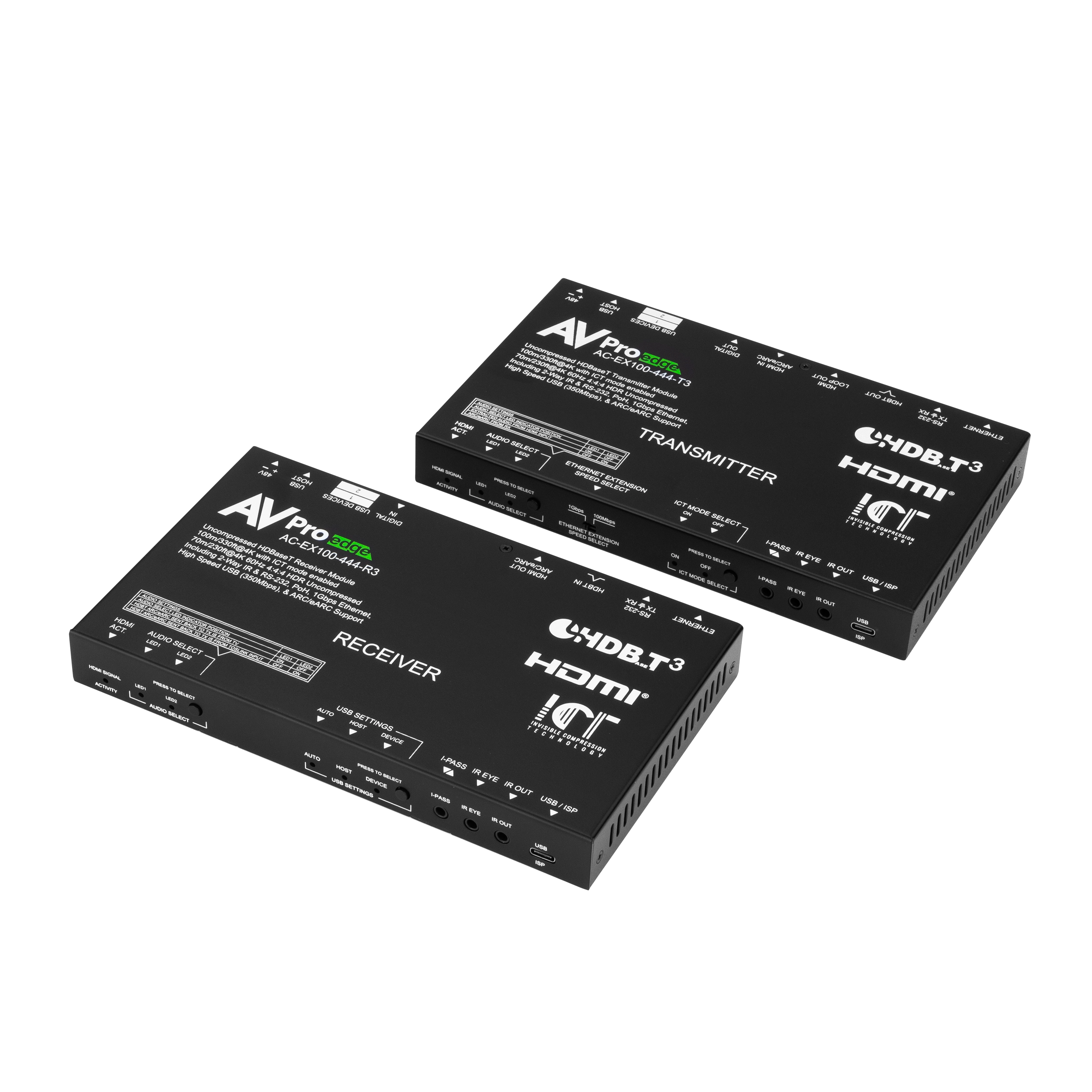

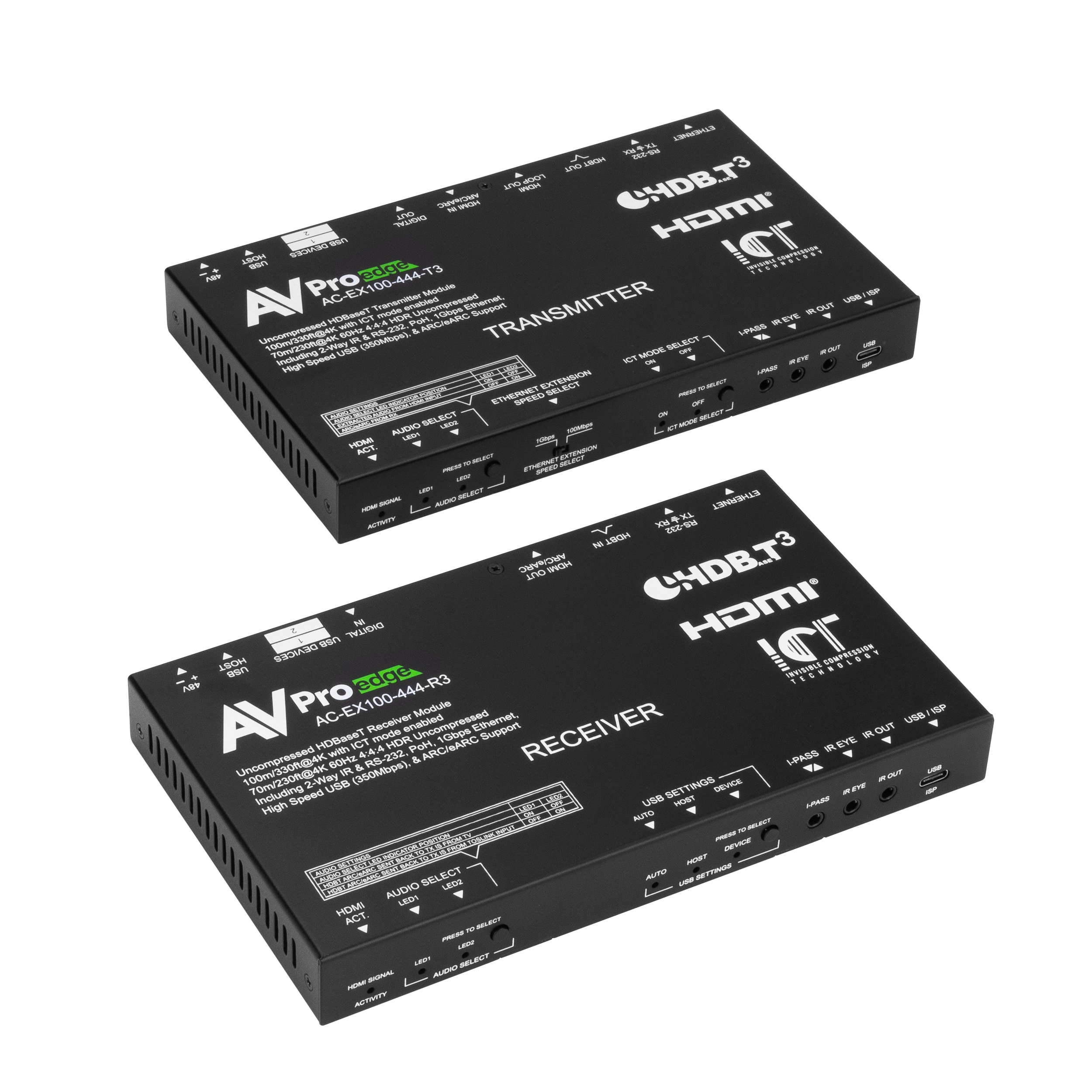

  •  AC-EX100-444-T3 (Transmitter)
  • AC-EX100-444-R3 (Receiver)
  • 48V Power Supply (One supplied)
  • 1 x IR Tx Unit
  • 1 x IR Rx Unit
  • 2 x 3 Pin Terminal blocks for RS-232 Ports
  • 4 x Mounting Brackets
  • 8 x Screws for Mounting Brackets



WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
