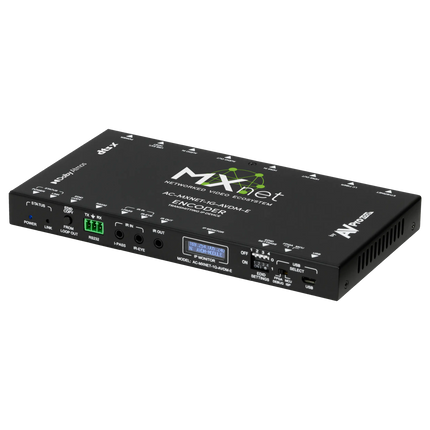

MXnet 1G Downmixing Encoder

Description

The AC-MXNET-1G-AVDM-E Encoder is the audio processing and downmixing cousin to our standard-issue AC-MXNET-1G-E Encoder. As with our standard Encoder, this is where the signal starts. However, the AC-MXNET-1G-AVDM-E Encoder was specifically designed to integrate with multi-zone stereo/mono audio mixing systems.  The AC-MXNET-1G-AVDM-E Encoder employs a specialized audio processor chipset that can accept and decode Dolby Audio, DTS Audio®, and other lossless audio formats - and output those signals as stereo through the provided balanced stereo terminal block on the unit.

Connect the MXnet 1G AVDM to any HDMI source. It will encode the audio/video signal into a multicast data format that can be routed to any Decoder endpoint within the project/installation. As outlined above, it will also decode Dolby ATMOS, DTS-HD, and other lossless audio formats for connecting to a whole home or other distributed audio system. This device connects directly via category wires (CAT 5e or better) or fiber optics to the MXnet Switch (AC-MXNET-SW48 or SW24) and any other compatible multicast-capable managed L3 network switch. The AC-MXNET-1G-AVDM-E Encoder is a part of the MXnet Ecosystem of AV-over-IP products from AVPro Edge.

The AC-MXNET-1G-AVDM-E will encode a 4K 4:2:0 30Hz HDMI video signal – along with audio, control, and power.  These signals are passed to single or multiple Decoder endpoints via multicast routing through an MXnet or multicast compatible L3 managed network switch. And it does all this with next to zero latency. MXnet Encoders encode audio/video/control signals into IP packets using an optimized JPEG2000 codec at a flexible data rate (200Mbps for 1080p content, 300Mbps for 4K30 content, 850Mbps at peak). The AC-MXNET-1G-AVDM-E Encoder also supports stand-alone point-to-point applications when connected directly to an AC-MXNET-1G-D Decoder.

The AC-MXNET-1G-AVDM-E Encoder is only one part of the MXnet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXnet’s Ecosystem includes formatting such as resolution scaling, full EDID management, and multifaceted video walls, and includes the MXnet Mentor setup and control tool - making installations easy on the integrator while also presenting a major WOW factor for your client.

MXnet 1G Downmixing Encoder

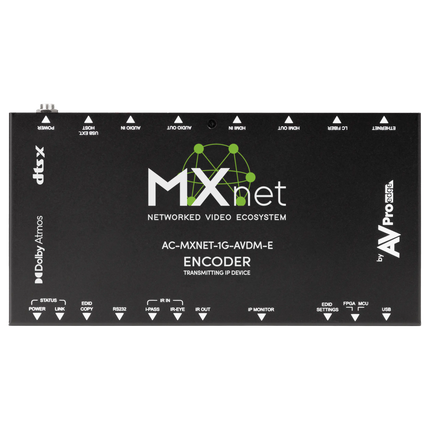

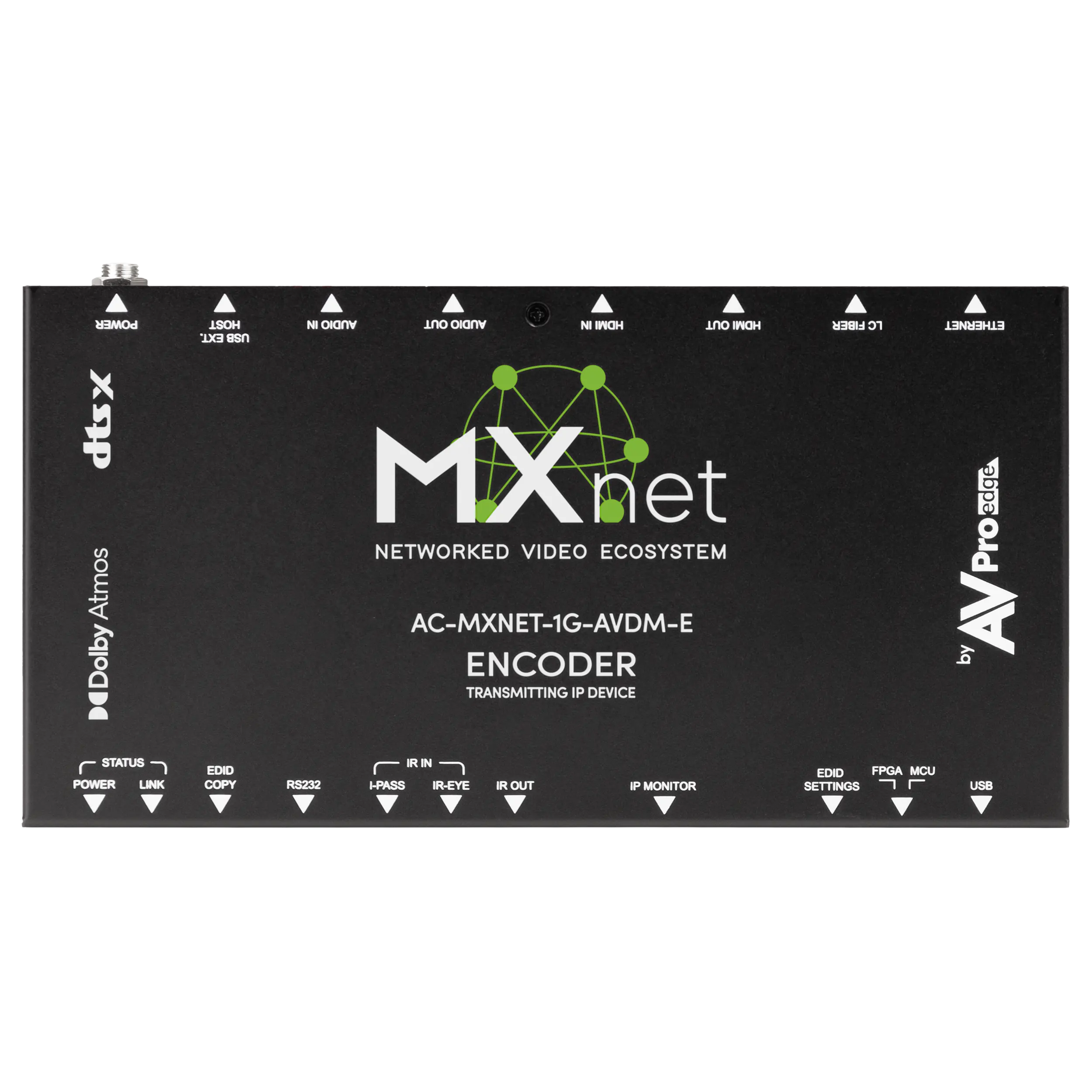

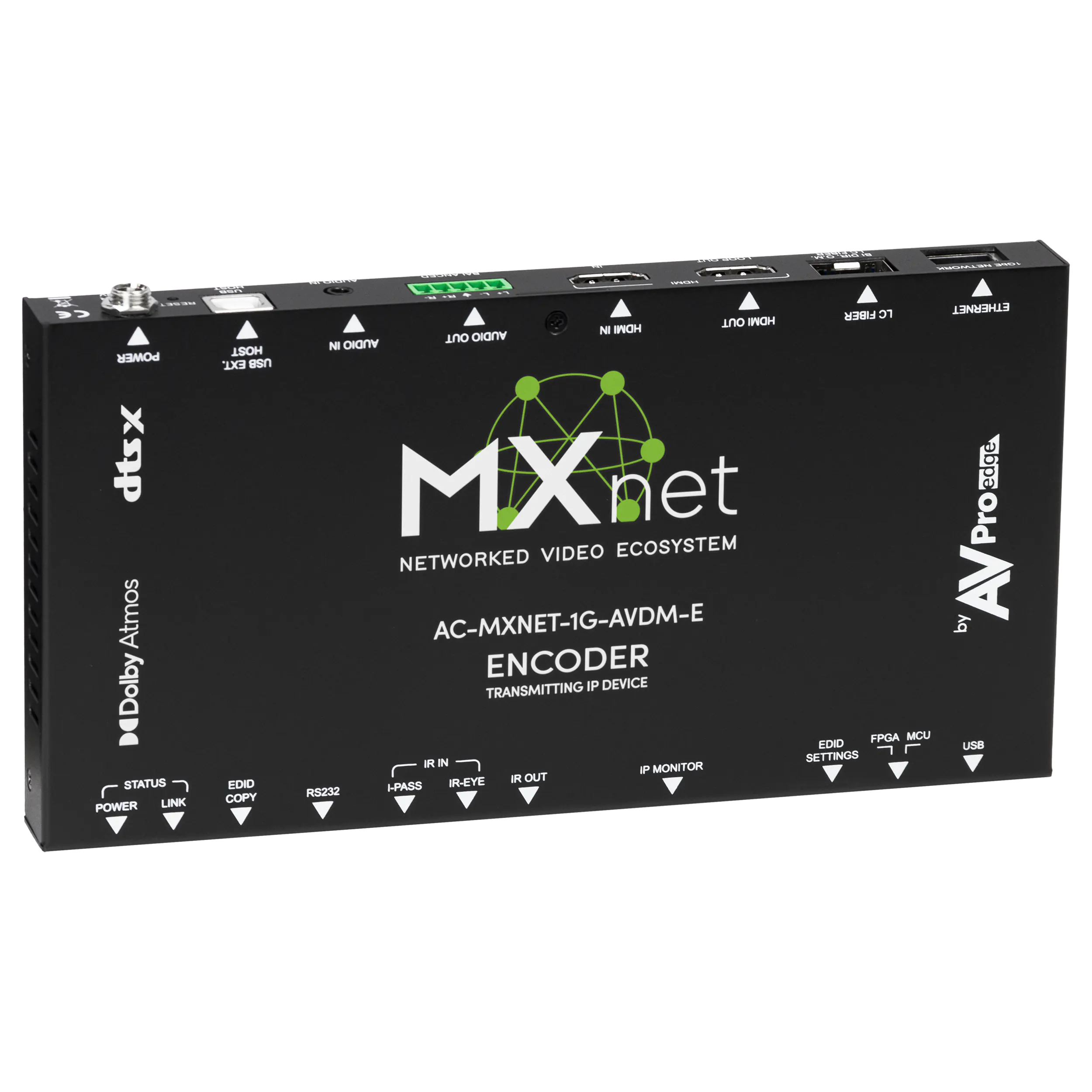

Product form

  • Convert HDMI to Fiber Optic or Category Cable infrastructure
  • 8+ Channel downmixing to 2 Channel
  • USB/KVM Host Support
  • 4K30 4:2:0 at 18Gbps Audio/Video Signaling
  • HDMI 2.0 & HDCP 2.3

SKU: AC-MXNET-1G-AVDM-E

  • Shipped today? Order within: Dec 05, 2024 13:00:00 -0600

Description

The AC-MXNET-1G-AVDM-E Encoder is the audio processing and downmixing cousin to our standard-issue AC-MXNET-1G-E Encoder. As with our standard Encoder, this is where the signal starts. However, the AC-MXNET-1G-AVDM-E Encoder was specifically designed to integrate with multi-zone stereo/mono audio mixing systems.  The AC-MXNET-1G-AVDM-E Encoder employs a specialized audio processor chipset that can accept and decode Dolby Audio, DTS Audio®, and other lossless audio formats - and output those signals as stereo through the provided balanced stereo terminal block on the unit.

Connect the MXnet 1G AVDM to any HDMI source. It will encode the audio/video signal into a multicast data format that can be routed to any Decoder endpoint within the project/installation. As outlined above, it will also decode Dolby ATMOS, DTS-HD, and other lossless audio formats for connecting to a whole home or other distributed audio system. This device connects directly via category wires (CAT 5e or better) or fiber optics to the MXnet Switch (AC-MXNET-SW48 or SW24) and any other compatible multicast-capable managed L3 network switch. The AC-MXNET-1G-AVDM-E Encoder is a part of the MXnet Ecosystem of AV-over-IP products from AVPro Edge.

The AC-MXNET-1G-AVDM-E will encode a 4K 4:2:0 30Hz HDMI video signal – along with audio, control, and power.  These signals are passed to single or multiple Decoder endpoints via multicast routing through an MXnet or multicast compatible L3 managed network switch. And it does all this with next to zero latency. MXnet Encoders encode audio/video/control signals into IP packets using an optimized JPEG2000 codec at a flexible data rate (200Mbps for 1080p content, 300Mbps for 4K30 content, 850Mbps at peak). The AC-MXNET-1G-AVDM-E Encoder also supports stand-alone point-to-point applications when connected directly to an AC-MXNET-1G-D Decoder.

The AC-MXNET-1G-AVDM-E Encoder is only one part of the MXnet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXnet’s Ecosystem includes formatting such as resolution scaling, full EDID management, and multifaceted video walls, and includes the MXnet Mentor setup and control tool - making installations easy on the integrator while also presenting a major WOW factor for your client.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

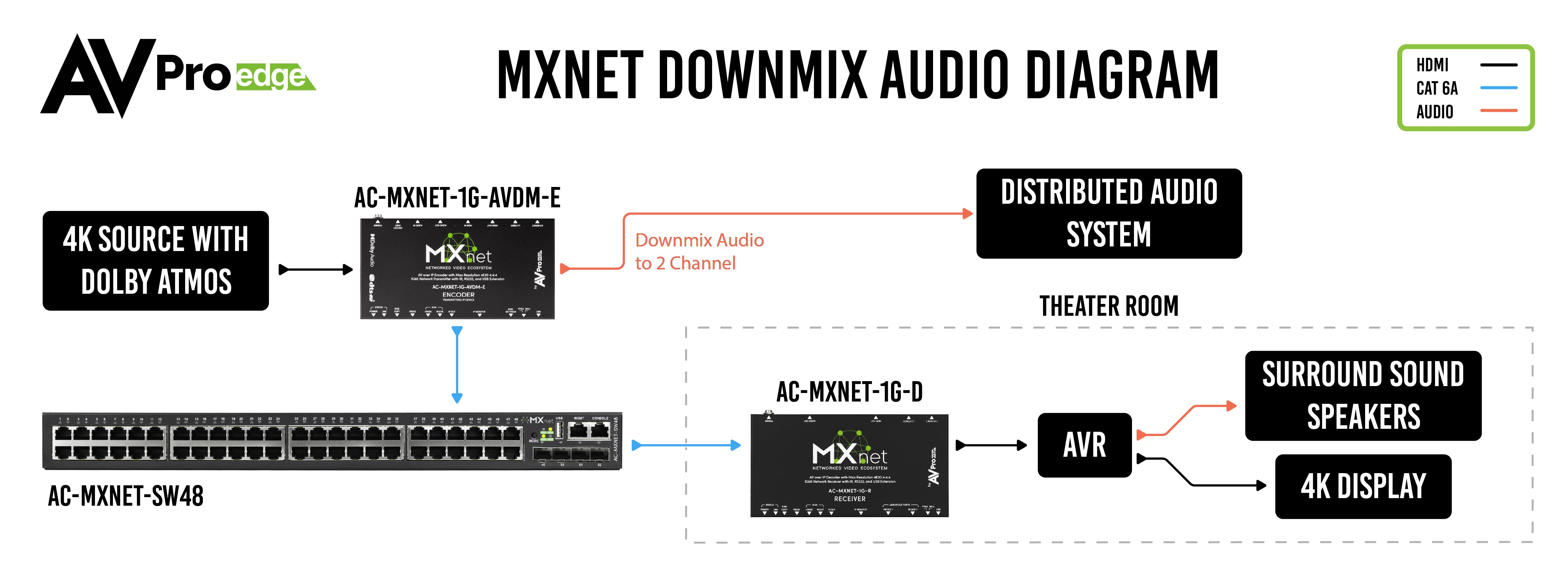

Downmixing – This feature is especially useful when there is a need to distribute high end object oriented or lossless audio signals (Dolby ATMOS, DTS-HD, etc), but not every room or audio zone is equipped to handle a surround soundtrack. The main benefit here is the ability to turn these high-end formats into a separate stereo signal, and at the same time fully retain the multi-channel formats through the HDMI connection.

JPEG 2000 – JPEG 2000 is the obvious and essential video encoding choice when picture quality is critical.  JPEG 2000 supports progressive decoding and delivers both lossy and lossless compression within a code stream. JPEG 2000 supports GEN LOCK so that the frames of a video source are synced to all Decoders resulting in tear-free video walls. JPEG 2000 enables the handling of color-space information, 10bit color, and it supports interactivity in networked applications.

Data Window – This is a built-in mini OLED screen mounted to every single Encoder unit, displaying critical information that makes set up and troubleshooting a much easier task. The Data Window displays the IP address and the MAC address, or you can modify the name using MXnet Mentor to display custom names such as AppleTV-4K, Blu-ray, Streamer, etc. You have up to 12 characters available to use for your custom name.

Full External Light Control - Our integrators pride themselves on their work, so don’t let a small blue, green, red, or yellow light ruin your perfectly engineered viewing room. When you install an Encoder in a discreet location, you have the option to turn off ALL the lights on the device - including network link lights - as well as the Data Window OLED light. This allows you to install the Encoder, and once you know everything is working, eliminate any light outputted from the device.  This way, the end-user will never even know it’s there.

Control Signal Routing - Both RS-232 and IR signals can be direct routed through the AC-MXNET-1G-AVDM-E Encoder.  When you route these signals through a network switch, you can specify either single or multiple Decoders to receive these control signals.

USB and KVM Support - Each Encoder unit has a USB-B Host connection. This allows you to connect and route any connected USB signals to a Decoder device. Use the MXnet Mentor software to specify the Host Encoder and the upstream USB device connected to the selected Decoder.



Netgear Support - MXnet’s engineers have worked together with Netgear to ensure their switches work with our line of encoders and decoders. To make installing MXnet with Netgear switches even easier, Netgear has developed an “AVPro Edge Profile.” Once this is loaded, your switch will work seamlessly with the AVPro Edge encoder and decoders.

For more information, please visit this website - https://www.netgear.com/business/solutions/av-over-ip/

Encoding
Video CodecProprietary Codec based on M-JPEG
Audio CodecProprietary Codec
Latency16ms@60Hz
Streaming ProtocolsTCP, UDP, IP, IGMP-V2
Copy ProtectionHDCP 2.2 and earlier
Video Input/Ingestion
Signal TypeDVI 1.0(ingested, outputs as HDMI), HDMI 2.0b
Video Resolution720p@50/60Hz; 1080p@24, 50 & 60Hz; 4K@30HZ
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 (Compresses to RGB output)
RGB
Bit Depth per Color1080p (8-, 10-, 12-, 16-bit),  4K (8-,10-, 12-bit) (Compresses to 8-bit output)
Visually Lossless1080p@60Hz SDR RGB (8-bit), 4K@30Hz SDR RGB (8-bit)
Audio
Audio Format (end to end)PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution
Audio Format (HDMI Loopout)Same as End to End, with the addition of Dolby MAT 8Ch
Embedded AudioStereo Analog Audio (3.5 mm jack)
De-Embedded AudioBalanced Stereo Analog Audio (5pin phoenix) (Downmixed audio)
Communication/Control of External Devices
USBHID-Compliant
Serial/RS-232Bidirectional Device Control / Monitoring
IRBidirectional Device Control / Extension

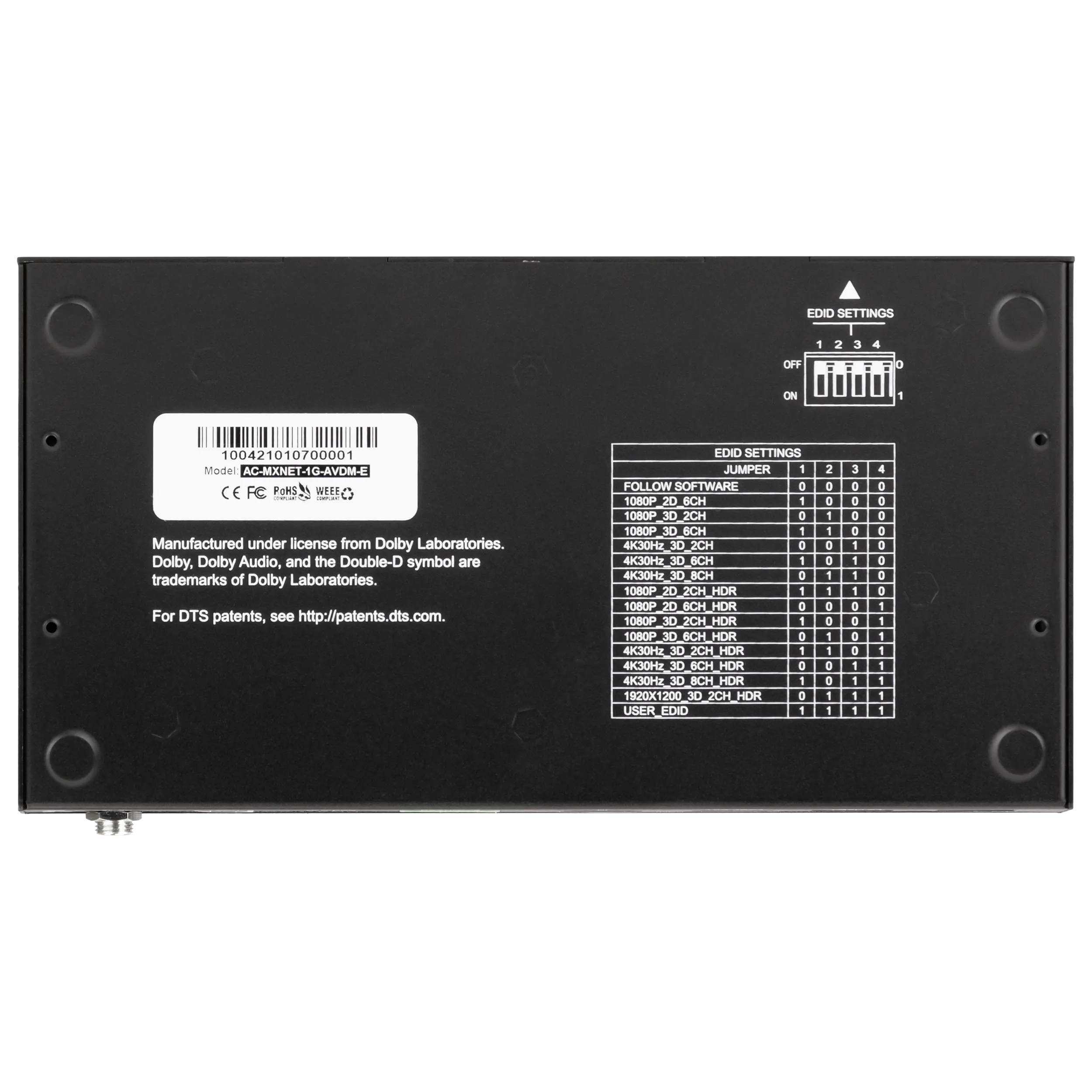

HDMIHDCP 2.2, EDID Management (Encoder), CEC (Decoder)

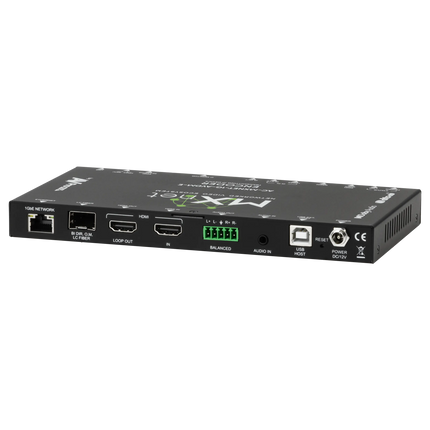

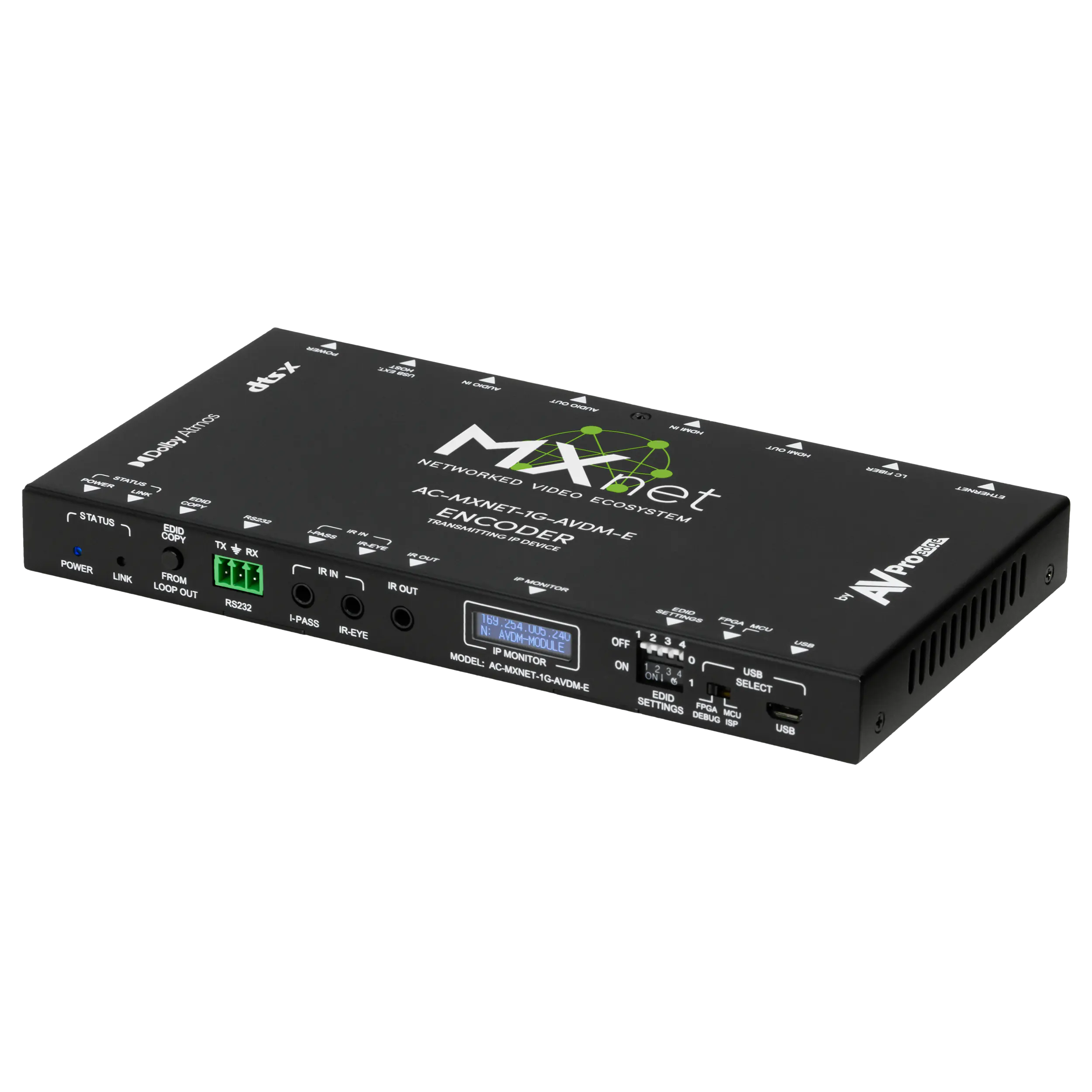

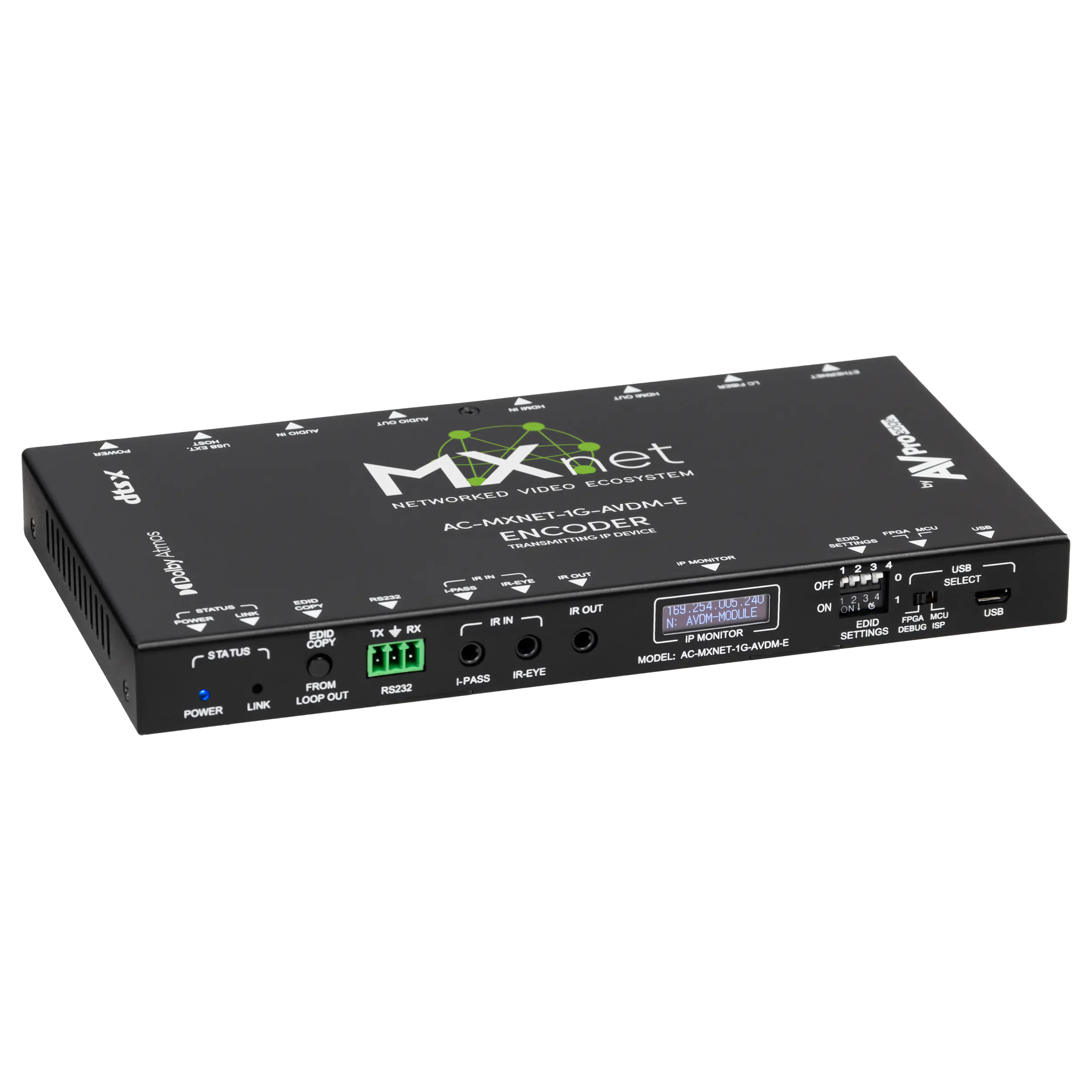

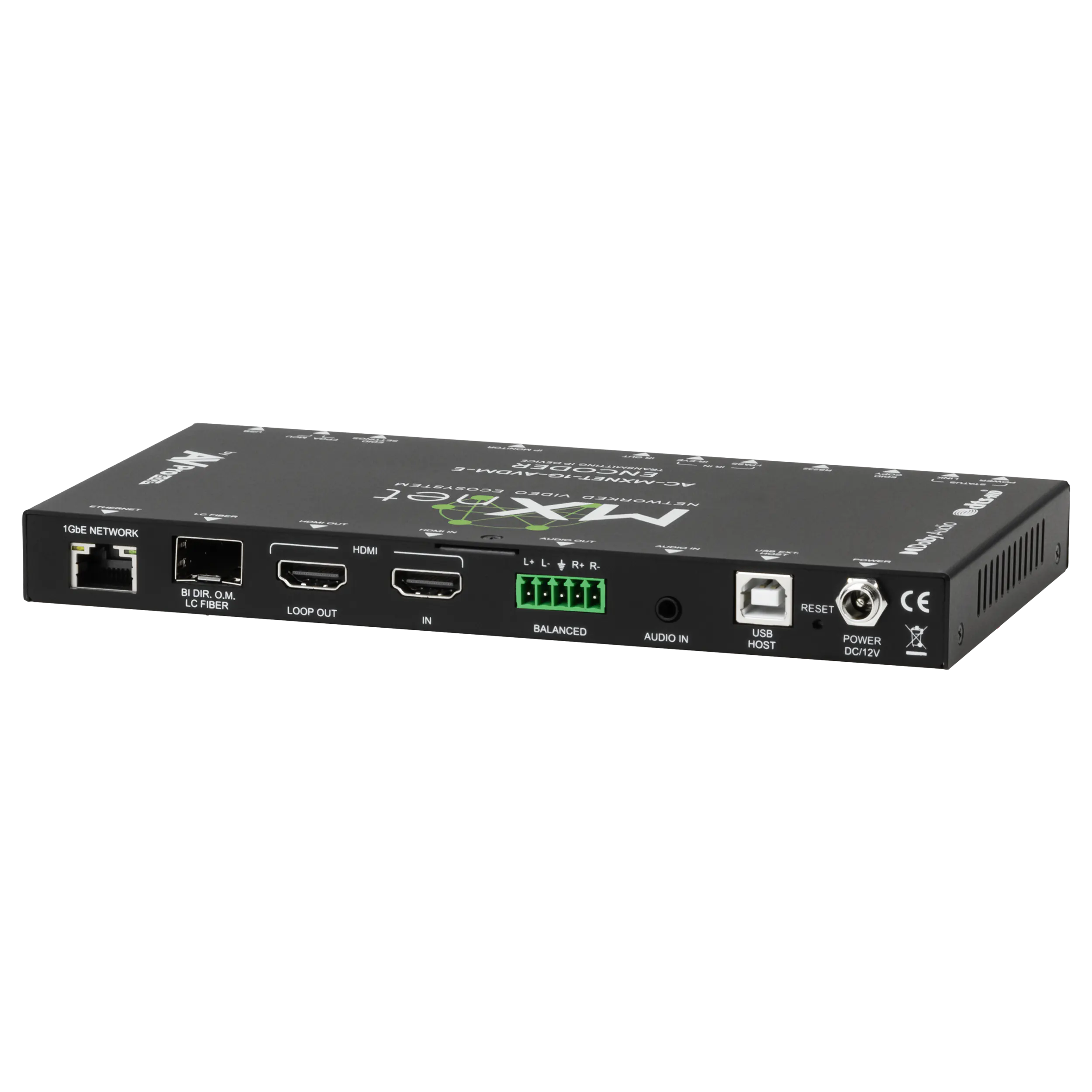

Ports
Ethernet(1) × female RJ45
SFP(1) × SFP Slot
HDMI(2) × HDMI Type A 19-pin, female, one HDMI input, one HDMI loop out
Audio(1) × 5 Pin Terminal Block, Balanced L/R Audio out
(1) × 3.5 mm mini stereo jack, Audio in
IR(1) x 3.5 mm mini-stereo jack (IR-PASS)
(1) x 3.5 mm mini-stereo jack (IR-EYE)
(1) x 3.5 mm mini-stereo jack (IR-OUT)
RS232(1) × 3-pin Terminal Block
USB(1) × USB 2.0 Type-B for USB keyboard/mouse extension
(1) × USB Micro for MXnet service
Distance
Ethernet100 Meters/ 330 Feet over CAT5e and above
SFP and Fiber1000BASE-SX SFP Transceiver Module
(MMF, 850nm, 550m, LC, DOM)
1000BASE-LX/LH SFP 1310nm 10km Transceiver Module
Environmental
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity5-90% RH (No Condensation)
CoolingFanless Cooling
Acoustic Noise Level0dB
Power
Max Power Consumption8.5W
PoE (Power over Ethernet)IEEE 802.3af (15.4W)
Power Supply UnitInput: AC 120-240V-50/60Hz 0.8A
Output: DC 12V 2A
Dimensions
MountingRack and Furniture mount support
Dimensions (Unit Only Width/Depth/Height)mm: 199.14 X 103.12 X 13.47
inch: 7.84 X 4.06 X 0.53
Dimensions (Packaged Width/Depth/Height)mm: 309.88 X 180.09 x 54.10
inch: 12.2 X 7.09 X 2.13
Weight (Unit)1.25 lbs/0.55 kg
Weight (Packaged)1.65 lbs/0.74 kg
RegulatoryCE/FCC/UL
Product Warranty10 Years
 Specifications subject to change without notice.  Mass & dimensions are approximate

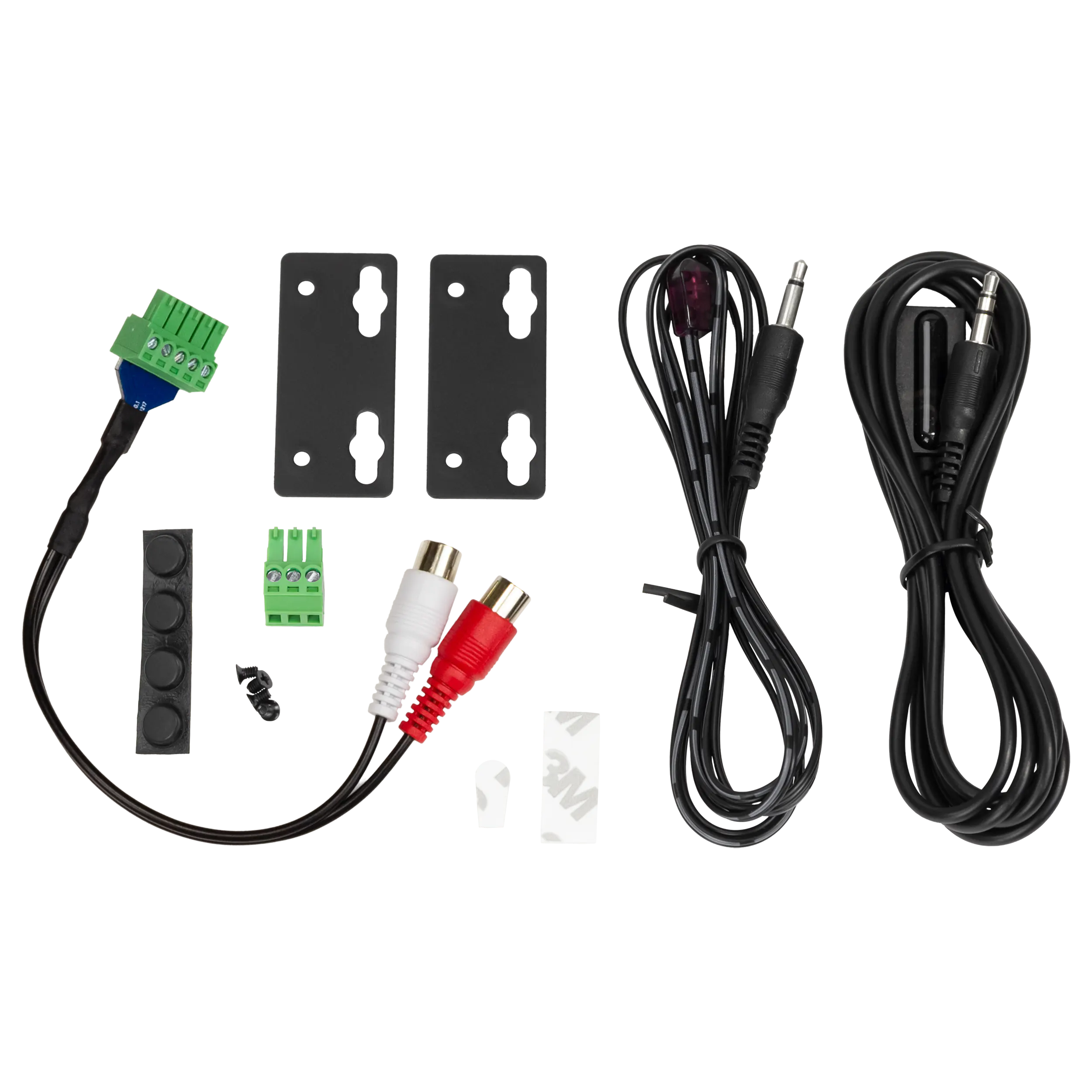

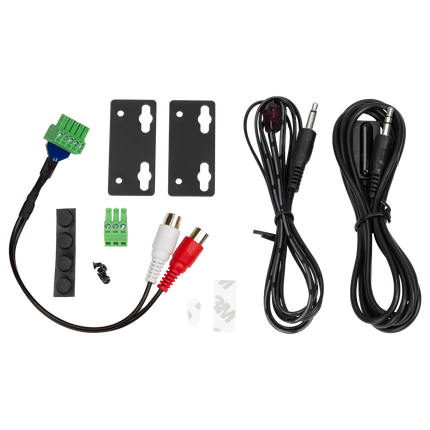

  • AC-MXNET-1G-AVDM-E (Encoder/Transmitter Device)
  • 1 x IR Emitter
  • 1 x IR Receiver
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets
  • 1 x 3-Pin Terminal Block
  • 1 x 5-Pin to 2ch Audio Extraction Cable

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
