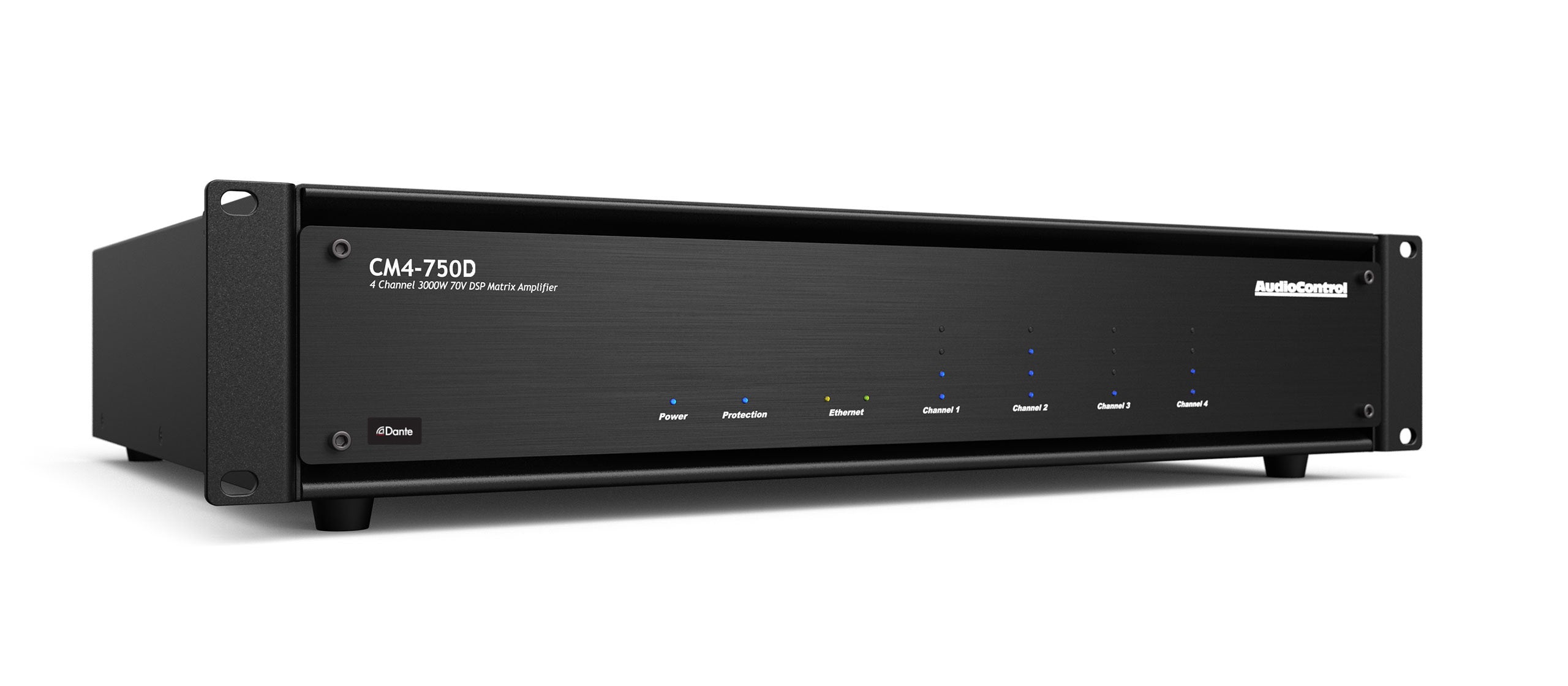

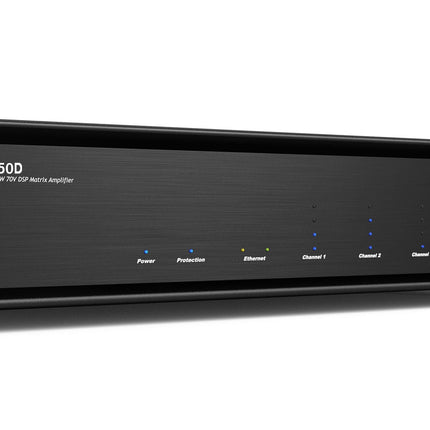

CM4-750D with Dante

Description

4-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante

AudioControl’s 70 volt amplifier solutions deliver superior quality power and sound through a large number of speakers, ideal for outdoor audio systems as well as a large variety of commercial A/V applications. DSP control and signal matrixing capabilities from AudioControl’s award-winning Director Series amplifiers enable integrators to precisely tailor the sound to any environment. Choose from balanced/unbalanced analog, microphone and digital inputs. Outputs can be configured in mono or stereo, giving integrators the configuration flexibility they need to accommodate any system architecture. For maximum efficiency, system setup and diagnostics can be managed remotely via an IP using a responsive web interface.

DANTE SUPPORT

​Dante audio networking uses standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. Dante is the audio networking choice of nearly all professional audio manufacturers.

CM4-750D with Dante

Product form

4-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante

  • 2 outputs, 750W per zone
  • Dante audio distribution
  • Matrixable inputs
  • Powerful web interface with DSP Control

SKU: ACP-CMD-4750

  • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

Description

4-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante

AudioControl’s 70 volt amplifier solutions deliver superior quality power and sound through a large number of speakers, ideal for outdoor audio systems as well as a large variety of commercial A/V applications. DSP control and signal matrixing capabilities from AudioControl’s award-winning Director Series amplifiers enable integrators to precisely tailor the sound to any environment. Choose from balanced/unbalanced analog, microphone and digital inputs. Outputs can be configured in mono or stereo, giving integrators the configuration flexibility they need to accommodate any system architecture. For maximum efficiency, system setup and diagnostics can be managed remotely via an IP using a responsive web interface.

DANTE SUPPORT

​Dante audio networking uses standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. Dante is the audio networking choice of nearly all professional audio manufacturers.
  • FEATURES
  • POWER AND CONTROL AT YOUR FINGERTIPS
  • SPEAKER OPTIMIZATION PROFILES
  • SPECIFICATIONS
  • RESOURCES
  • Network DHCP Signal Matrix Amplifier With Volume Control
  • Dante Port
  • 4 Channels x 750 Watts at 70/100 V or 2Ω/4Ω (All Channels Driven)
  • 4 Channels x 625 Watts at 8Ω (All Channels Driven)
  • 1500 Watts of Bridged Power at 70/100 V or 4Ω/8Ω
  • Digital Signal Processing (DSP) Performance
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Built in Matrix Delivering Analog or Digital Inputs to be Routed To Any Zone or Digital Bus Output
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifier
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
  • Dual Digital Audio Bus Outputs
  • Commercial and Home Installations

The CM Series feature on-board digital signal processing, graphic & parametric equalization by zone, network monitoring and programming, digital and analog inputs, plus the addition of volume control, channel/zone grouping and zone audio presets. They also allow individual channel and zone selection via standard TCP/IP, delivering incredible power and AudioControl’s legendary audio performance.



Two digital inputs and outputs are both accessible in the matrixing so that any one of the input sources can be routed through the digital outputs. These digital outputs can be connected to other CM Series, The Director M or D Series or Architect digital inputs so that multiple amplifiers can receive any signal from any of the inputs.

AudioControl has partnered with a growing number of prominent architectural loudspeaker manufacturers to implement speaker performance profiles directly accessible from The Director® D Series onboard DSP. Each speaker manufacturer has provided critical performance data to AudioControl, enabling tailored profiles to be created and stored in software form. Factoring in the individual room acoustics for each home, these speaker profiles achieve an important step in providing the custom integrator the tools to deliver a premium entertainment experience by calibrating systems for their clients.



AUDIOCONTROL SOUND PARTNERS™



INPUTS
Inputs: 8 Balanced Inputs, 8 Unbalanced RCA Inputs, 2 Digital Combo Coax/TOSLINK Inputs
Input Sensitivity: 1 Vrms for full output, level at maximum
Input Gain: 30 dB
CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
Network Connection/Protocol: 10BaseT Ethernet TCP/IP
Communication Protocol: HTTP or Telnet
OUTPUTS
Amplifier Channels: 4
Power Output (70 V / 100 V): 750W per channel
Power Output (70 V / 100 V Bridged): 1500W
Power Output (8Ω / 4Ω): 625W per channel
Power Output (8Ω Bridged): 1250W
Minimum Speaker Load: 2Ω
Preamp Audio Outputs: 4 Balanced, 4 Unbalanced RCA, 4 Digital Coax Loop Outputs

WEIGHT & DIMENSIONS
Dimensions: 17” W x 15.5” D x 3.5” H (2 U)
Weight: 18.5 lbs (8.4 kg)




 IN THE BOX
Model CM4-750, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty

MANUAL
DATA SHEET
DRIVERS
AUTOMATION TABLE
FIRMWARE
SPEAKER PROFILES

DANTE CONTROLLER

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
