Bullet Train Professional Series USB 3.2 Gen 2 Type-A to Type-C cables
- VendorBullet Train
Legacy Support – USB 3.2 Gen 2 Type-A to Type-C SuperSpeed cables, capable of transfer speeds up to 10 Gbps, supporting legacy USB Versions 1.1 and 2.
99.99% Oxygen-free Copper Conductors – High conductivity, low attenuation, and superb corrosion resistance enable passive Bullet Train professional-grade USB cables to provide precise data transfer. OFC provides AOC cables with superior communication signaling.
Precision-machined Connectors – Originally conceived as a connect-once, virtually permanent connection format, USB's versatility has led to devices that require constant insertion/desertion cycles. Precision machining enables Bullet Train USB cables to create repeatable, secure connections without metallurgical fatigue, extending cable life and preserving long-term cable performance.
OM3 High-Bandwidth Fiber – Active Optical Cable models use a high-purity, high-bandwidth core with low-reflective polymer cladding to eliminate flashing and image blackouts many low-cost AOC cables are susceptible to.
Data-grade AOC Transceiver – Data center-grade transceivers are built to higher standards with tighter tolerances for long life and 100% duty cycles compared to high-parts-volume AOC cable transceivers. Data-grade transceivers offer improved EMI resistance, essential as each cable end is coupled to noisy digital electronics. Additionally, they offer lower latency and support higher data rates while consuming less power.
Enhanced Interoperability – Bullet Train Professional Series USB cables have undergone extensive testing with more than 80 leading devices in various cross-configurations to ensure compatibility in the field the first time and every time.
Backward Compatibility – Professional Series Bullet Train USB cables operate at the lowest common speed capability, making them compatible with any USB device (up to USB 3.2 Gen 2 (2x1)/ 10 Gbps.
Lifetime Warranty – Install with peace of mind; Bullet Train’s no-hassle lifetime guarantee covers you and your clients.

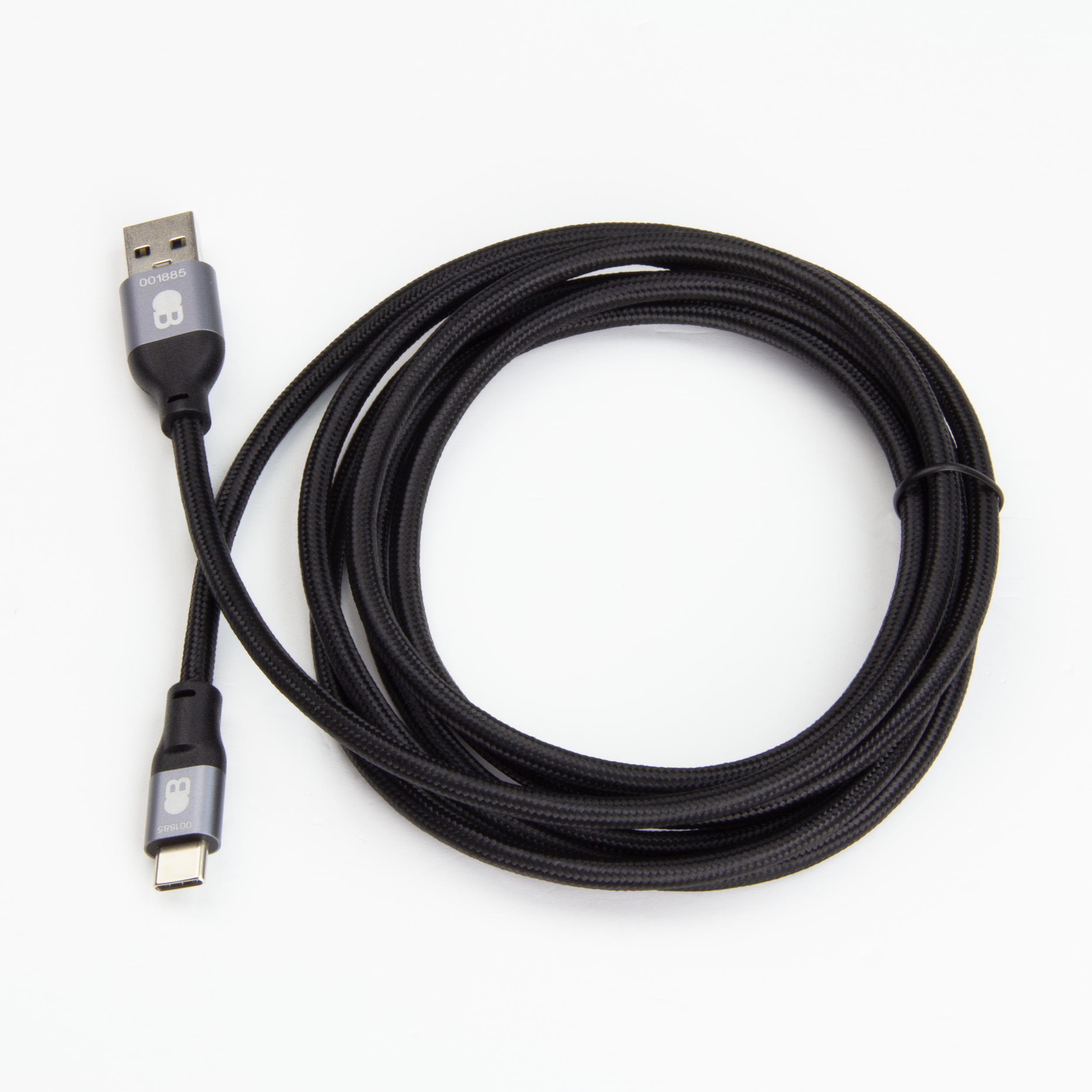

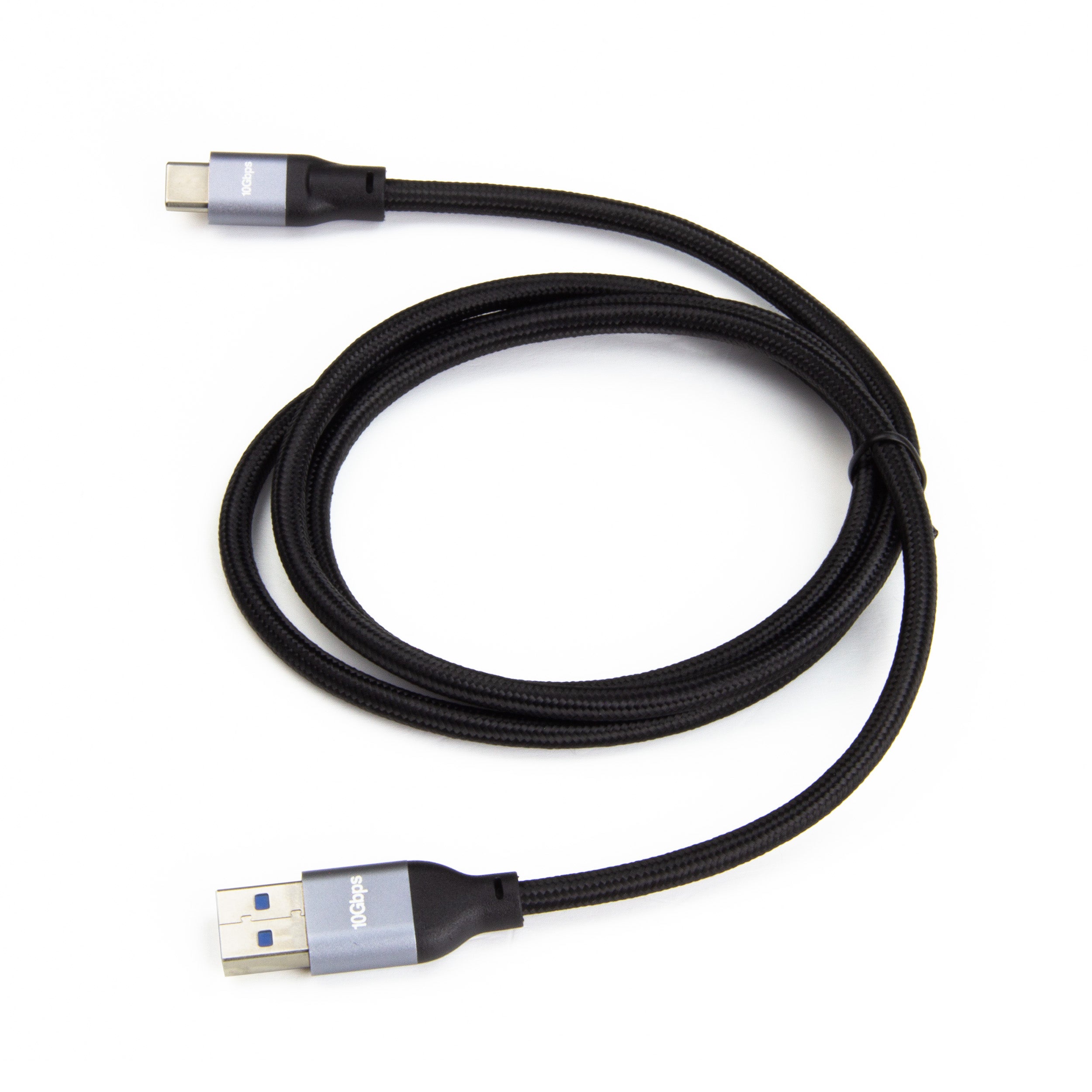

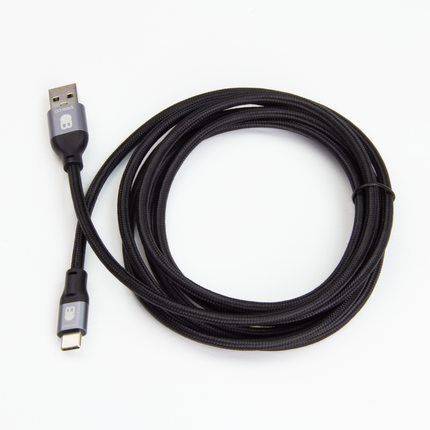

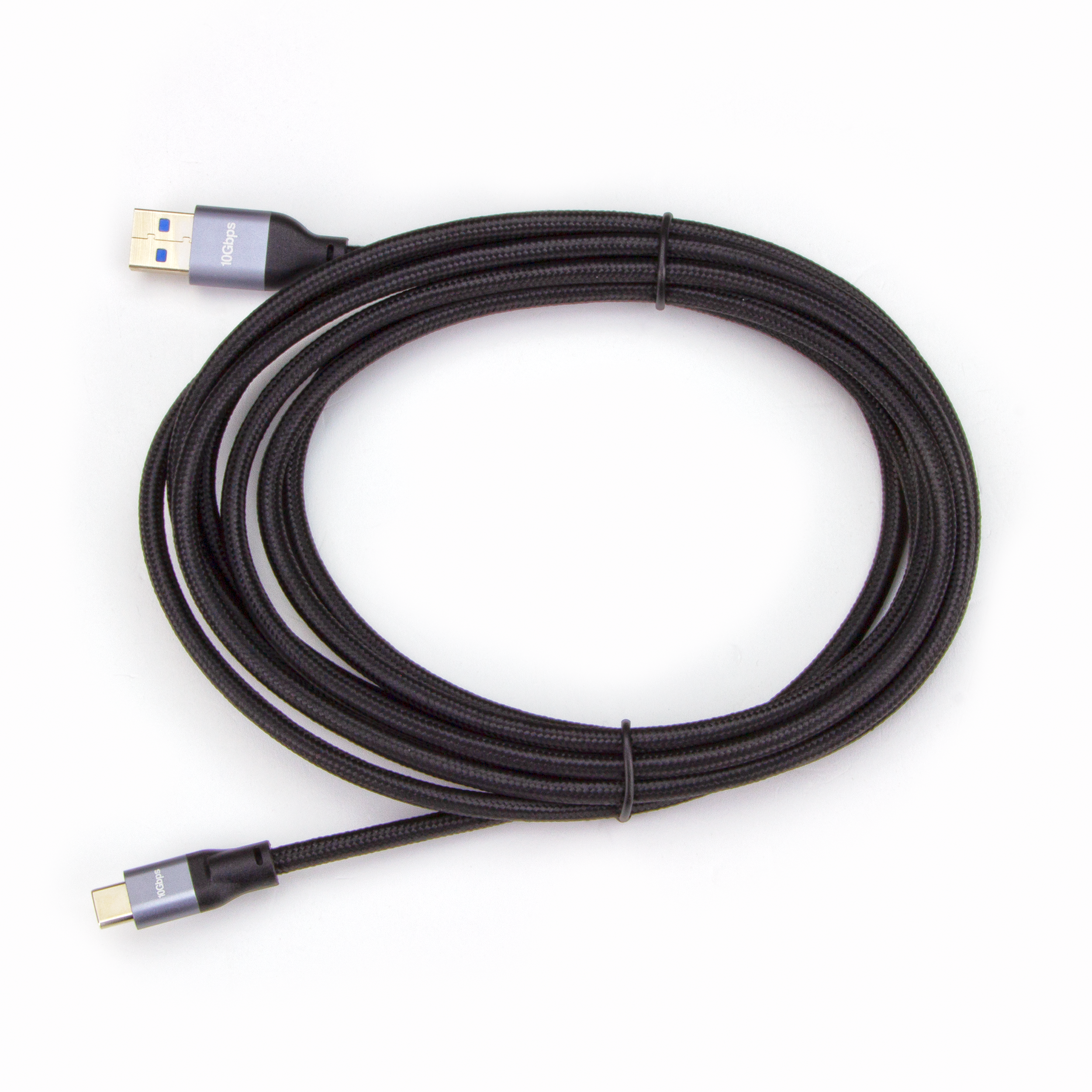

Copper Cables
USB Type | USB 3.2 Gen 2 (2x1) |
Connector Type | USB Type-A Male to USB Type-C Male |
Available Lengths | BT-USB-A2C-01 - 1 m (3.2 ft.) BT-USB-A2C-02 - 2 m (6.5 ft.) BT-USB-A2C-03 - 3 m (9.8 ft.) |
Max Bandwidth | 10 Gbps |
Retention Force | 4 kg / 8.8 lbs. |
Wire Gauge | 30 AWG x 24 AWG |
Internal Wire Construction | 4C (2 x Differential signal pairs) |
Cable Impedance | 95 Ohms ± 5 Ohms |
Cable Outer Diameter | 4.8 mm (.188 inches) |
Plug Dimensions (L x W x D) | USB Type-A - mm: 4.5 x 12 x 20.4 inches: .177 x .472 x .803 USB Type-C - mm: 17.8 x 8.55 x 2.4 inches: .700 x .336 x .094 |
Plug Material | Nickel-plated |
Casing Material | Aluminum |
Outer Shielding Material | PVC Jacket (UL VW-1) |
Bend Radius | 30 mm |
EMI/EMC/Safety Certifications | UL |
Environmental | RoHS |
Lead-free (Pb-free) | Yes |

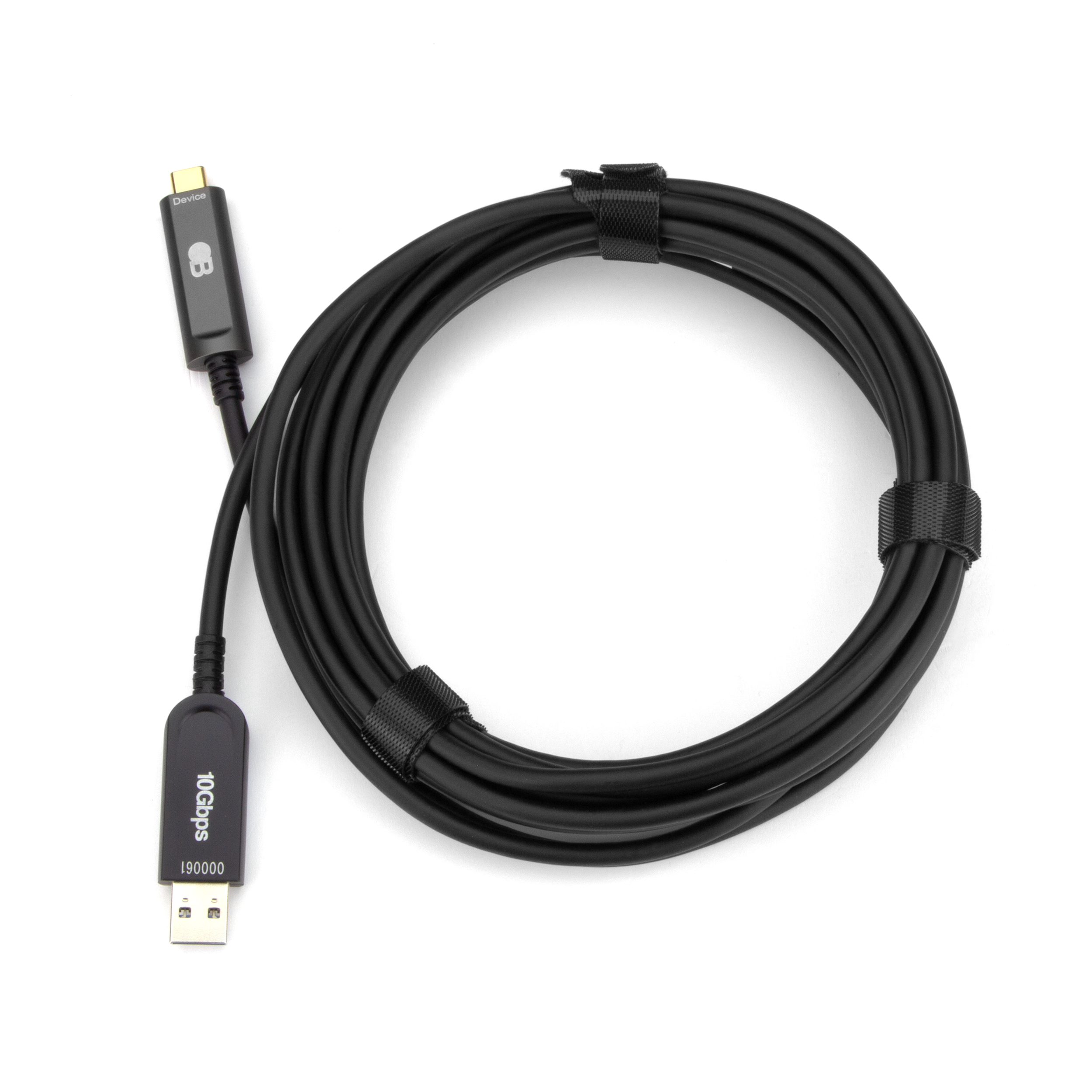

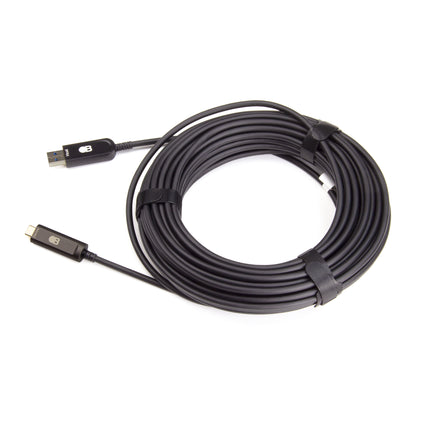

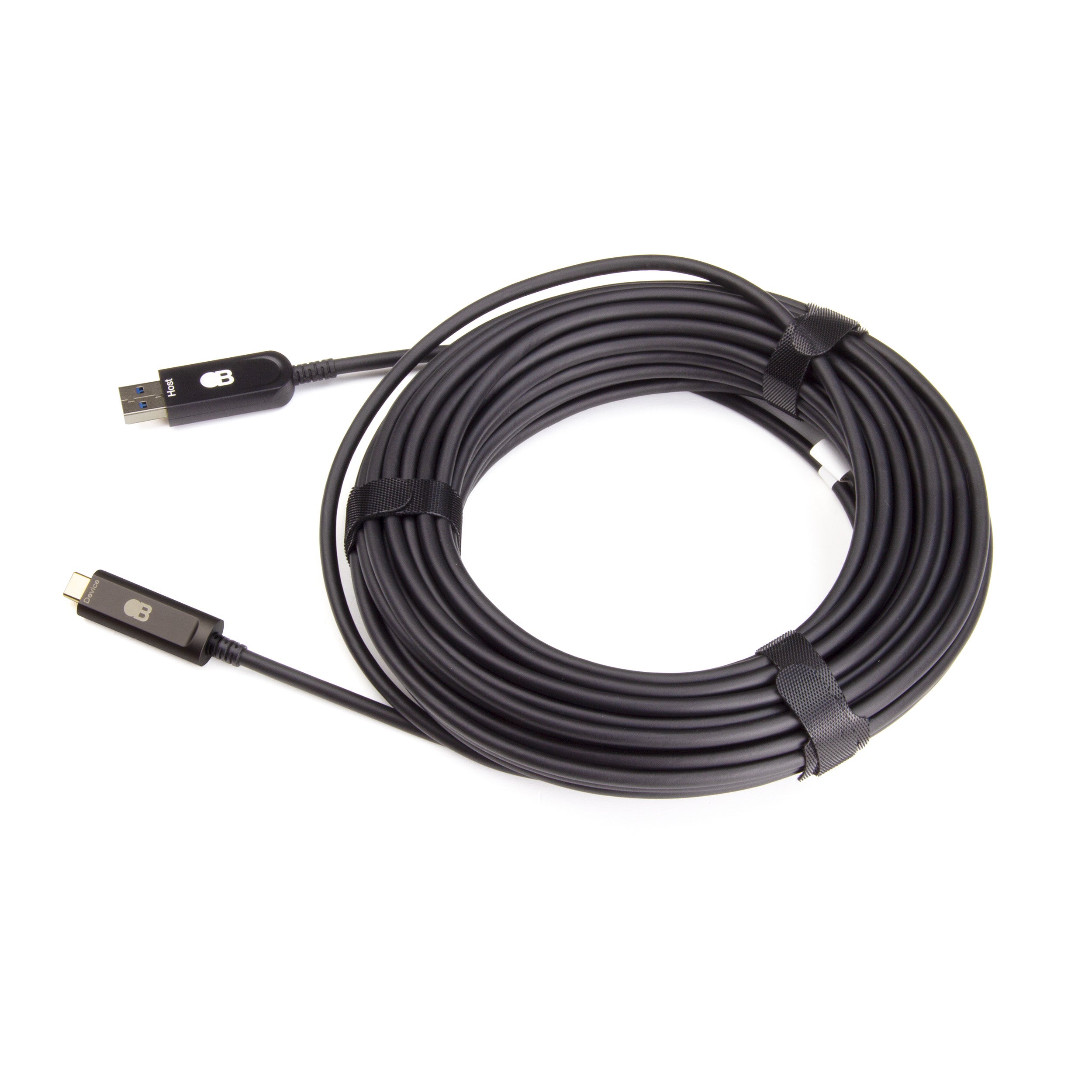

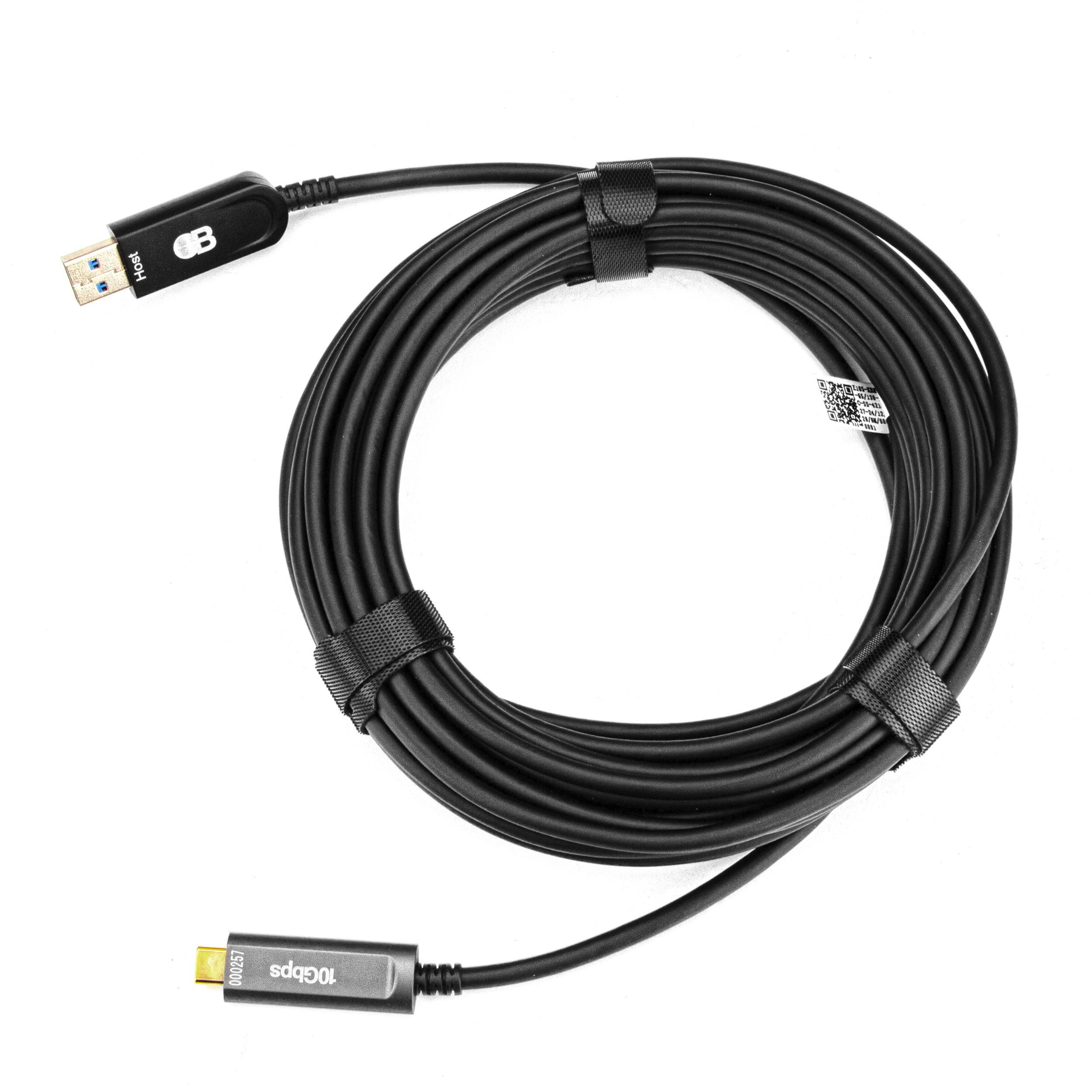

AOC Cables
USB Type | USB 3.2 Gen 2 (2x1) |
Connector Type | USB Type-A Male to USB Type-C Male |
Available Lengths | BT-USB-A2C-05 - 5 m (16.4 ft.) BT-USB-A2C-08 - 8 m (26.2 ft.) BT-USB-A2C-15 - 15 m (49.2 ft.) |
Max Bandwidth | 10 Gbps |
Retention Force | 3 kg / 6.6 lbs. |
Wire Gauge | 28 AWG x 26 AWG x 21 AWG |
Internal Wire Construction | Fiber + 2x conductors for SuperSpeed RX/TX 1x conductor for CC 1x pair for VBUS/GND 1x pair for D+/D- |
Cable Impedance | 90 Ohms ± 10% |
Cable Outer Diameter | 4.8 mm (.188 inches) |
Plug Dimensions (L x W x D) | USB Type-A - mm: 40 x 18 x 9 inches: 1.57 x .708 x .354 USB Type-C - mm: 41 x 15 x 7.5 inches: 1.61 x .590 x .295 |
Plug Material | Silver-plated |
Casing Material | Zinc Alloy |
Outer Shielding Material | PVC Jacket |
Bend Radius | 48 mm |
EMI/EMC/Safety Certifications | UL |
Environmental | RoHS |
Lead-free (Pb-free) | Yes |
