MXnet is the AV over IP video distribution ecosystem from AVPro Edge. With the MXnet Ecosystem, integrators finally have an end-to-end solution developed with them in mind. Our engineering team focused on three things, stability of the entire system, interoperability with any HDMI source, display, USB device, or control system, and easy deployment of the entire system. MXnet allows for unlimited sources, displays, USB devices & video walls; MXnet is the perfect video distribution system for your next installation.
What Makes MXnet Different?
All system Components Designed Engineered and Manufactured by Us
Our #1 goal is Ease of Deployment with a long-term stable solution
Fast Switching
Including 4K and Format Changes
Unlimited Video Walls
Configure and execute an unlimited amount of video walls
Extensive Video Format Support
From 720p to 4K60 (4:4:4), with Interlaced to
progressive conversion
10-Year Warranty
Install with confidence
Downloads:
Network Switches
MXnet 1G switches are specifically designed for AV-over-IP applications, providing excellent performance for video distribution. These switches maintain less than 40ms latency, ensuring smooth video playback.
MXnet 1G 12 Port Network Switch with 8 x 1G RJ-45 Ports and 4 x 10G SFP+ Ports
AC-MXNET-SW24
MXnet 1G 24 Port Network Switch with 20 x 1G RJ-45 Ports, 4 x 1G SFP Ports, and 4 x 10G SFP+ Ports
MXnet 1G 48 Port Network Switch with 48 x 1G RJ-45 Ports and 4 x 10G SFP+ Ports
Controller

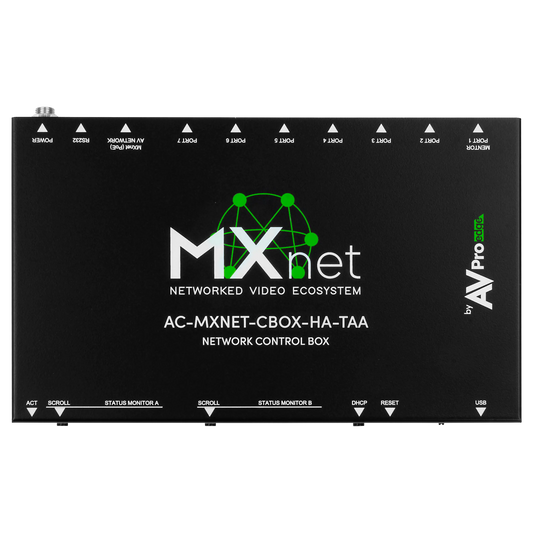

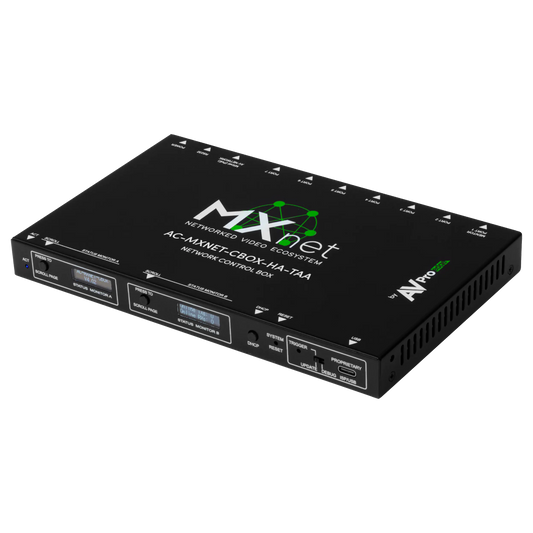

The CBOX is the key to MXnet Ecosystem universe as the multicast routing, A/V data management, and control member of the team. The CBOX houses the system API used by MXnet Mentor and 3rd party control systems. The CBOX is POE powered and silently goes about its business of managing all things multicast and other data formats. The CBOX controls the whole Ecosystem, including audio/video switching/distributing, RS-232/USB/IR signal routing, video wall building, KVM and system management
End Points

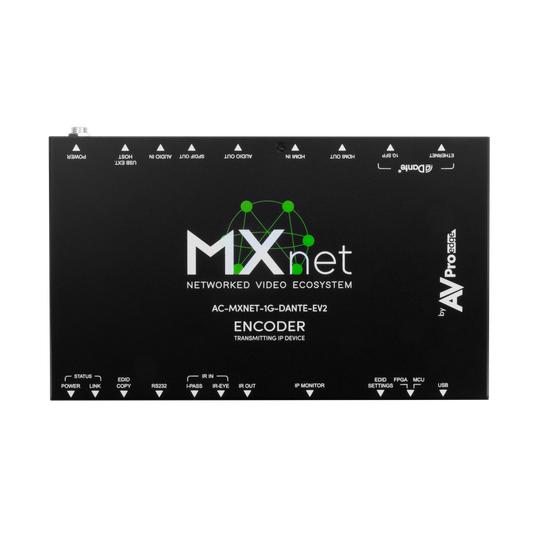

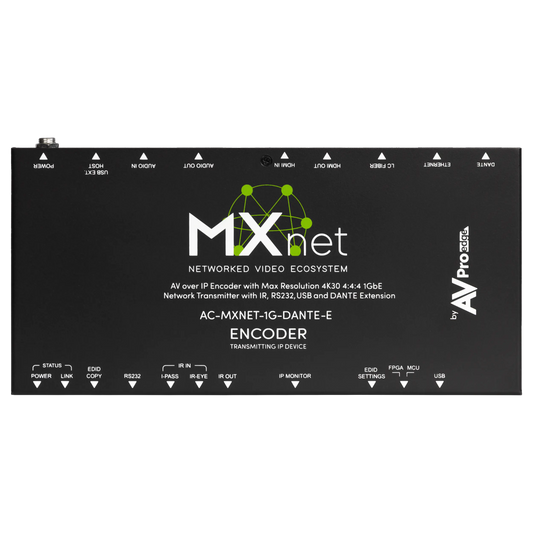

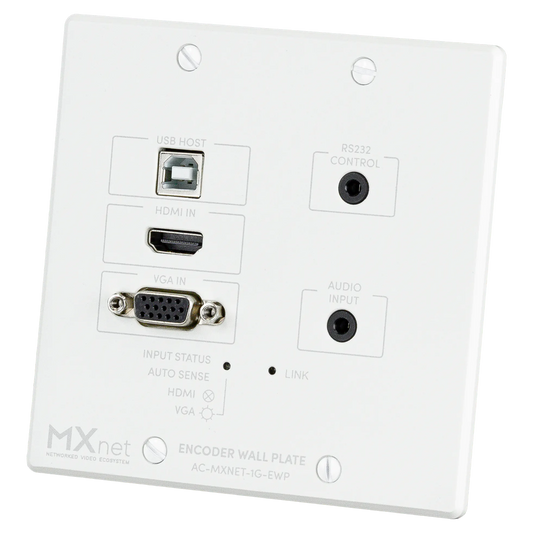

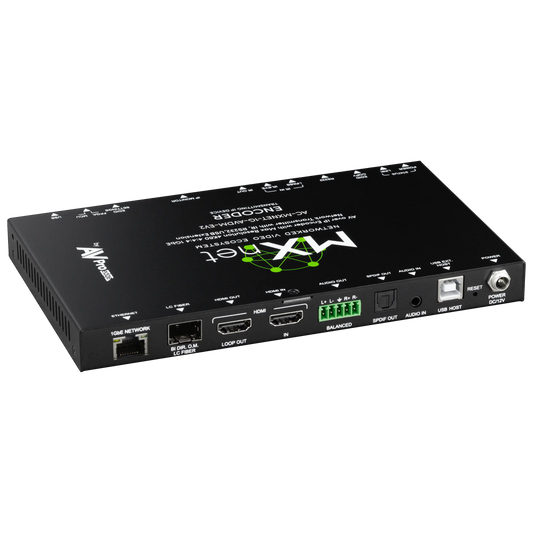

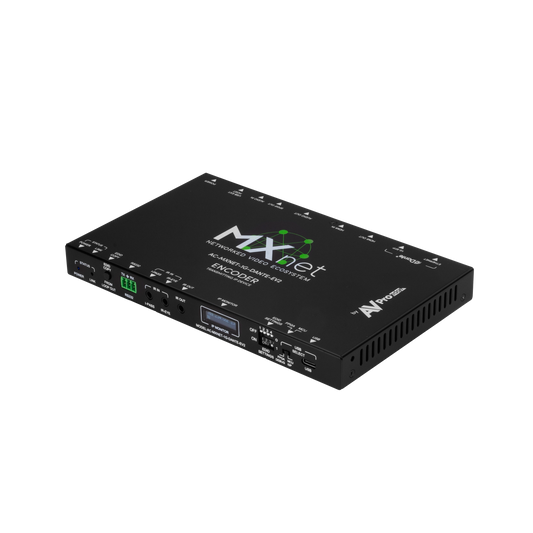

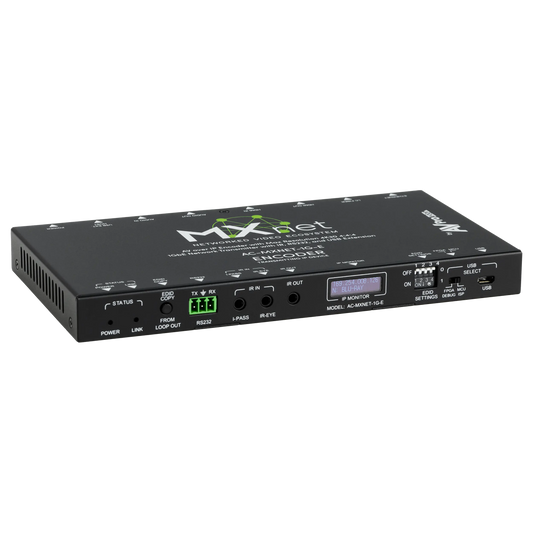

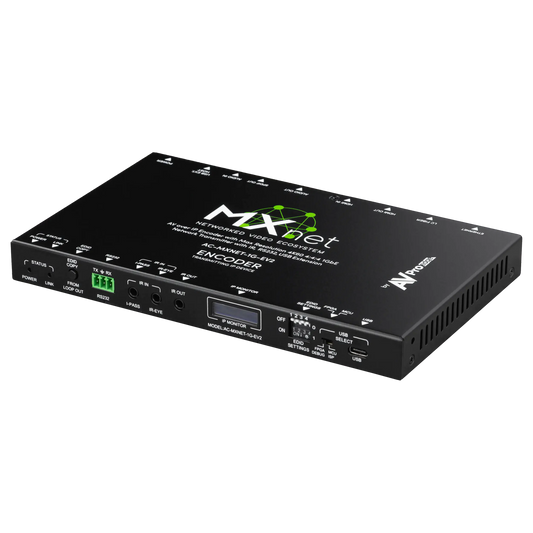

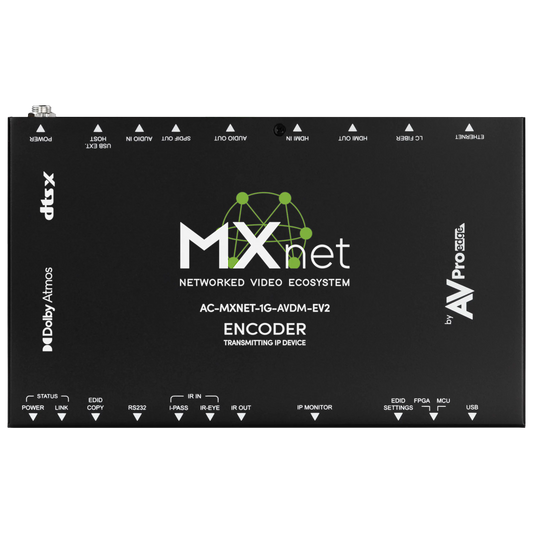

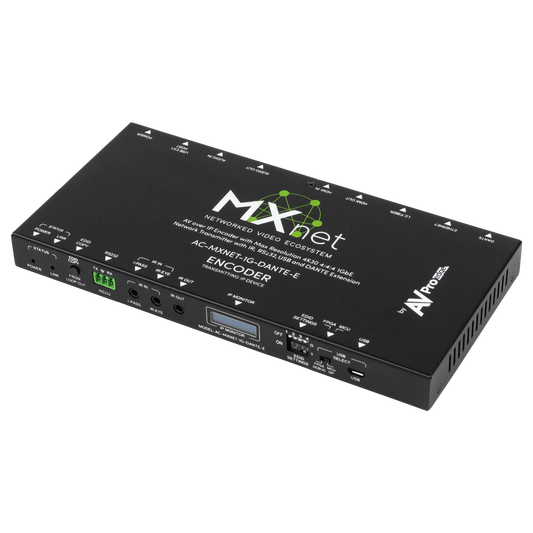

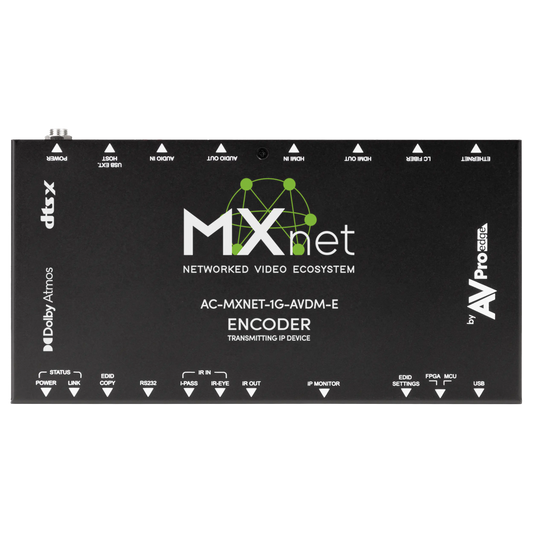

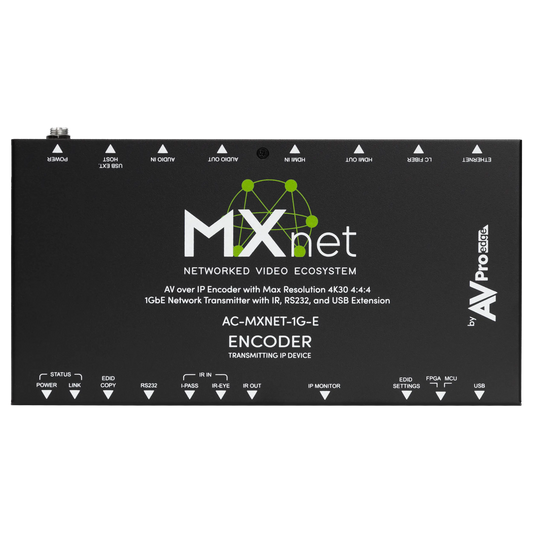

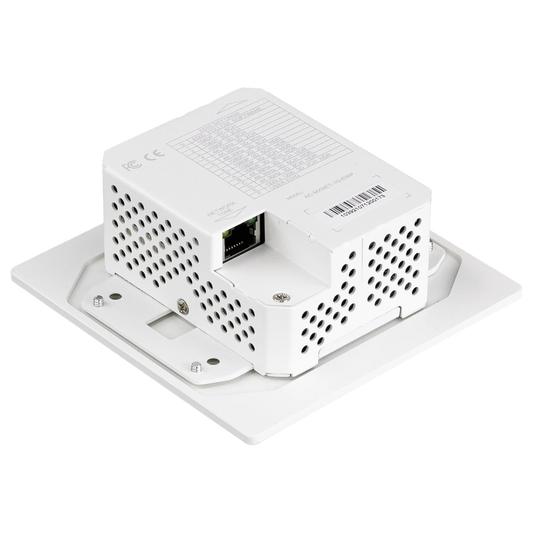

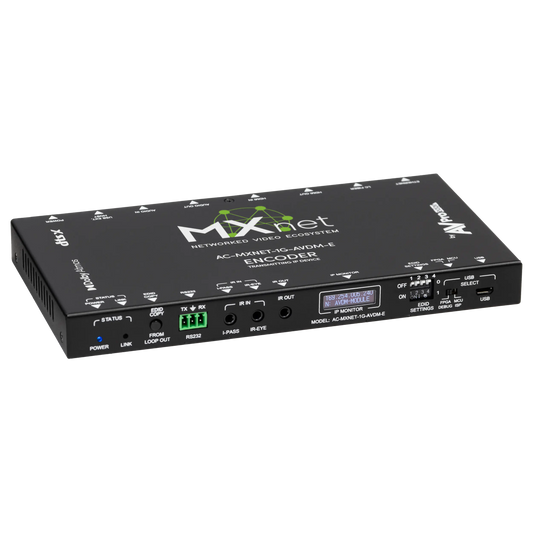

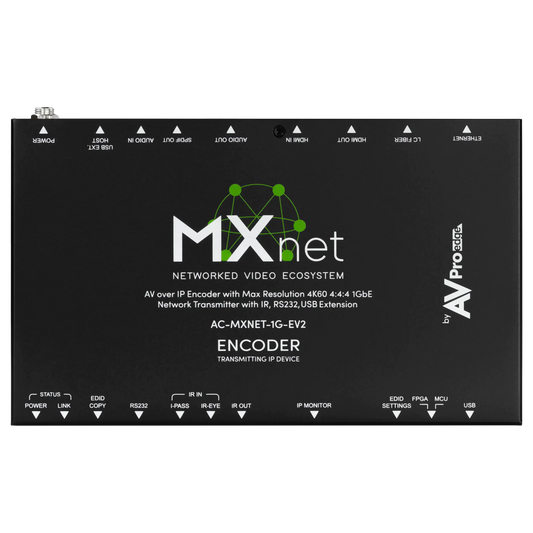

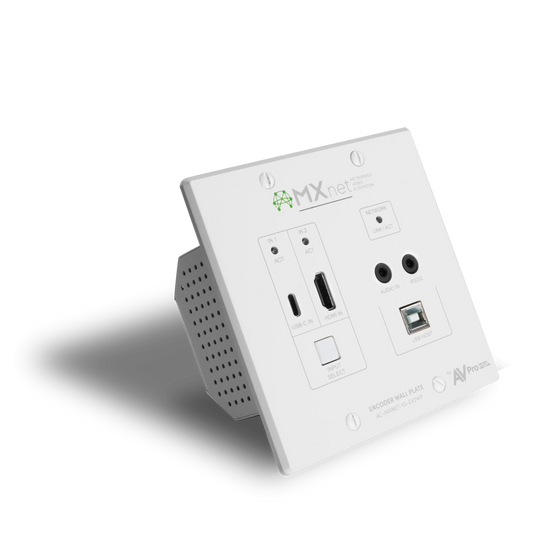

Encoders

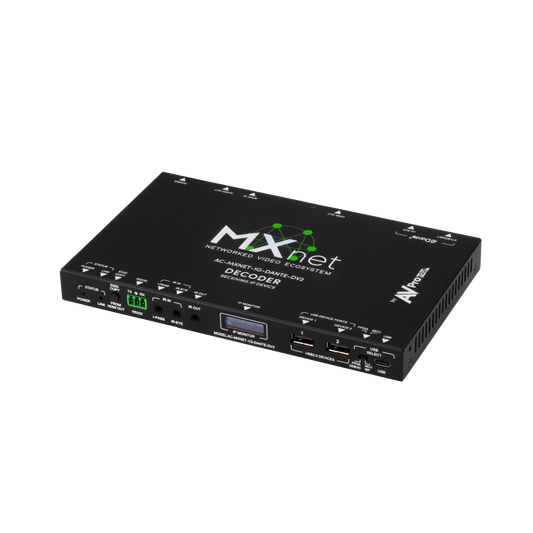

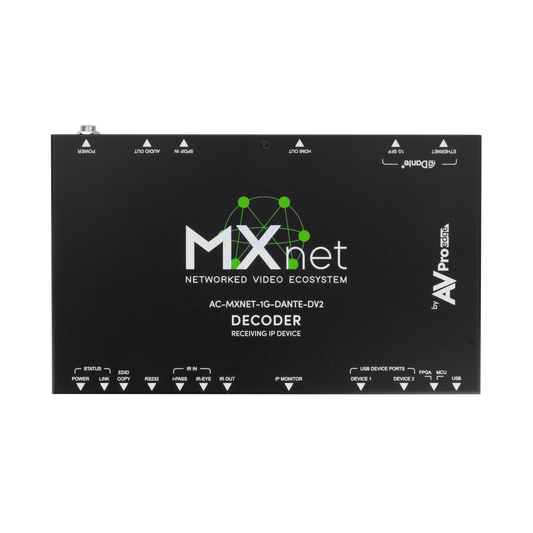

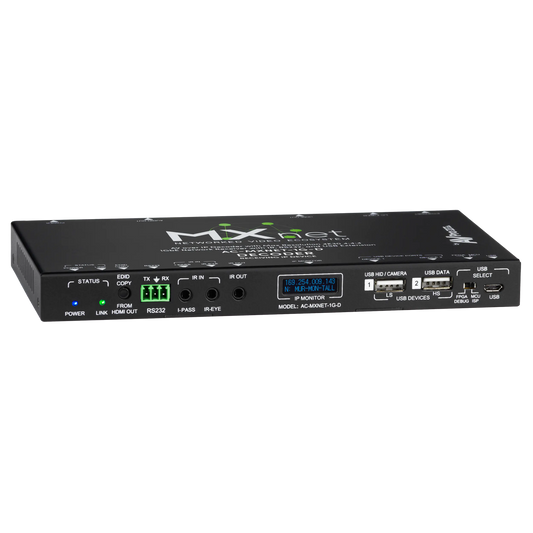

Decoders

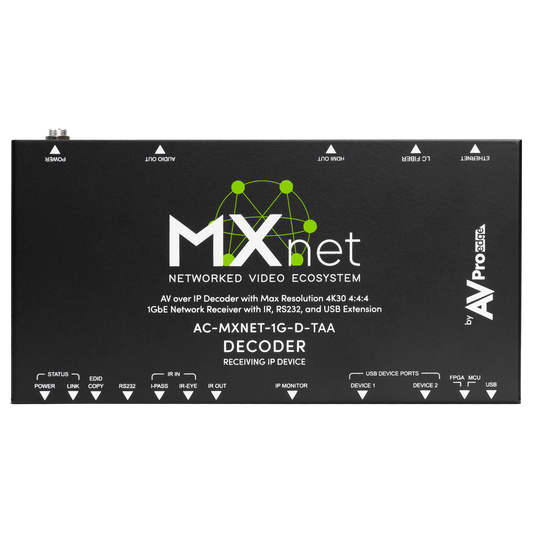

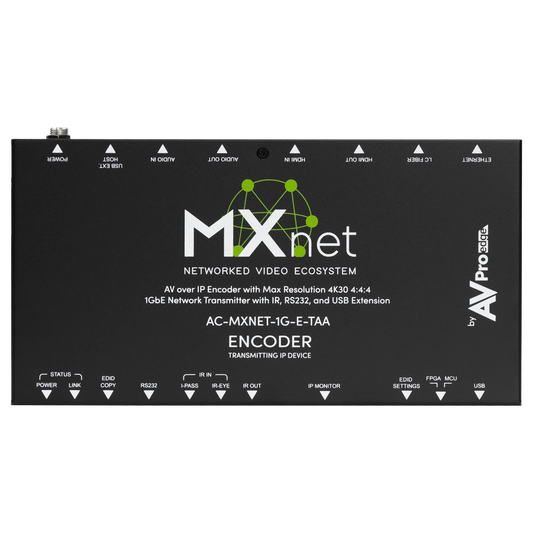

TAA Compliant End Points
AVPro’s American Manufacturing Initiative
This past Summer, AVPro sent shockwaves through the Commercial A/V industry by announcing the first steps on a path to manufacturing products in the United States would begin later this year. At that time, the factory, notably the former AVPro headquarters location in Sioux Falls, SD, had already undergone extensive remodeling and was housing a majority of the machinery ordered from Yamaha that will fabricate circuit board substrates and perform component parts insertion. Through the ensuing months, the line was completed and production test runs demonstrated failure-free precision with preproduction models.
Of paramount importance for making this capitalintensive investment was to skillfully craft products on these shores for compliance with the Trade Agreements Act (TAA), passed by Congress in 1979 and designed to limit US Government entities to US-made products (or products made in countries designated as fair trade partners). As you may be aware, we have a manufacturing partner, MTEA, in Shenzhen, CHN. Our collaboration has been fantastic, and it has markedly helped to fuel our success but has restricted our selling partners from soliciting GSA Schedule contracts with our video distribution products. Fabricating select, AVPro models from raw parts
TAA Compliance and the AVPro Revolution
Of paramount importance for making this capitalintensive investment was to skillfully craft products on these shores for compliance with the Trade Agreements Act (TAA), passed by Congress in 1979 and designed to limit US Government entities to US-made products (or products made in countries designated as fair trade partners). As you may be aware, we have a manufacturing partner, MTEA, in Shenzhen, CHN. Our collaboration has been fantastic, and it has markedly helped to fuel our success but has restricted our selling partners from soliciting GSA Schedule contracts with our video distribution products. Fabricating select, AVPro models from raw parts to final assembly in our hometown is the “pinch me” dream that eliminates that roadblock.
Expanding Horizons: AVPro’s MXnet TAA-Compliant Products
Expanding Horizons: AVPro’s MXnet TAA-Compliant Products
In early 2024, we will begin shipping US versions of MXnet 1G encoders and decoders, the MXnet 10G TCVR, and AC-EX40-444/ AC-EX70-444 kits that exceed TAA compliance requirements. Commercial integrators accustomed to doing business via GSA Schedule contracts will soon have new opportunities to expand the MXnet footprint into installations from which they were previously excluded. All of us at AVPro are proud to know that our company will be among a limited number of American-based manufacturers able to declare TAA compliance, and more so for the impact this will have on the Sioux Falls economy.
Accessories
Racks
Mount up to 15 MXnet Encoders or Decoders and manage cables with ease.
A heavy-duty rack accessory designed to vertically organize up to 15 MXnet Encoders or Decoders.
Power Supply
SFPs
AC-1G-SFP-MM
This 1G SFP LC Multimode Module (Transceiver) allows users to connect a 1G fiber link from the AC-MXNET-SW24 to the AC-MXNET-SW10 or for end point extension with fiber.
AC-1G-SFP-SM
This 1G SFP LC Single Mode Module (Transceiver) allows users to connect a 1G fiber link from a network switch to an endpoint for extremely long-distance fiber runs.
This 10G SFP+ LC Multimode Module (Transceiver) allows users to connect a 10G fiber link from one MXnet 1G Network Switch to another.
Cables
10G SFP+ Direct Attach Copper Cable
The perfect solution for efficiently and reliably stacking MXnet 1G network switches.
- AC-MXNET-STACK-JUMP - 0.5 Meter
- AC-MXNET-STACK-1M - 1 Meter
- AC-MXNET-STACK-2M - 2 Meter
- AC-MXNET-STACK-3M - 3 Meter
10G SFP+ Active Optical Cable
Used for MXnet 10G and for connecting MXnet 1G Network Switches. These cables are superior in environments with EMI concerns, or where thinner, lighter, and more flexible cable is important.
- AC-10G-AOC-01 - 1 Meter
- AC-10G-AOC-02 - 2 Meter
- AC-10G-AOC-03 - 3 Meter
Network Switch Selection Guide
Above you can find each component of the ecosystem. Putting an ecosystem together is simple, with these determining questions you will know exactly what your installation calls for:
How many Sources? (this determines how many Encoder units you will need)
How many Displays? (this determines how many Decoder units you will need)
How many Endpoints? Add together the number of sources and displays (an endpoint is any connected encoder, decoder, or CBOX)
What type of signals are you using? 4K or 1080p (this determines how much data is needed)
With the above information you can use this chart to determine the network switch(es) you will need to purchase.
HOW MANY ENDPOINTS? | WHAT SWITCH TO USE? HIGH QUALITY DISTRIBUTION |
WHAT SWITCH TO USE? STANDARD DISTRIBUTION |
CABLE LINK BETWEEN SWITCHES |
---|---|---|---|
12 End Points or Less | AC-MXNET-SW12 | AC-MXNET-SW12 | N/A |
24 End Points or Less | AC-MXNET-SW24 | AC-MXNET-SW24 | N/A |
48 End Points or Less | AC-MXNET-SW48 | AC-MXNET-SW48 | N/A |
72 End Points or Less | AC-MXNET-SW48 and AC-MXNET-SW24 | AC-MXNET-SW48 and AC-MXNET-SW24 | 10G DAC Cable (x4) |
96 End Points or Less | AC-MXNET-SW48 (x2) | AC-MXNET-SW48 (x2) | 10G DAC Cable (x4) |
120 End Points or Less | AC-MXNET-SW48 (x2) and AC-MXNET-SW24 (40 Encoders MAX) | AC-MXNET-SW48 (x2) and AC-MXNET-SW24 (100 Encoders MAX) | 10G DAC Cable (x2) |
144 End Points or Less | AC-MXNET-SW48 (x3) (40 Encoders MAX) | AC-MXNET-SW48 (x3) (100 Encoders MAX) | 10G DAC Cable (x2) |
Every system needs a Controller for signal switching, so make sure you dedicate one endpoint for the AC-MXNET-CBOX-HA.
MXnet’s Ecosystem includes formatting such as resolution scaling, full EDID management, multifaceted video walls, and includes the MXnet MENTOR setup and control tool - making installations easy on the integrator, while also presenting a major WOW factor for your client. MXnet is the ideal audio/video distribution method for corporate, education, hospitality, government, financial, and large luxury homes.
MXnet and Netgear engineers have worked together to ensure qualifying Netgear switches are compatible with our line of encoders and decoders. Netgear has developed a configuration profile that they have named Video, which is found during setup when connecting to a Netgear AV-o-IP switch. Once this profile has been loaded, AVPro Edge encoders and decoders will work seamlessly with Netgear AV-o-IP switches.
For more information, please visit this website netgear.com
MXnet 1G Application Diagrams
MXnet 1G Connection Diagrams
Need helping purchasing? No problem we have a great network of distributors and reps that are ready to help. You can find your local distributor here.
Or give us a call at 877-886-5112 or shoot us an email at sales@avproedge.com.
